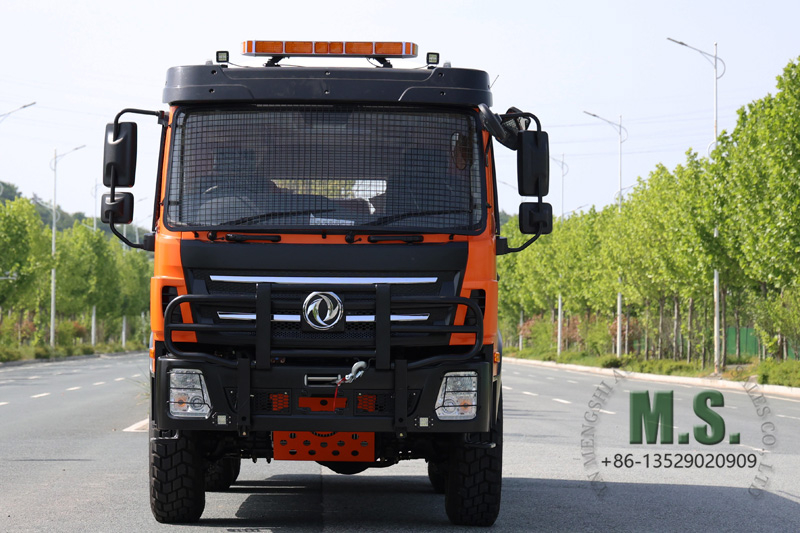

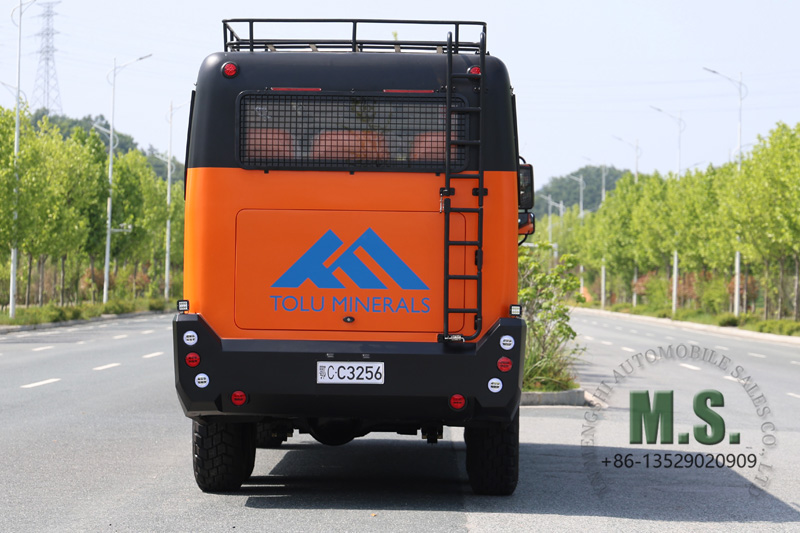

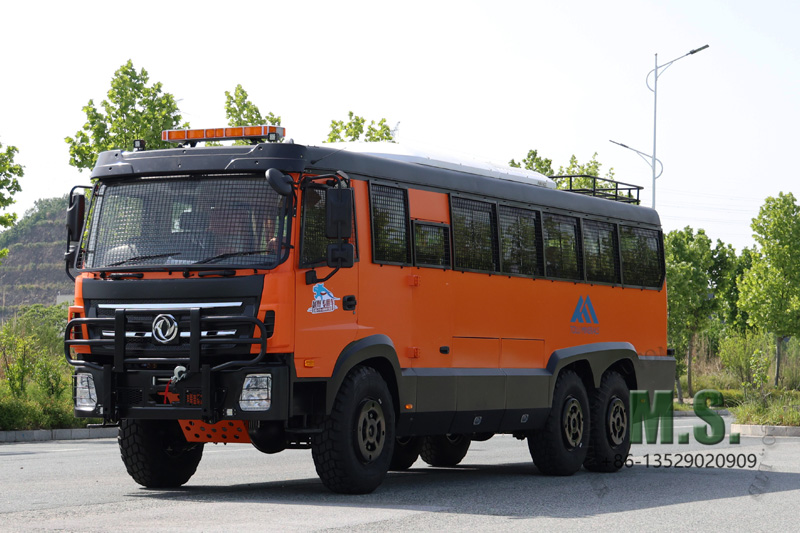

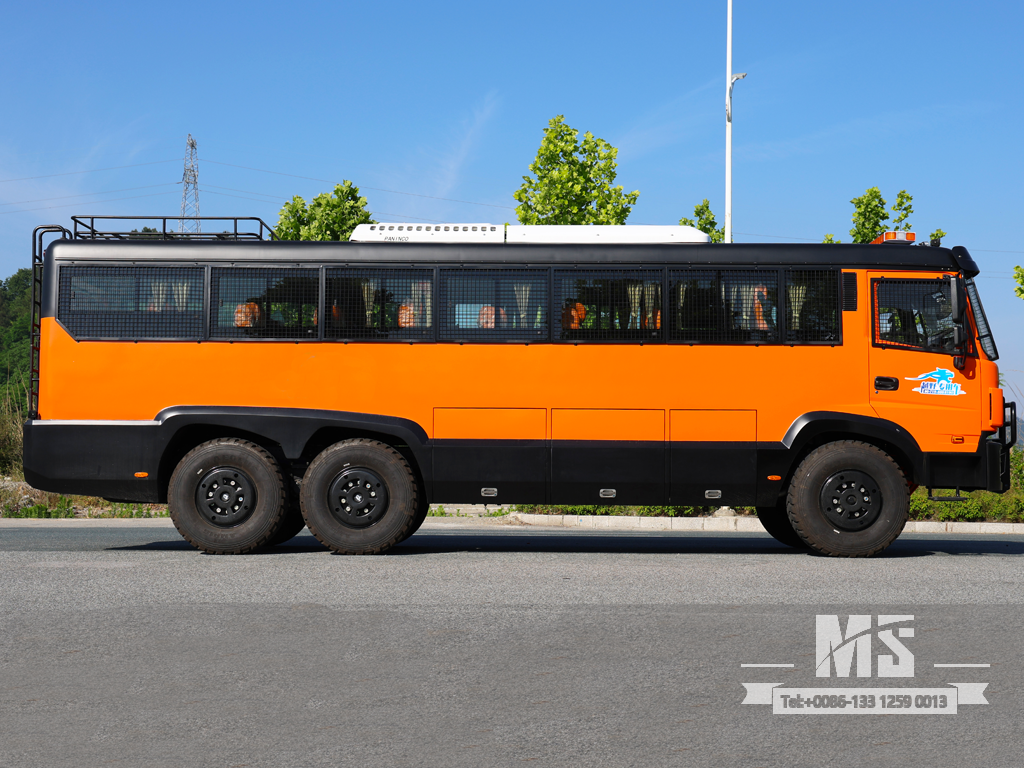

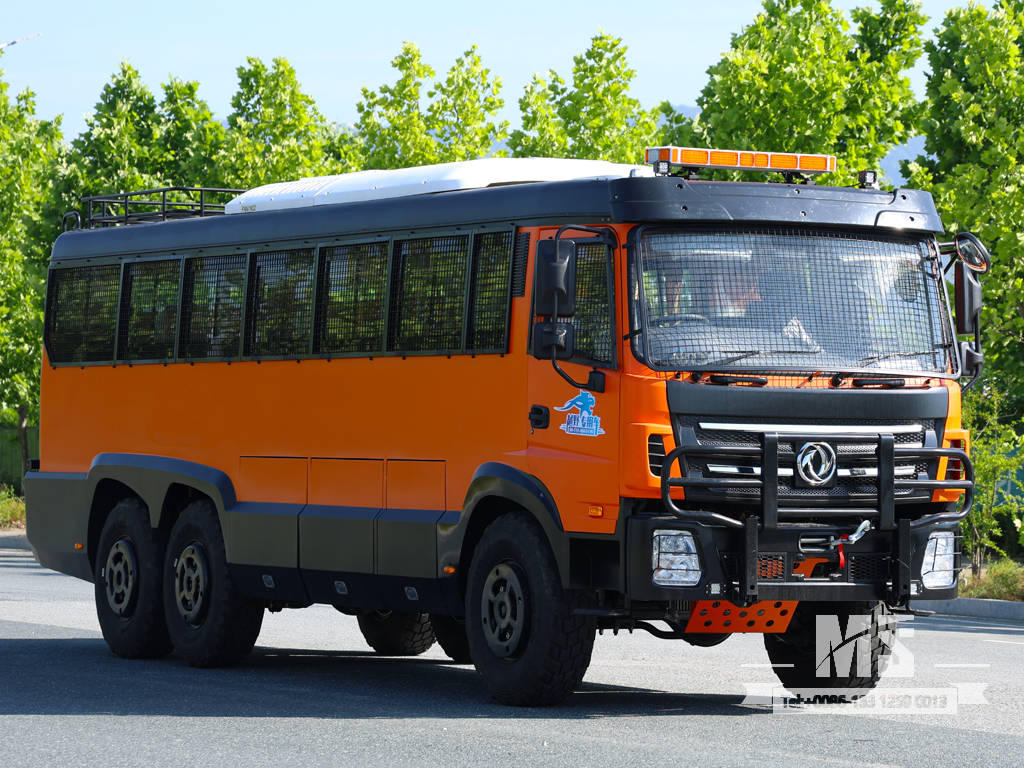

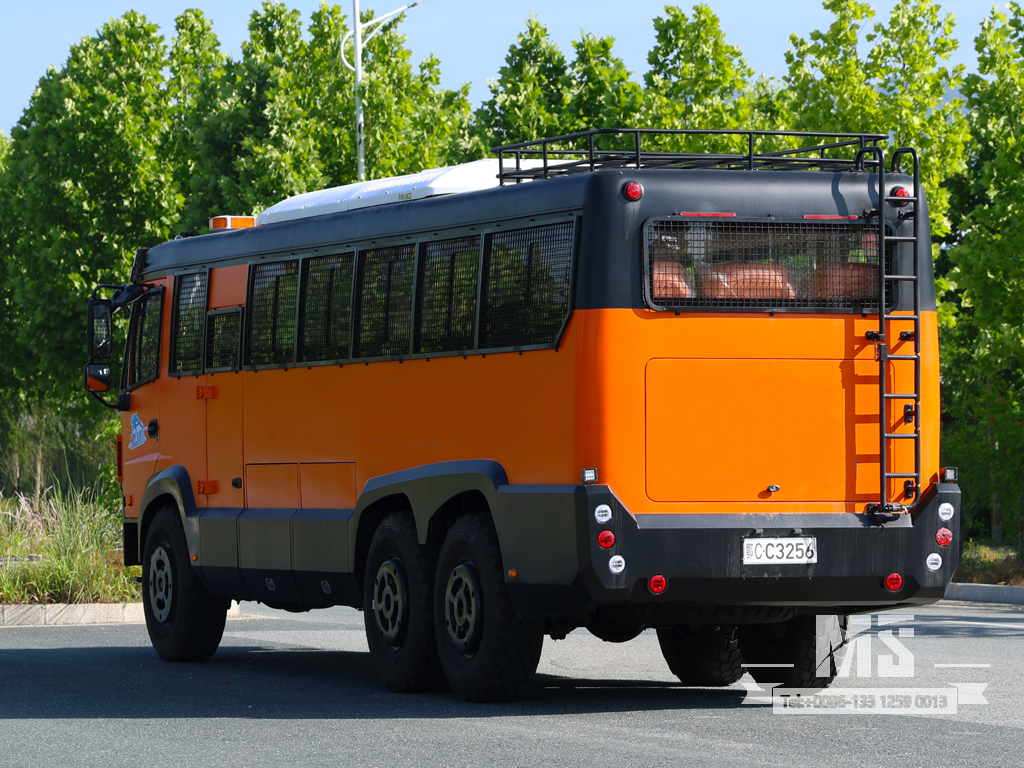

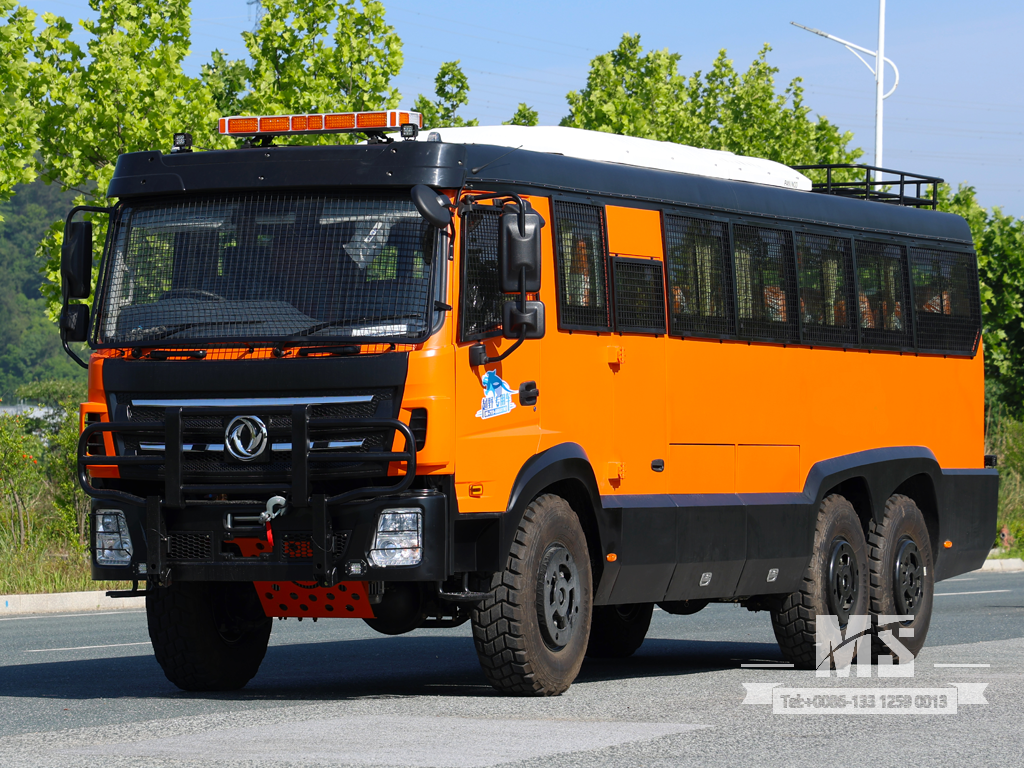

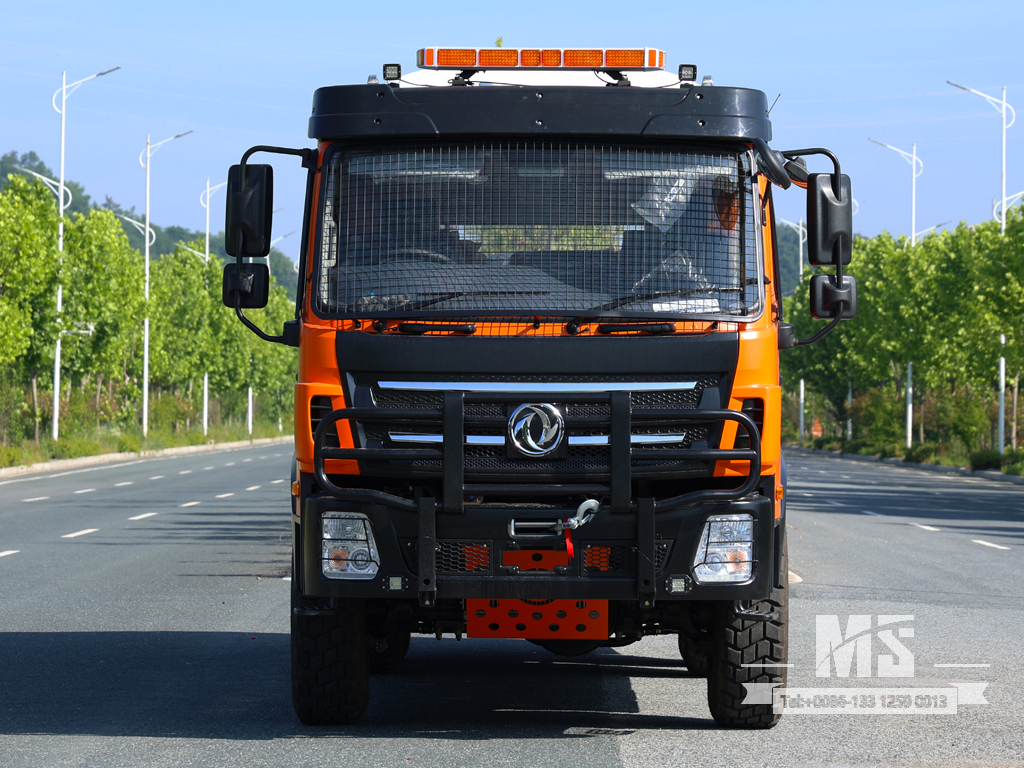

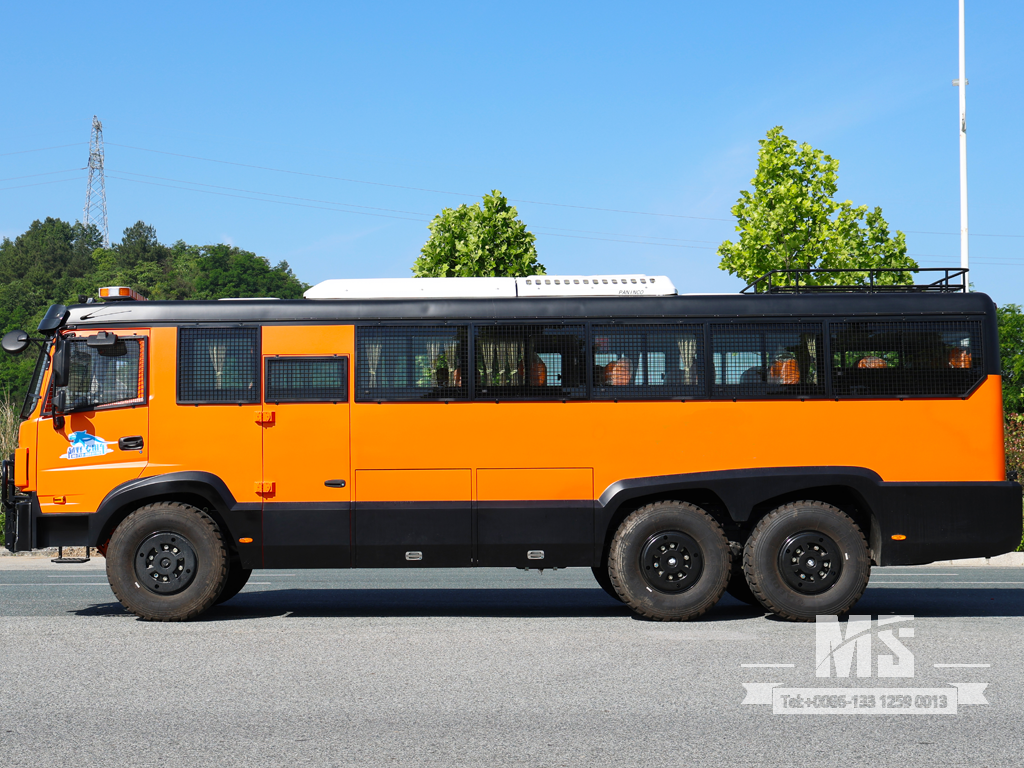

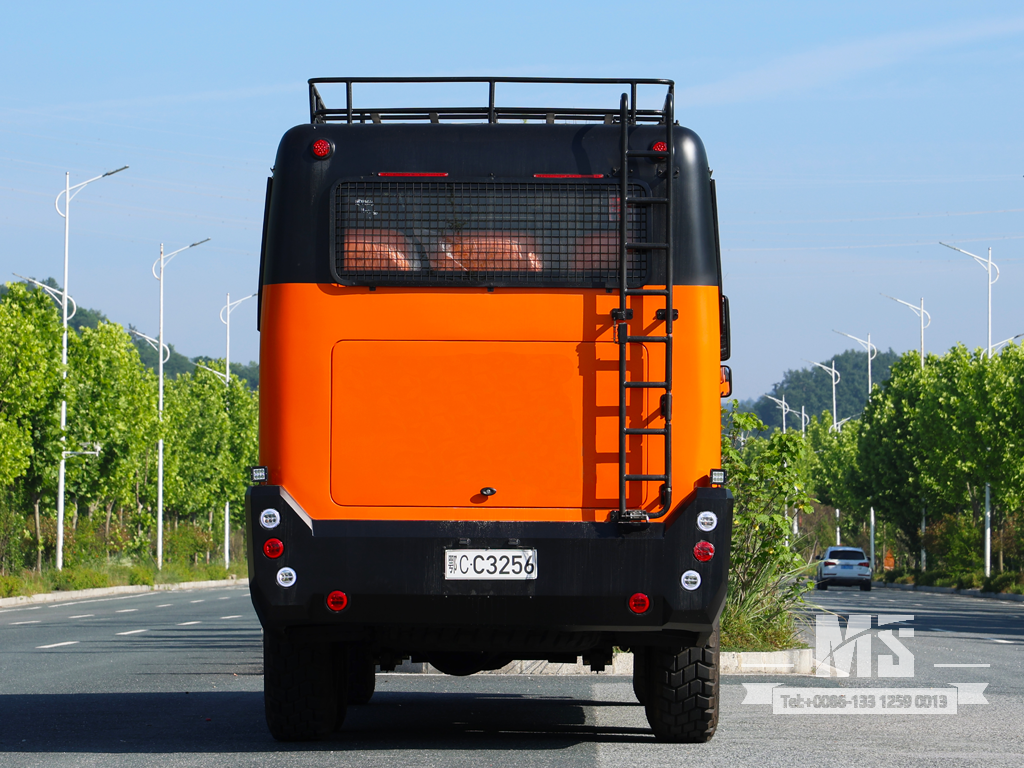

This 6×6 21-seater luxury high-spec right-hand drive off-road passenger bus is custom-built on Dongfeng 6×6 off-road chassis. Equipped with winches at both the front and rear, it is perfectly suitable for driving on harsh mountain roads.
Basic configuration |
Drive type | 6*6 |
Engine | B210 33 |

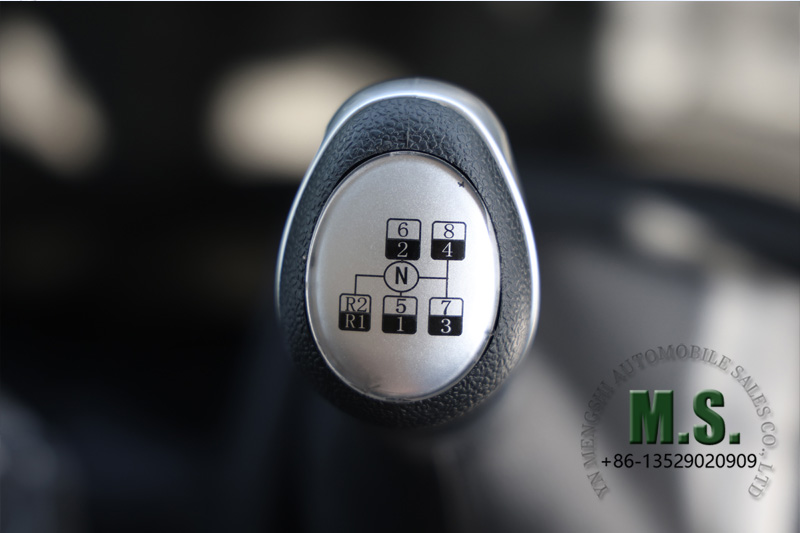

Transmission | eight gears(8JS85E) |
Transfer case | Part-time 6*6 High and Low Gears |
Driver Cab | Dongfeng Sharp-nosed Single-row |
Vehicle Axle |
Dont Alxe 3.5T/Middle Alxe 3.5T/Rear Alxe 3.5T
|
Tire | 12.5R20（6+1 Pieces） |
Electric circuit | 24V circuit system |
Leaf Spring | 9/13 |

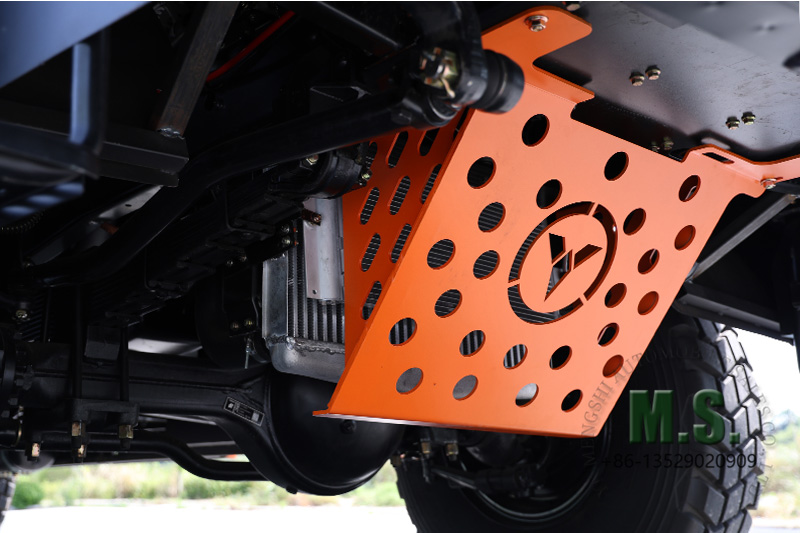

Optional | Heating and cooling air conditioner,leather seats,3 point safety belts,tow emergency escapesskylights,rear and side luggage compartments,roof luggage rack,front and rear winches,safety hammers,privacy curtains,chassis underguard,window protective mesh |
Detailed parameter |
Overall Dimension | 9470×2280×3400mm |
Height in passenger area | 1820mm |
Wheelbase | 4600+1300mm |
GVW | 10850kg |
Curb Weight | 9470kg |
Maximum Power | 155kw |
Engine Displacement | 5.9L |
Number of members | 18+3 |
Maximum speed | ≥85km/h |
Approach Angle/departure Angle | 28°/22° |
Tank volume | 160L |
Wading depth | 620mm |
Height of obstacle crossing | 490mm |
Minimum ground clearance | 340mm |
Note: This configuration is for reference only, please refer to the actual car.
