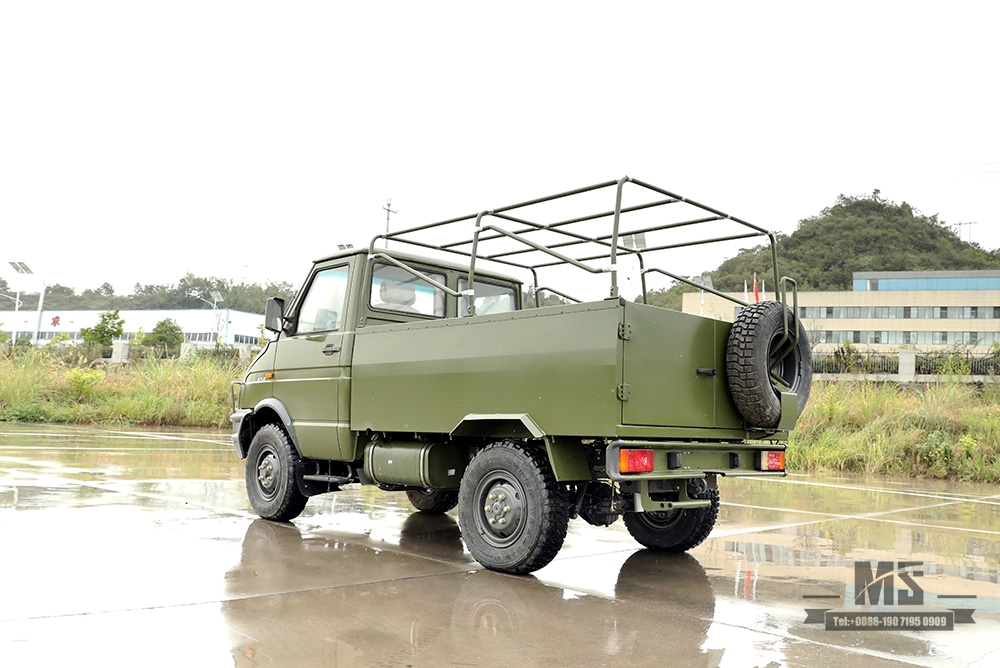

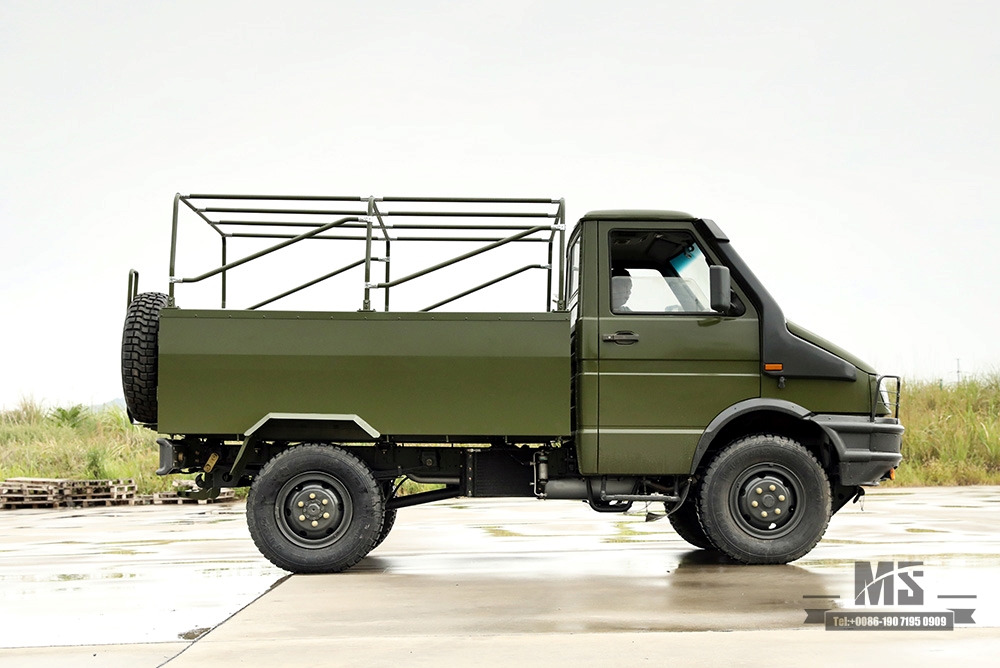

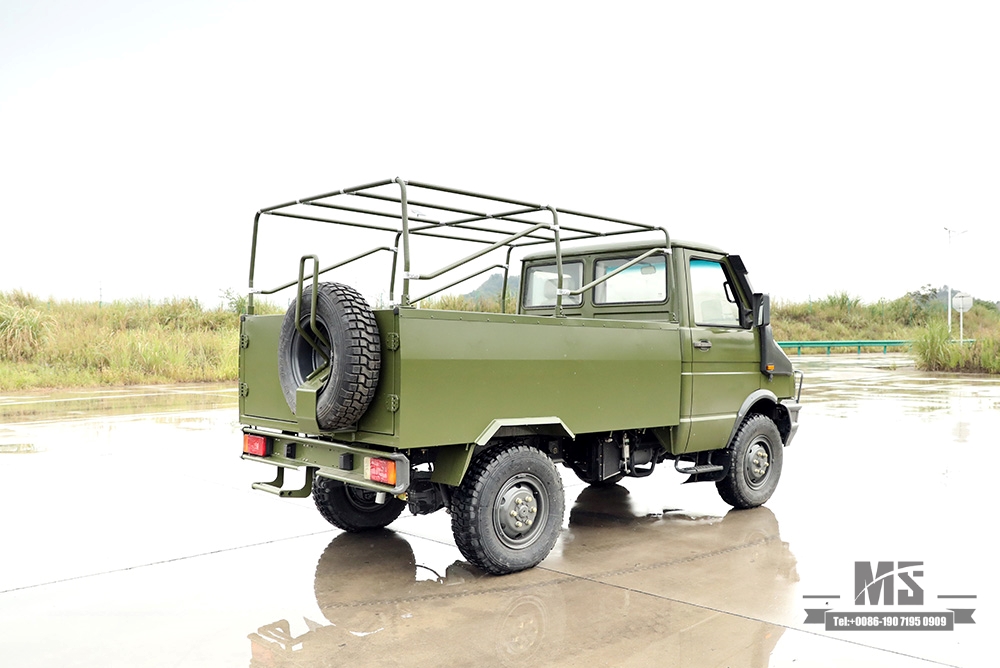

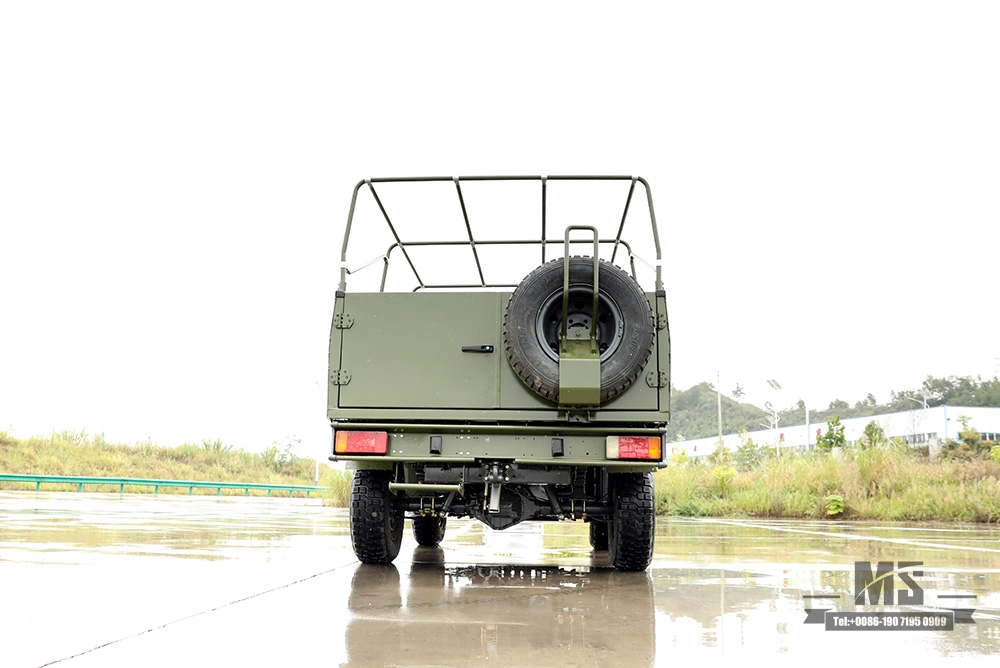

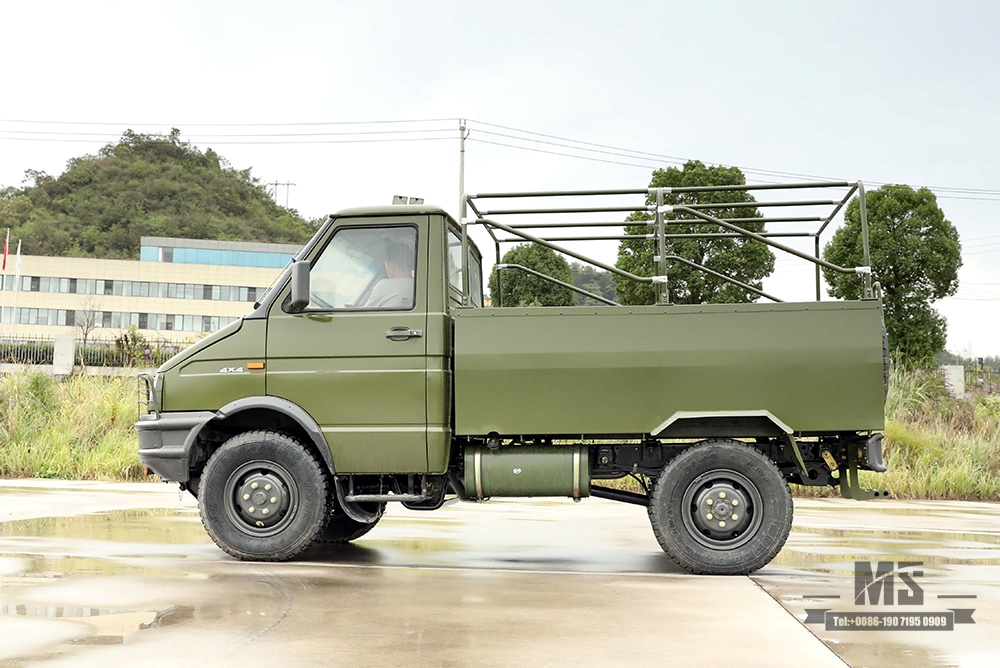

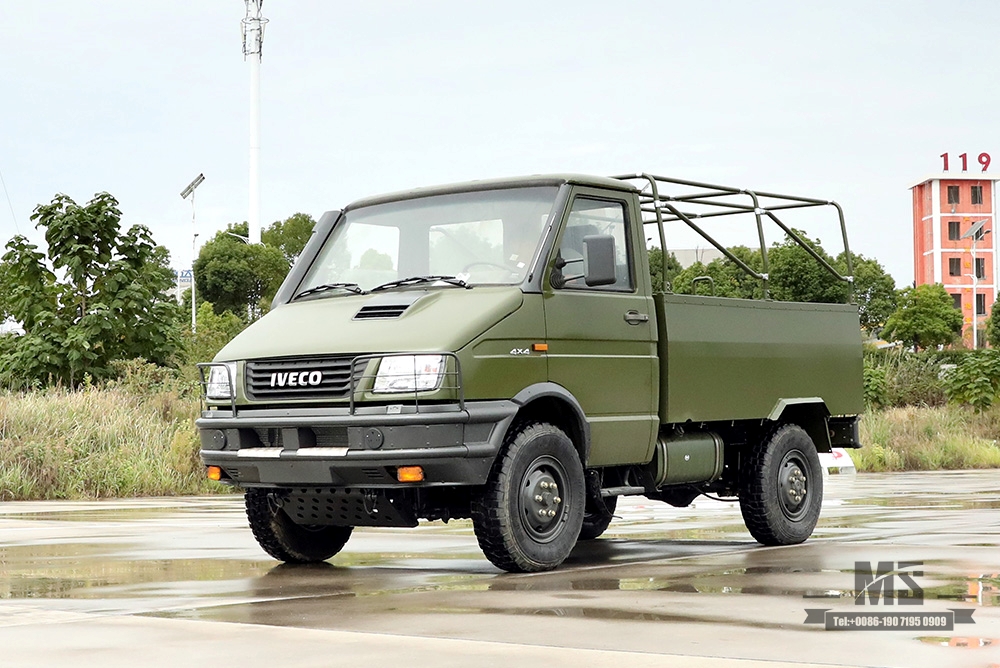

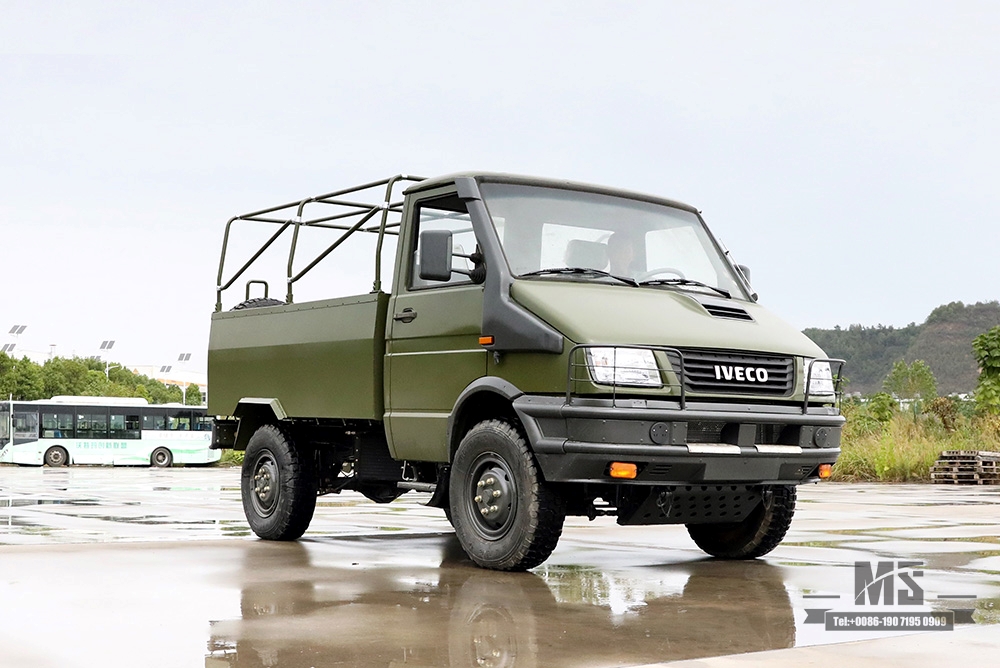

NJ2045SAAG is a four-wheel drive small off-road vehicle chassis developed by Nanjing Iveco, which is powered by a 111 hp engine. According to user demand we take customized design for the upper part.h cargo box adopts rearward double outward opening way, the cargo box is equipped with folding chairs, and the canopy pole adopts new screw structure, which makes the installation more stable.
Basic configuration | |
Engine | SOFIM8142.43 |
Drive type | 4*4 |
Gearbox | Mechanical manual five-speed Gearbox |
Transfer box | With high and low speed Gears |
Vehicle Frame | 860*125*70mm (Double layer) |
Vehicle Axle | 7T/16T/16T |

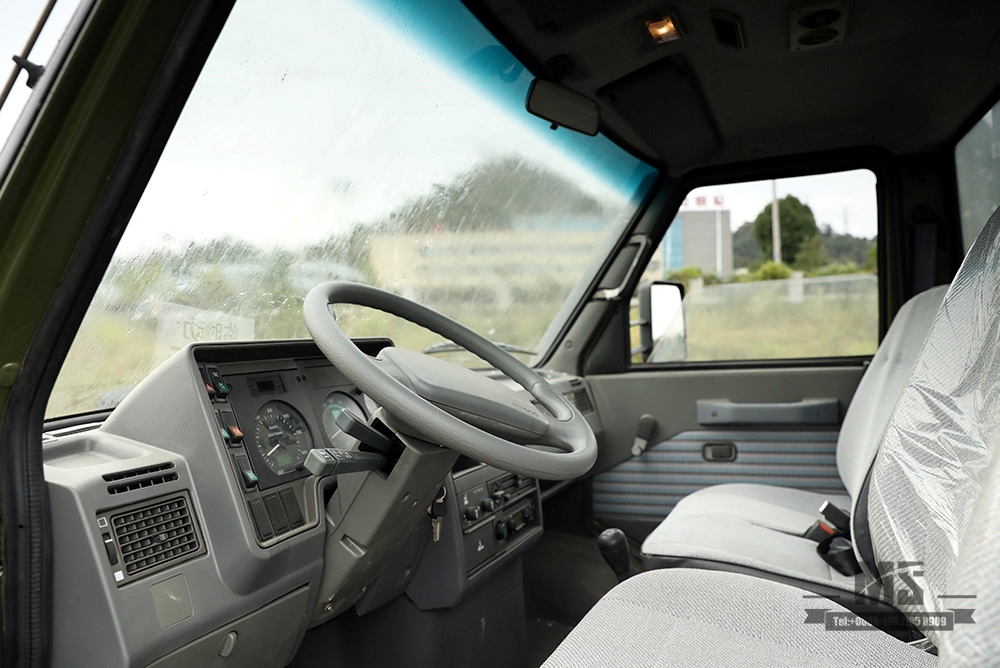

Driver Cab | Iveco Poited Single Row Cab |
Tire | 8.5-16PR14(4+1) |
Vehicle Suspension | Steel Plate Springs -/4+3 |
Electric Circuit | 24V circuit system |
Detailed parameter | |
Overall Vehicle Dimension | 5275*2080*2435mm |
Modified Dimension | 2950*1400*700mm |
Wheelbase | 2800 Or 3350mm |
Wheel Track | 1670/1670mm |
GVW | 4450kg |
Curb Weight | 2780kg |
Number of passengers | 3 |
Maximum Power | 87kw |
Maximum speed | 95km/h |
Engine Displacement | 2798ml |
Minimum Ground clearance | 255mm |
Torque | 269N.m/1800rpm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
