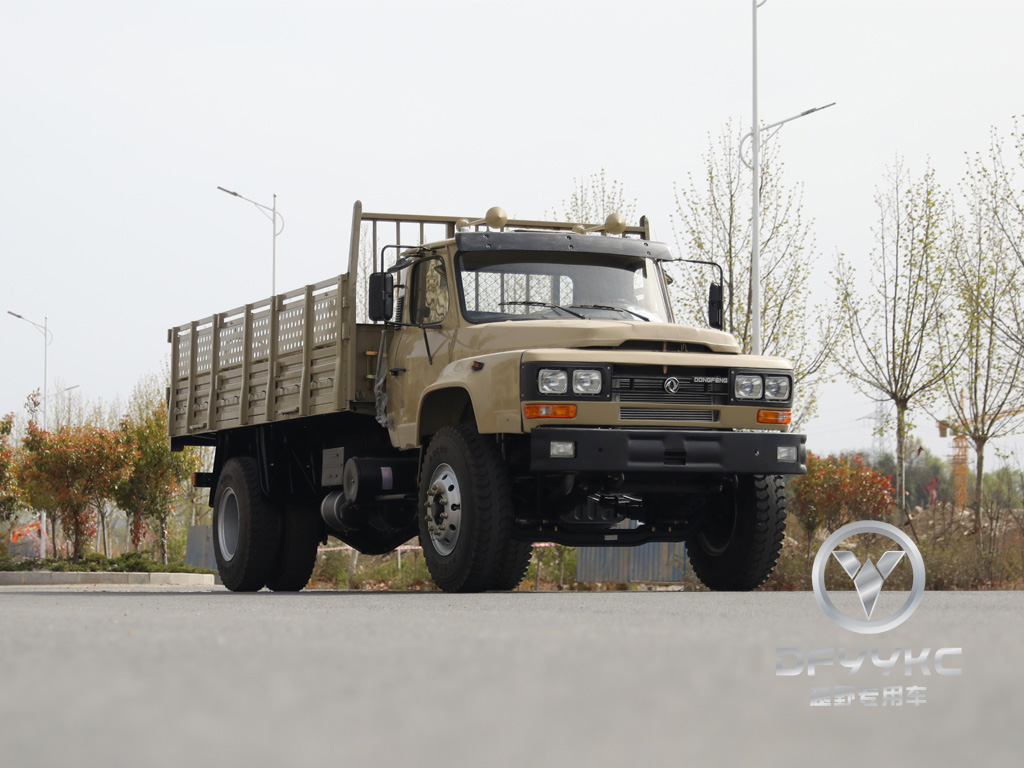

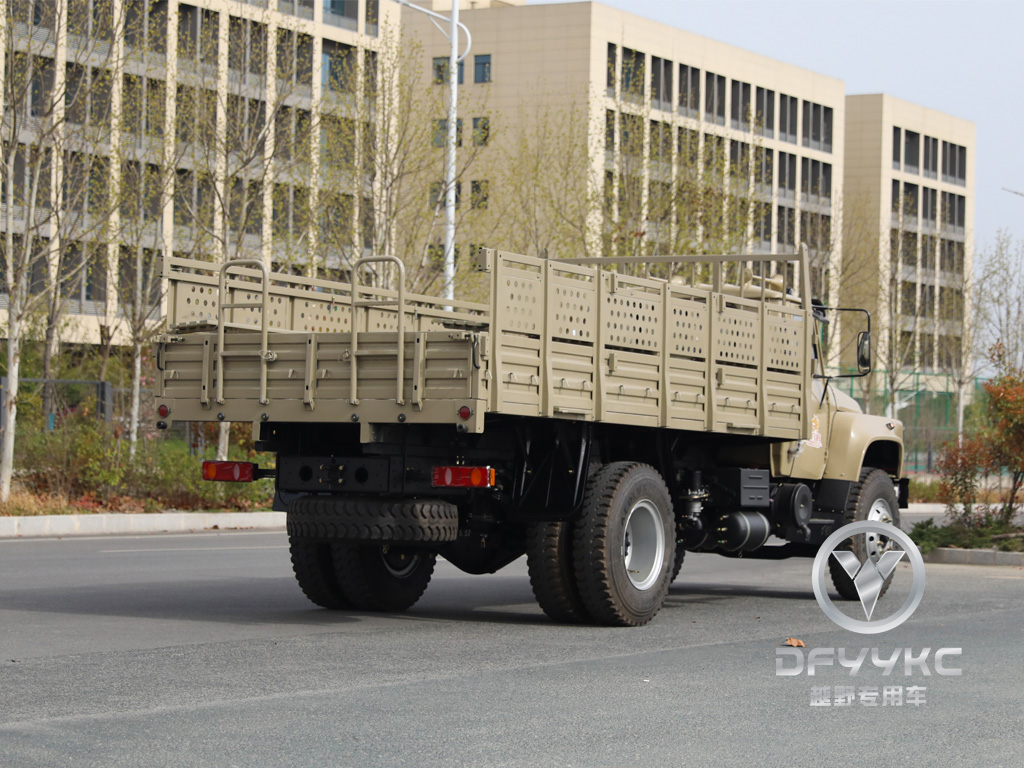

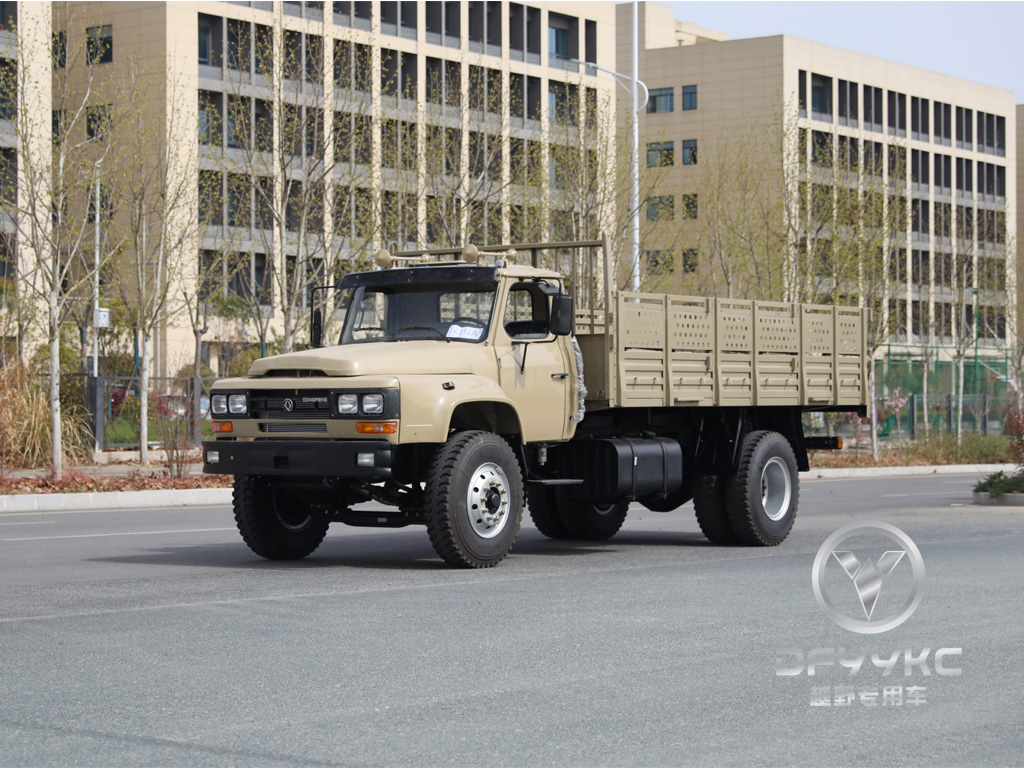

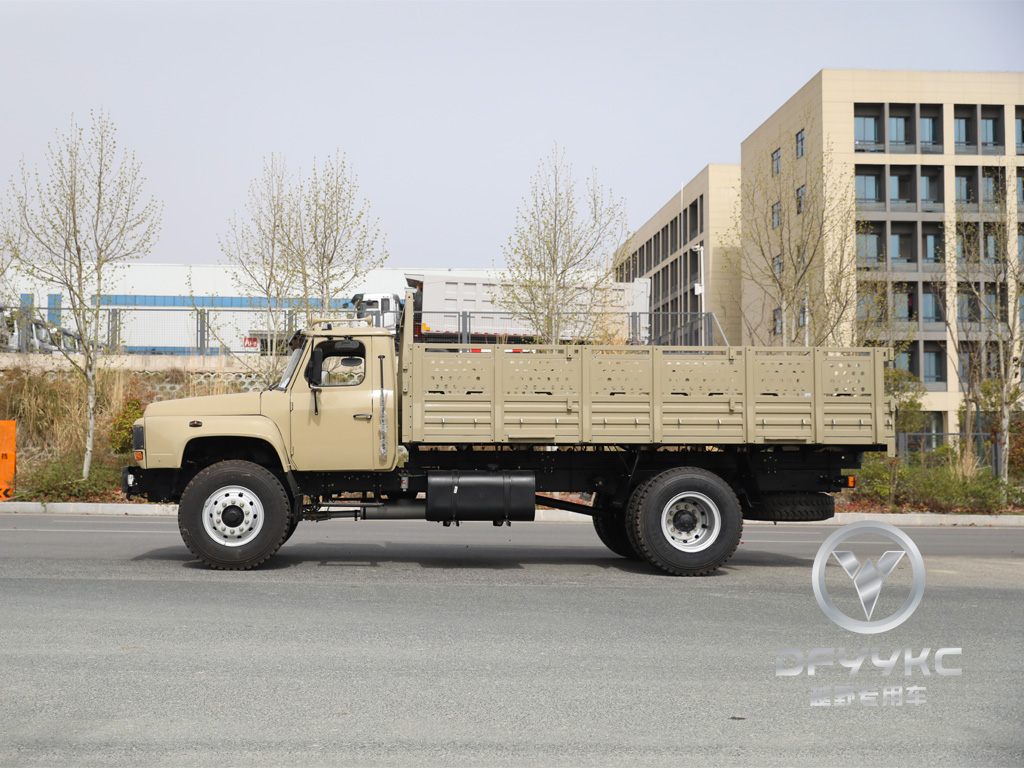

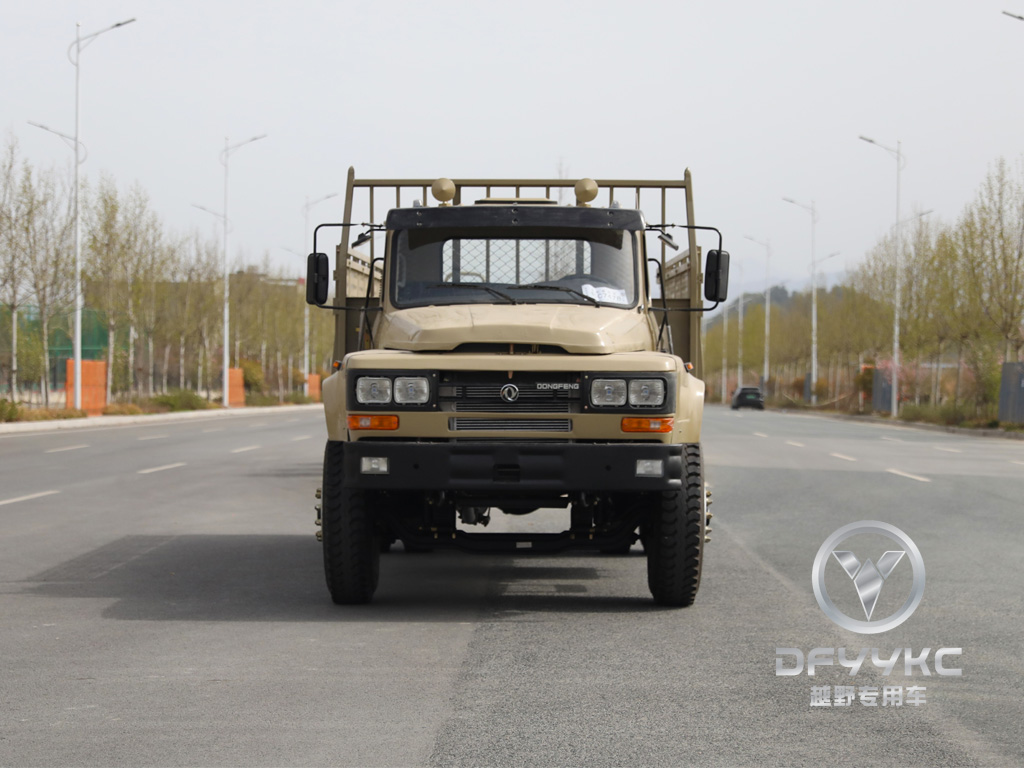

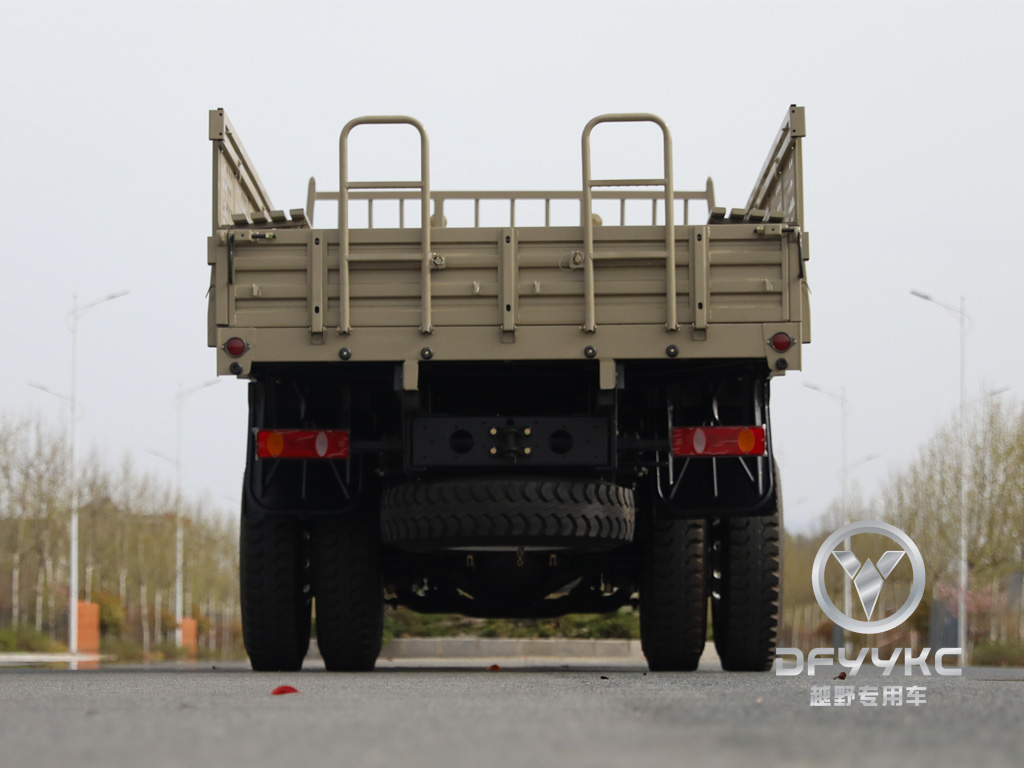

4x2 Off-Road Tip Truck | Cummins B190 33 (140KW) | 10T Rear Axle | 300L Fuel Tank
Basic configuration | |
Engine | CumminsB170 33 |
| Drive type | 4*2 |
Transmission | Manual eight Speed |
Transfer box | With high and low gears |
Vehicle Frame | 860×250mm,厚度(6+4) 860 x 250 mm, thickness (6+4) |
| Driver Cab | Dongfeng pointed single row |
Vehicle Axle | 2.7T/7T |
Tire | 11.00R20(6+1) |
| Vehicle Suspension | Steel Plate spring 10/12 |
Detailed parameter | |
Overall Vehicle Dimension | 7850×2520×2760mm |
| Chassis size | 7520×2520×2620mm |
| Dimensions inside the box | 4800×2300×900mm |
Wheel Track | 1940/1872mm |
GVW | 15000kg |
| Curb Weight | 5920kg |
| Superstructure Dimensions | >4670mm |
| Wheelbase | 4500mm |
| Maximum Power | 140kw |
| Leaf Spring | 9/8+10 |
| Maximum speed | 90km/h |
Approach Angle/departure Angle | 17°/14° |
Oil Tank volume | 300L |
Minimum ground clearance | 285mm |
| Fording depth | 570mm |
| Obstacle Crossing Height | 390mm |
Note: This configuration is for reference only, please refer to the actual car.









For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
