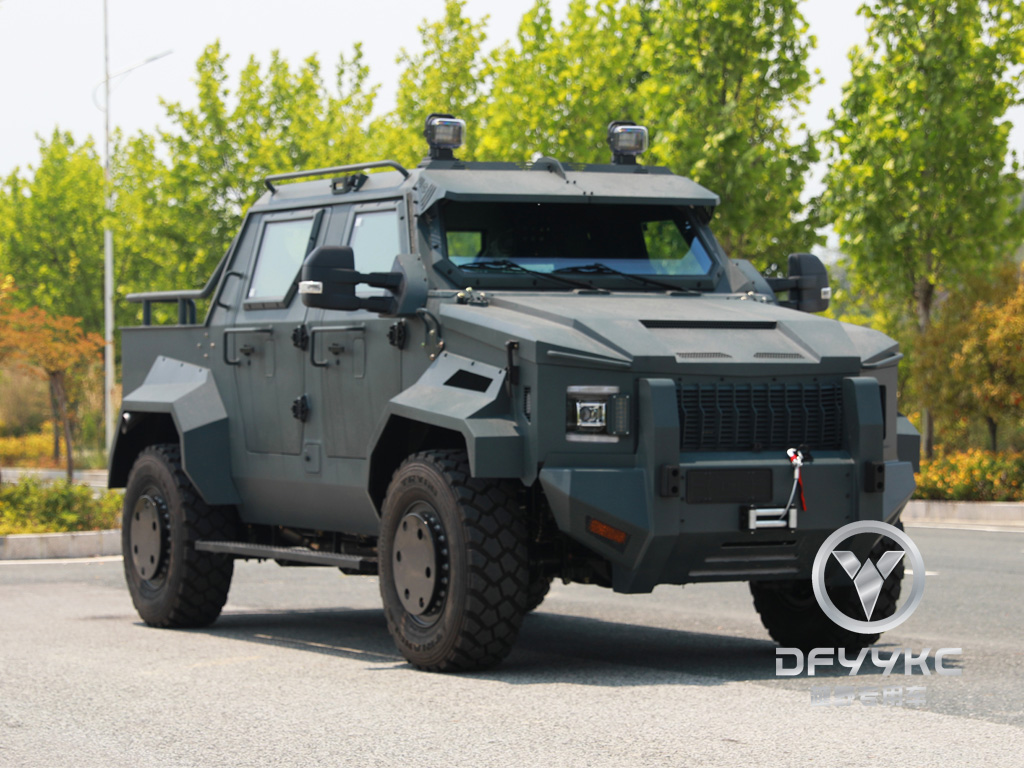

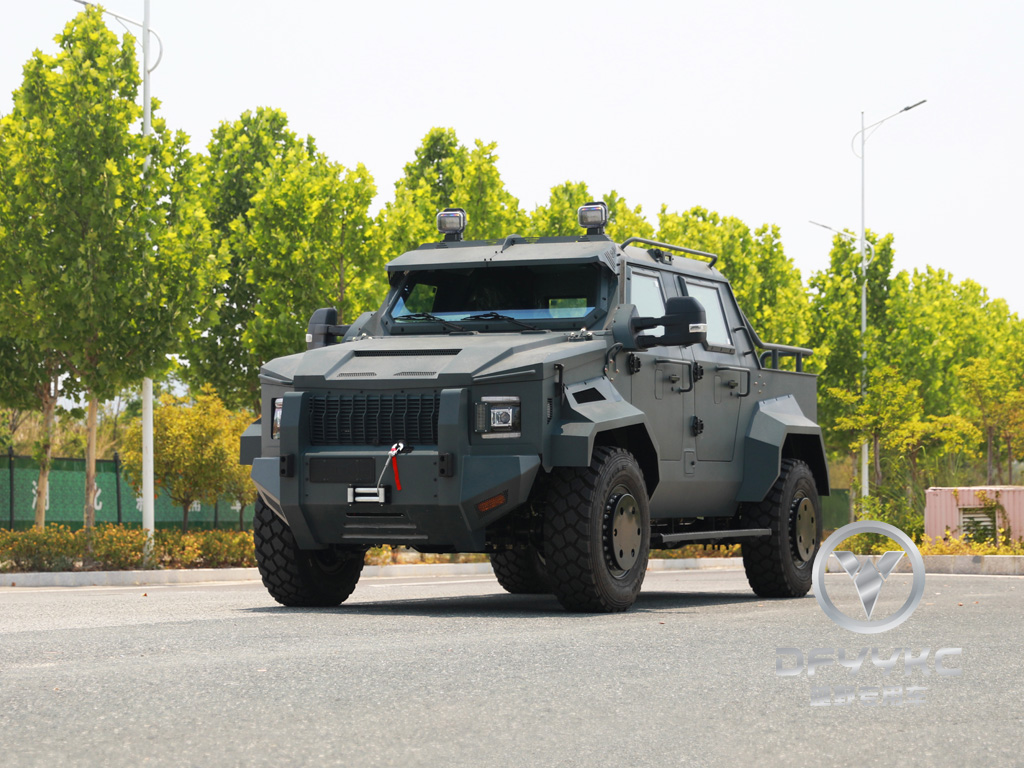

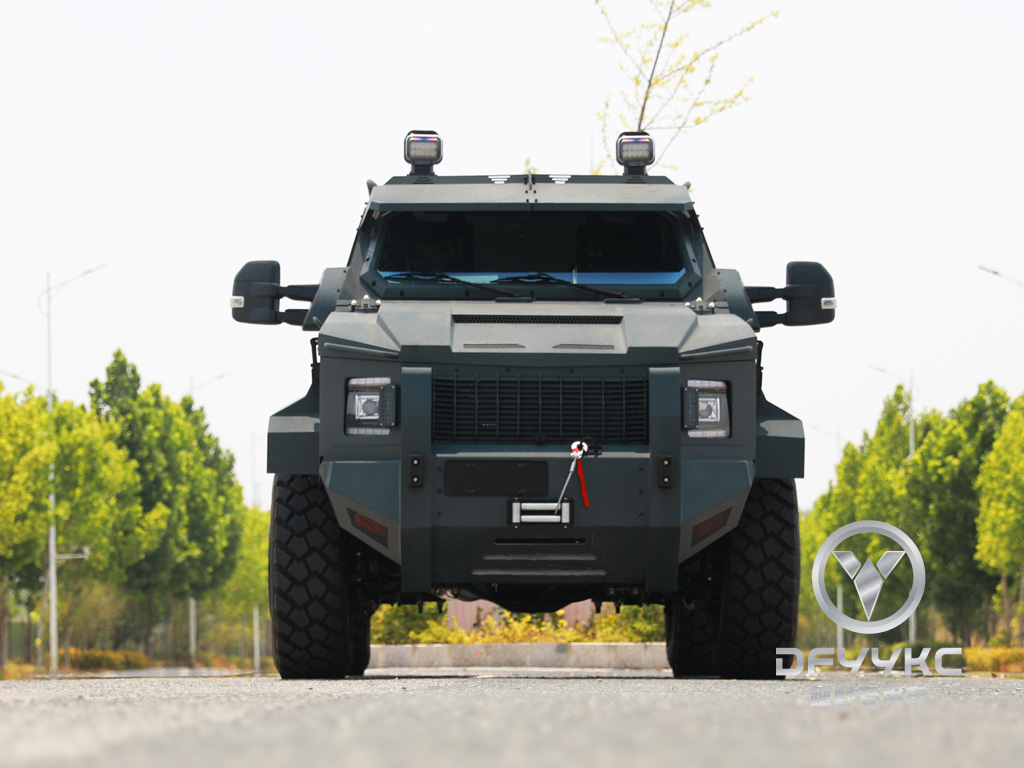

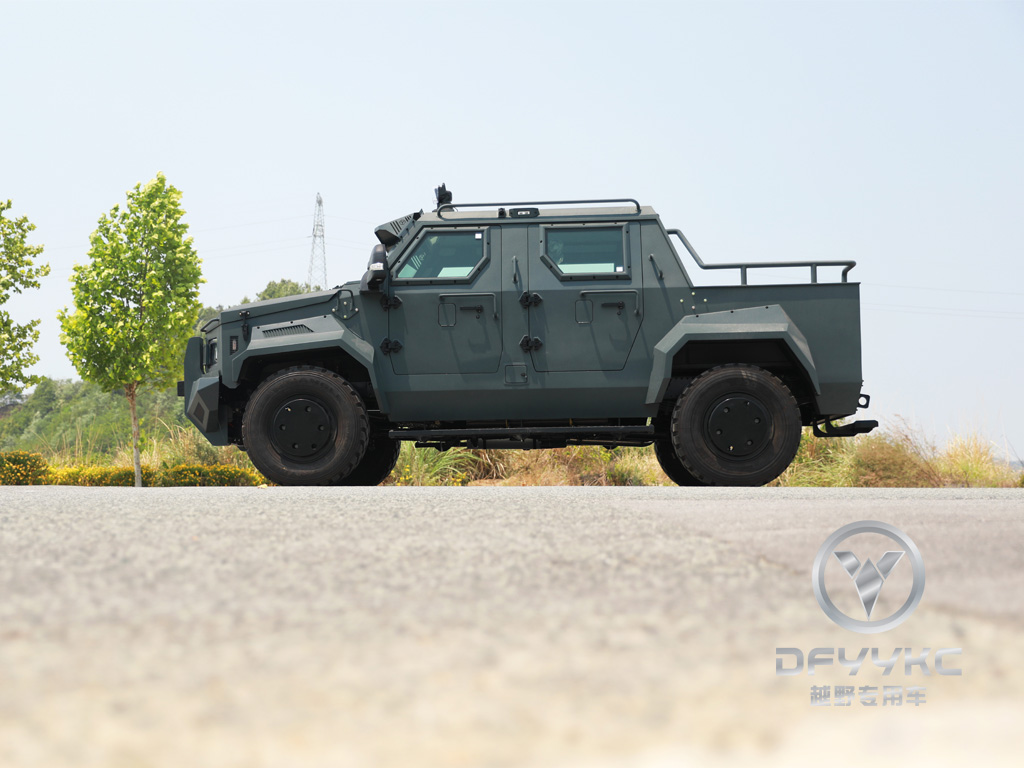

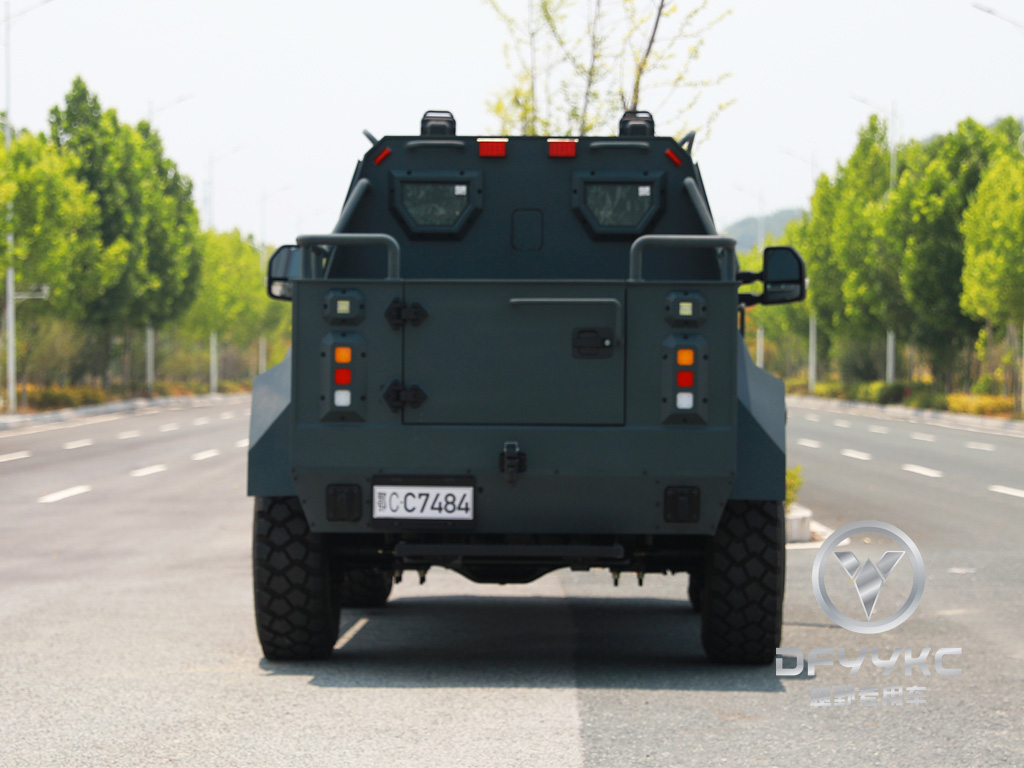

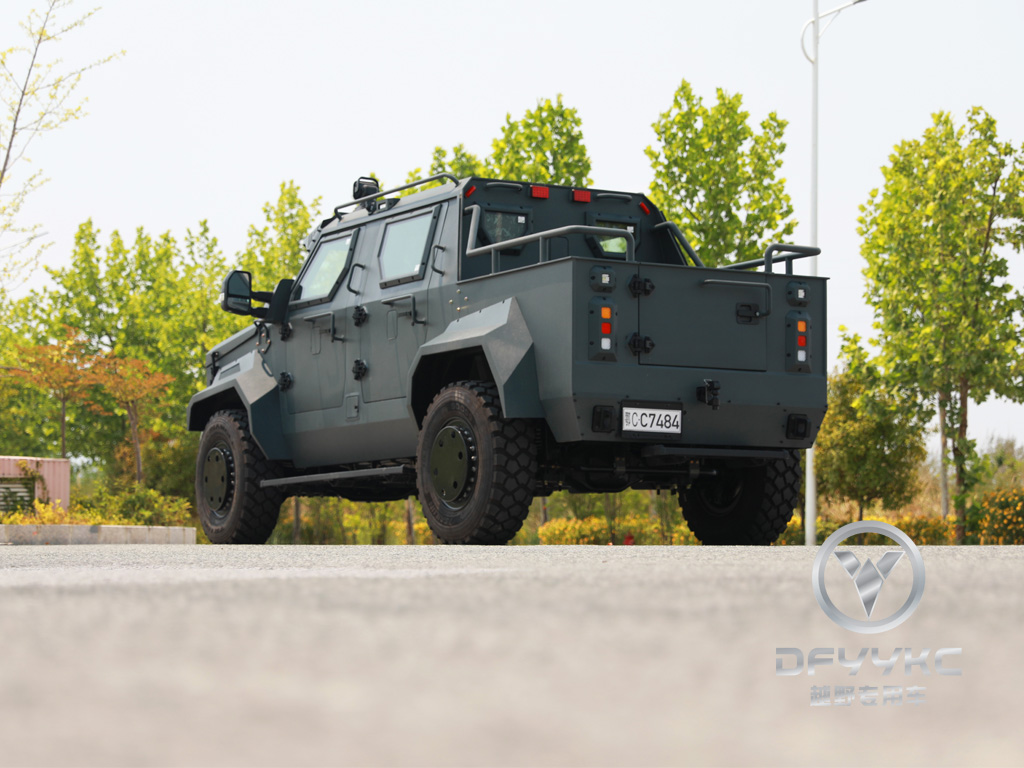

4x4 War vehicle | Mini tank/ war tank | made in china war pickup | Armored vehicle by china.
Basic configuration | |
Drive type | 4x4 |
Engine | Cummins ISDe6.7-330 |
Gearbox | Allison automatic |
Transfer box | High and low gear, gear 1200 |
Driver Cab | Non-load-bearing body, hand-built |
Three types of chassis dimensions | 5840*2460*1650mm |
Vehicle Axle | 7T/10T |
Tire | 365/80R20 |
Tire inflation and deflation, front electric winch, roof lights can be rotated remotely, steps with anti-skid sawtooth, body with lifting ring and tail towing hook. The cab door and rear wall are each equipped with a shooting hole, and the rear seats are mine-proof seats. There are multiple pull rings in the cab and cargo box
Detailed parameter | |
Vehicle Size | 5996*2460*2580mm |
Inner dimensions of cargo box | 1680*1850*645kg |
Wheelbase | 4700mm |
Wheel track | 2110/2125mm |
GVW | 18000kg |
Curb Weight | 4752kg (Type III chassis) / 5460kg (whole vehicle) |
Maximum Power | 243kw |
Engine Displacement | 6.7L |
Maximum speed | 243kw |
Engine Torque | 1100N.m |
Maximum Climbing Grade | 60% |
Approach Angle/departure Angle | 36°/39° |
Tank volume | 100+100L |
Minimum ground clearance | 350mm |
Obstacle clearance height | 460mm |
Wading Depth | 1120mm |
highest altitude | |
Frame Rear End Upper Plane Off the Ground |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
