DFH1180EX10-KF4N Equipment Transporter with various uses and is suitable for modification into various special vehicles. It has certain off-road performance and can drive in bad road conditions.
Basic configuration | |
Body structure | Flat-top full-floating cab, flippable flat head, power hydraulic flip mechanism, (3 passengers) |
Drive type | 4*2 |
Car windows | electric door and window locks |
Transfer box | With high and low gears |
Vehicle Frame | 860*232mm |

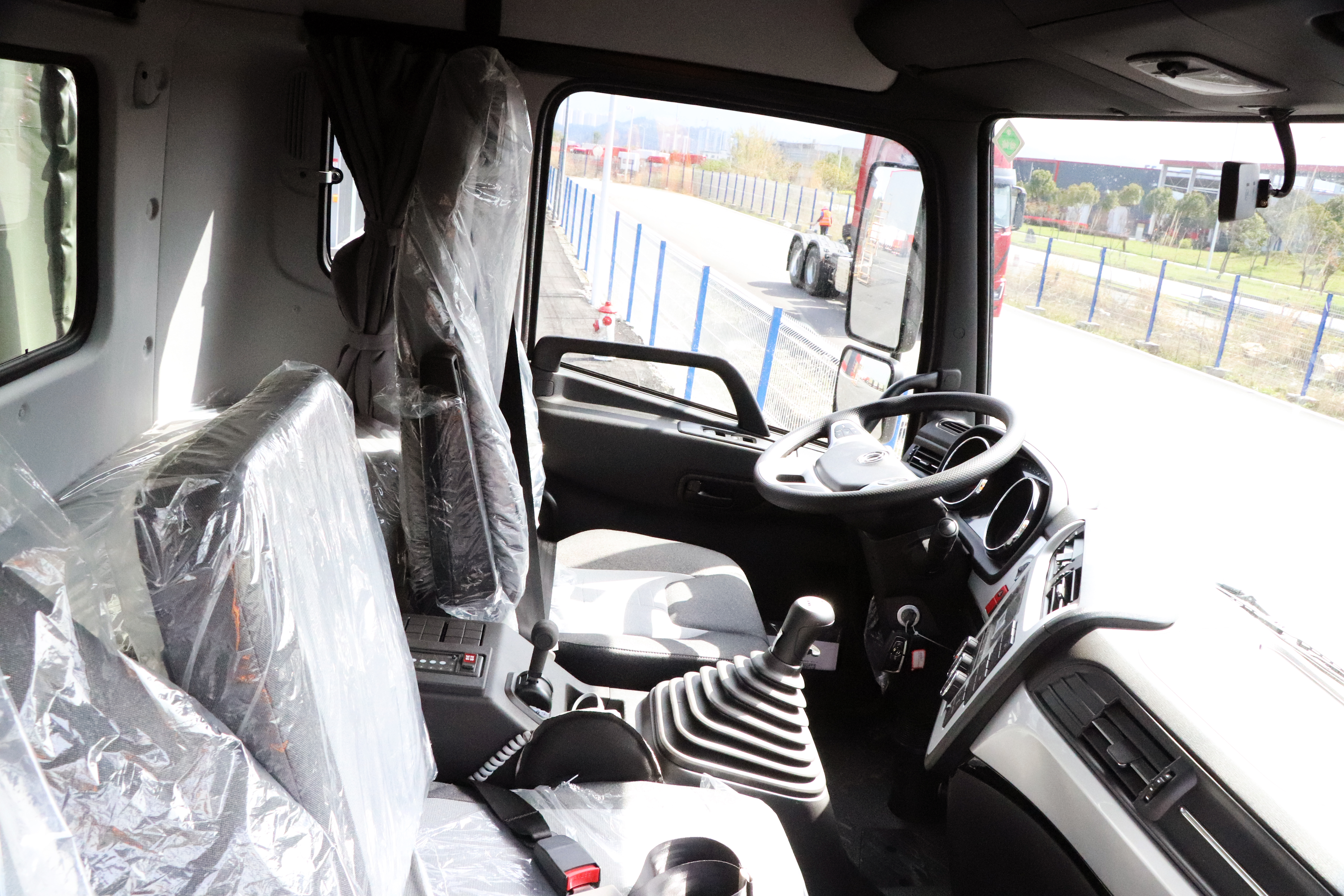

Cab | Fully floating cab, airbag seat with ventilation and heating function, electric flip, electric heated rearview mirror, with cruise control function |
Body and tail panel color | Military green |
Tire | 10.00R20 tire, equipped with a spare tire of the same model |
Control system | Adopt 10A control circuit protection |
Detailed parameter | |
Overall Vehicle Dimension | 7310*2500*3020 |
Carriage dimensions | 4950*2300*600 |
Minimum turning diameter | 16m |
Minimum ground clearance | 300mm |
Maximum speed | 98kmh |
Driving range | 1500km |
Loading Weight | 11290kg |
Engine Displacement | 5.9L |
Rated power | 231kw |
Total mass | 18000kg |
Rated load | 2000kg |
Power supply system | two 180Ah low-temperature batteries |
Lifting arm | not less than 30mm thickness Q355B |
Maximum lifting height | 1500mm |
Loading platform material | Q550 |
Voltage | 24v |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
