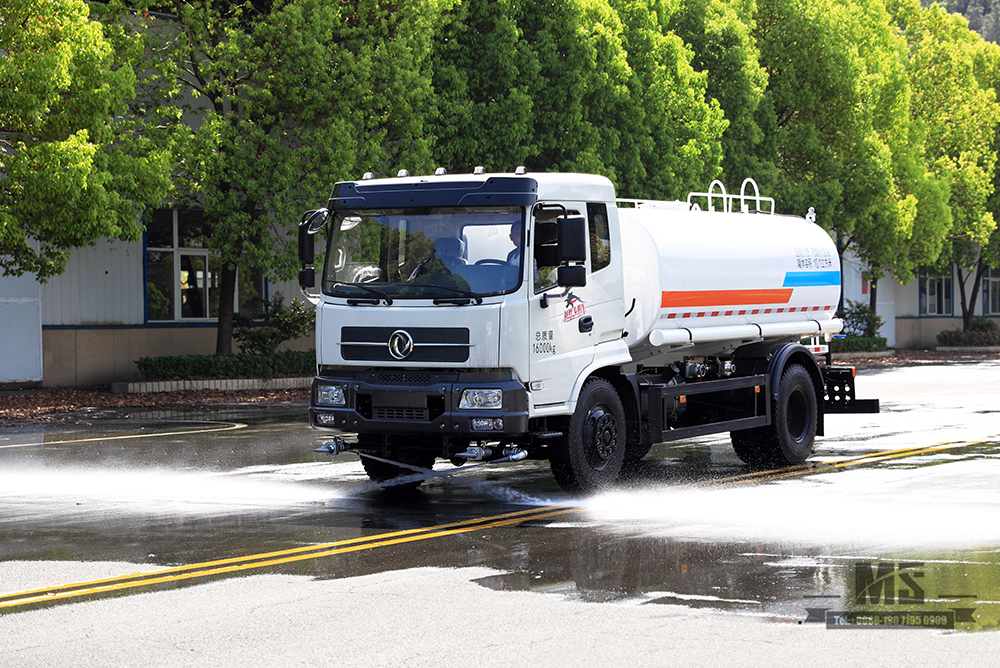

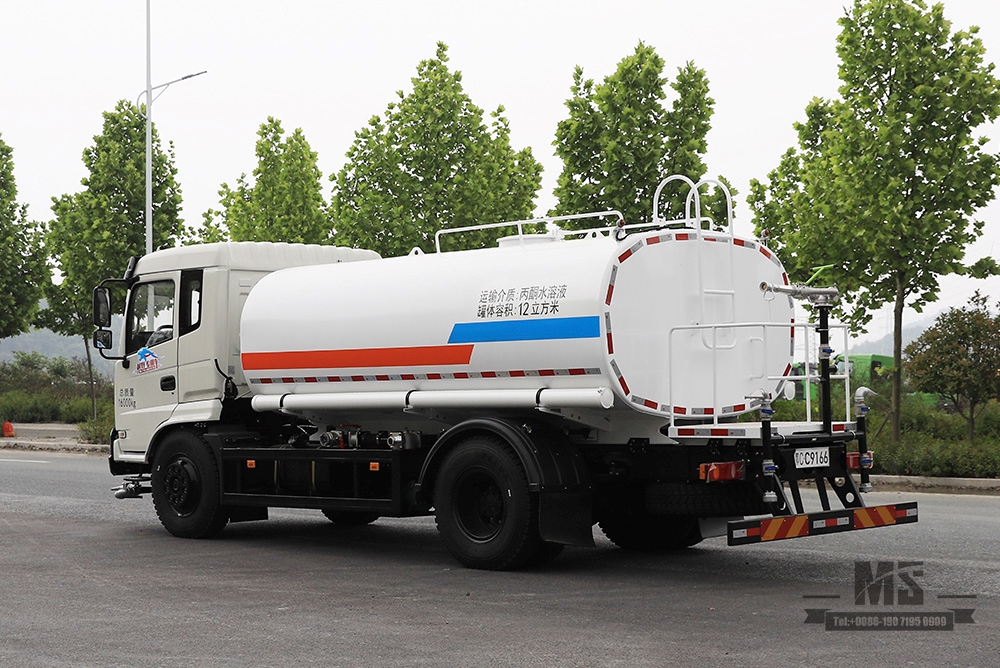

Dongfeng 4×2 Watering Tanker Truck Water Filling Operation

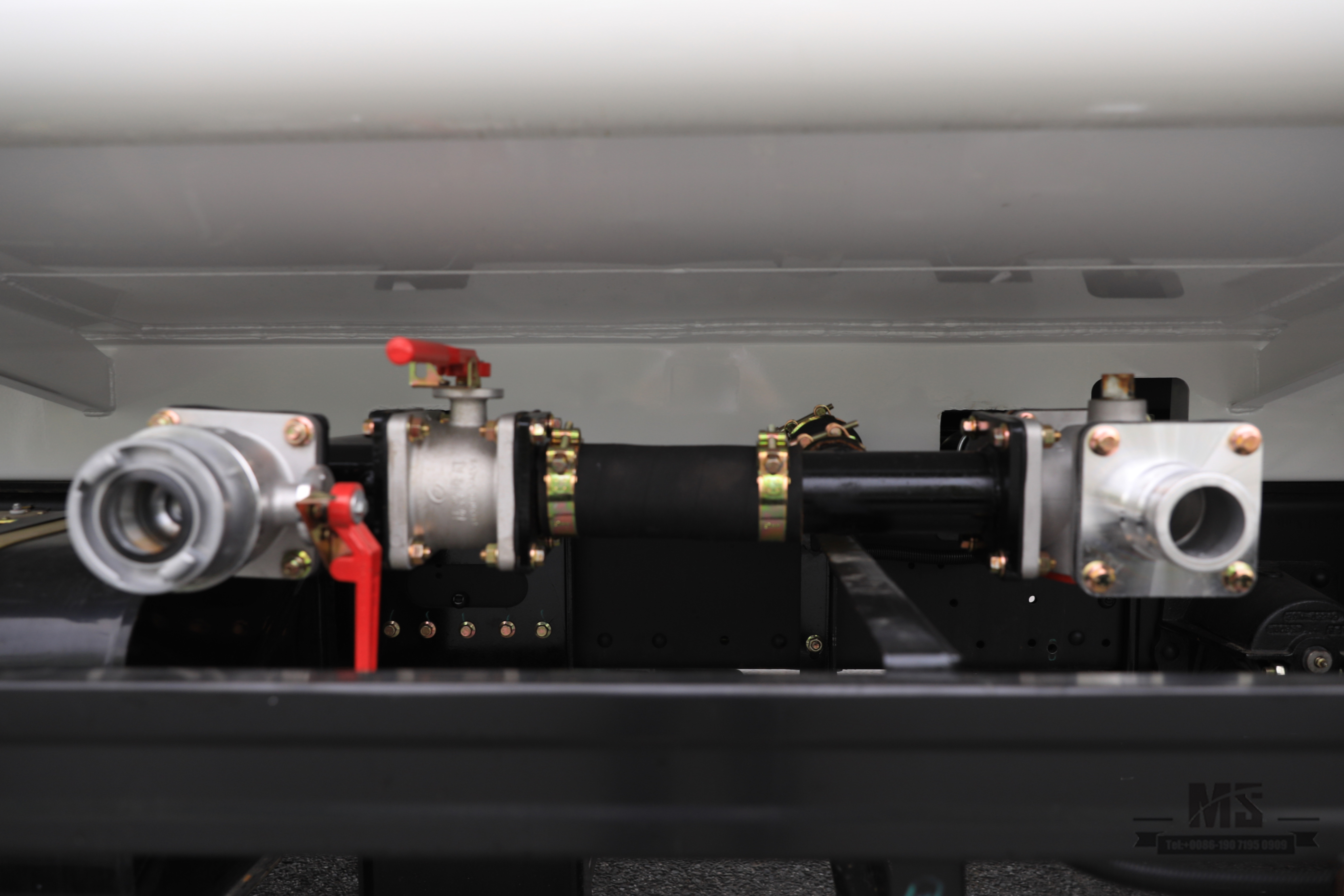

There are two suction pipes on both sides of the tank.

When the vehicle is far away from the pond,two suction pipes can be connected together,

At this time, the ball valve at the suction port is closed.We need to use a flexible wrench to rotate it to 90 degrees,

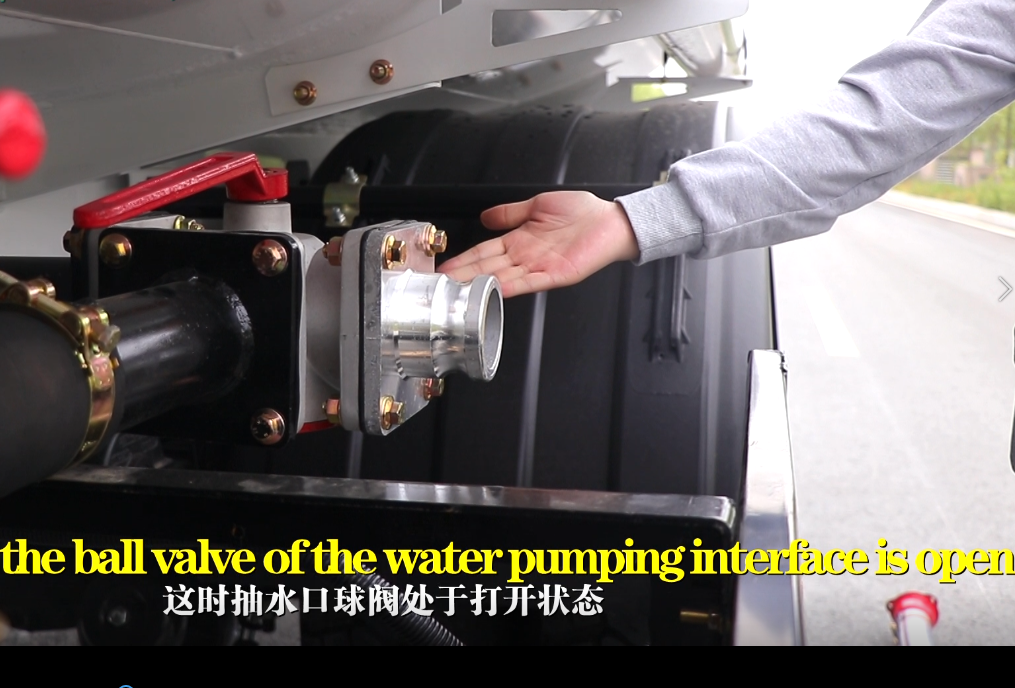

At this time, the ball valve of the water pumping interface is open.

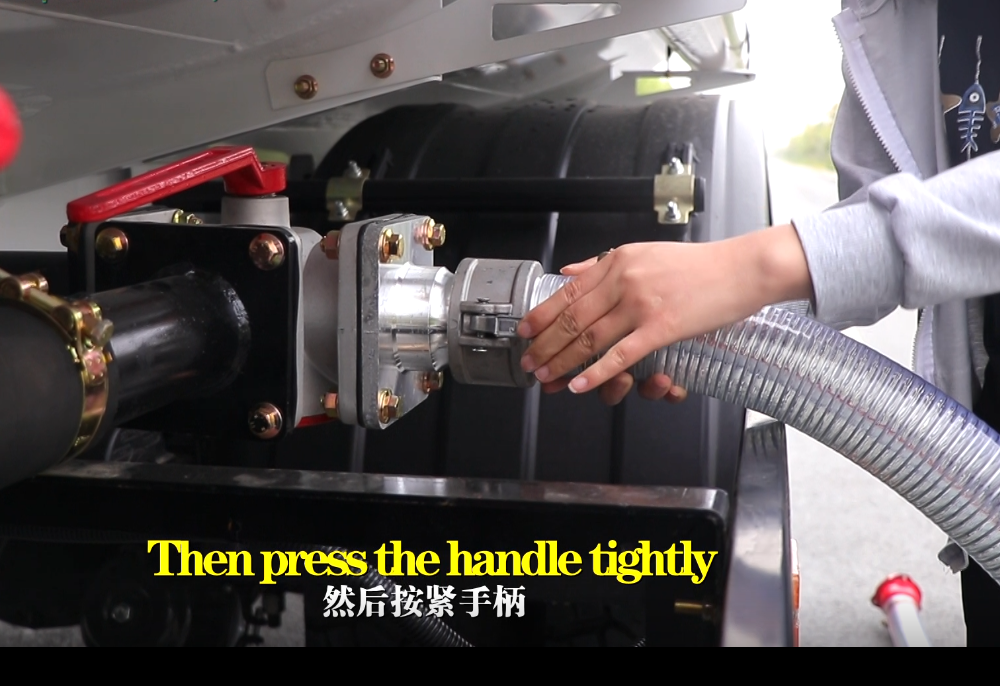

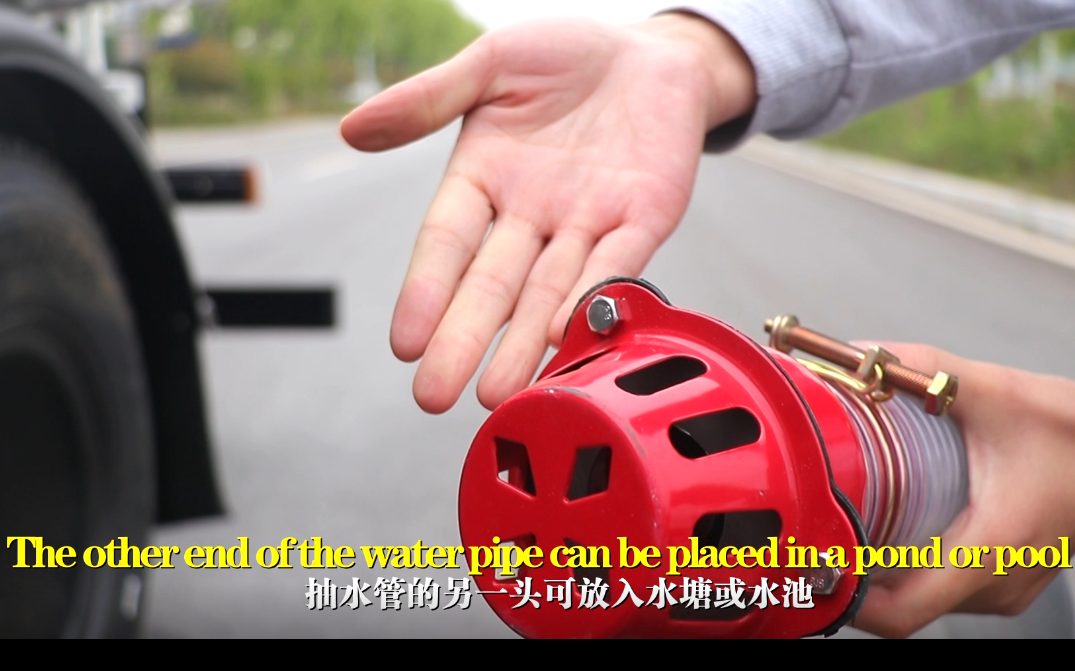

Connect one end of the water pipe to the interface,Then press the handle tightly,The other end of the water pipe can be placed in a pond or pool.

It is a one-way water valve,Only water comes in, no water comes out.It is also equipped with a filter to filter out debris from the water.

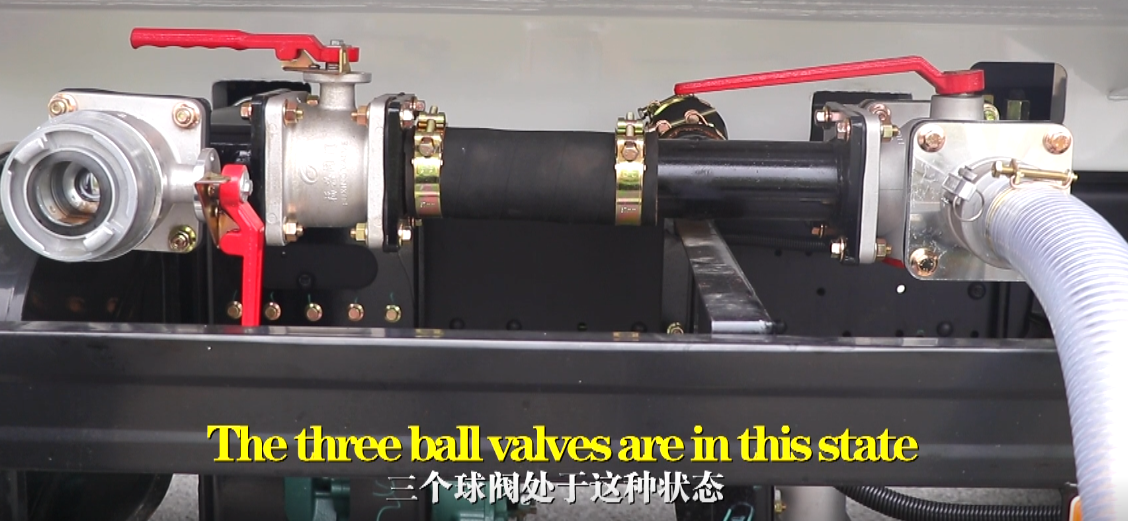

Next rotate this handle to 90 degrees,The three ball valves are in this state,You can perform water pumping operations.

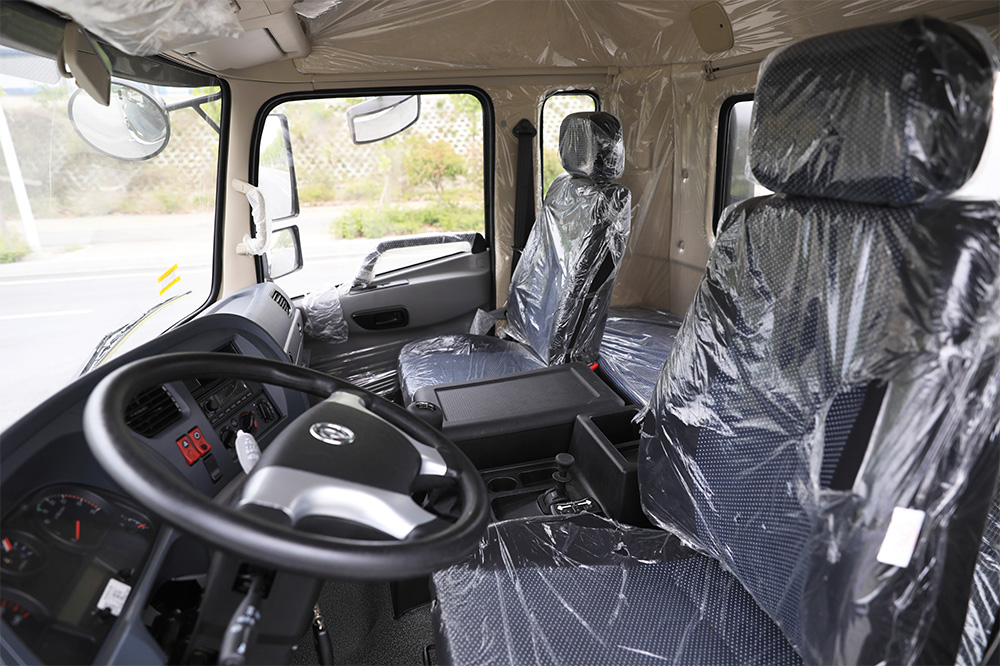

After completing the above steps,We enter the cab to operate,

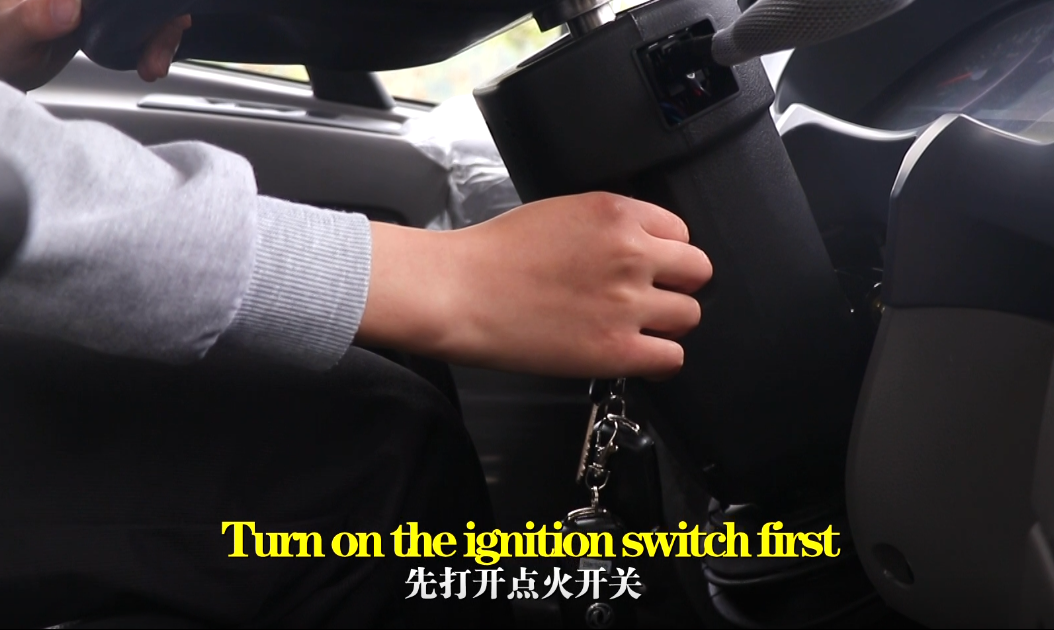

Turn on the ignition switch first,Start the engine.

Next step on the clutch,

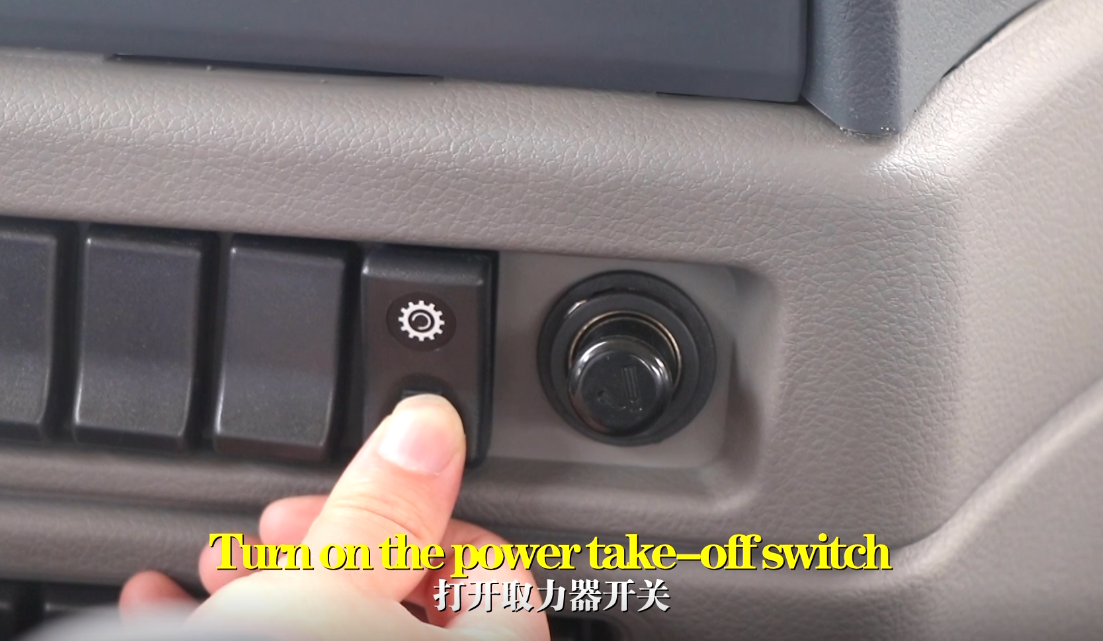

Turn on the power take-off switch.

Want to speed up pumping? Just step on the accelerator.

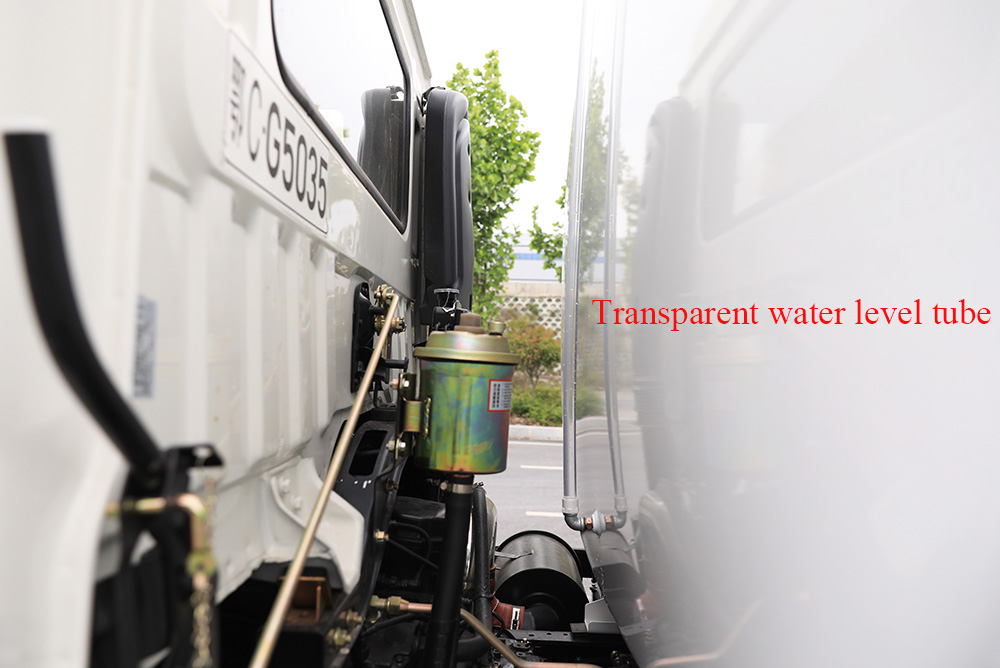

When the vehicle is performing water pumping operations,we can leave the cab,Watch the water level in this transparent water pipe,When the water level reaches the height you need.we can get back to the cab,Turn off the power take-off and ignition switch.

Then,We perform a closing operation of the suction port ball valve,Rotate the handle counterclockwise to 90 degrees.Turn off the ball valve switch,Then we can remove the water pipe.
