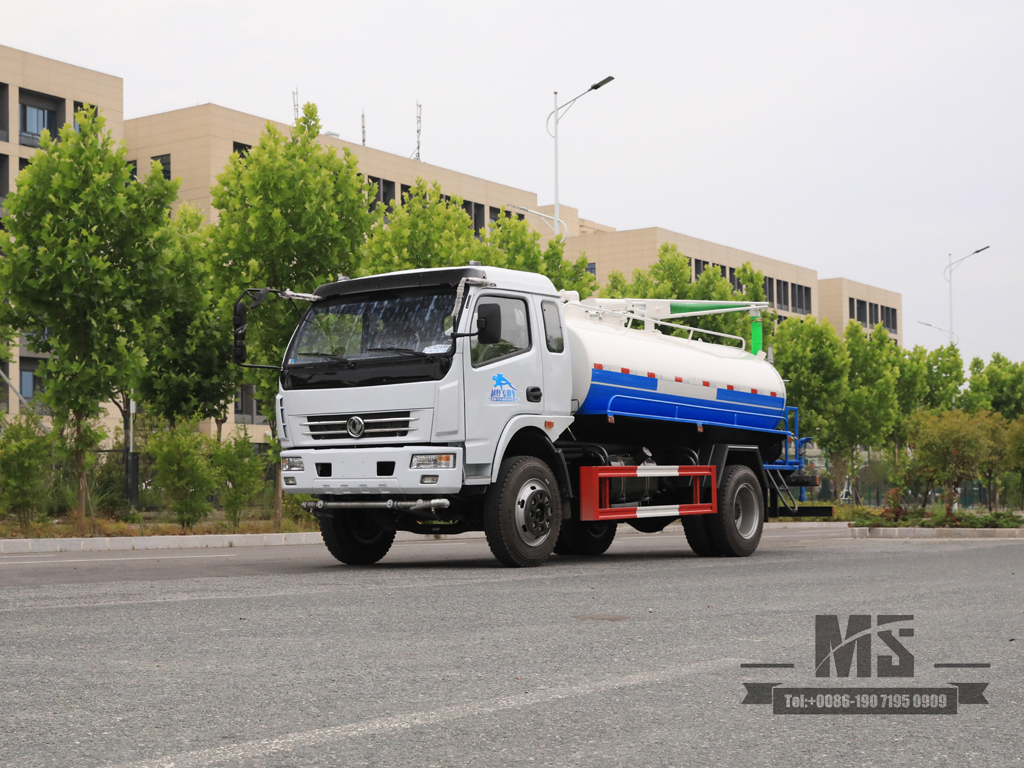

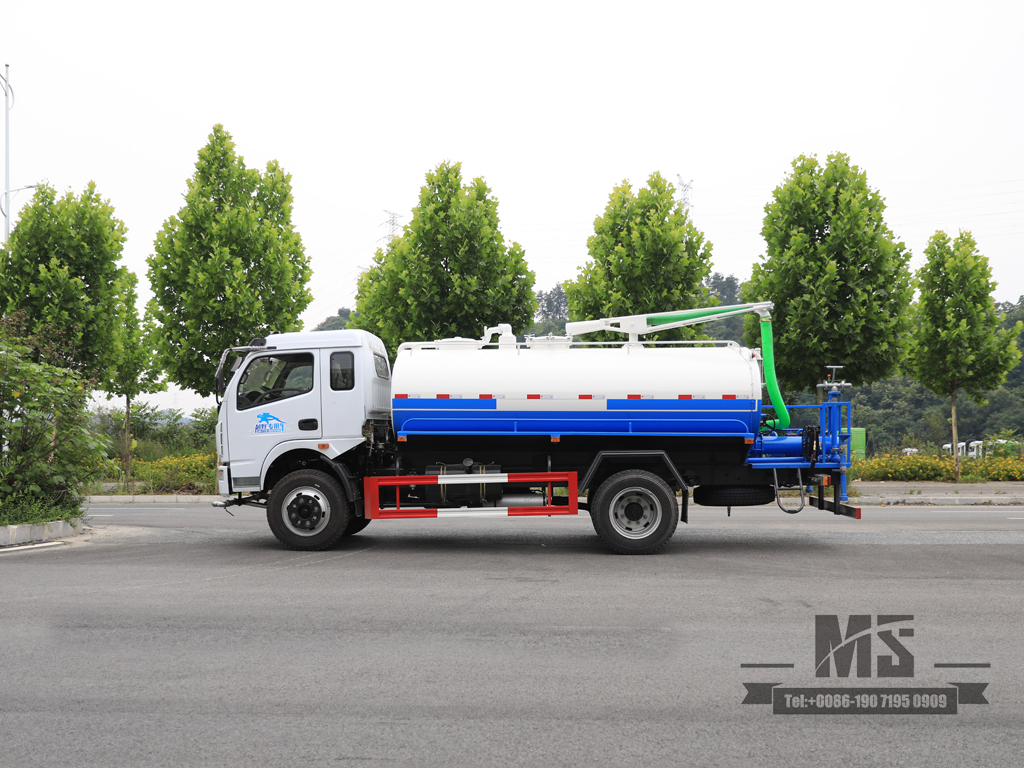

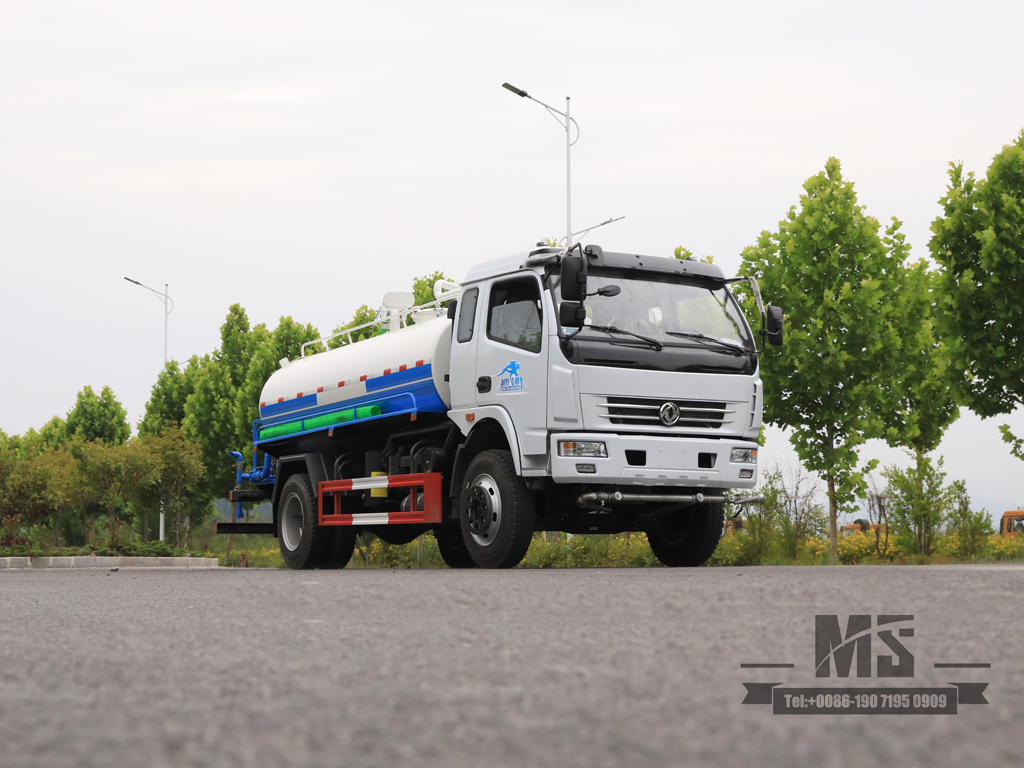

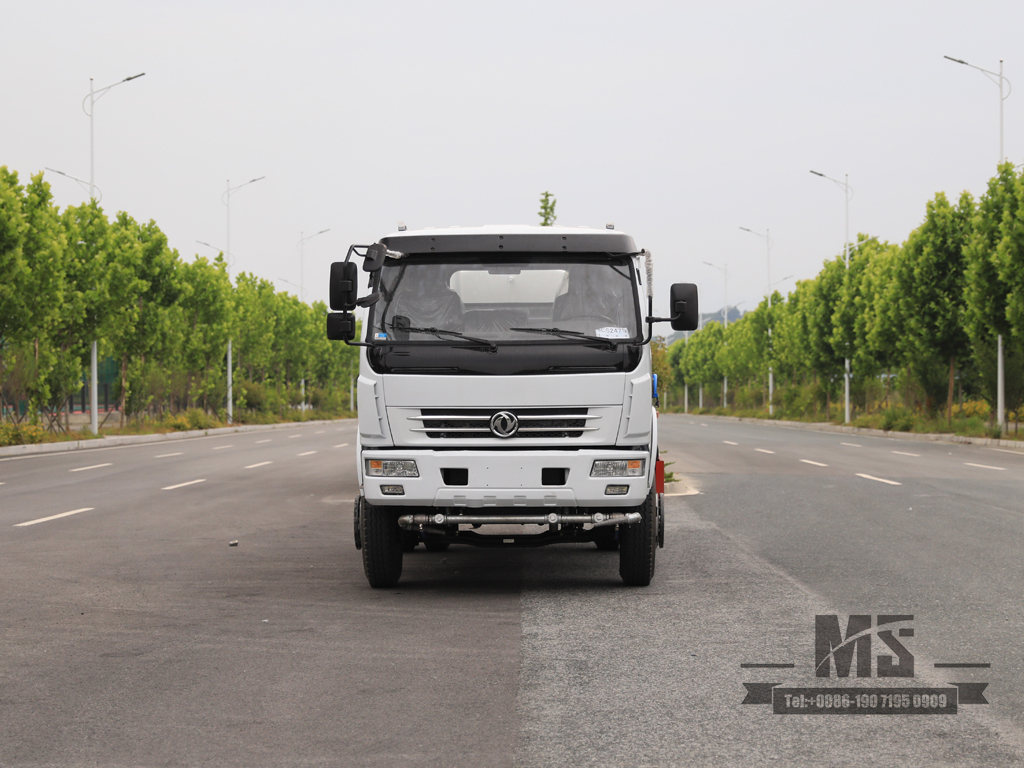

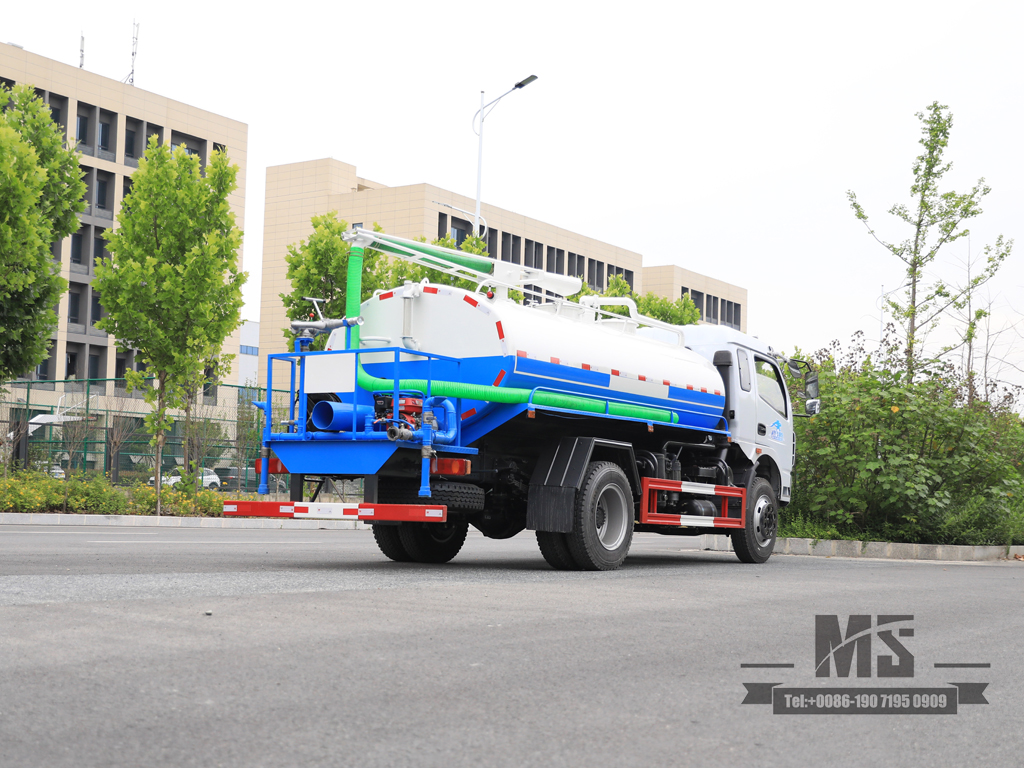

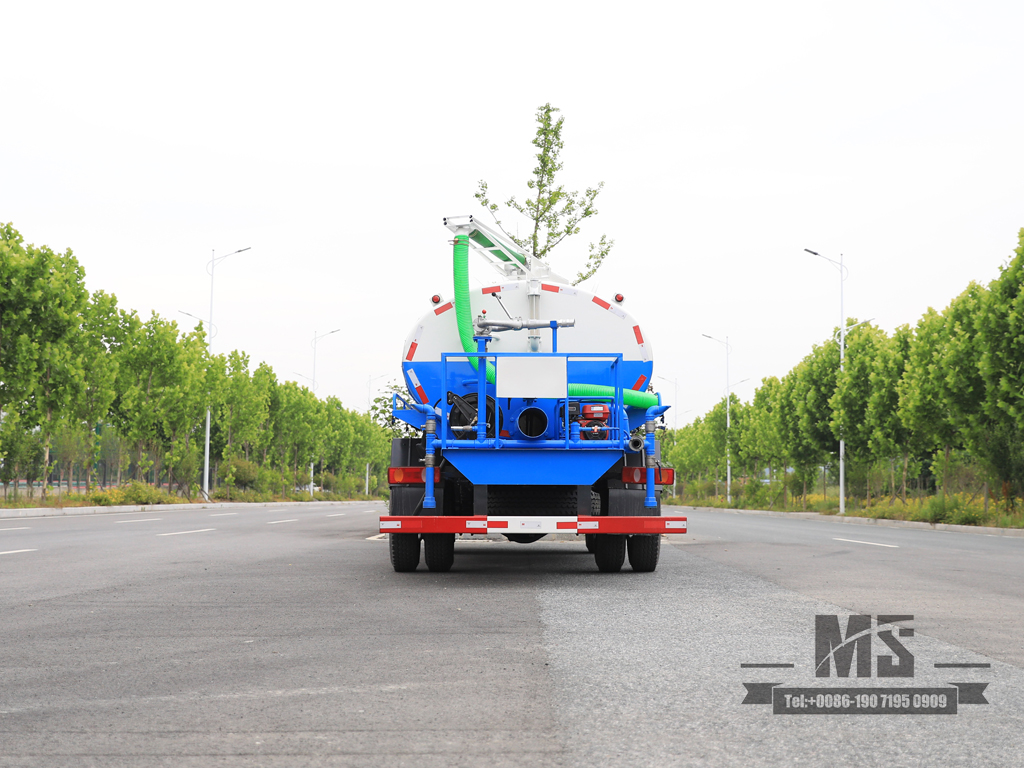

Dongfeng 4x2 sewage suction truck | Vacuum truck | 8-speed special vehicle | China | Tanker truck details configuration.
Basic configuration | |
Engine | Cummins B170 33 |
Drive type | 4*2 |
Gearbox | Manual eight gears |
Transfer box | |
Vehicle Frame | 860*250, thickness 6mm |
Driver Cab | Dongfeng light truck row and half (with sleeper) |
Vehicle Axle | 3.6T/8T |

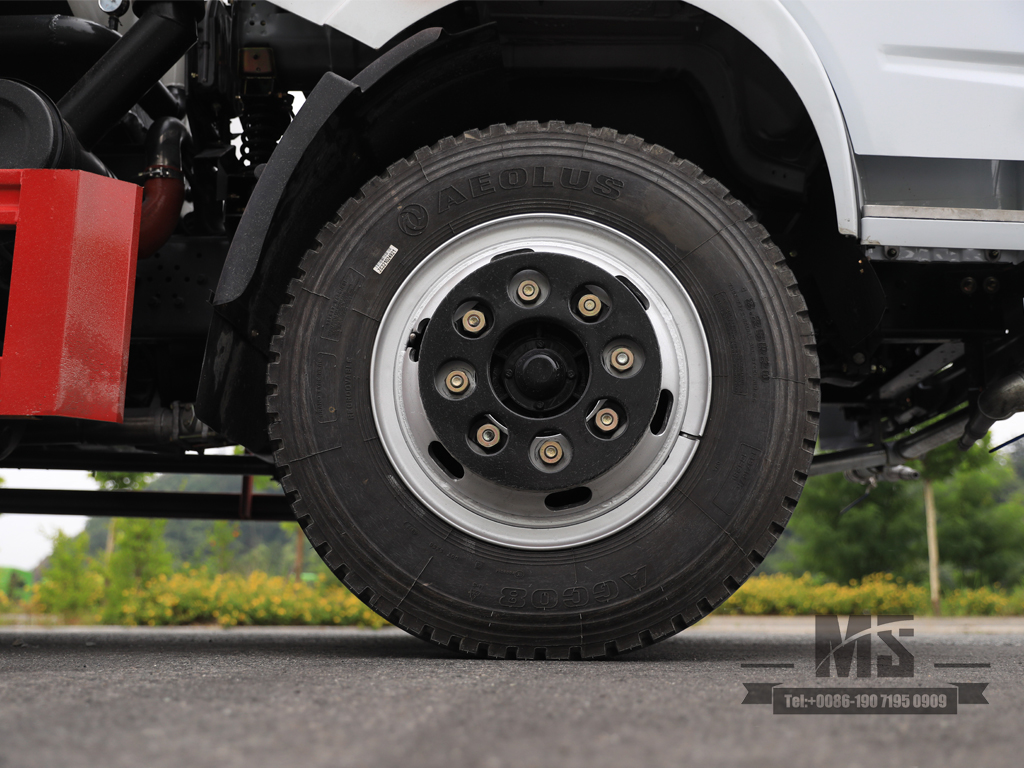

Tire | 8.25R20 (6+1 items) |
Vehicle Suspension | Steel Plate Spring 8/8+10pcs |
Detailed parameter | |
Overall Dimension | 7450*2350*2950mm |
Tanker Volume | 8m³ (2m³ water tank, 6m³ feces tank) |
Wheelbase | 3800mm |
Wheel Track | 1880/1840mm |
Total Mass | 11600kg |
Rated Power | 125kw |
Engine Displacement | 5.9L |
Number of passengers | 3 |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 30°/16° |
Oil Tank volume | 160L |
Wading Depth | 500mm |
Minimum ground clearance | 250mm |
Obstacle Crossing height | 410mm |
Torque | 560N.m |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
