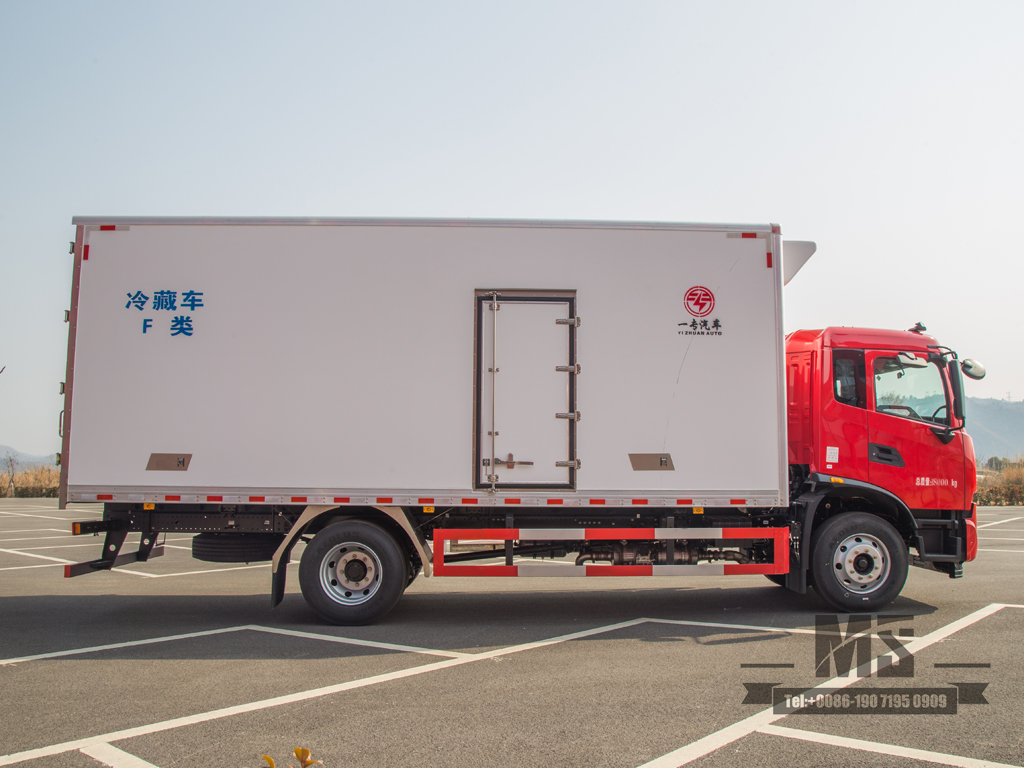

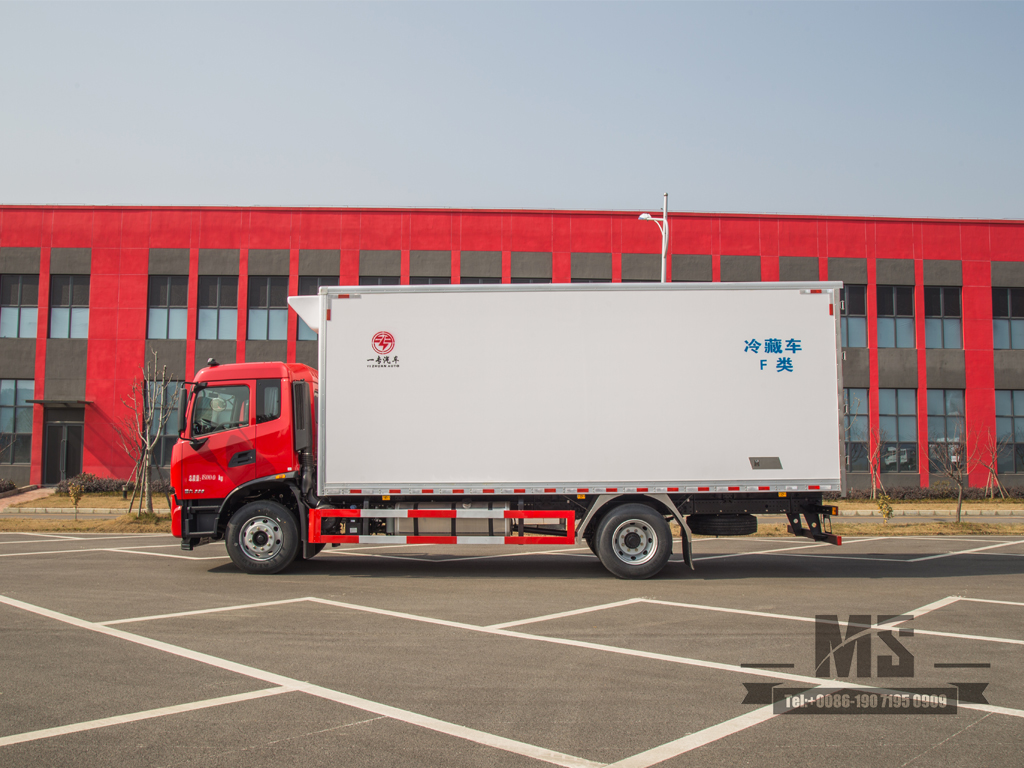

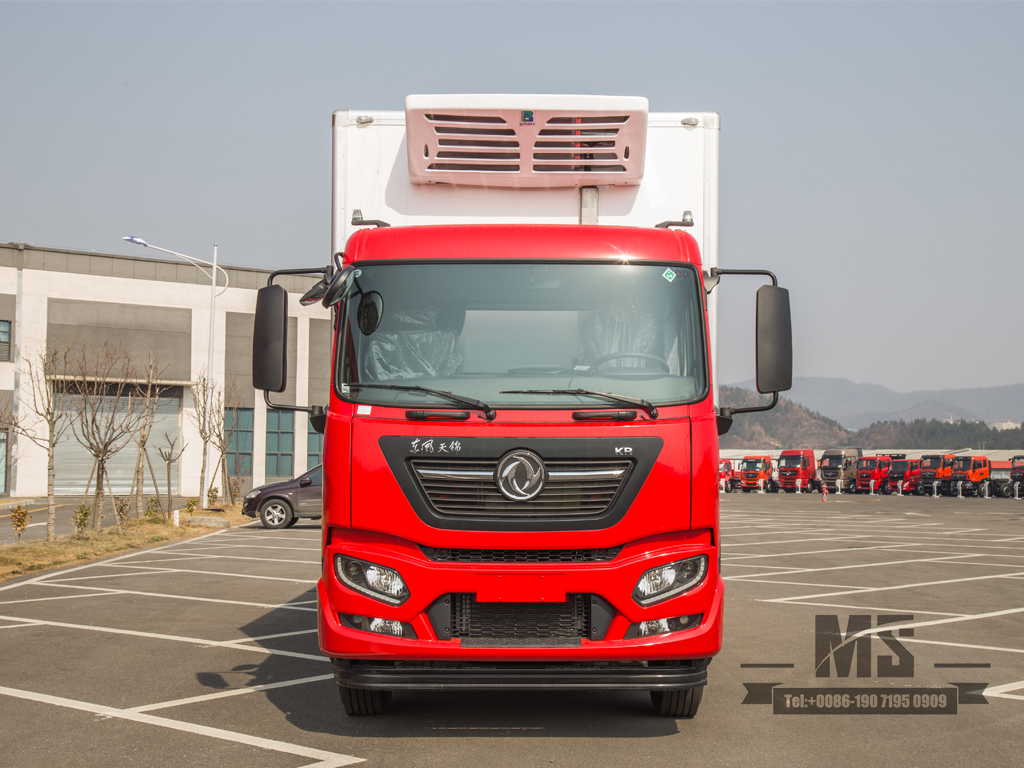

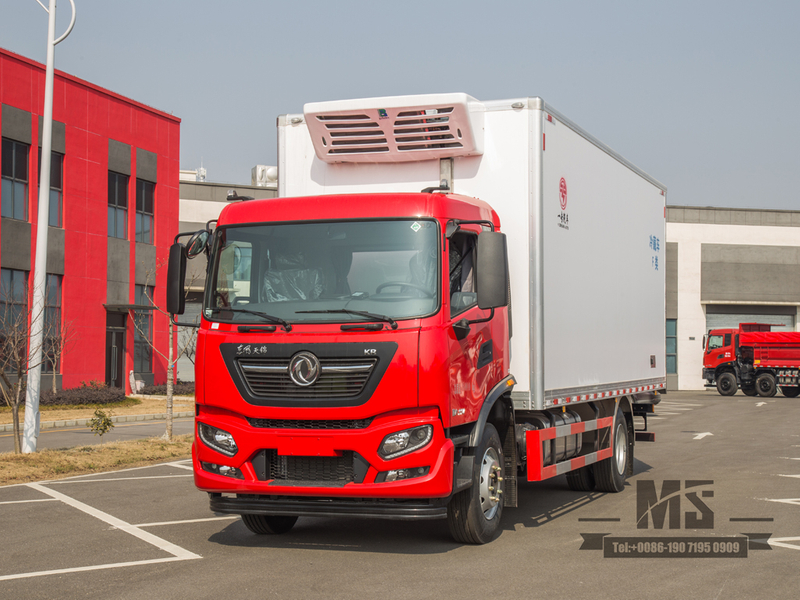

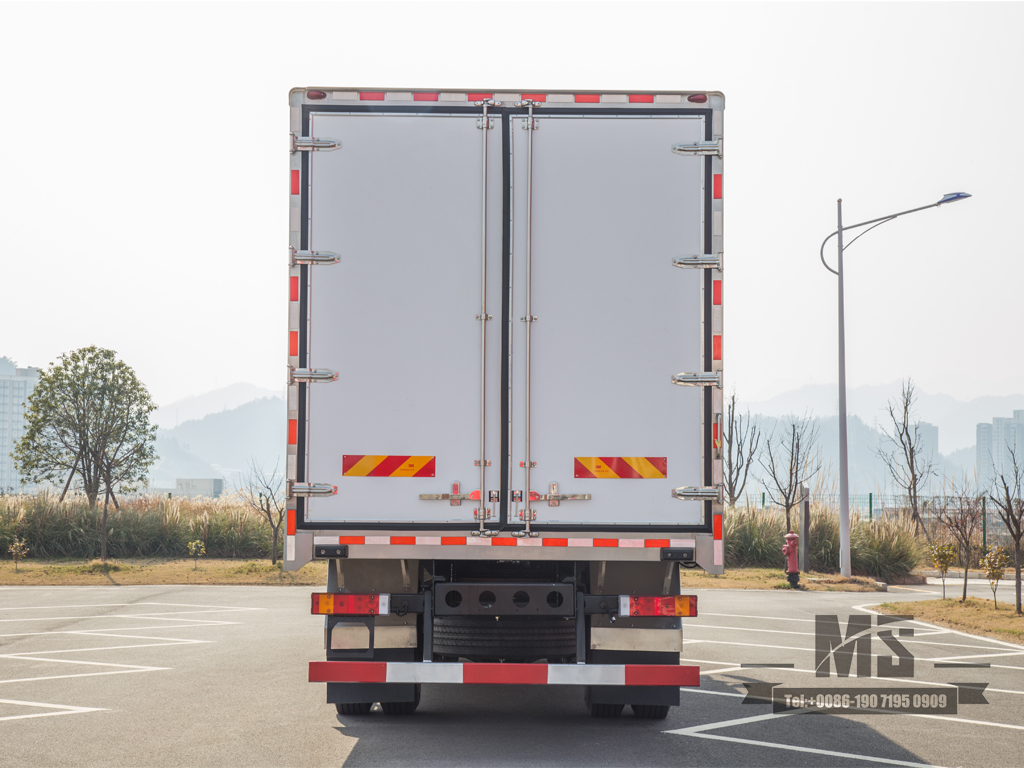

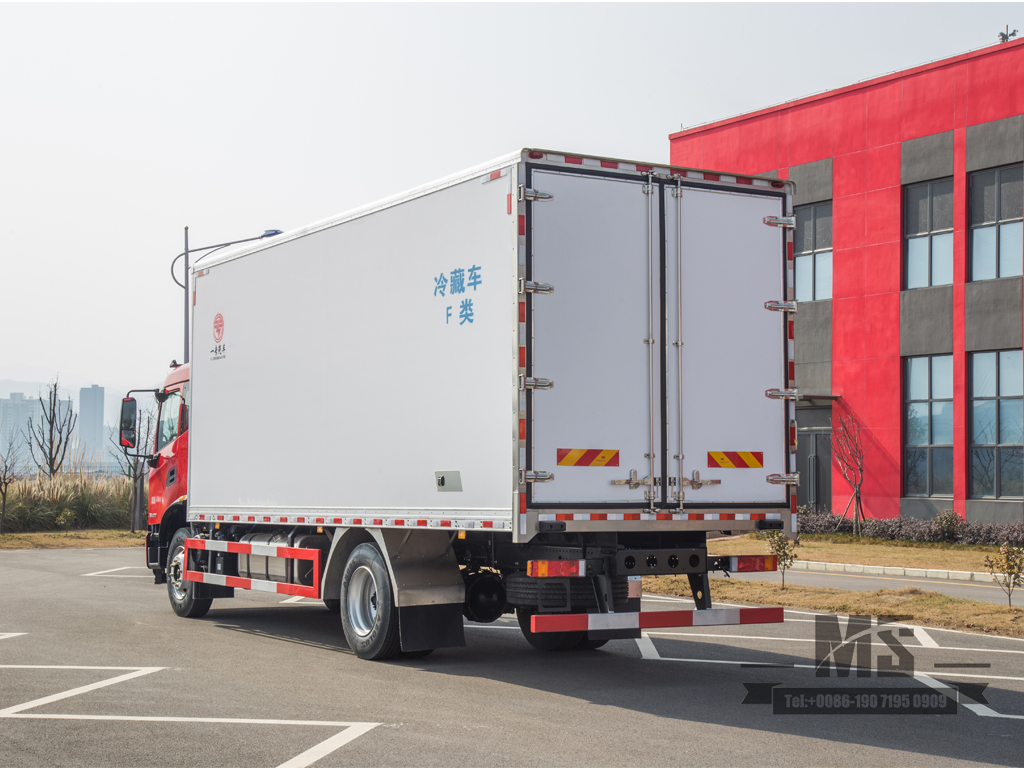

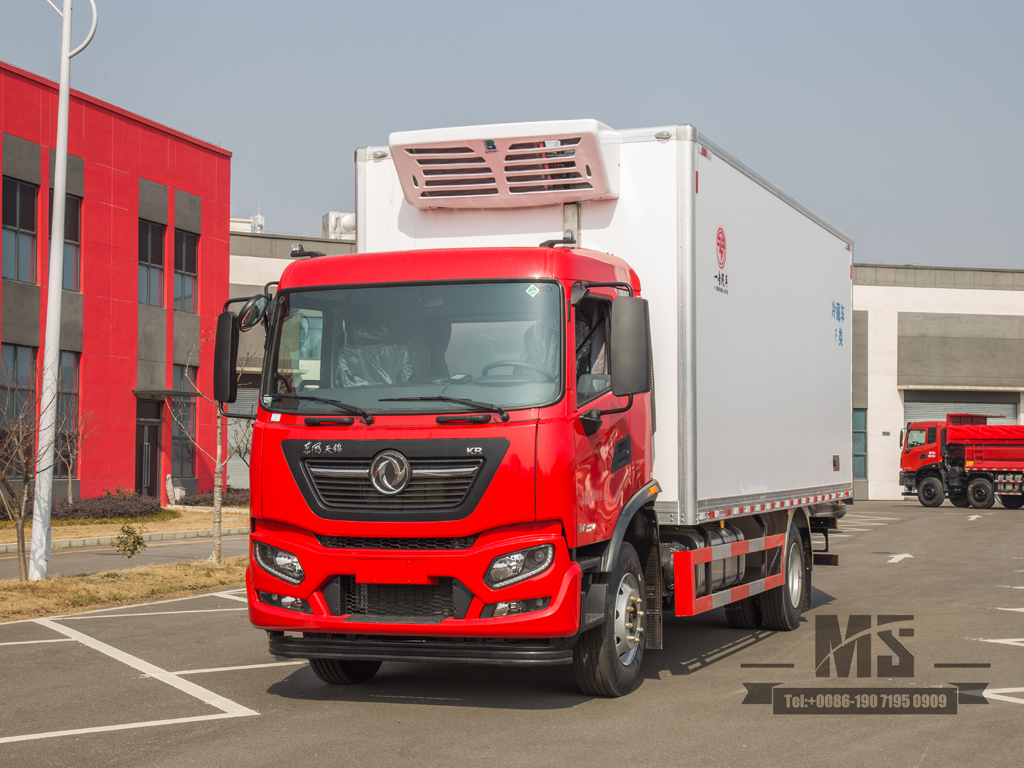

Dongfeng Tianjin KR F-class refrigerated trucks
Basic configuration | |
Engine | Yuchai YC6J220-30 |
Body structureBody structure | Dongfeng flat head half |
Gearbox | Manual eight-speed |
Transfer box | With high and low speed High and low speed |
Axle | 5T/13T |
Tire | 10.00R20 (6+1) |
Other | refrigeration unit |
Special Configuration | With sprinkler and refrigeration unit. The body is made of high-quality fiberglass inside and outside, with 7.5CM thick insulation material in the middle, aluminum alloy profile edging, door frame, and locks are stainless steel. There is a single door on the right and a double door at the rear. Remote and precise temperature control. |
Detailed parameter | |
Overall Vehicle Dimension | 7300×2460×3600mm |
Interior dimensions of the compartment | 5800*2200*2500mm |
Wheelbase | 4500mm |
Wheel span | 1920/1860mm |
GVW | 18000kg |
Curb weight | 7880kg |
Displacement | 6494ml |
Maximum Power | 162kw |
Maximum speed | 100km/h |
Approach Angle | 21° |
Fuel Tank Caapacity | 210L |
Minimum ground clearance | 280mm |
Departure Angle | 12° |
Torque | 800N.m |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
