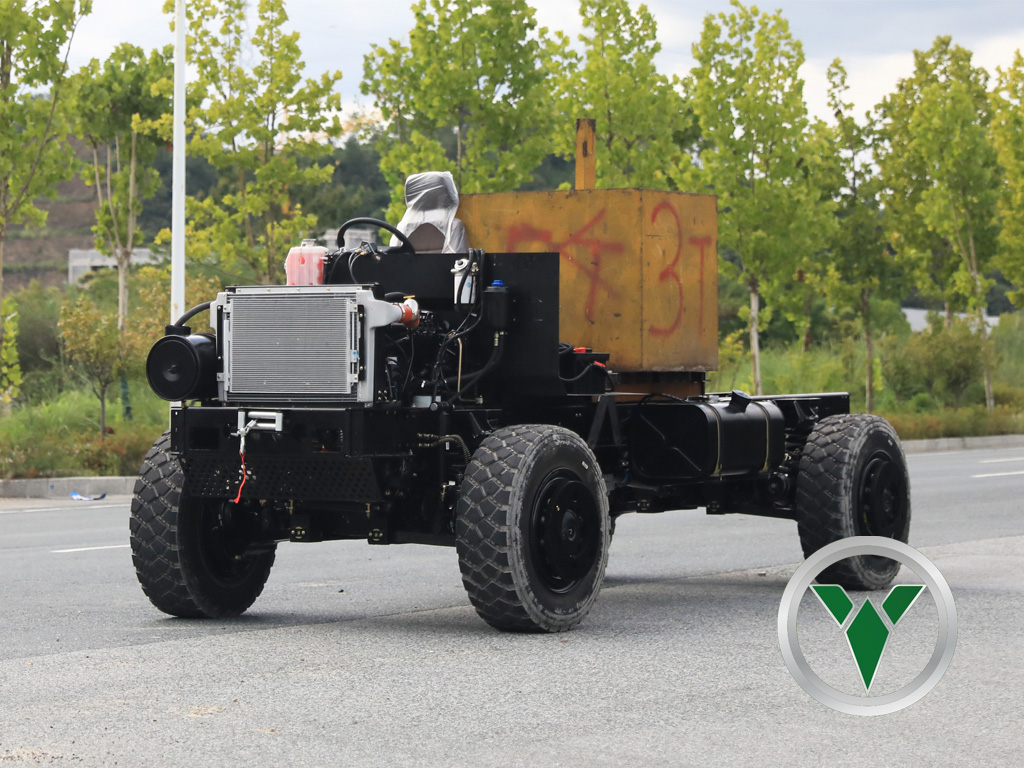

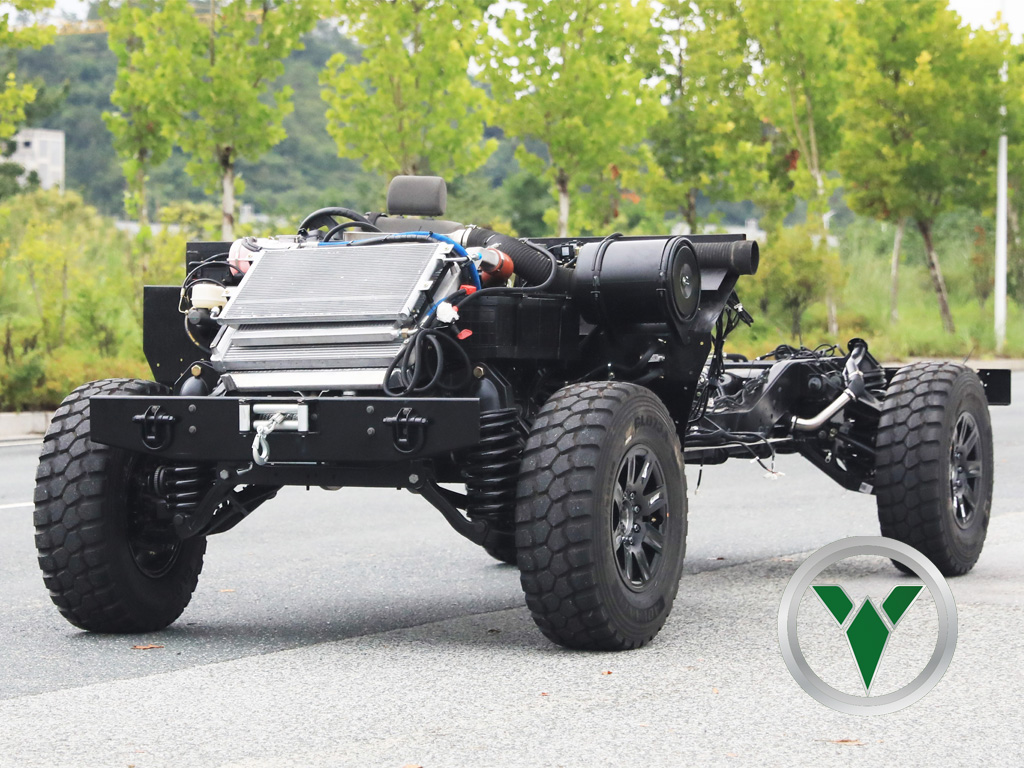

Engineered for the Extreme: Introducing the 6-Ton Custom Class 3 Off-Road Chassis

In the world of specialized off-road vehicles, a superior chassis is the foundation for every successful mission. We are proud to introduce our purpose-built 6-ton Class 3 Off-Road Chassis, a platform engineered from the ground up to deliver uncompromising performance, reliability, and adaptability in the most demanding environments.

This chassis isn't just a component; it's a complete, ready-to-build solution for professionals who cannot afford to fail.

Unmatched Powertrain and Drivetrain

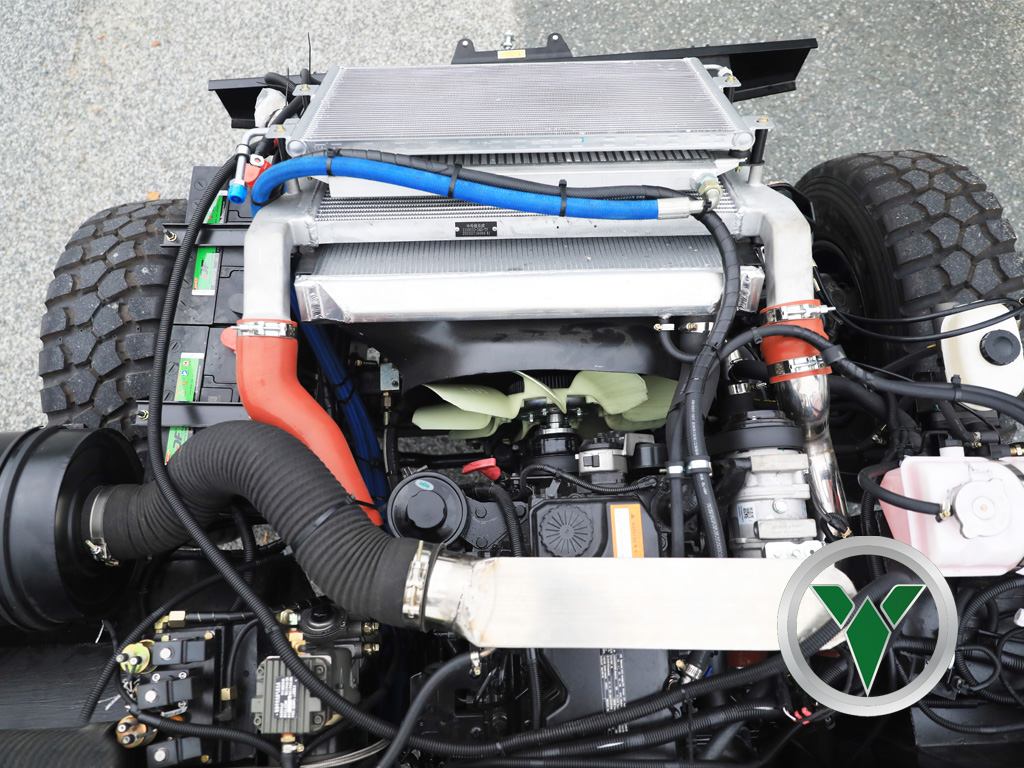

At the heart of this chassis lies a robust and proven powertrain. The Cummins ISDe200 41 engine, with 4.5 liters of displacement and 147kW of power, provides the high-torque output necessary for challenging terrain and heavy auxiliary loads. This power is seamlessly managed by the smooth-shifting Allison automatic transmission, reducing driver fatigue and optimizing power delivery. The advanced 4x4 drive type, coupled with a high-low range transfer case, ensures maximum traction whether navigating rocky inclines, deep sand, or muddy tracks.

Superior Mobility and Durability

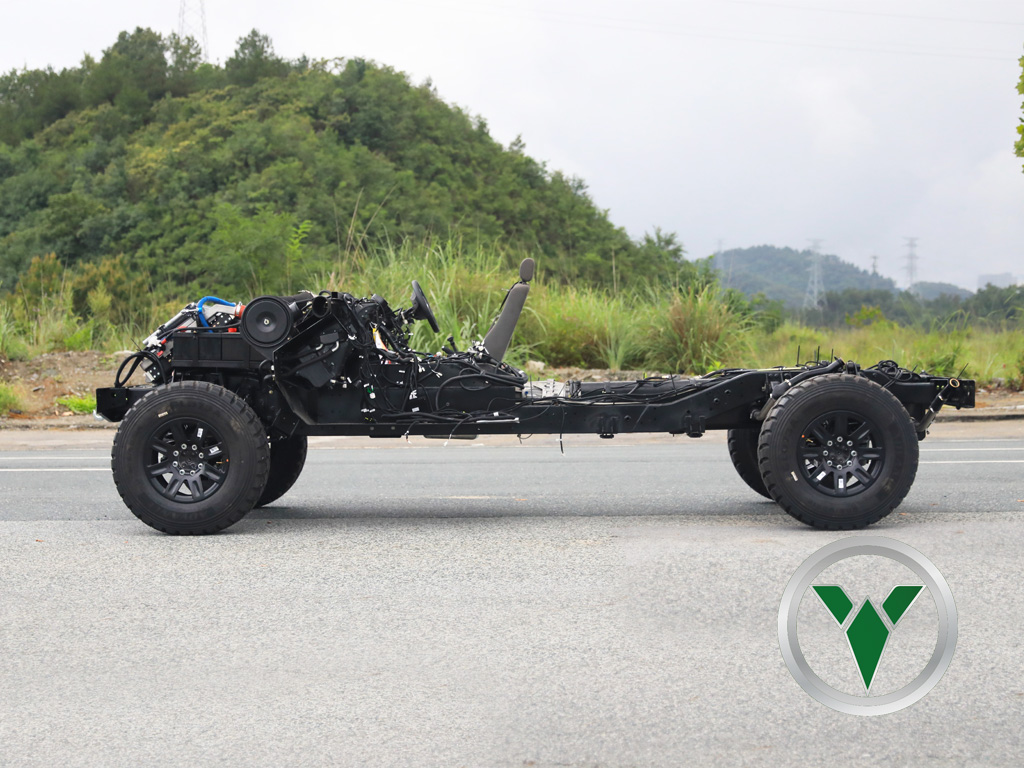

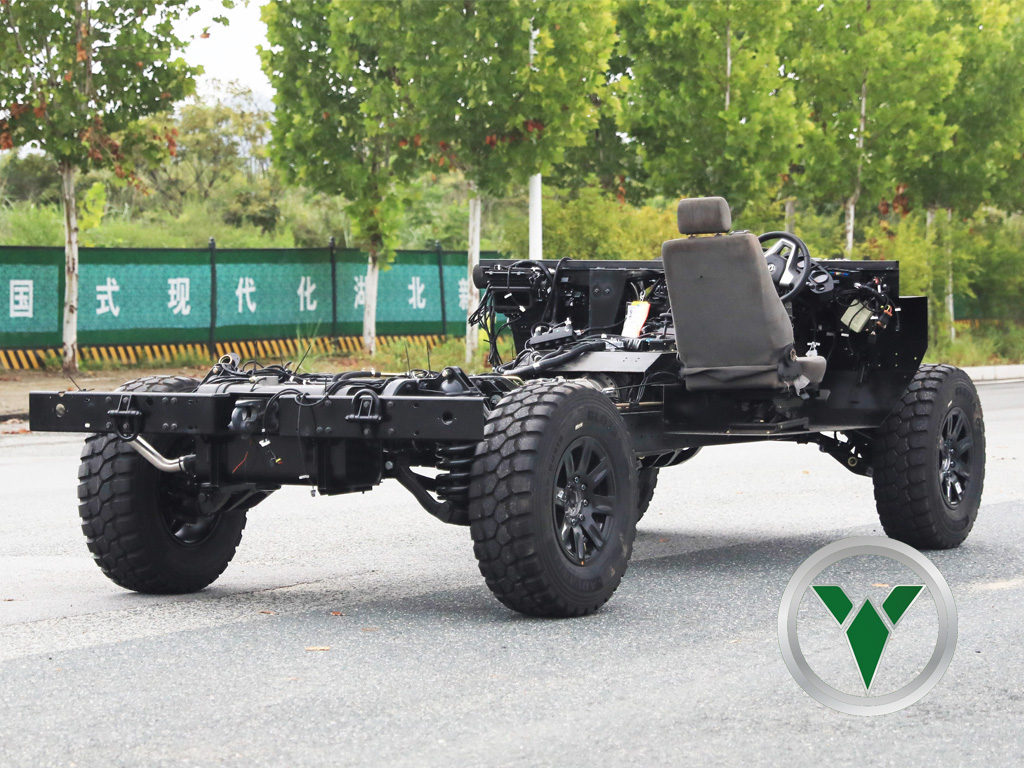

Mobility is defined by its exceptional chassis geometry. With a staggering 48° approach angle and 46° departure angle, coupled with a 480mm minimum ground clearance, this chassis conquers obstacles that would stop conventional vehicles. The critical addition of a front independent suspension system provides a significant advantage, offering improved wheel articulation, superior ride comfort, and enhanced stability at higher speeds on rough ground. This is supported by a 2.6T/3.4T axle configuration and rugged 305/80R18 tires for ultimate durability.

Designed for Long-Range Missions

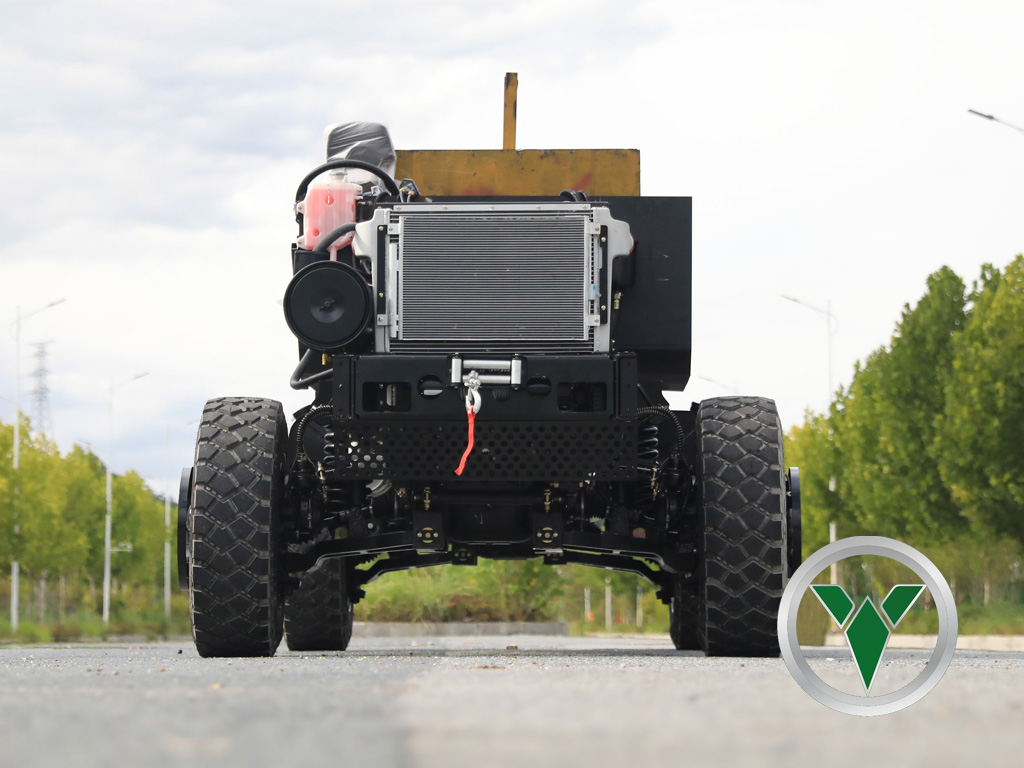

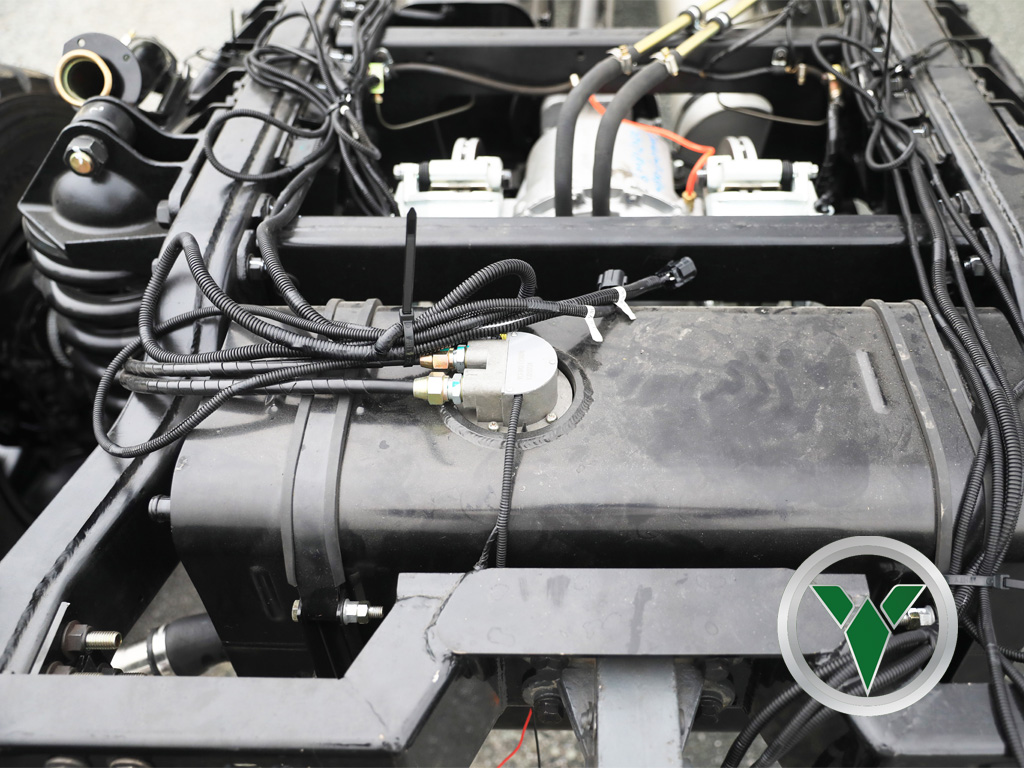

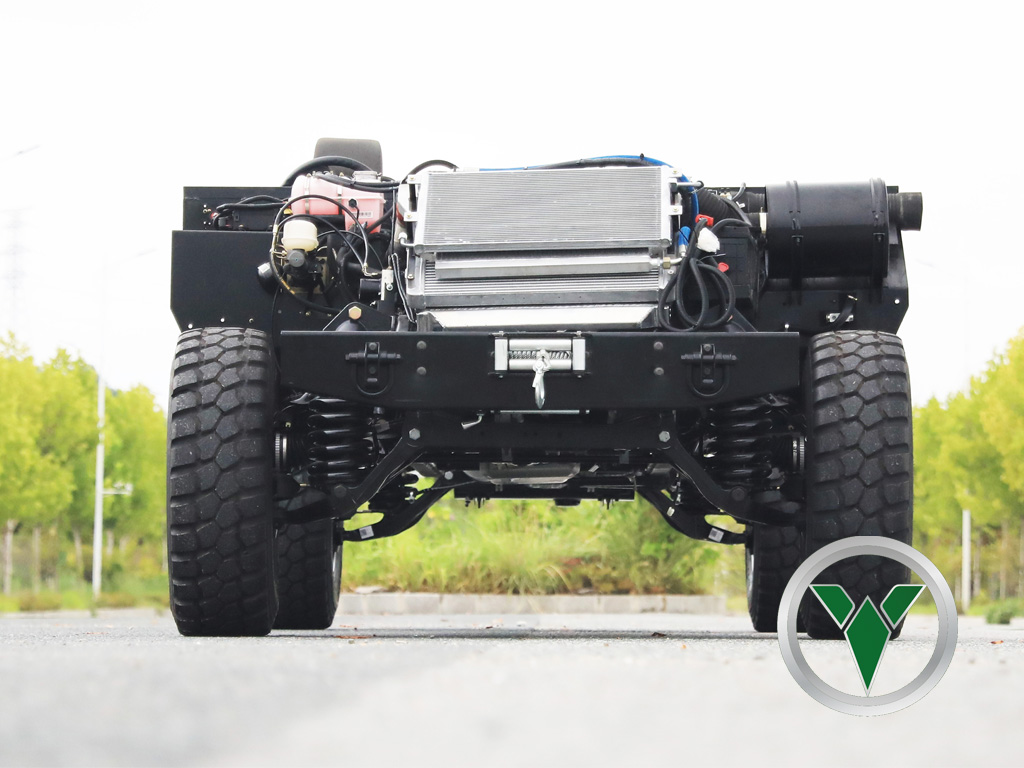

Understanding the need for operational independence, this chassis is equipped with a comprehensive dual fuel tank system with a combined 115-liter capacity (76L + 39L), extending your range far beyond the ordinary. For self-recovery and assisting others, a powerful 6-ton front electric winch comes standard, ensuring you are always prepared. With a 3800mm wheelbase and overall dimensions of 5290x2250x1710mm, this chassis offers a perfect balance of stability and maneuverability, providing an ideal platform for custom bodies for emergency response, expedition tours, seismic surveying, and more.

This 6-ton off-road chassis represents the pinnacle of specialized vehicle engineering, designed for those who require a vehicle as tough and capable as their mission.
