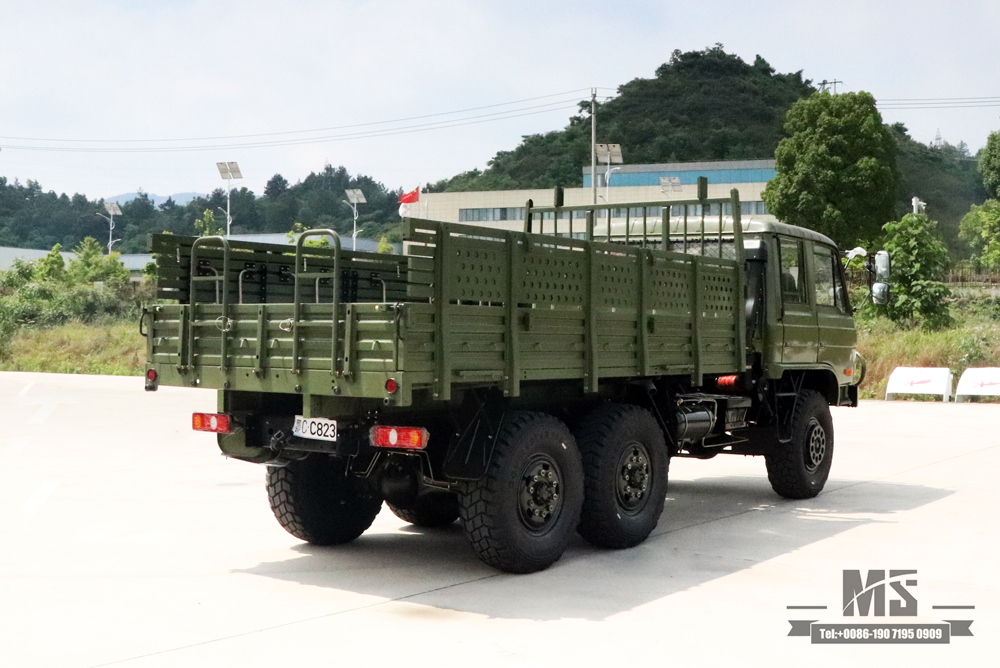

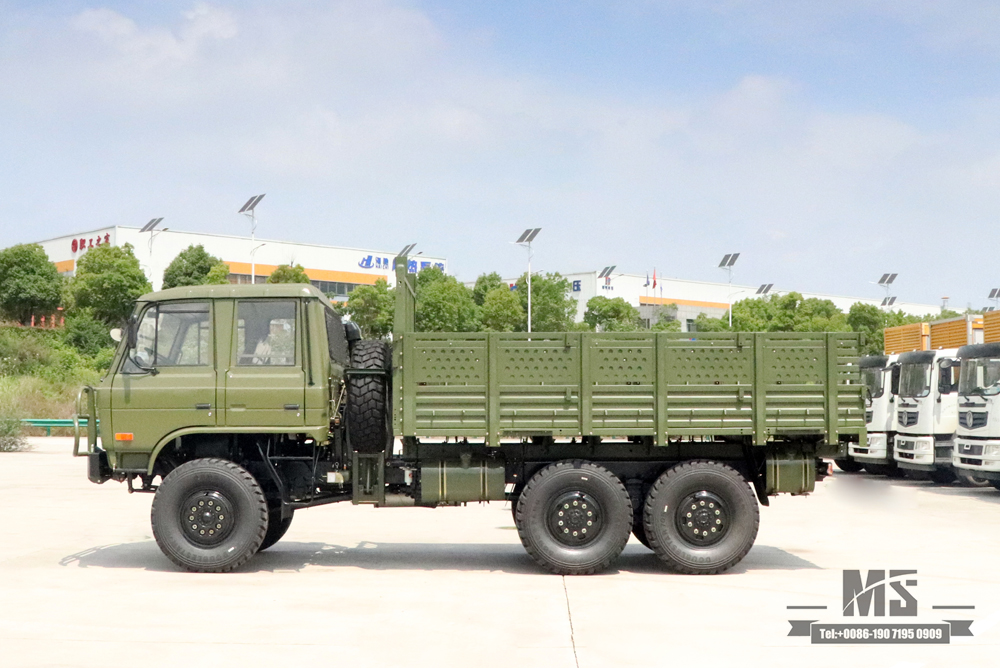

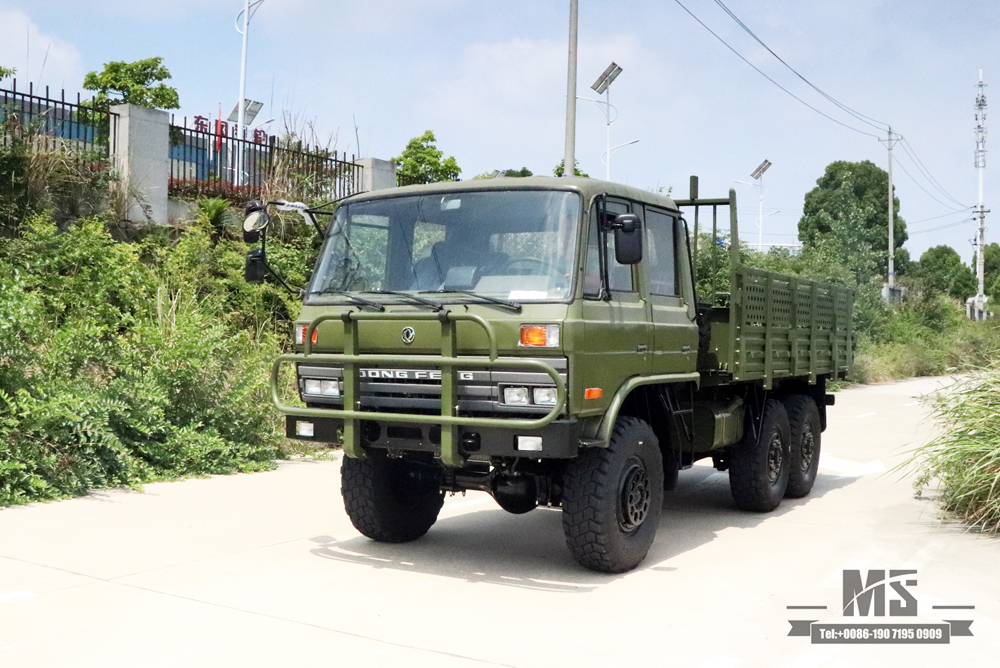

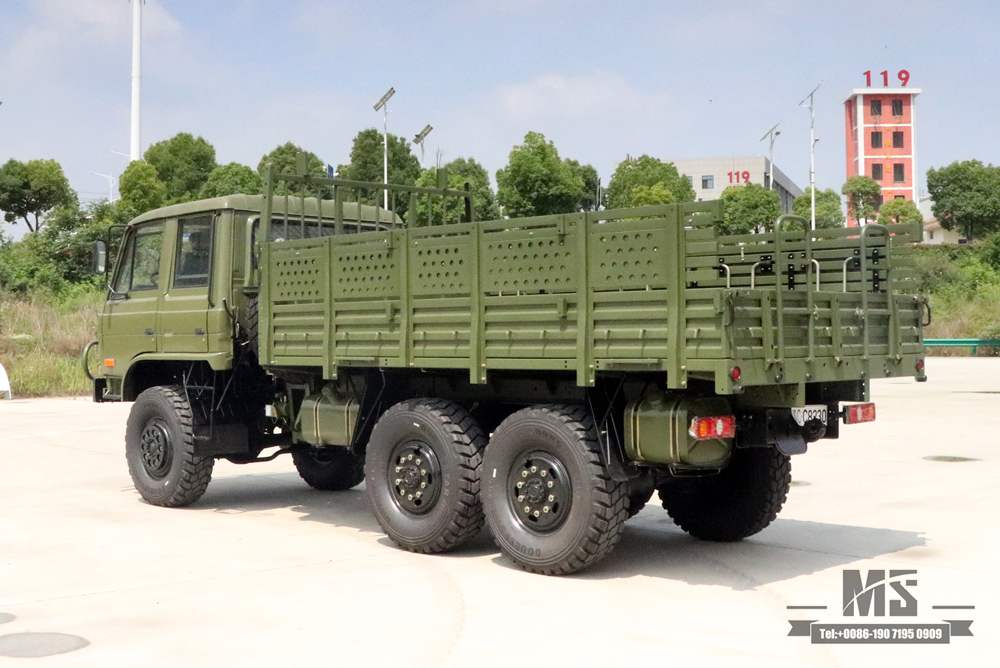

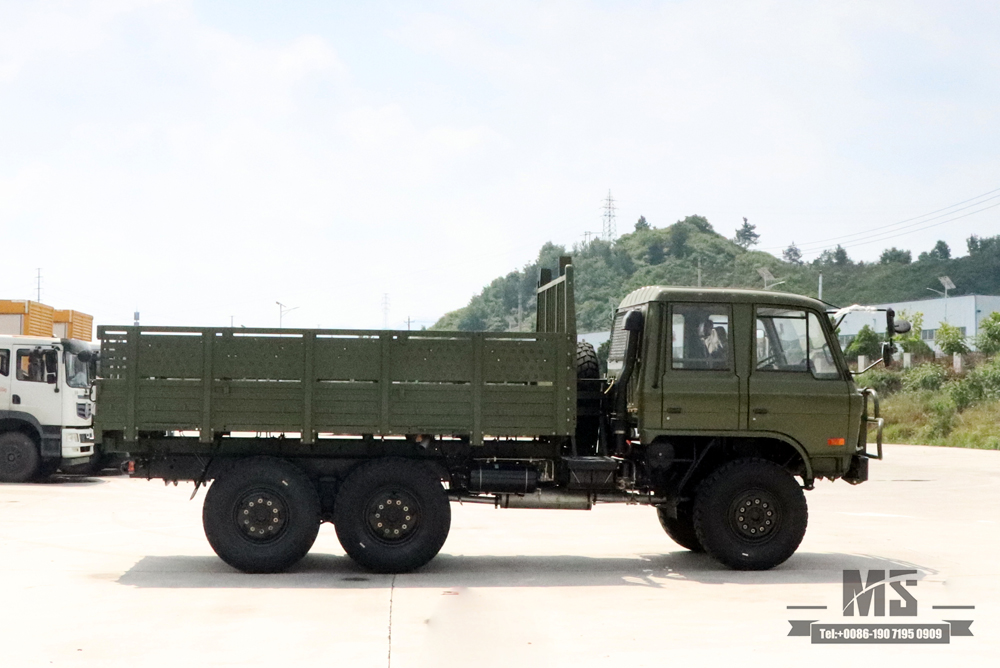

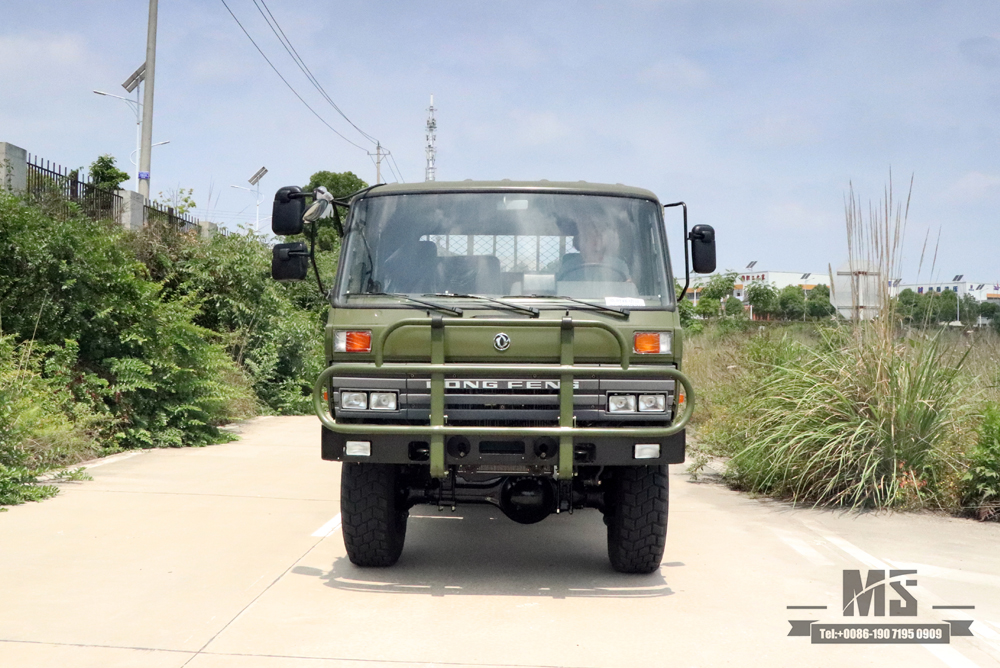

Dongfeng EQ2102 is an upgraded model of the three-and-a-half-ton double-row flat-top off-road personnel carrier EQ2102G. The main difference is that the cab has been upgraded to a double-row style. The number of people in the cab can be up to 5, and the size of the cargo box has been shortened accordingly.
This vehicle was initially developed as an off-road vehicle to meet the needs of modern national defense equipment and combined with the needs of our military. Its main deployment purposes are:
1. Tow weapons and equipment weighing 2.3~4.8 tons
2. Carry weapons and equipment weighing 4 tons (including cargo boxes)
3. Provide special supporting vehicle chassis for various military services and departments
4. Equip motorized troops and use them as cross-country transport vehicles
5. Provide assemblies for wheeled armored vehicles
The EQ2102 military vehicle adopts many new assemblies, and the vehicle is majestic and powerful, reflecting the characteristics of military vehicles. With excellent performance and high cost performance, it has been put into the civilian market.
Basic configuration |
Engine | Cummins B190 33 |
| Drive type | 6*6 |
Gearbox | Manual Six-speed gearbox |
Transfer box | Mechanical two-speed high and low speed, electronically controlled pneumatic control |
Vehicle Frame
| 232*75*6.5mm，External width 861mm |
Driver Cab
| Dongfeng 153 Double Row Cab |
Axle | 3.6T/3.6T/3.6T |
Tire | 12.5R20(6+1) |
| Vehicle Suspension | Leaf spring 9/12 |
Other | Hydraulic clutch assist, hydraulic steering assist, exhaust brake |
| Electric Circuit | 24V circuit system,Single wire, negative ground |
Optional Items
| Heating and air conditioning, winch, reversing image, brake cooling water tank |

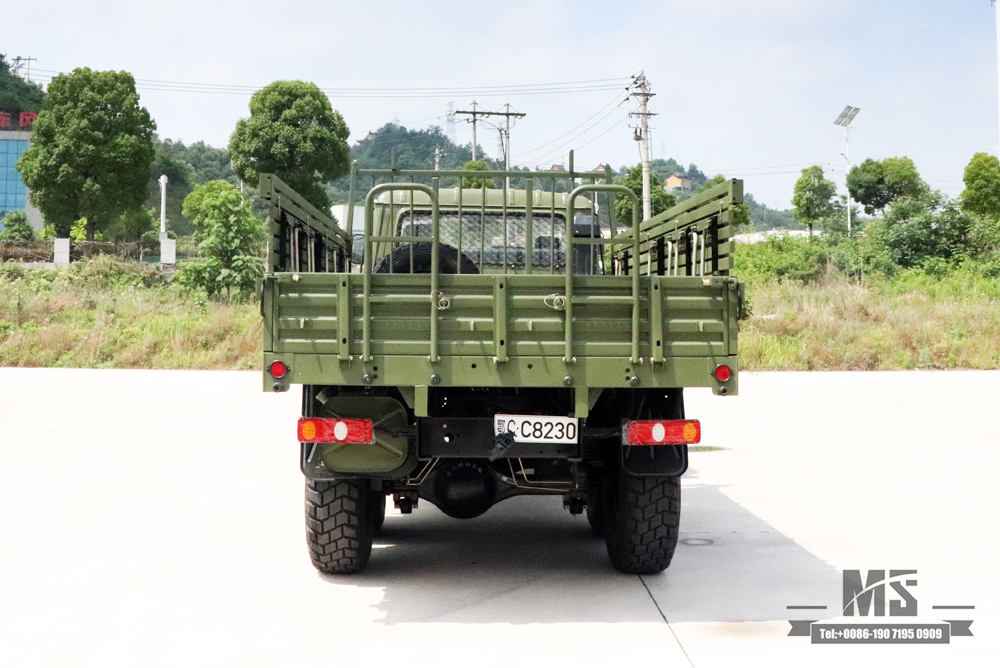

The cargo box adopts a mixed structure of iron and wood, and seats can be installed on the inside. There are 2 folding ladders at the end of the box, and there is a tool box at the bottom of the cargo box. With removable tarpaulin poles
Comprehensive instruments: speedometer, ammeter, voltmeter, water temperature meter, fuel meter, air pressure meter
Indicator lights: headlights, side lights, fog lights, front small lights, rear tail lights, rear lights, front and rear turn signals, brake lights, front and rear anti-aircraft lights, combination switch, steering, low oil pressure
Detailed parameter |
Overall Dimension | 7495×2470×2740mm |
| Cargobox Dimension | 4270×2294×900mm |
| Wheelbase | 3475+1250mm |
Wheel Track | 1876/1870mm |
GVW | 10740kg |
| Curb Weight | 6920kg |
Number of passengers
| 2~3 |
| Maximum speed | ≥88km/h |
| Engine Maximum Power | 140kw |
| Engine Displacement | 5.9L |
Approach Angle/departure Angle | 35°/34° |
Oil Tank volume | 160+80L |
Minimum ground clearance | 320mm |
Wading Depth
| 1125mm |
Note: This configuration is for reference only, please refer to the actual car.
