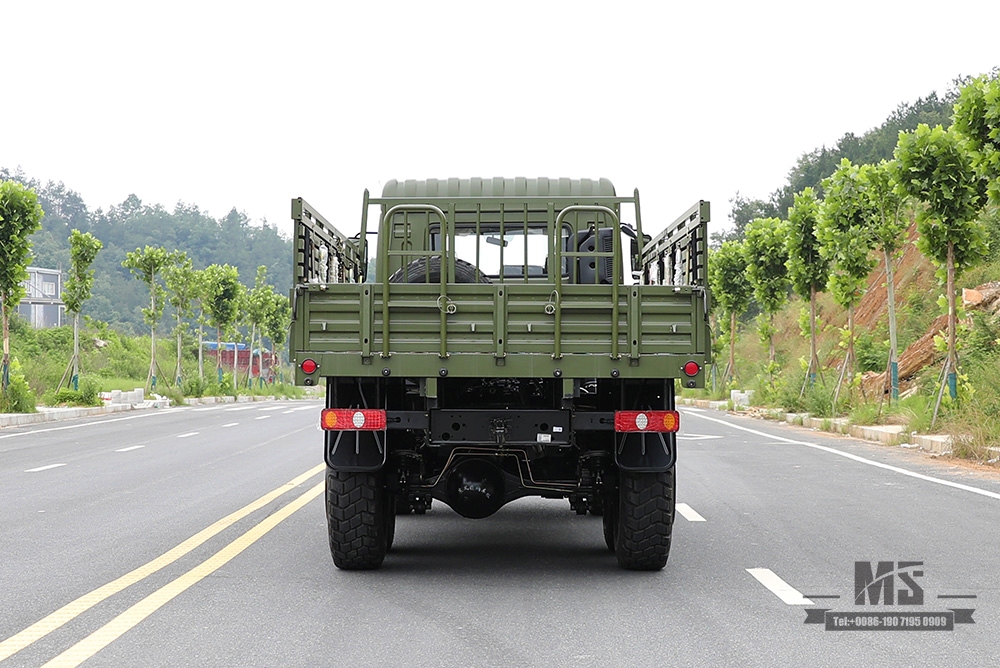

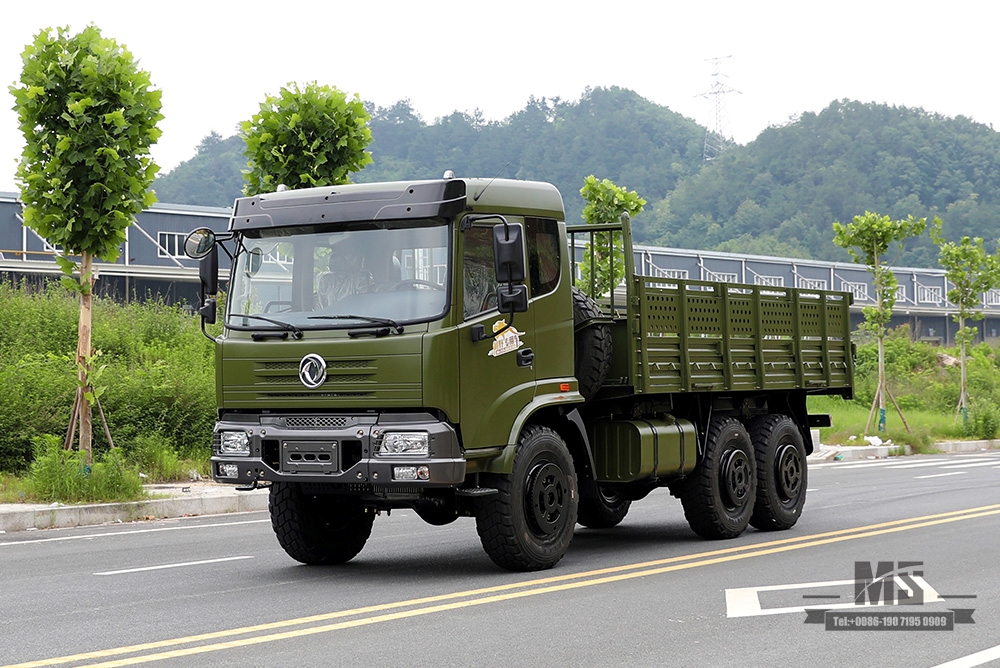

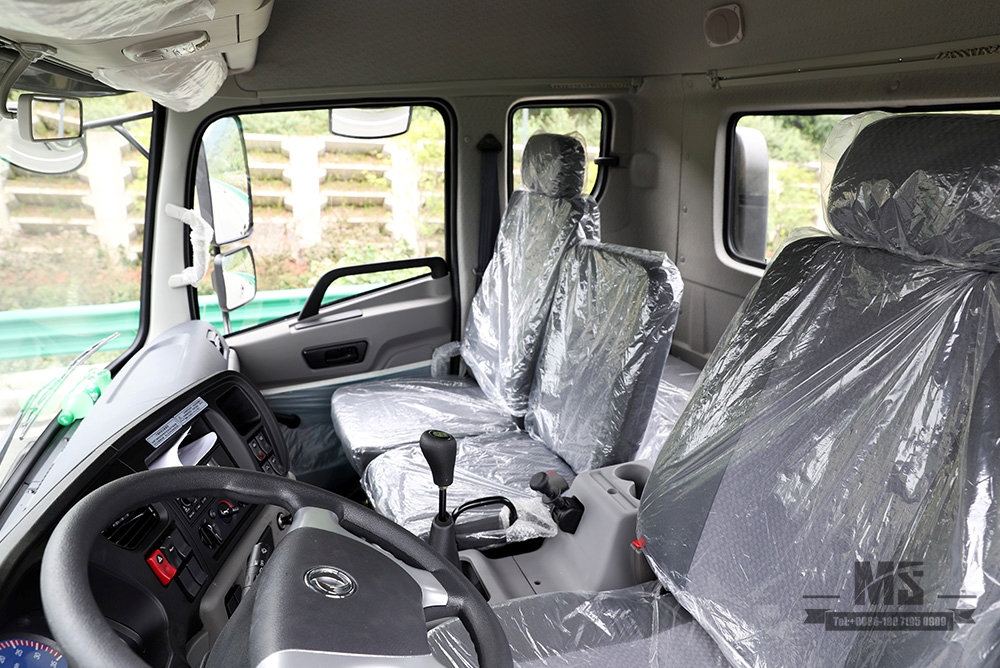

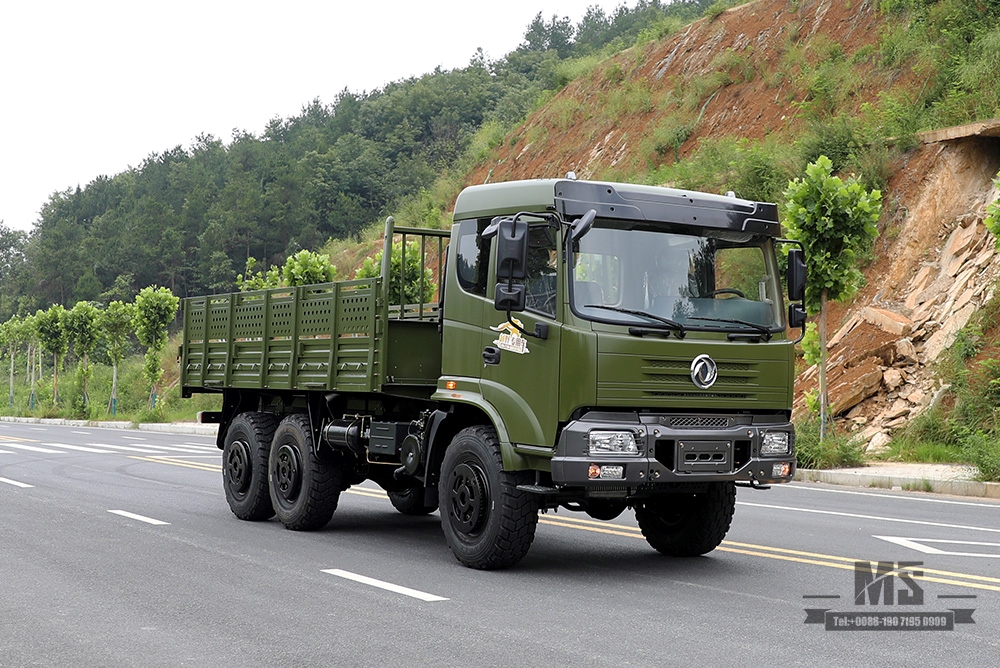

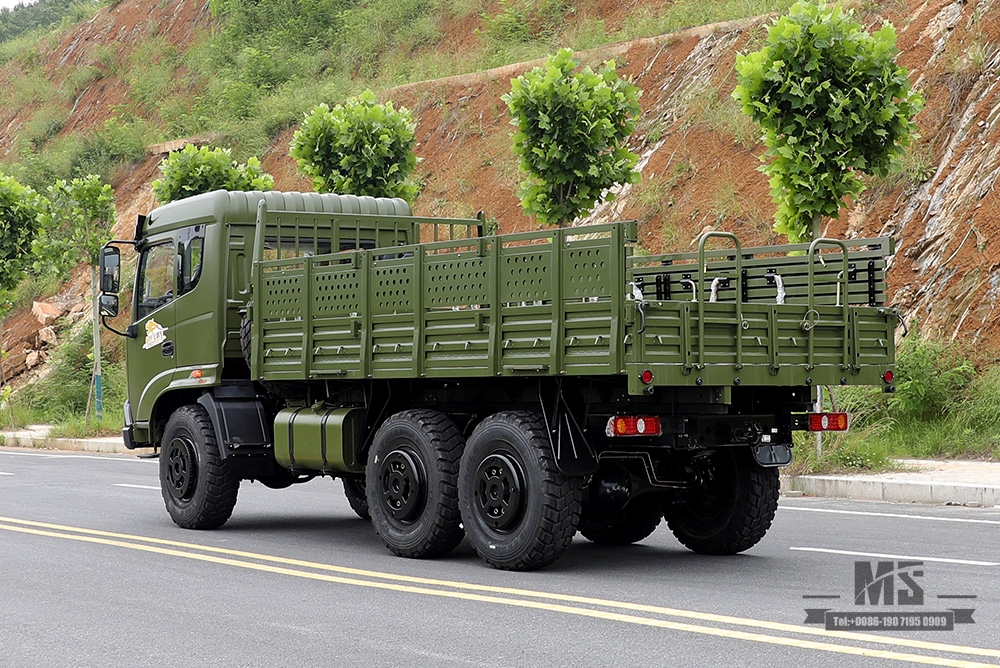

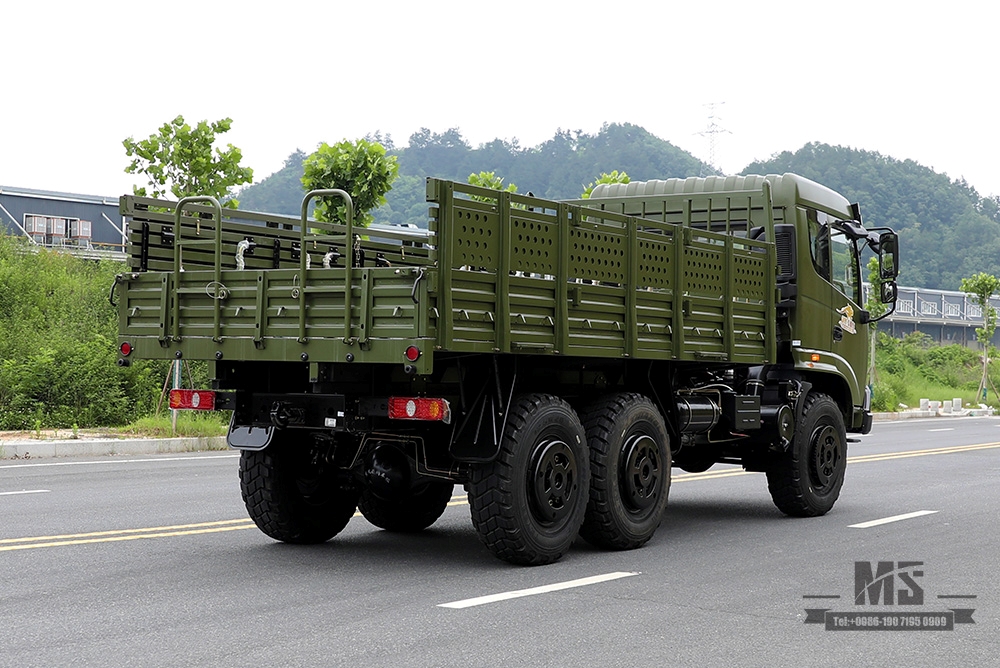

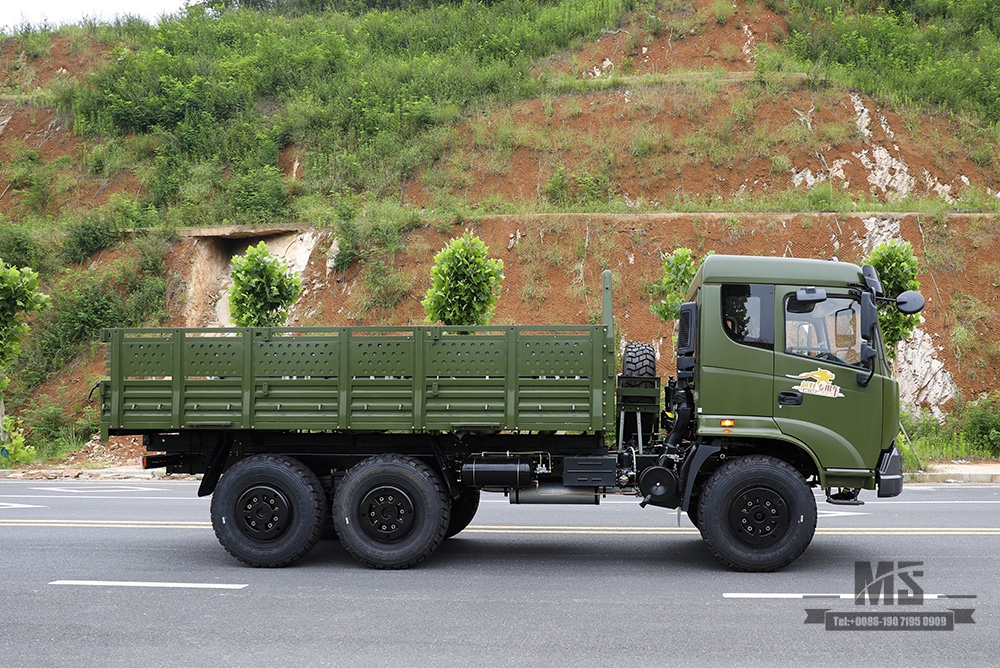

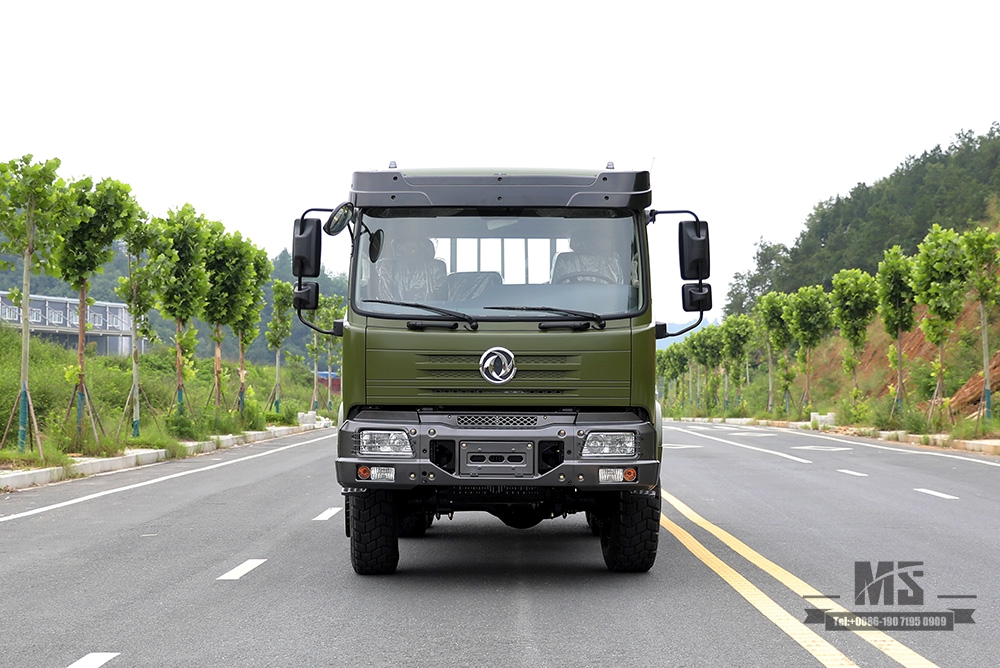

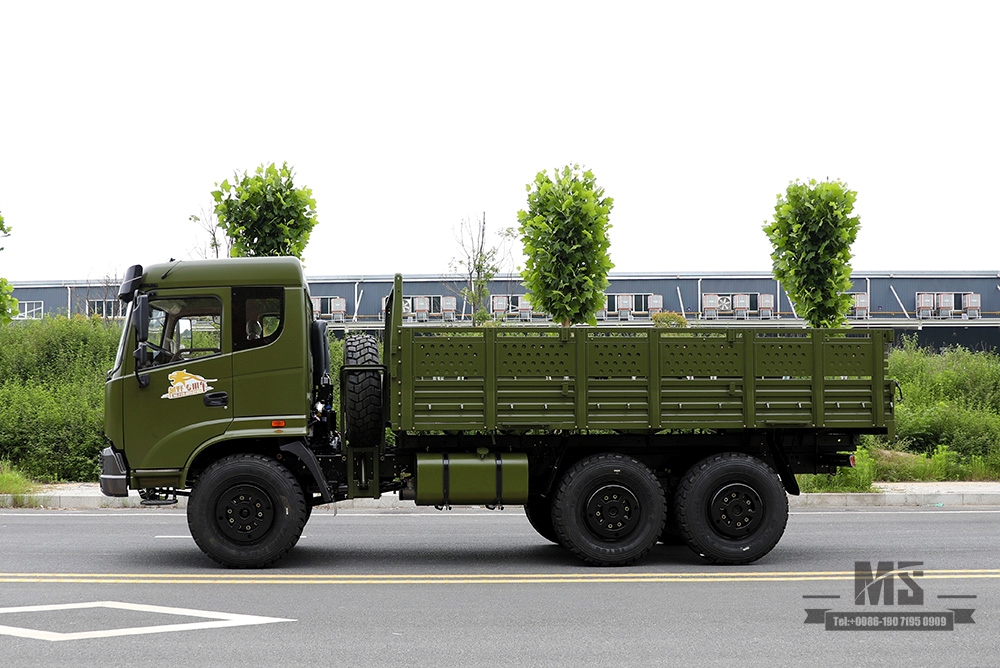

The Dongfeng Flathead 6WD off-road lorry is a very cost-effective model, which can be driven under mountain roads, forests, swamps and the Gobi, and is also equipped with a cold-starting device, which is able to start smoothly at -41 degrees Celsius, allowing it to be used in high-altitude areas. The cab is ergonomically designed for comfort and ease of operation, with a wide field of vision and a sleeper for resting.
Basic configuration | |
Drive type | 6*6 |
Engine | Cummins B190 33 |
Gearbox | Manual Six-speed Gearbox |
Transfer box | With high and low gears |
Driver Cab | Dongfeng Flathead One and a half Row(With Sleeper and air conditioning) |
| Vehicle Frame | 860×232mm, Thickness 8mm |
Vehicle Axle | 3.5T/3.5T/3.5T |
Tire | 12.5R20(6+1) |
Electric circuit | 24V circuit system |
| Suspension | Steel Plate Spring 9/13 |
| Accessories | Buckets, oil drums, fire extinguishers, warning signs, accompanying tools |

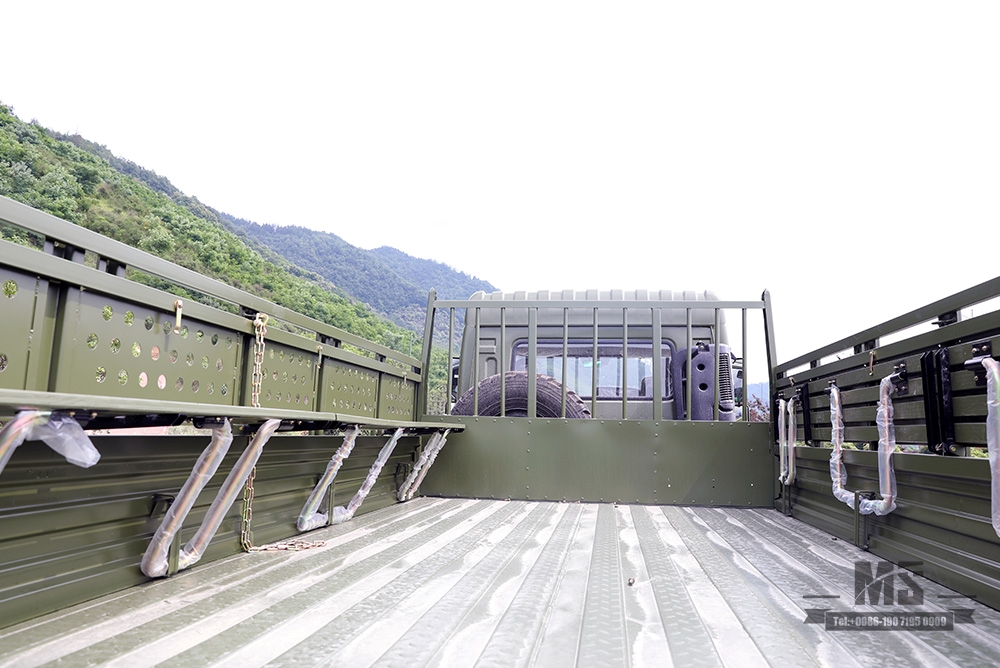

The base plate of the cargo box is made of pure iron with non-slip pattern. Folding seats are installed on both side panels, and there are 2 folding ladders at the rear with sockets reserved for canopy poles. The rear of the vehicle can be optionally equipped with electric and gas linkage.
Detailed parameter | |
Overall Dimension | 7815*2480*3025mm |
Cargo Box Inner Dimension | 4800×2300×900mm |
Wheelbase | 3475+1250mm |
Wheel track | 1996mm |
GVW | 15000kg |
Curb Weight | 6645kg |
| Loading Weight | Loading Weight |
| Pulling Weight | 5000kg |
| Maximum Power | 140kw |
| Engine Displacement | 5880ml |
| Number of pasengers | 3 |
Maximum speed | 87km/h |
Maximum Climbing Grade | 60% |
Approach Angle/departure Angle | 24°/28° |
Tank volume | 260L |
| Minimum ground clearance | 310mm |
| Crossing height | 510mm |
| Wading Depth | 1110mm |
| Side Slope Driving Angle | 40% |
Note: This configuration is for reference only, please refer to the actual car.













For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
