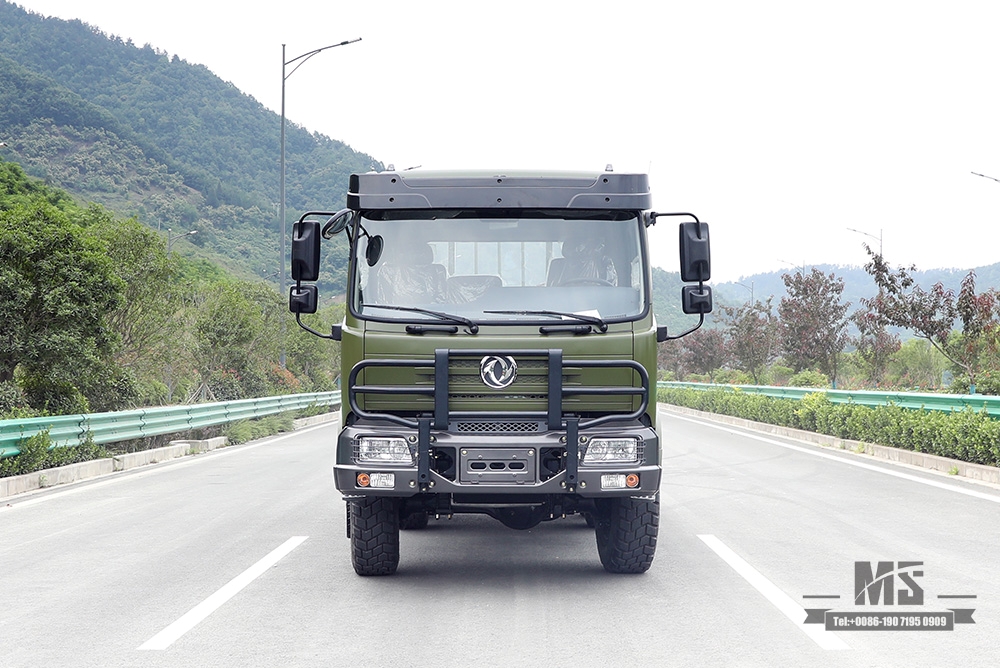

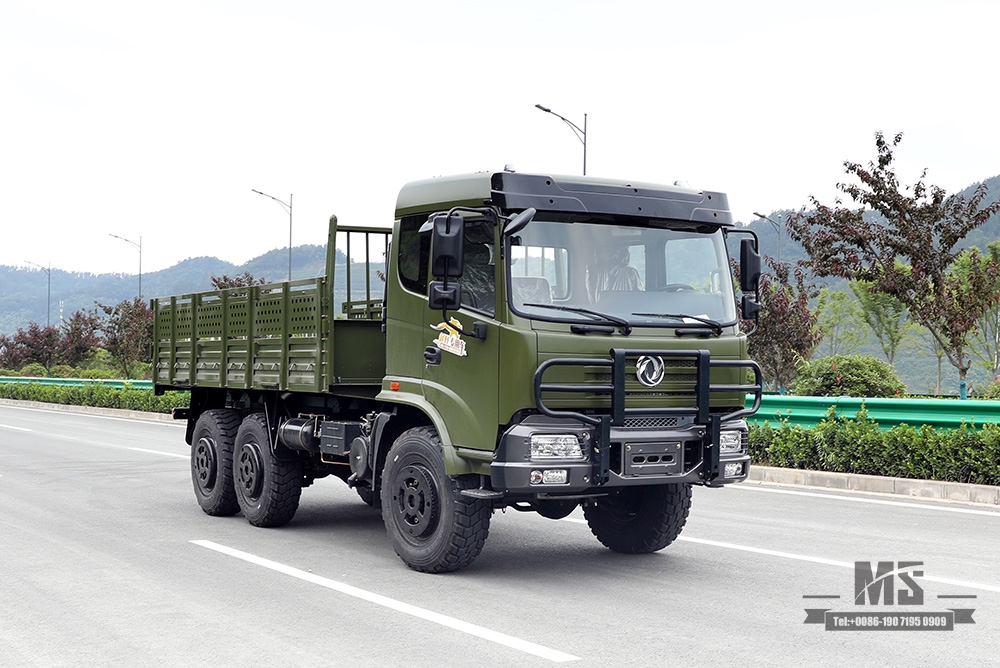

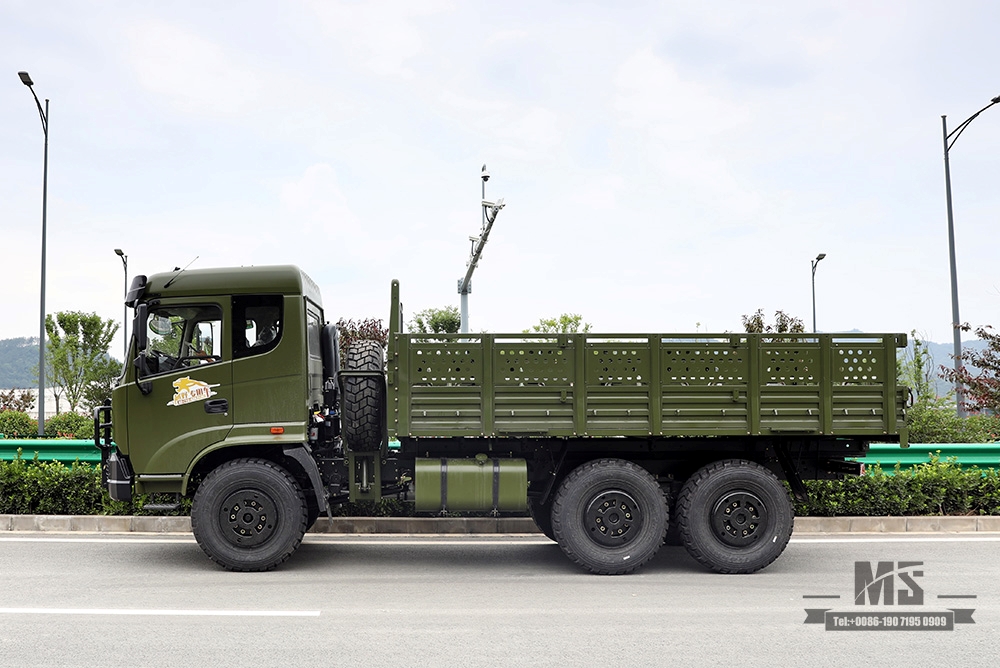

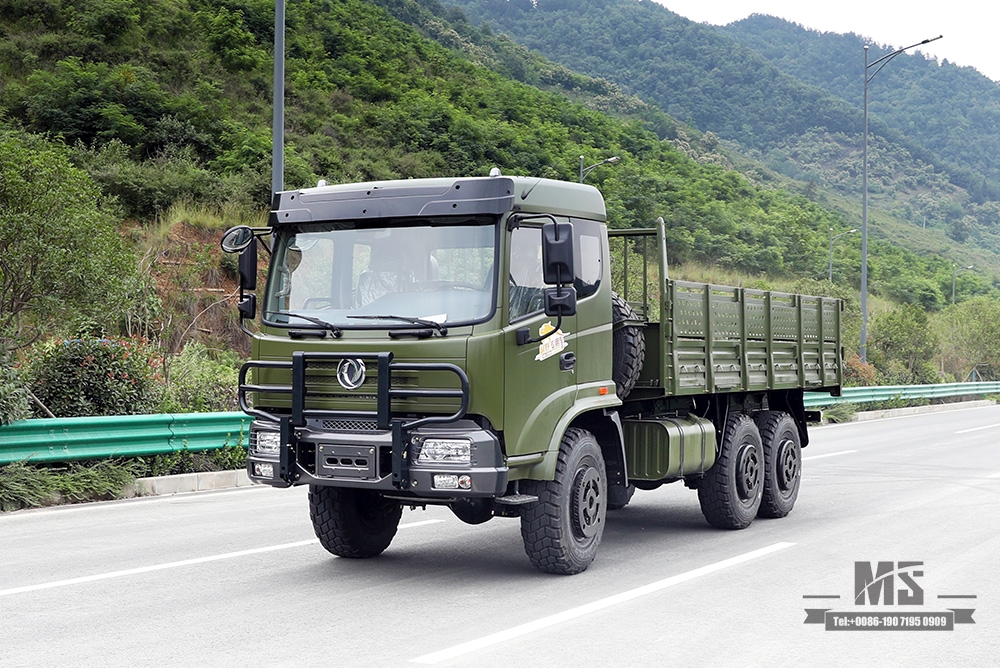

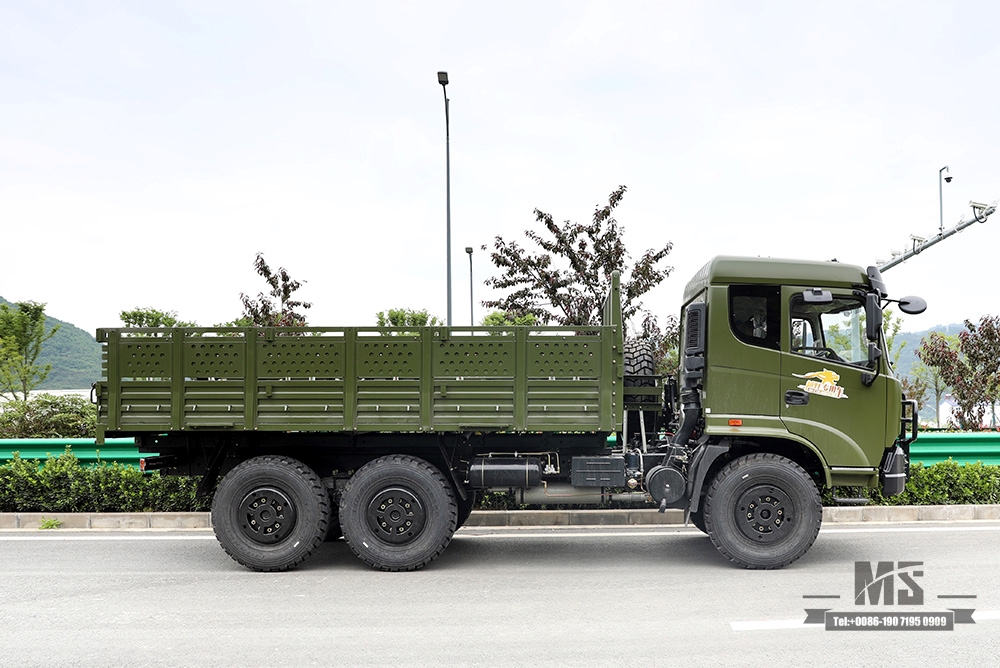

Dongfeng 6×6 export off-road special truck with Cummins 260 hp engine and three 5-tonne (3.5-tonne in off-road condition) drive axles can carry 8-tonne cargo. The time-sharing drive can be freely switched between 6×4 and 6×6, which greatly reduces fuel consumption and also ensures safe driving under bad road conditions.
Basic configuration | |
Drive type | 6*6 |
Engine | Cummins C260 33 |
Gearbox | Manual Nine-speed Gearbox |
Transfer box | With high and low gears |

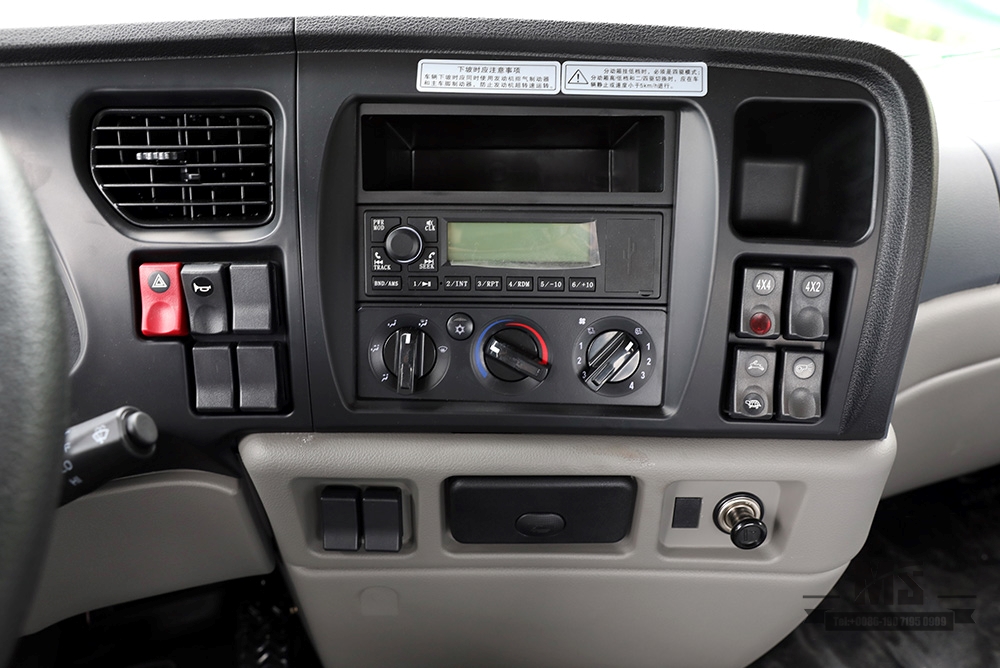

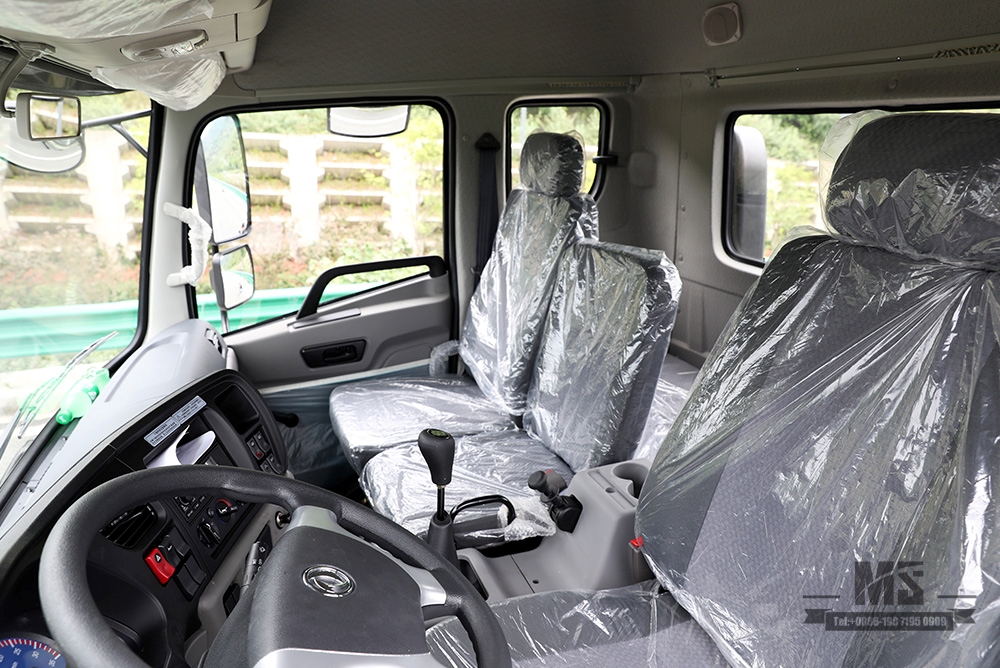

Driver Cab | Dongfeng Flathead One and a half Row(With Sleeper and air conditioning and Bumper ) |
Vehicle Frame | 860×232mm, Thickness 8mm |
Vehicle Axle | 3.5T/3.5T/3.5T |

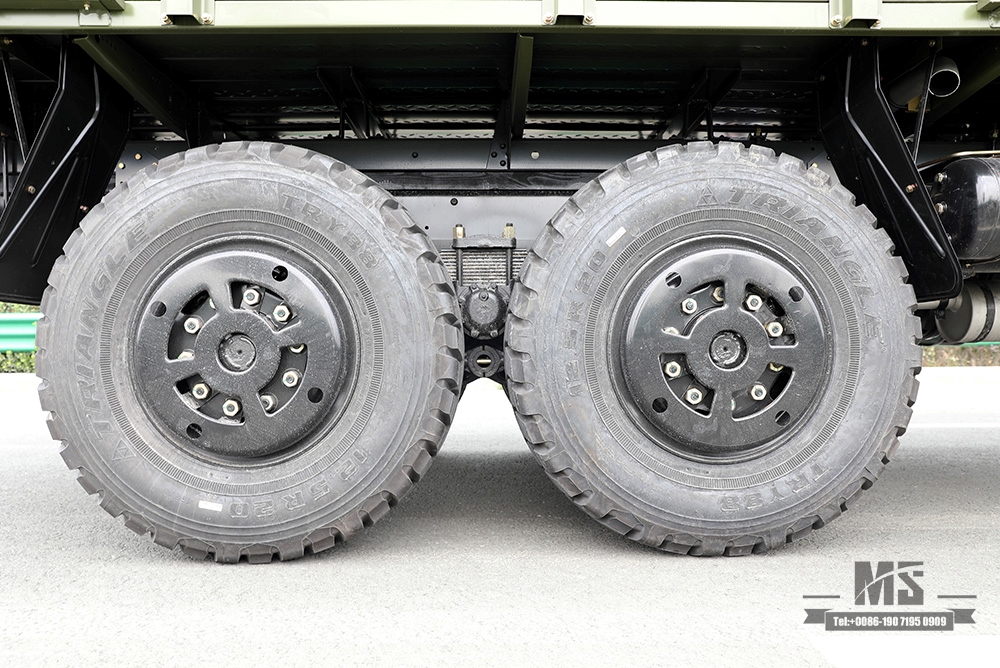

Tire | 12.5R20(6+1) |
Electric circuit | 24V circuit system |
Suspension | Steel Plate Spring 9/13 |
Accessories | Buckets, oil drums, fire extinguishers, warning signs, accompanying tools |

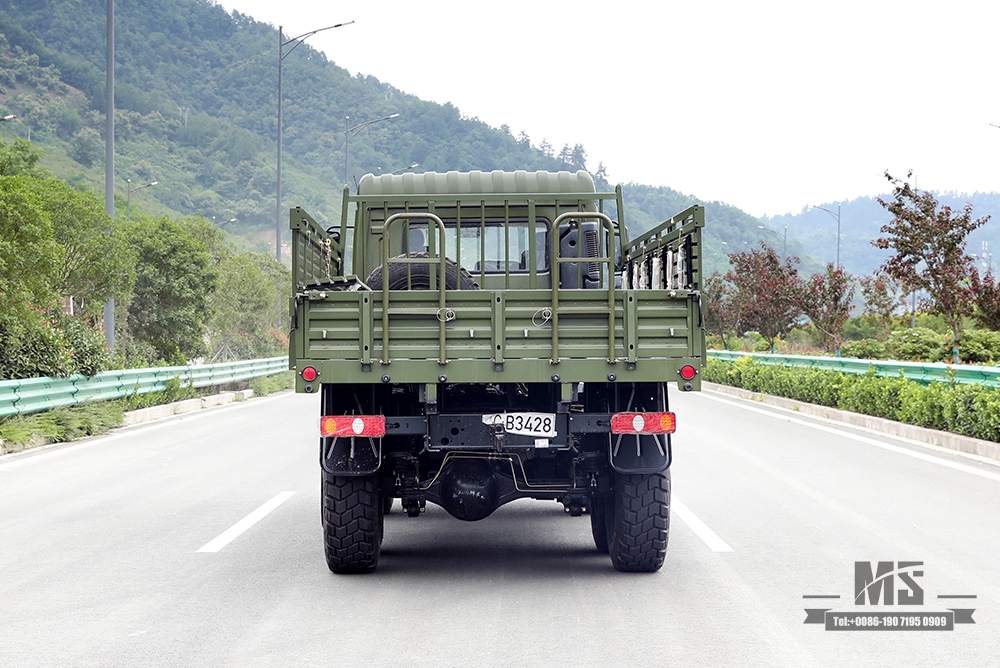

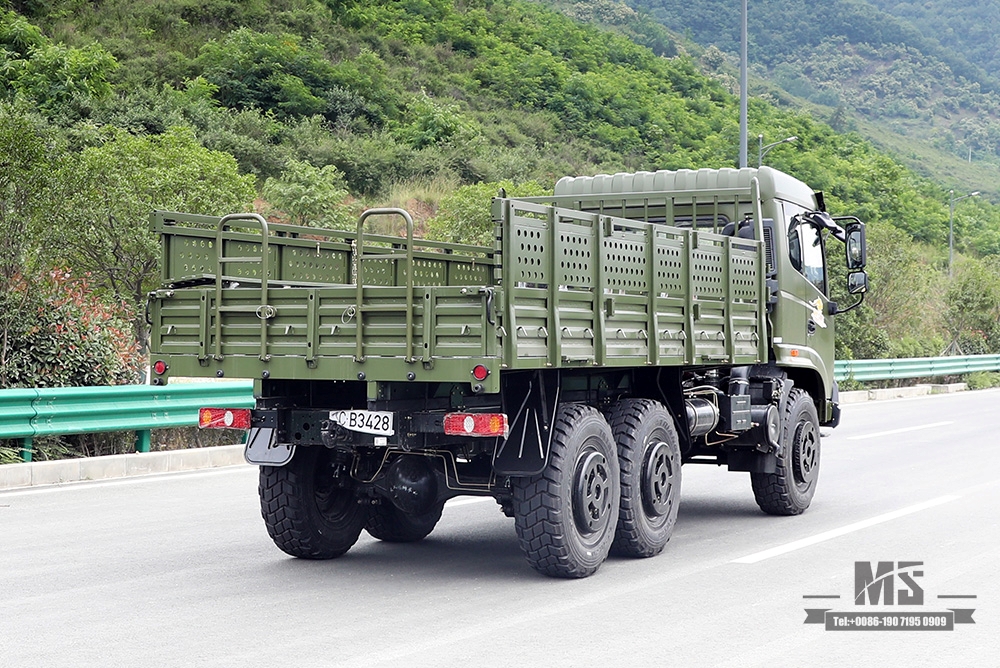

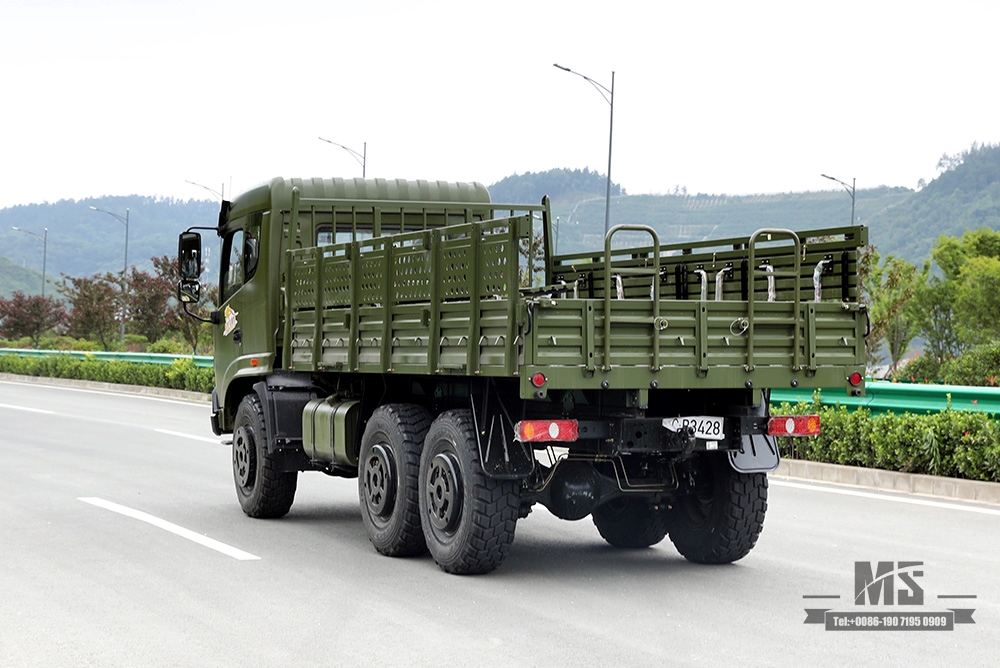

The base plate of the cargo box is made of pure iron with non-slip pattern. Folding seats are mounted on both side panels, and there are 2 folding ladders at the rear with sockets reserved for poles.
Detailed parameter | |
Overall Dimension | 7965*2480*3025mm |
Cargo Box Inner Dimension | 4800*2300*900mm |
Wheelbase | 3540+1220mm |
Wheel track | 1996mm |
GVW | 15000kg |
Curb Weight | 6670kg |
Loading Weight | 8200kg(Highway Road) |
Pulling Weight | 5000kg |
Maximum Power | 191kw |
Engine Displacement | 8.3L |
Number of pasengers | 3 |
Maximum speed | ≥85km/h |
Maximum Climbing Grade | 60% |
Approach Angle/departure Angle | 24°/28° |
Tank volume | 300L |
Minimum ground clearance | 310m |
Slope Standing Grade | 40% |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
