Basic configuration |
Drive type | 4*2 |
Engine | Cummins B140 33 |
Transmission | Shou chi Manual 10-speed |

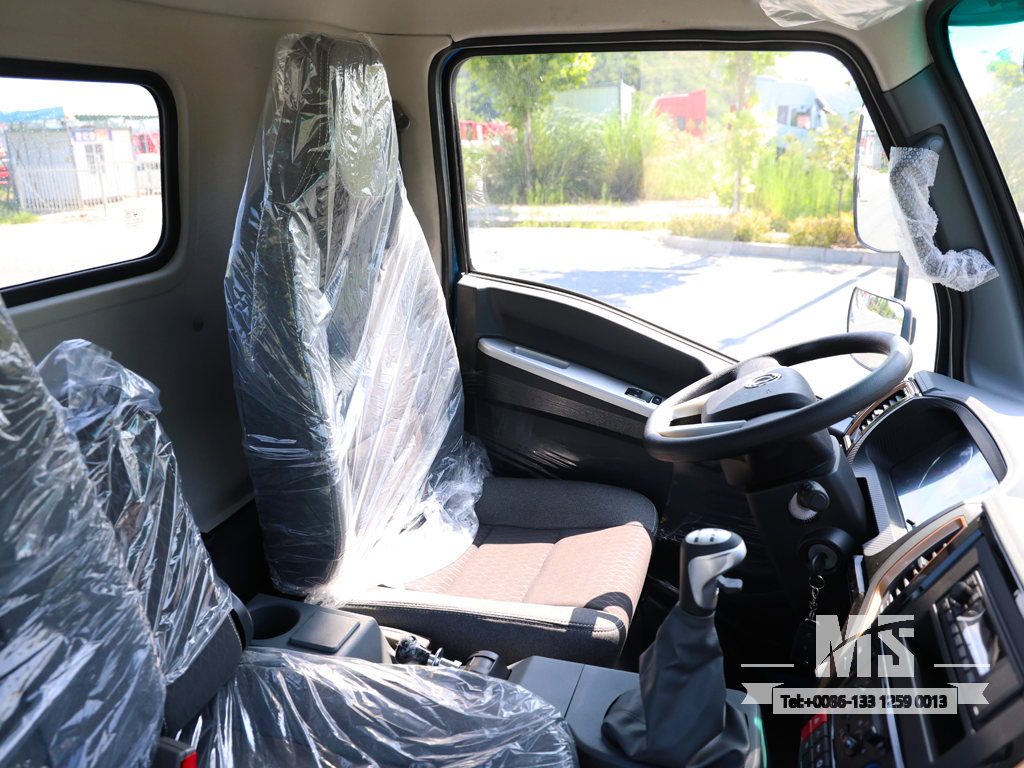

Driver Cab | Dongfeng Flathead single row |
Vehicle Axle | Dont Alxe 3T/Rear Alxe 7T |

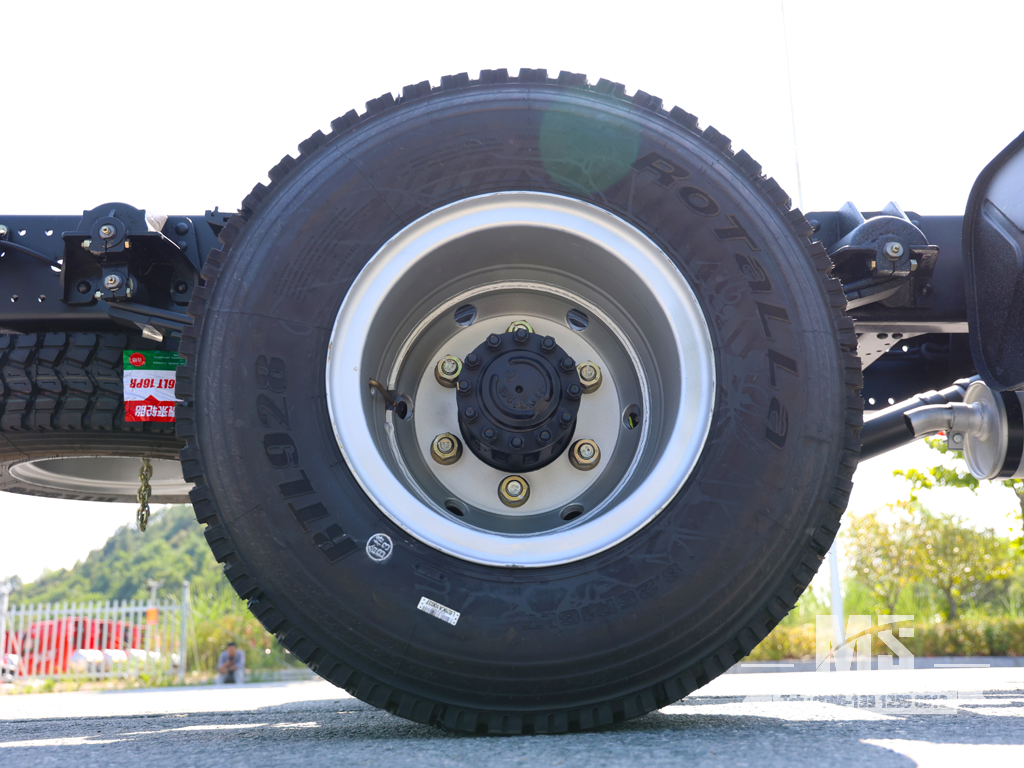

Tire | 8.25R16LT（6+1） |
Frame | 800×220mm double-layer |
Leaf Spring | 9/10+8 |
Detailed parameter |
Chassis Overall Dimension | 5000×2200×2420mm |
Modification Dimensions | ≥3260mm |
Wheelbase | 2700mm |
Wheel track | 1630/1940mm |
GVW | 10700kg |
Curb Weight | 3310kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 33°/43° |

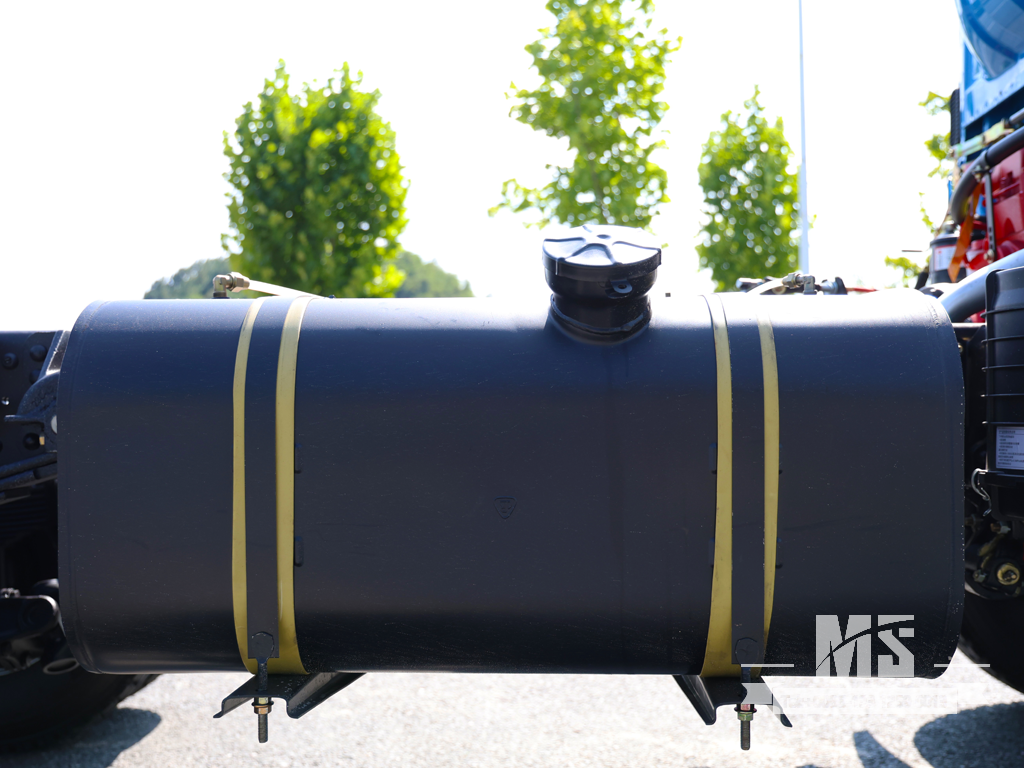

Tank volume | 160L |
Minimum ground clearance | 200mm |
Fording depth | 440mm |
Obstracal height | 390mm |
Note: This configuration is for reference only, please refer to the actual car.
