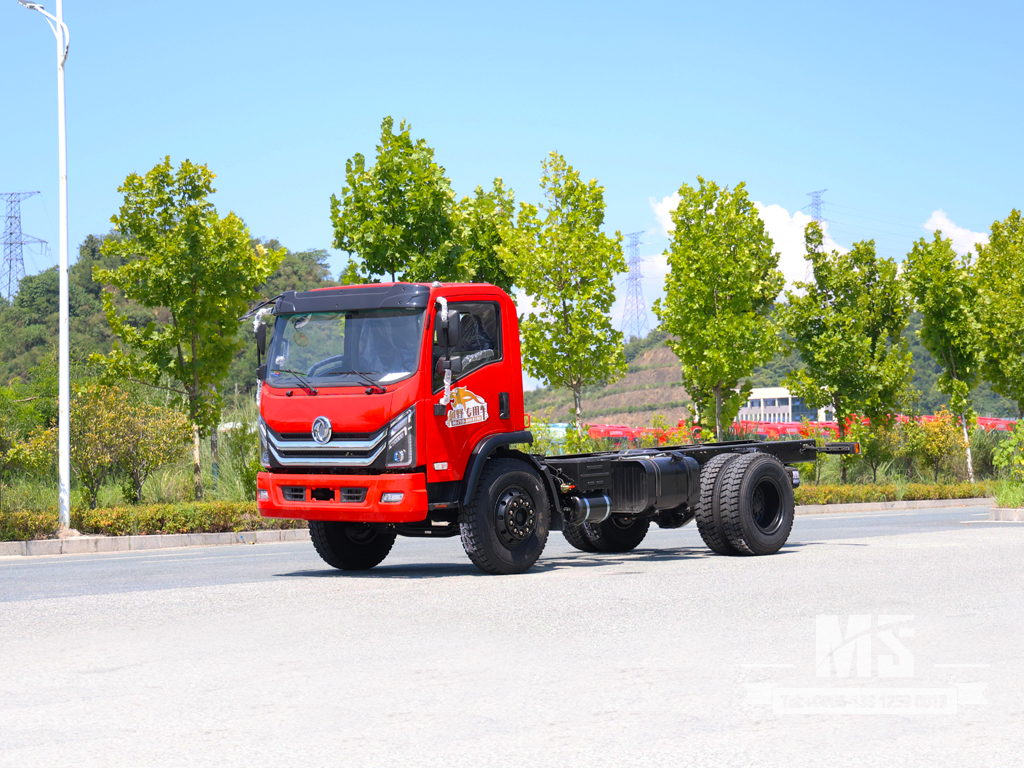

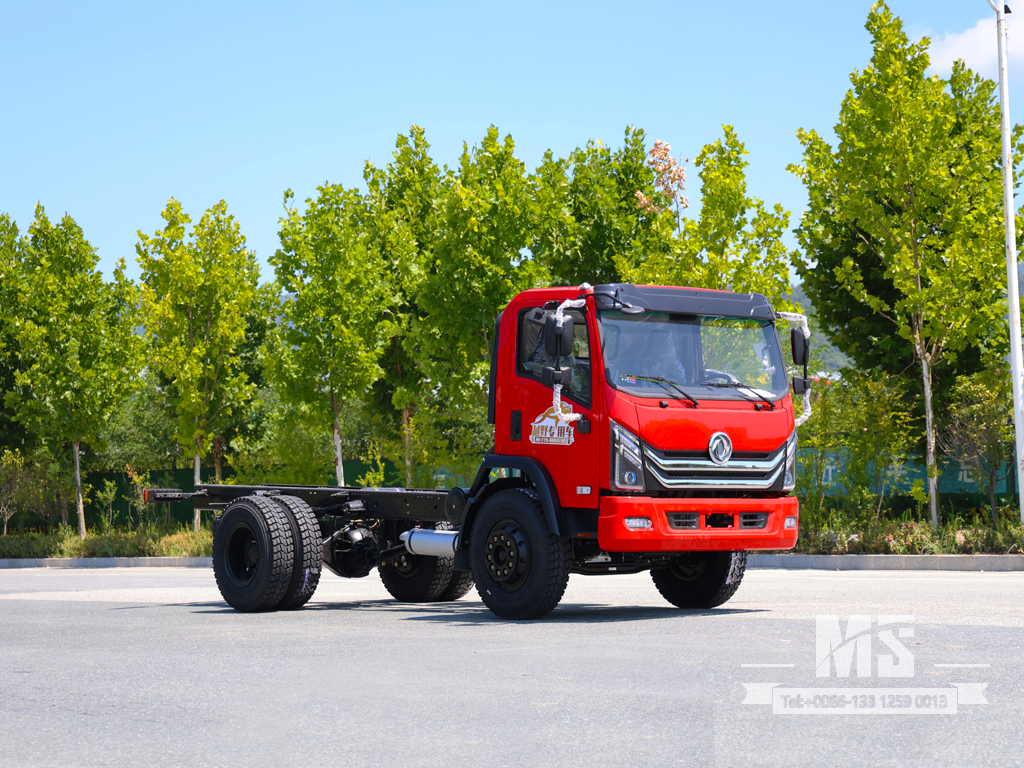

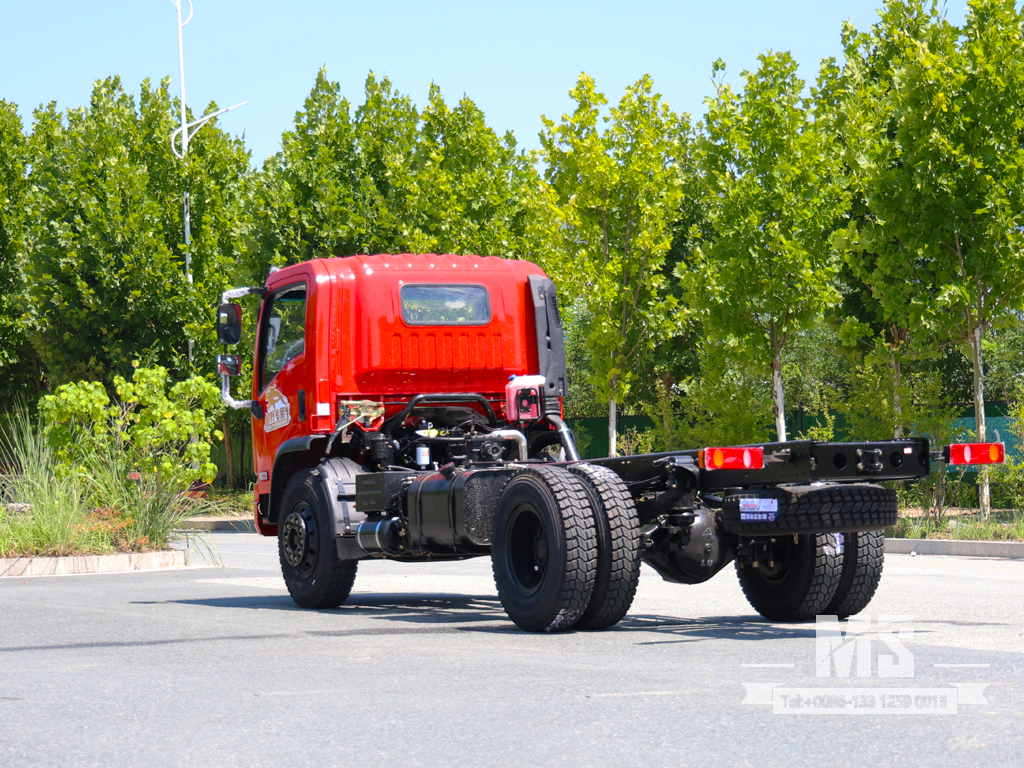

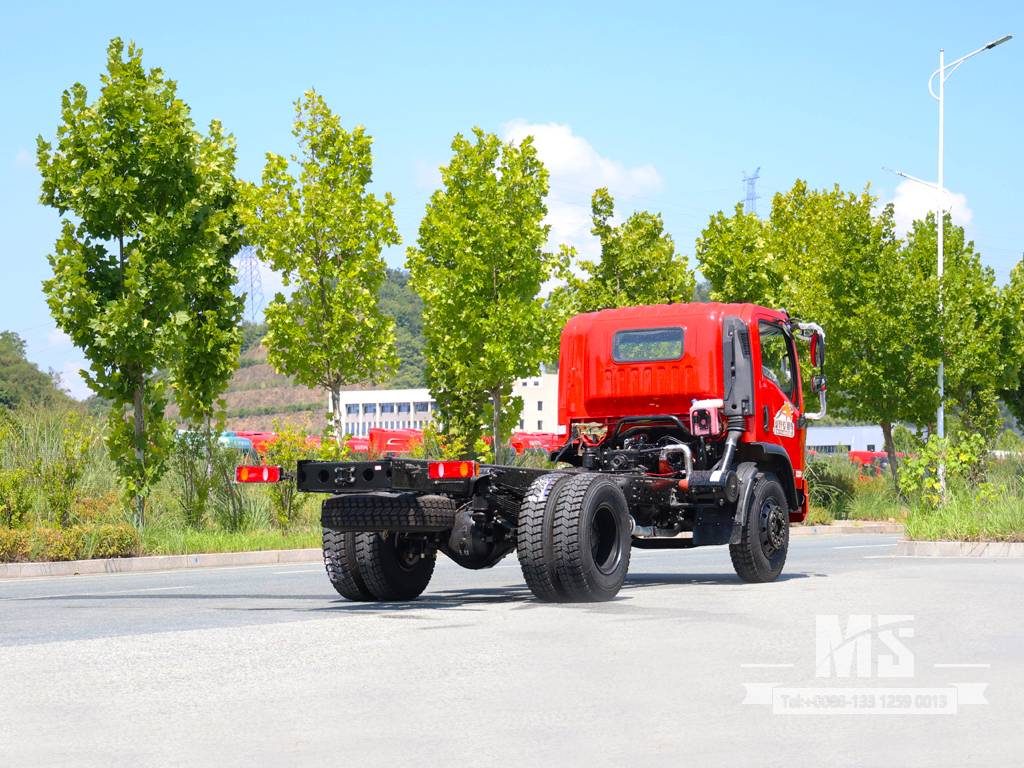

Basic configuration |
Drive type | 4*2 |
Engine | Cummins B170 33 |
Transmission | Shou chi Manual 5-speed |

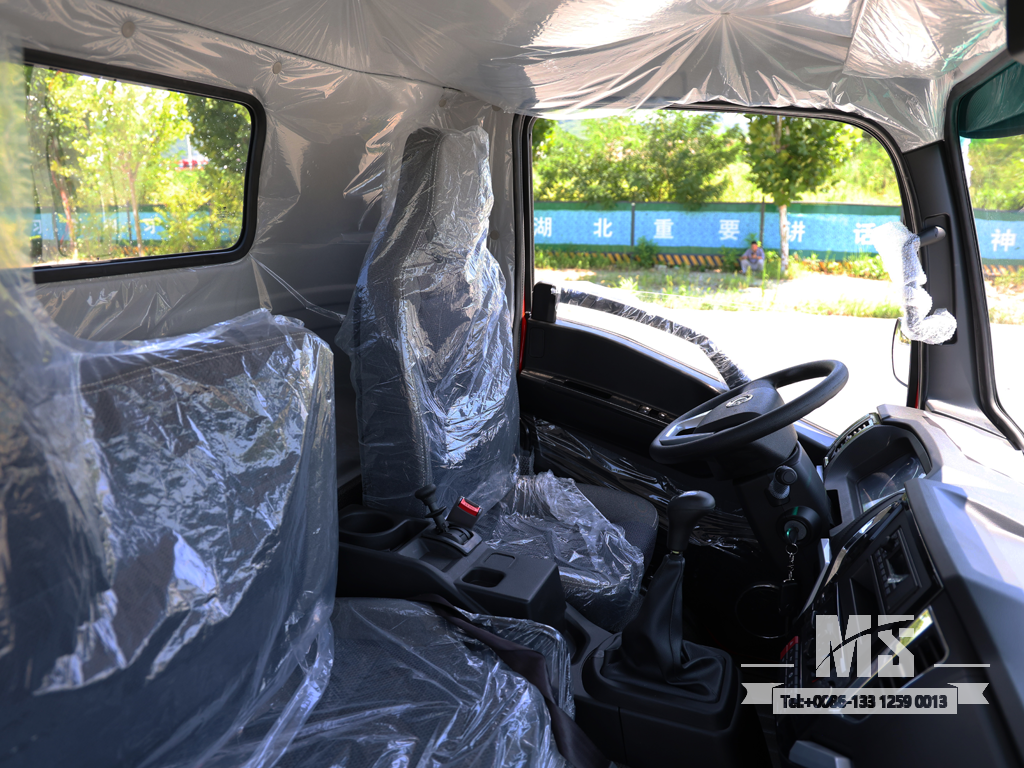

Driver Cab | Dongfeng Flathead single row |

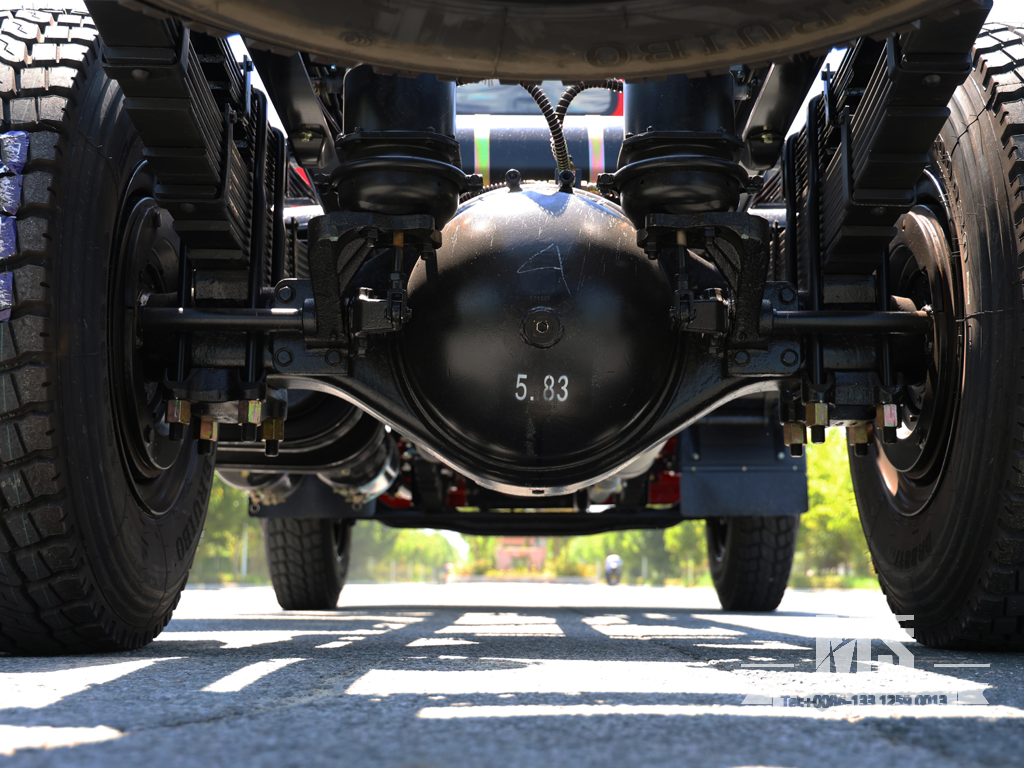

Vehicle Axle | Dont Alxe 5T/Rear Alxe 10T |

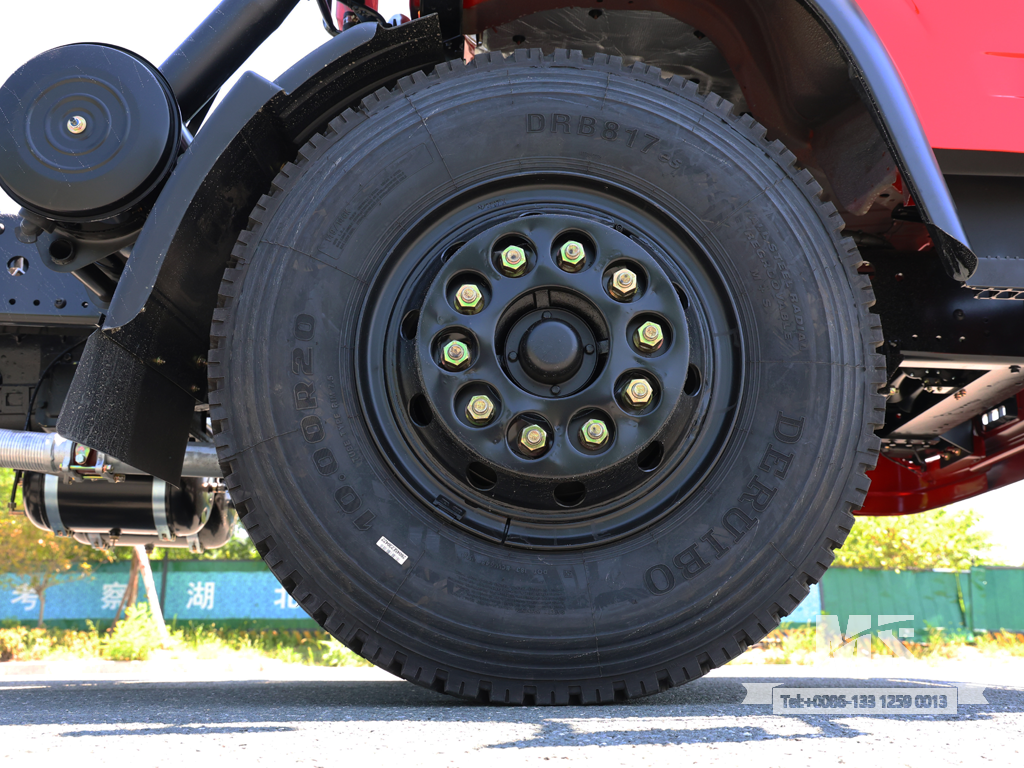

Tire | 10.00R20（6+1） |
Frame | 860×250mm double-layer |
Leaf Spring | 9/8+10 |
Detailed parameter |
Chassis Overall Dimension | 7160×2480×2720mm |
Modification Dimensions | ≥4650mm |
Wheelbase | 3800mm |
Wheel track | 1900/1850mm |
GVW | 15000kg |
Curb Weight | 4800kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 21°/18° |

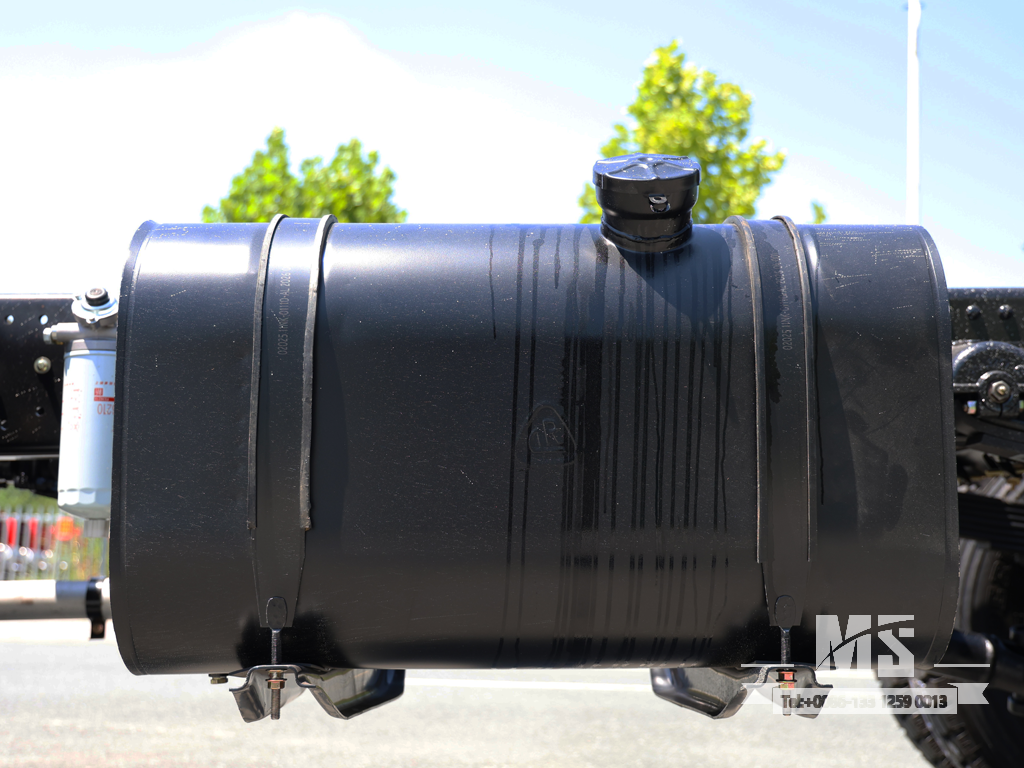

Tank volume | 260L |
Minimum ground clearance | 250mm |
Fording depth | 550mm |
Obstracal height | 400mm |
Note: This configuration is for reference only, please refer to the actual car.
