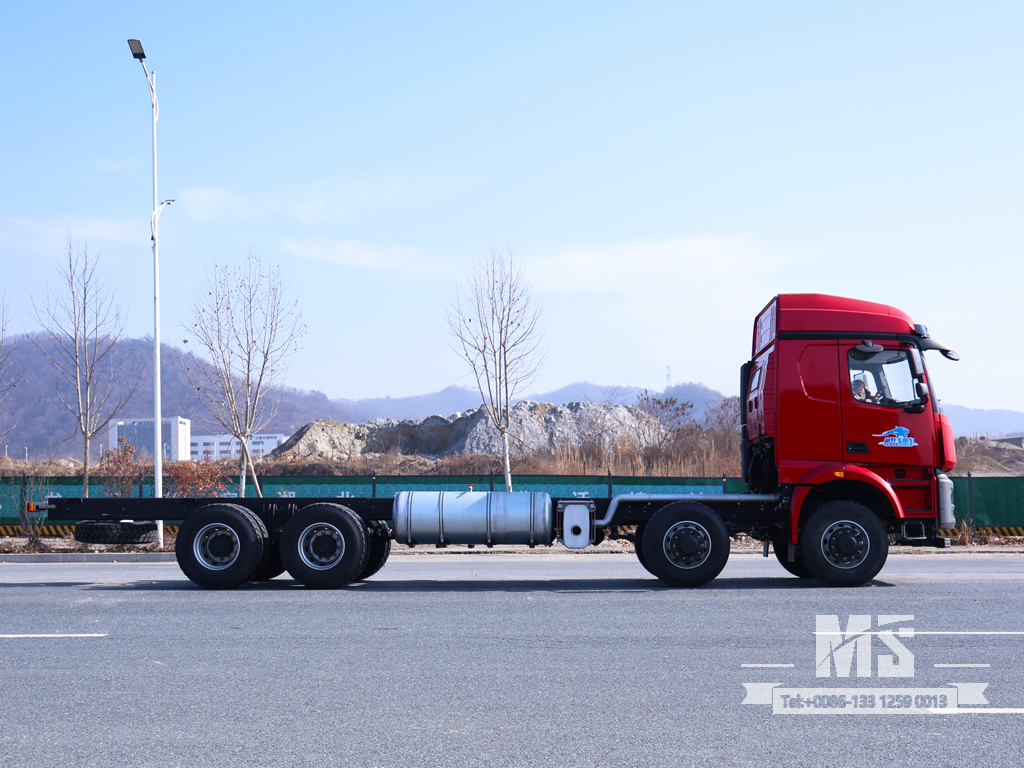

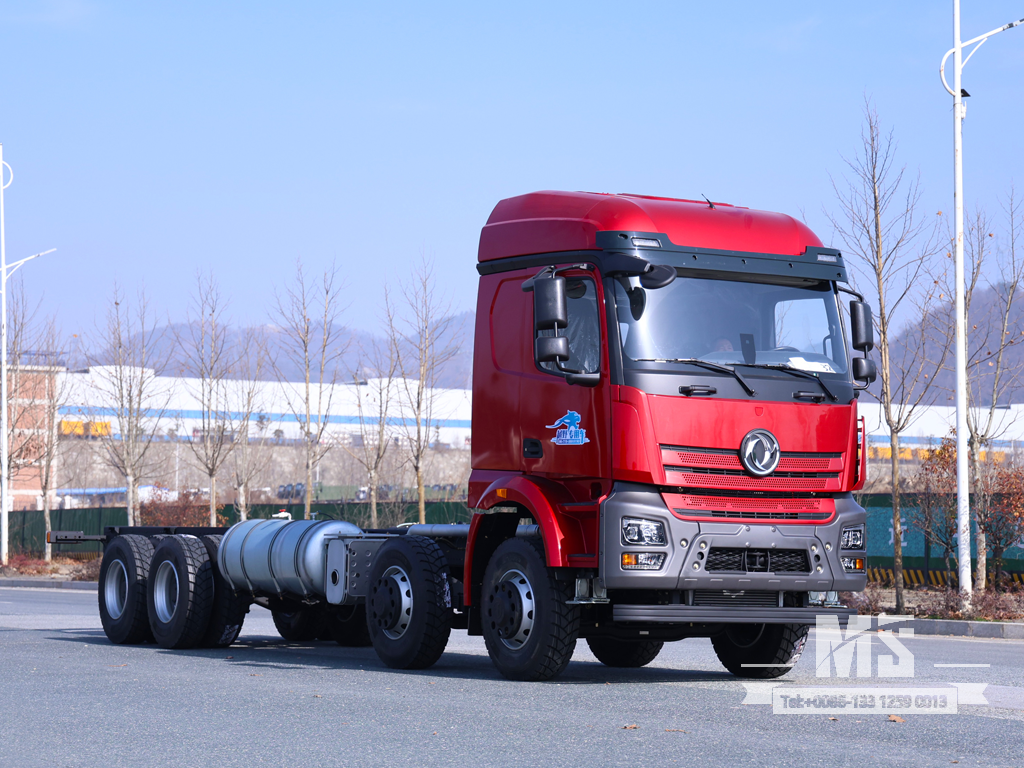

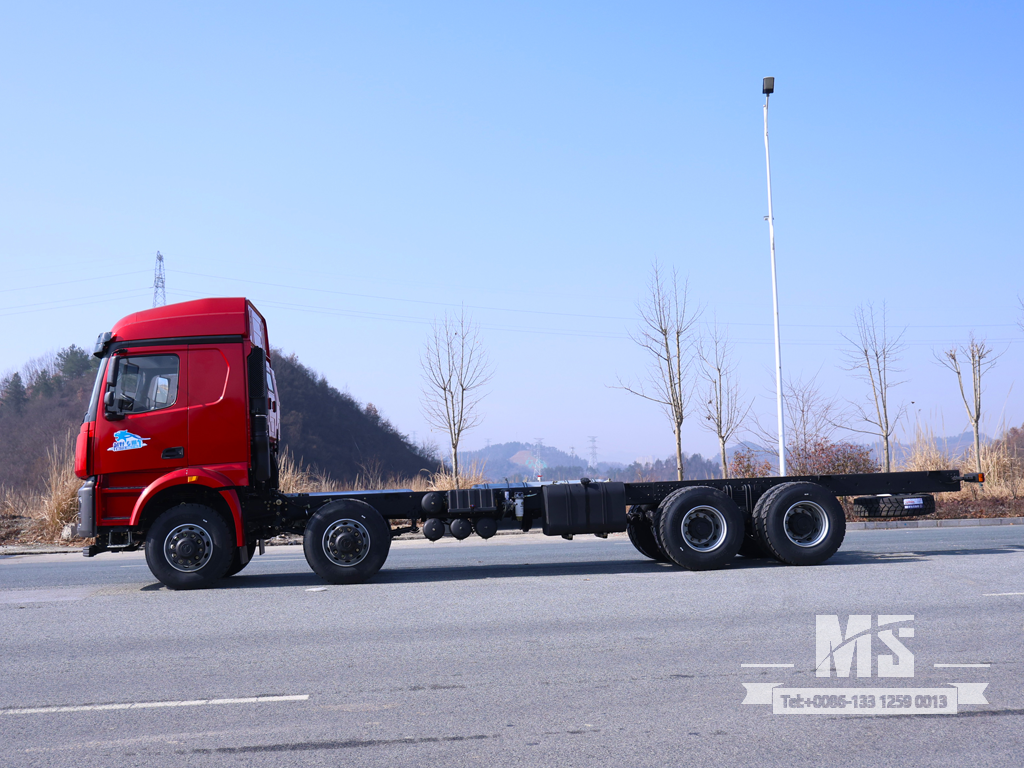

8×4 Stake Body Truck Chassis
Basic configuration |
Drive type | 8*4 |
Engine | WP13.500E201 |

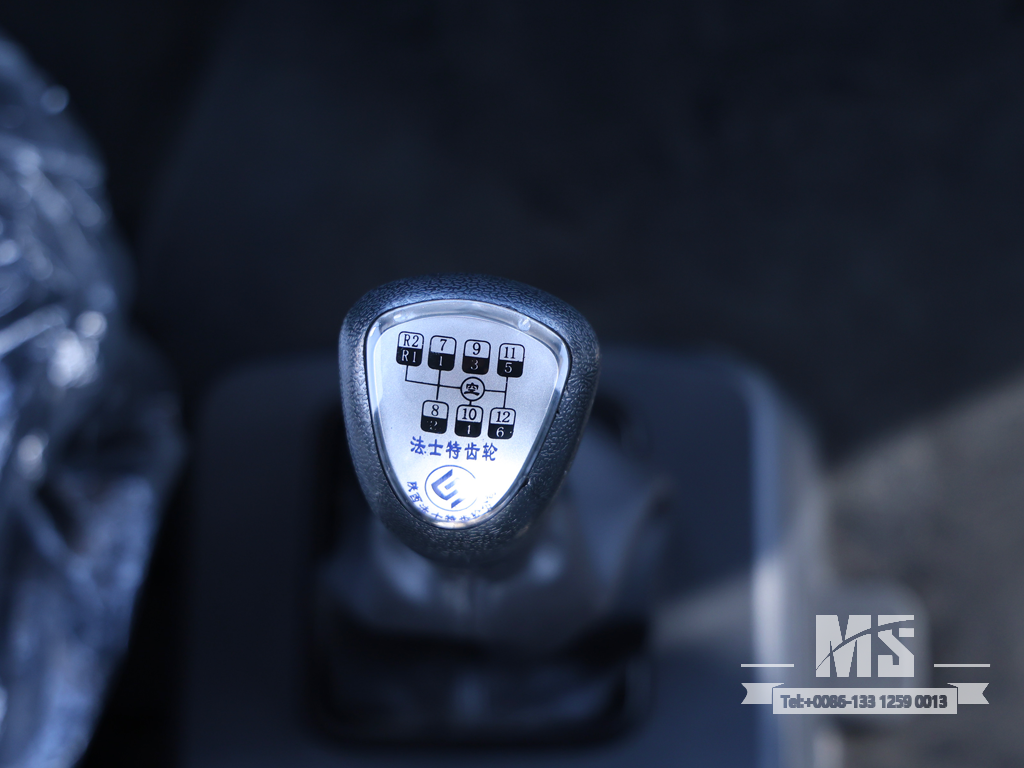

Transmission | Shou chi Manual 12-speed |

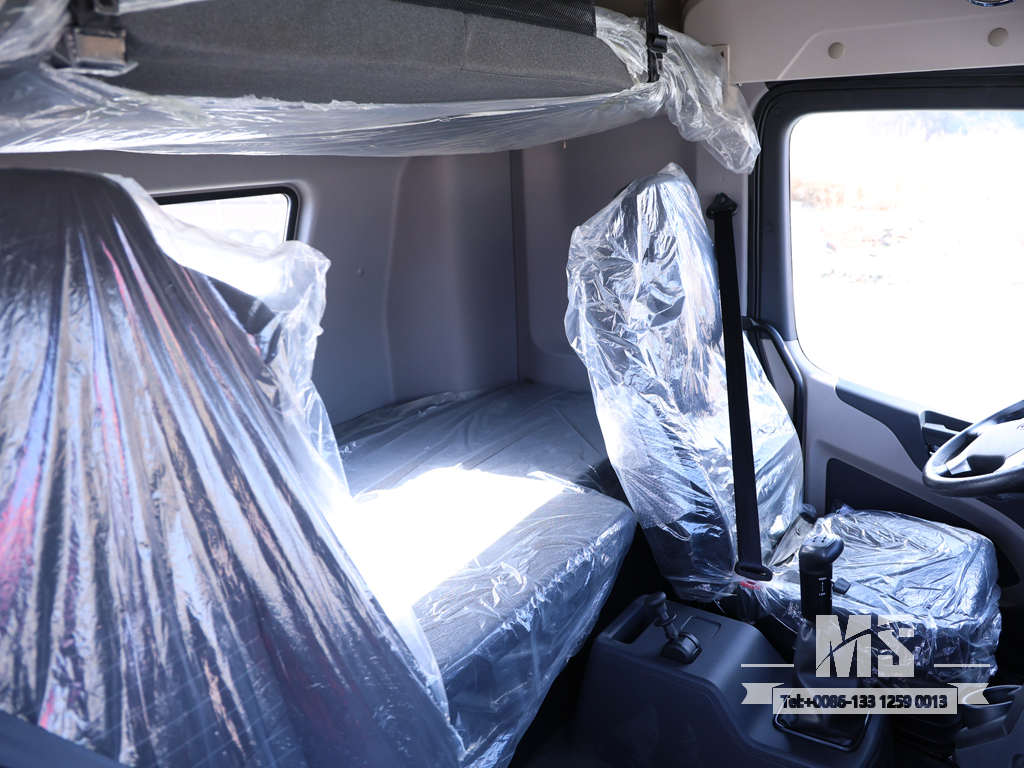

Driver Cab | Dongfeng Flat-nose extended cab |
Vehicle Axle | Dont Alxe 7T/Middle Alxe 7T/Middle Alxe 16T/Rear Alxe 16T |

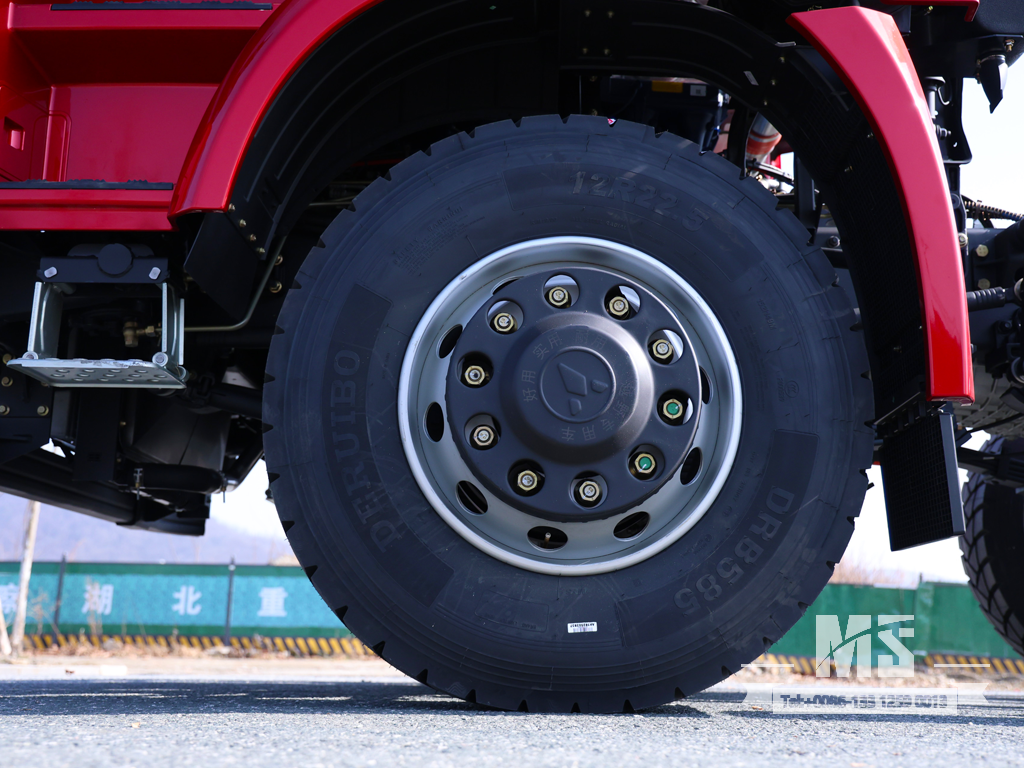

Tire | 12R22.5（12+1） |
Detailed parameter |
Chassis Overall Dimension | 11400×2520×3580mm |
Modification Dimensions | ≥8700mm |
Wheelbase | 1950+4600+1350mm |
Wheel track | 2020/1820mm |
GVW | 31000kg |
Curb Weight | 31000kg |
Maximum speed | 90km/h |
Approach Angle/departure Angle | 20°/12° |
Tank volume | 380L |
Minimum ground clearance | 290mm |
Fording depth | 660mm |
Obstracal height | 435mm |
Note: This configuration is for reference only, please refer to the actual car.
