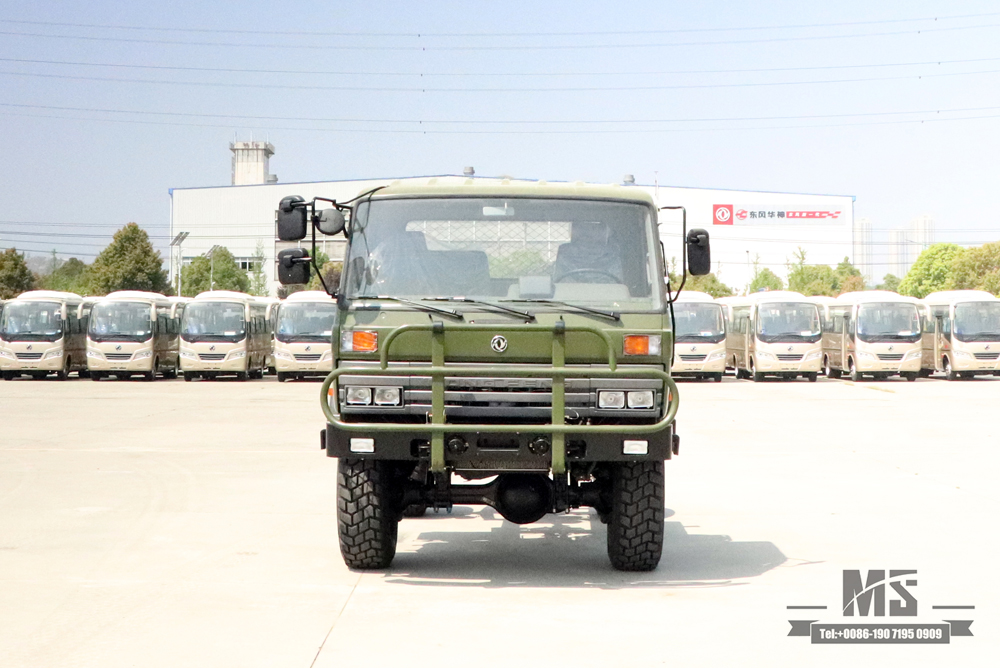

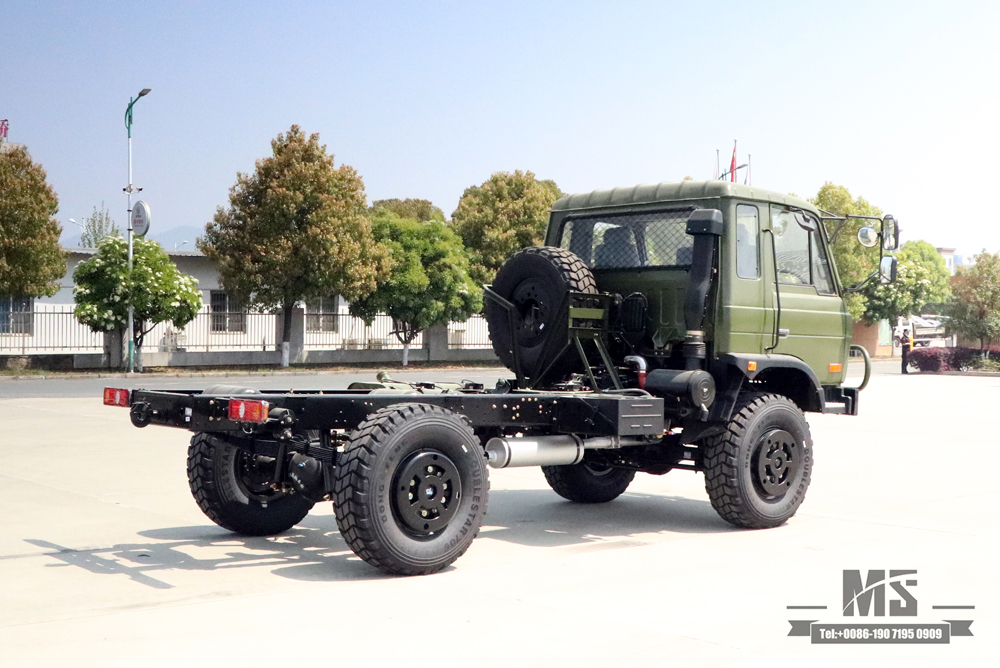

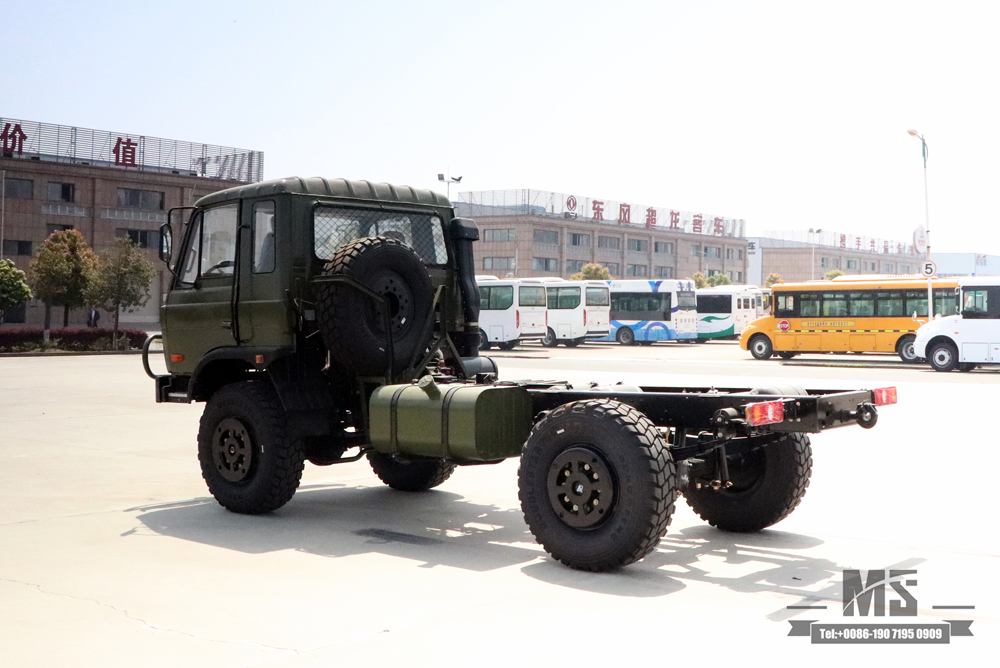

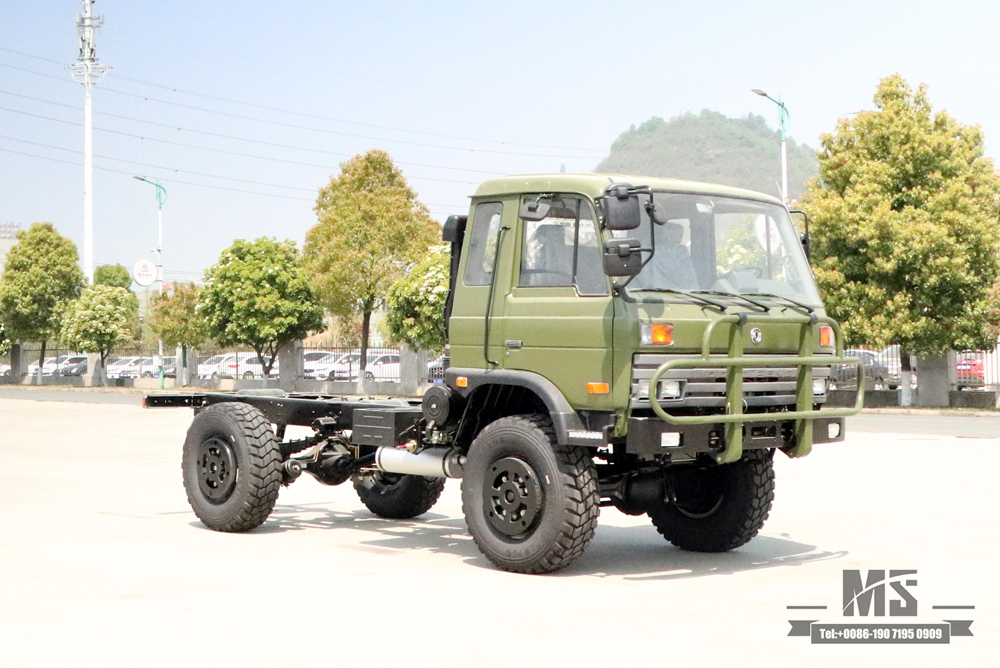

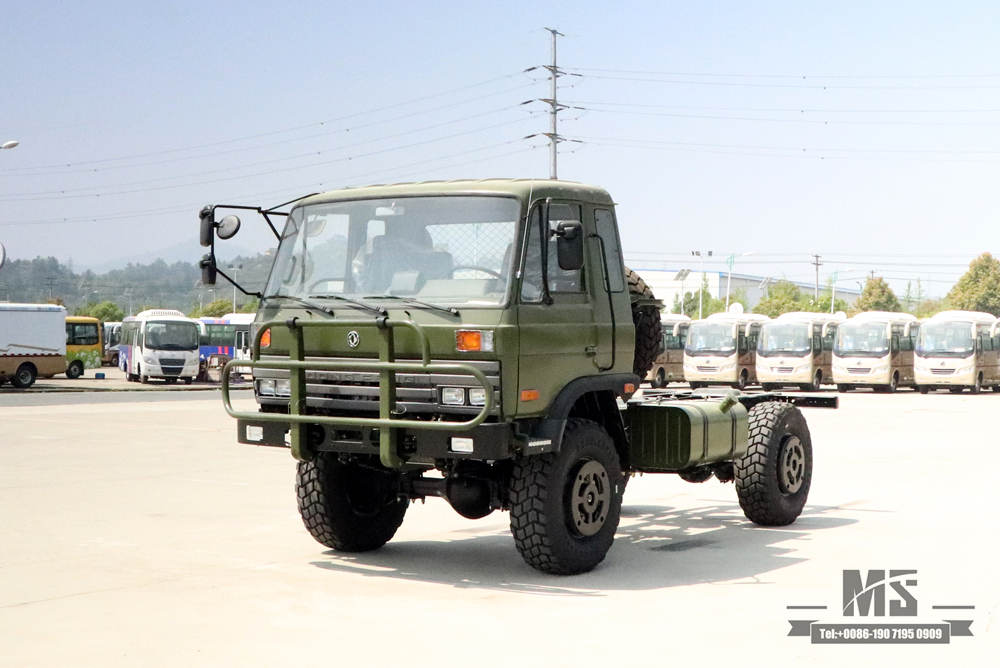

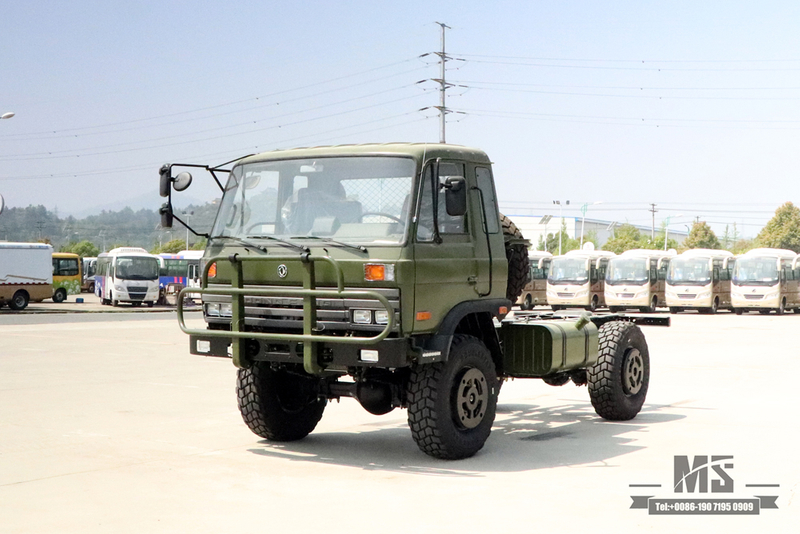

Dongfeng EQ2070 flathead 4WD off-road truck chassis is equipped with Dongfeng Cummins 190 HP engine and 12.5R20 steel wire off-road tyres. This chassis can be converted into 4WD troop carrier, material transport truck, oil truck, water truck, field cooking truck, power supply truck, etc. to meet the needs of various industries. Our company can design and customise special vehicles according to customer's individual use and different scenarios.
Basic configuration | |
Engine | Cummins B190 33 |
Drive type | 4*4 |
Gearbox | Manual Six-speed gearbox |
Transfer box | Time-shift four-wheel drive with high and low gears |
Vehicle Frame | 860*280mm,8+6mm |
Driver Cab | Dongfeng 153 One and a half Cab |
Axle | 3.6T/3.6T |
Tire | 12.5R20(4+1) |
Other | Hydraulic clutch assist, hydraulic steering assist, exhaust brake, multi-circuit air brake system, front and rear trailer hooks, fire extinguishers and other accompanying tools. |
Electric Circuit | 24V circuit system |
Applicable situation | Suitable for emergency vehicle repair service in gravel, jungle, mud and many other complex road conditions |

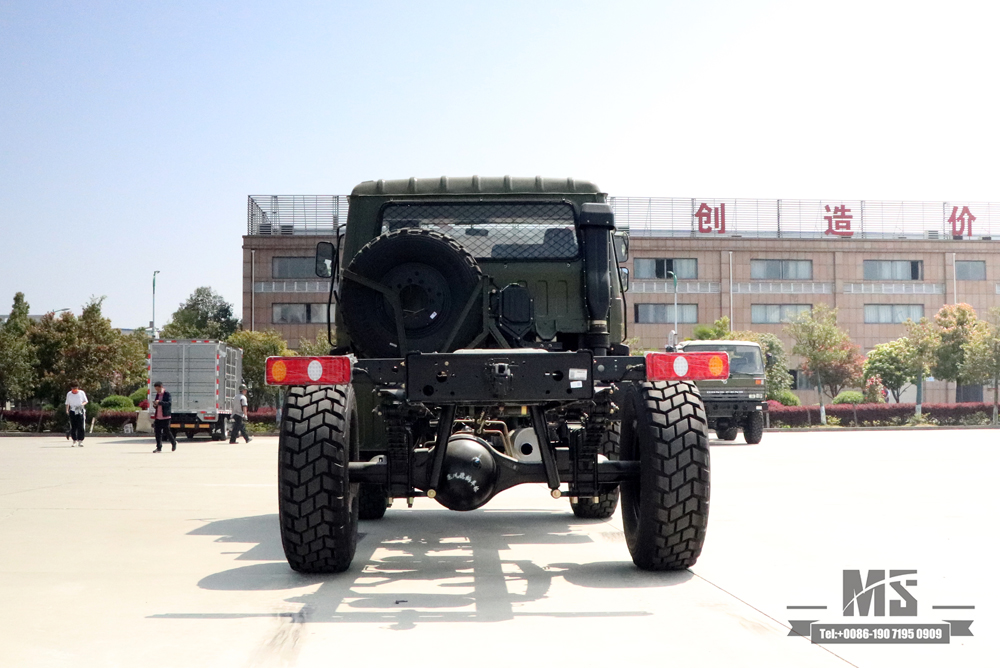

The rear of the vehicle is equipped with a towing hook, electrical connector, air brake connector, can tow the gun (with two-way damping), for the artillery supply of gas and electricity.
The cargo box has a folding ladder.
With cold start, anti-aircraft lights, secondary fuel tank, oil drums, buckets, toolboxes, tarpaulin poles and other additional devices, the whole vehicle can be started smoothly in -41 ℃ ambient temperature.
Detailed parameter | |
Overall Dimension | 6438*2320*2780mm |
Modification Dimension | 3454mm |
Wheelbase | 3600mm |
Wheel Track | 1876/1870mm |
GVW | 7910kg |
Curb Weight | 4955kg |
Maximum Load Capacity | 8510kg |
Number of passengers | 3 |
Rated Power | 125kw |
Maximum Torque | 560N.m |
Engine Displacement | 5.9L |
Maximum speed | ≥78km/h |
Obstacle Crossing height | 410mm |
Approach Angle/departure Angle | 35°/33° |
Oil Tank volume | 140+80L |
Minimum ground clearance | 305mm |
Fuel Consumption for 100km | <20 |
Maximum Climbing Grade | 60% |
Minimum Turning Diameter | 15m |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
