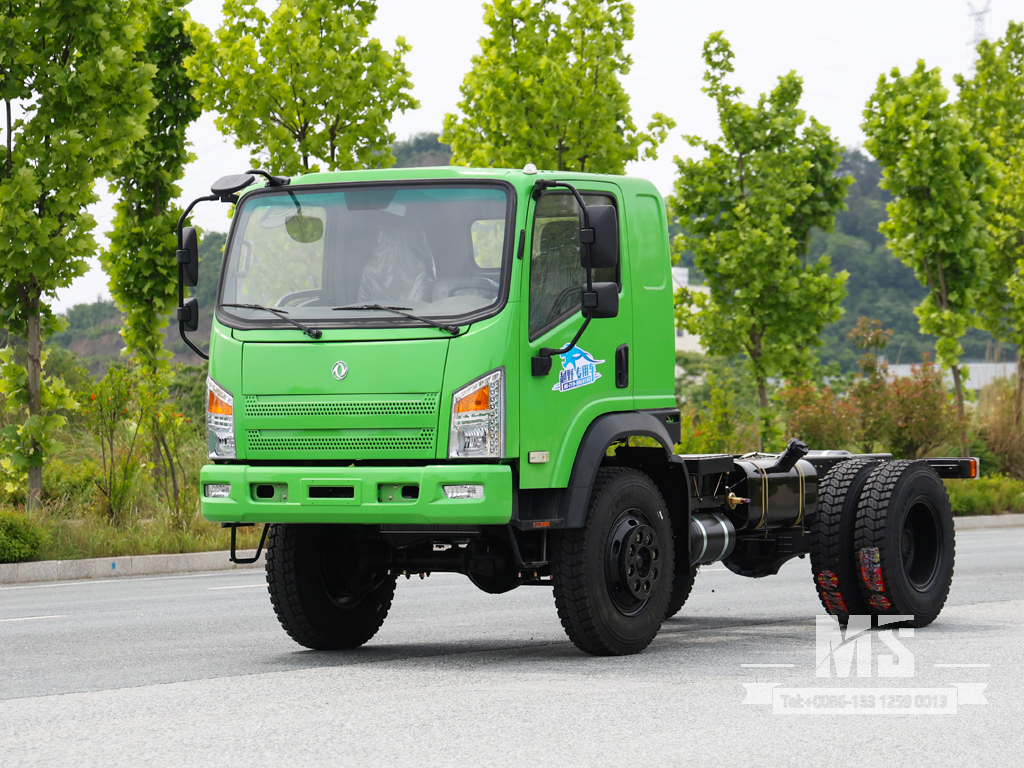

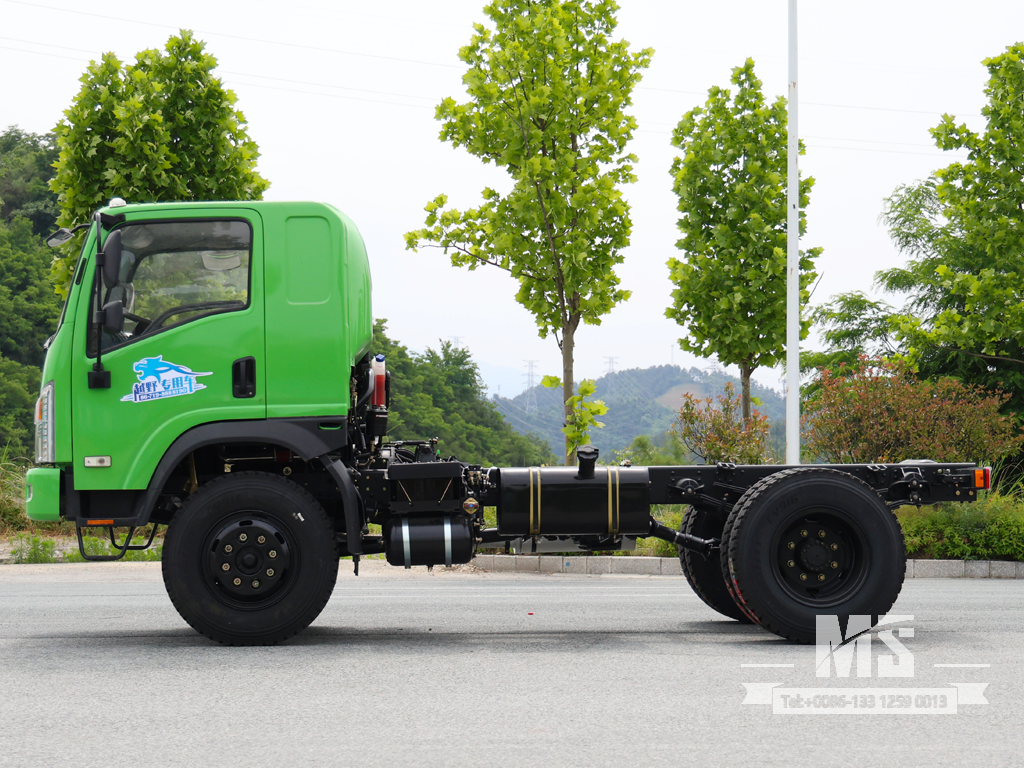

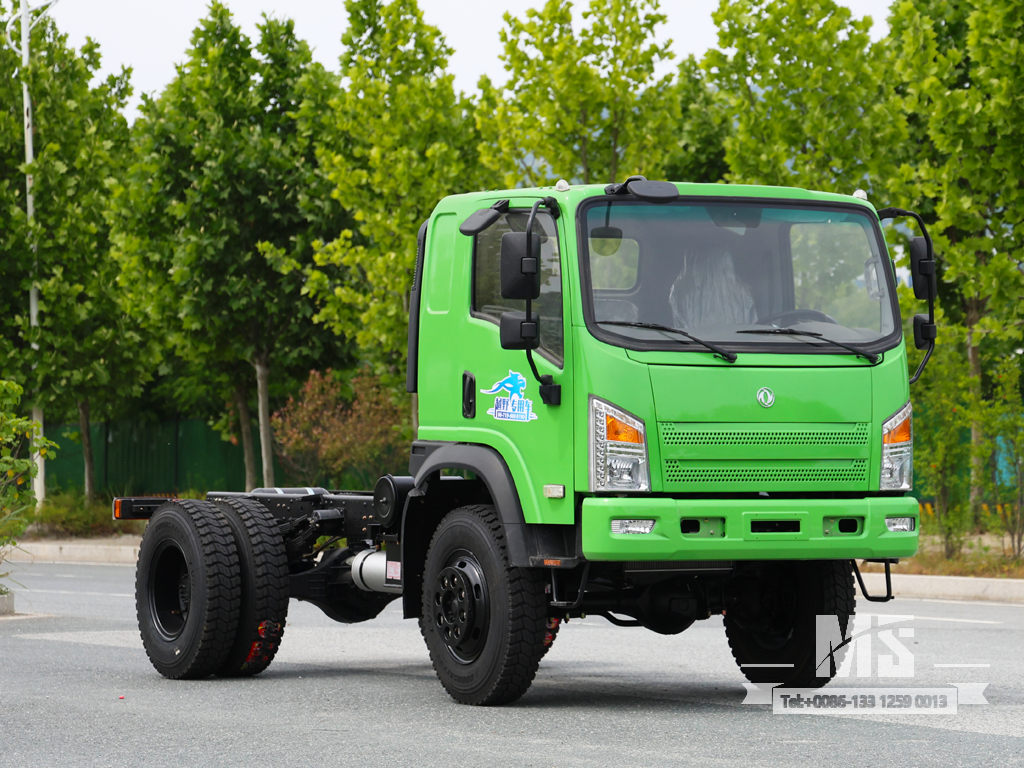

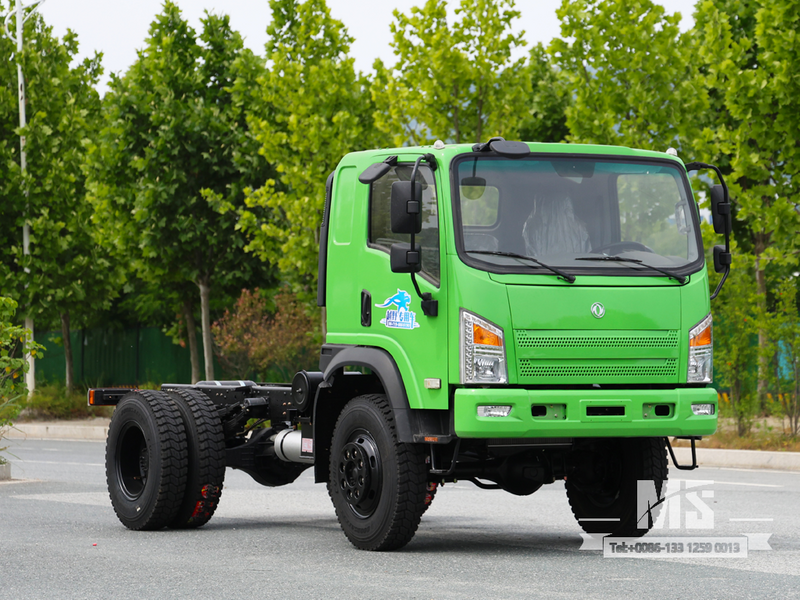

Dongfeng cab-over mini 4×4 chassis is equipped with a 170HP Cummins engine. Designed for forest and mountain road operations, its frame and suspension are reinforced and thickened to ensure superior stability under full load after refitting.
Basic configuration |
Drive type | 4*4 |
Engine | B170 33 |
Transmission | Shou chi Manual 5-speed |

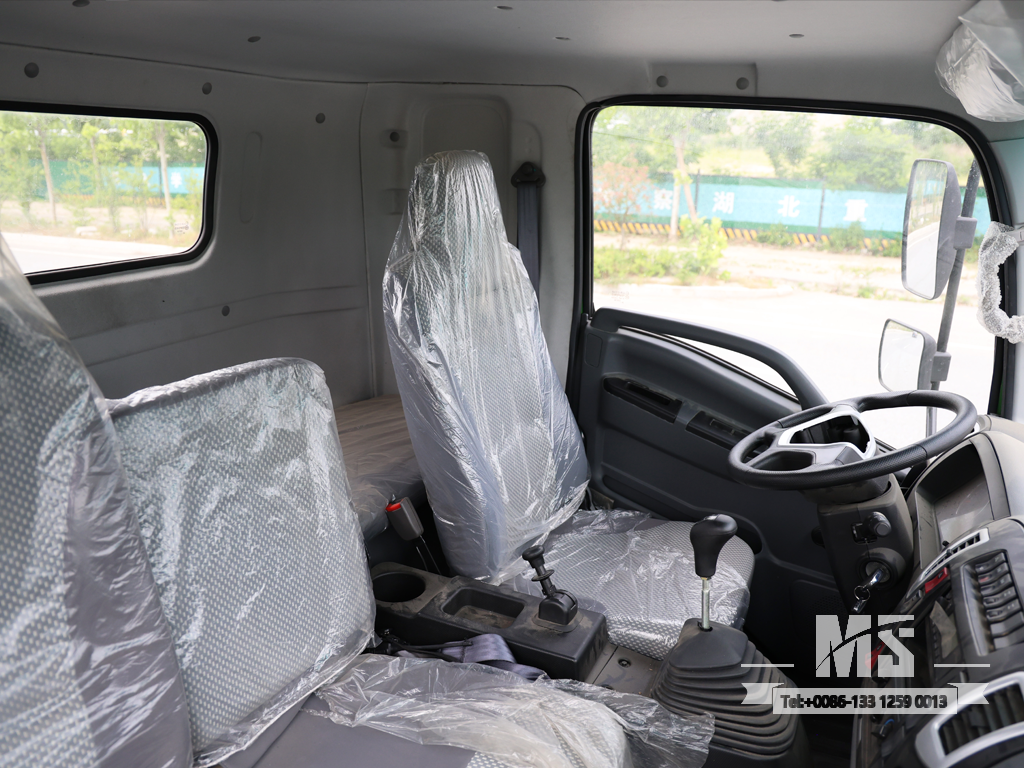

Driver Cab | Dongfeng Cab-over Semi-sleeper Cab (3 Seats) |

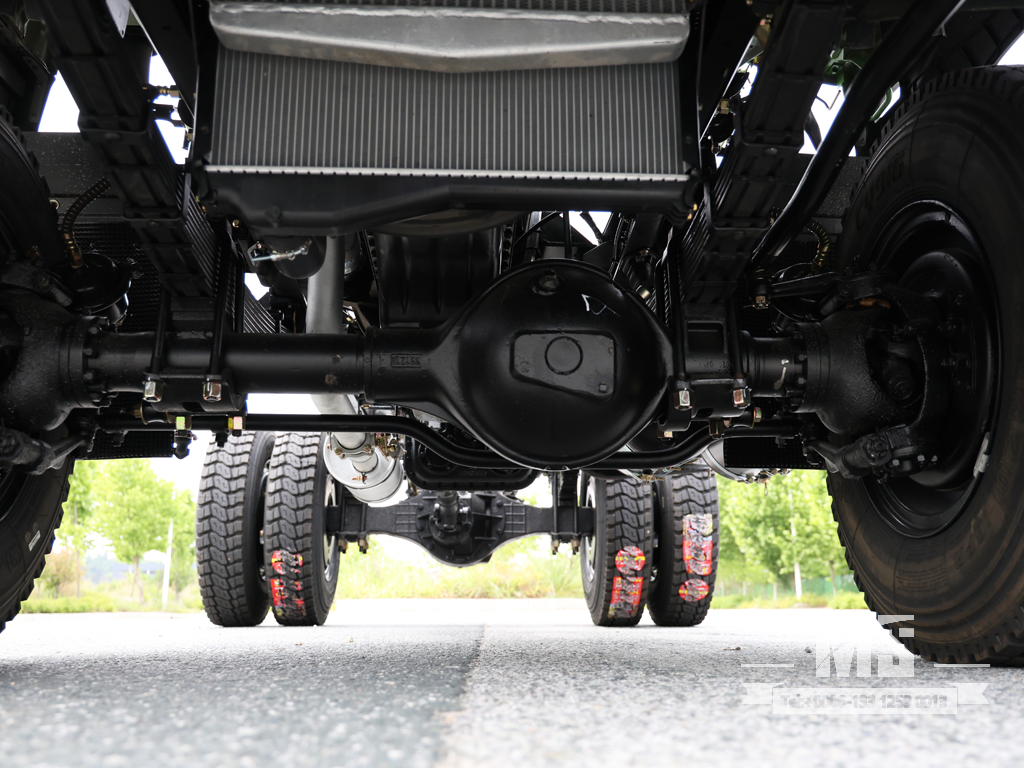

Vehicle Axle | Dont Alxe 2.7T/Rear Alxe 8T |

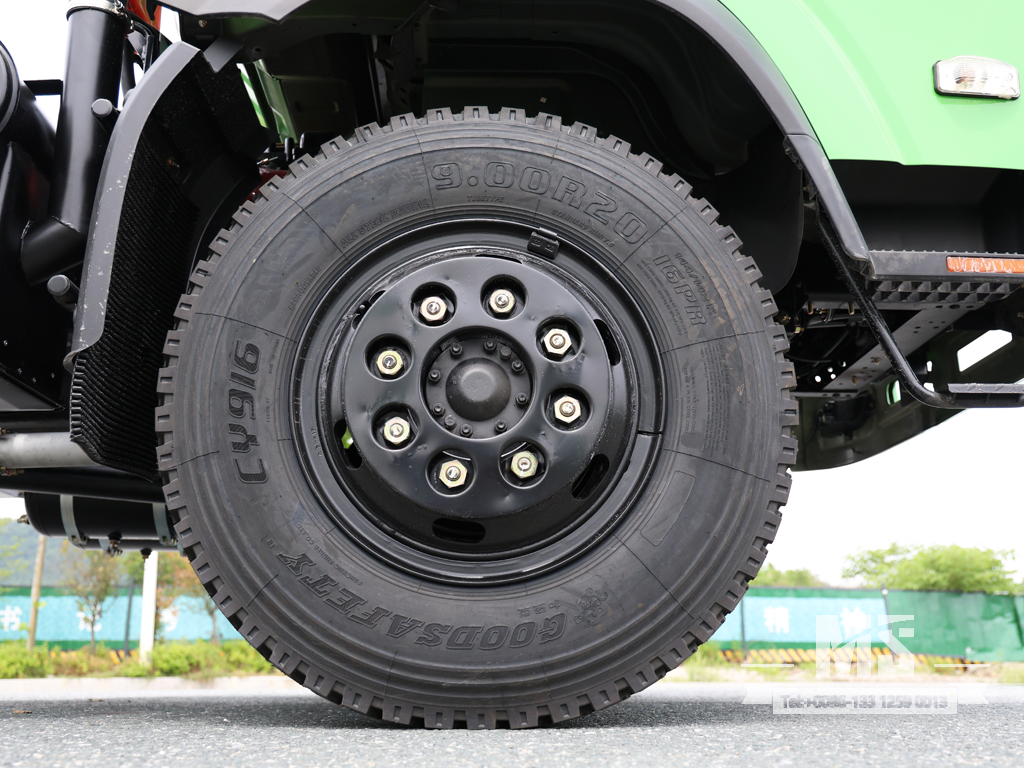

Tire | 9.00R20（6+1 Pieces） |
Electric circuit | 24V circuit system |

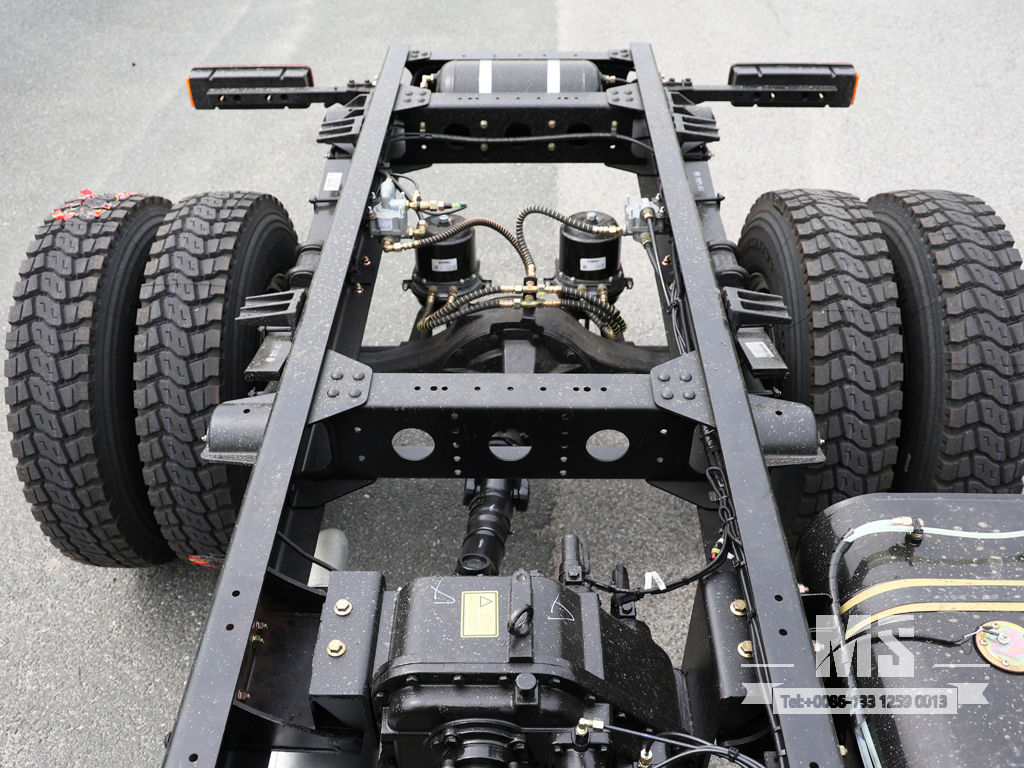

Frame | 860*232mm |
Detailed parameter |
Chassis Overall Dimension | 5700×2360×2650mm |
Modification Dimensions | ≥3320mm |
Wheelbase | 3300mm |
Wheel track | 1780/1840mm |
GVW | 10700kg |
Curb Weight | 4140kg |
Maximum Power | 125kw |
Number of members | 3 |
Maximum speed | ≥85km/h |
Approach Angle/departure Angle | 21°/34° |
Tank volume | 160L |
Minimum ground clearance | 280mm |
Leaf spring | 9/10+8 |
Fording depth | 620mm |
Note: This configuration is for reference only, please refer to the actual car.
