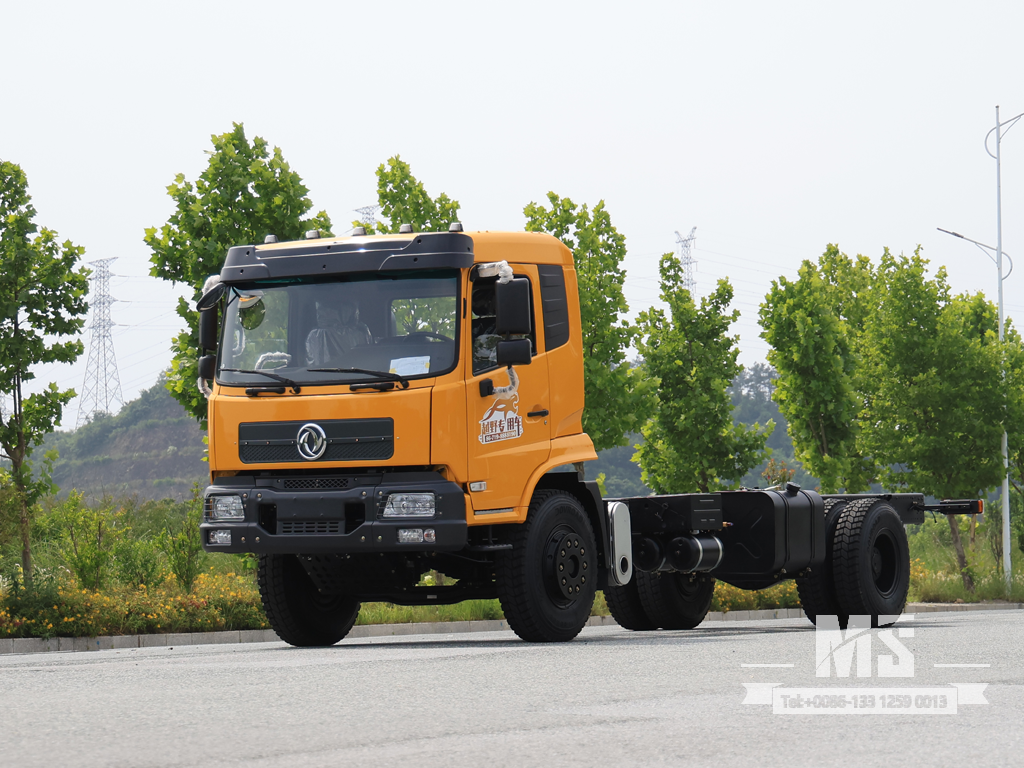

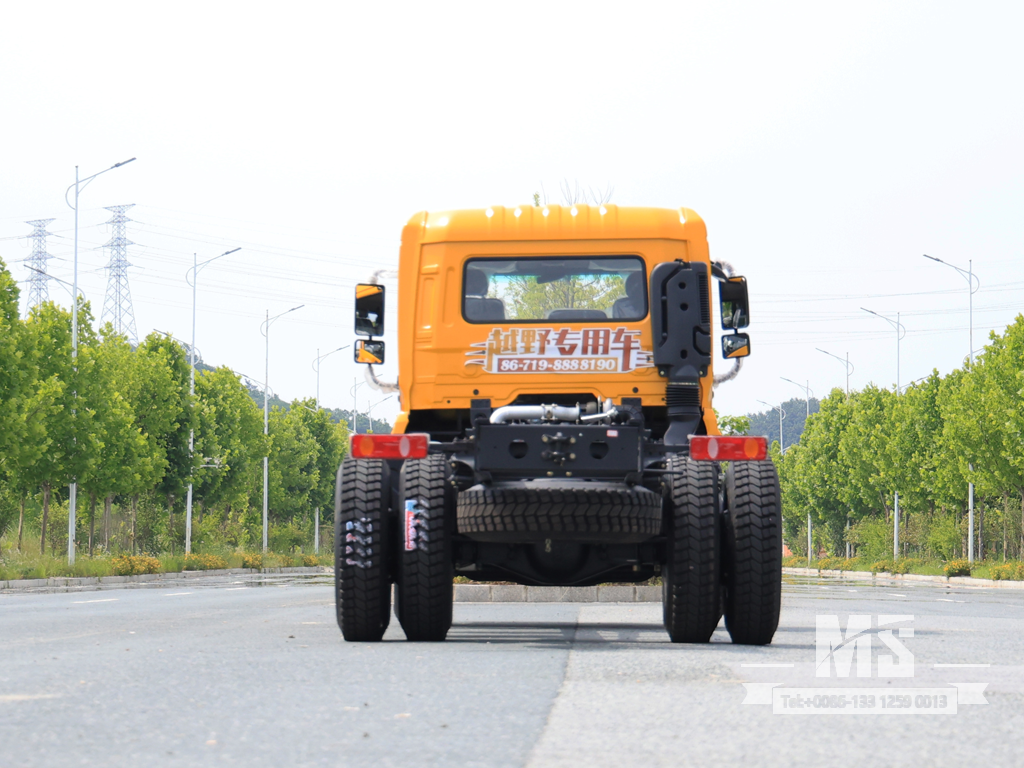

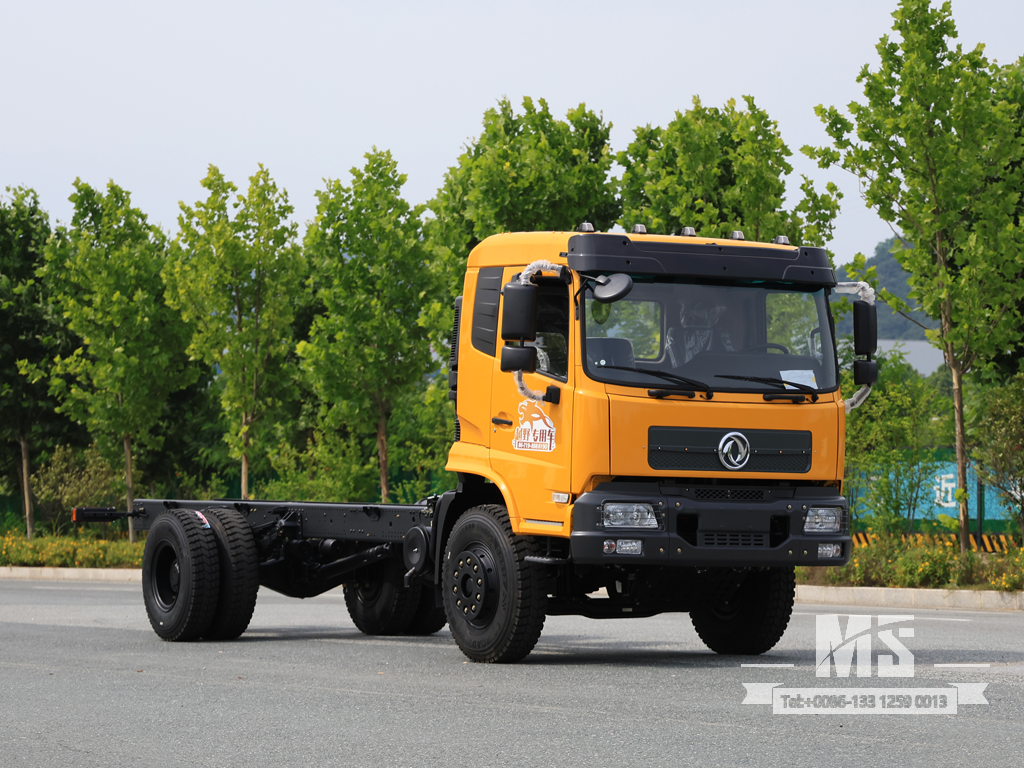

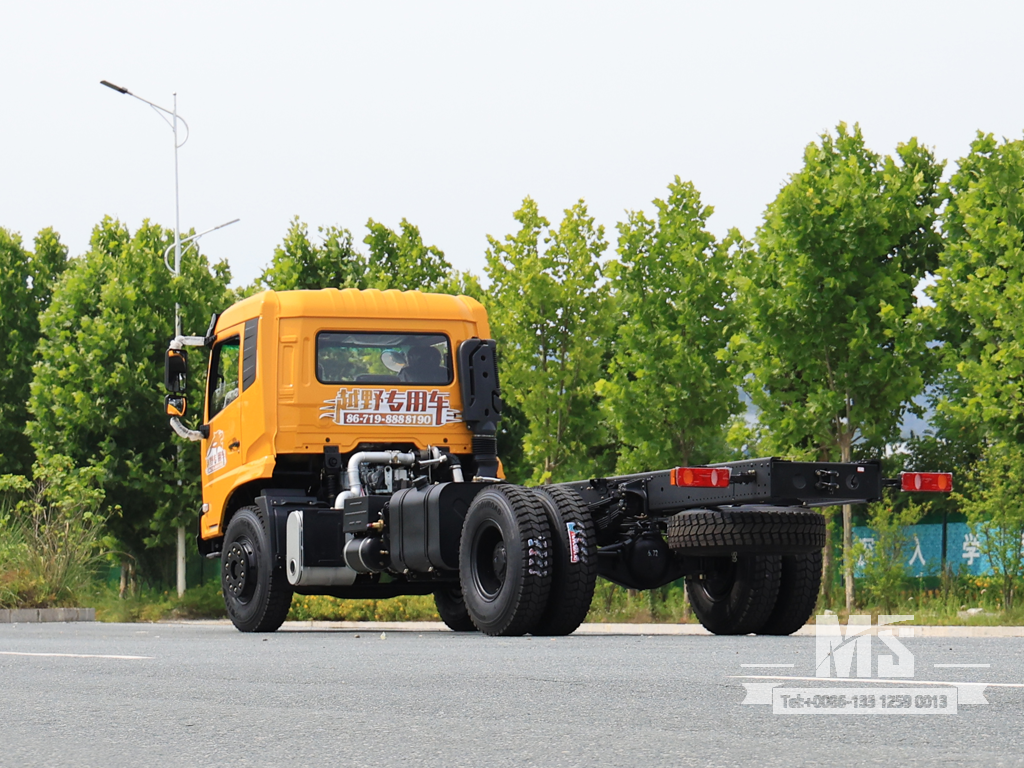

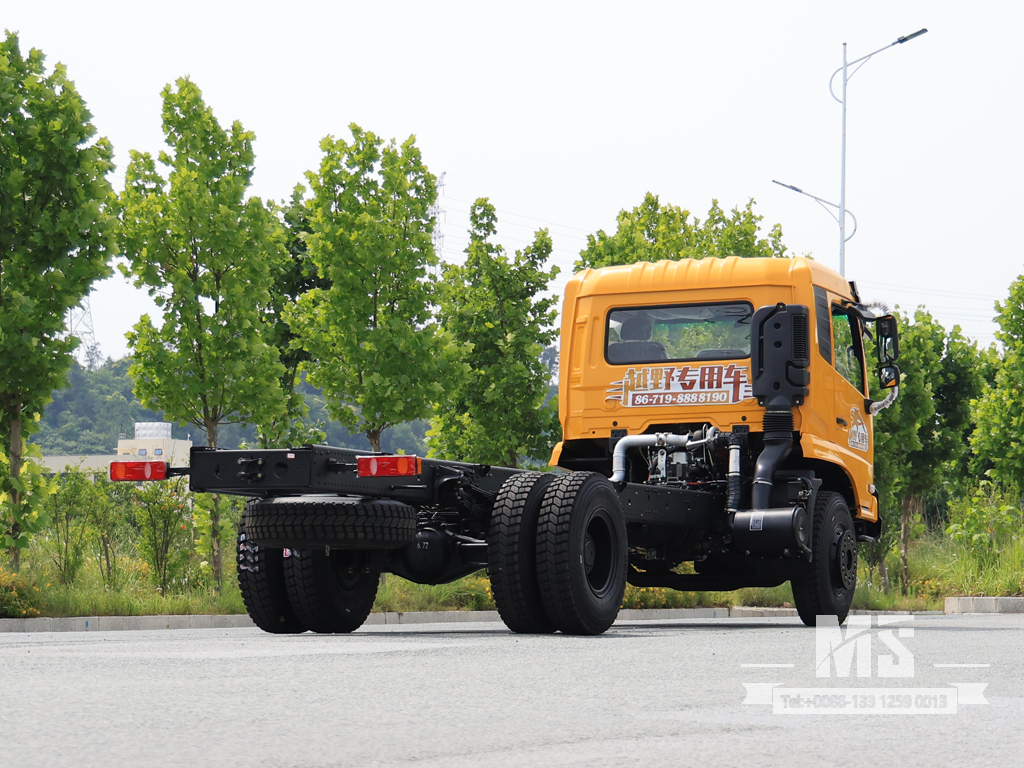

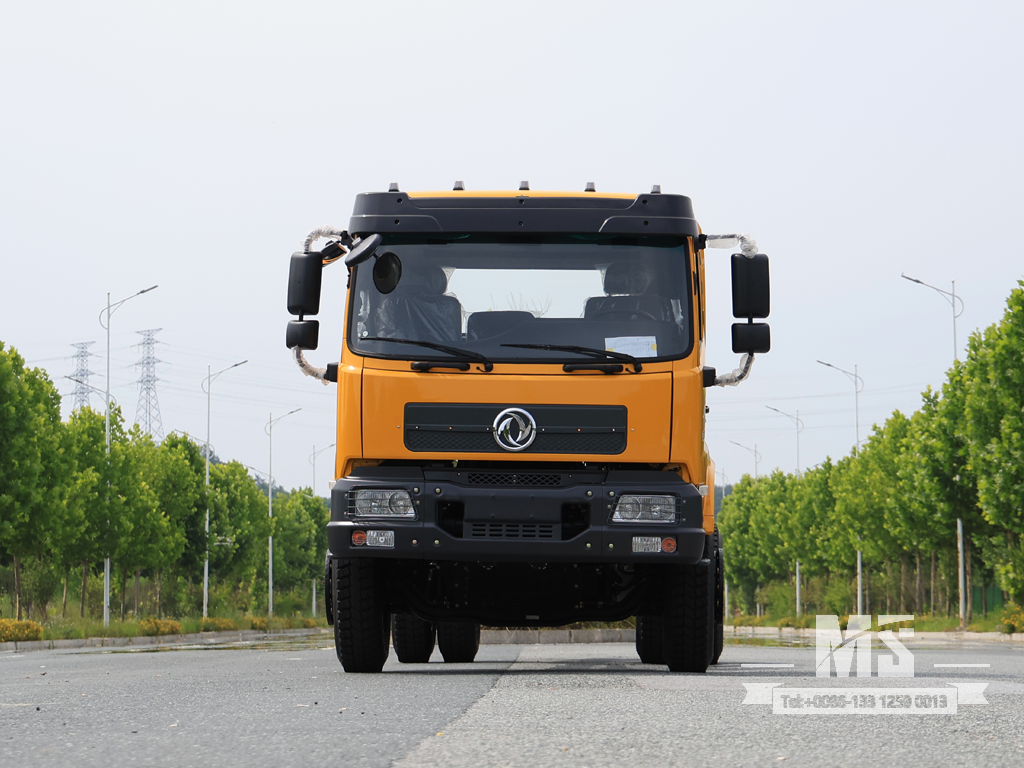

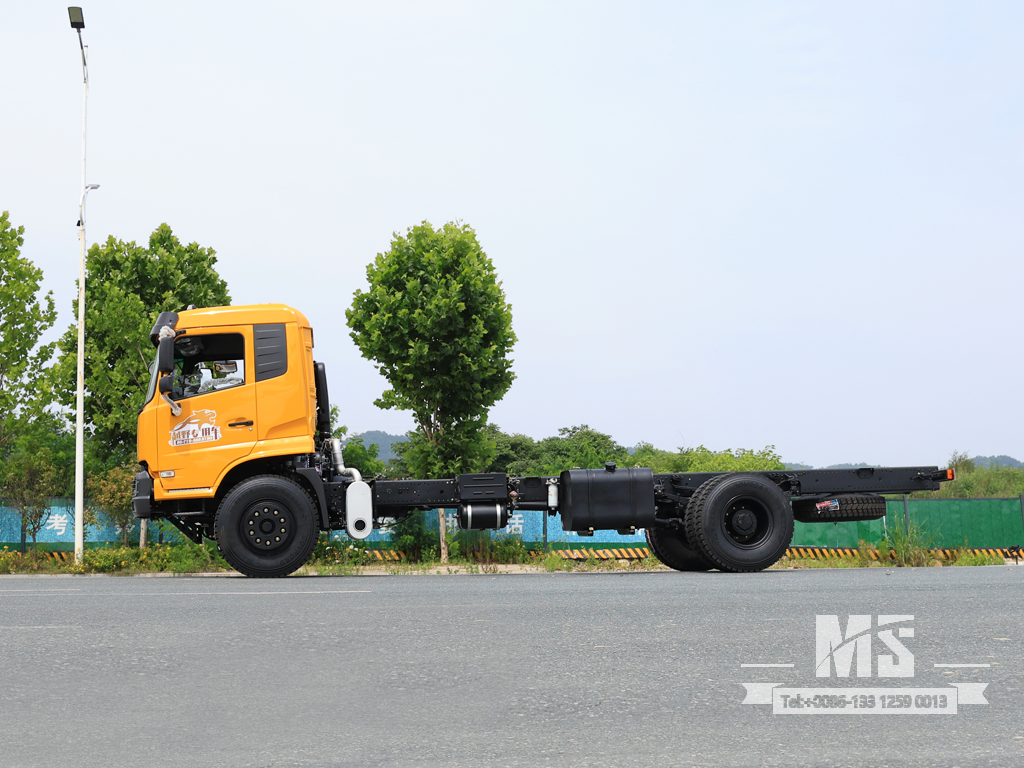

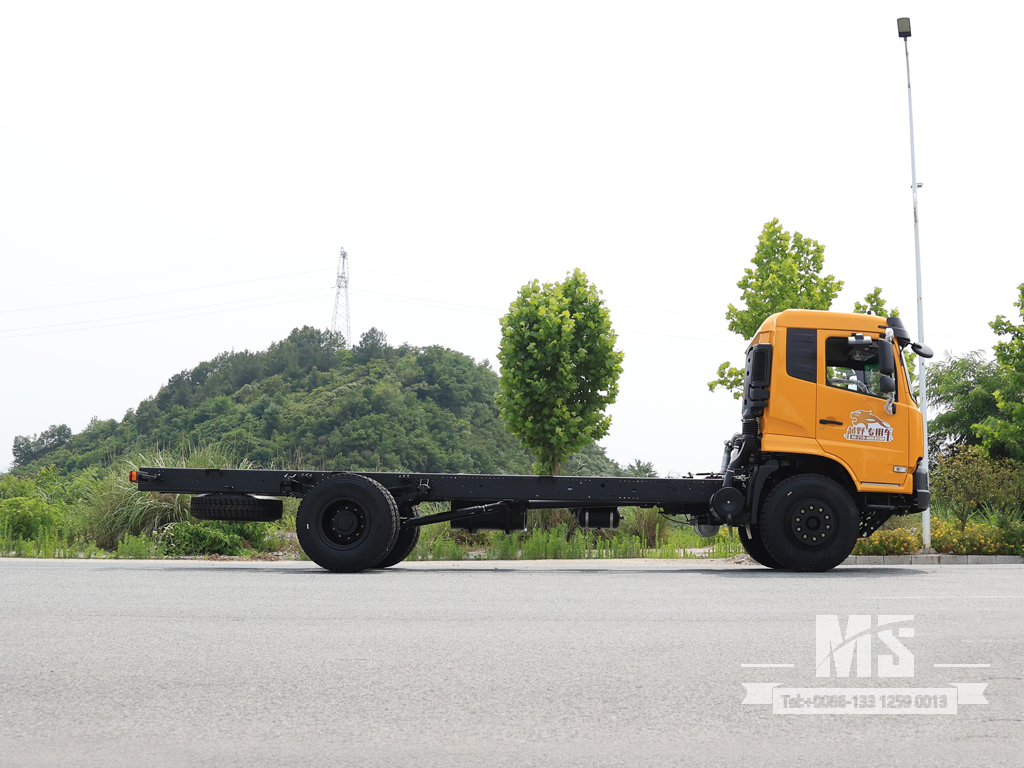

Dongfeng 4×4 Flathead Truck Chassis
Basic configuration | |
Drive type | 4*4 |
Engine | 玉柴260HP |
Transmission | Shou chi Manual 10-speed |
Driver Cab | Dongfeng Flat-head half row |
Vehicle Axle |
|
Tire | 11.00R20 (6+1 ) |
Torque | 1000N.m |
Displacement | 7.255L |
Leaf Spring | 9/8+9 |
Detailed parameter | |
Chassis Overall Dimension | 9080×2580×2970mm |
Modification dimensions | ≥6490mm |
Wheelbase | 5100mm |
Wheel track | 2020/1850mm |
GVW | 19500kg |
Chassis Curb Weight | 6080kg |
Maximum Power | 191kw |
Fording depth | 470mm |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 13°/16° |
Tank volume | 300L |
Minimum ground clearance | 330mm |
Obstracal height | 330mm |
Note: This configuration is for reference only, please refer to the actual car.
