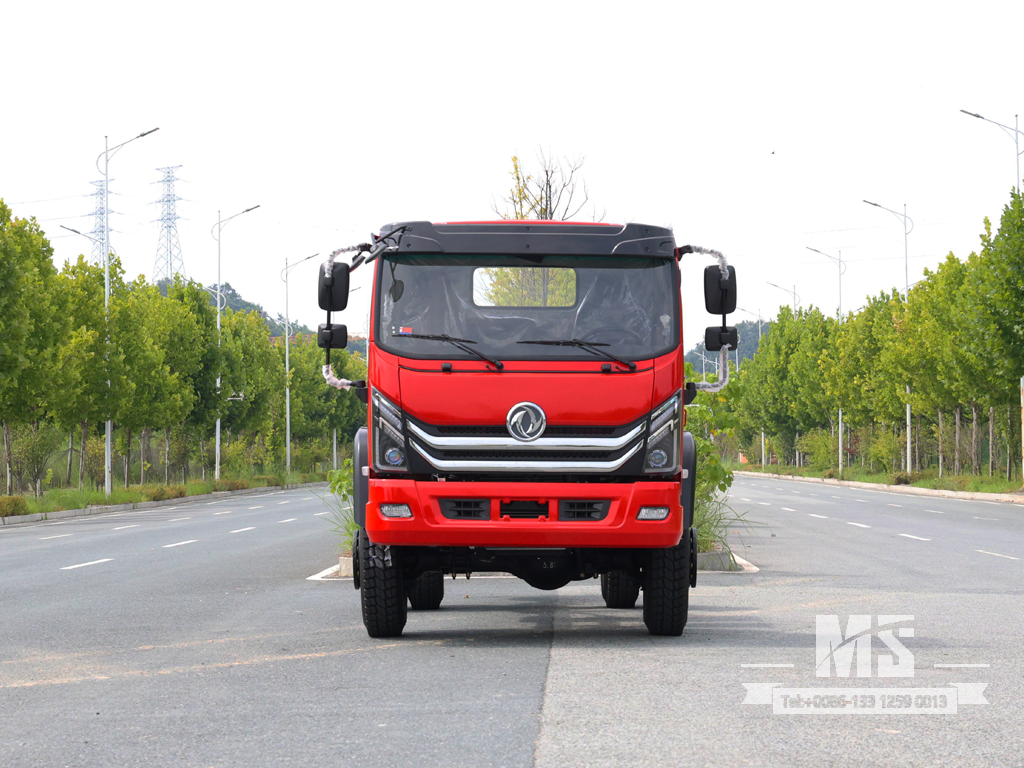

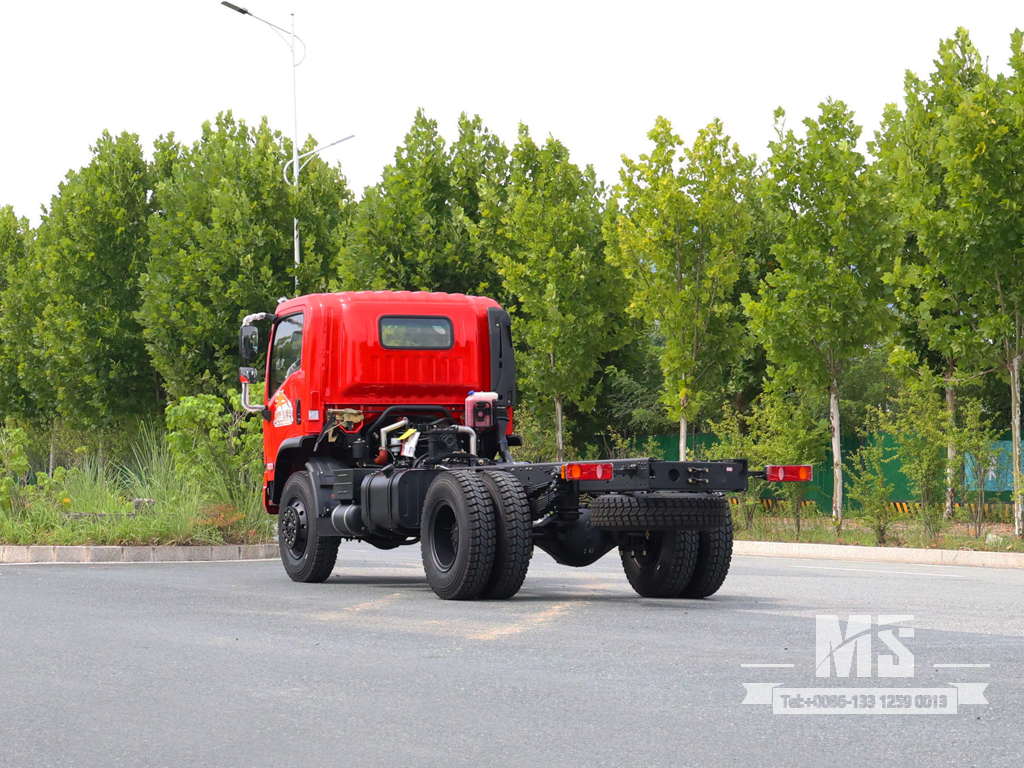

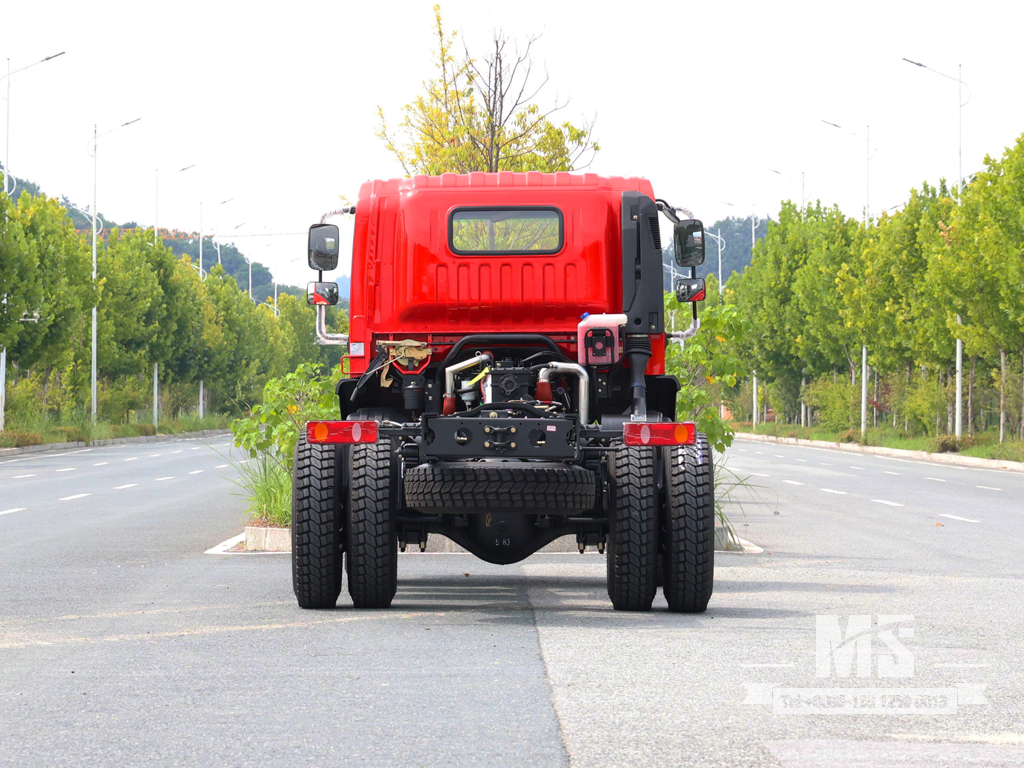

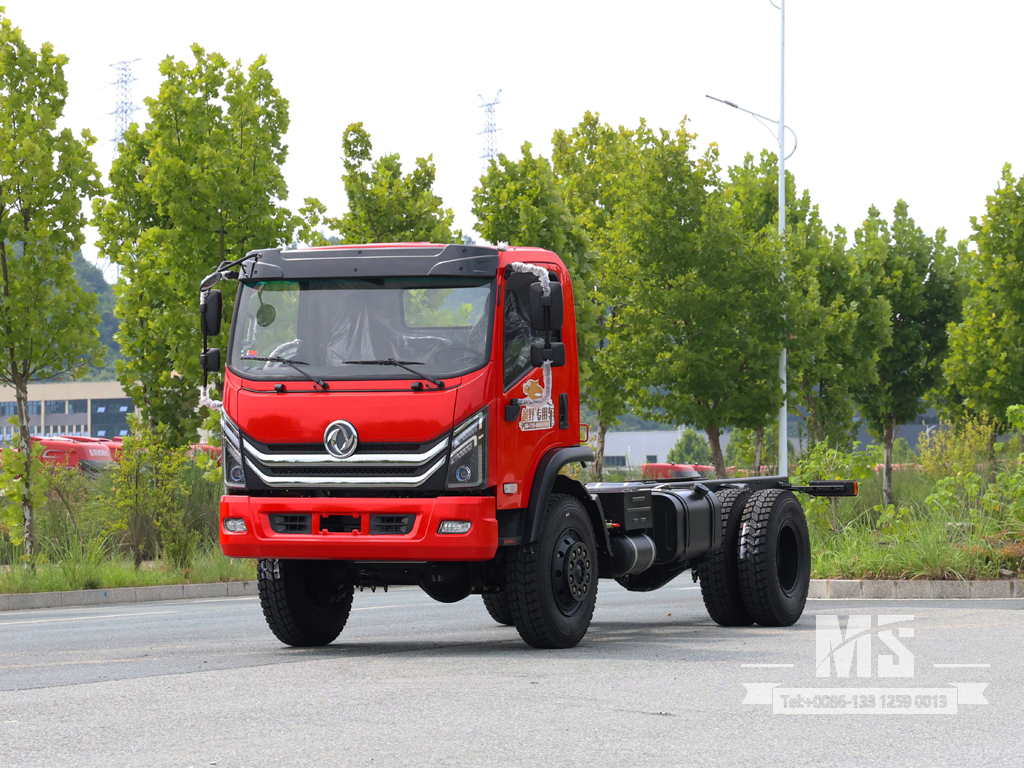

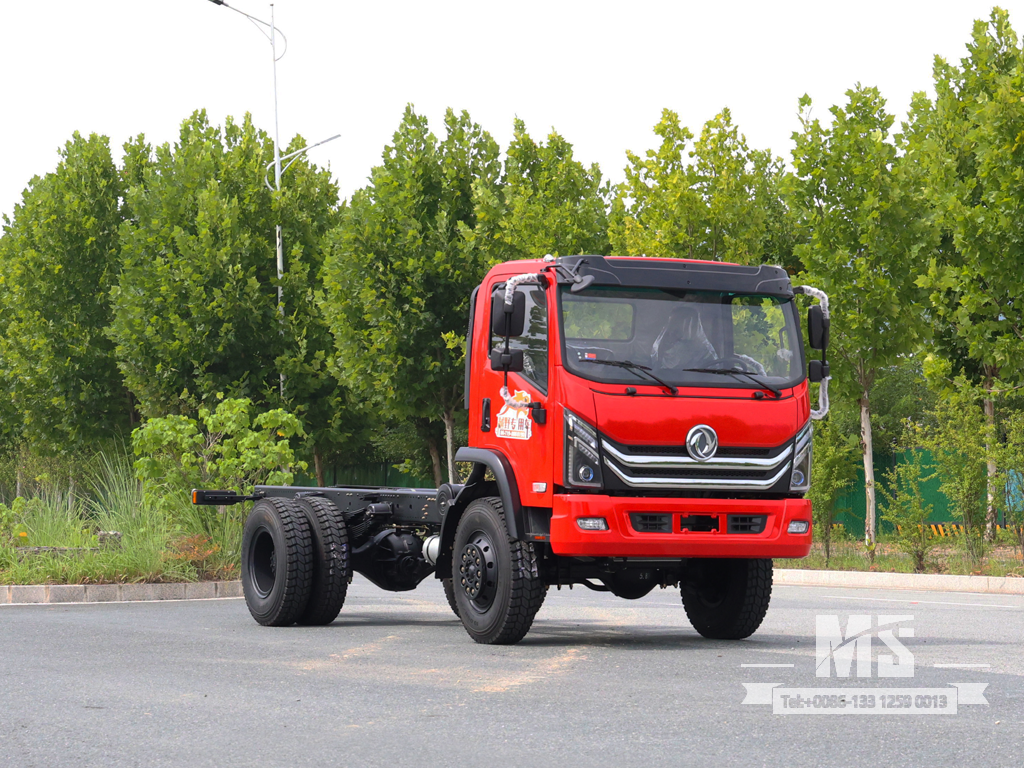

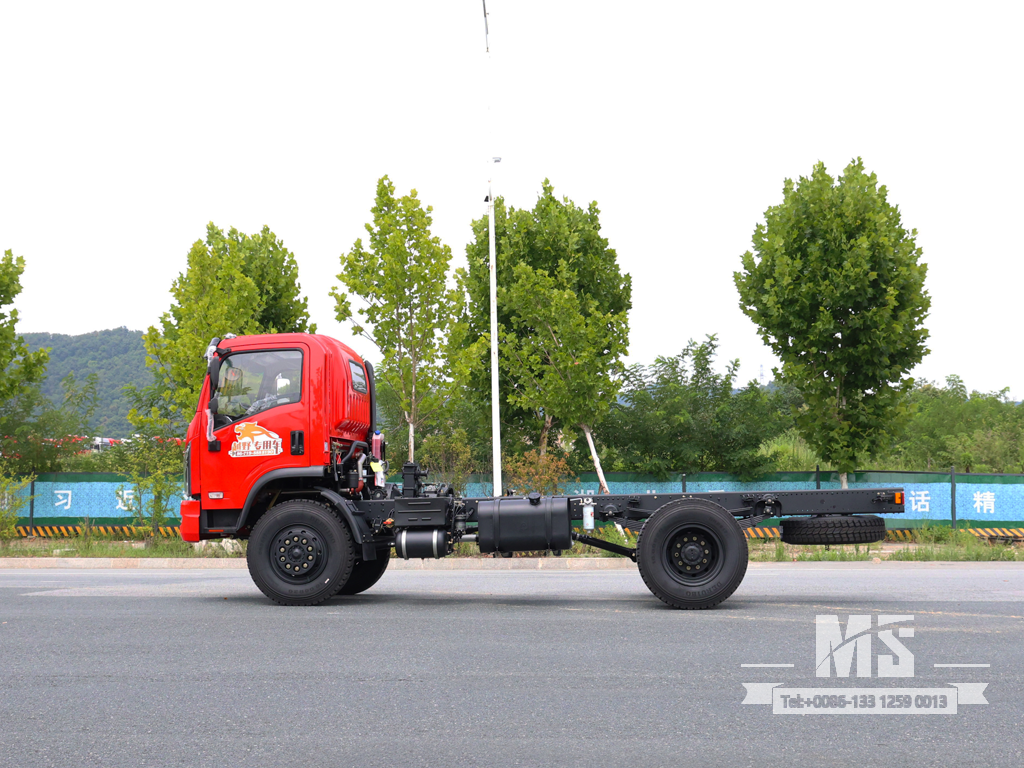

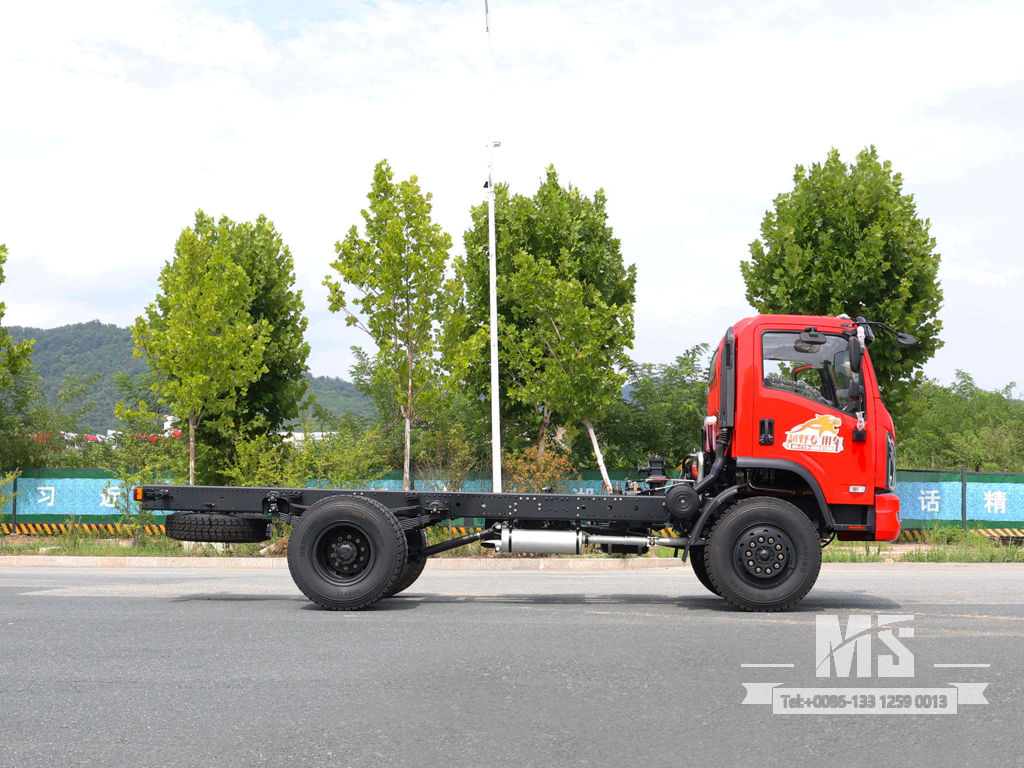

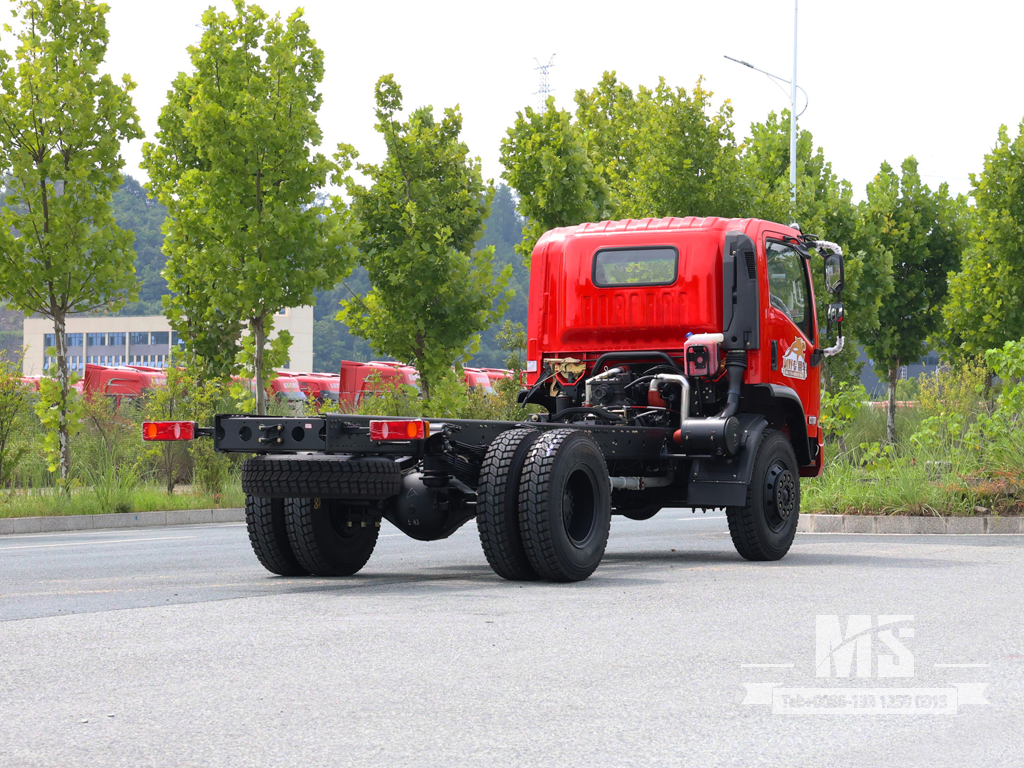

170HP 4WD Off-road Chassis
Basic configuration |
Drive type | 4*4 |
Engine | Cummins B170 33 |
Transmission | Shou chi Manual 5-speed |
Transfer case | High and Low Gears |

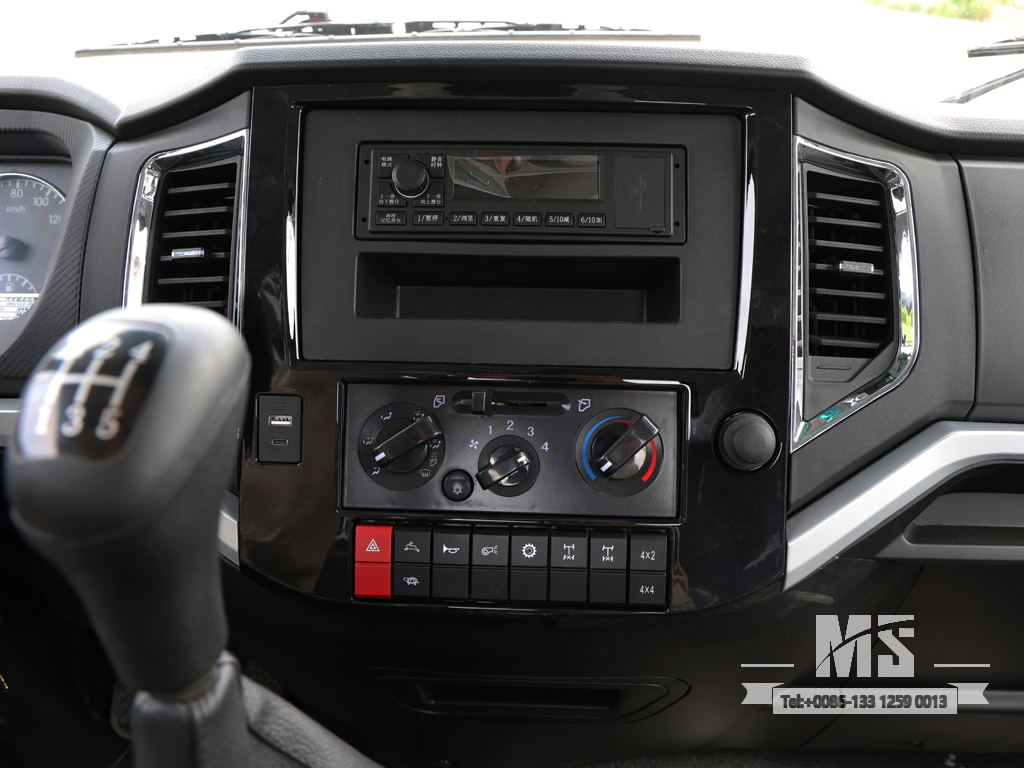

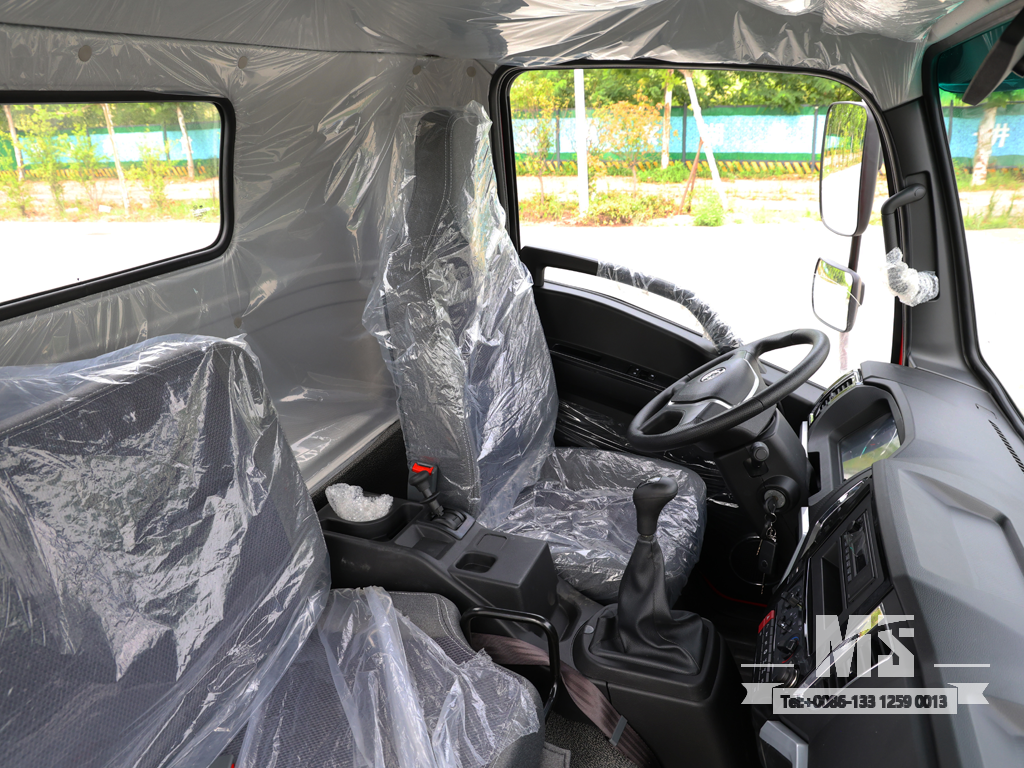

Driver Cab | Dongfeng Flathead single row |

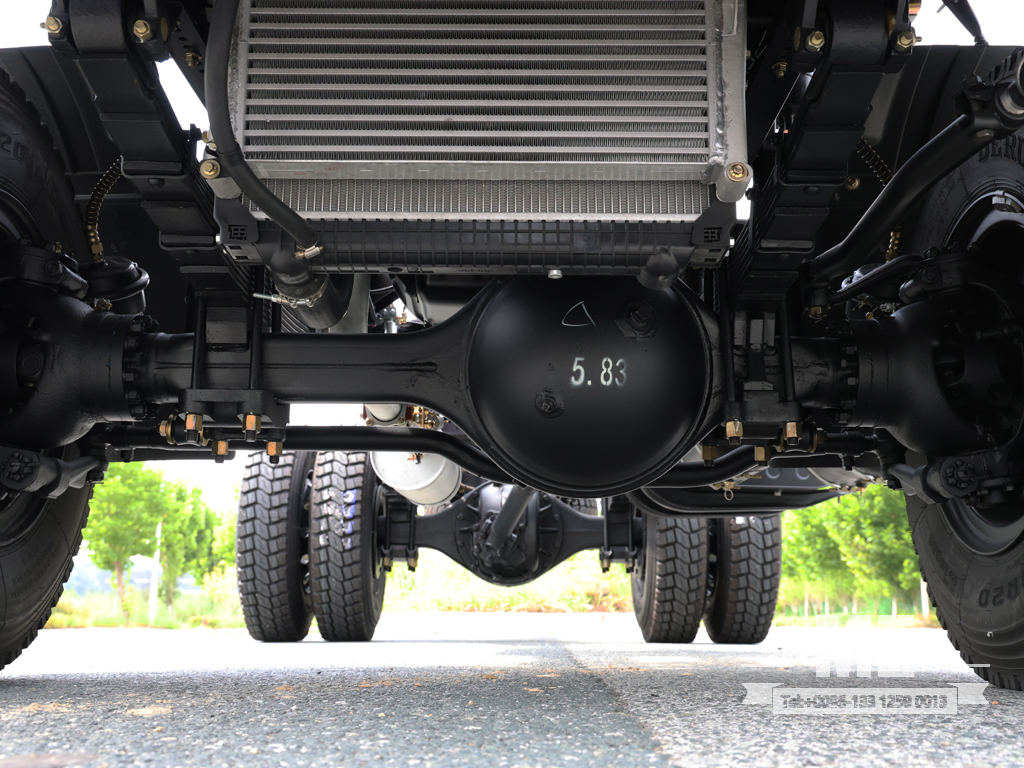

Vehicle Axle | Dont Alxe 5T/Rear Alxe 10T |

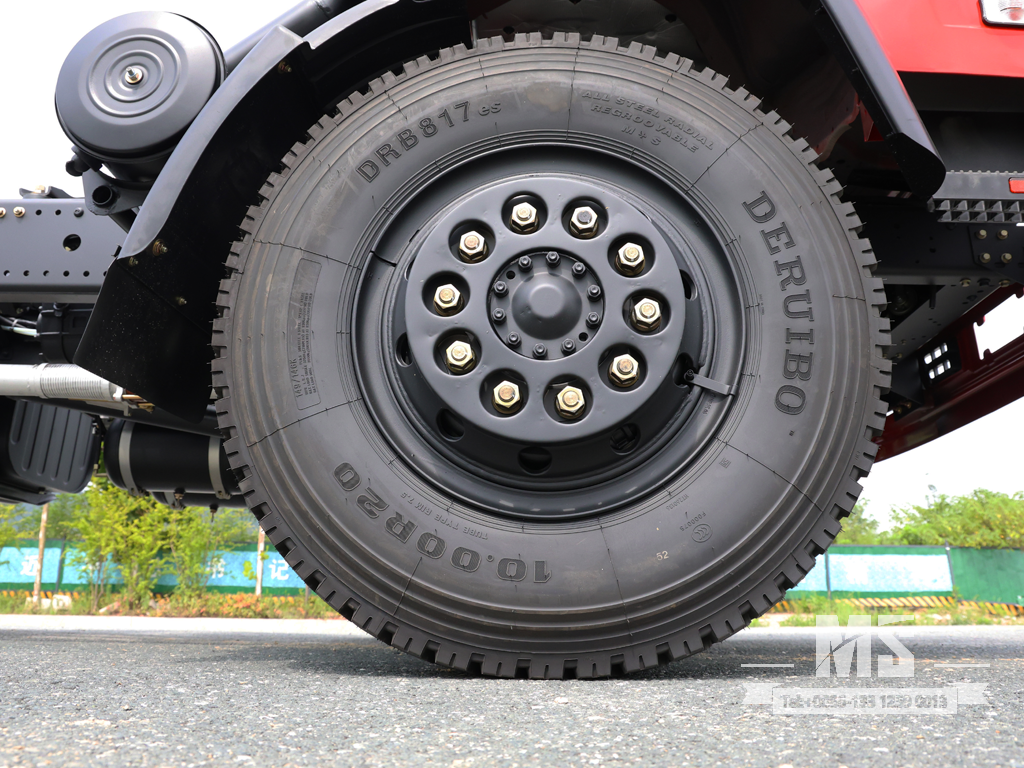

Tire | 10.00R20（6+1） |
Frame | 860×250mm double-layer |
Leaf Spring | 9/8+10 |
Detailed parameter |
Chassis Overall Dimension | 7240×2500×2720mm |
Modification Dimensions | ≥4570mm |
Wheelbase | 3800mm |
Wheel track | 1850/1780mm |
GVW | 15000kg |
Curb Weight | 5230kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 24°/22° |
Tank volume | 260L |
Minimum ground clearance | 260mm |
Fording depth | 560mm |
Obstracal height | 470mm |
Note: This configuration is for reference only, please refer to the actual car.
