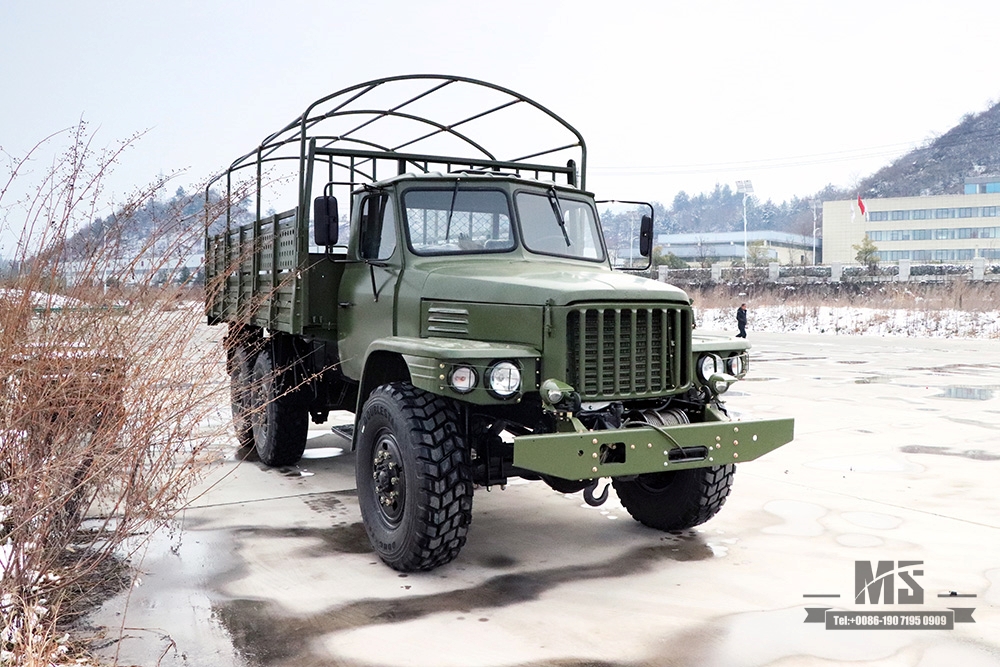

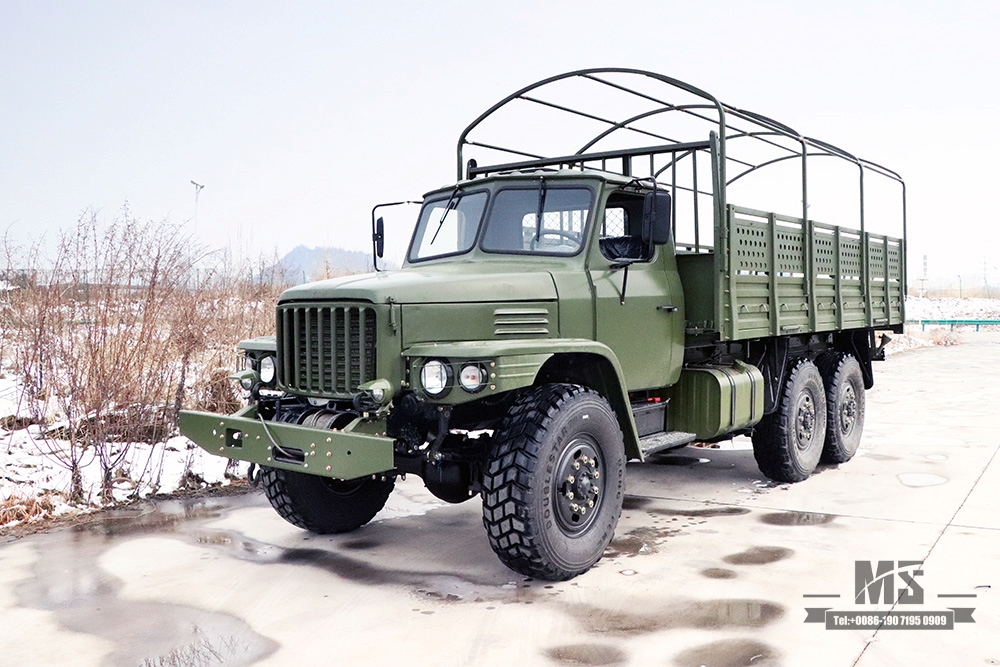

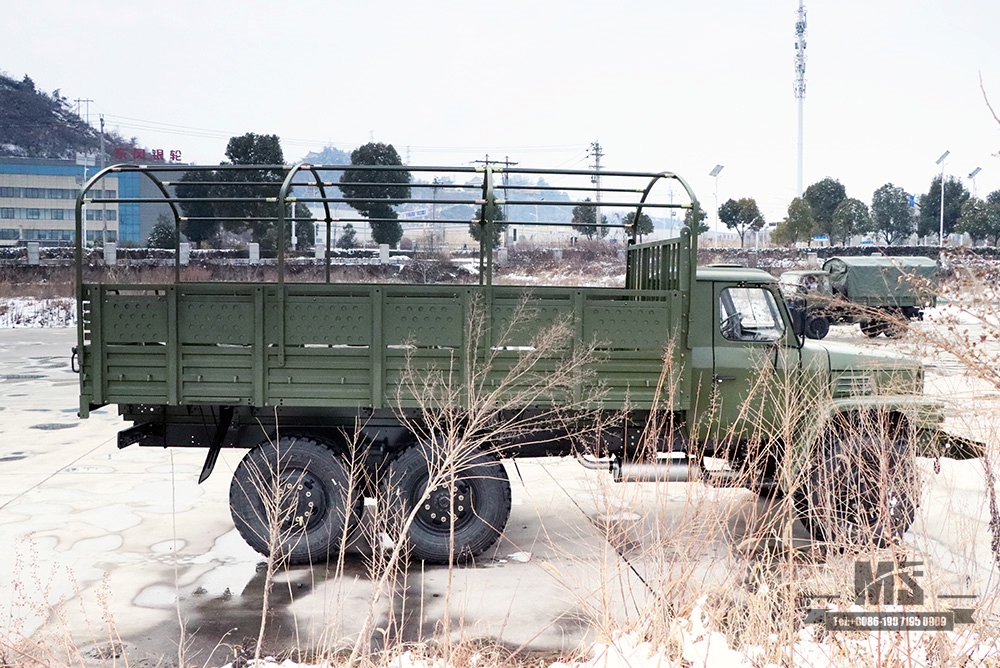

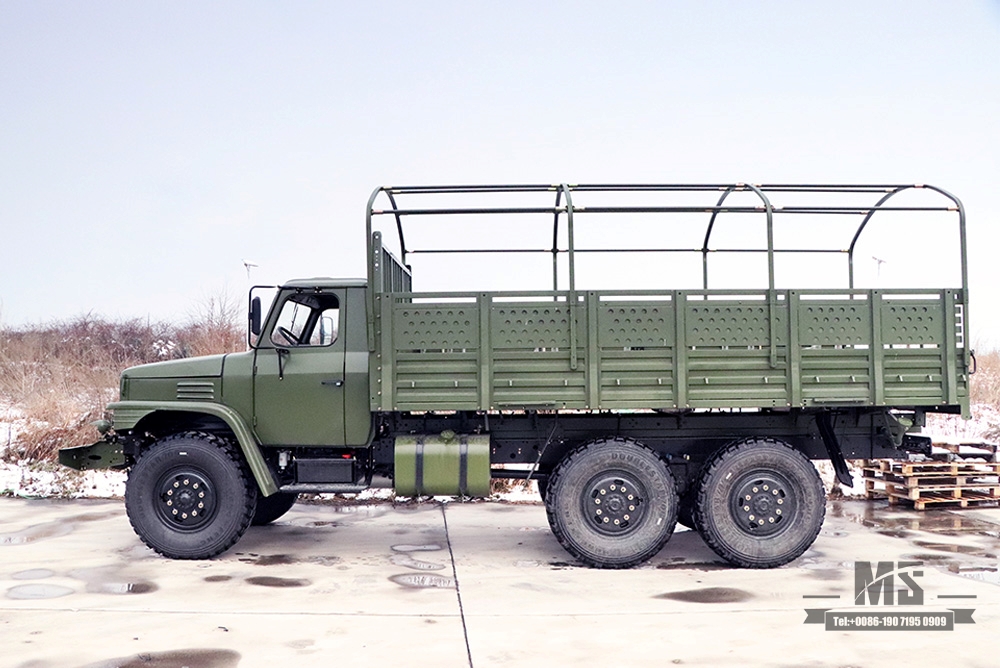

EQ2100E6D is a model improved by Dongfeng on the basis of the original EQ2082, with more power and more load capacity and better performance, which makes up for the vacancy of 3.5 tonne tip truck. The vehicle was initially used for transporting materials and personnel deployment for the army, and has now been put into civilian use.
Basic configuration | |
Engine | Cummins B190 33 |
Drive type | 6*6 |
Gearbox | Manual Six-speed gearbox |
Transfer box | Mechanical high and low gears |
Driver Cab | Dongfeng Pointed Single Row Cab |
Axle | 3.5T/3.5T/3.5T |
Tire | 12R20(6+1) |
Vehicle Optional Items | Air conditioning, winch, brake cooling tank, bench in cargo box |
Vehicle Accessories | Bucket, oil drum, Fire extinguisher, Vehicle accompany tools, Tarpaulin poles |
With cold start, anti-aircraft lights, sub-fuel tank, tool box and other military add-ons, the whole vehicle can be started smoothly under -41℃ ambient temperature.

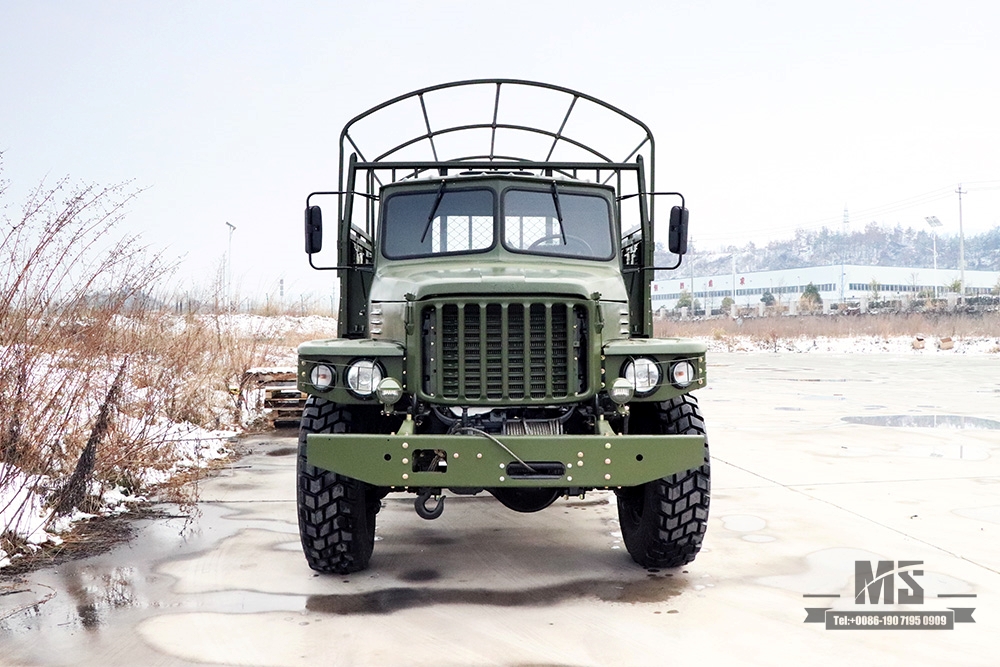

The cab is equipped with sunshade, horn and light net.

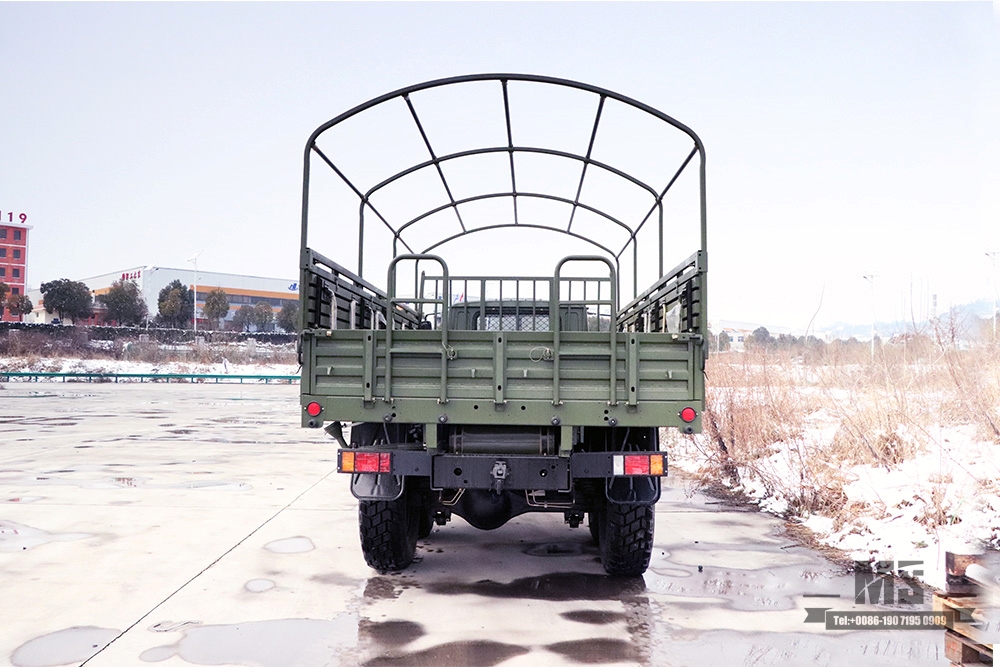

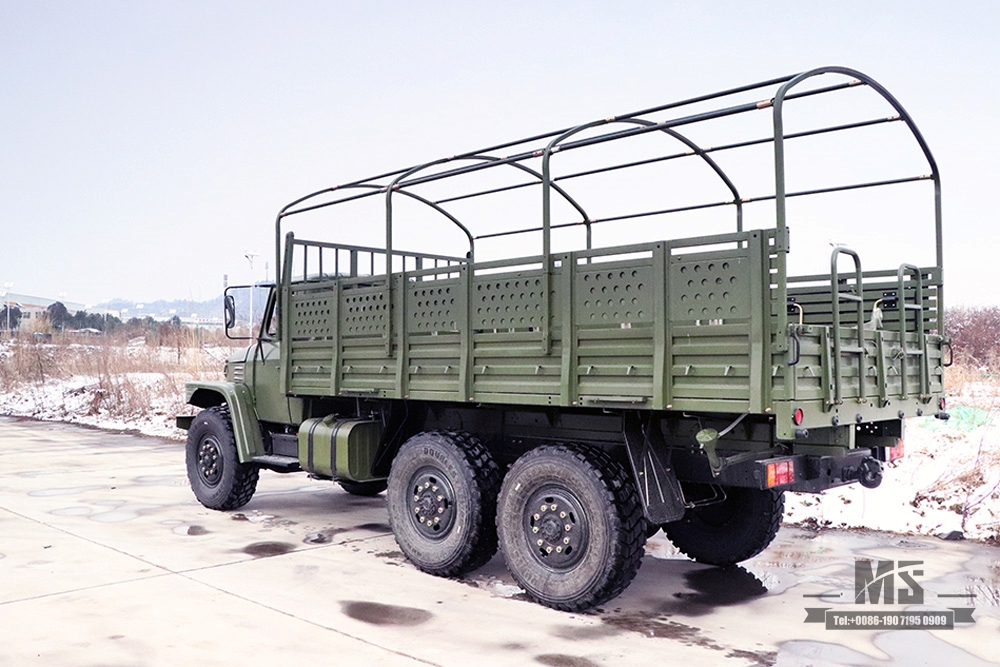

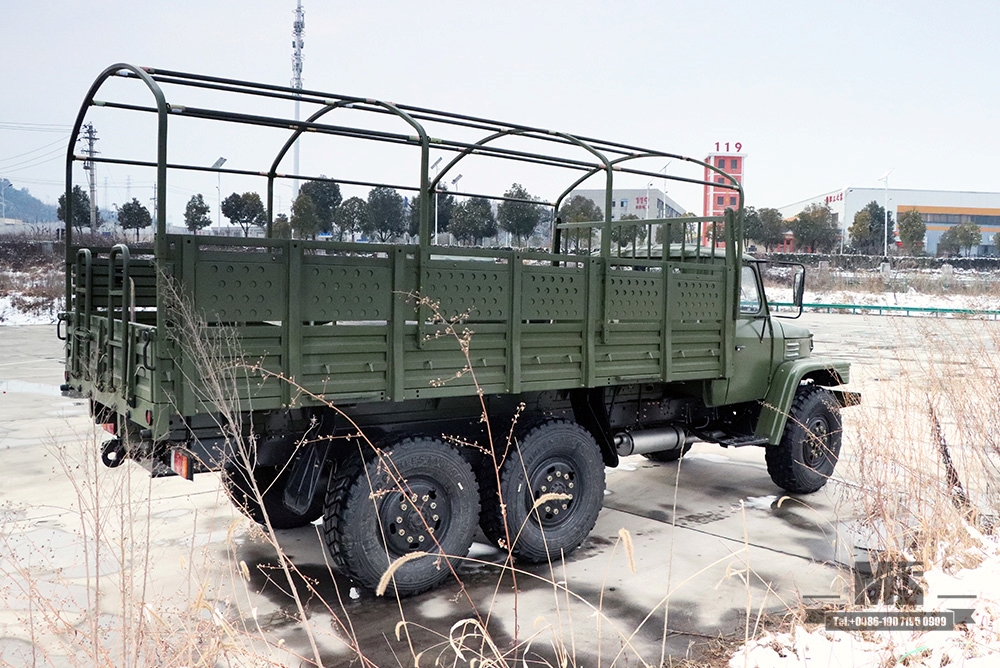

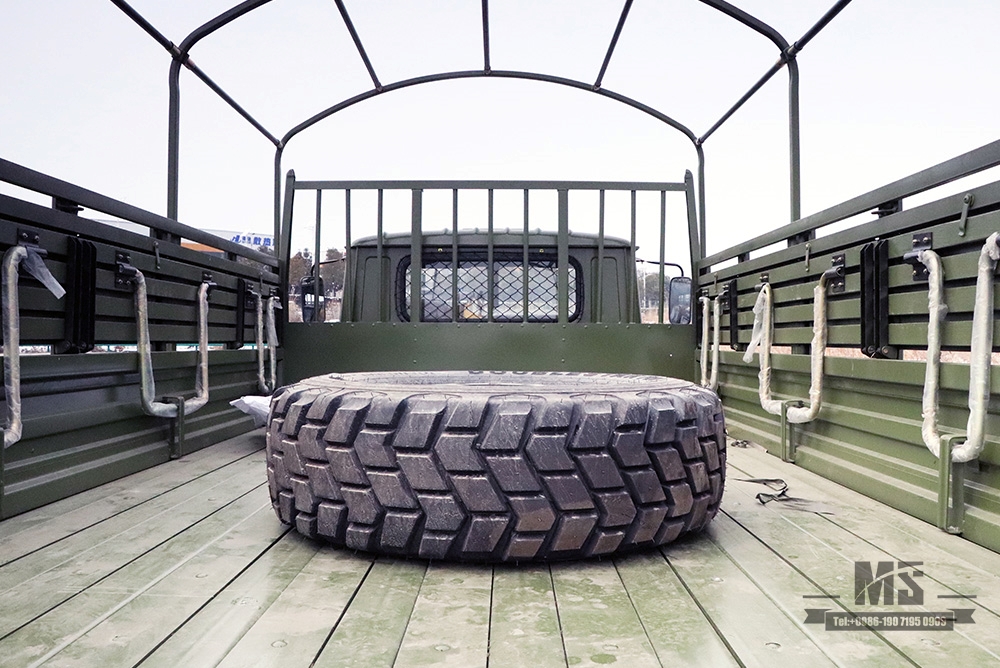

The bottom plate of cargo box is made of pure iron with non-slip pattern. Two side panels can be installed with folding seats, the interior of the cargo box is equipped with a fixed chain, and the tail has two folding ladders.
Detailed parameter | |
Overall Vehicle Dimension | 7930*2400*2600mm |
Cargobox Dimension | 4800×2300×900mm |
Wheelbase | 3600+1250mm |
Wheel Track | 1900/1895/1910mm |
GVW | 9800kg |
Curb Weight | 6800kg |
Loading Weight | 3500kg(off-raod) |
Pulling weight | 4500kg |
Number of passengers | 3 |
Engine Displacement | 5880ml |
Maximum power | 140kw |
Maximum speed | ≥90km/h |
Front/Rear Overhang | 1214/1916mm |
Approach Angle/departure Angle | 44°/45° |
Oil Tank volume | 215+70L |
Minimum ground clearance | 320mm |
Maximum Climbing Grade | 60% |
Slope Gradient | 40% |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
