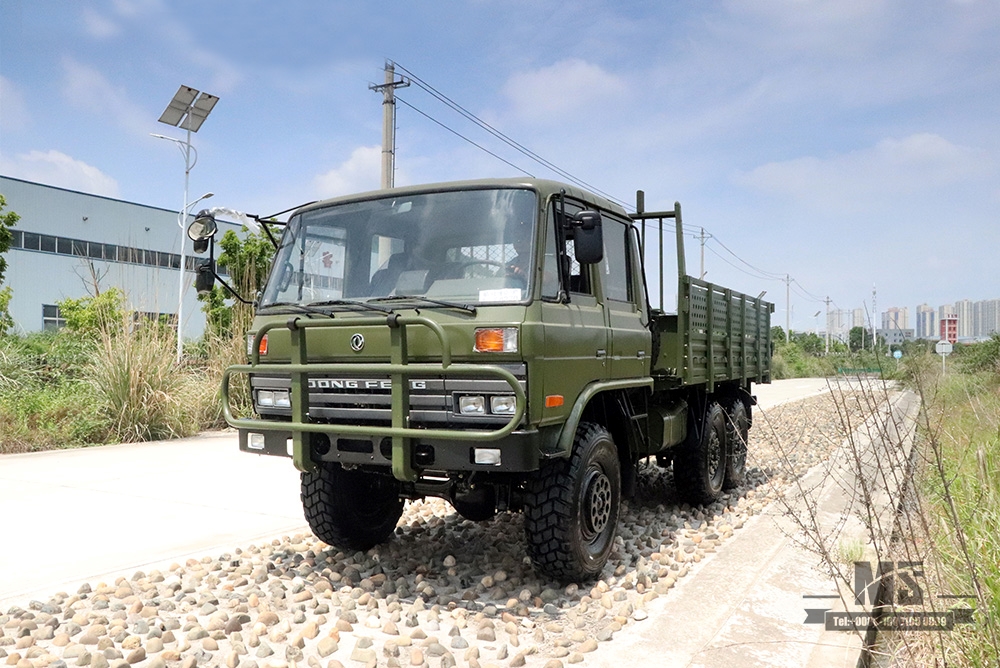

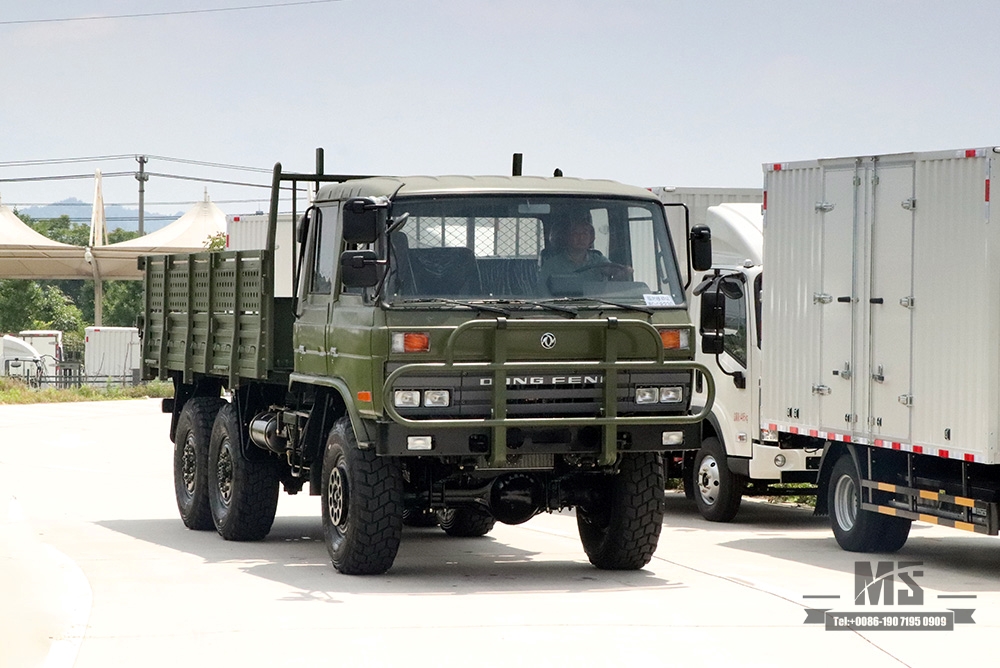

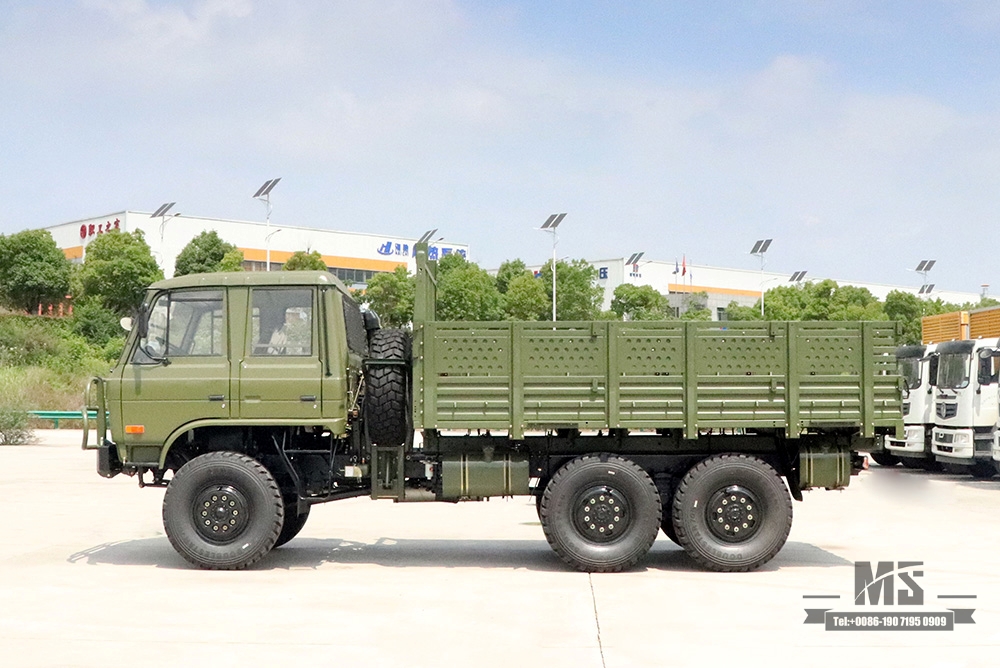

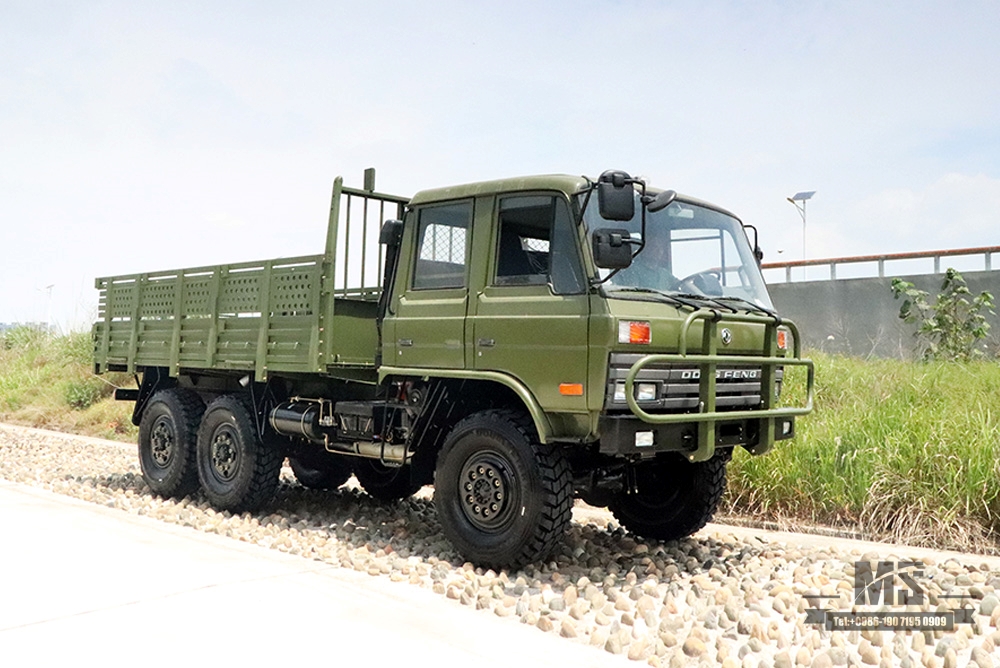

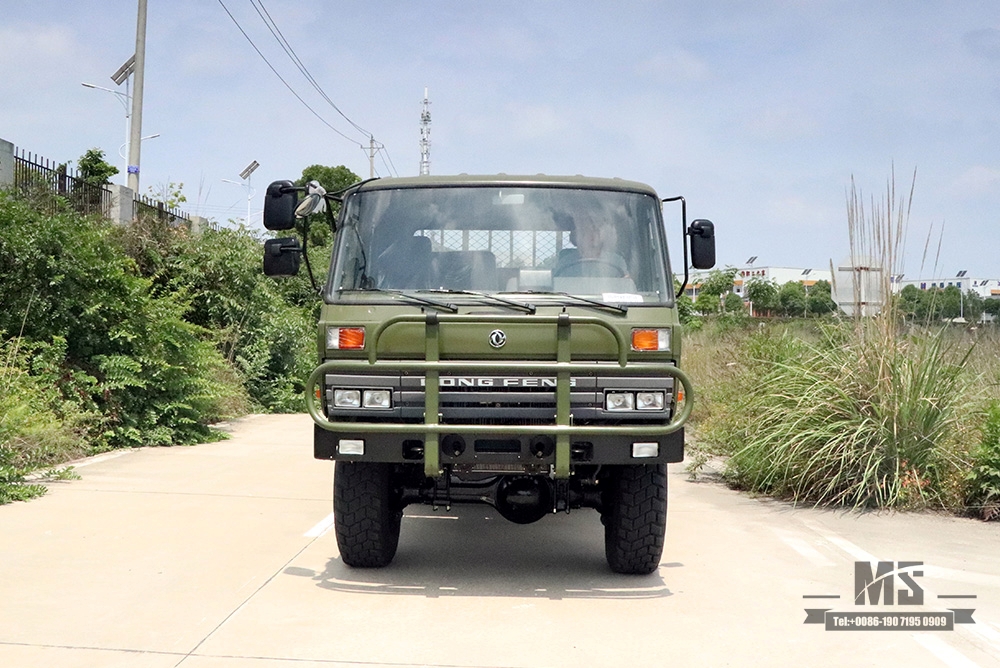

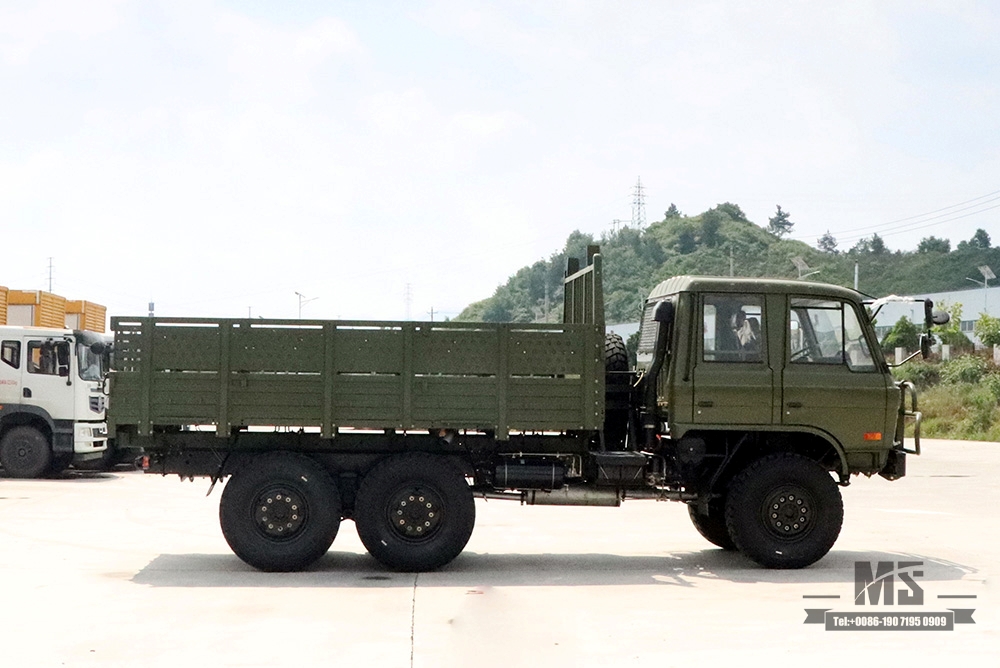

Dongfeng EQ2102 is an upgraded model of the three-and-a-half-ton double-row flat-head off-road personnel carrier EQ2102G. The main difference is that the cab has been upgraded to a double-row style. The number of people in the cab can be up to 5, and the size of the cargo box has been shortened accordingly.
The EQ2102 military vehicle adopts many new assemblies, and the vehicle is majestic and powerful, reflecting the characteristics of military vehicles. With excellent performance and high cost performance, it has been put into the civilian market.
Basic configuration |
Engine | Cummins B190 33 |
| Drive type | 6*6 |
Gearbox | Mechanical Manual Six-speed gearbox |
Transfer box | Mechanical high and low gears |
Driver Cab
| Dongfeng 153 Double Row Cab |
Vehicle Axle | 3.6T/3.6T/3.6T |
Tire | 12.5R20（6+1） |
Vehicle Suspension
| Leaf spring 9/12 |
| Electric Circuit | 24Vcircuit system, single wire, negative ground |
| Optional item | Heating and air conditioning, winch, reversing image, brake cooling water tank |

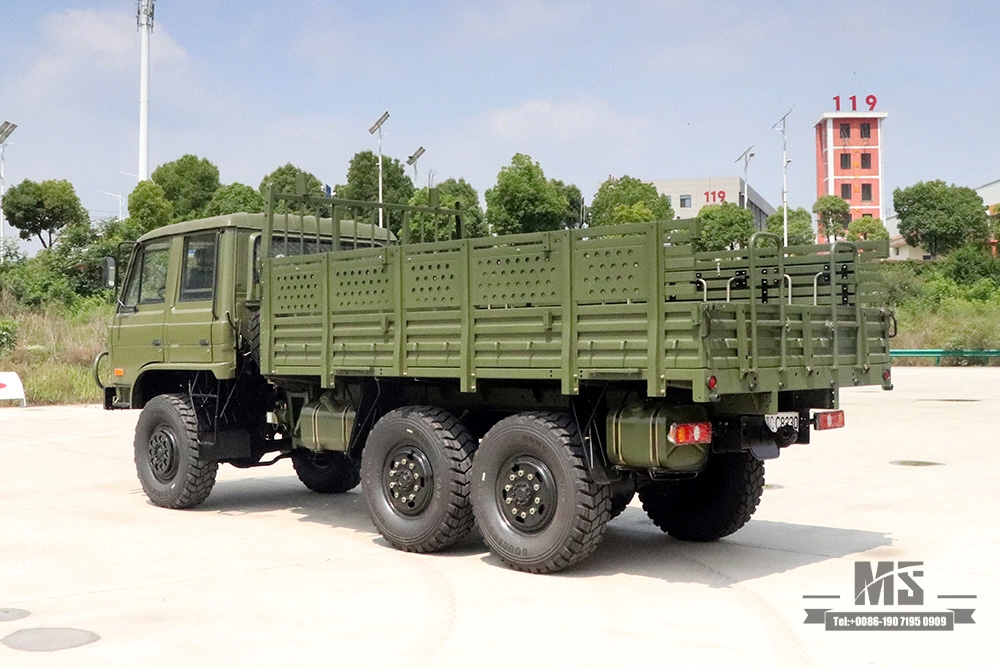

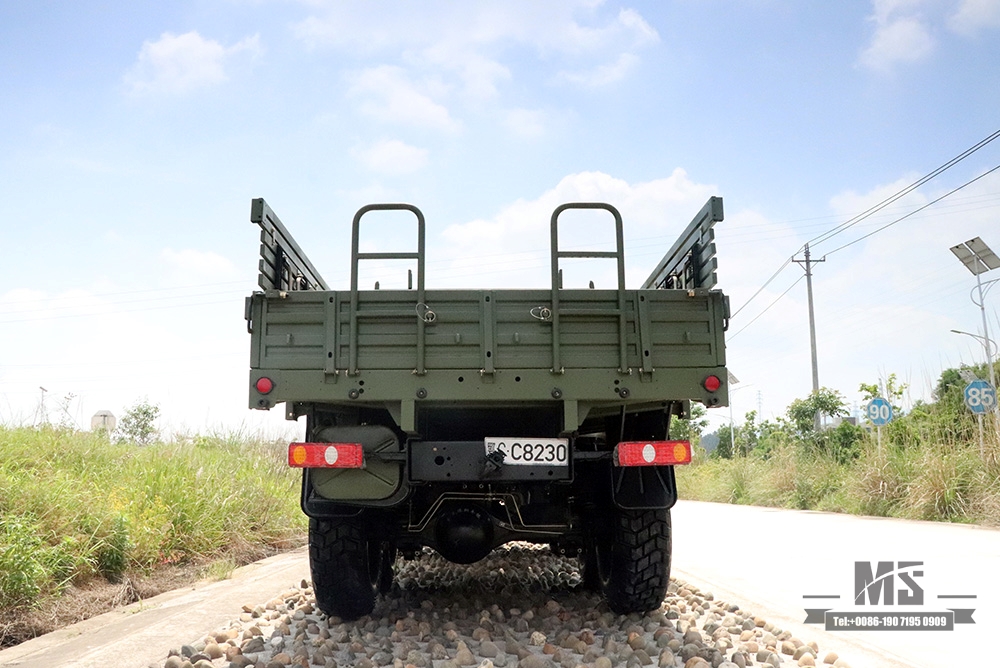

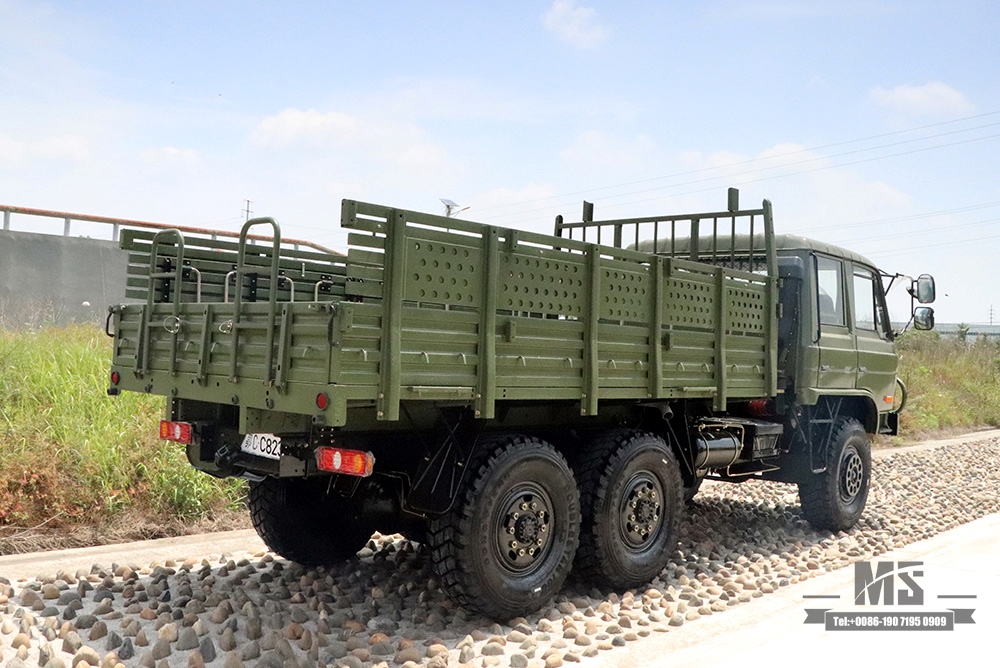

The cargo box adopts a mixed structure of iron and wood, and seats can be installed on the inside. There are 2 folding ladders at the end of the box, and there is a tool box at the bottom of the cargo box. With removable tarpaulin poles
Comprehensive instruments: speedometer, ammeter, voltmeter, water temperature meter, fuel meter, air pressure meter
Indicator lights: headlights, side lights, fog lights, front small lights, rear tail lights, rear lights, front and rear turn signals, brake lights, front and rear anti-aircraft lights, combination switch, steering, low oil pressure
Detailed parameter |
Overall Vehicle Dimension | 7495×2470×2740mm |
| Cargobox Dimension | 4270×2294×900mm |
| Wheelbase | 3475+1250mm |
Wheel Track | 1876/1870mm |
GVW | 10740kg |
| Curb Weight | 6920kg |
| Number of passengers | 2-3 |
Engine Displacement
| 5900ml |
| Maximum power | 140kw |
| Maximum speed | 88km/h |
Approach Angle/departure Angle | 35°/34°
|
Oil Tank volume | 160+80L |
Minimum ground clearance | 320mm |
| Maximum Wading Depth | 1125mm |
Note: This configuration is for reference only, please refer to the actual car.
