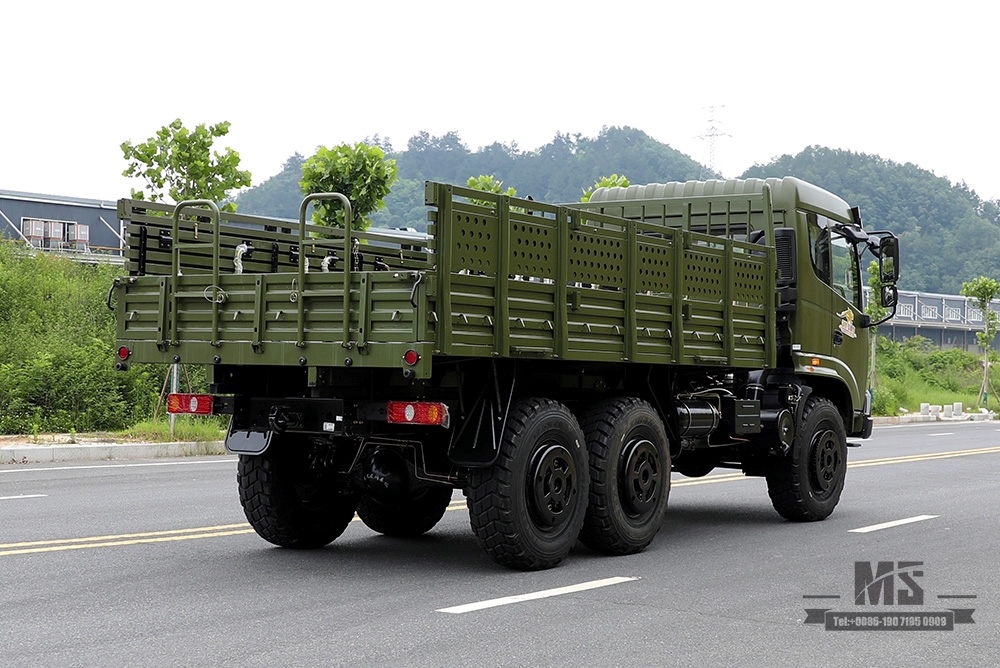

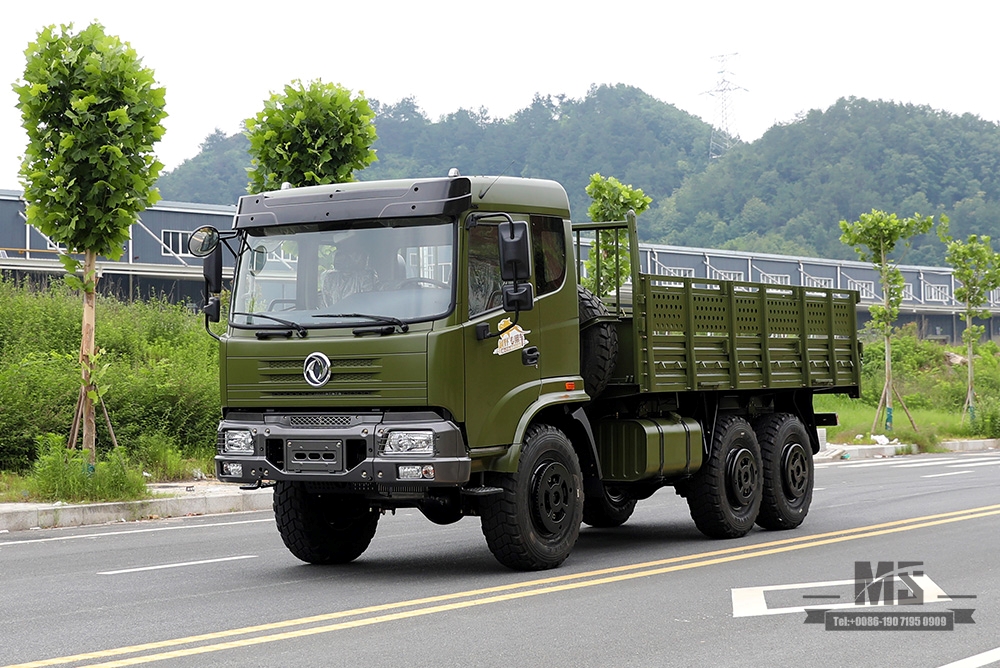

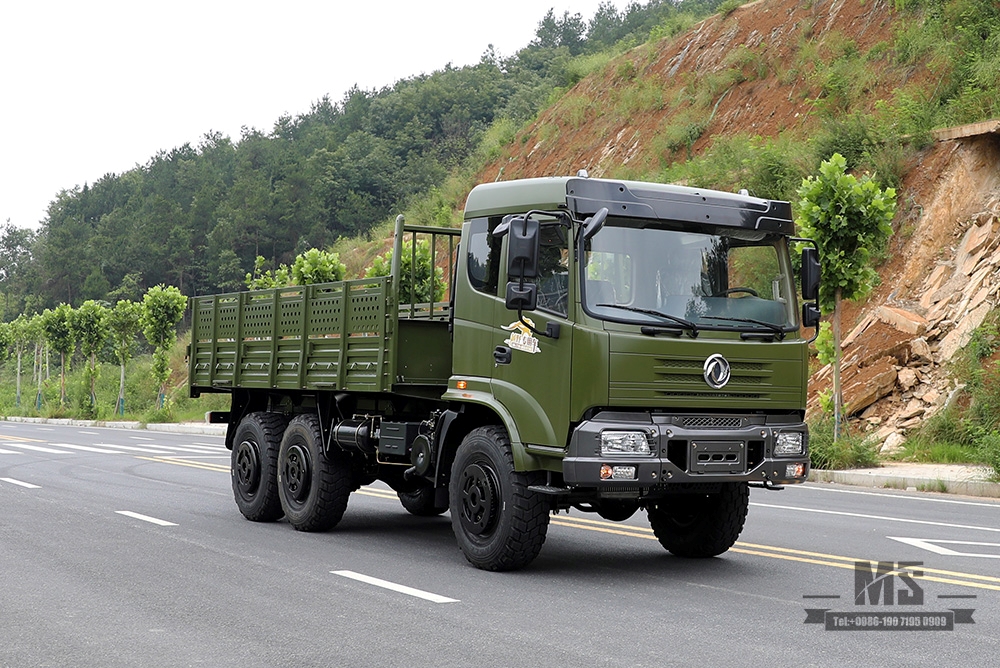

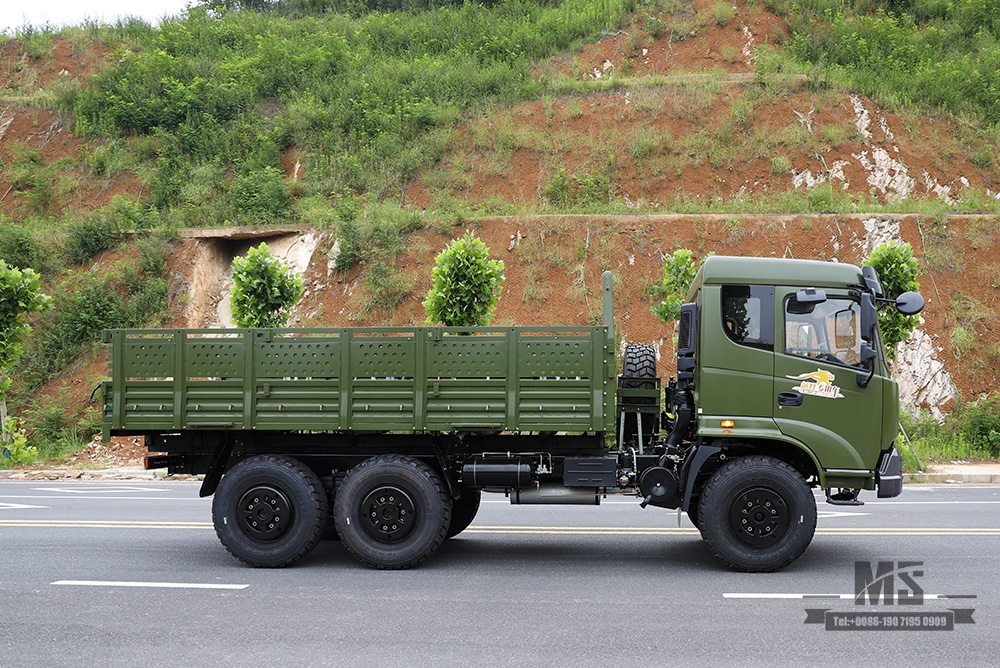

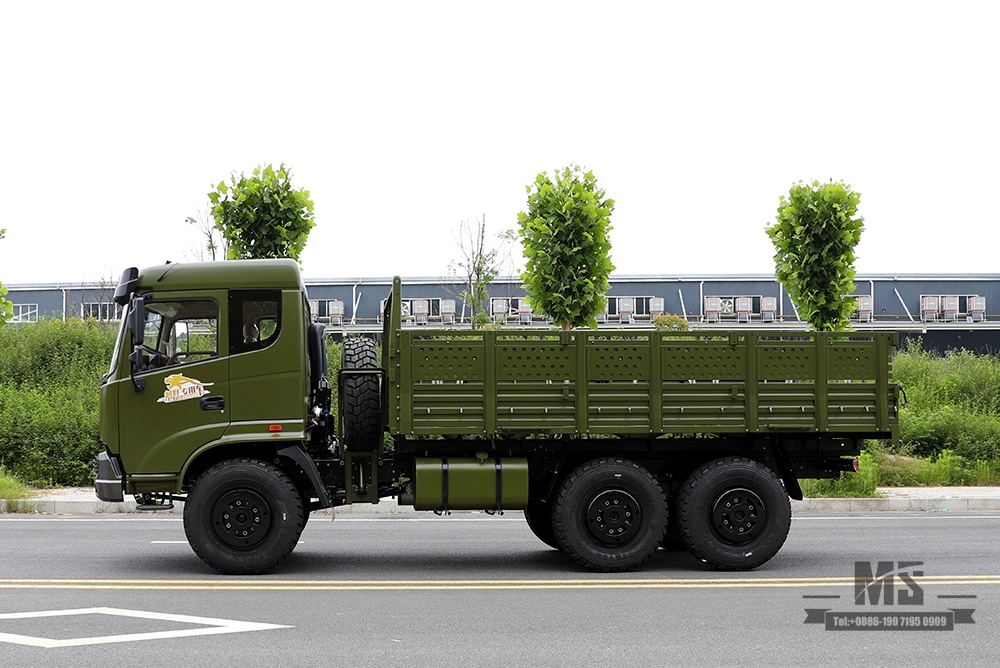

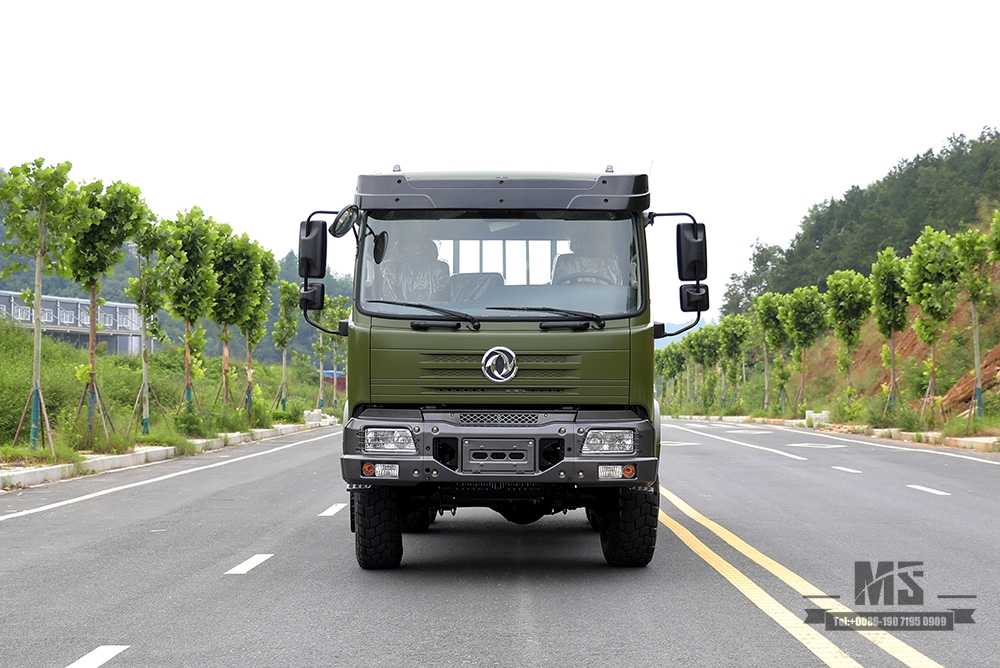

The Dongfeng Flathead 6WD off-road lorry is a very cost-effective model, which can be driven under mountain roads, forests, swamps and the Gobi, and is also equipped with a cold-starting device, which is able to start smoothly at -41 degrees Celsius, allowing it to be used in high-altitude areas. The cab is ergonomically designed for comfort and ease of operation, with a wide field of vision and a sleeper for resting.
Basic configuration | |
Engine | Cummins B190 33 |
Drive type | 6*6 |
Gearbox | Manual Six-speed gearbox |
Transfer box | Mechanical high and low gears |
Driver Cab | Dongfeng One and a half Row Cab(With Sleeper and air conditioning) |
Vehicle Frame | 860*232mm, Thickness 8mm |
Axle | 3.5T/3.5T/3.5T |
Tire | 12.5R20(6+1) |
Vehicle Suspension | Steel Plate Spring 9/13pcs |
Electric System | 24V circuit system |
Accessories | Buckets, oil drums, fire extinguishers, warning signs, accompanying tools |

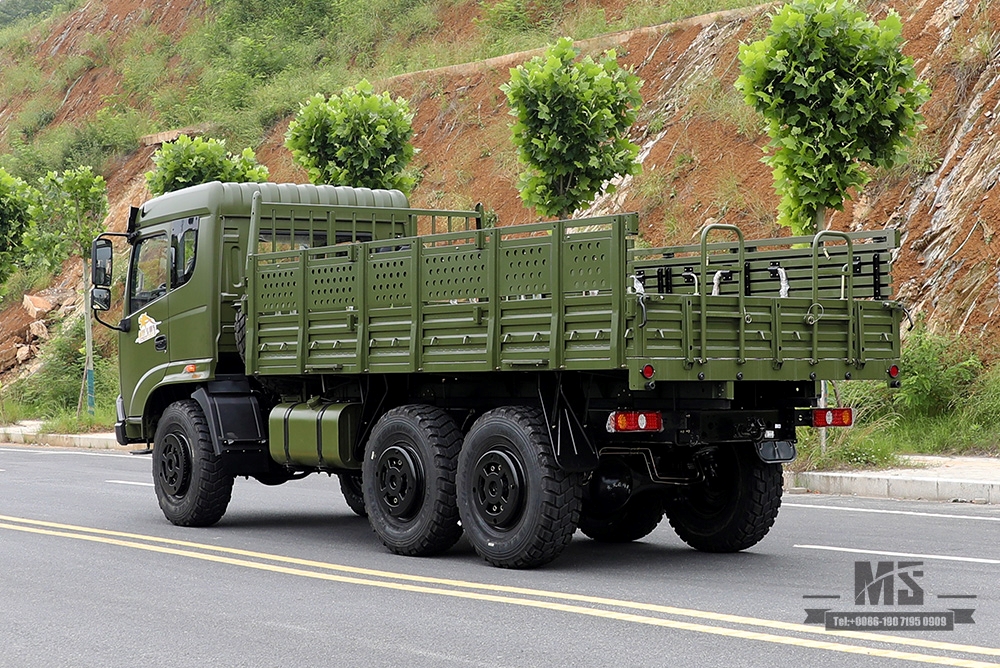

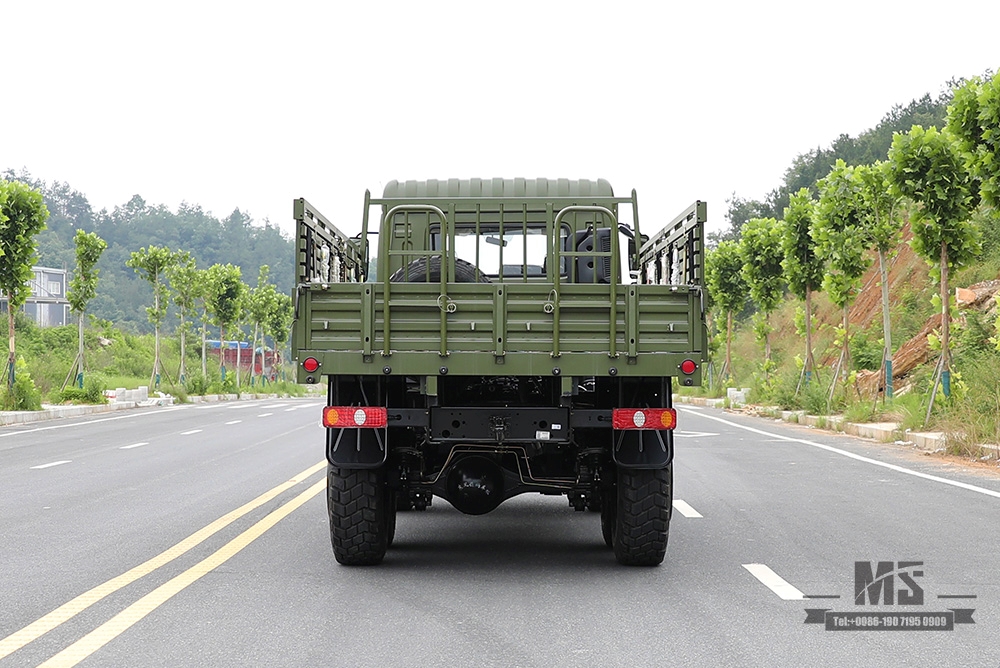

The base plate of the cargo box is made of pure iron with non-slip pattern. Folding seats are installed on both side panels, and there are 2 folding ladders at the rear with sockets reserved for canopy poles. The rear of the vehicle can be optionally equipped with electric and gas linkage.
Detailed parameter | |
Overall Vehicle Dimension | 7815*2480*3025mm |
Cargobox Dimension | 4800*2300*900mm |
Wheelbase | 3475+1250mm |
Wheel Track | 1996mm |
GVW | 15000kg |
Curb Weight | 6645kg |
Loading Weight | 8000kg |
Pulling Weight | 5000kg |
Number of passengers | 3 |
Engine Displacement | 5900ml |
Maximum power | 140kw |
Maximum speed | ≥87km/h |
Approach Angle/departure Angle | 24°/28° |
Oil Tank volume | 260L |
Minimum ground clearance | 310mm |
Maximum Wading Depth | 1115mm |
Maximum Climbing Grade | 60% |
Note: This configuration is for reference only, please refer to the actual car.
