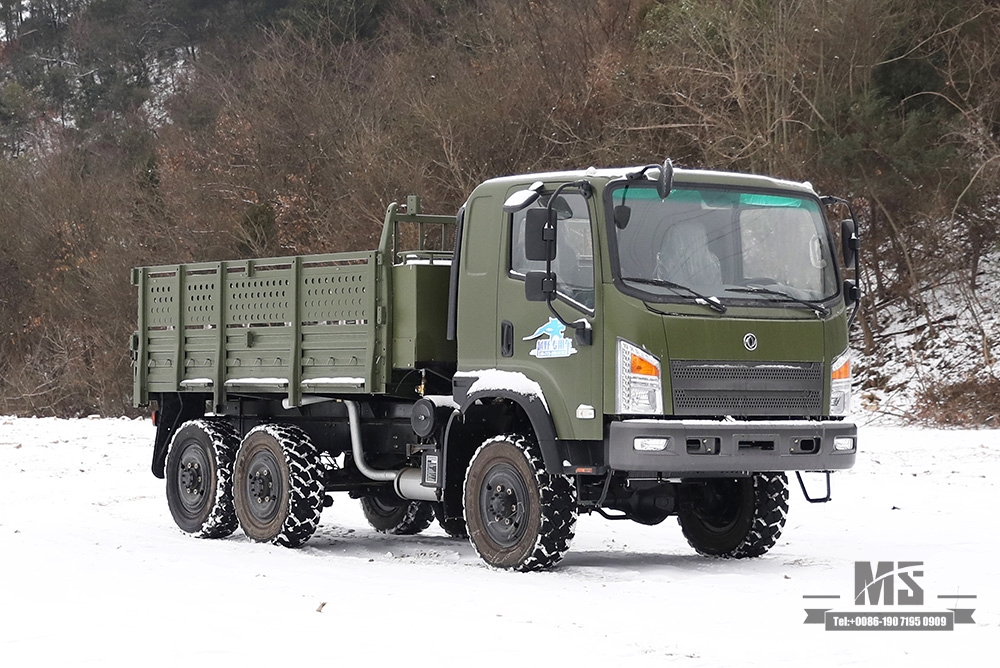

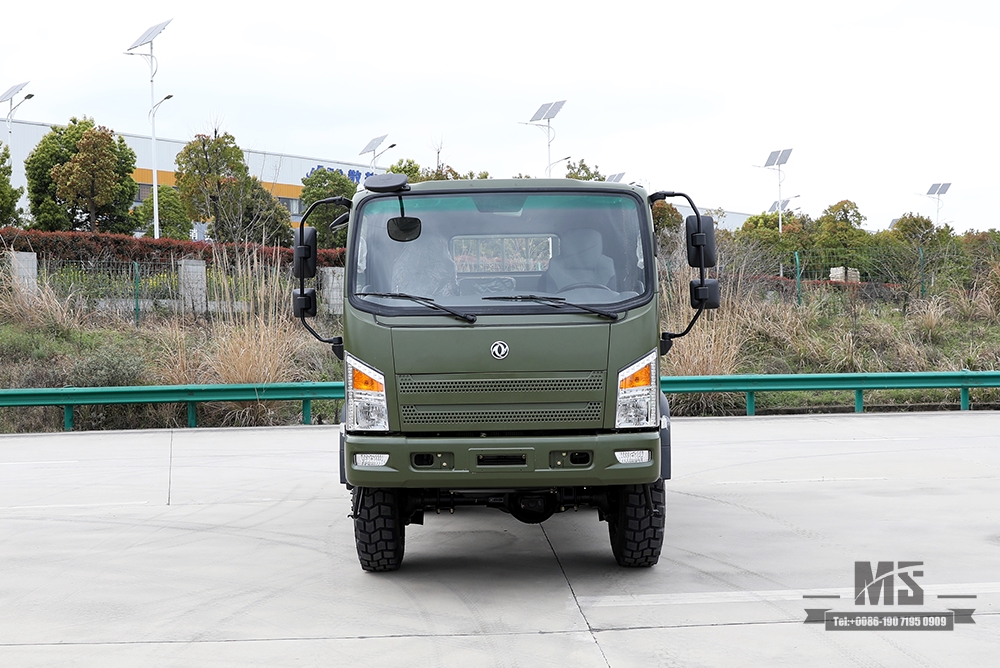

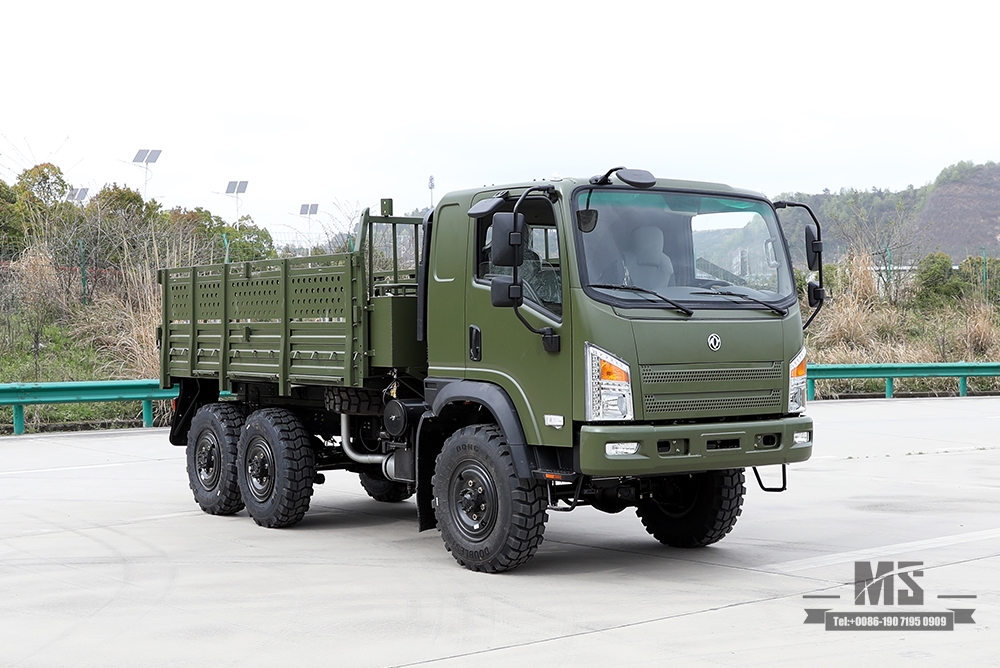

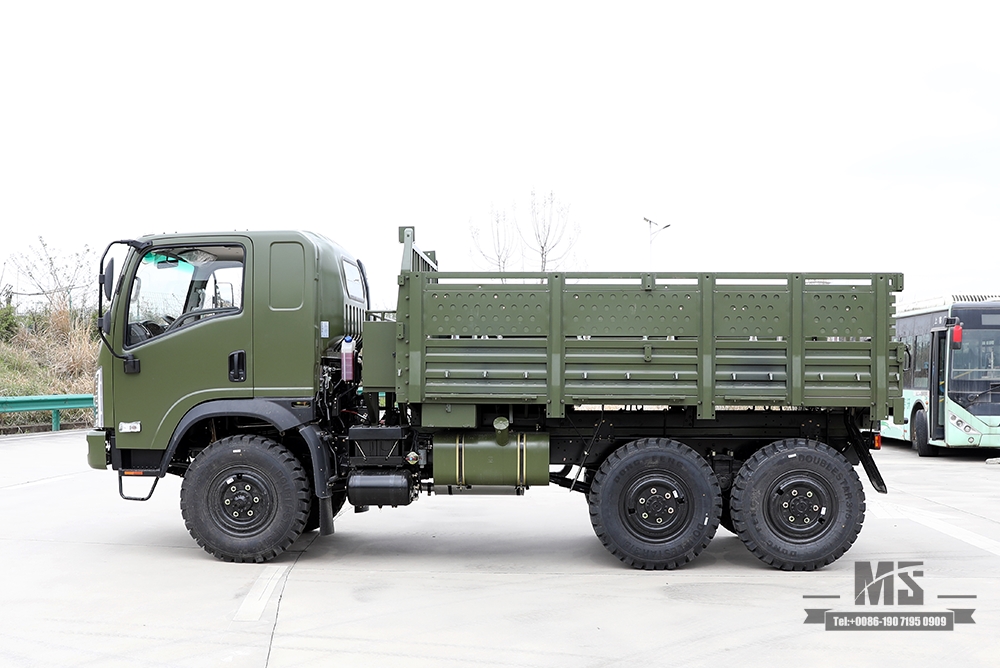

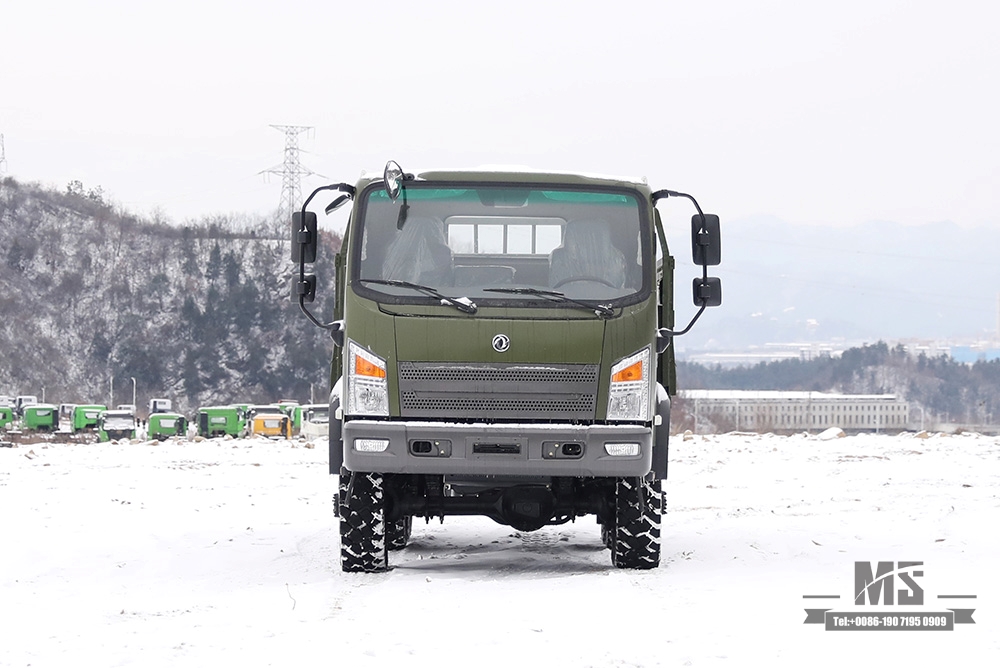

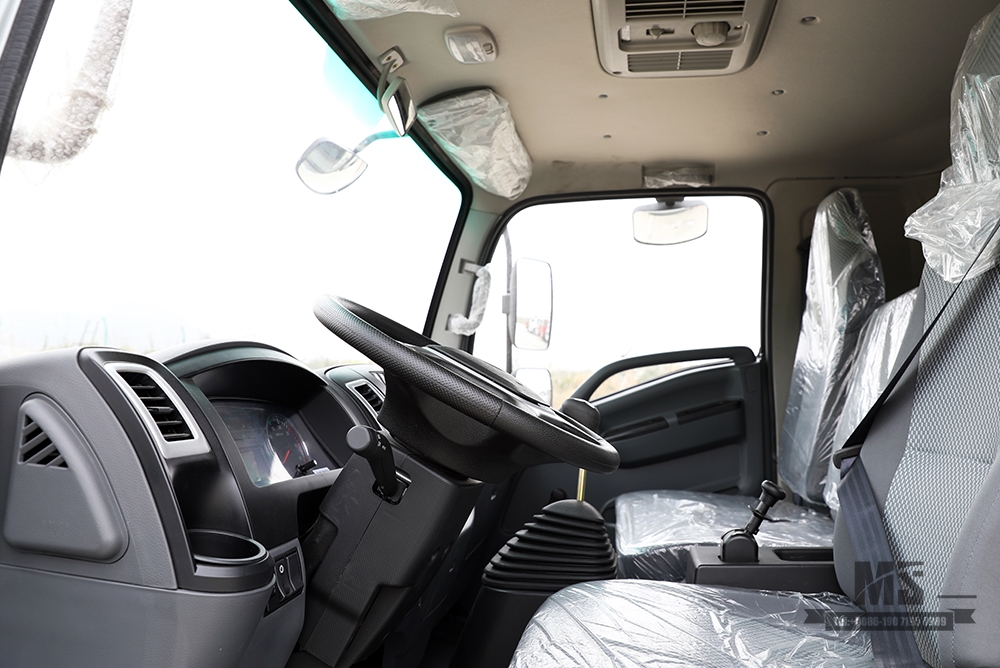

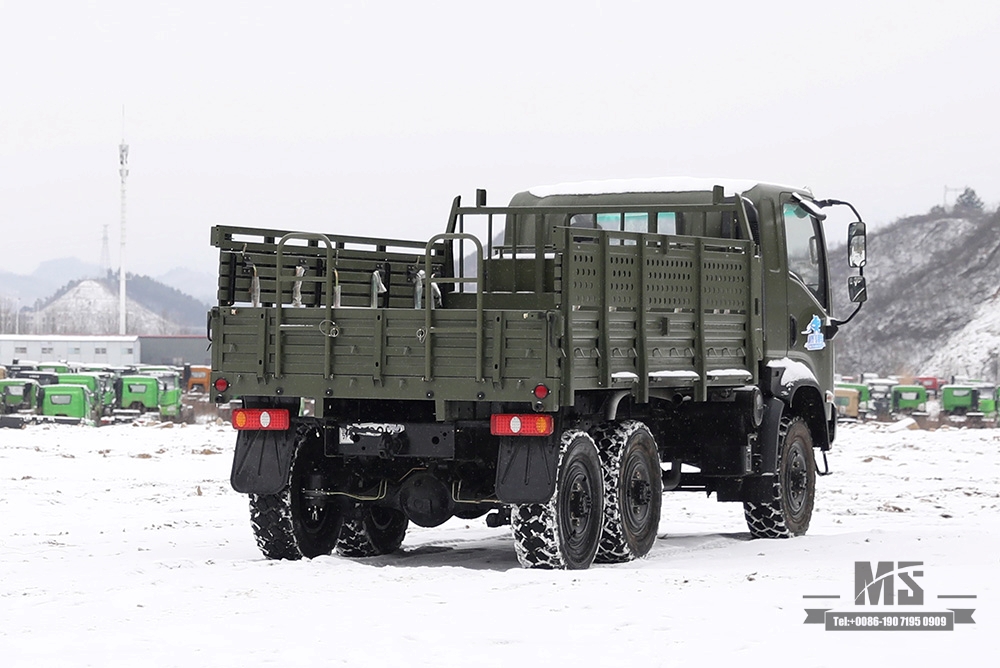

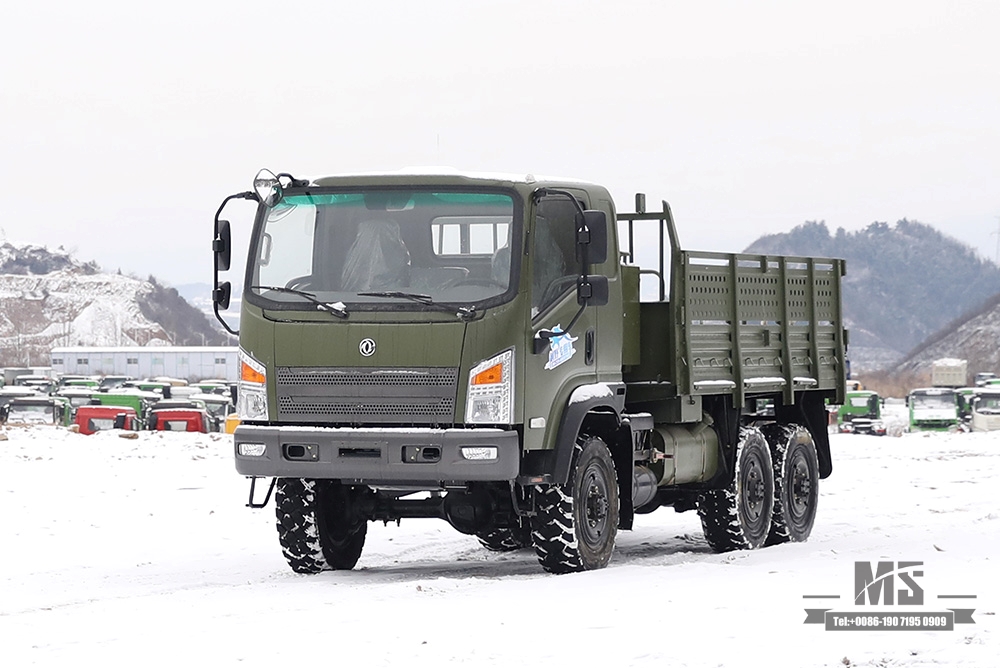

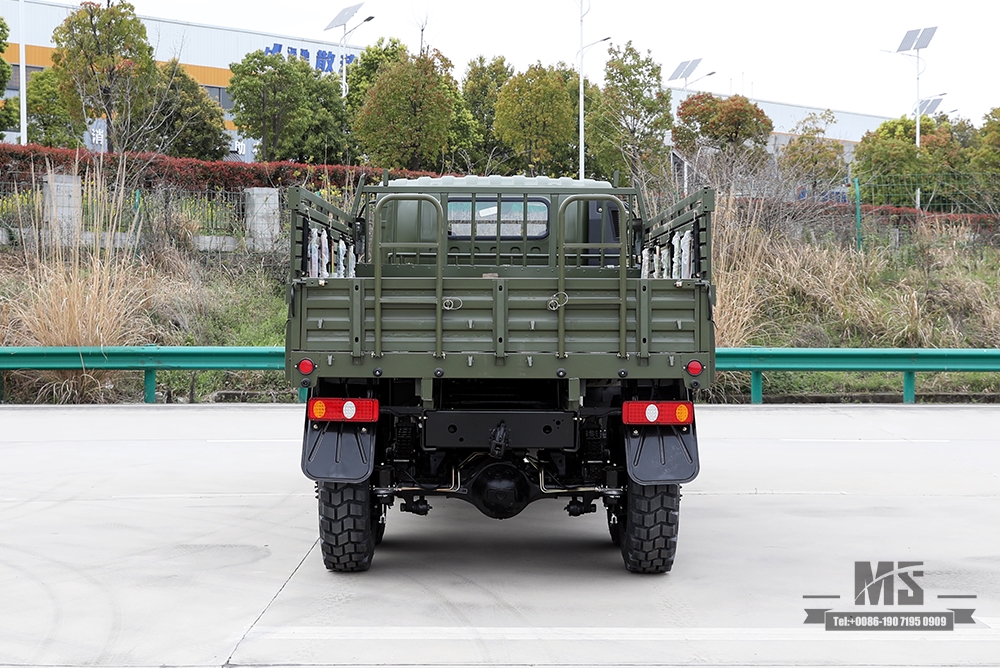

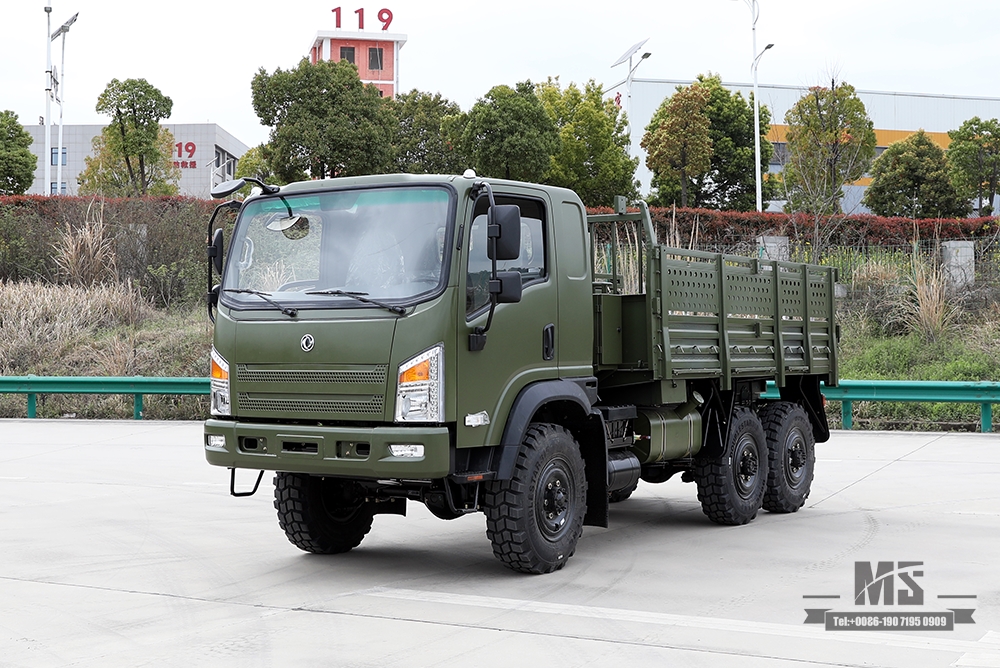

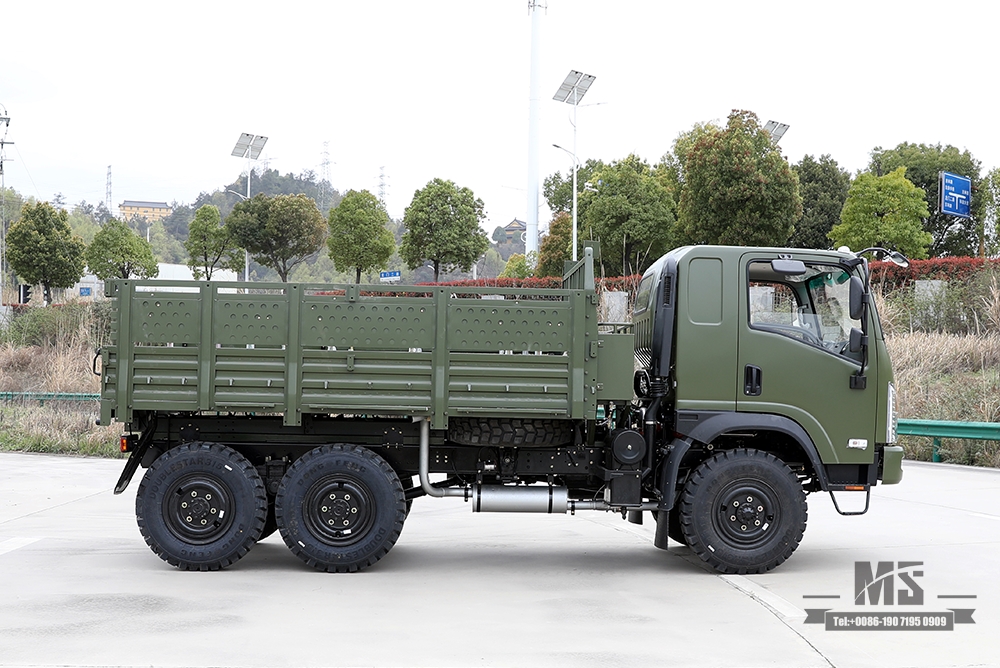

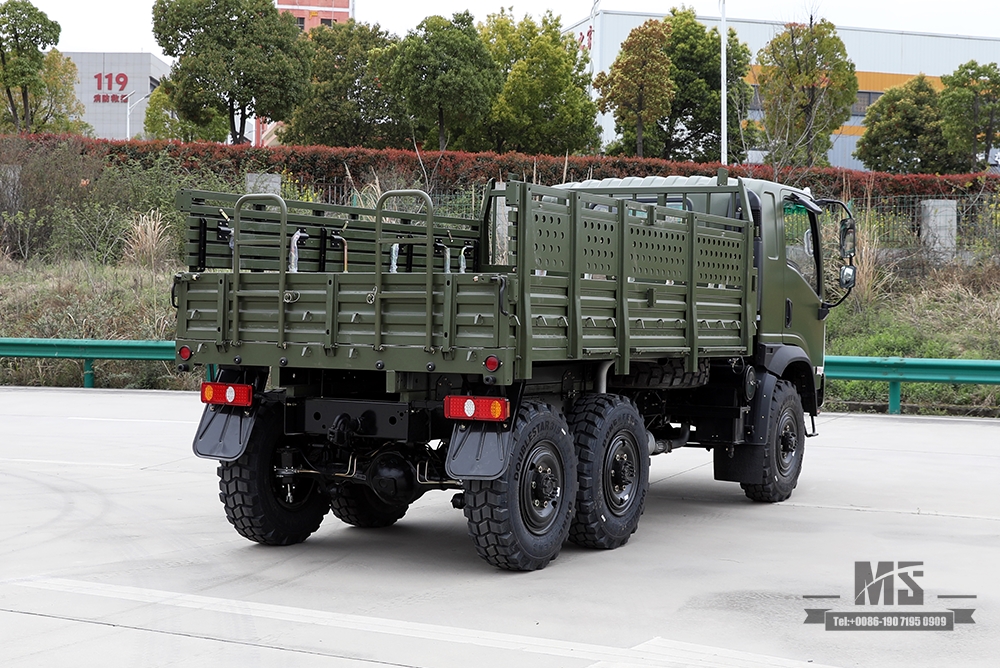

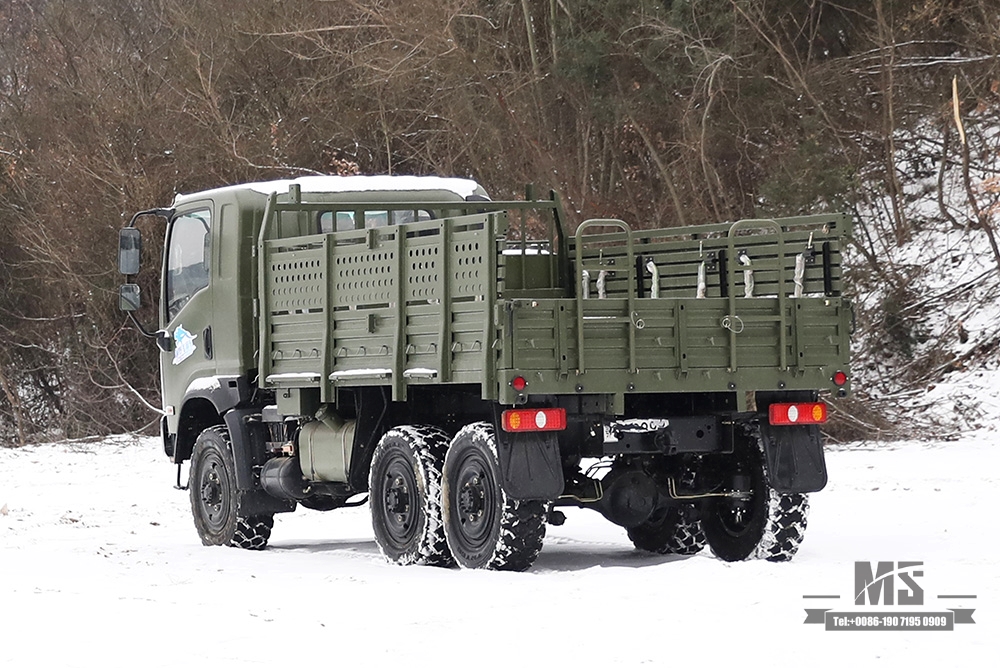

"Bobcat 6WD off-road truck is improved on the basis of Dongfeng classic model EQ2082E6D two and a half tons long head diesel off-road truck. The cab adopts flat head one row and half cab, which is comfortable and luxurious with spacious vision. With the same length, it is more powerful, meanwhile, 300L brake cooling water tank and large capacity tool box are added.
Basic configuration | |
Engine | Cummins B170 33 |
Drive type | 6*6 |
Gearbox | Mechanical Manual Five-speed Gearbox |
Transfer box | With High and Low Gears |
Driver Cab | Dongfeng Flathead One-and-a-half Row Cab |
Vehicle Axle | 2.5T/2.5T/2.5T |

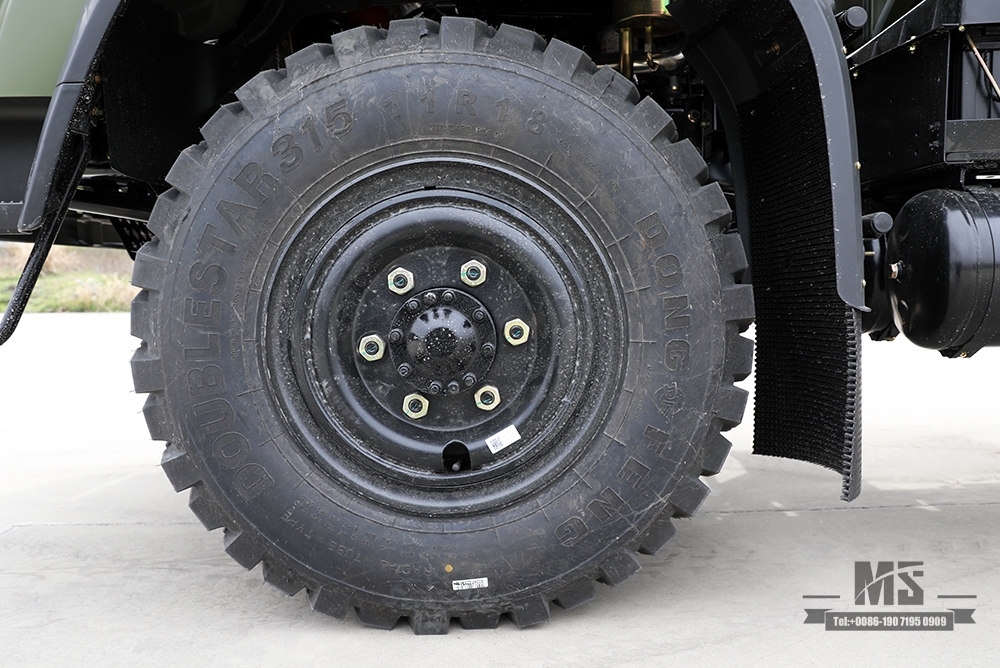

Tire | 305/80R18 |

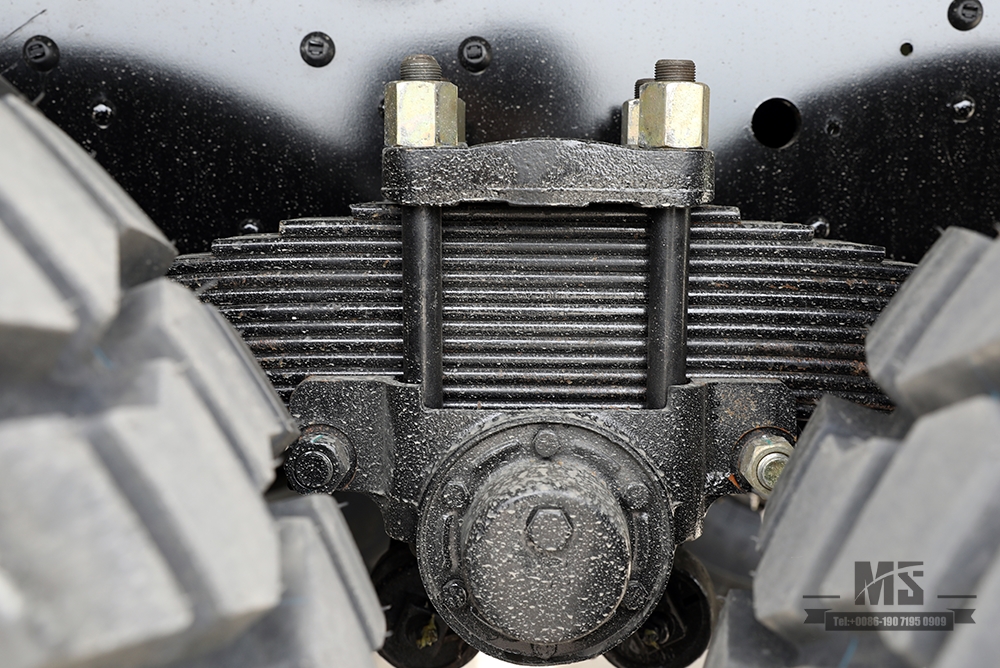

Vehicle Suspension | Steel Plate Spring 9/13 |
Electric Circuit | 24V Electric Circuit System |
Accessories | Brake cooling tanks, air conditioners, toolboxes, buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |

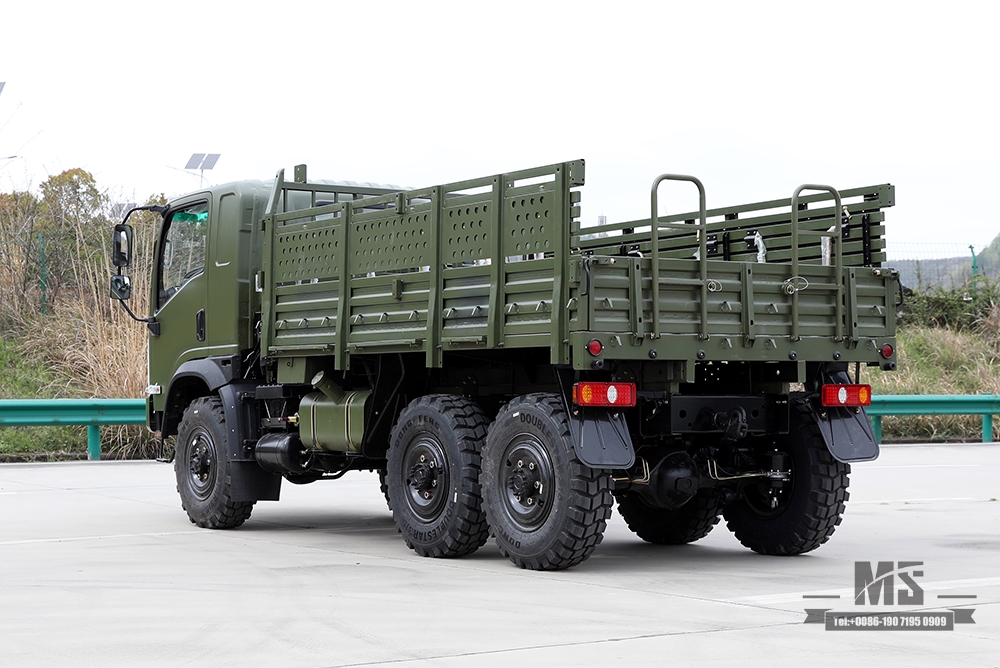

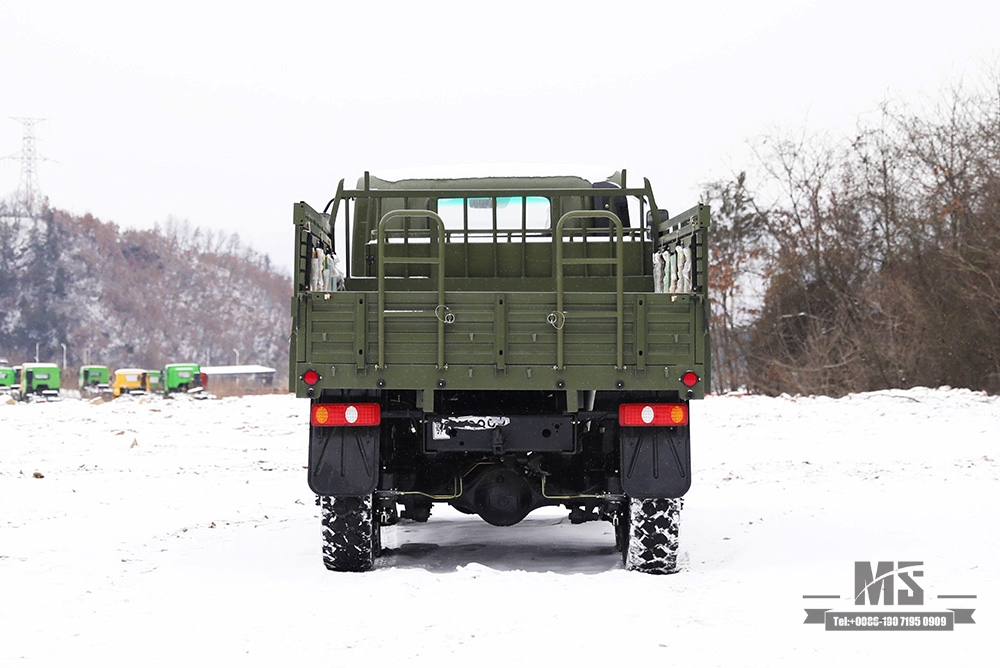

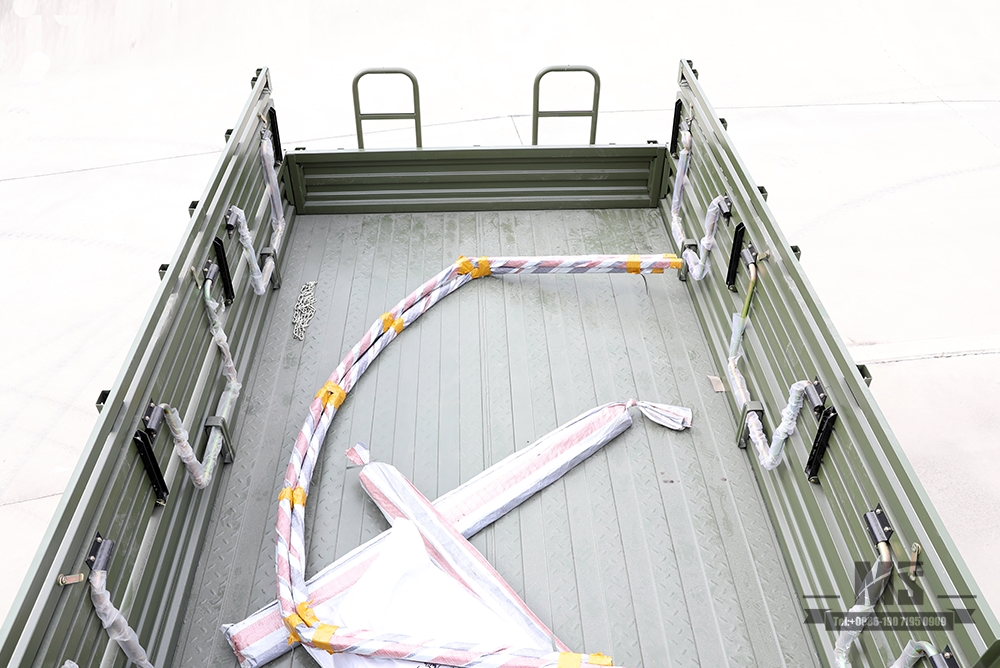

The cargo box bottom plate is made of pure iron with non-slip pattern. Folding seats are mounted on both side panels and there are 2 folding ladders at the rear.
Detailed parameter | |
Overall Vehicle Dimension | 6720×2480×2680mm |
Cargo Box Dimension | 3600*2300*800mm |
Wheelbase | 3130+1065mm |
Wheel Track | 1774mm |
GVW | 7800kg |
Curb Weight | 5230kg |
Loading Weight | 2500kg (off Road) |
Number of Passenfers | 3 |
Engine Displacement | 5900ml |
Maximum Power | 125kw |
Maximum speed | 87km/h |
Torque | 560N.m/1300rpm |
Approach Angle/departure Angle | 26°/41° |
Oil Tank volume | 160L |
Minimum ground clearance | 285mm |
Wading depth | 1100mm |
Maximum Climbing Grade | 60% |
Slope Gradient | 40% |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
