Basic configuration | |
Engine | Cummins B170 33 |
| Drive type | 6*6 |
Gearbox | Mechanical Manual Five-speed Gearbox |
Transfer box | Time-sharing Six-wheel drive With High and Low Gears |
| Driver Cab | Dongfeng Flathead One-and-a-half Row Cab |

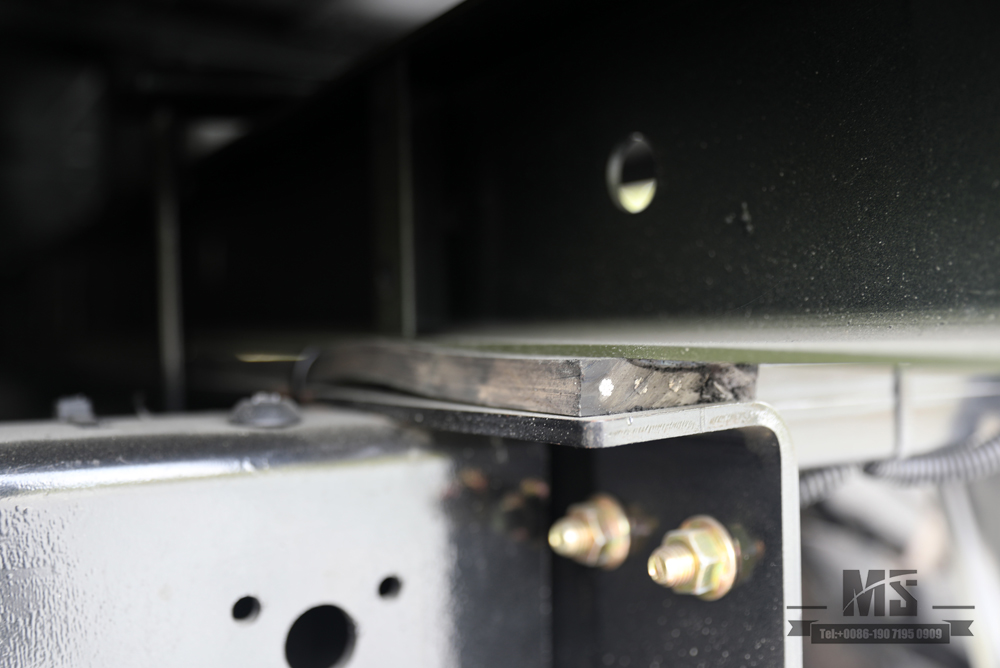

| Vehicle Frame | 860*232mm |
Vehicle Axle | 2.6T/2.6T/2.6T |

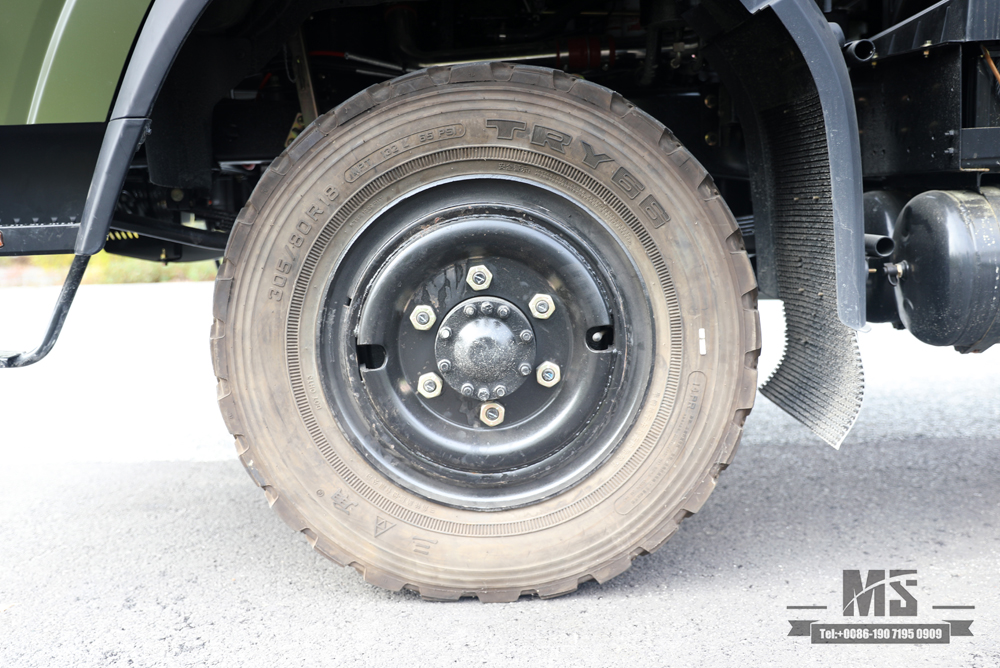

Tire | 305/80R18 |
| Vehicle Suspension | Steel Plate Spring 10/13 |
| Electric Circuit | 24V Electric Circuit System |
| Others | Tarpaulin poles, Accompanying Tools, 200LBrake Cooling Tank, Tool box |
| Optional | Air Conditioning |
Detailed parameter | |
Overall Vehicle Dimension | 6720*2480*3310mm |
| Cab Dimension | 2035*2250*2200mm |

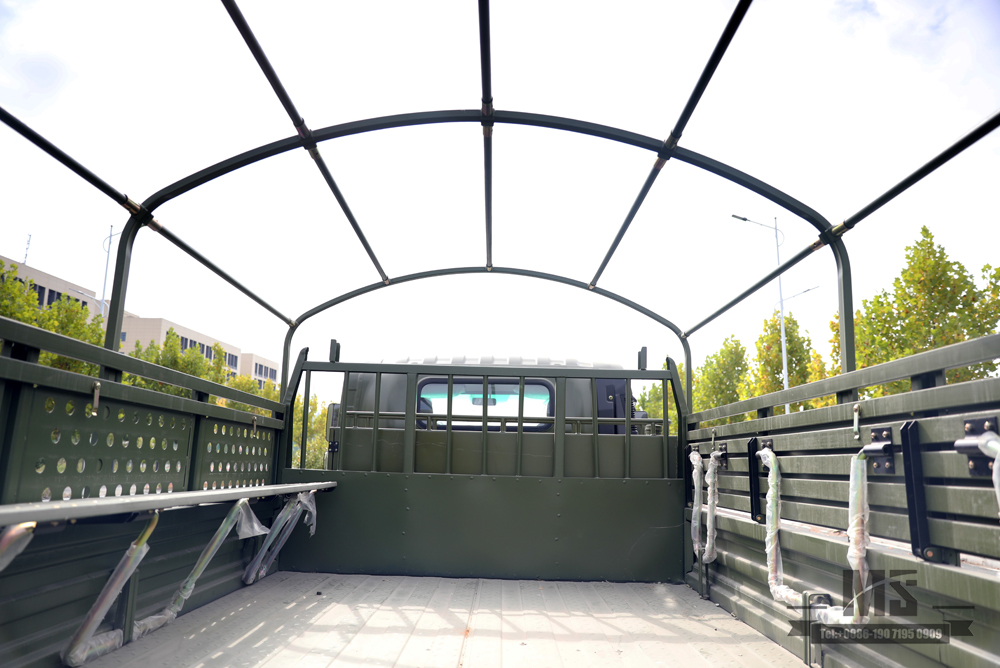

| Cargo Box Dimension | 3600*2300*800mm |
| Wheelbase | 3130+1065mm |
Wheel Track | 1774mm |
GVW | 7800kg |
| Curb Weight | 5250kg |
| Number of Passenfers | 3 |
| Engine Displacement | 5900ml |
| Maximum Power | 125kw |
| Maximum speed | 87km/h |
| Torque | 560N.m/1300rpm |
| Approach Angle/departure Angle | 26°/43° |
Oil Tank volume | 160L |
Minimum ground clearance | 285mm |
| Wading depth | 1100mm |
Note: This configuration is for reference only, please refer to the actual car.













For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
