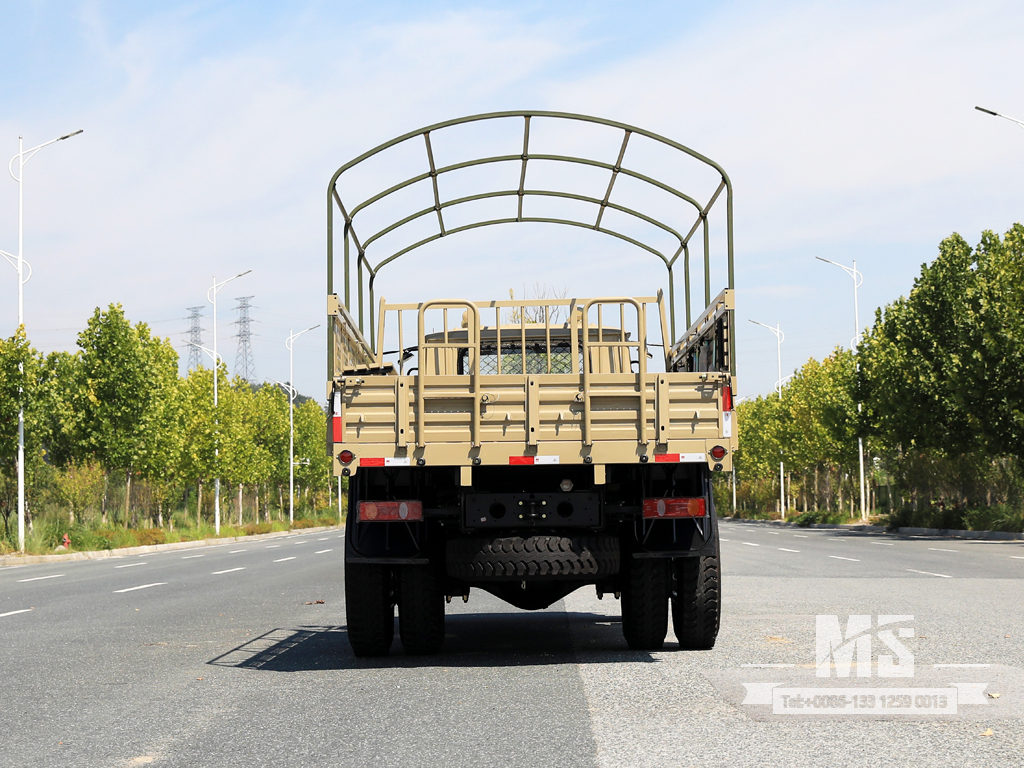

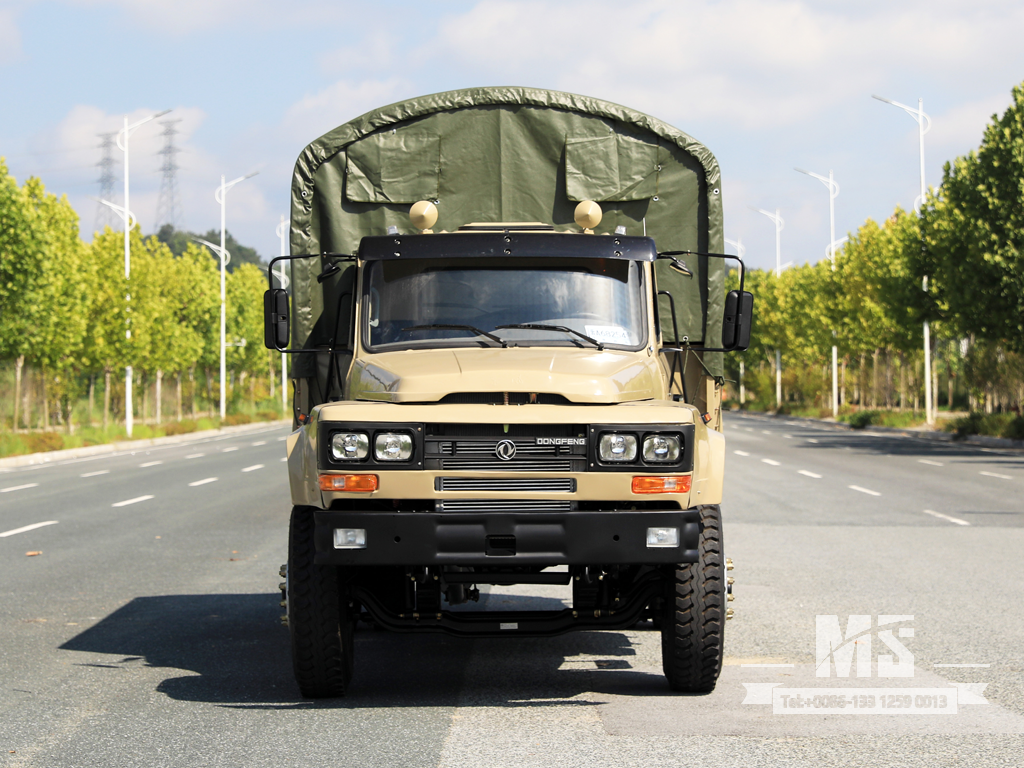

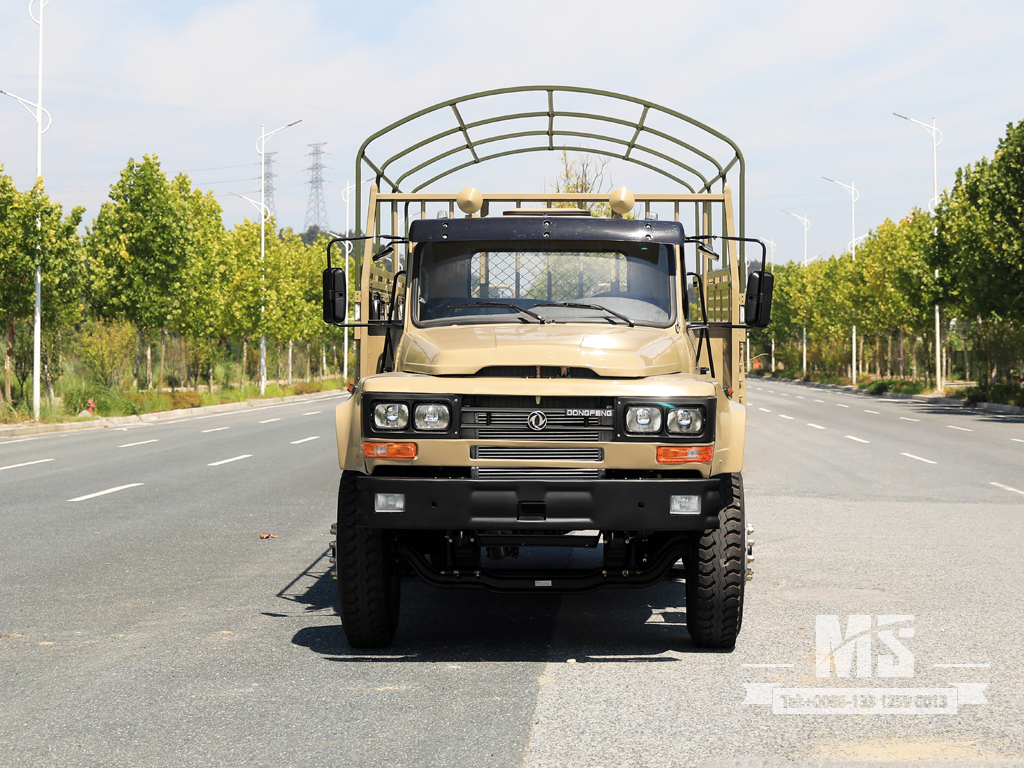

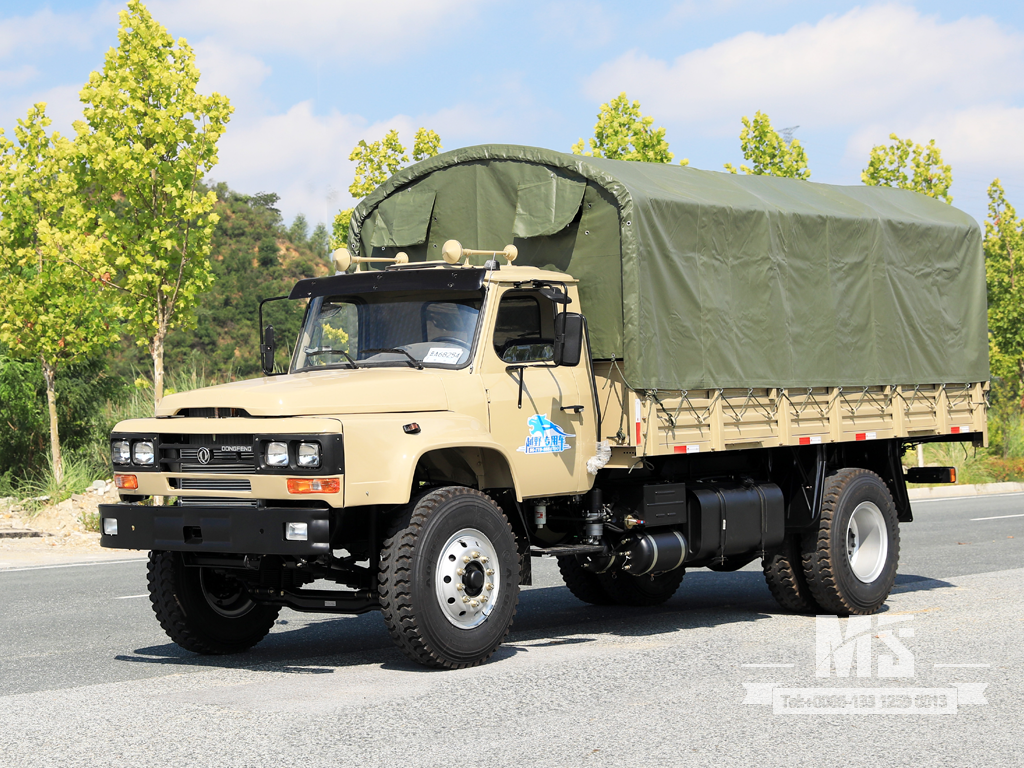

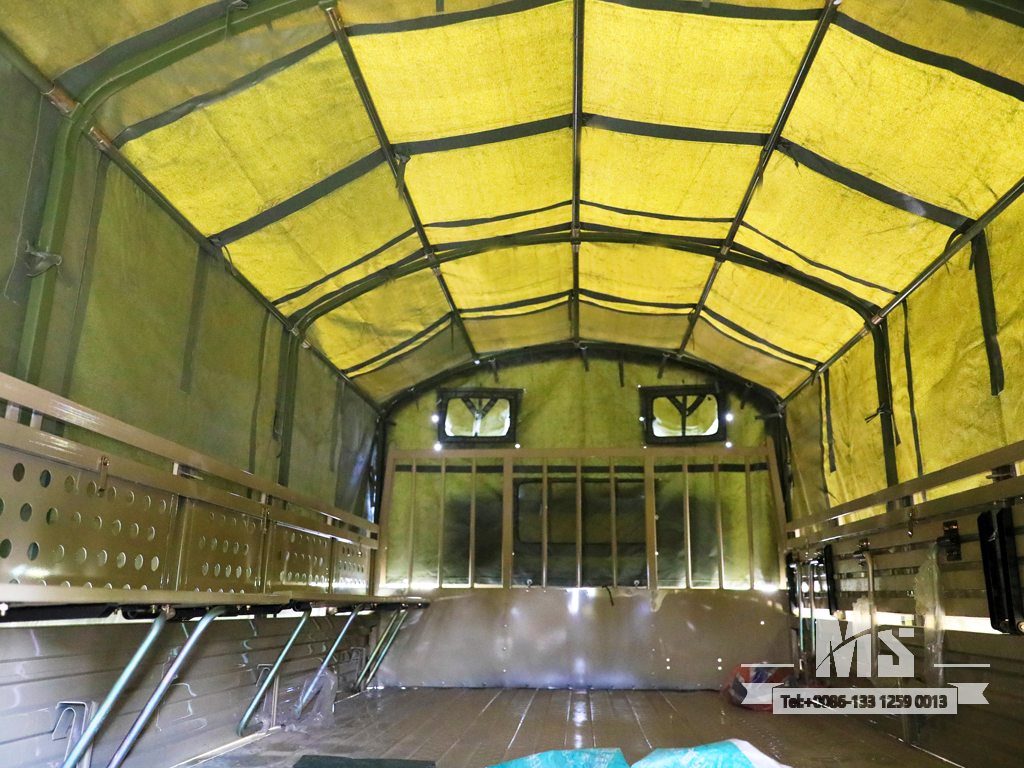

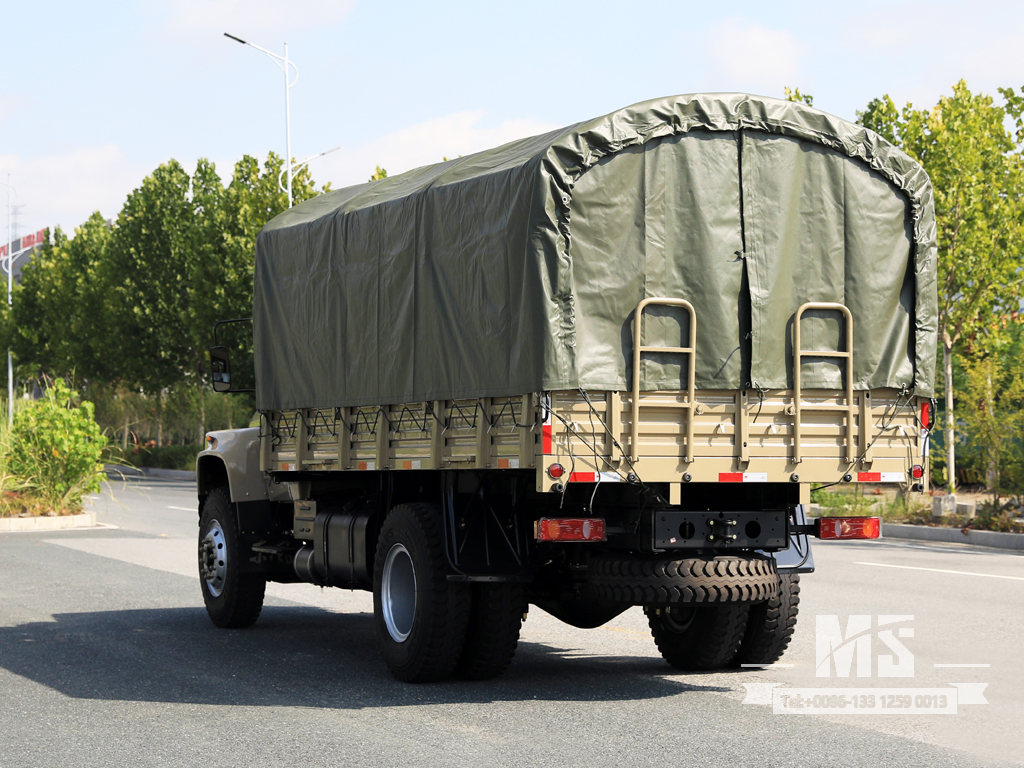

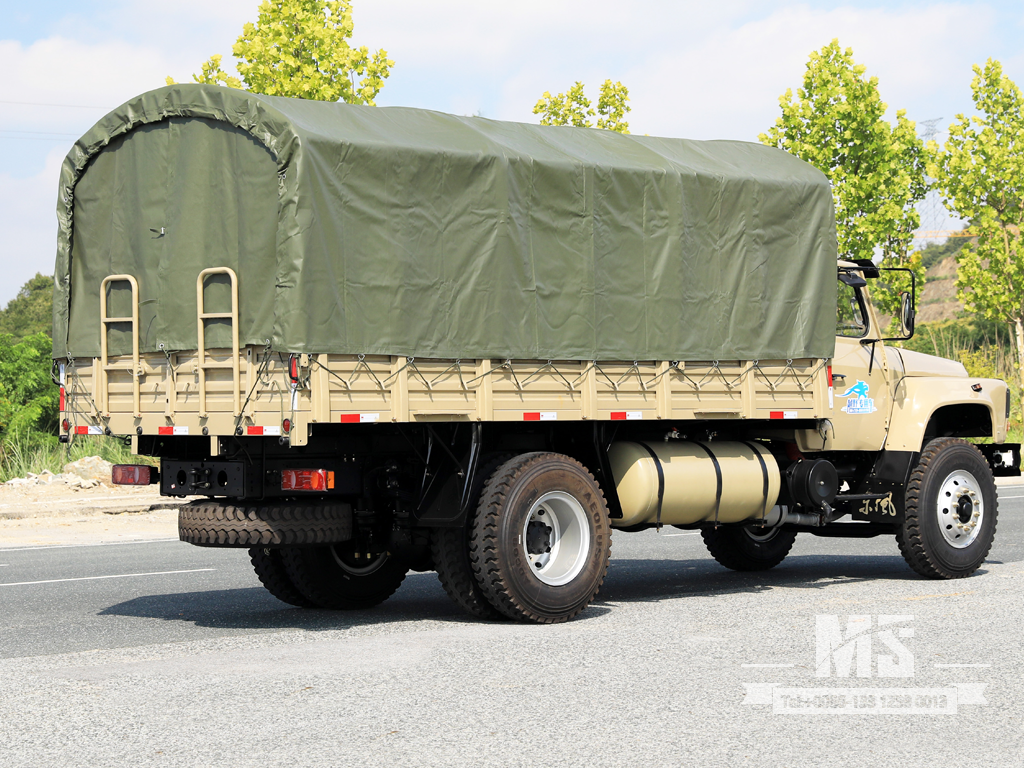

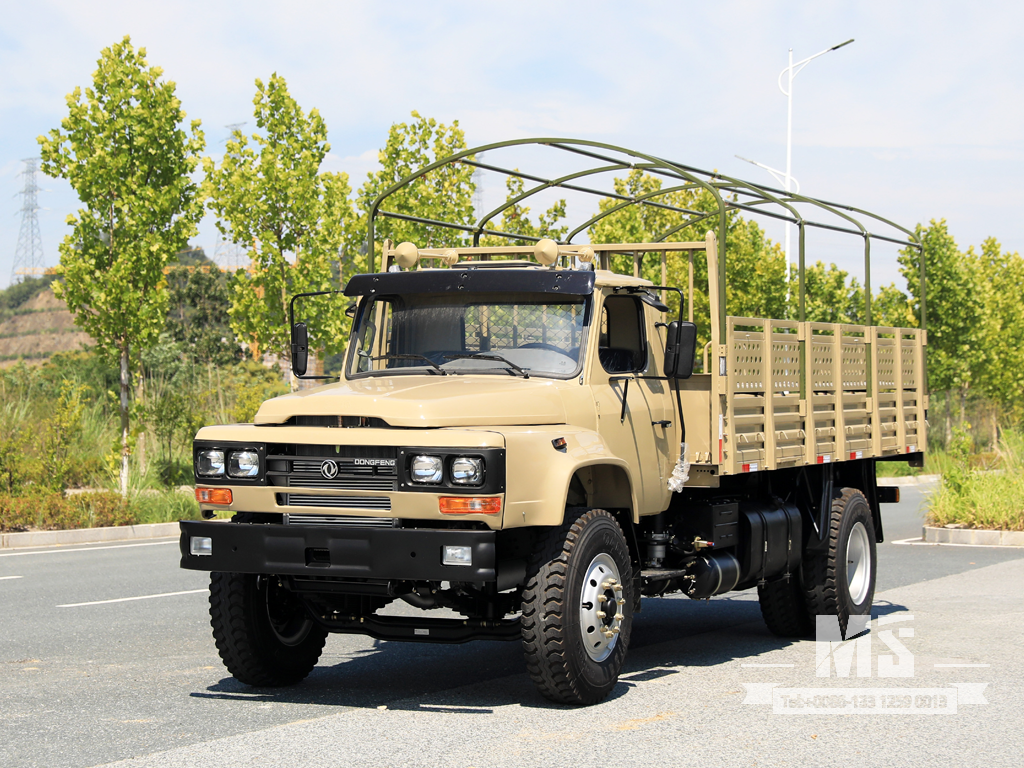

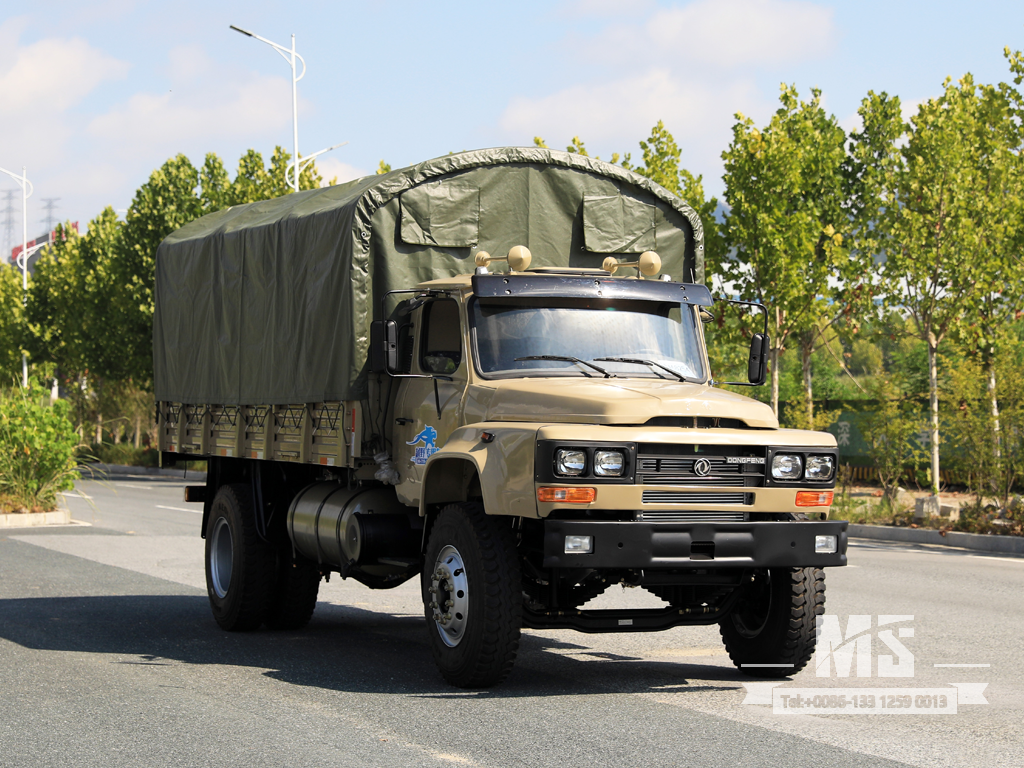

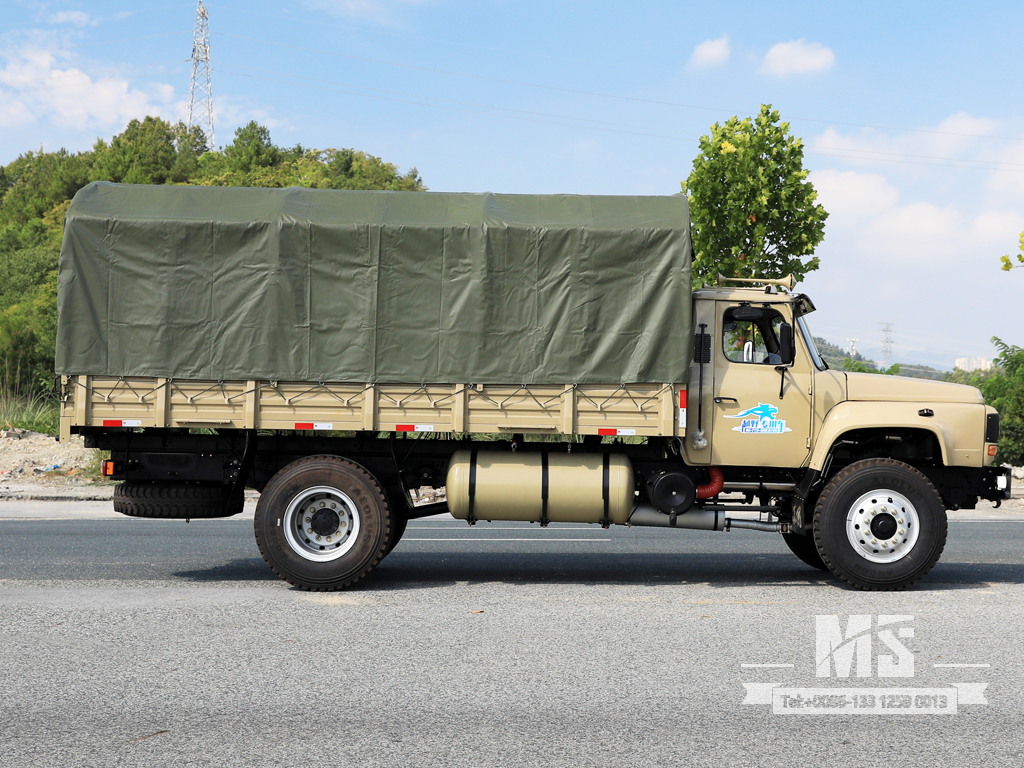

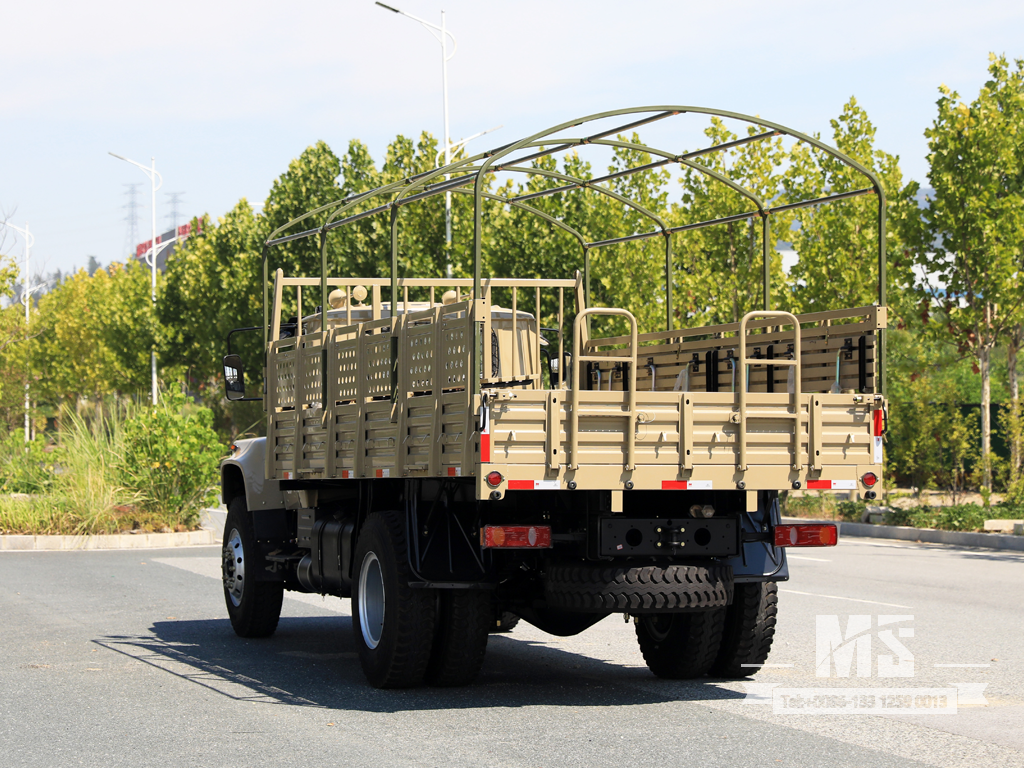

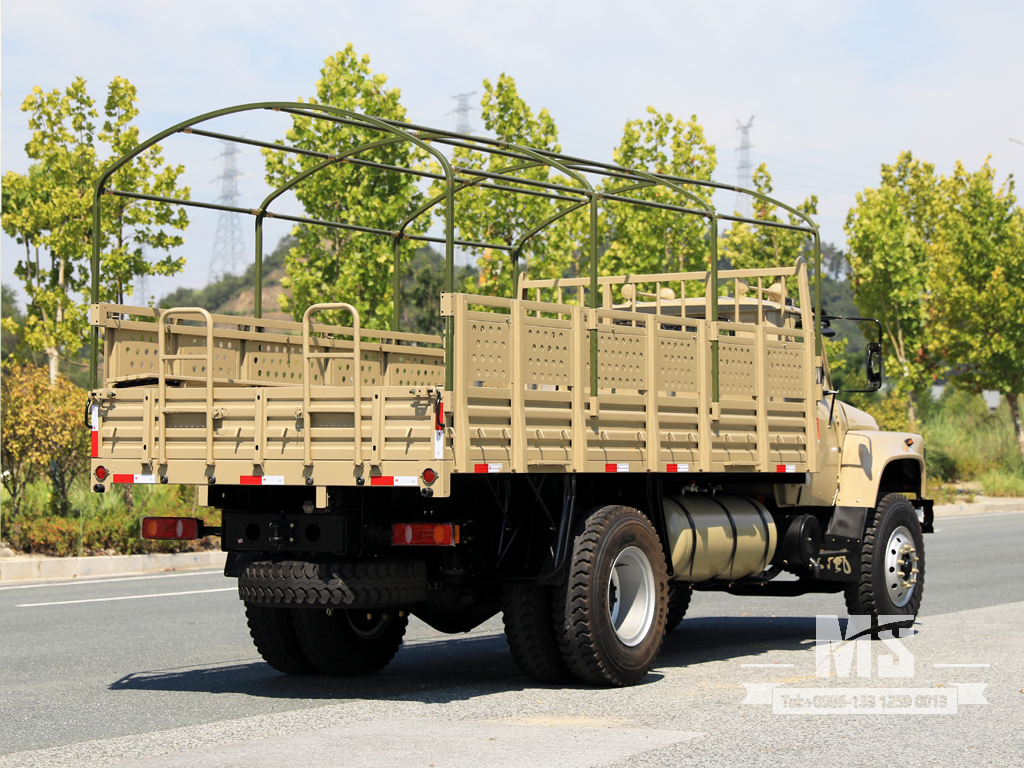

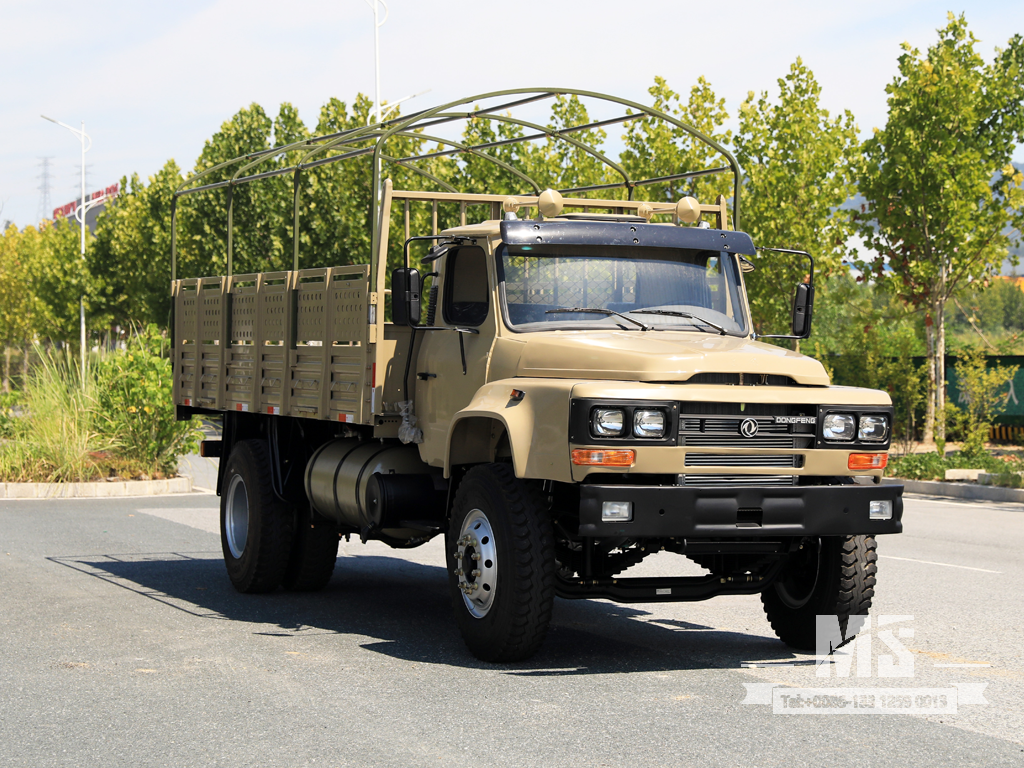

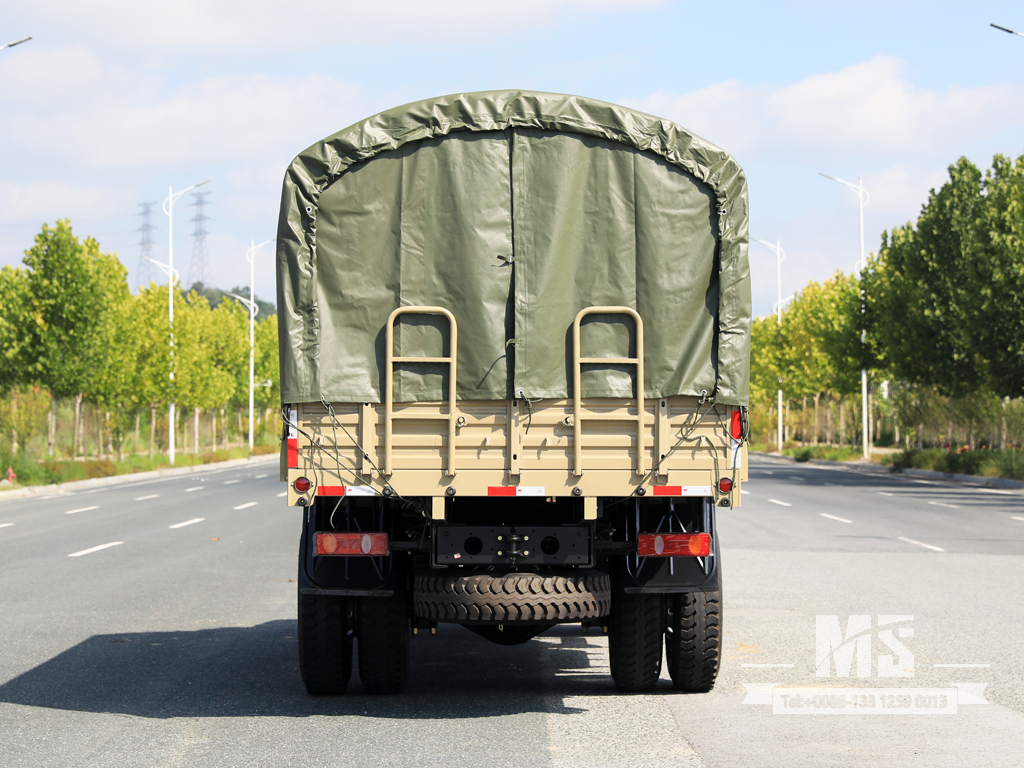

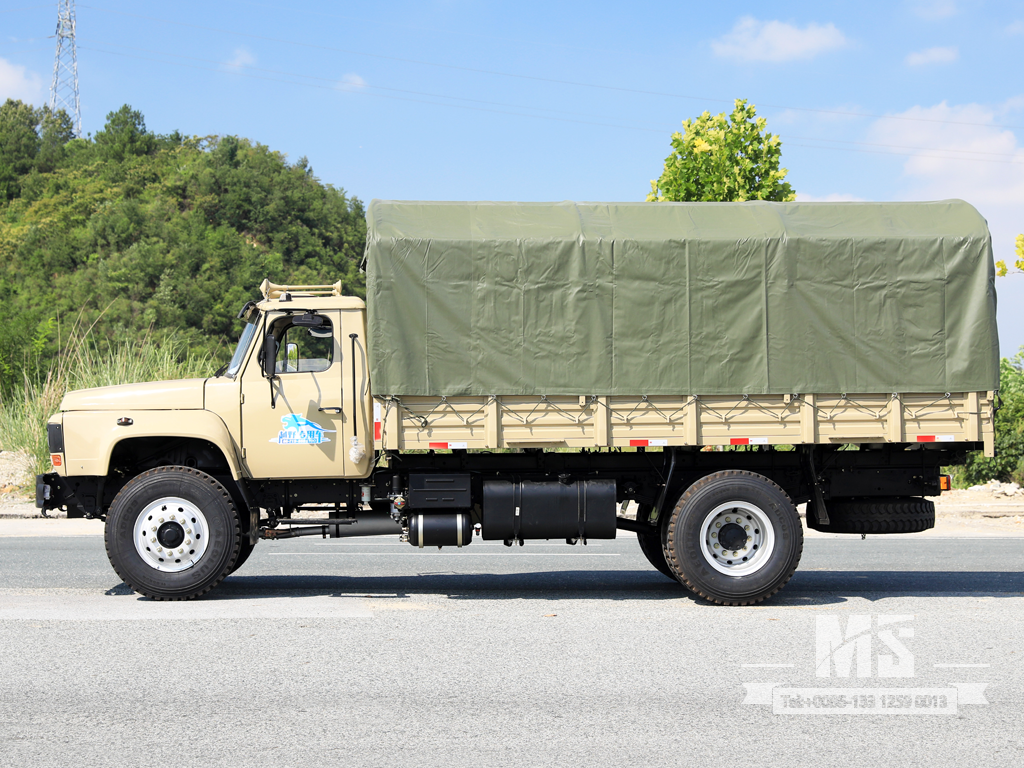

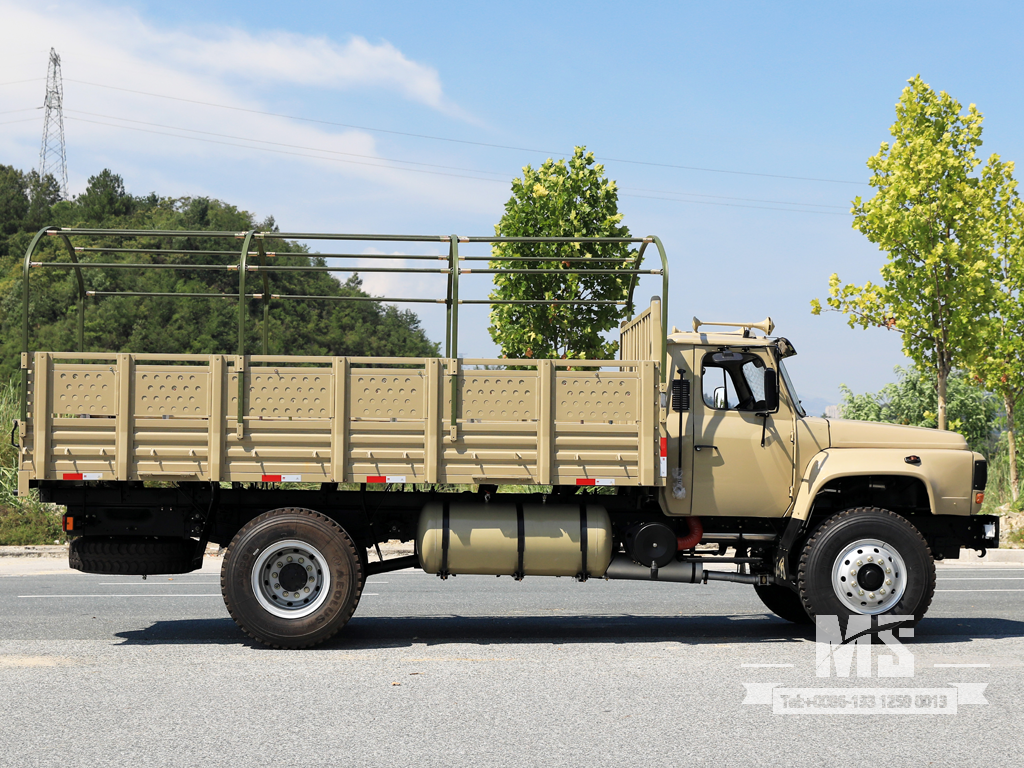

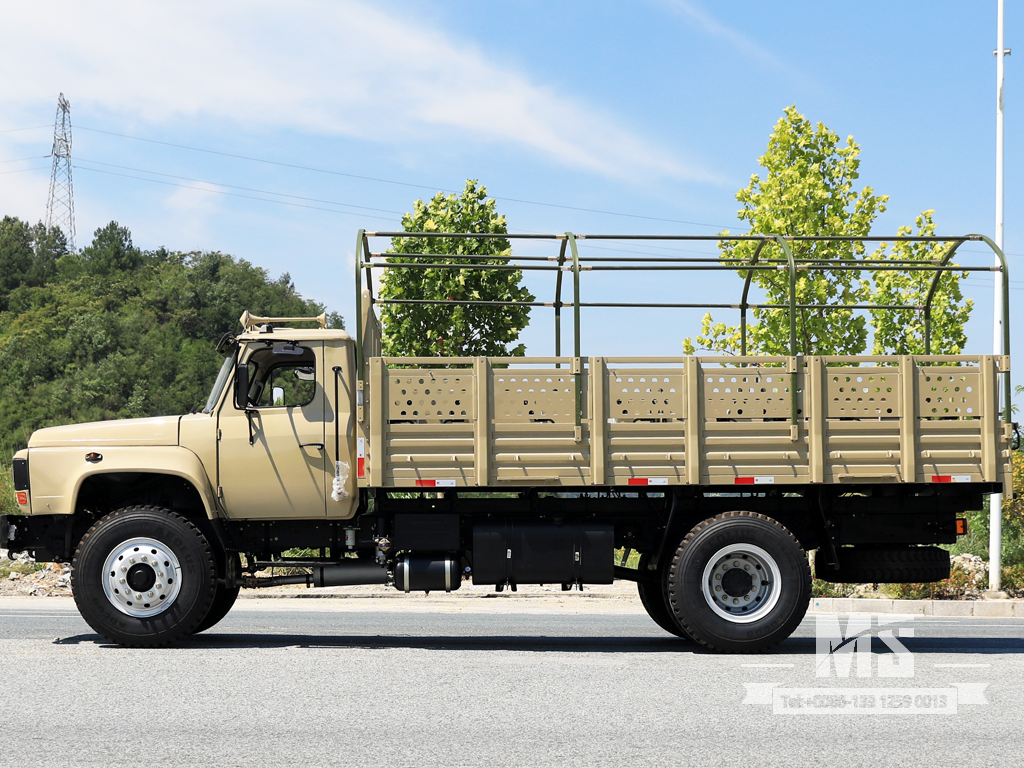

Dongfeng Conventional 4×2 Cargo Truck, rated at 10-ton payload, delivers powerful and reliable performance. Its classic long-nose cab and off-road chassis with deep-tread tires ensure excellent performance on rough terrain. The cargo bed can be fitted with a military-style tarpaulin, supporting both cargo and personnel transport, ideal for construction, mining and remote-area logistics.
Basic configuration |
Drive type | 4*2 |
Engine | B190 33 |
Transmission | Manual 8-speed |
Frame | 860X250mm thickness (6+4) |

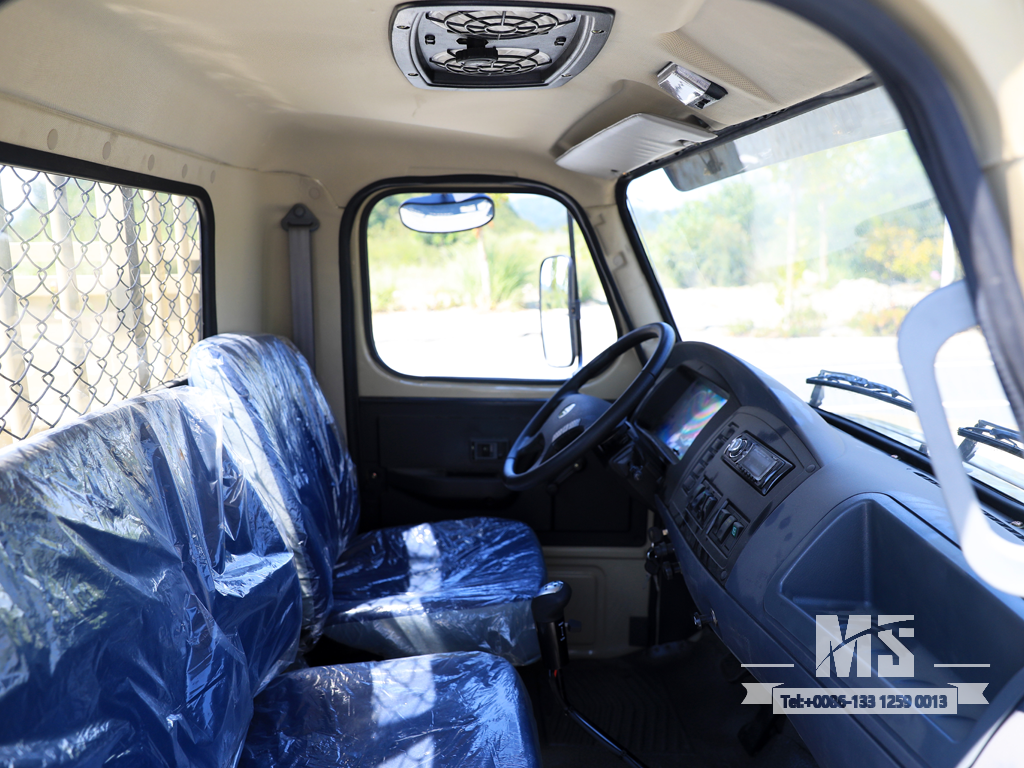

Driver Cab | Dongfeng pointed Single-row |
Vehicle Axle |
Dont Alxe 5T/Rear Alxe 10T
|

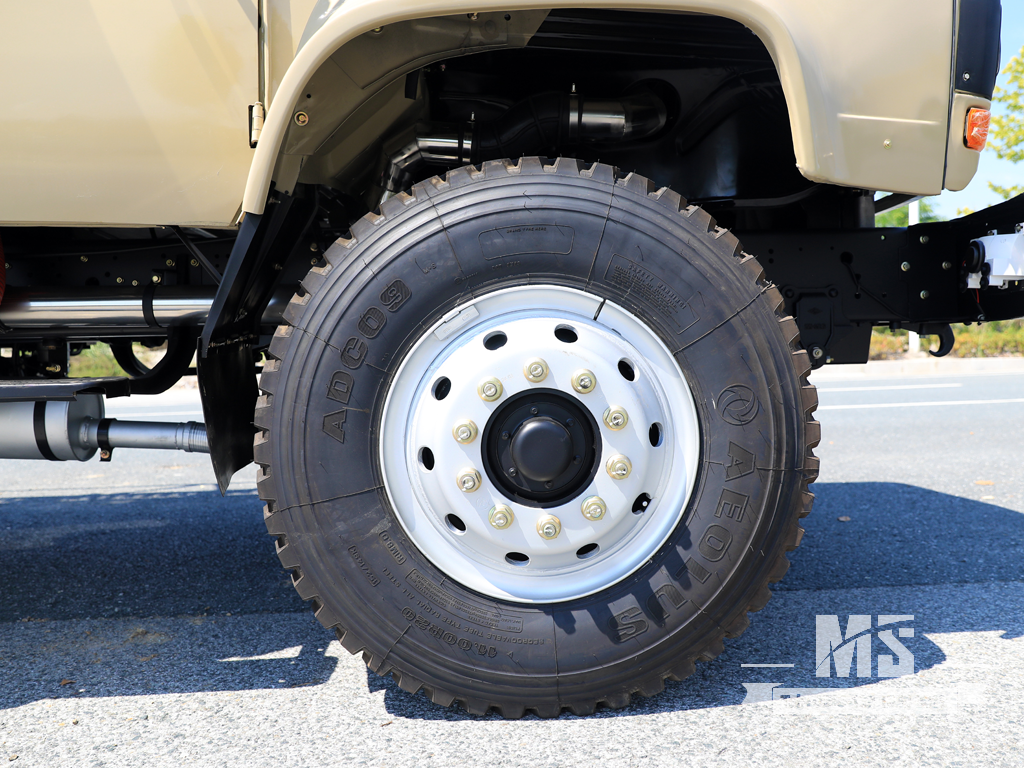

Tire | 11.00R20（6+1 Pieces） |

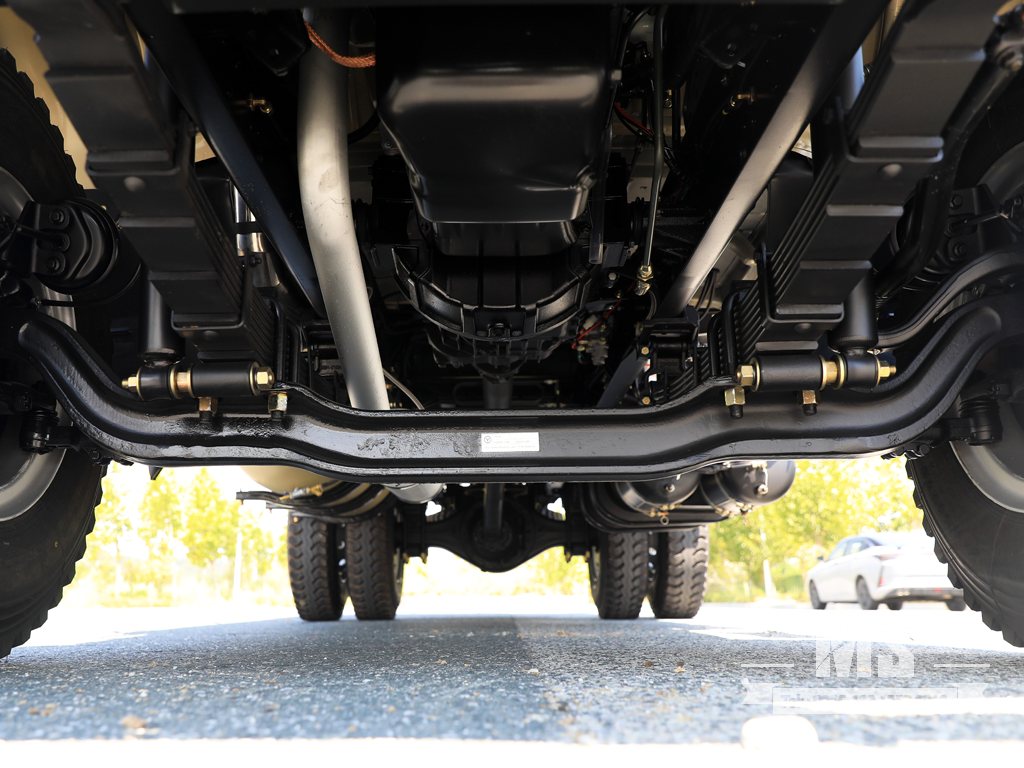

Leaf Spring | 9/8+10 |
Detailed parameter |
Overall Dimension | 7850×2520×2760mm |

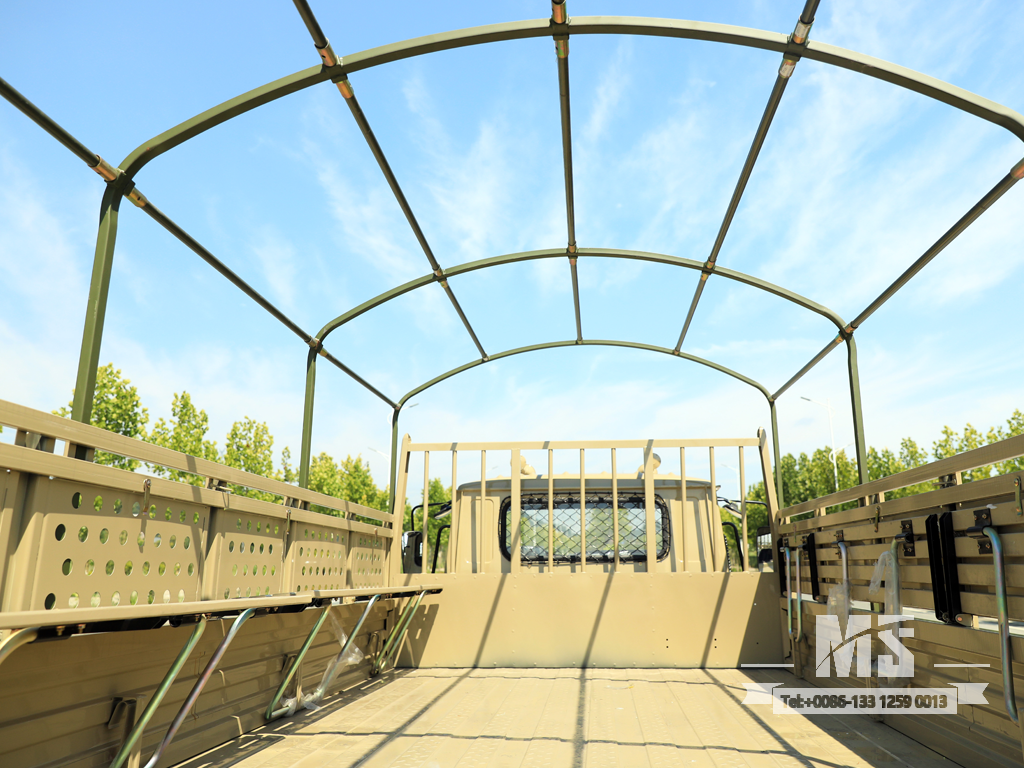

Cargobox Dimensions | 4800*2300*900mm |
Wheelbase | 4500mm |
Wheel track | 1940/1872mm |
GVW | 1500kg |
Curb Weight | 5920kg |
Loading Weight | 10000kg |
Maximum Power | 125kw |
Engine Displacement | 5900mL |
Obstracal height | 390mm |
Number of members | 2 |
Maximum speed | 90km/h |
Front/Rear overhang | 1180mm/2170mm |
Approach Angle/departure Angle | 30°/14° |

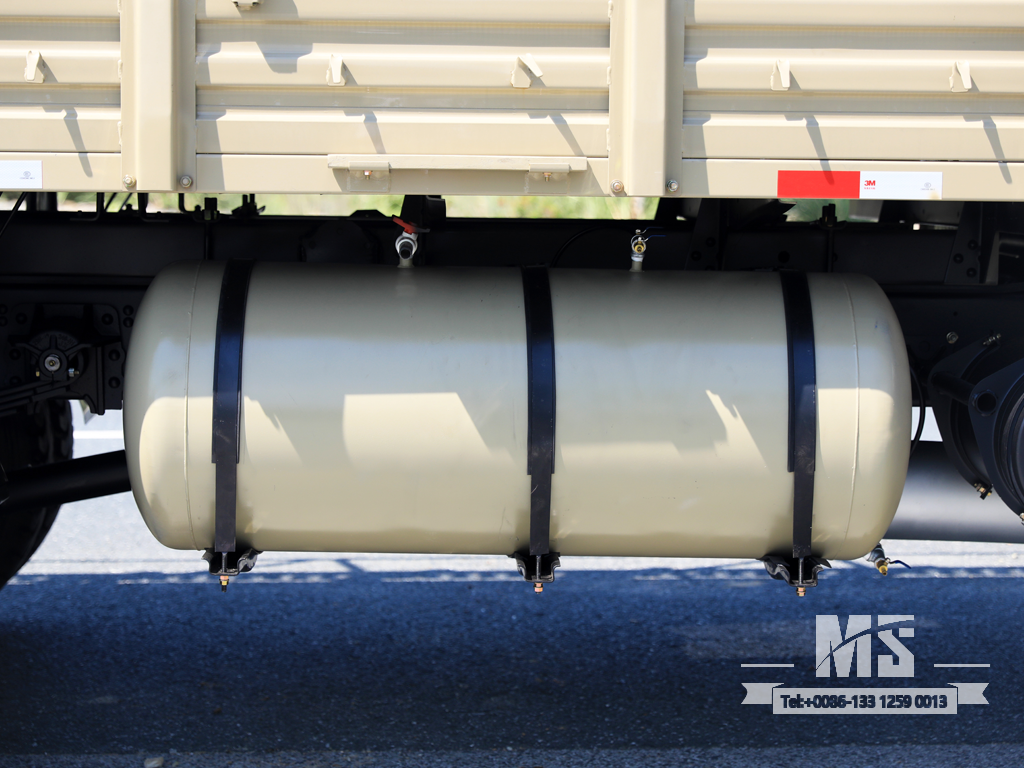

Tank volume | 300L |
Minimum ground clearance | 285mm |
Fording depth | 570mm |
Note: This configuration is for reference only, please refer to the actual car.
