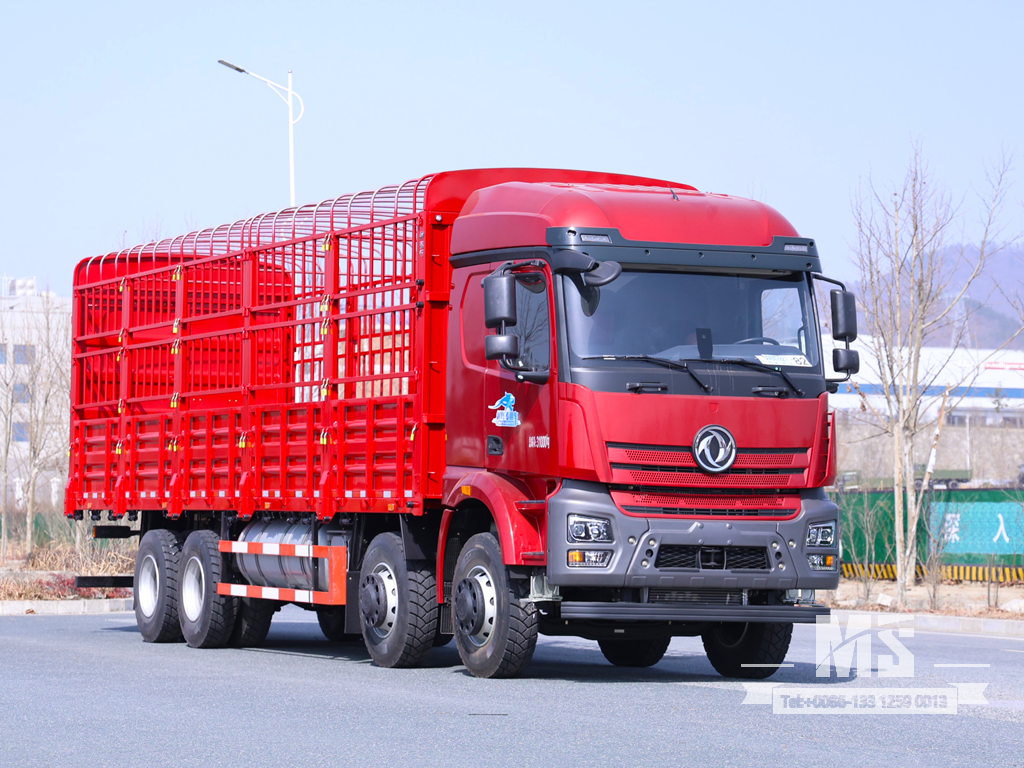

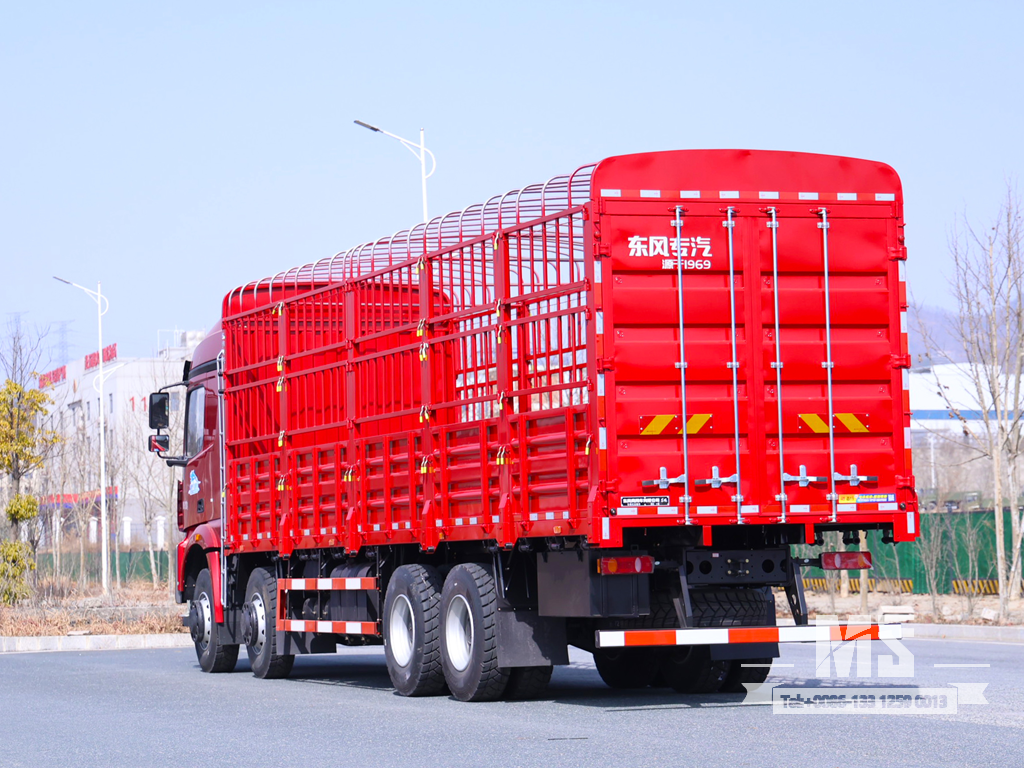

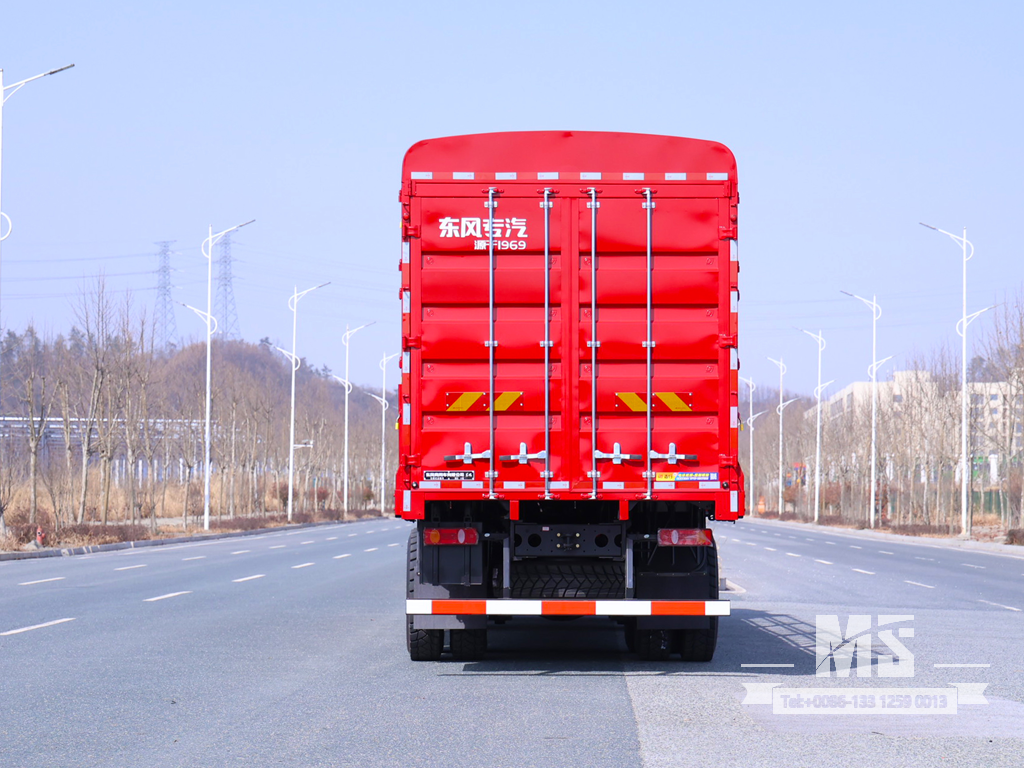

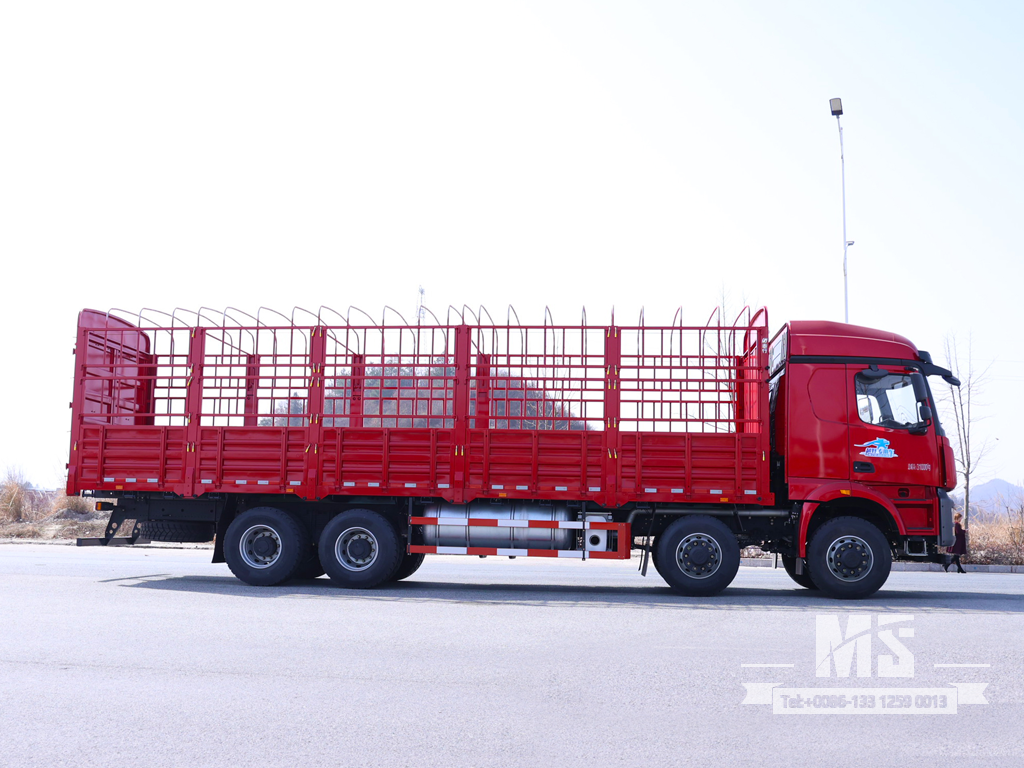

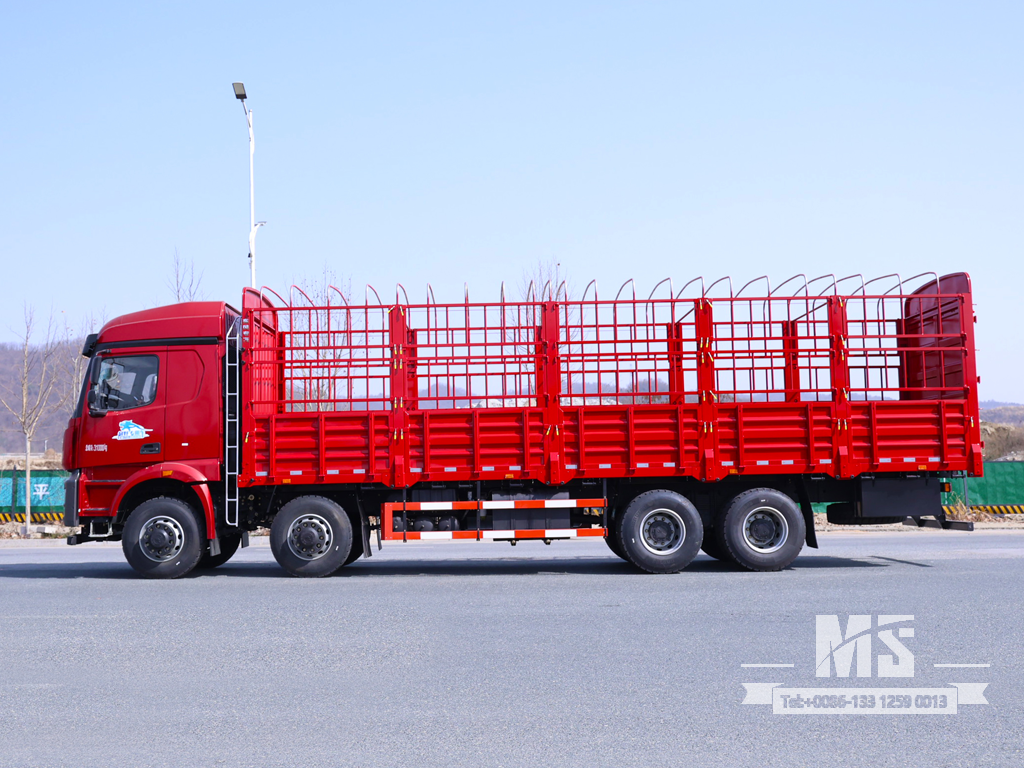

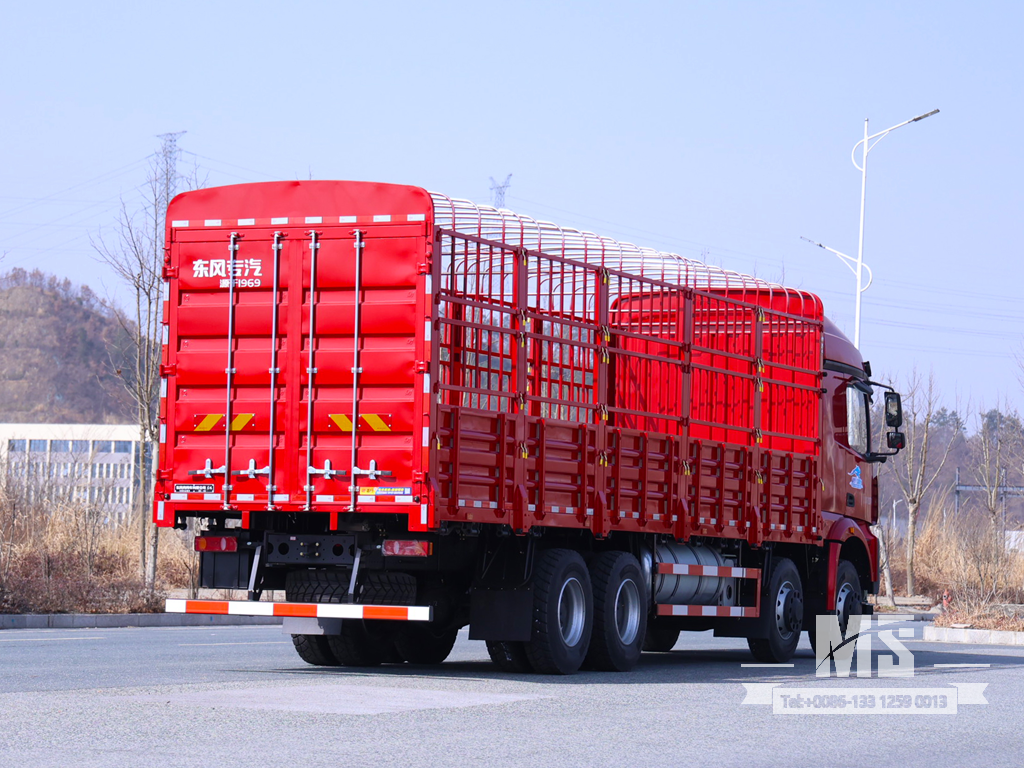

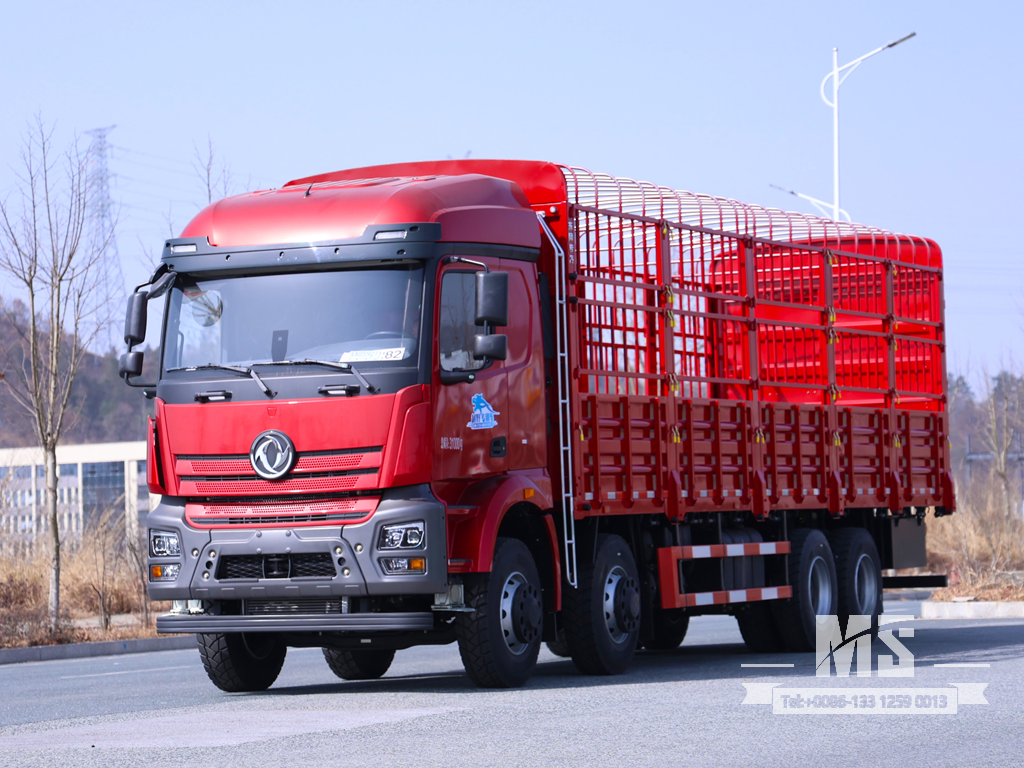

8X4 Flat-nose Extended Cab Stake Body Cargo Truck
Basic configuration |
Drive type | 8*4 |
Engine | WP13.500E201 |
Transmission | Shou chi Manual 12-speed |

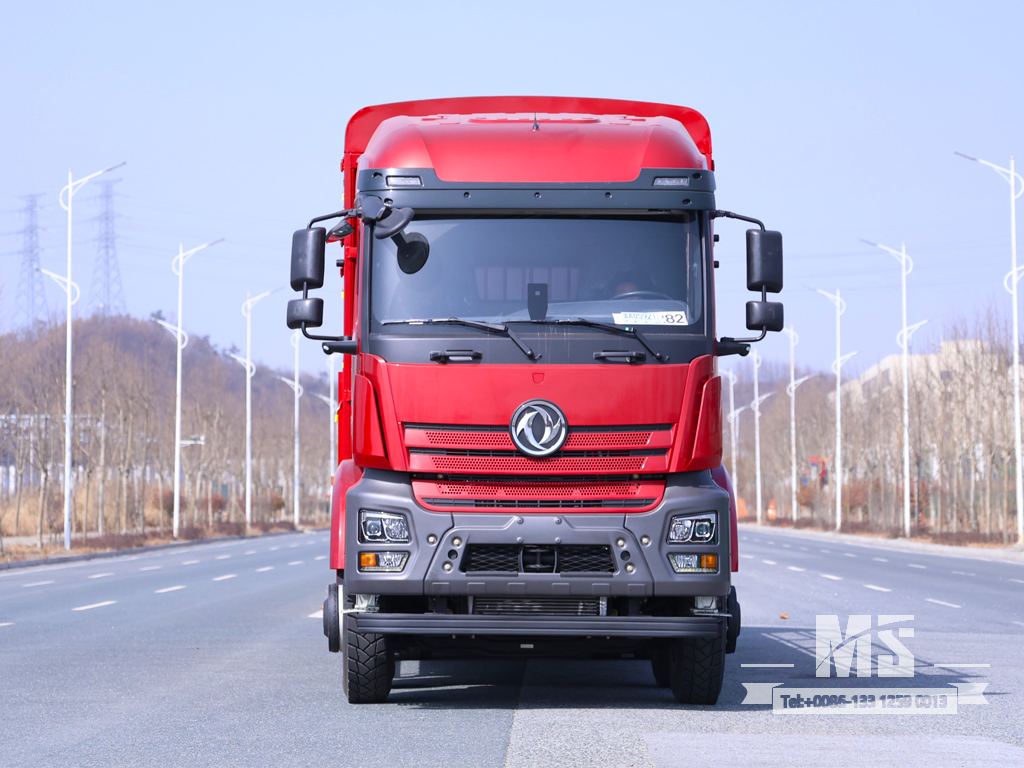

Driver Cab | Dongfeng Flat-nose Extended Cab |
Frame | 850X300(8+6+4) |
Vehicle Axle |
7T/7T/16T/16T
|
Tire | 12R22.5（12+1 Pieces） |
Detailed parameter |
Overall Dimension | 12300×2580×3870mm |

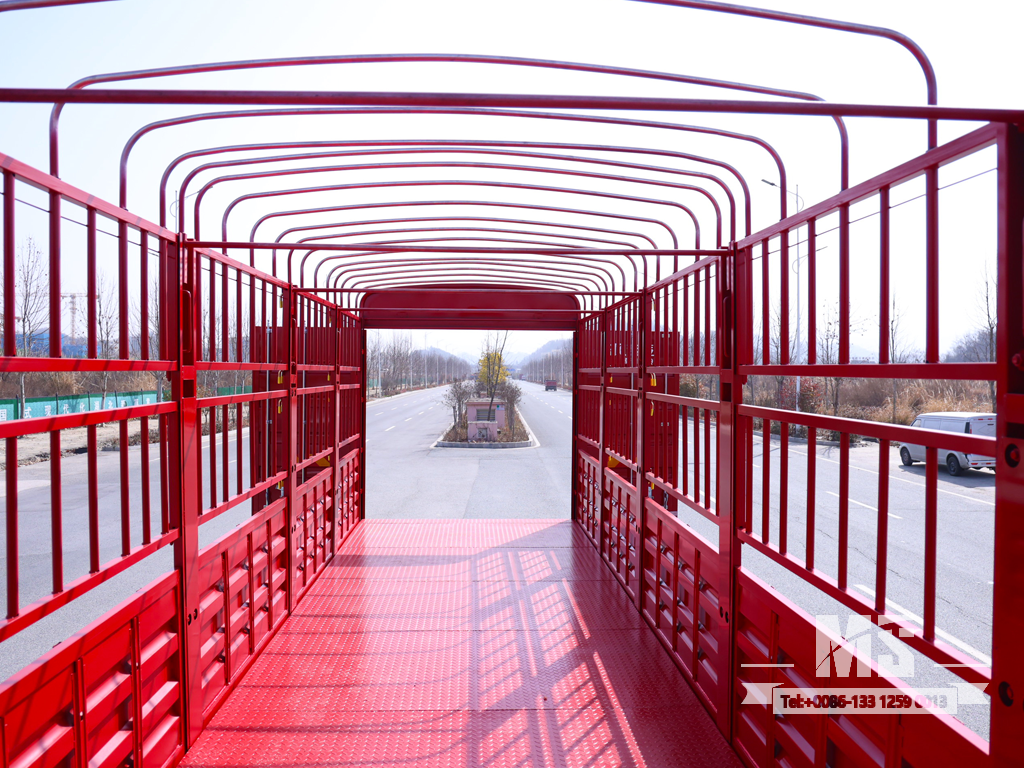

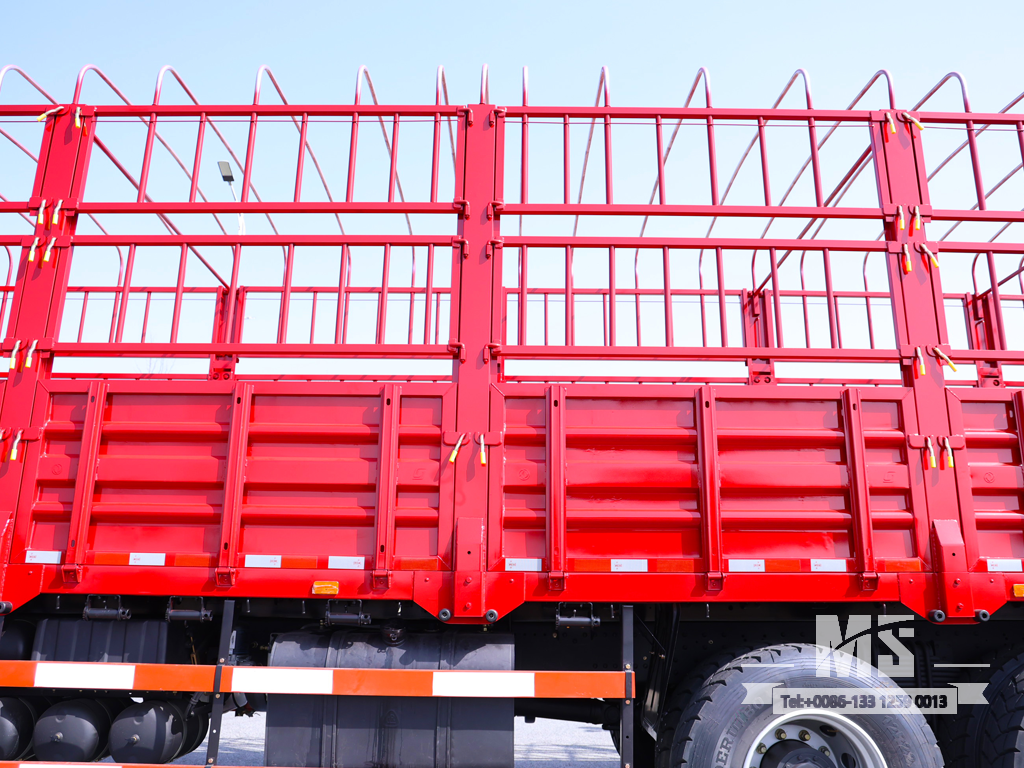

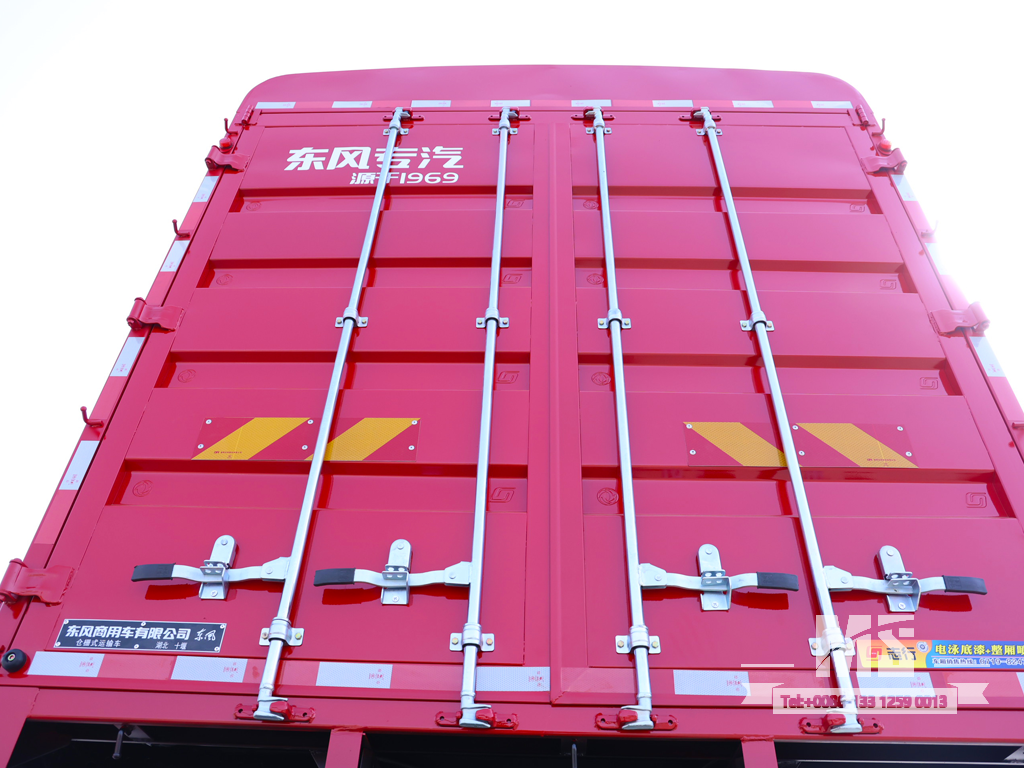

Cargobox Dimensions | 9600×2350×2530mm（785mm） |
Wheelbase | 1950+4600+1350mm |
Wheel track | 2020/1820mm |
GVW | 31000kg |
Curb Weight | 14150kg |
Maximum Power | 368kw |
Engine Displacement | 12.54L |
Maximum speed | 90km/h |
Approach Angle/departure Angle | 20°/10° |
Tank volume | 380L |
Minimum ground clearance | 290mm |
Fording depth | 660mm |
Obstacle height | 435mm |
Note: This configuration is for reference only, please refer to the actual car.
