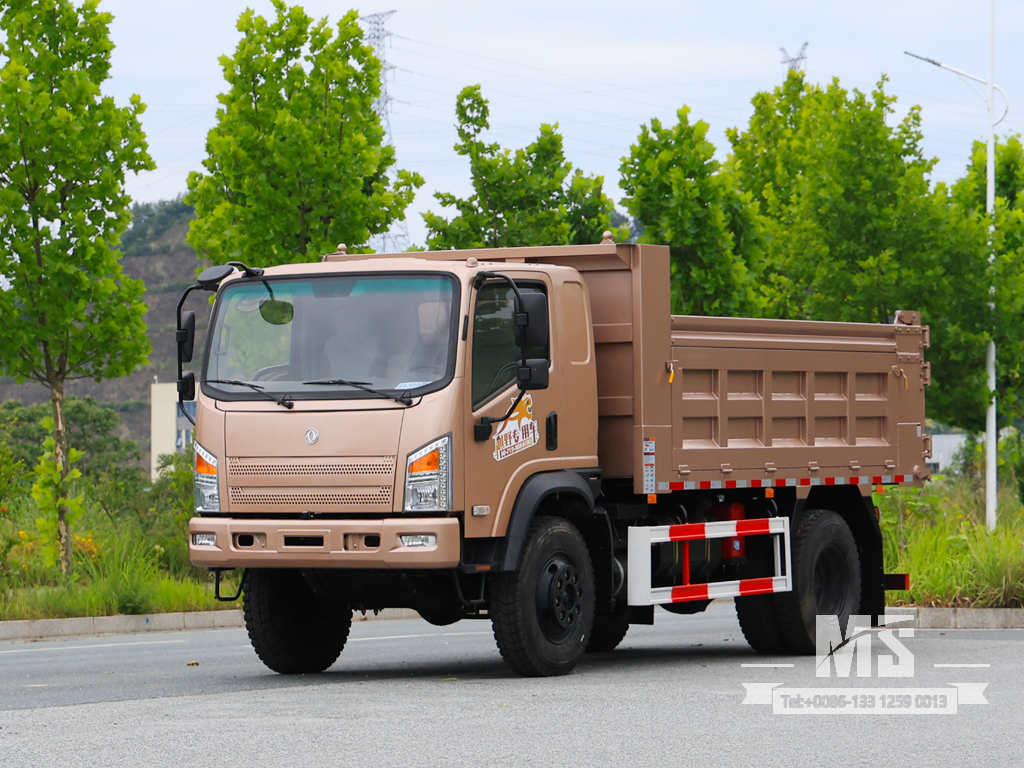

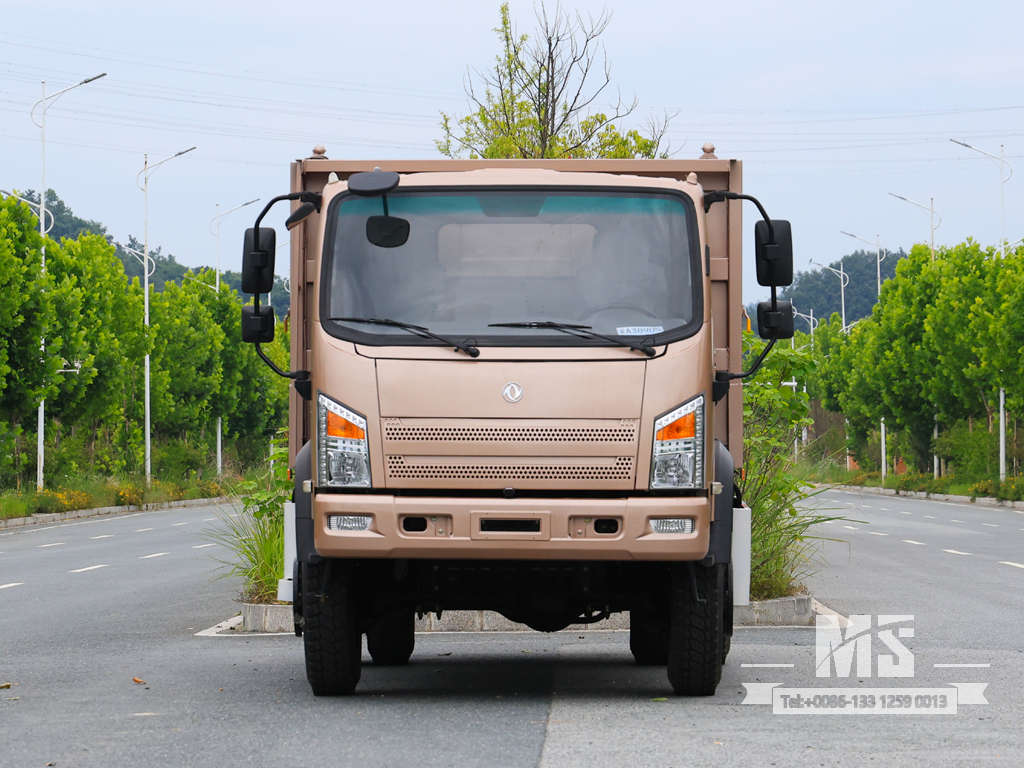

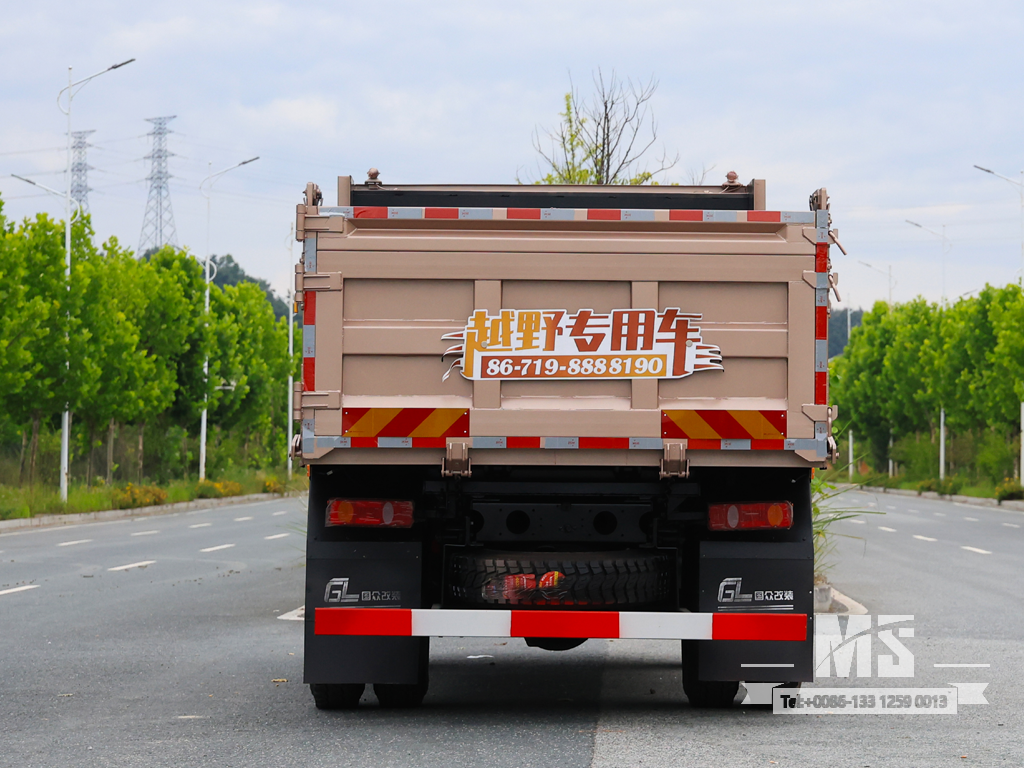

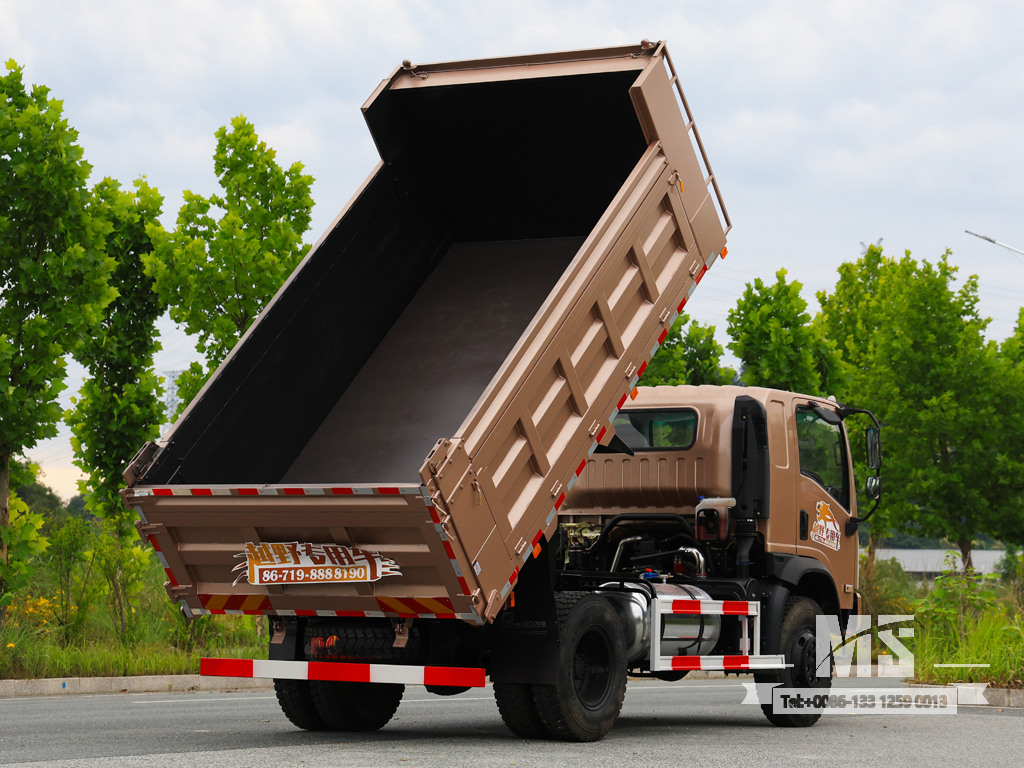

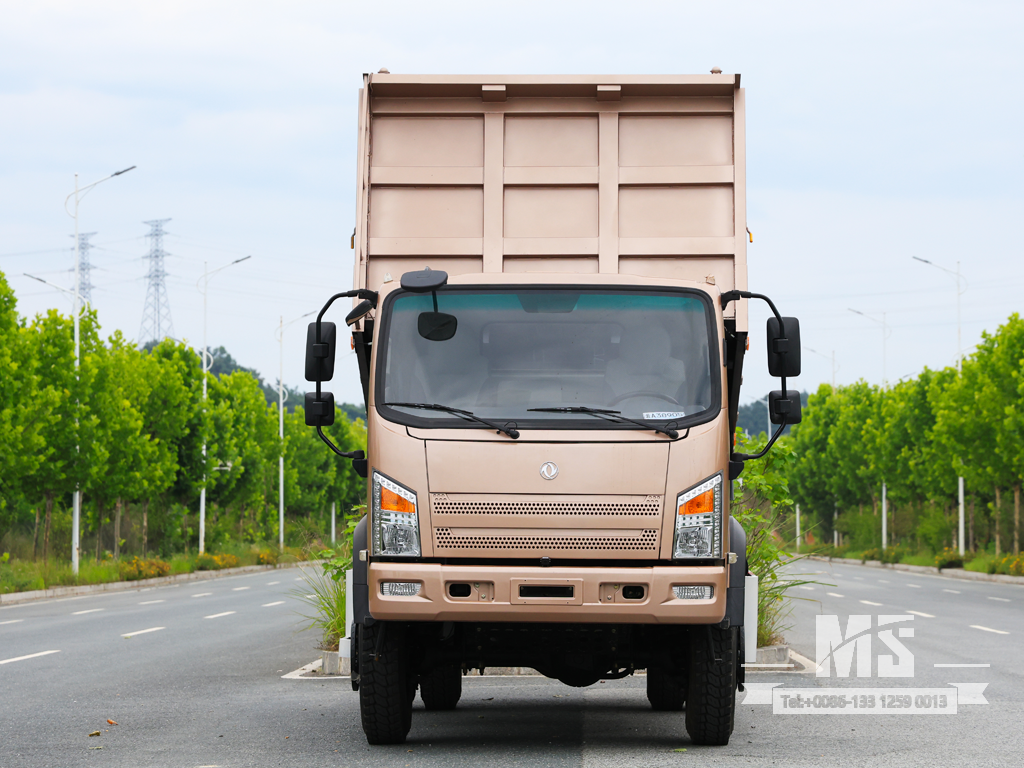

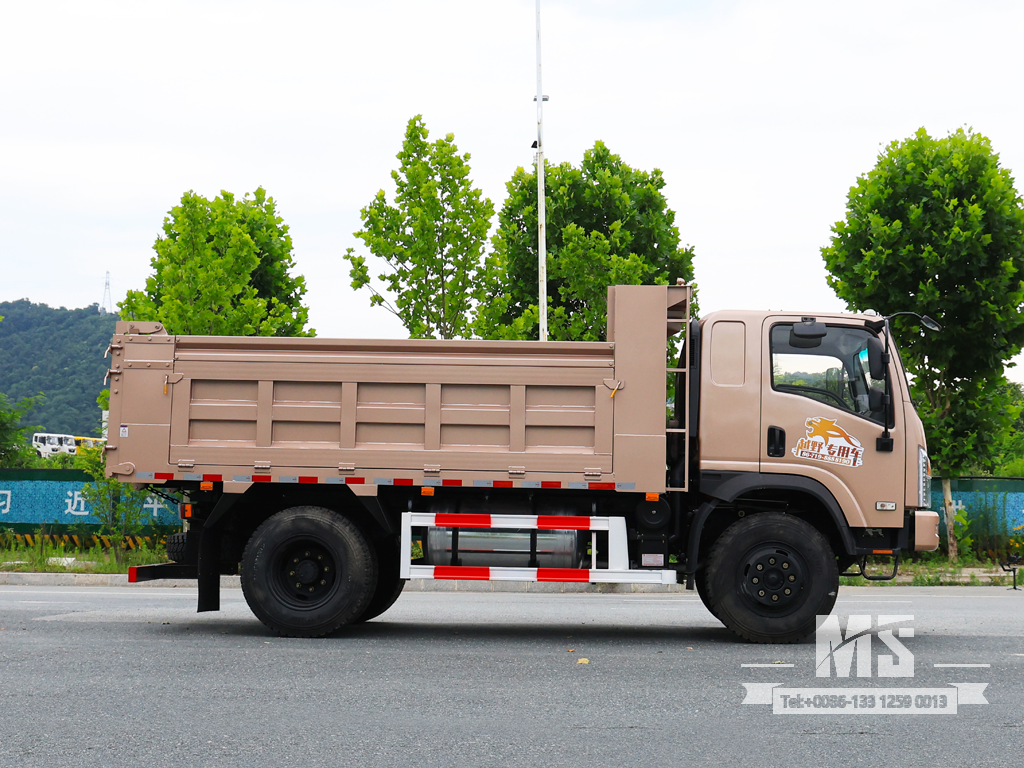

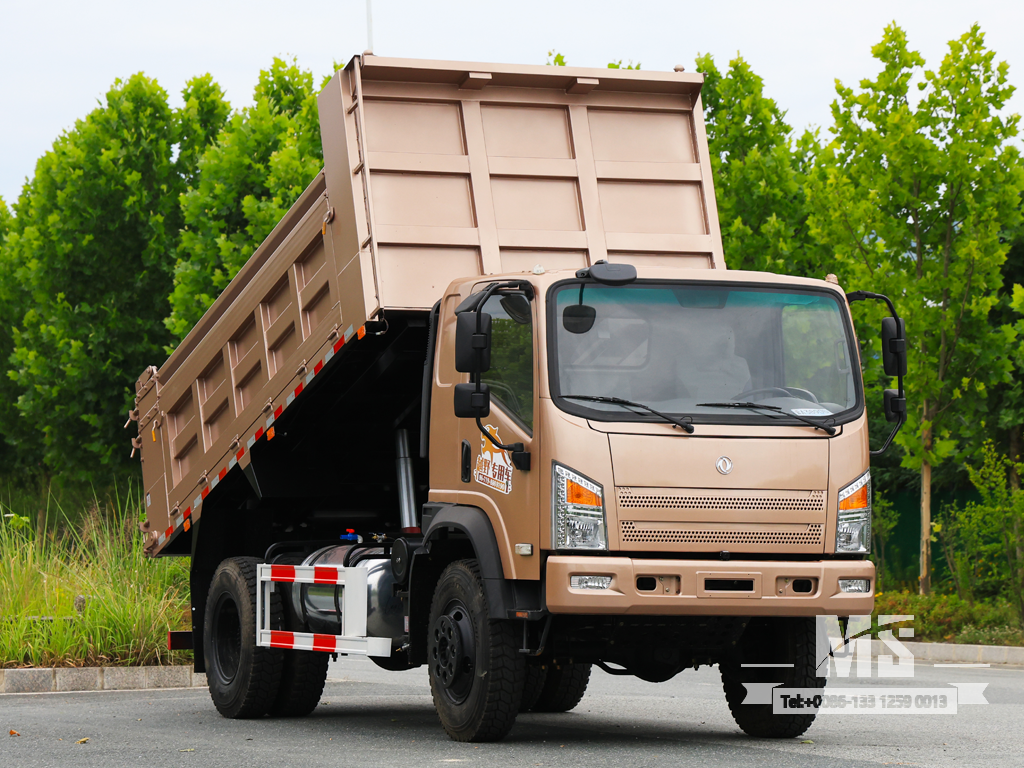

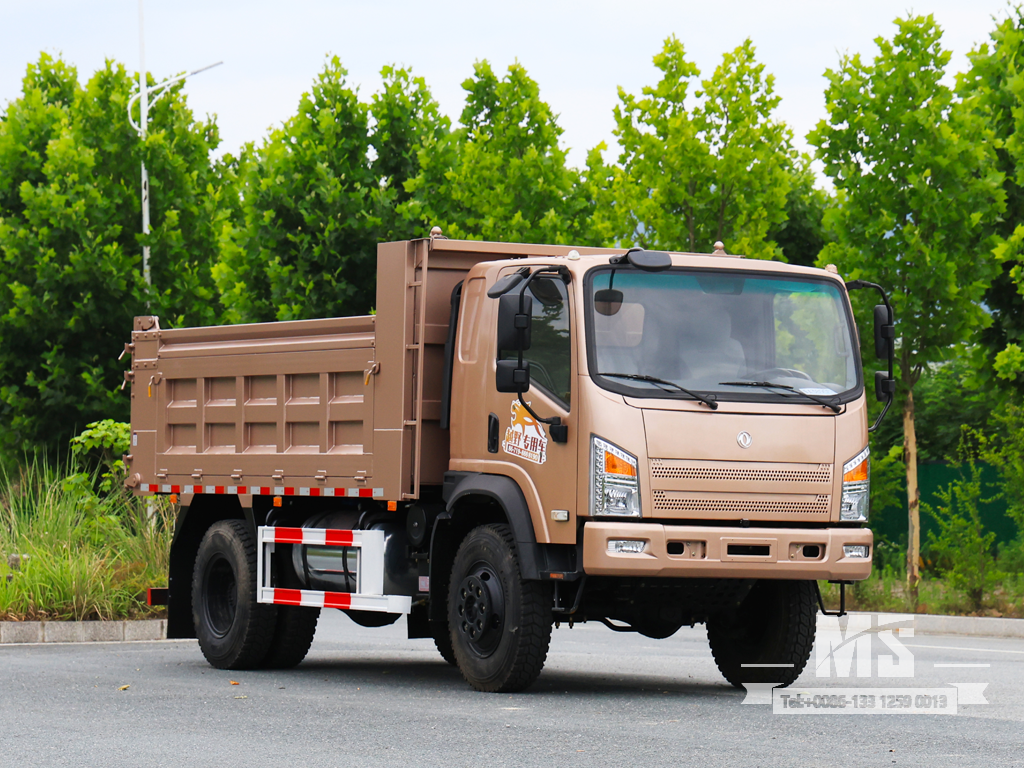

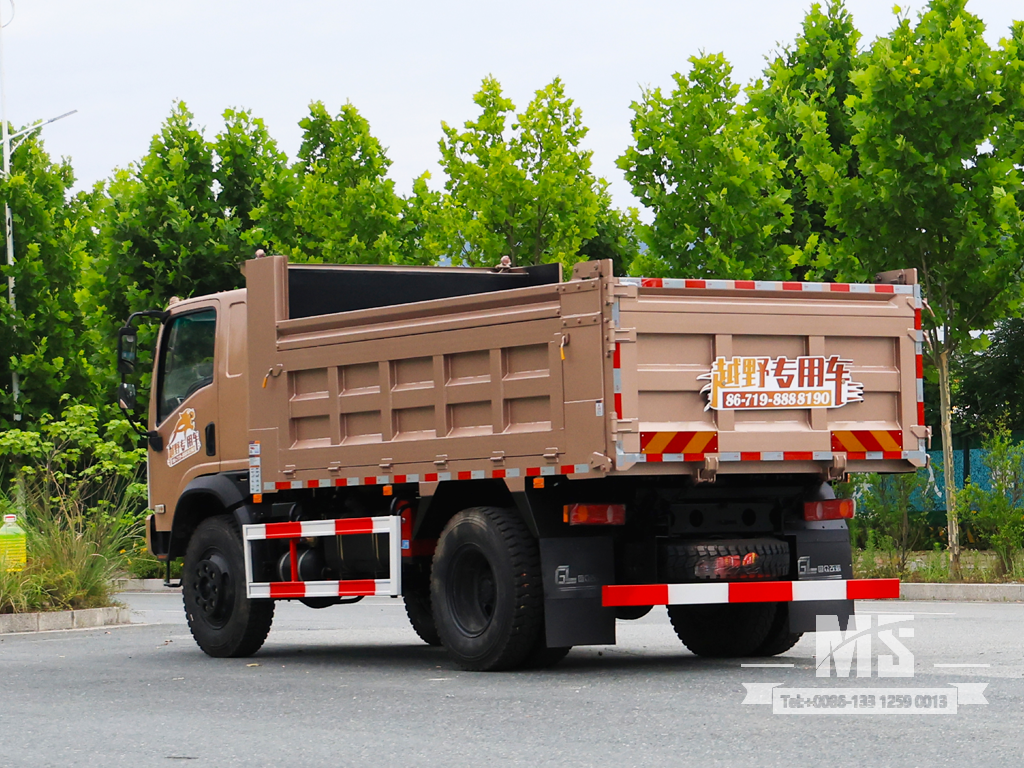

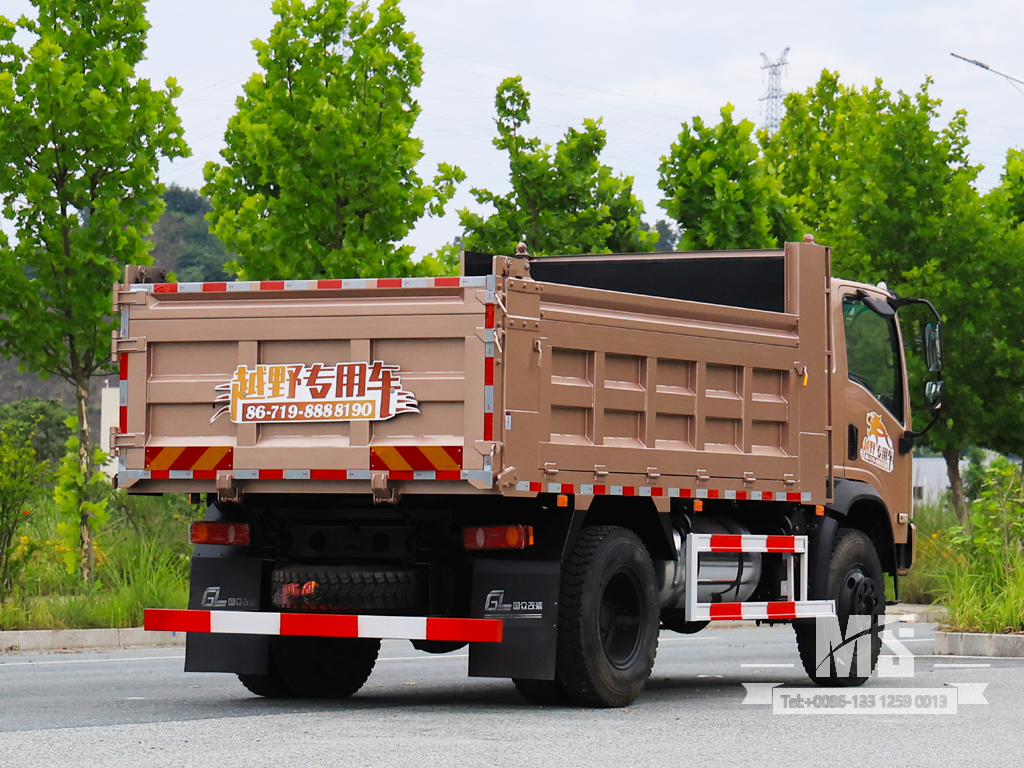

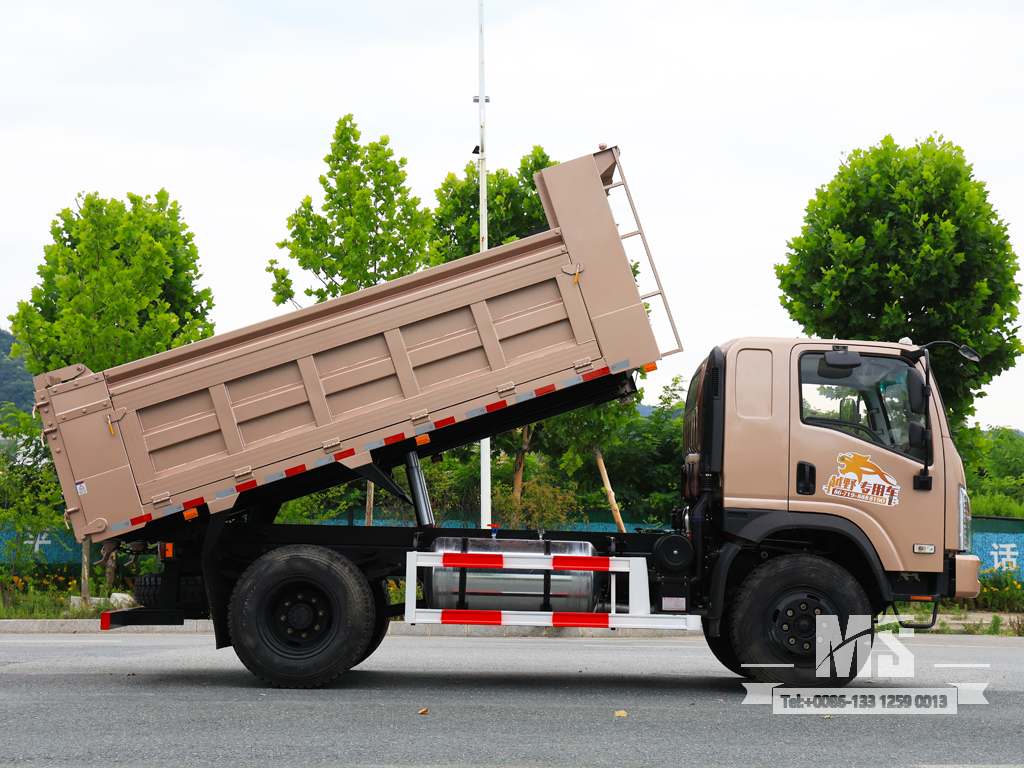

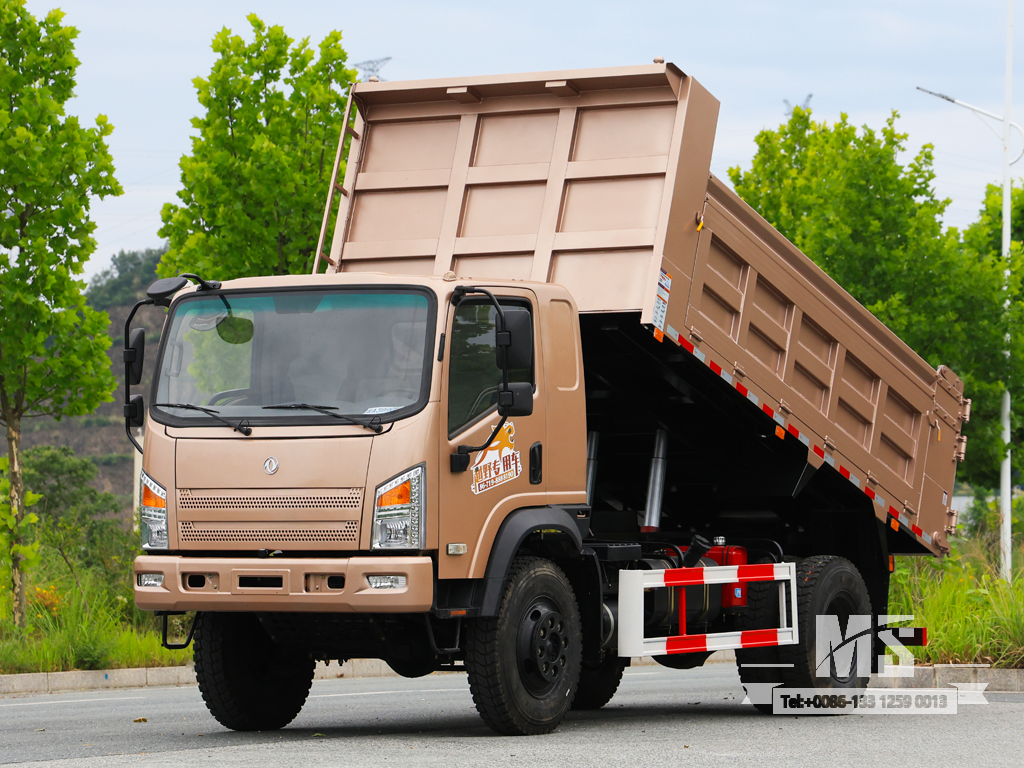

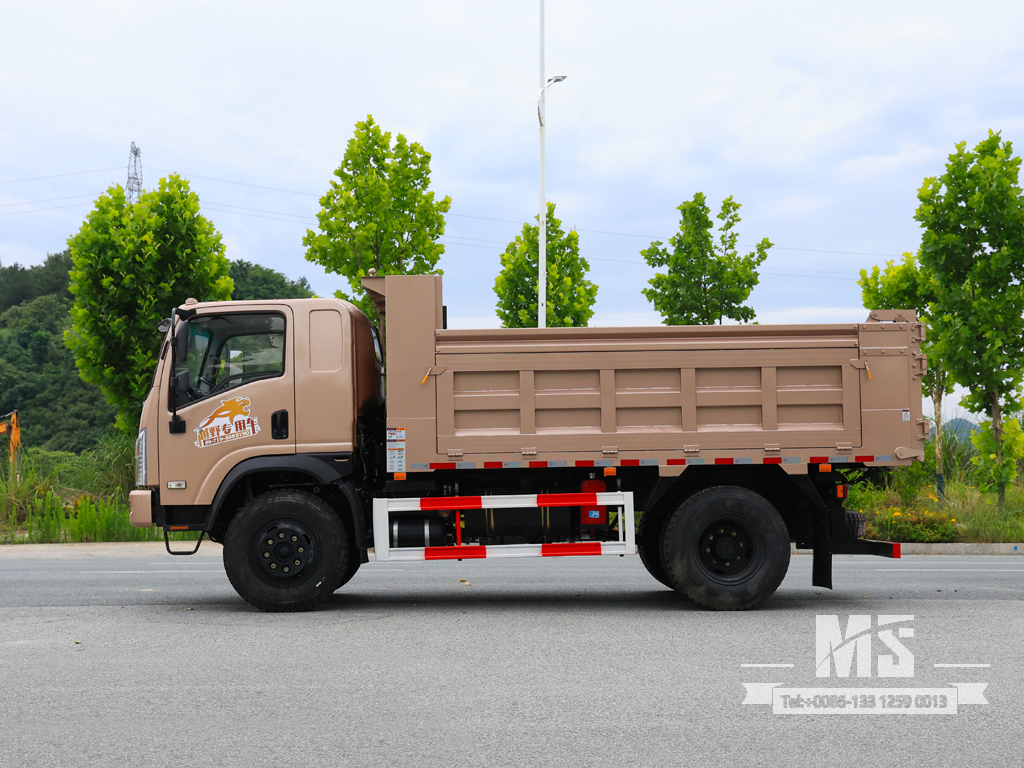

Four-wheel-drive Flathead Dump Truck
Basic configuration |
Drive type | 4*4 |
Engine | Cummins B170 33 |

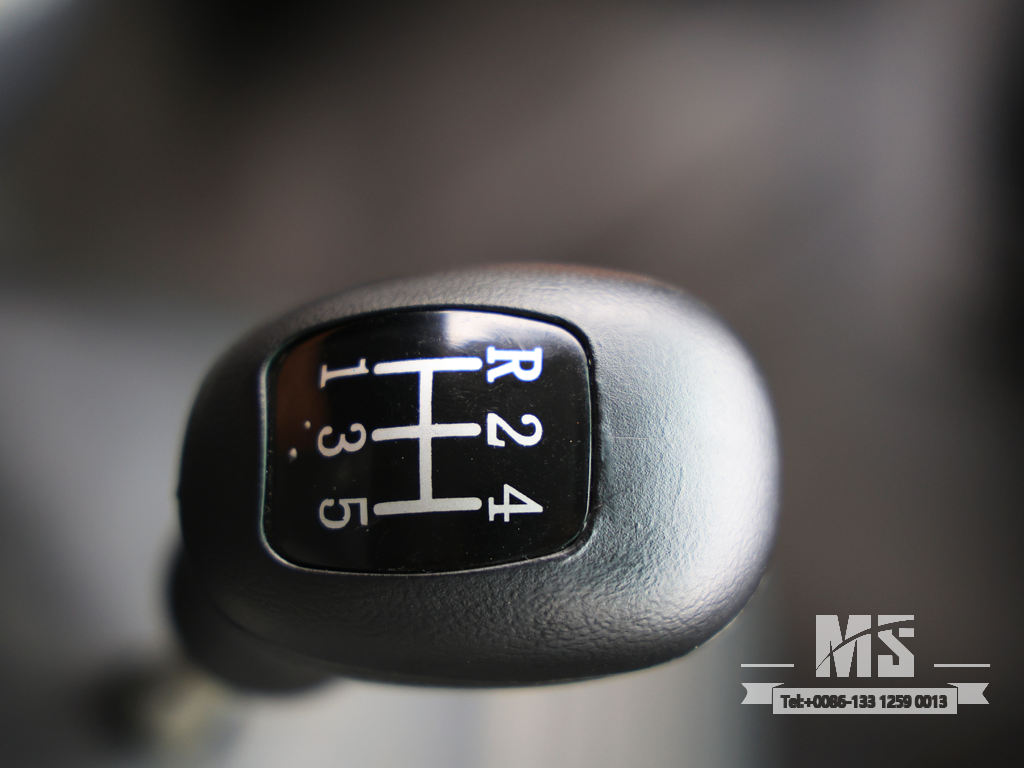

Transmission | Shou chi Manual 5-speed |
Transfer case | High and low speed |

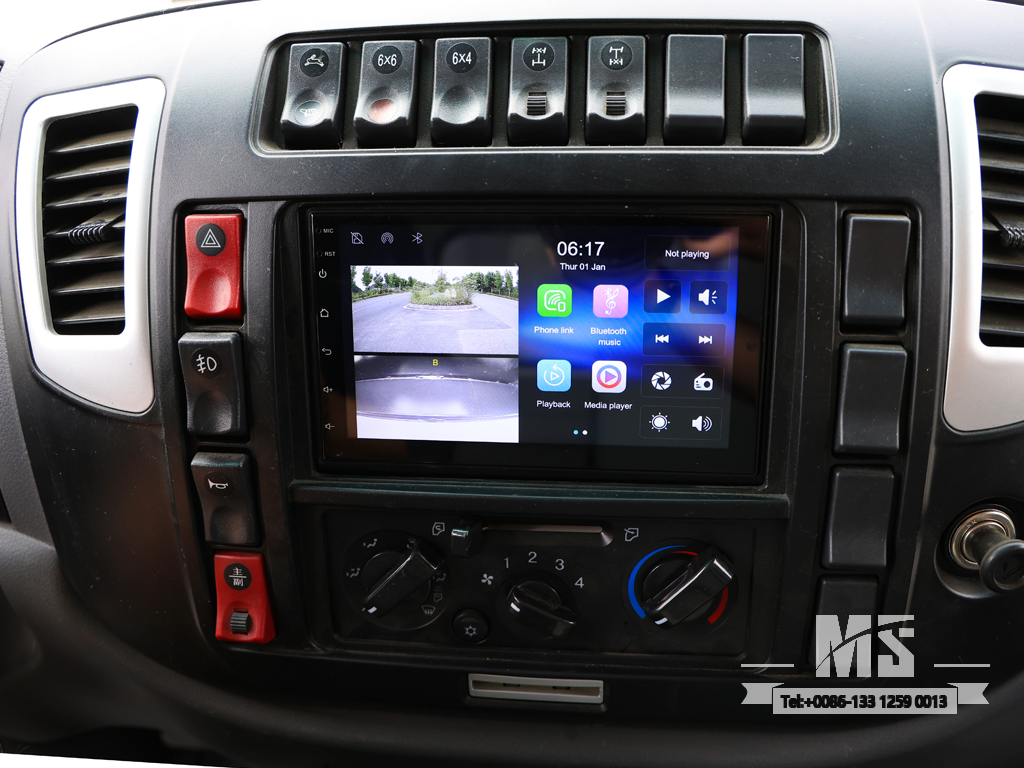

Driver Cab | Dongfeng Flat Semi Cab |
Frame | 860X232(8+6) |
Vehicle Axle |
Dont Alxe 2.7T/Rear Alxe 8T
|

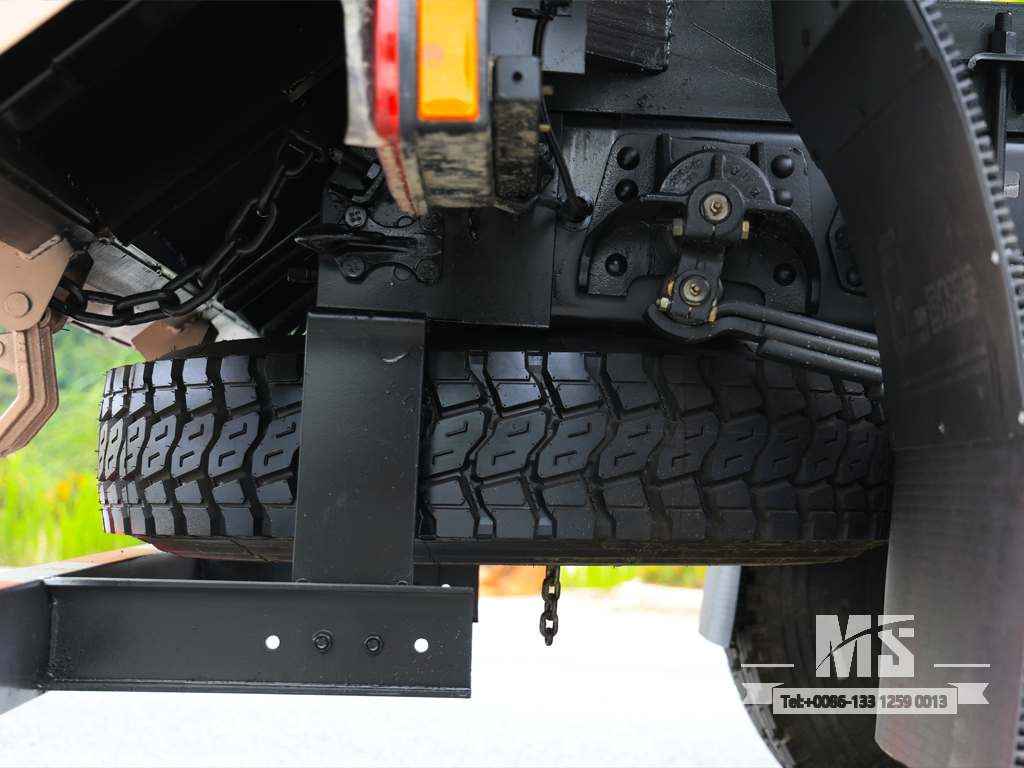

Tire | 9.00R20（6+1） |
Detailed parameter |
Overall Dimension | 6740×2610×2880mm |

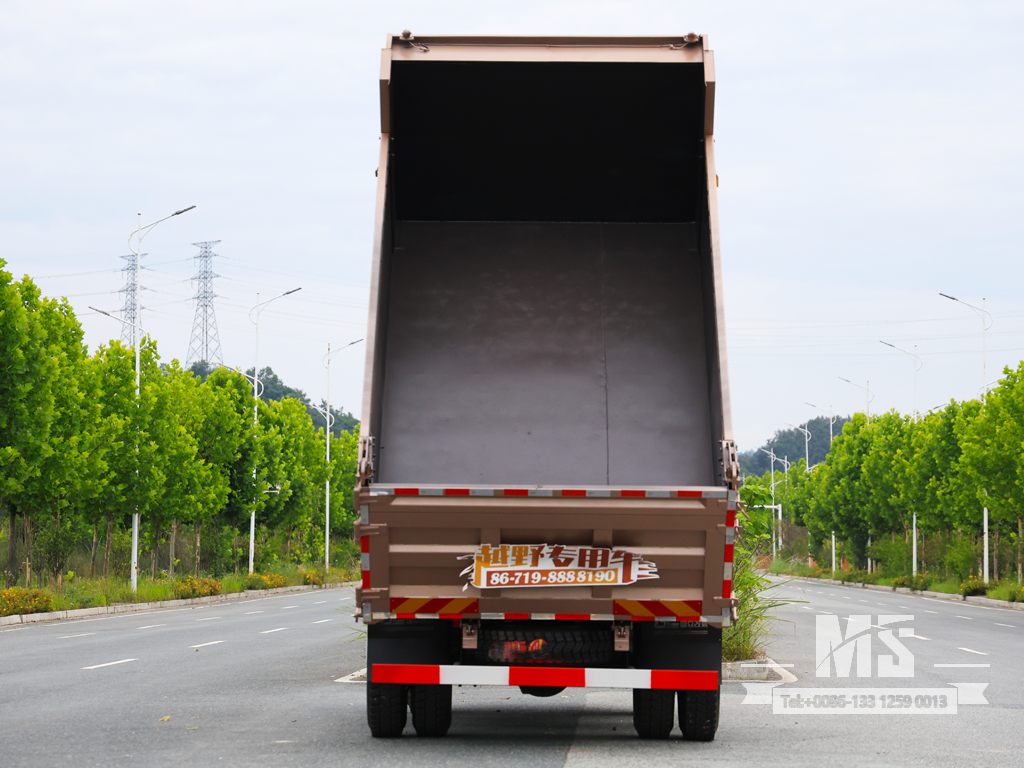

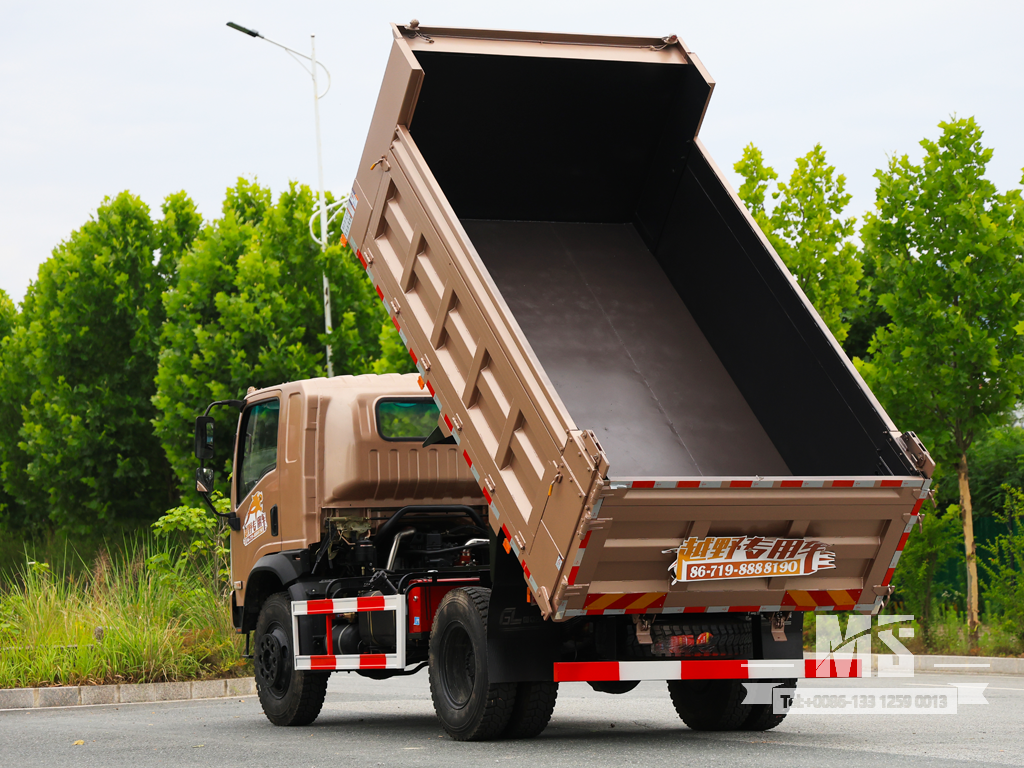

Cargobox Dimensions | 4200×2200×（800+200）mm |
Wheelbase | 3600mm |
Wheel track | 1820/1840mm |
GVW | 10700kg |
Curb Weight | 6780kg |
Maximum Power | 125kw |
Engine Displacement | 5.9L |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 21°/34° |

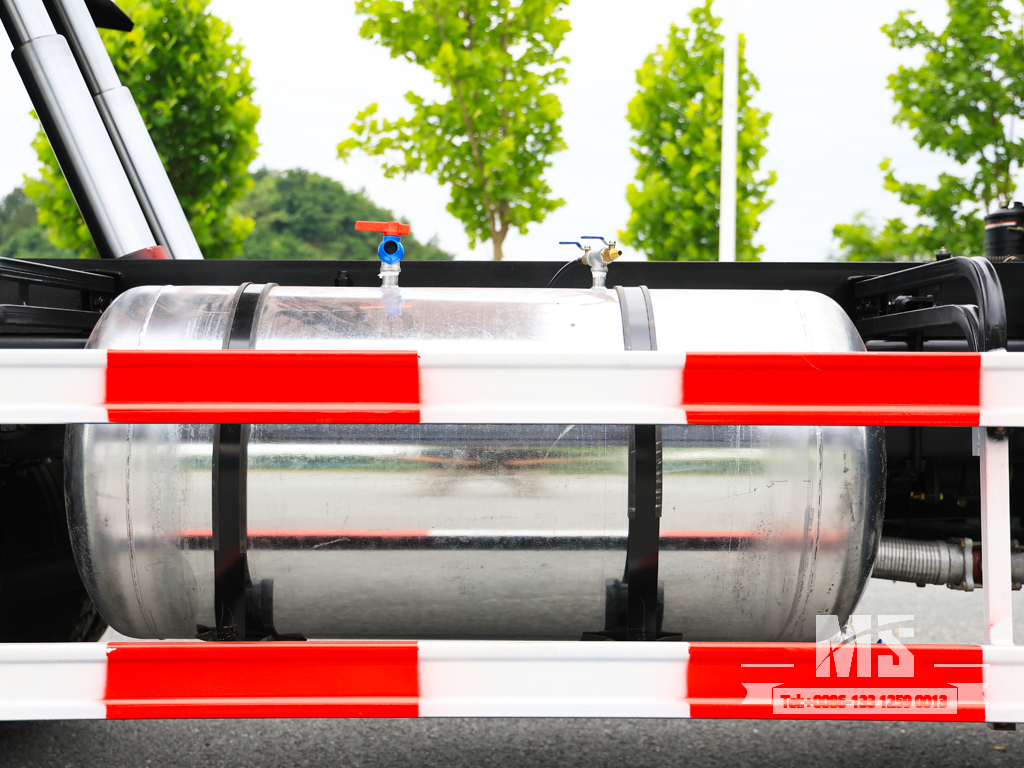

Tank volume | 160L |
Minimum ground clearance | 280mm |
Fording depth | 720mm |
Obstacle height | 280mm |
Note: This configuration is for reference only, please refer to the actual car.
