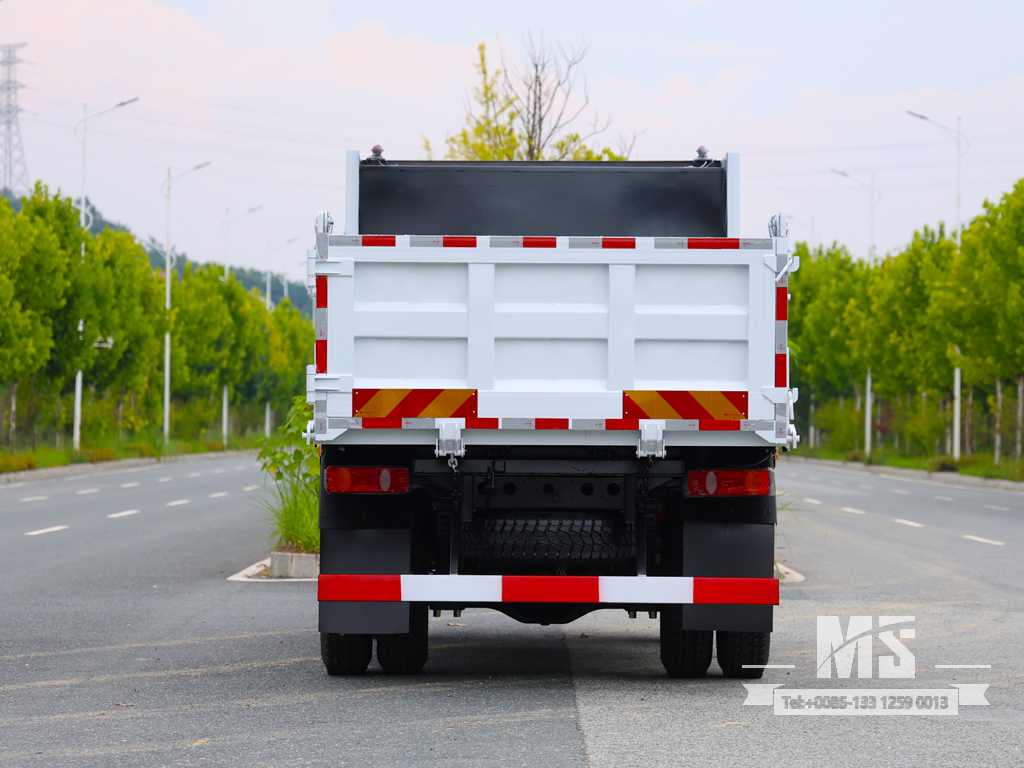

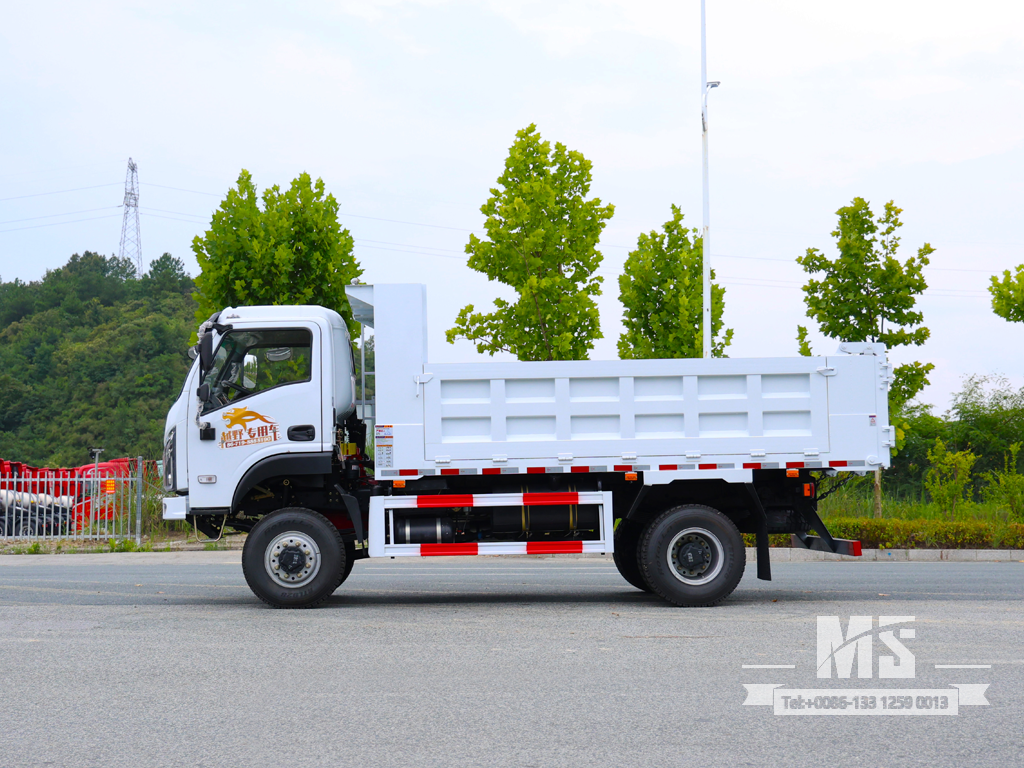

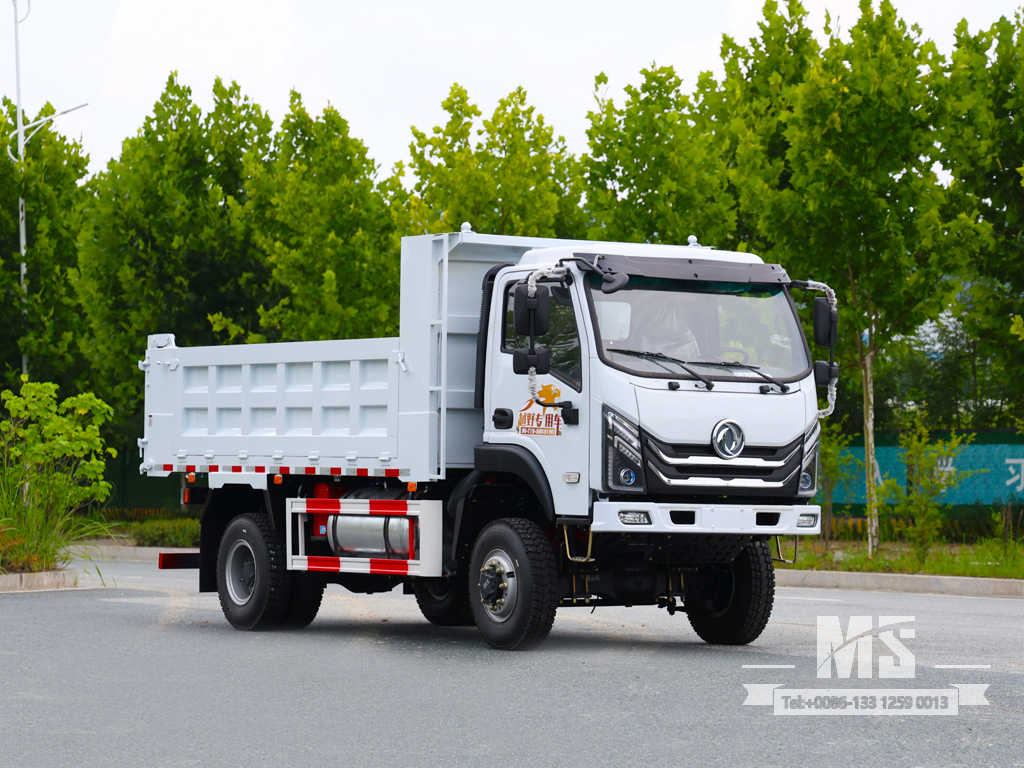

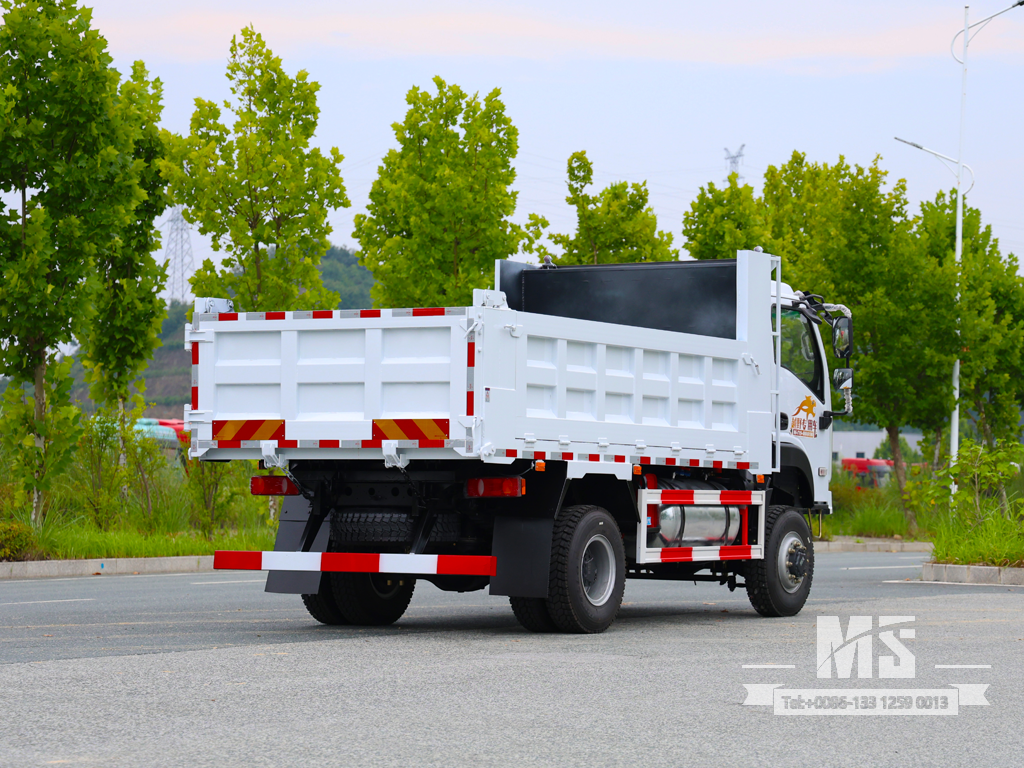

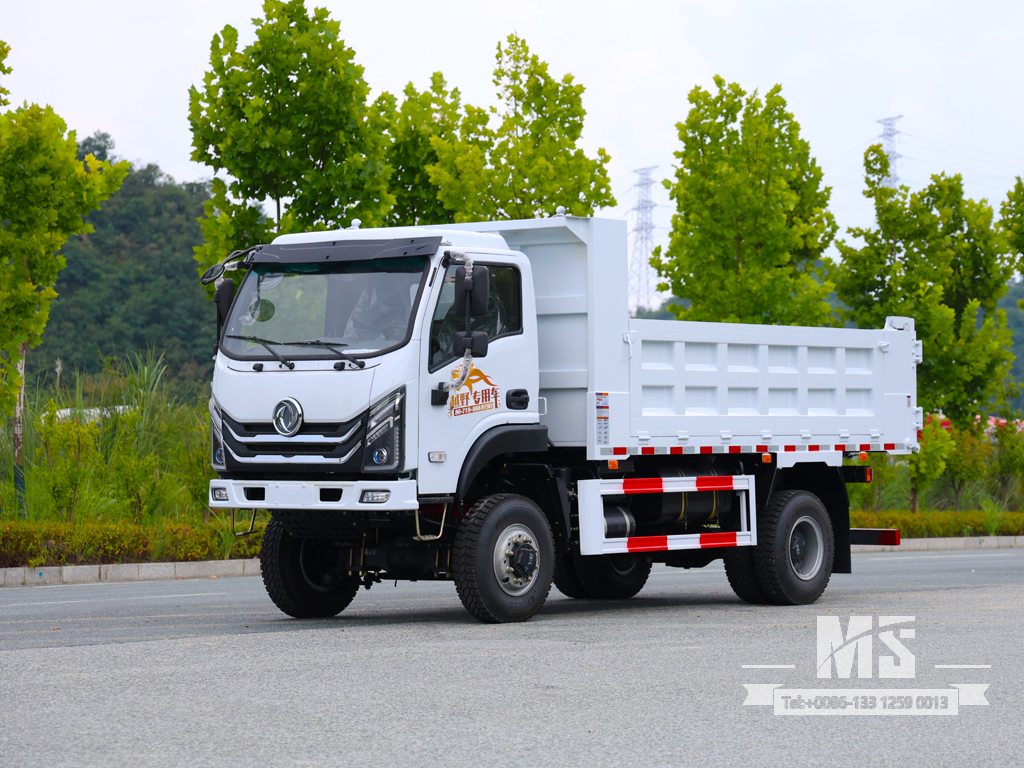

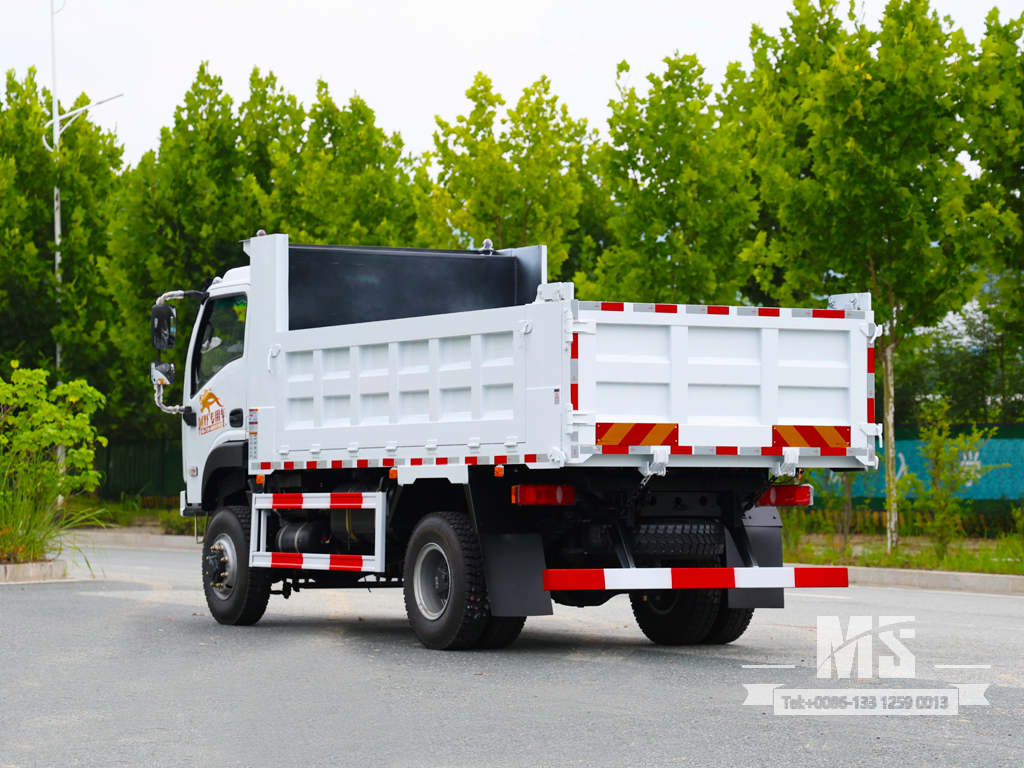

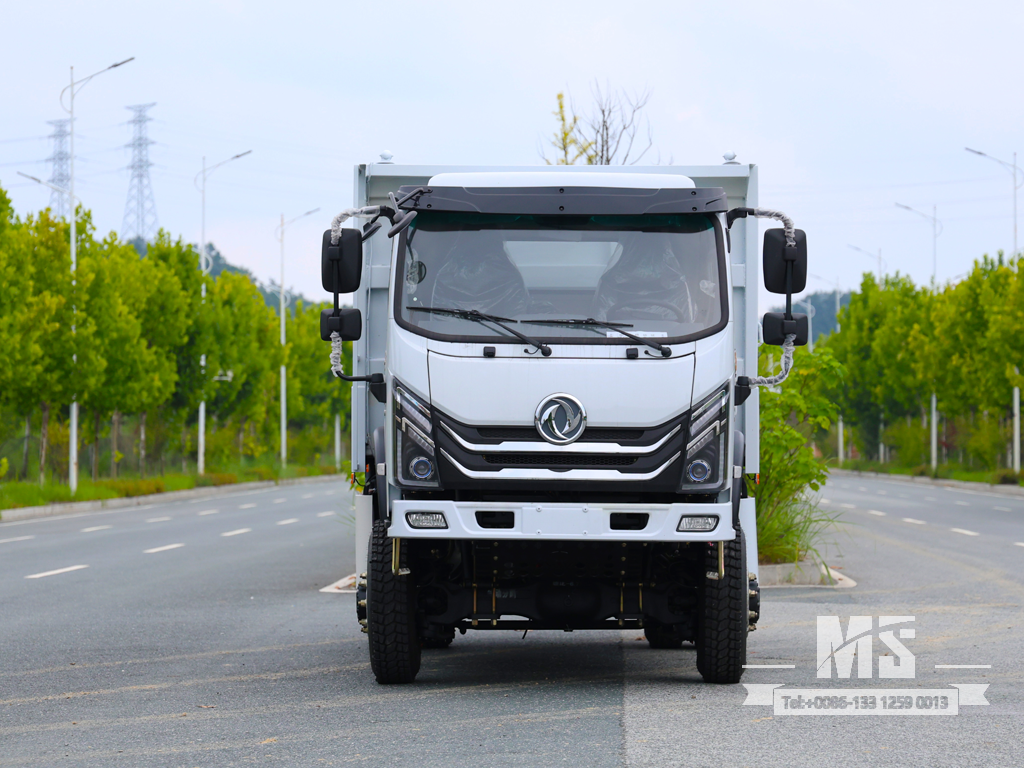

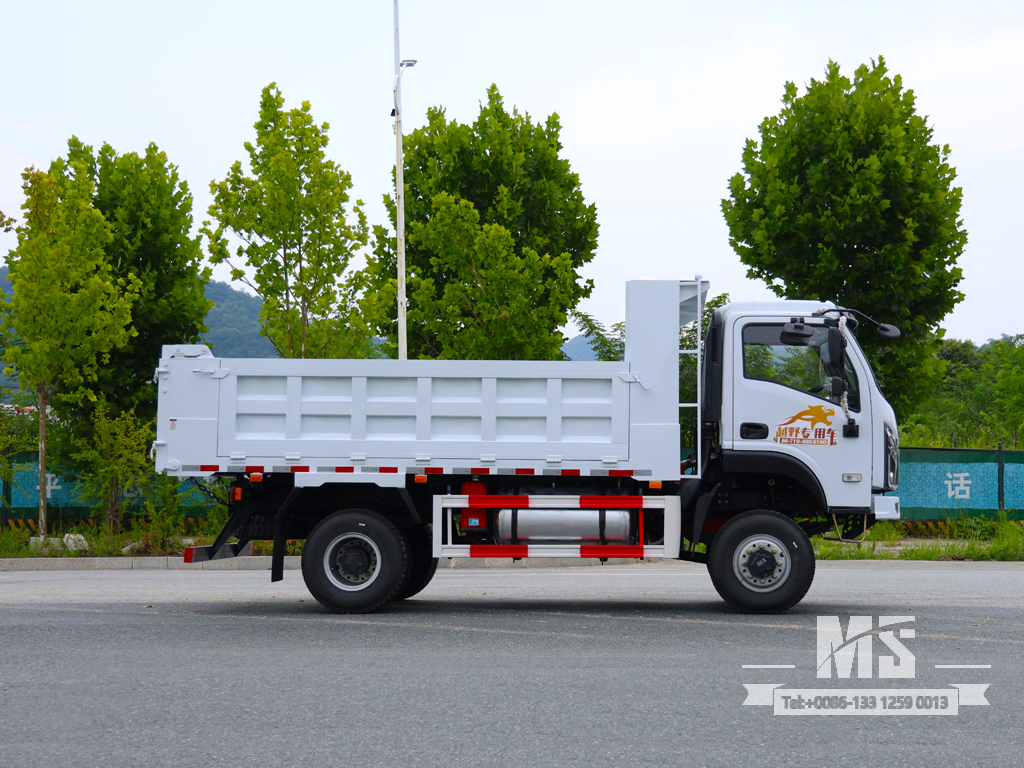

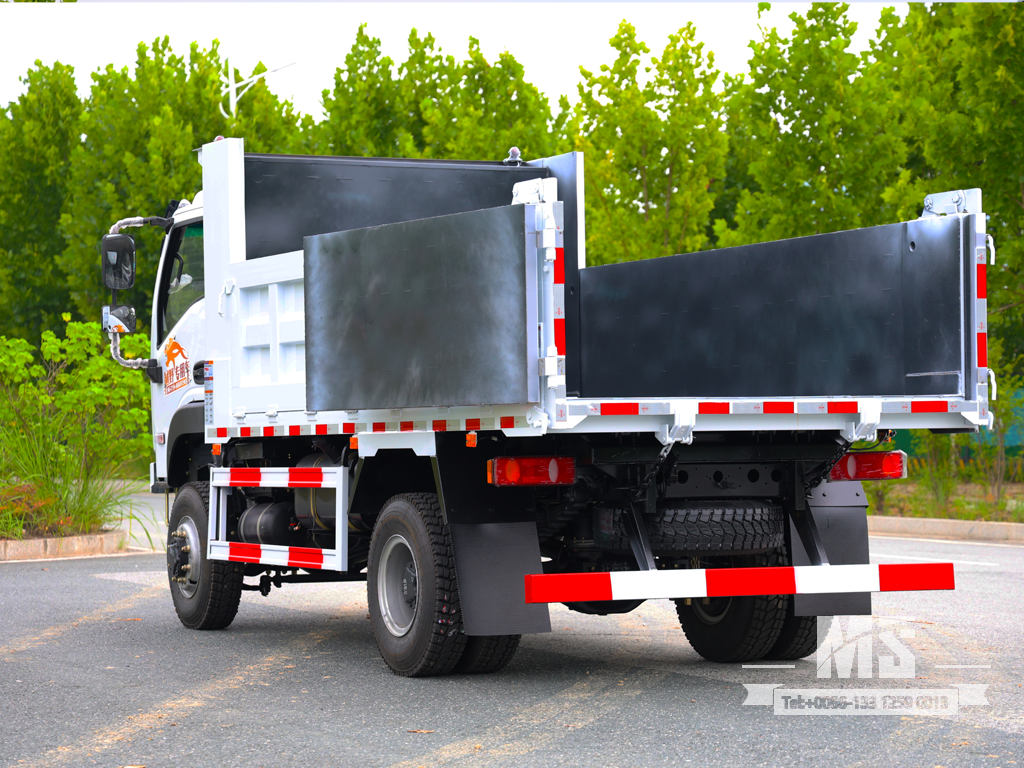

Four-wheel-drive flat-nose light brown dump truck
Basic configuration |
Drive type | 4*4 |
Engine | Cummins B140 33 |
Transmission | Shou chi Manual 8-speed |
Transfer case | Heigh and low speed |
Driver Cab | Dongfeng Flat-head half row |
Frame | 800X190(8+6) |
Vehicle Axle |
Dont Alxe 4T/Rear Alxe 8T
|

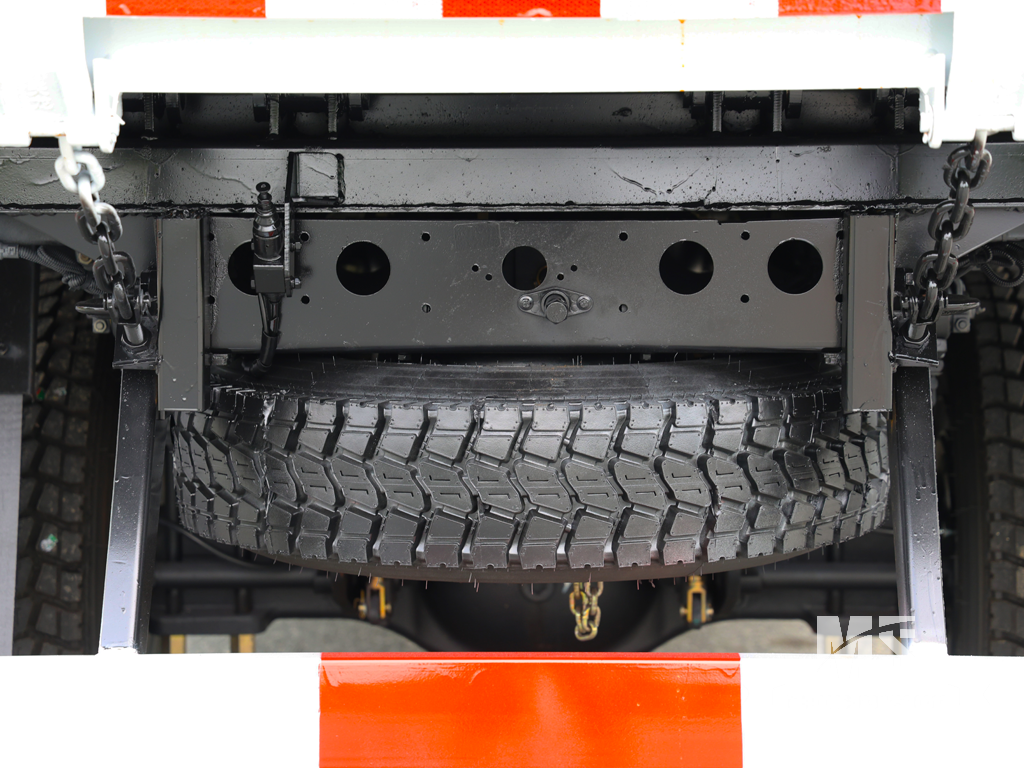

Tire | 8.25R16LT（6+1） |
Detailed parameter |
Overall Dimension | 6030×2200×2690mm |

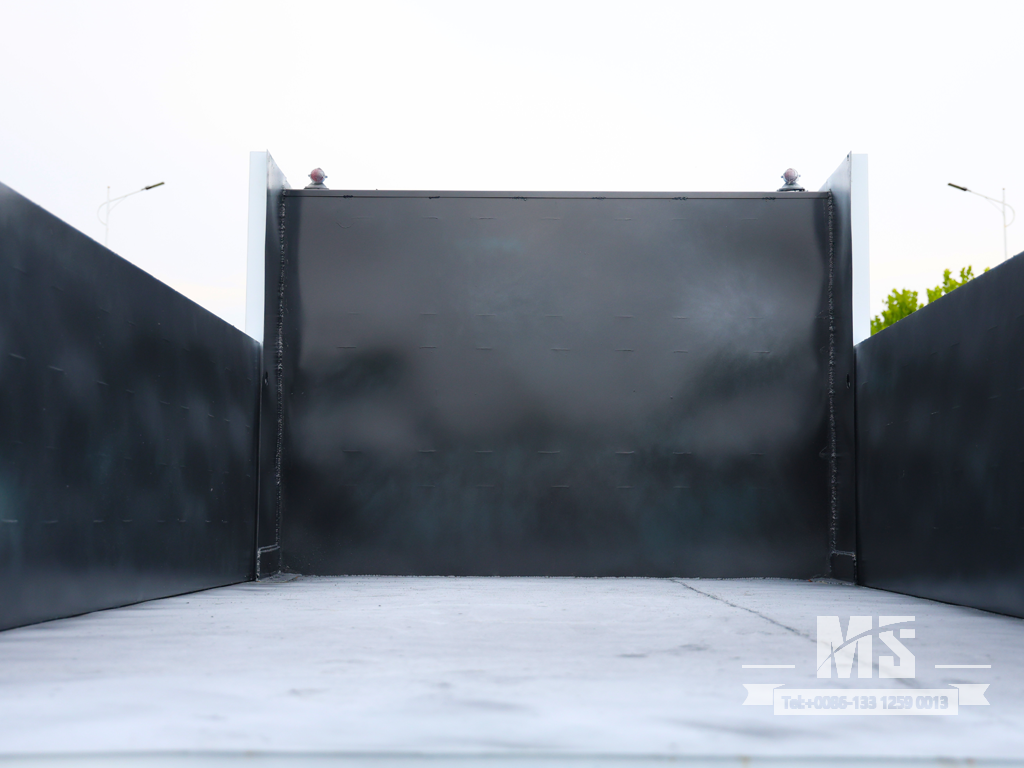

Cargobox Dimensions | 3900×2000×800mm |
Wheelbase | 3300mm |
Wheel track | 1670/1660mm |
GVW | 12800kg |
Curb Weight | 5940kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 37°/17° |
Tank volume | 160L |
Minimum ground clearance | 315mm |
Fording depth | 600mm |
Obstacle height | 400mm |
Note: This configuration is for reference only, please refer to the actual car.
