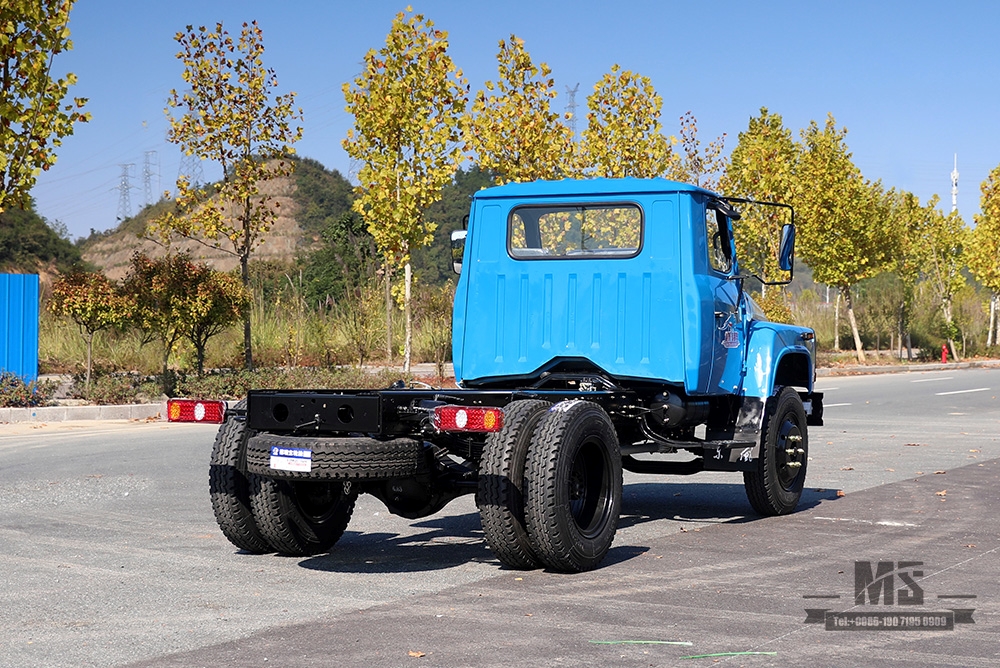

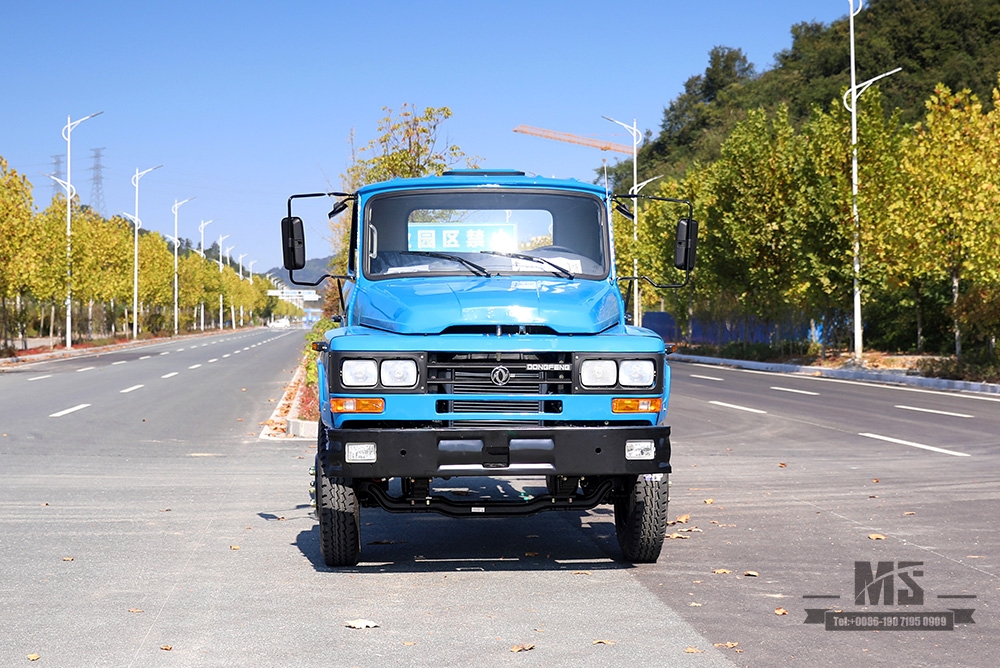

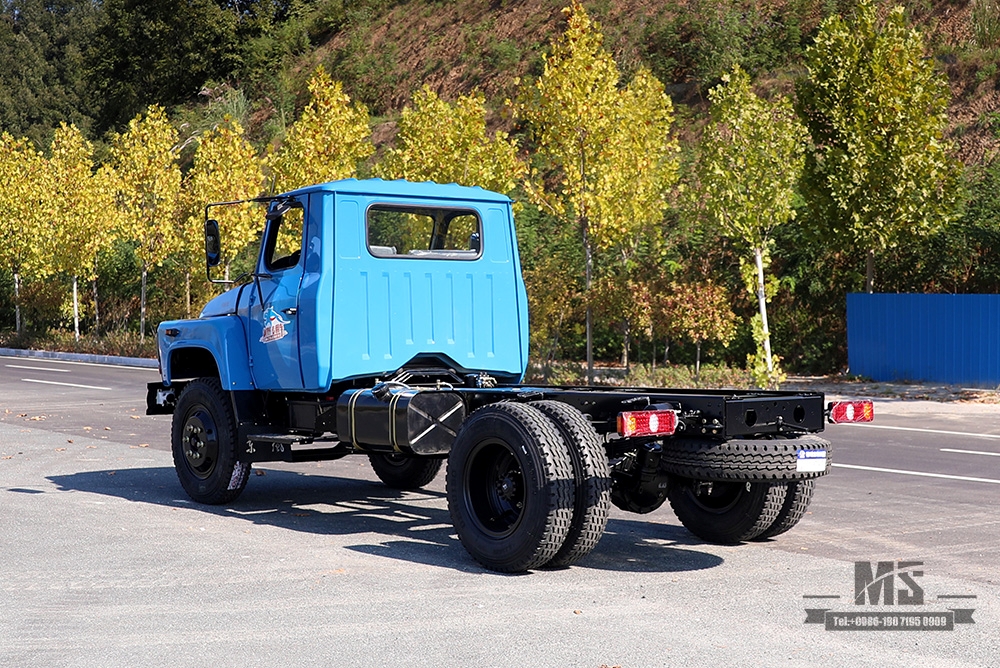

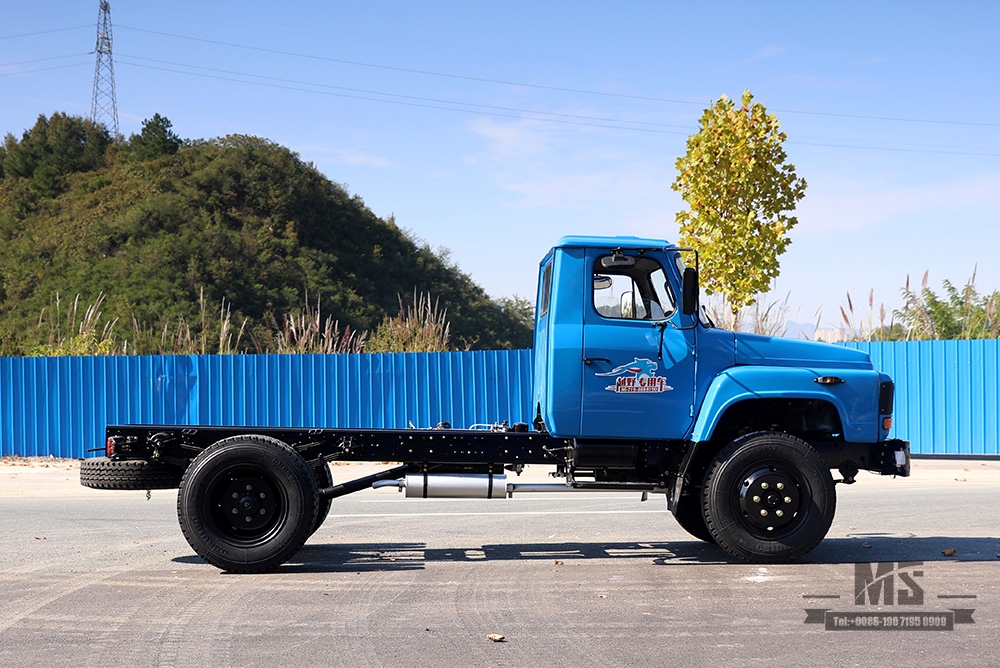

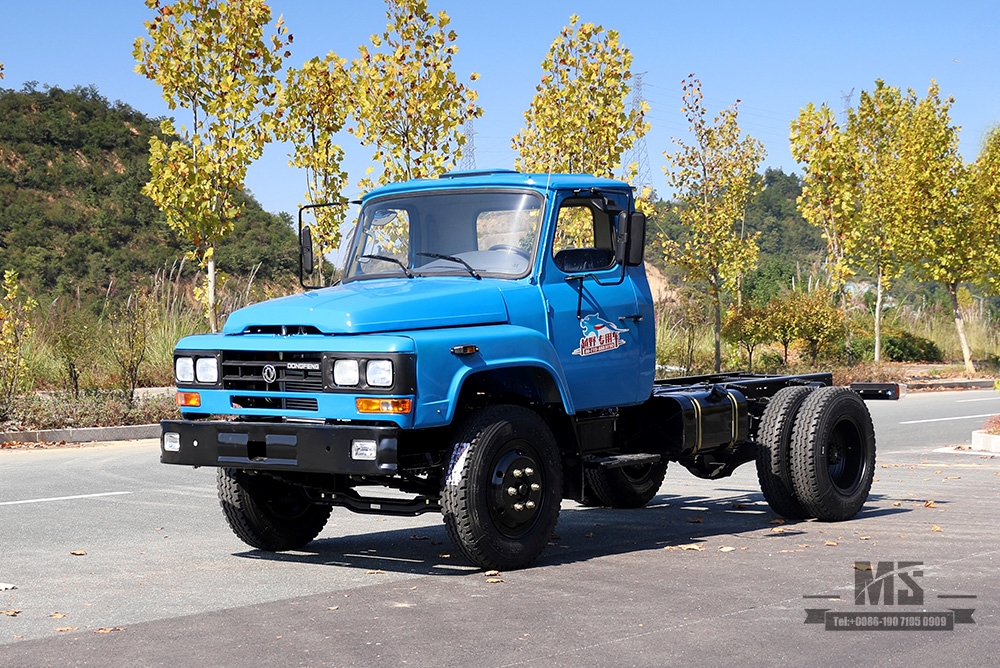

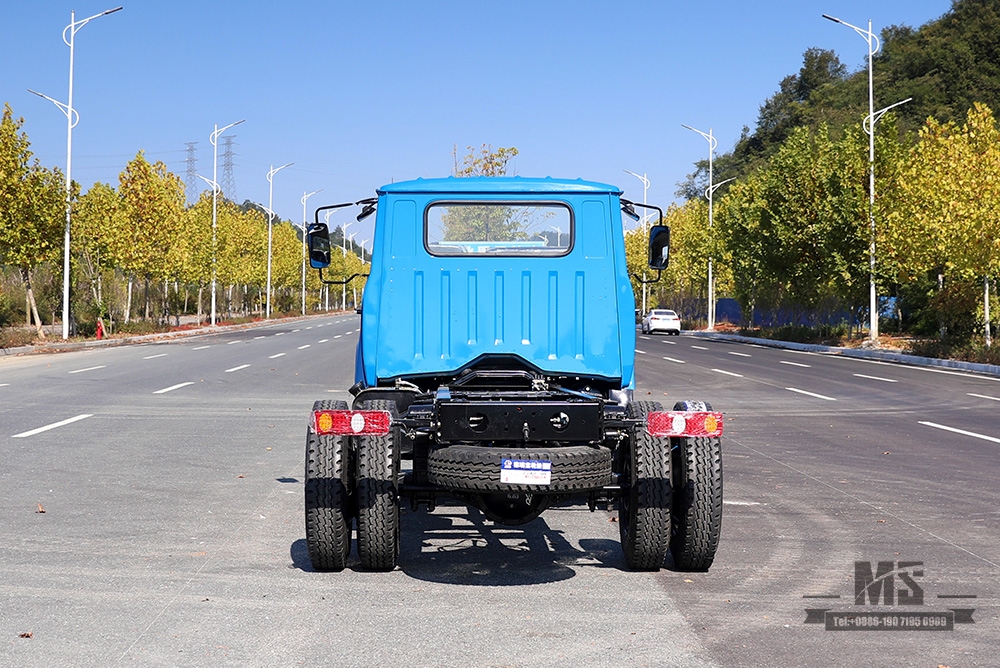

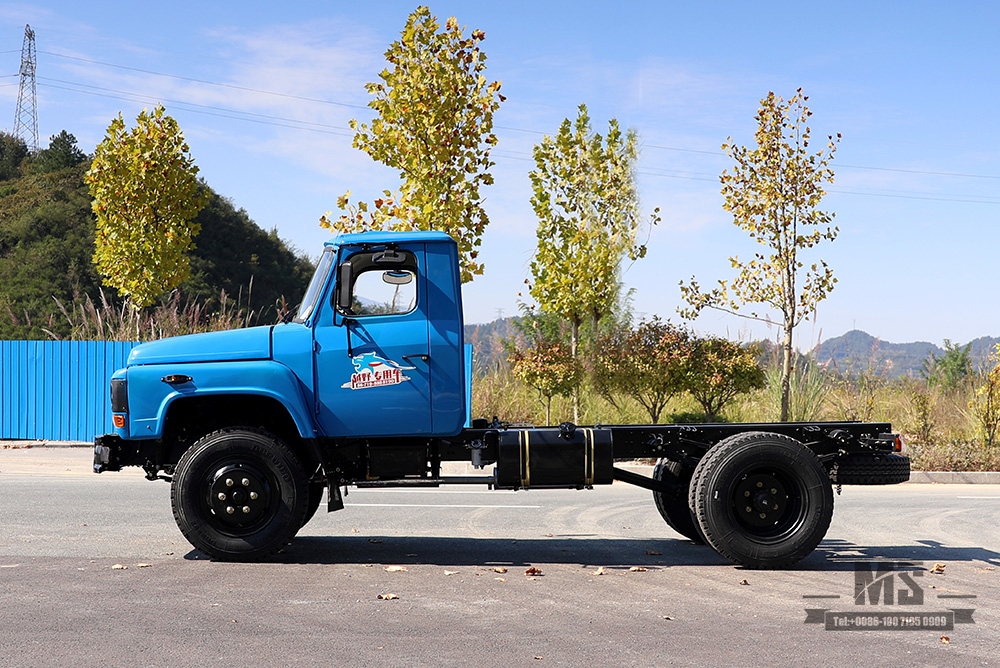

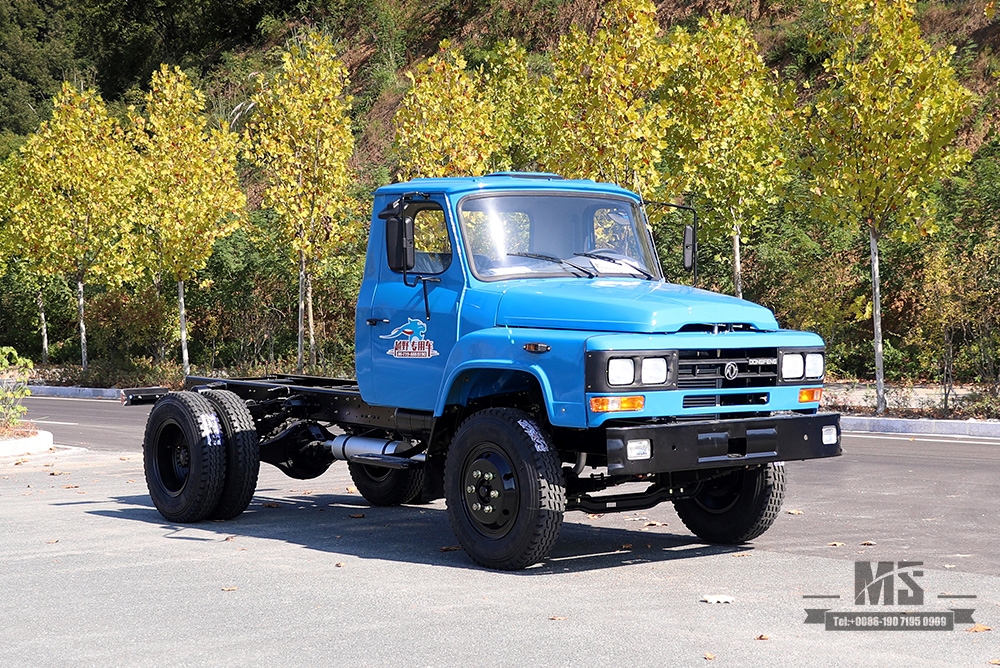

The 4x2 blue tip chassis with the latest 4*2 off-road design ensures excellent passability in various environments. Whether it's a city road or a remote mountain road, with its excellent off-road performance, unrivalled driving experience.
Basic configuration | |
Engine | YN4102QBZL(116HP) |
Drive type | 4*2 |
Gearbox | Manual Five-speed gearbox |
Vehicle Frame | 860*232 (Double layer) |
Driver Cab | Dongfeng Single Row Tip Head Cab |
Vehicle Axle | 3T/6T |
Tire | 8.25R20 (6+1) |
Electric Circuit | 24V Electrci Circuit System |
Detailed parameter | |
Overall Vehicle Dimension | 6110*2320*2480mm |
Modification Dimension | ≥3140mm |
Wheelbase | 3750mm |
Wheel Track | 1804/1820mm |
GVW | 9000kg |
Curb Weight | 3410kg |
Engine Displacement | 3760ml |
Maximum Power | 85KW |
Number of passengers | 3 |
Maximum speed | 85km/h |
Front Overhang/Rear Overhang | 1080/1280mm |
Approach Angle/departure Angle | 35°/33° |
Oil Tank volume | 140L |
Minimum ground clearance | 265mm |
Wading depth | 550mm |
Obstacle Crossing Height | 470mm |
Upper Frame Plane Off the Ground | 1040mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
