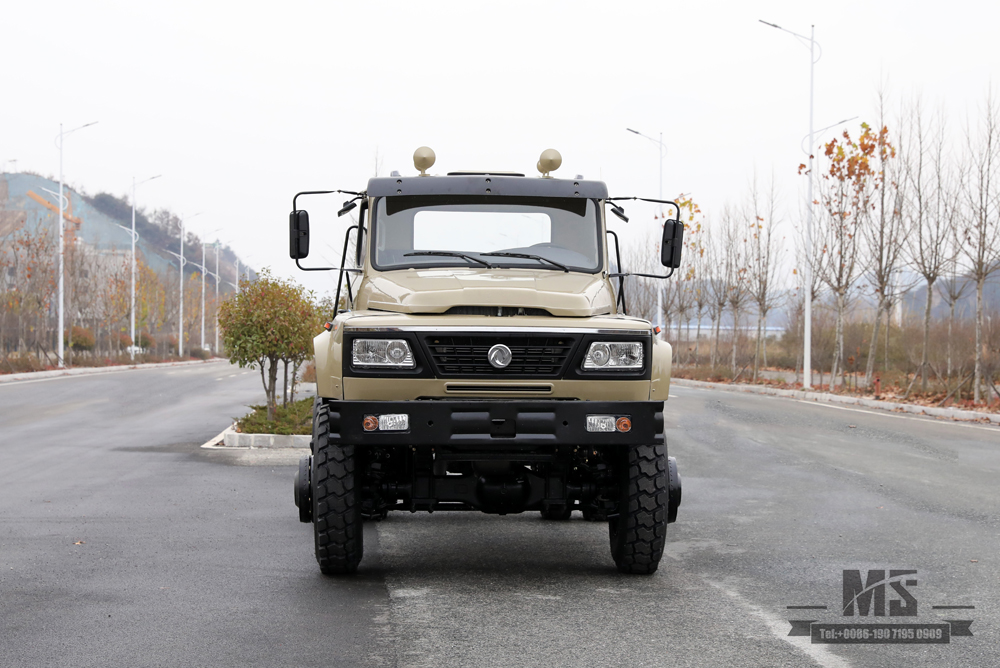

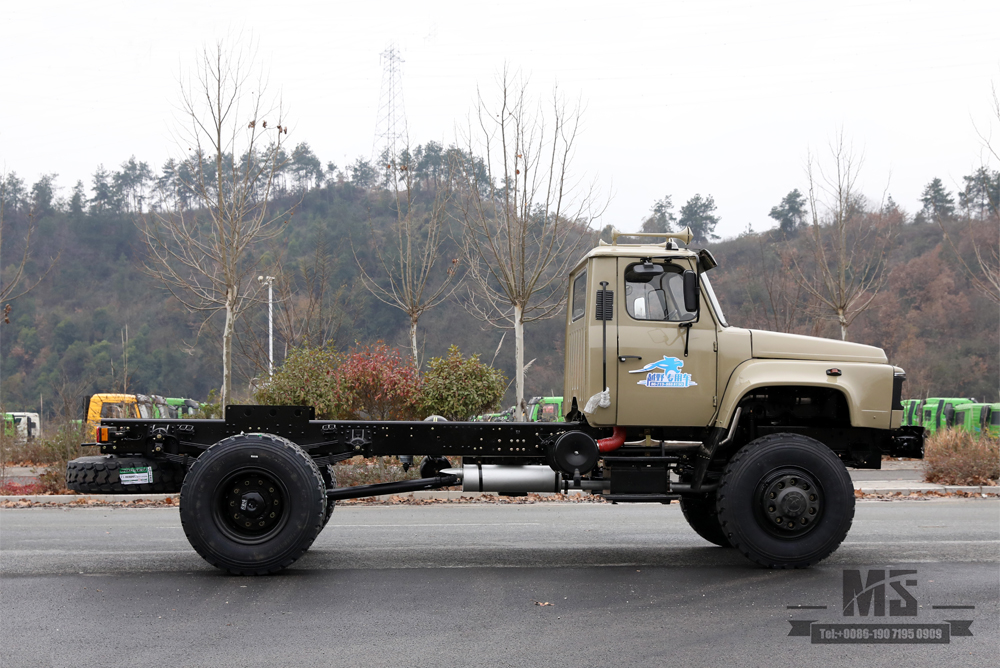

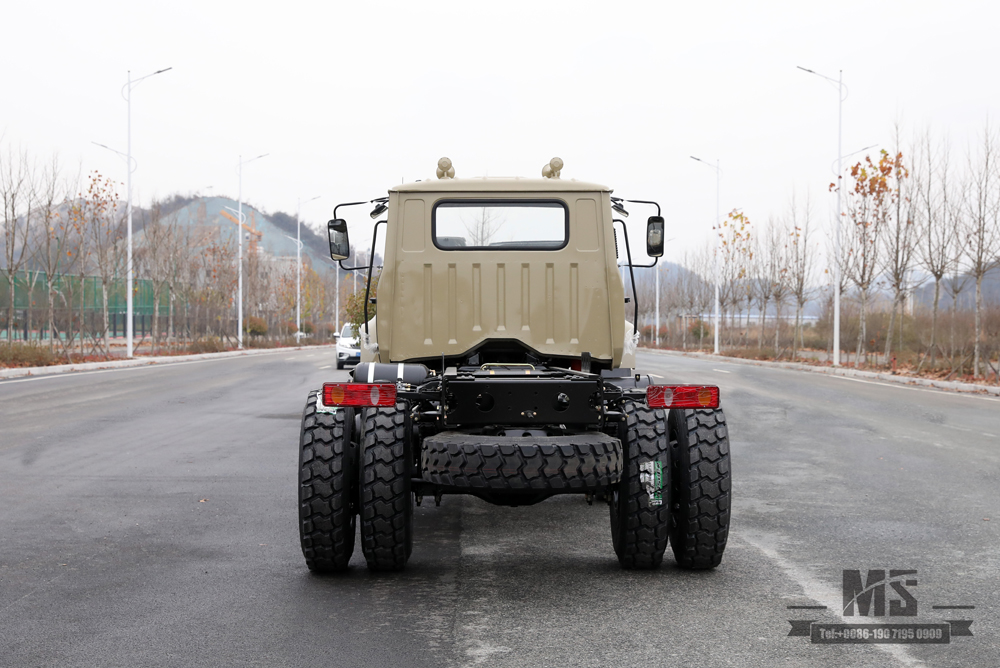

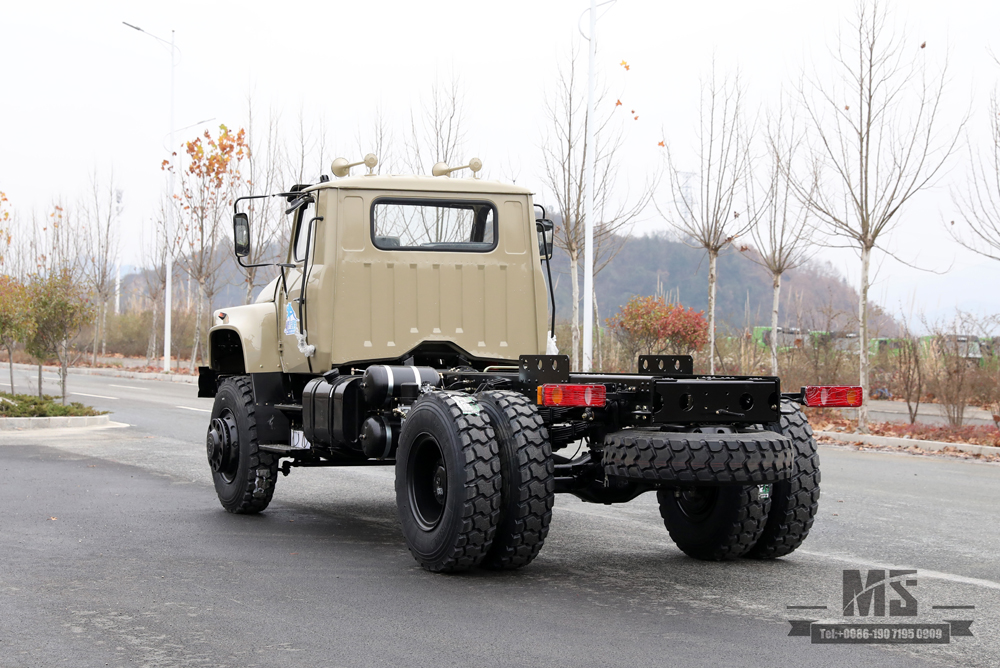

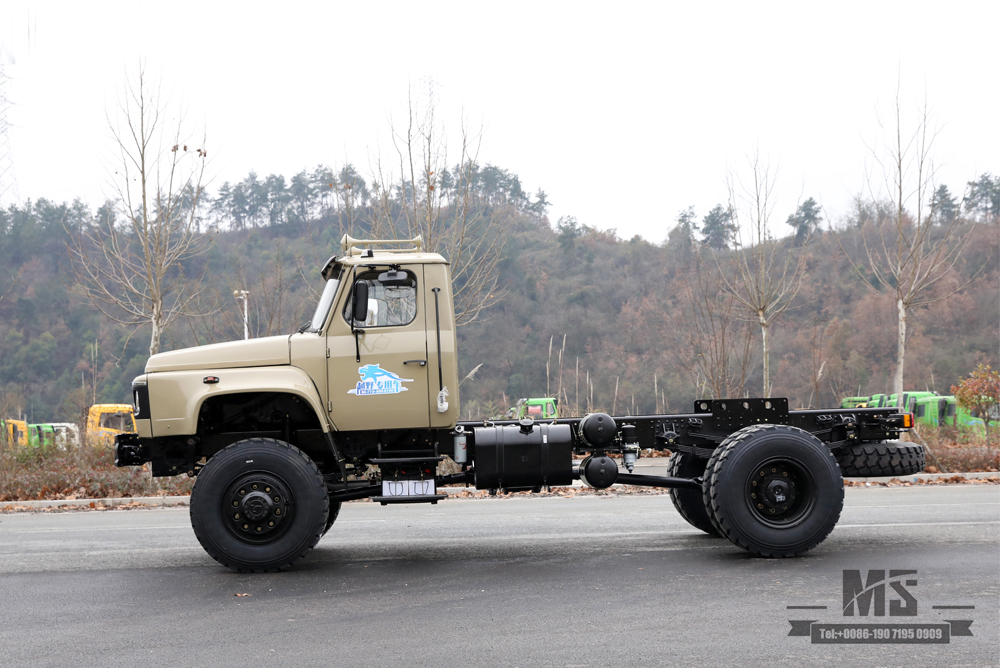

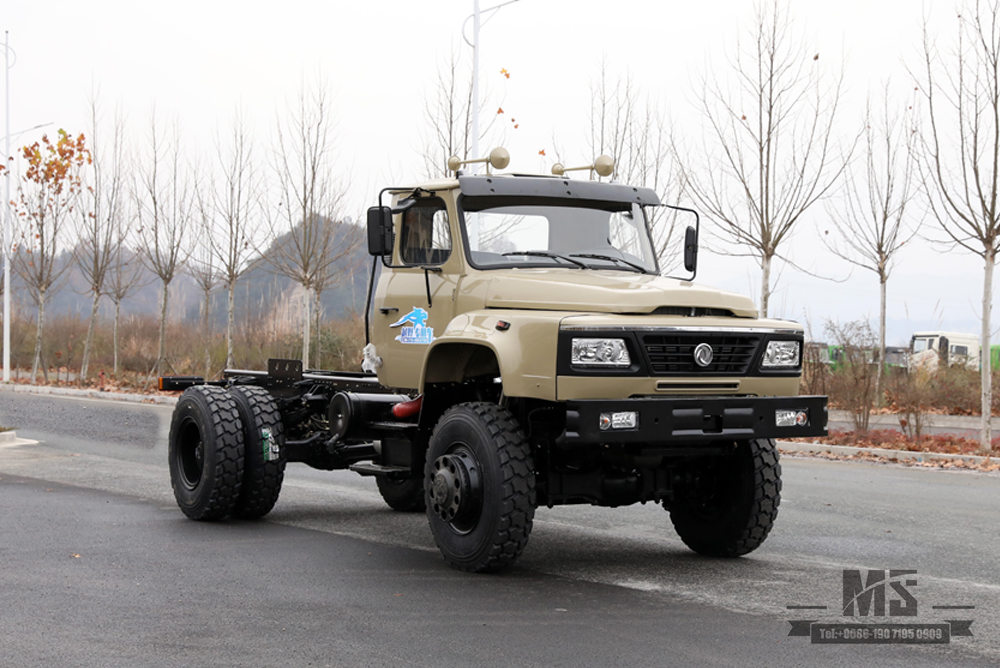

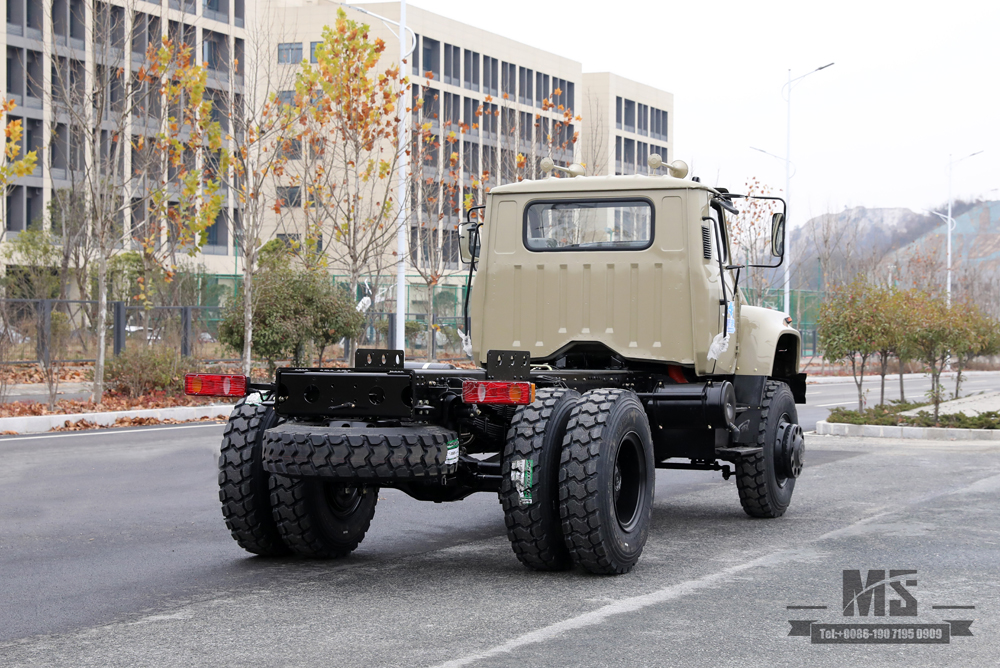

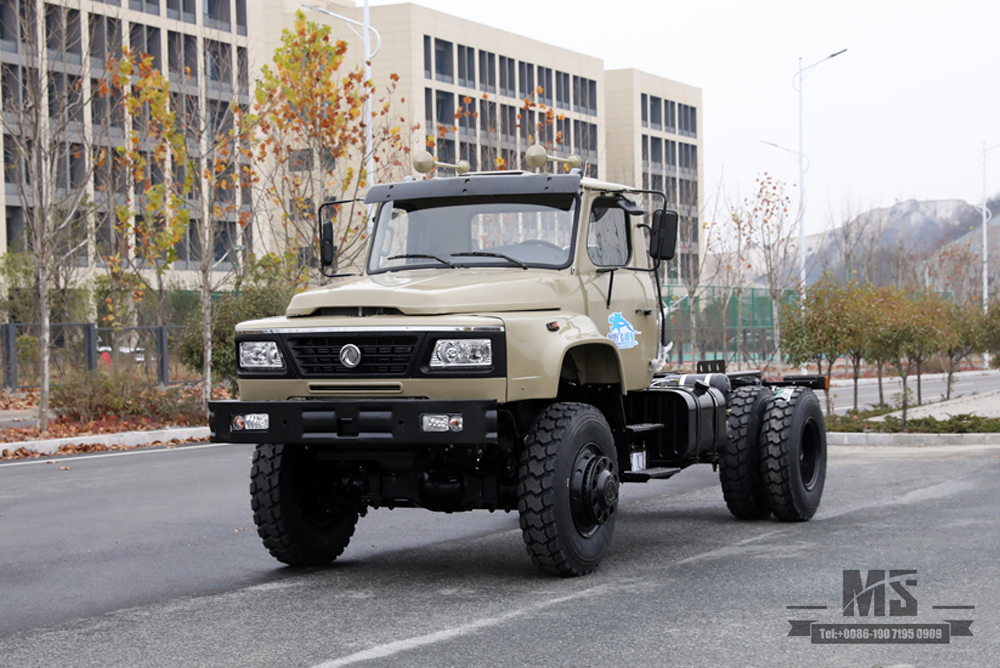

4*4 long head off-road truck chassis adopts Dongfeng 240 pointed cab, the axle adopts the special axle for military vehicles, each axle can carry 3.5 tonnes under off-road condition, and the front winch is installed, which is an off-road export chassis customised for customers.
Basic configuration | |
Drive type | 4*4 |
Engine Model | Cummins B190 33 |
Gearbox | Manual five-speed gearbox |
Transfer Box | Mechanical high and low gears |
Vehicle Frame | 860*160mm, thickness 8mm |
Axle | 3.5T/3.5T |

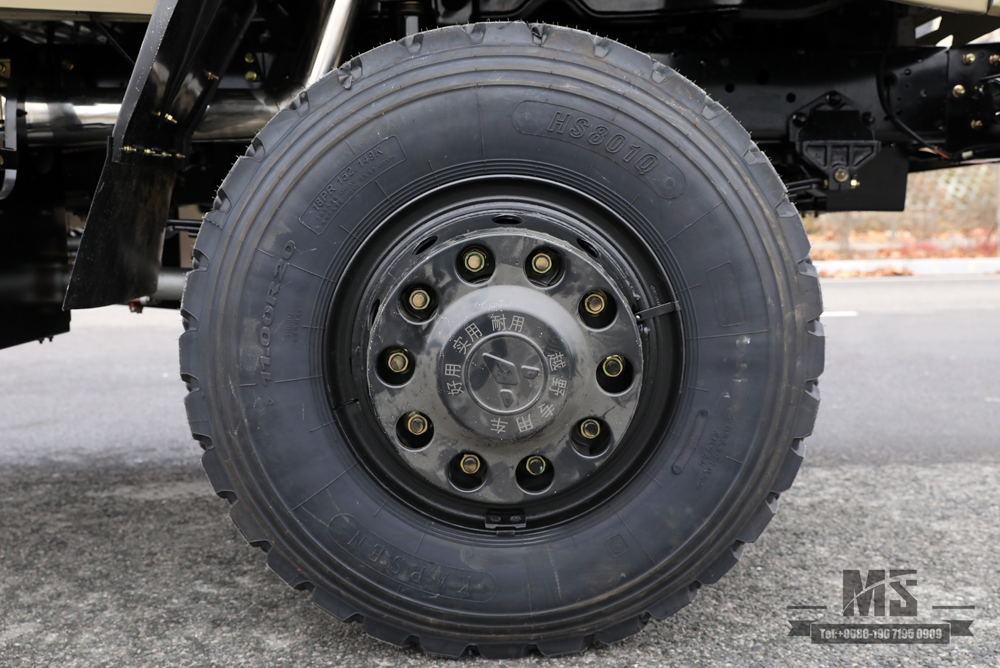

Tire | 12R20(4+1pcs) |

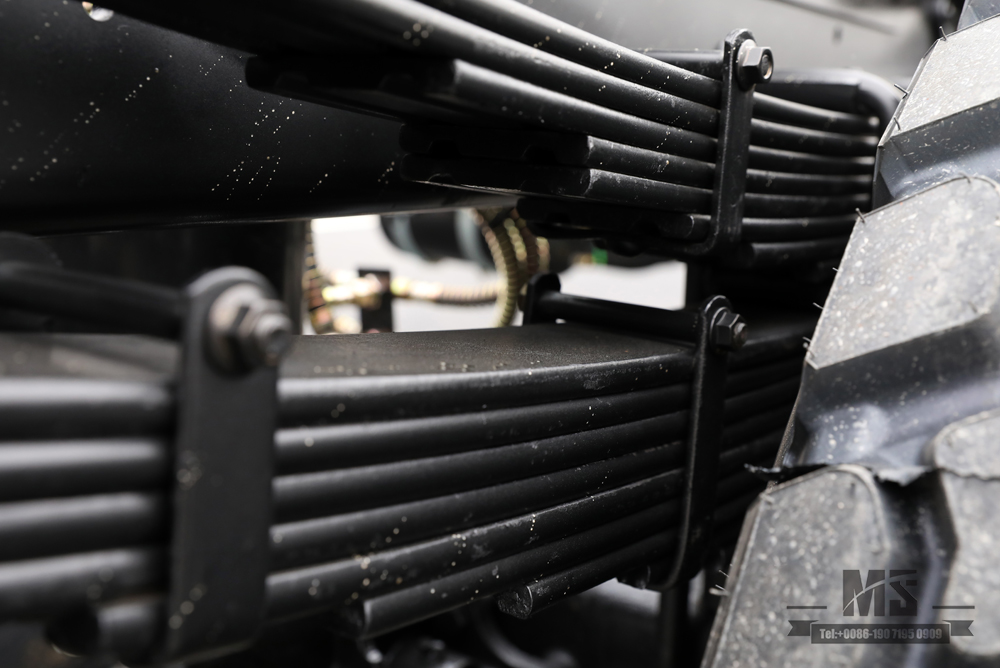

Vehicle Suspension | Steel Plate Spring 9/10 pcs |
Electric Circuit | 24V circuit system, 2pcs 12V high-performance low-temperature batteries |
Optional Items | Cold and warm air-conditioning, power take-off |
Detailed parameter | |
Overall Dimension | 6131*2190*2660mm |
Modification size | ≥3550mm |
Wheelbase | 3430mm |
Wheel Track | 1898/1900mm |
GVW | 7910kg |
Curb Weight | 4270kg |
Number of Passengers | 3 |
Engine Displacement | 5900ml |
Maximum power | 140kw |
Maximum Driving speed | ≥85km/h |
Approach Angle/departure Angle | 31°/27° |
Oil Tank volume | 210L |
Minimum ground clearance | 315mm |
Obstacle Crossing height | 515mm |
Wading depth | 1280mm |
Maximum Climbing Grade | 60% |
Upper Frame Plane Off the Ground | 1180mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
