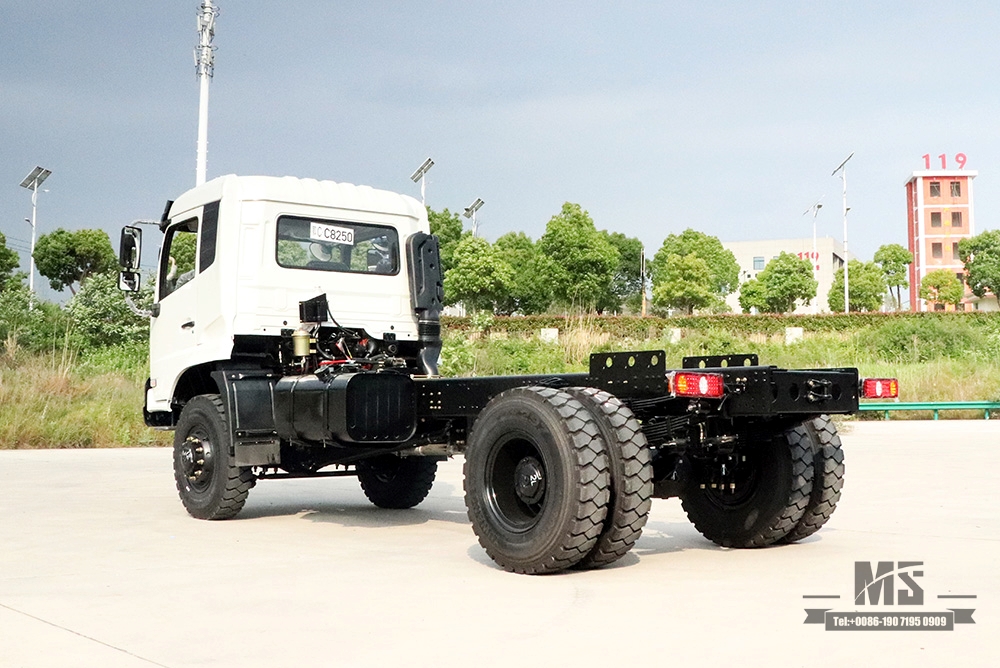

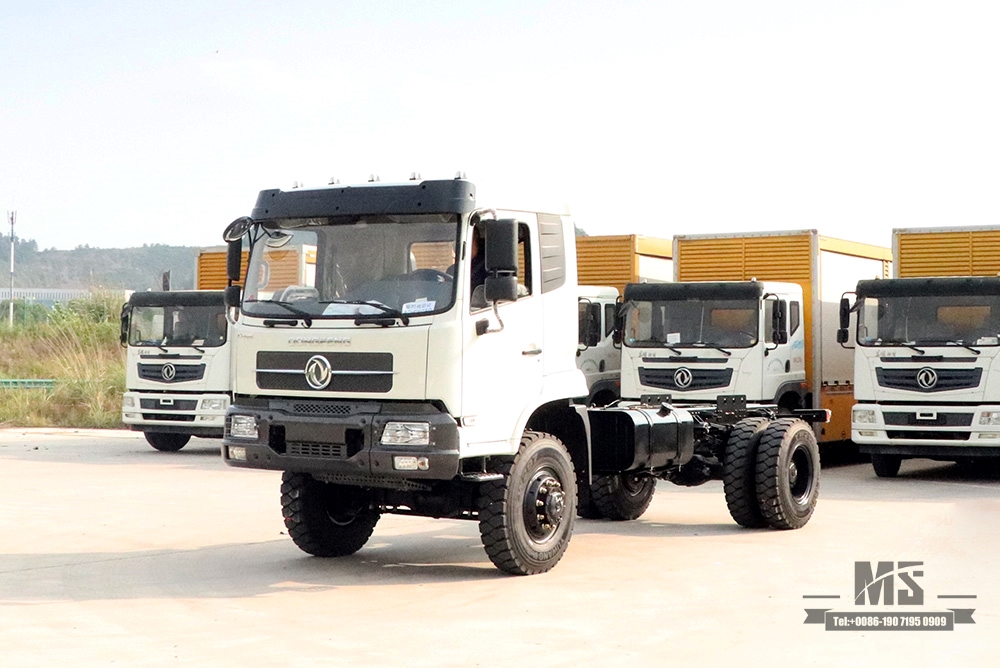

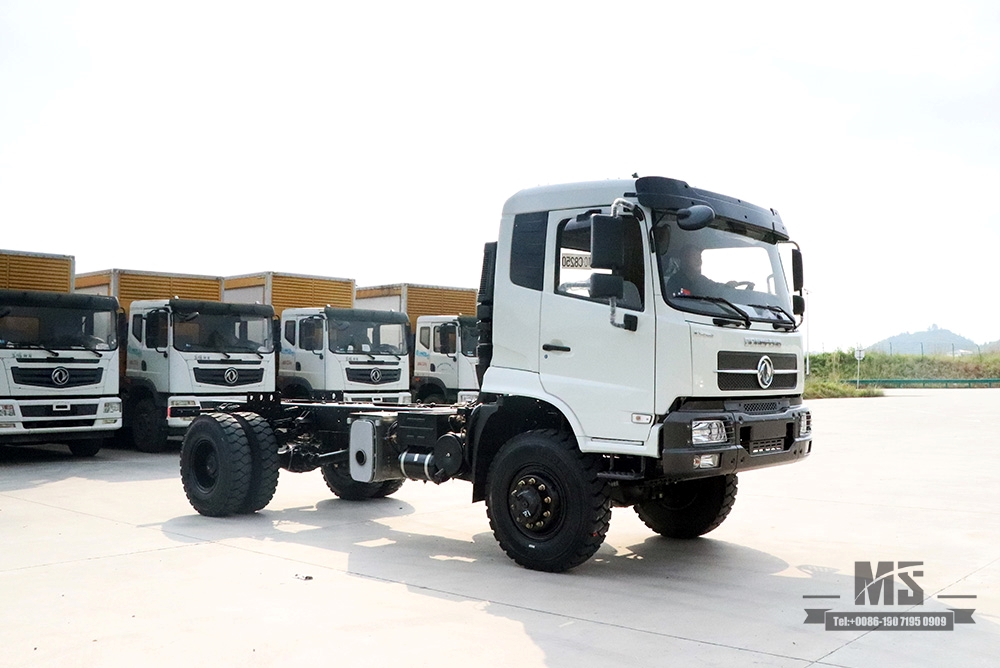

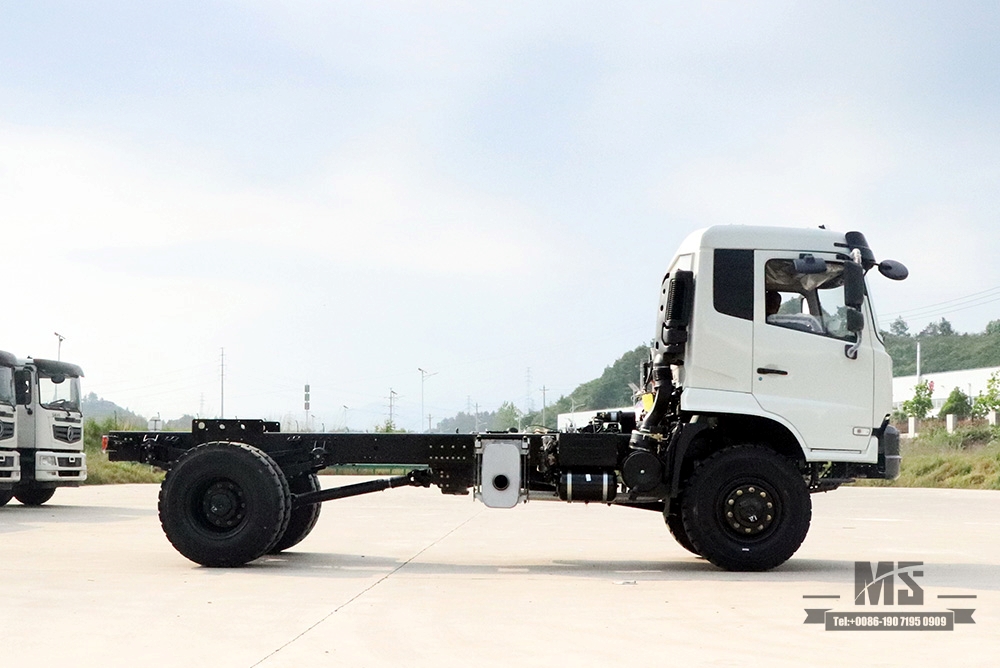

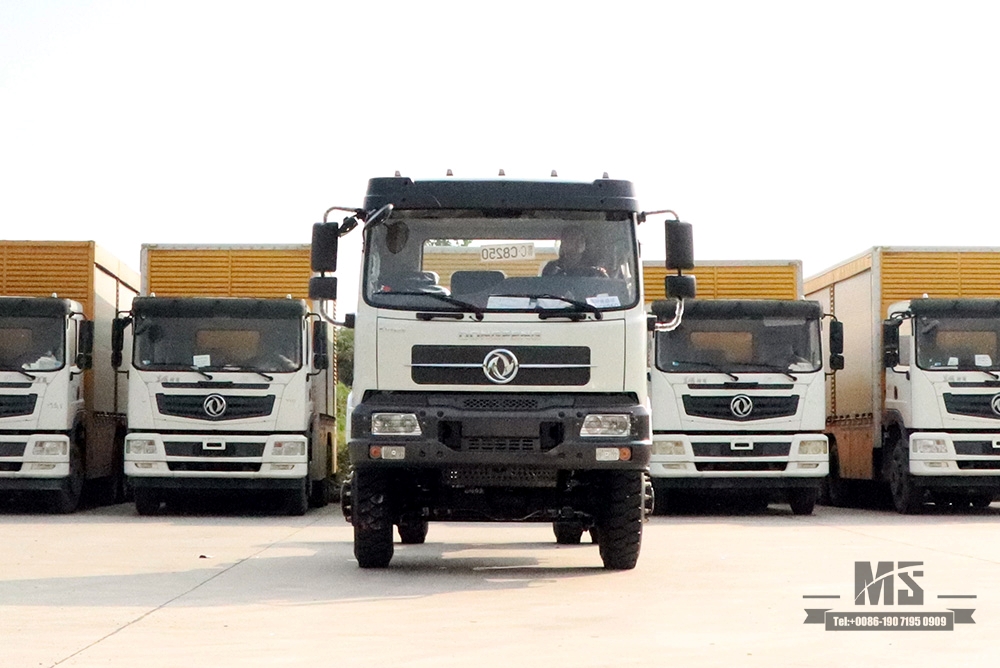

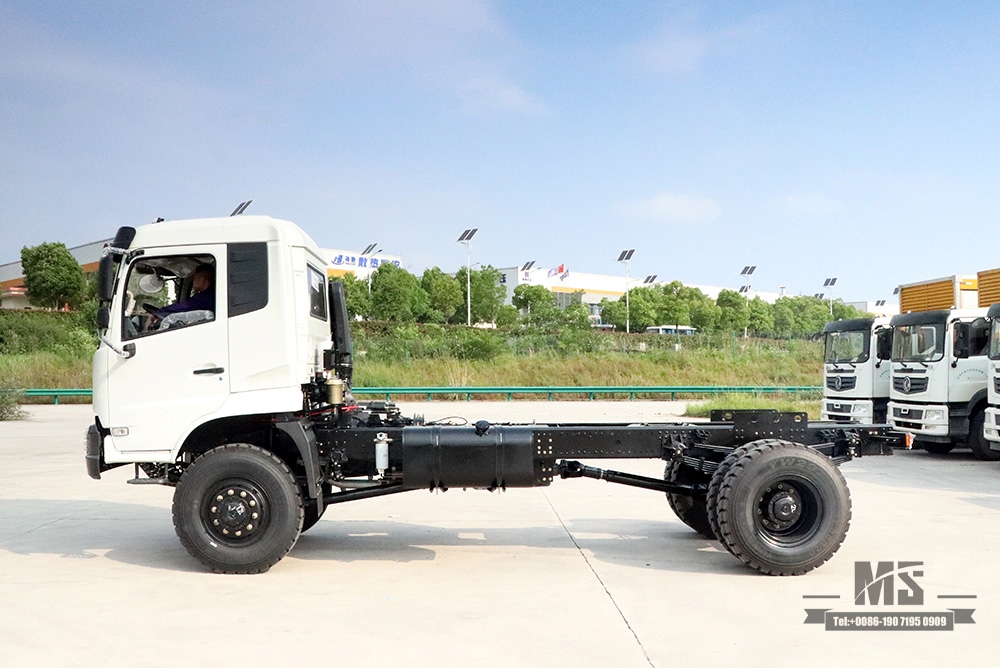

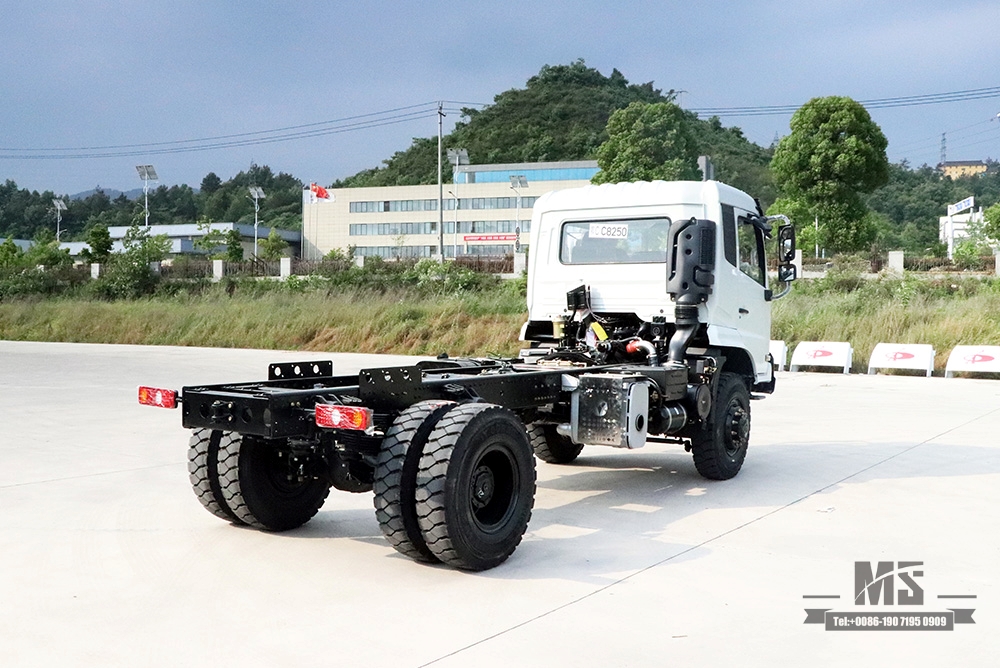

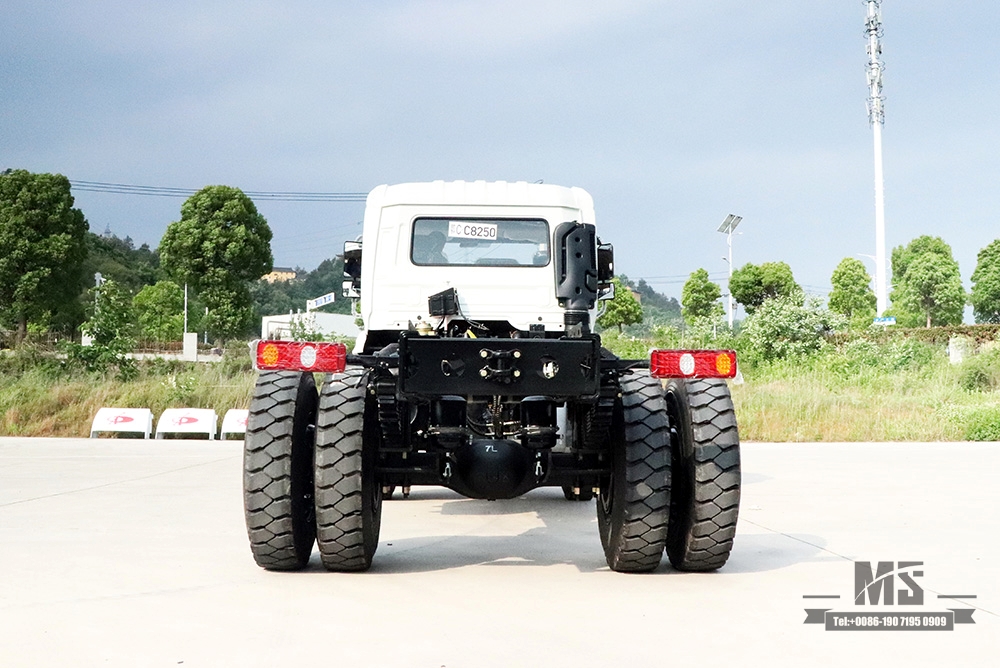

Four-wheel drive off-road vehicle chassis, is our company according to customer requirements to build a dump truck chassis, can also be converted into ordinary trucks, vans, tankers and so on. It adopts Dongfeng Cummins 260hp engine, 4500mm wheelbase, and 4200mm modification space at the rear, and the cab adopts Dongfeng flat head one-and-a-half rows cab with sleeper at the rear, which is highly comfortable.
Basic configuration | |
Engine | CumminsIC260 33 |
Drive type | 4*4 |
Gearbox | Manual Nine-speed gearbox |
Transfer box | Time-shift four-wheel drive with high and low gears |
Vehicle Frame | 860×260×80mm(Double Layer) |
Driver Cab | Dongfeng One and a half Row Flat Head Cab |
Vehicle Axle | 7T/13T |
Tire | 11.00R20(6+1) |
Vehicle Suspension | Steel Plate Spring 8/10+8 |
Electric Circuit | 24V circuit system |
Accessory | Vehicle Accompany Tool,Fire Extinguisher |
Optional Item | Cold and Warm Air Conditioning, Brake Cooling Tanks |
Detailed parameter | |
Overall Vehicle Dimension | 7095*2490*3065mm |
Modification Dimension | 4210mm |
Wheelbase | 4500mm |
Wheel Track | 1918/1870mm |
GVW | 20000kg |
Curb Weight | 6510kg |
Engine Displacement | 4500ml |
Maximum speed | ≥88km/h |
Approach Angle/departure Angle | 29°/38° |
Oil Tank volume | 320L |
Minimum ground clearance | 365mm |
Perpendicular Obstacle Crossing Height | 525mm |

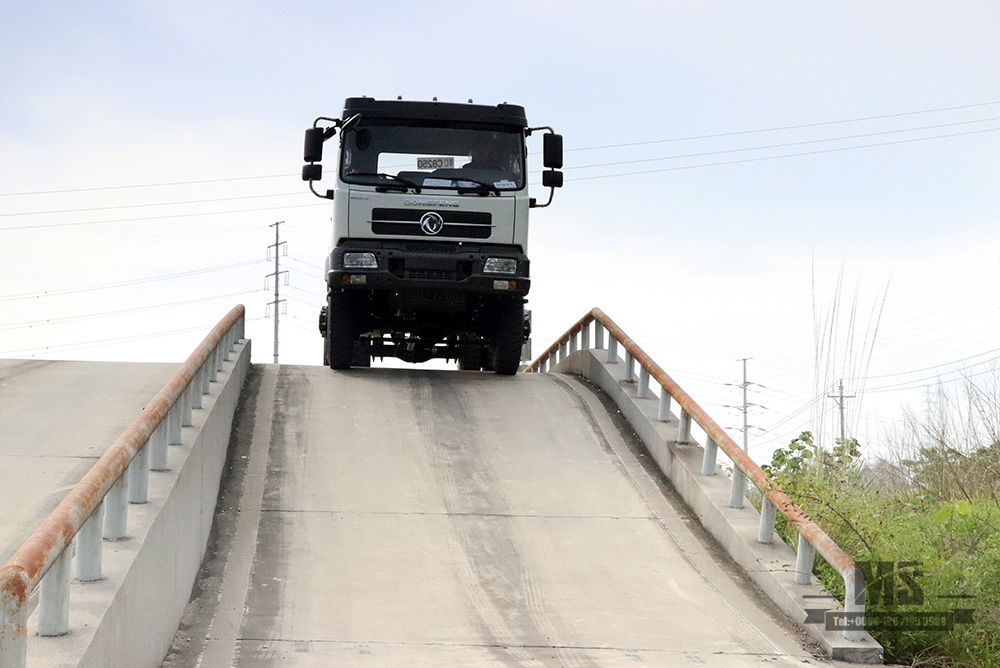

Maximum Climbing Grade | 60% |

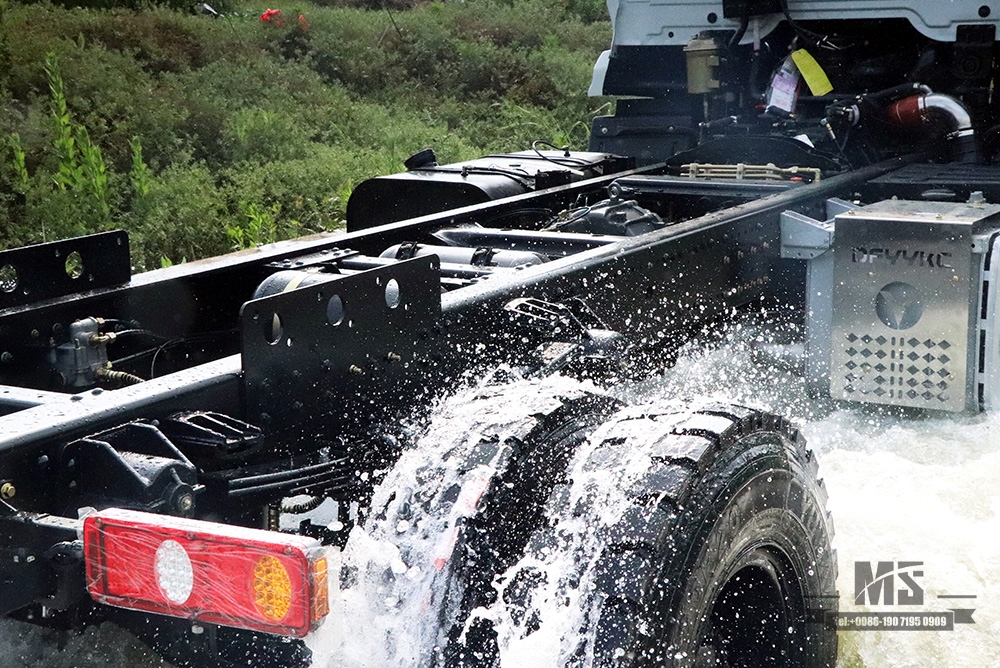

Wading depth | 700mm |
Upper Frame Plane Off the Ground | 1185mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
