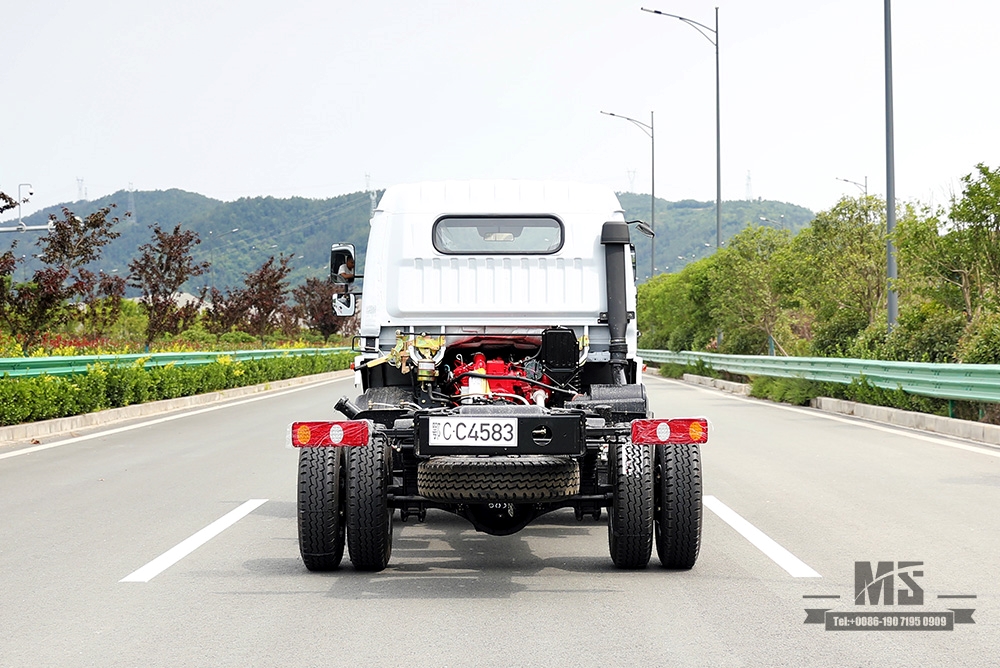

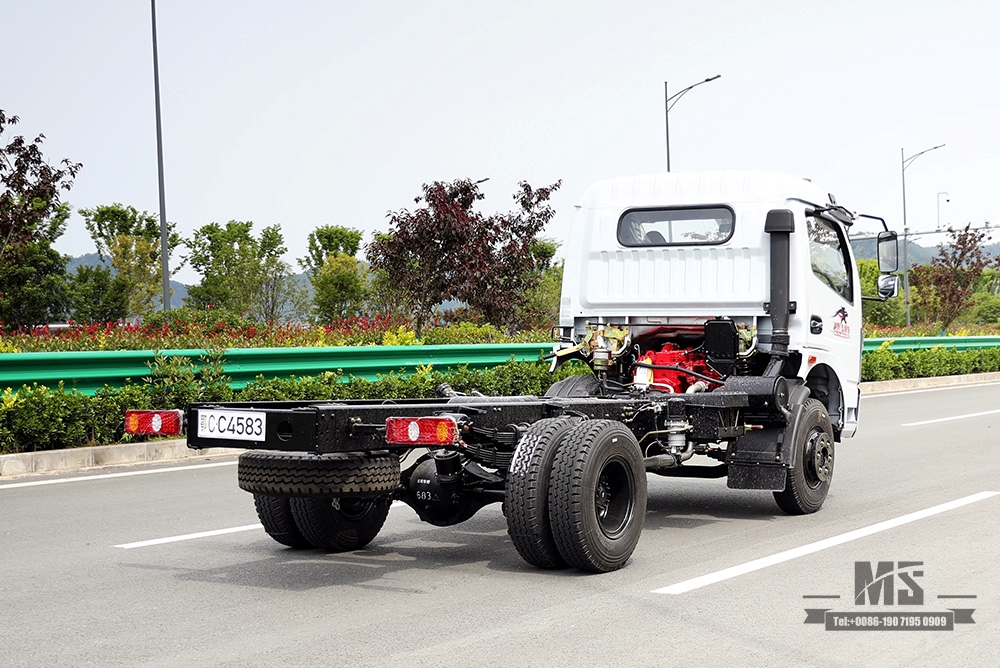

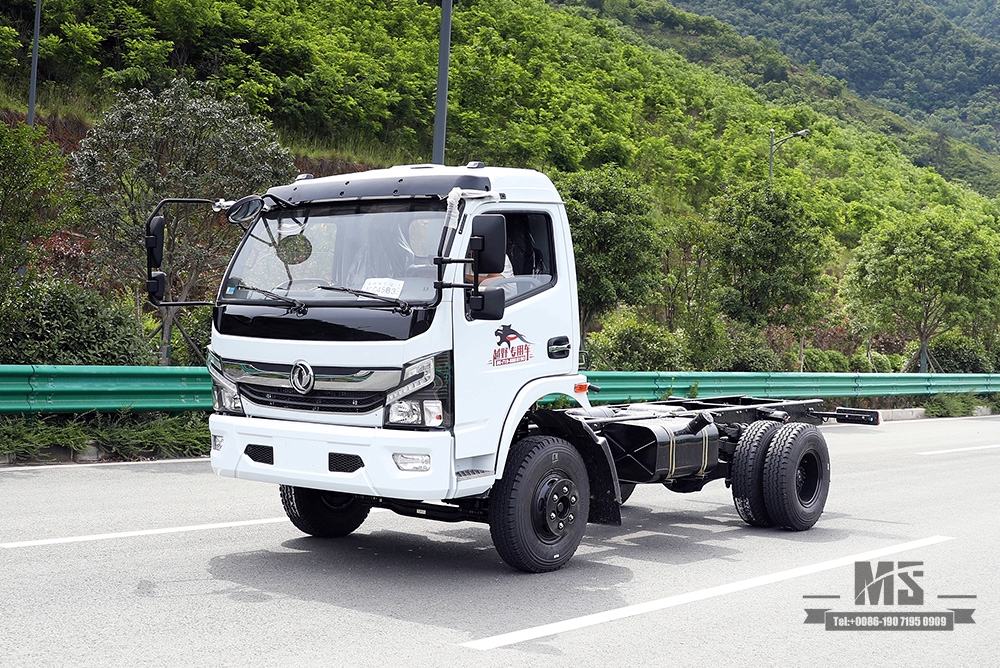

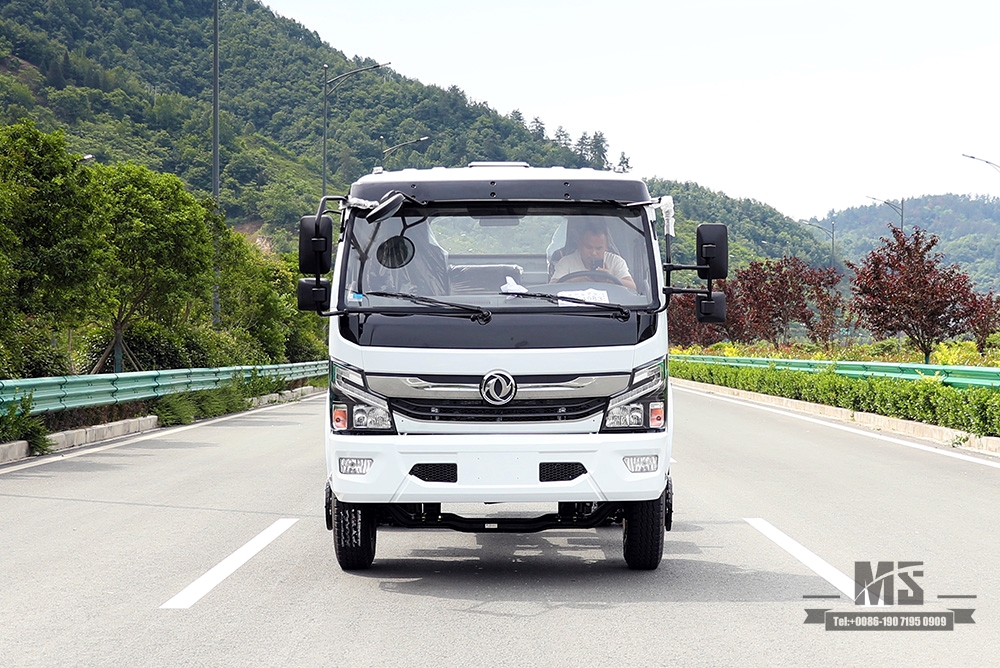

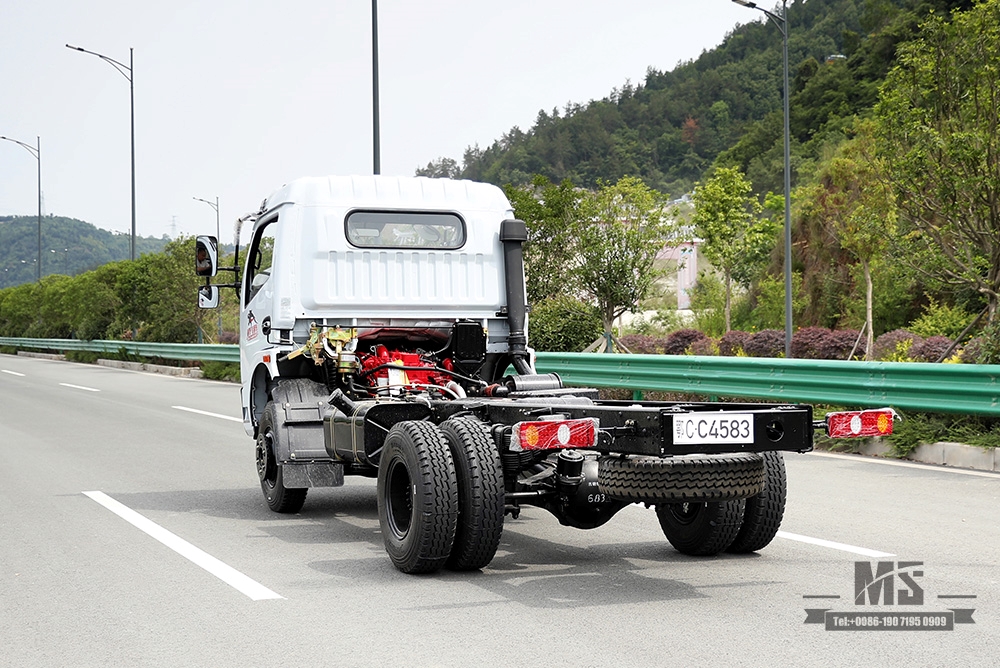

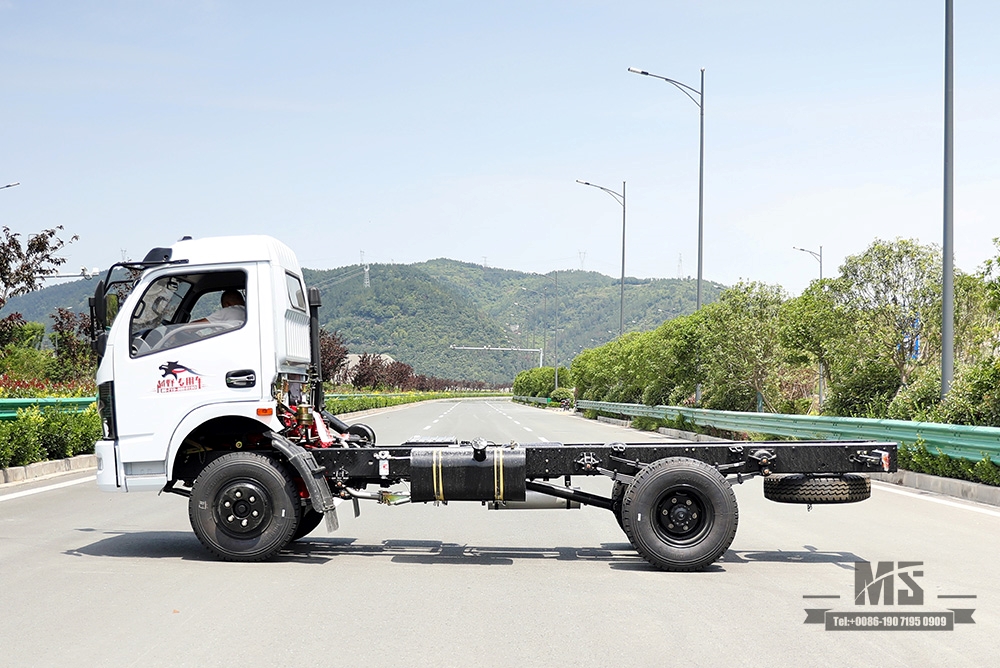

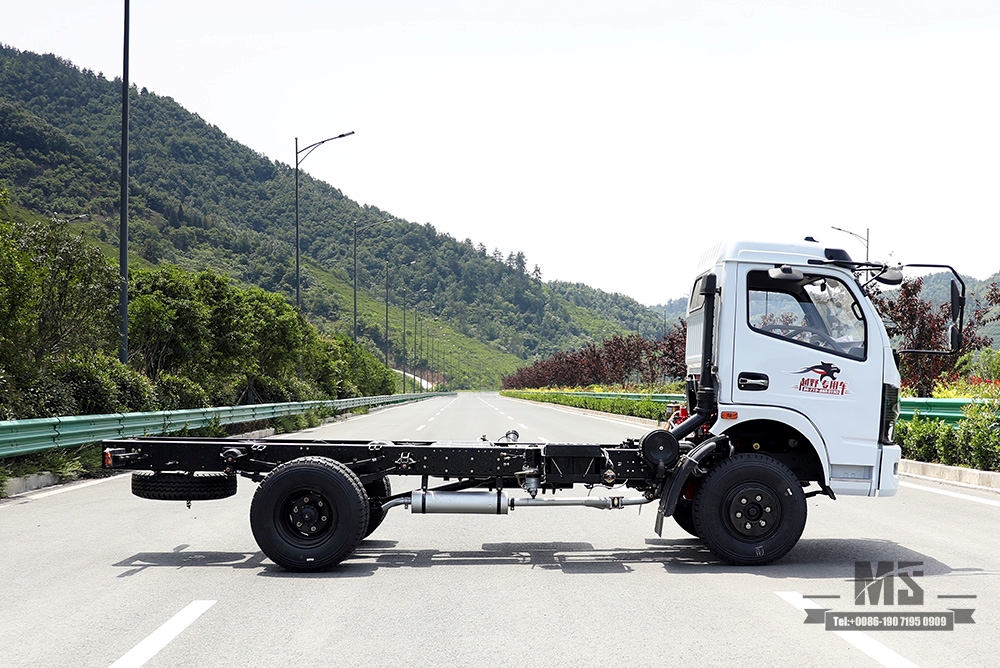

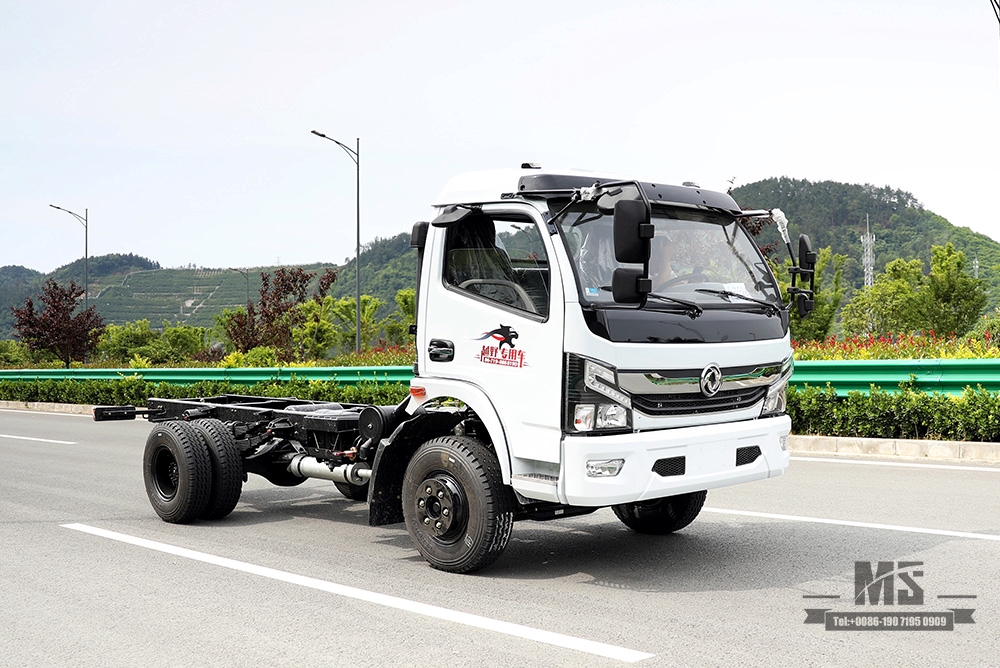

The 4x2 blue tip chassis with the latest 4*2 off-road design ensures excellent passability in various environments. Whether it's a city road or a remote mountain road, with its excellent off-road performance, unrivalled driving experience.
Basic configuration | |
Engine | Cummins B140 33 |
Drive type | 4*2 |
Gearbox | Mechanical Manual Six-speed Gearbox |
Vehicle Frame | 860*230mm (Double Layer) |

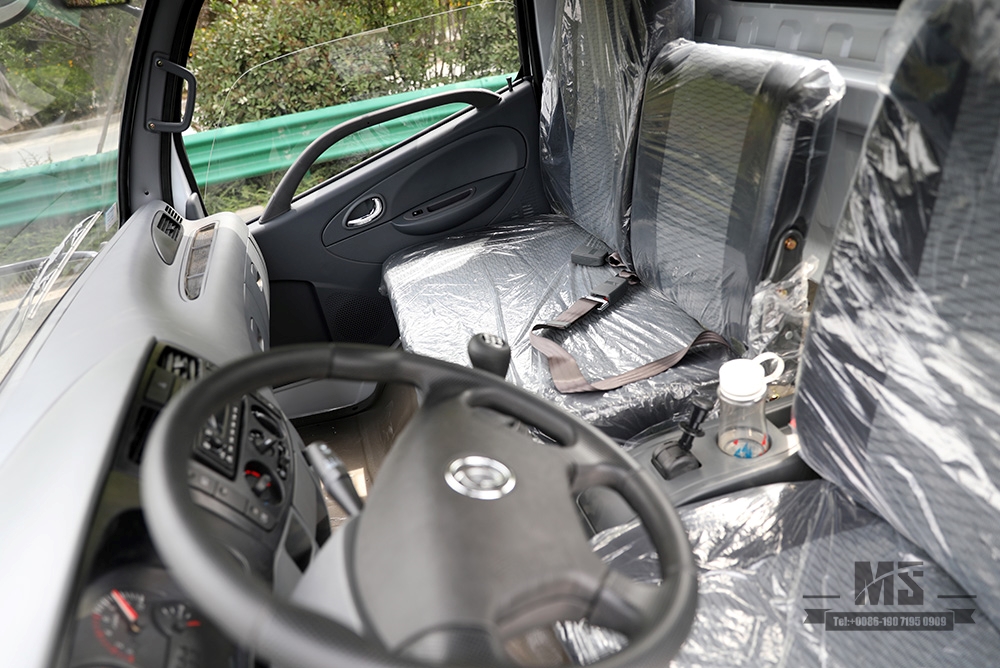

Driver Cab | Dongfeng Lightweight Truck Single Row |
Vehicle Axle | 3T/7T |

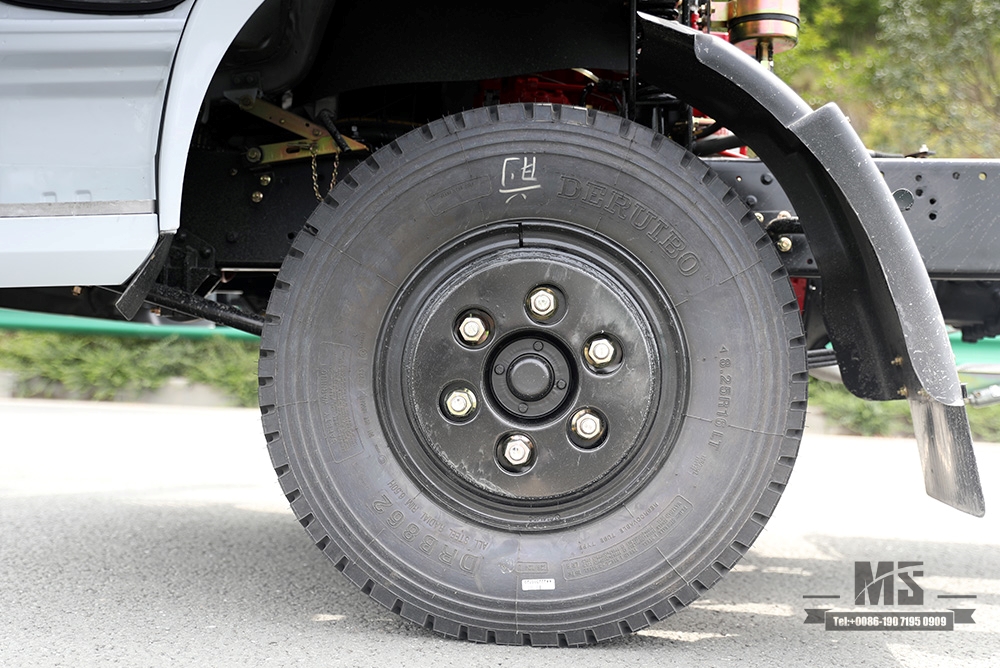

Tire | 8.25R16LT(6+1) |

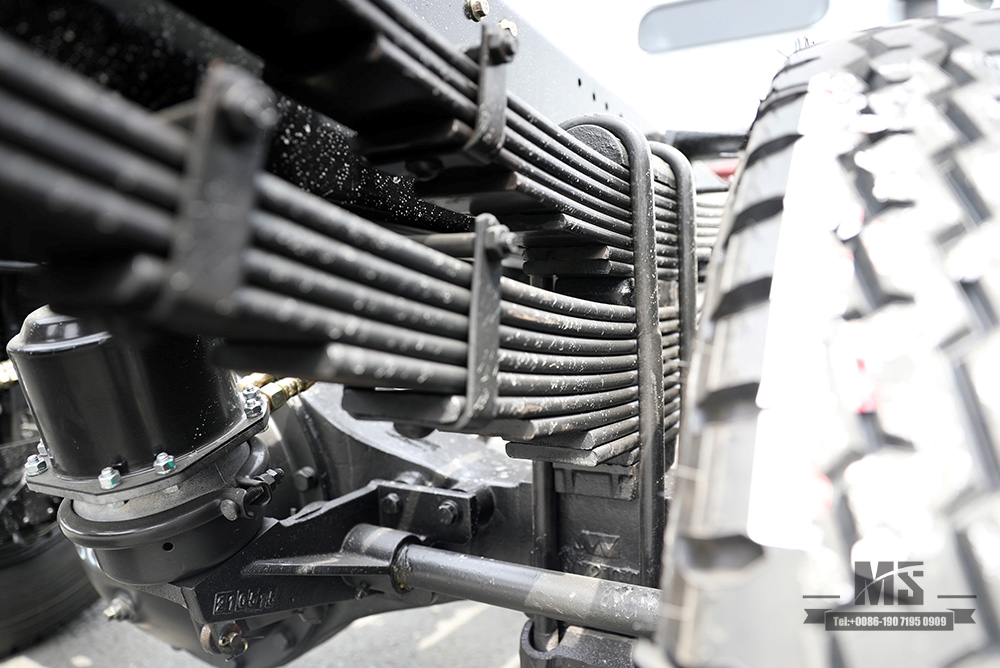

Suspension | Steel Plate Spring 8/10 +8 |
Detailed parameter | |
Chassis Dimension | 6238*2325*2550mm |
Modified Dimension | ≥3140mm |
Wheelbase | 3300mm |
Wheel Track | 1800/1800mm |
GVW | 10000kg |
Curb Weight | 3250kg(Chassis) |
Engine Displacement | 3900ml |
Maximum Power | 103kw |
Maximum speed | 85km/h |
Front Overhang/Rear Overhang | 1230/1708mm |
Approach Angle/departure Angle | 22°/23° |
Oil Tank volume | 150L |
Vehicle Frame Upper Plane Off the Ground | 978mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
