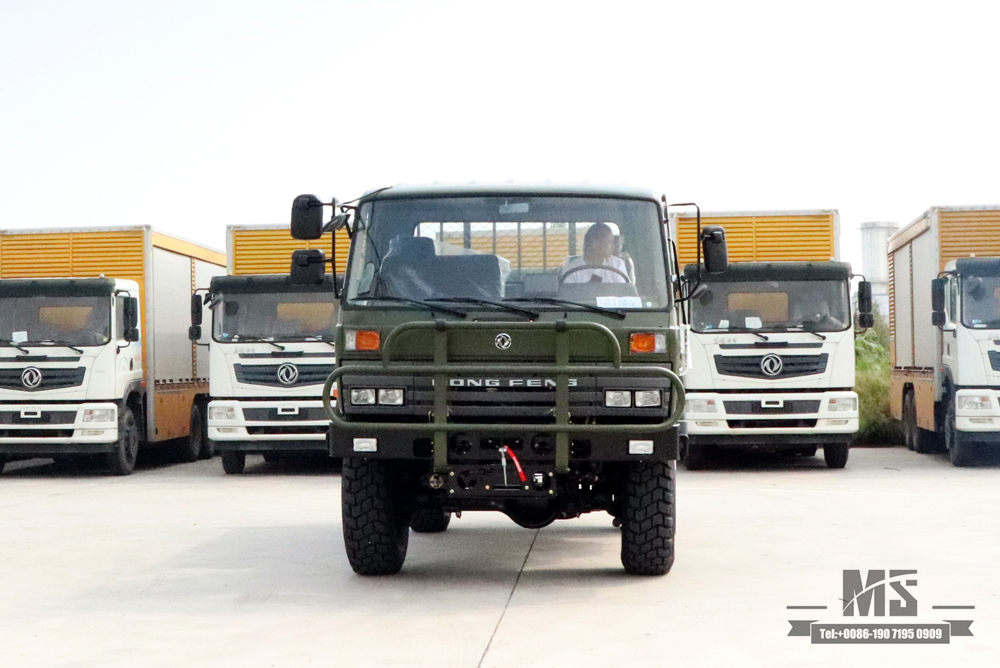

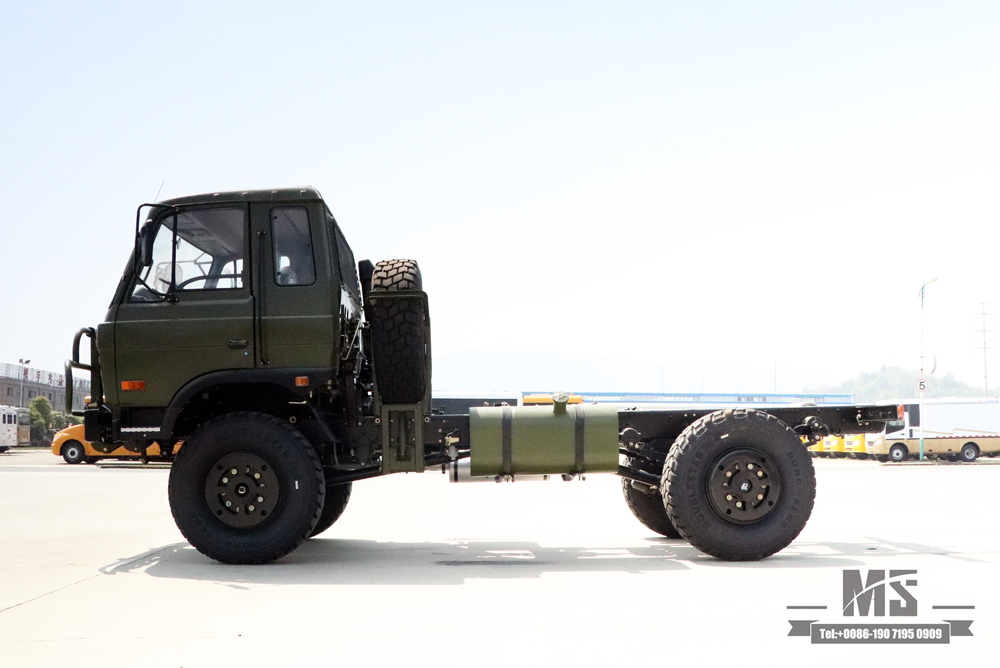

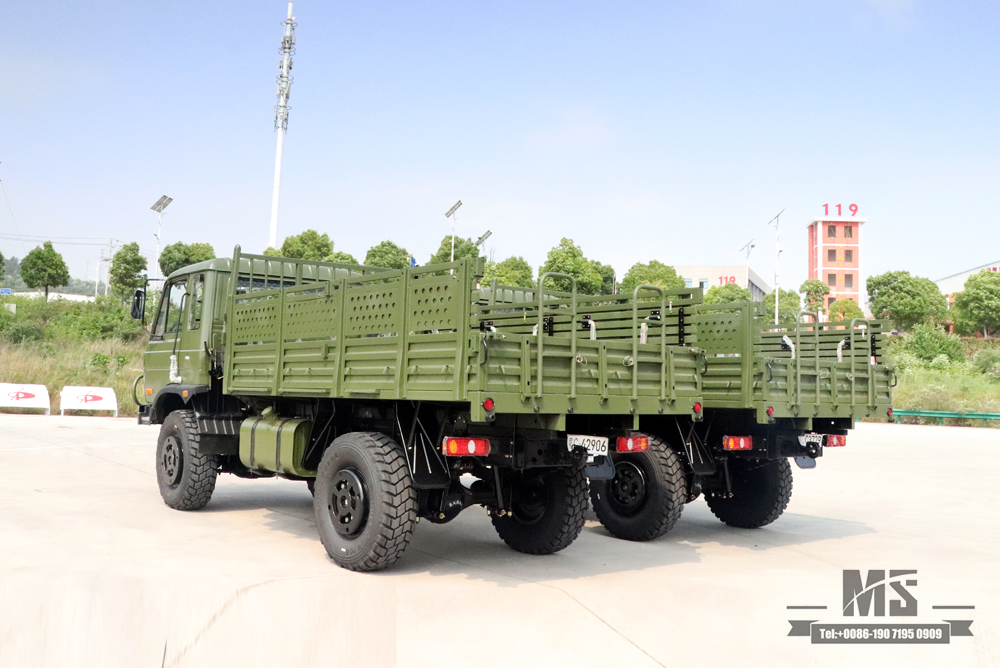

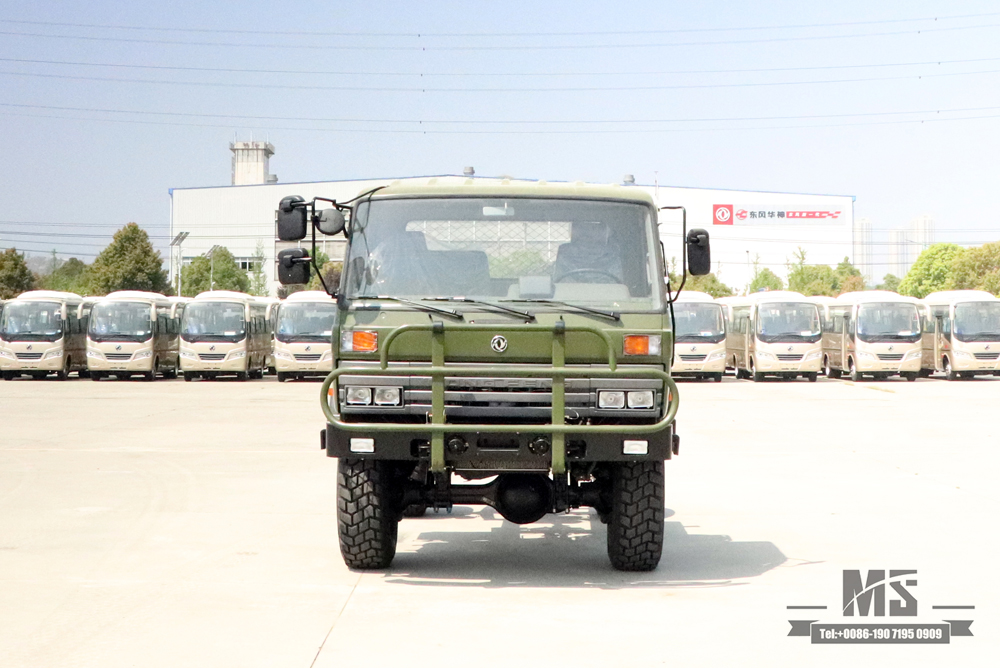

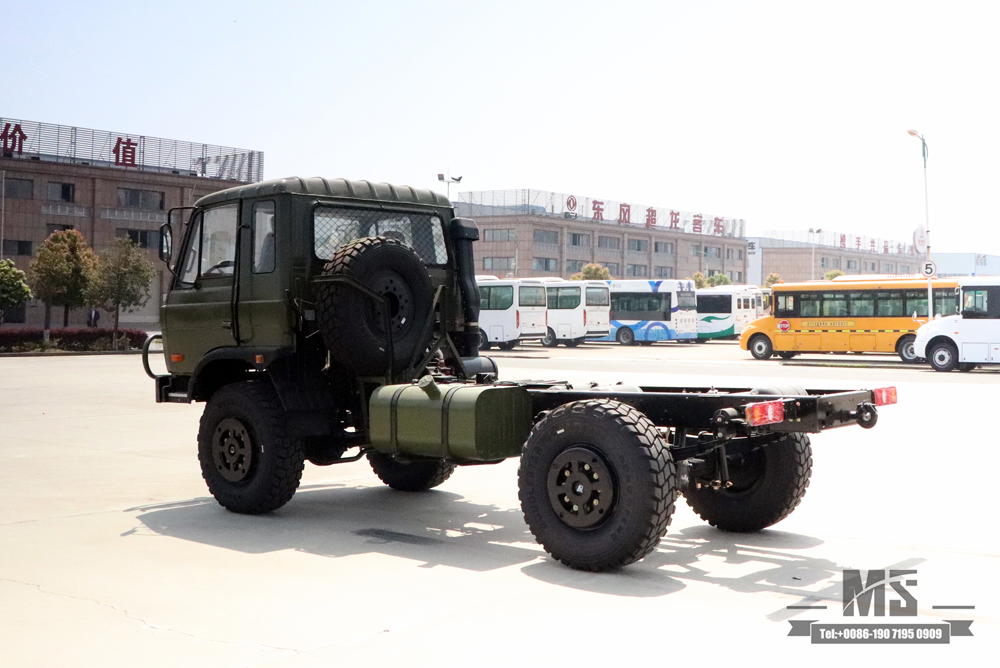

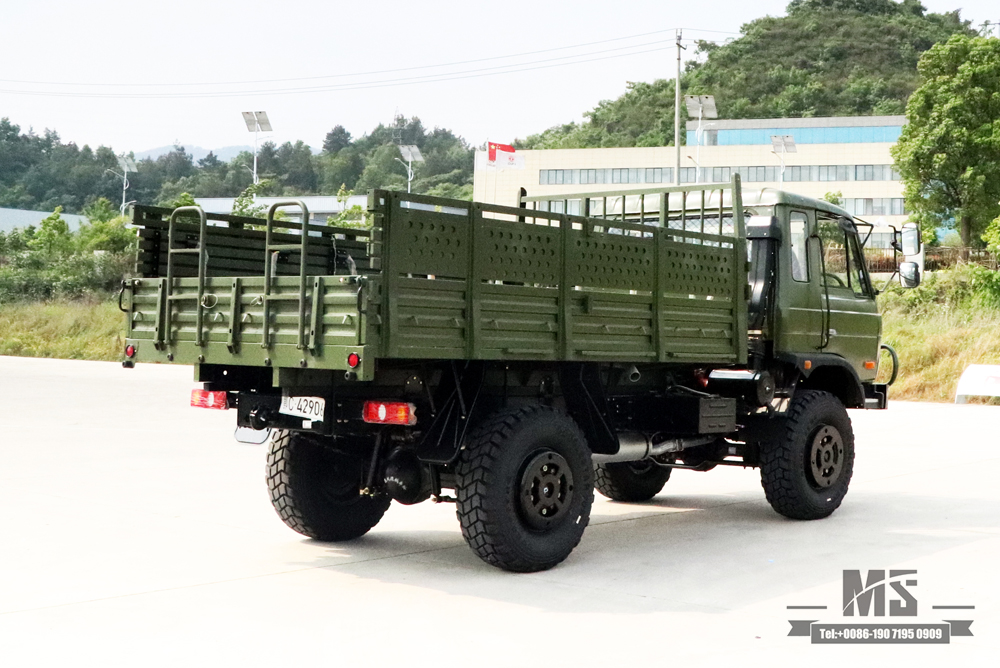

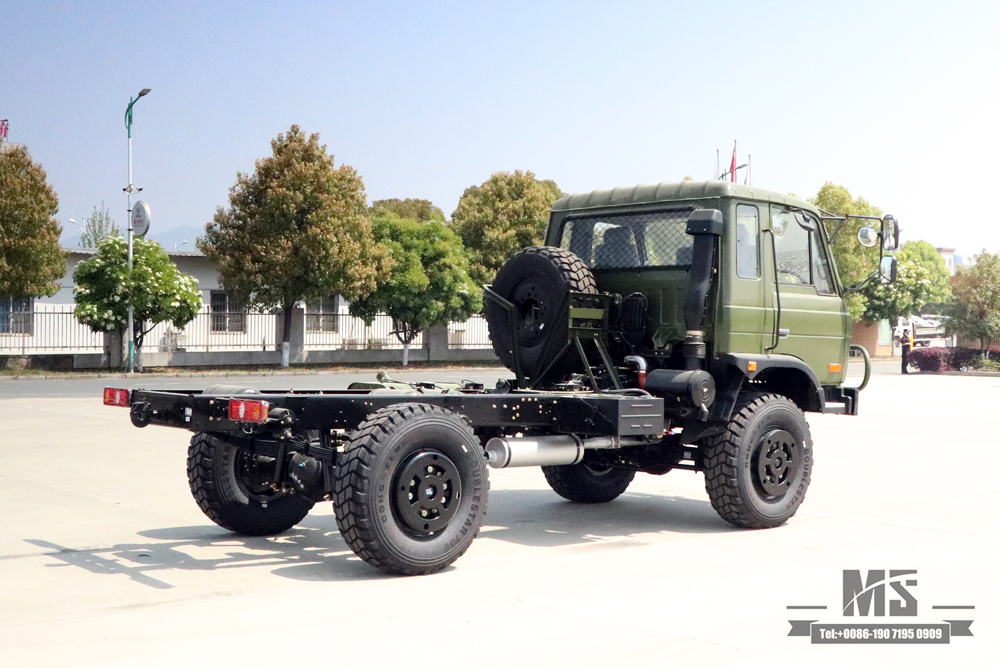

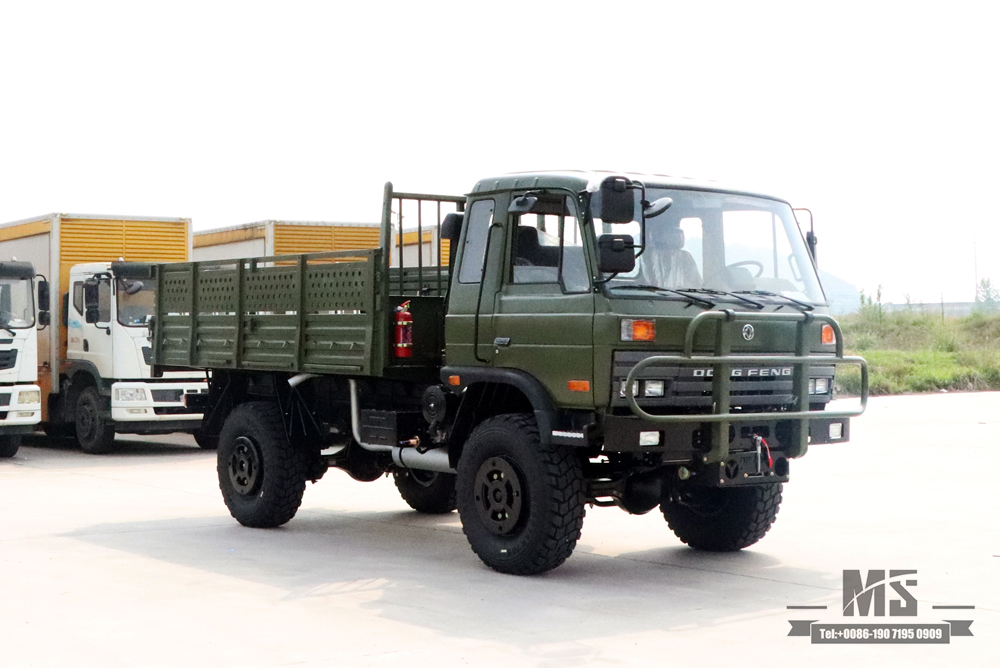

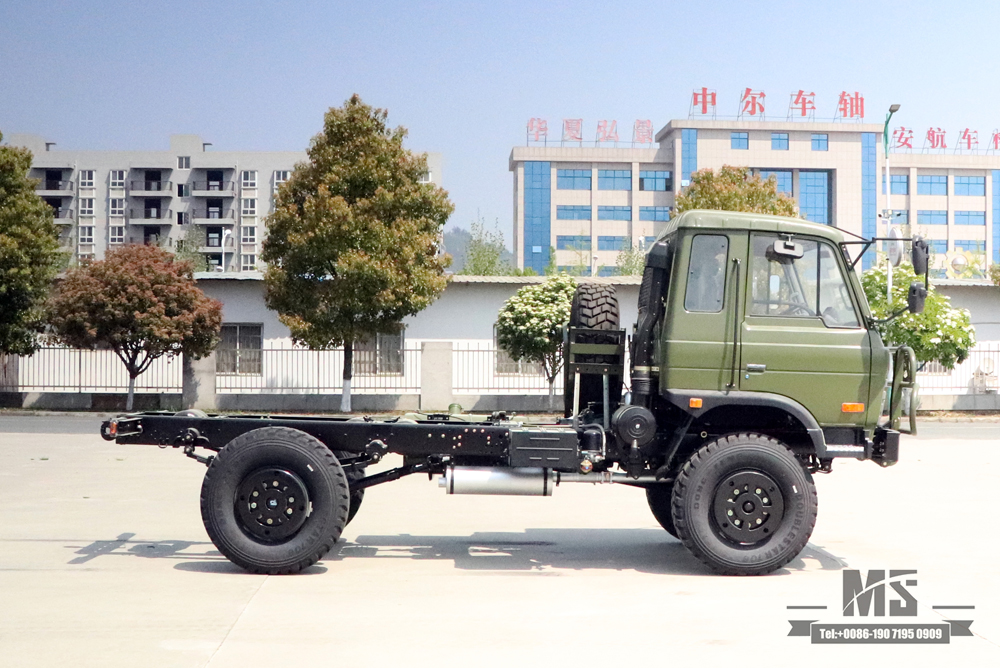

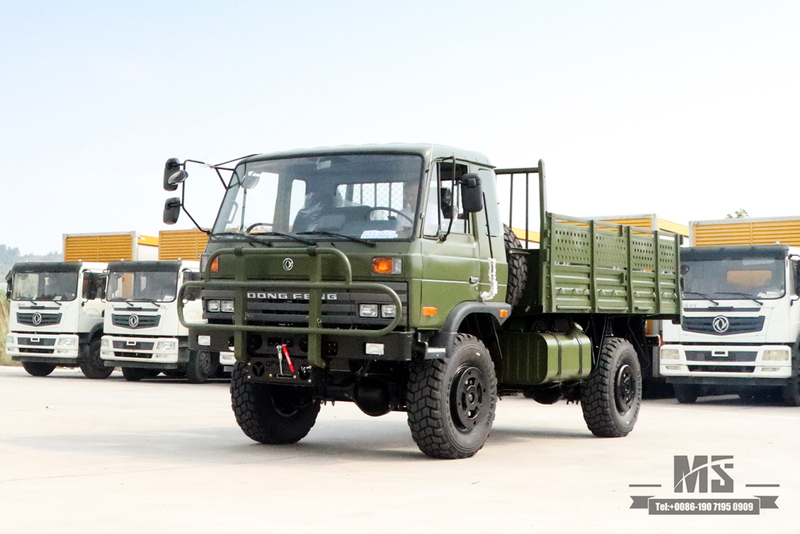

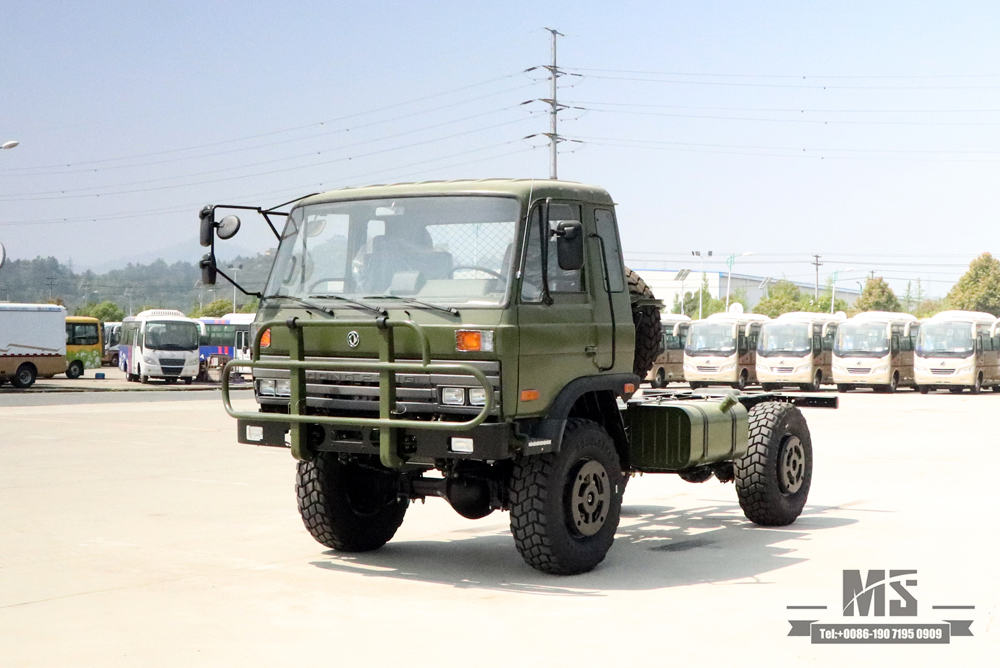

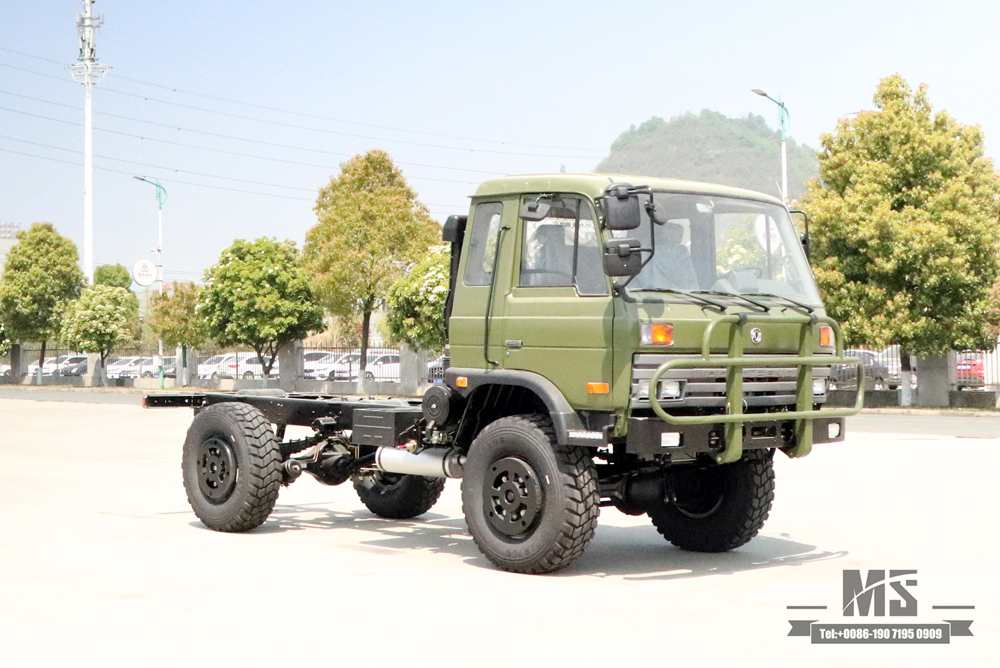

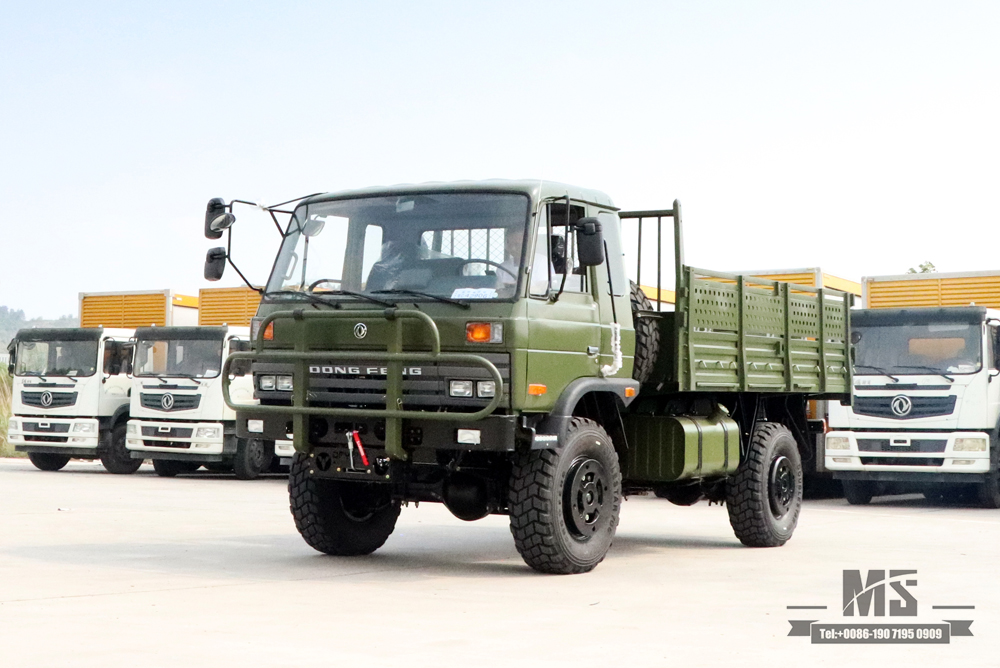

Dongfeng EQ2070 flathead 4WD off-road truck chassis is equipped with Dongfeng Cummins 190 HP engine and 12.5R20 steel wire off-road tyres. This chassis can be converted into 4WD troop carrier, material transport truck, oil truck, water truck, field cooking truck, power supply truck, etc. to meet the needs of various industries. Our company can design and customise special vehicles according to customer's individual use and different scenarios.
Basic configuration |
Engine | Cummins B190 33 |
| Drive type | 4*4 |
Gearbox | Manual Six-speed gearbox |
Transfer box | Time-shift four-wheel drive with high and low gears |
Vehicle Frame
| 860*280mm，8+6mm |
Driver Cab
| Dongfeng 153 One and a half Cab |
Axle | 3.6T/3.6T |
Tire | 12.5R20(4+1) |
Other | Hydraulic clutch assist, hydraulic steering assist, exhaust brake |
| Electric Circuit | 24V circuit system |
Optional Items
| Cold and warm air conditioning, Winch, Anti-roll bracket |

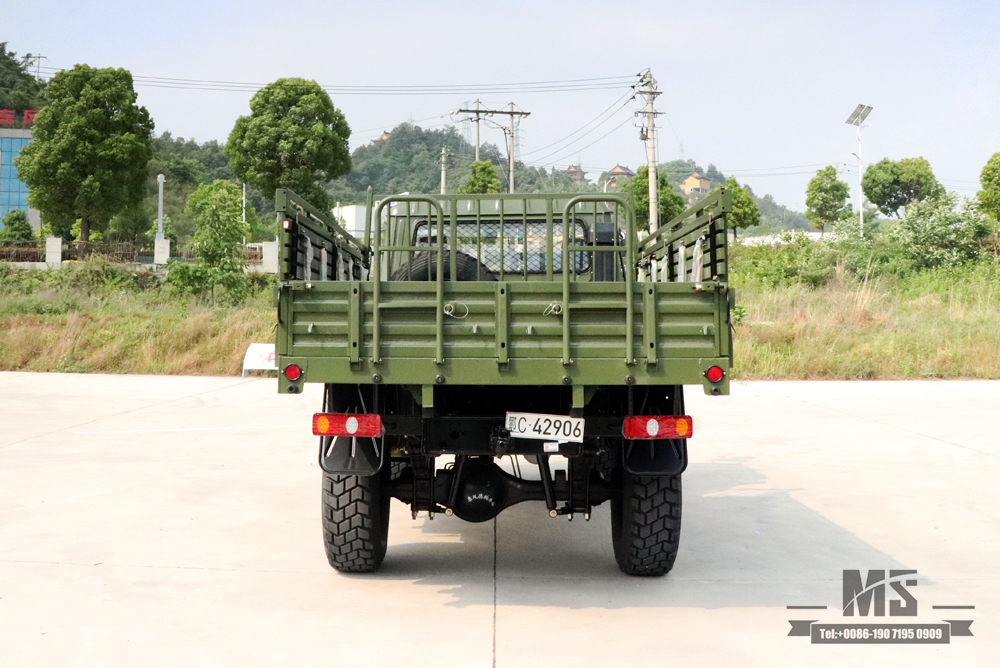

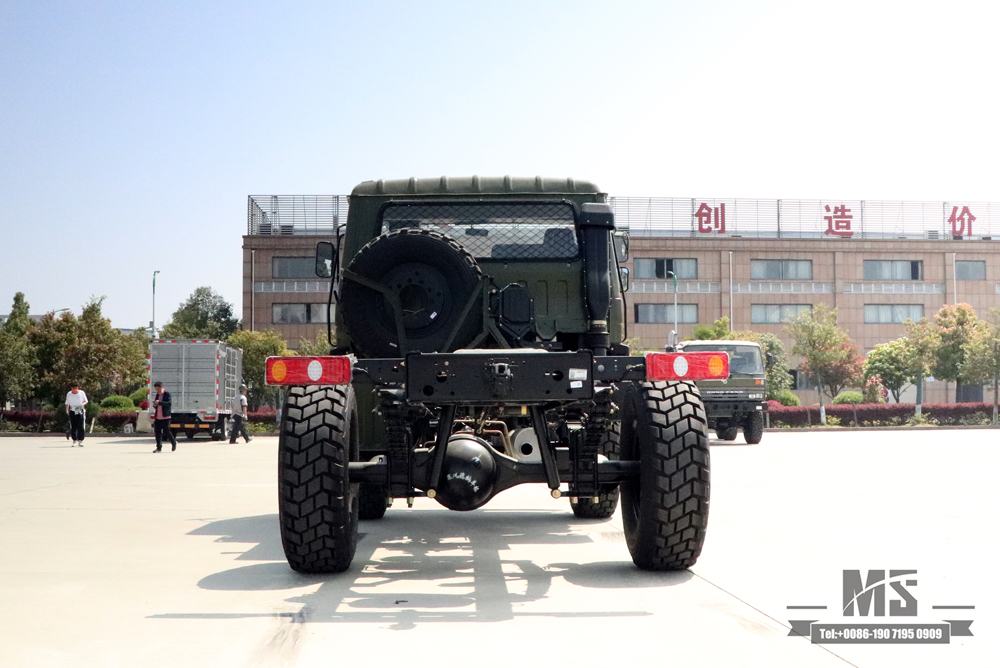

The rear of the vehicle is equipped with a towing hook, electrical connector, air brake connector, can tow the gun (with two-way damping), for the artillery supply of gas and electricity.
The cargo box has a folding ladder.
With cold start, anti-aircraft lights, secondary fuel tank, oil drums, buckets, toolboxes, tarpaulin poles and other additional devices, the whole vehicle can be started smoothly in -41 ℃ ambient temperature.
Detailed parameter |
Overall Dimension |
6500*2470*2780mm |
| Cargobox Dimension | 3545*2294*900mm |
| Wheelbase | 3600mm |
Wheel Track | 1876/1870mm |
GVW | 7910kg |
| Curb Weight | 4955kg |
| Maximum Load Capacity | 8510kg |
| Maximum speed | ≥78km/h |
Obstacle Crossing height
| 410mm |
Approach Angle/departure Angle | 35°/33° |
Oil Tank volume | 140+80L |
Minimum ground clearance | 305mm |
Maximum Driving Mileage | 800km |
| Maximum Climbing Grade | 60% |
| Minimum Turning Diameter | 15m |
Note: This configuration is for reference only, please refer to the actual car.
