Basic configuration |
Drive type | 4*2 |
Engine | WP6.240E32 |
Transmission | Shou chi Manual 10-speed |

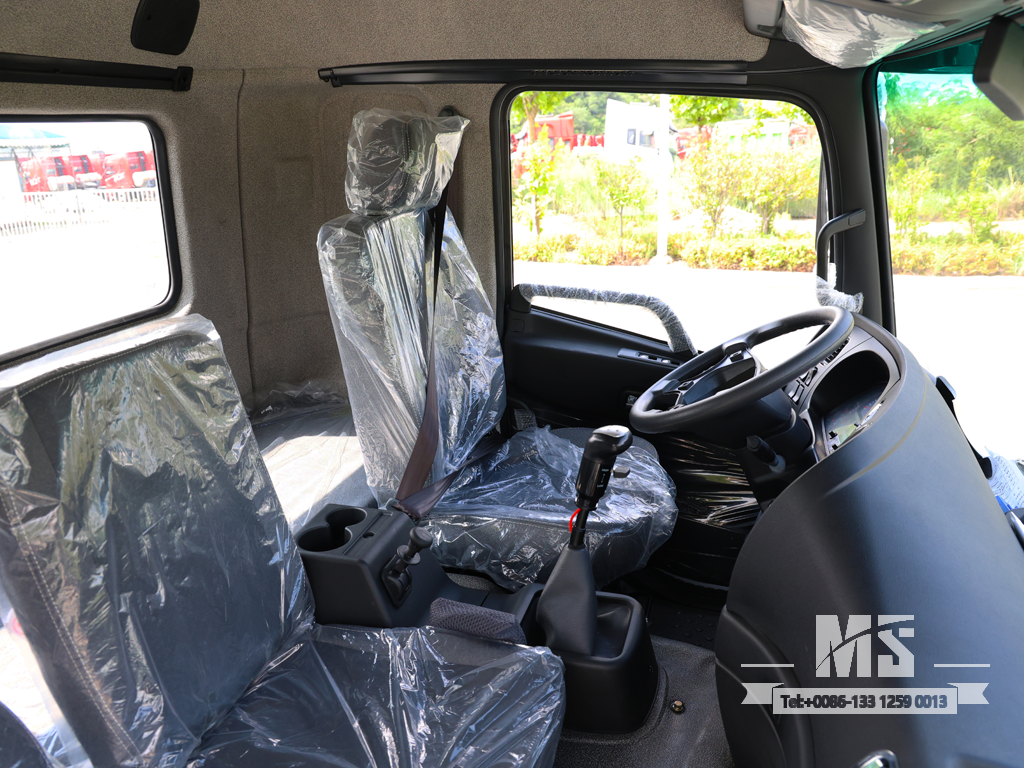

Driver Cab | Dongfeng Flathead row half |

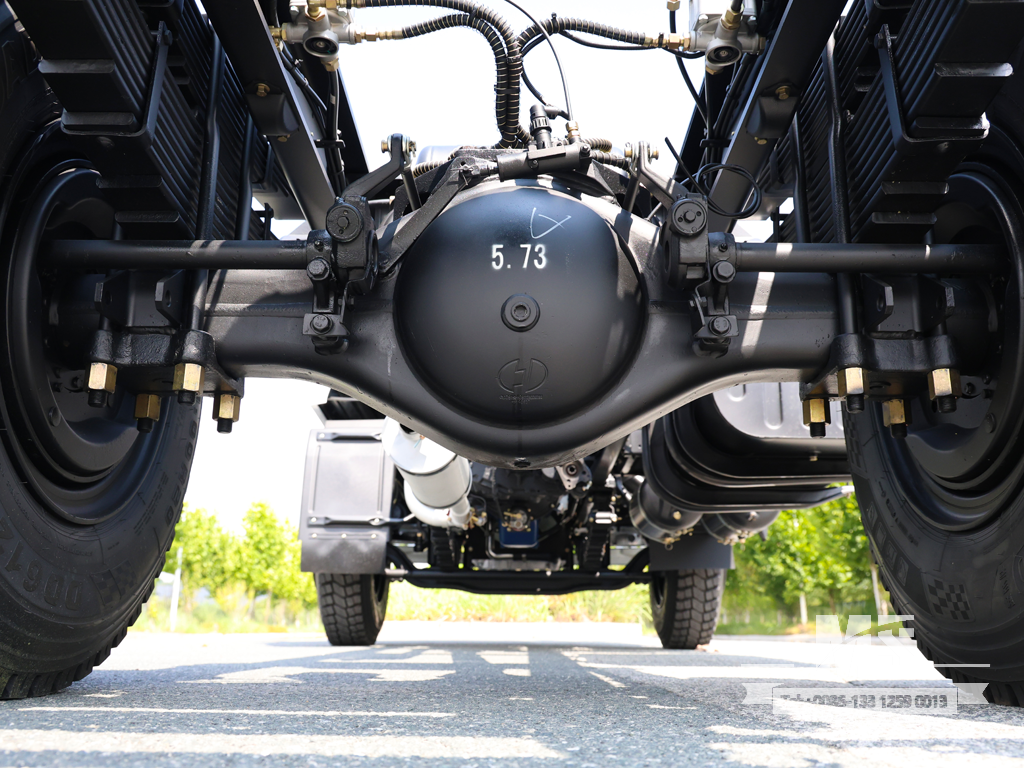

Vehicle Axle | Dont Alxe 5T/Rear Alxe 13T |

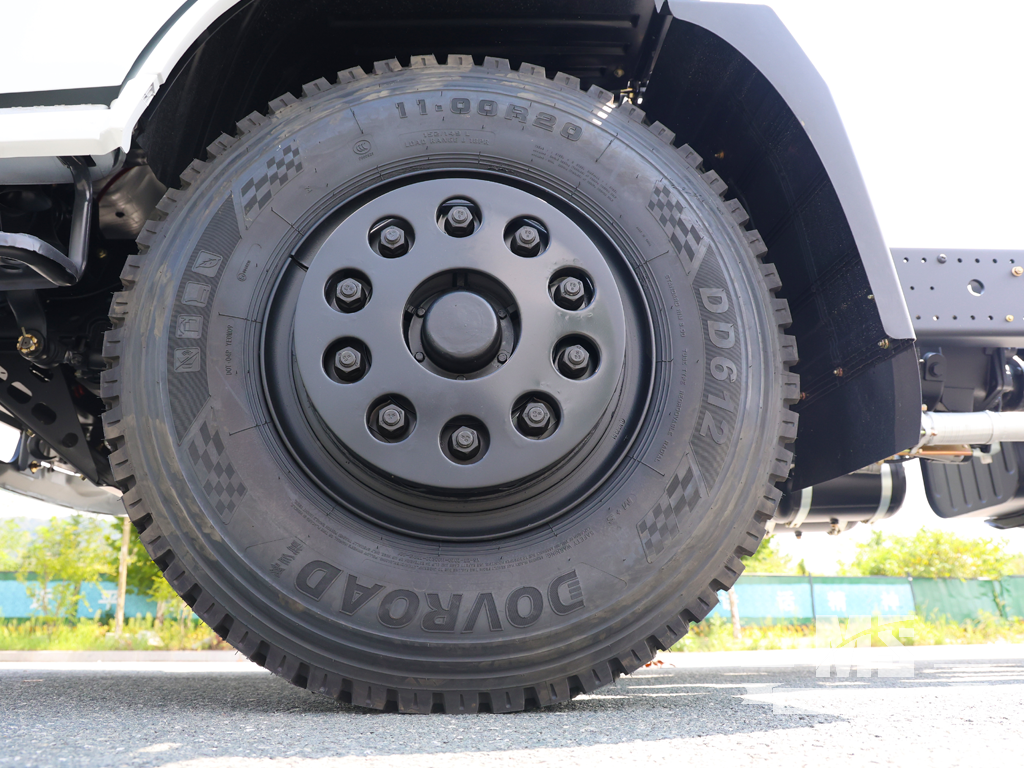

Tire | 11.00R20（6+1） |

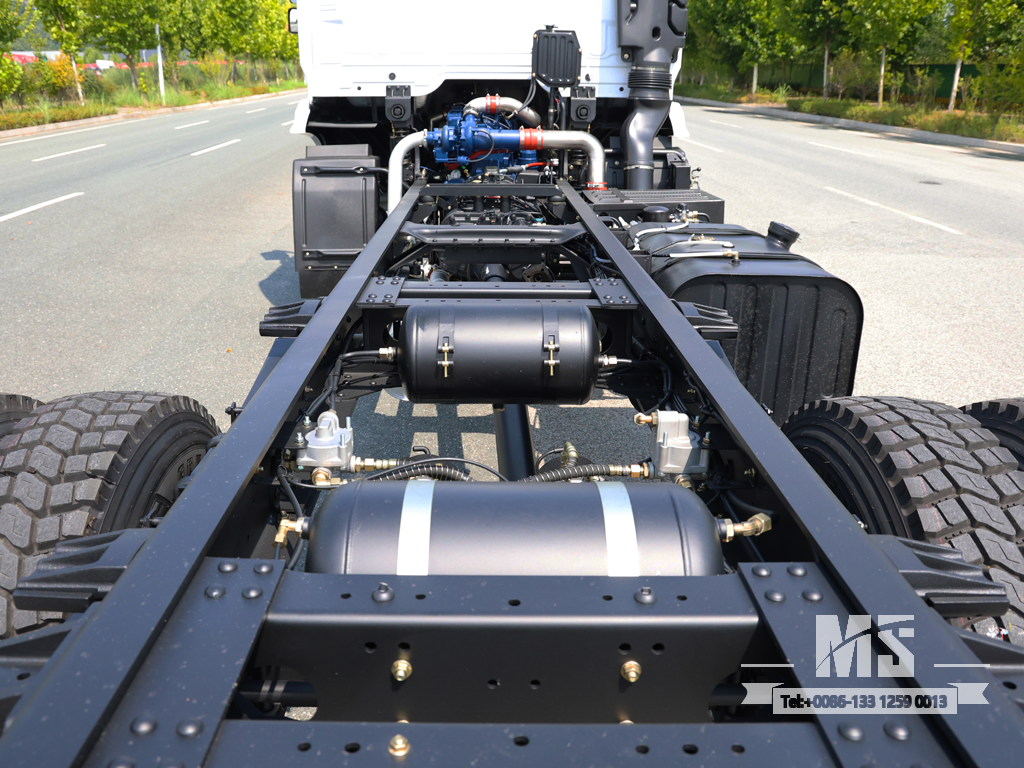

Frame | 860×250mm（8+6） |
Leaf Spring | 9/8+10 |
Detailed parameter |
Chassis Overall Dimension | 6770×2530×2840mm |
Modification Dimensions | ≥4420mm |
Wheelbase | 4200mm |
Wheel track | 1890/1880mm |
GVW | 18000kg |
Curb Weight | 5550kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 17°/37° |

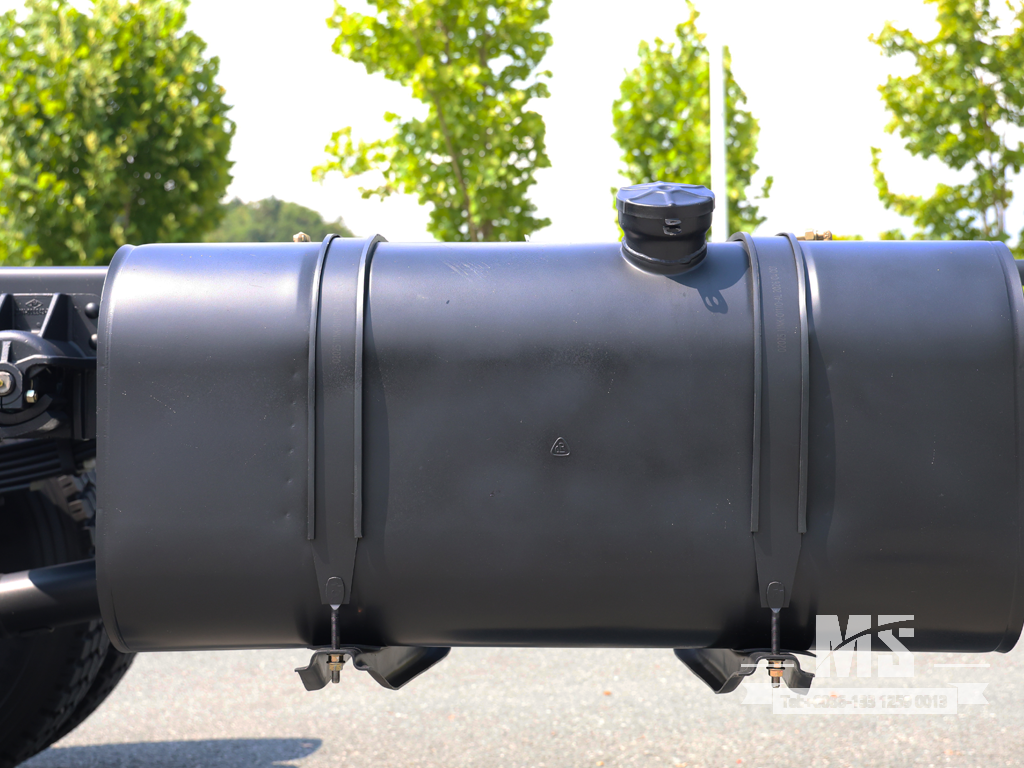

Tank volume | 330L |
Minimum ground clearance | 325mm |
Fording depth | 650mm |
Obstracal height | 460mm |
Note: This configuration is for reference only, please refer to the actual car.
