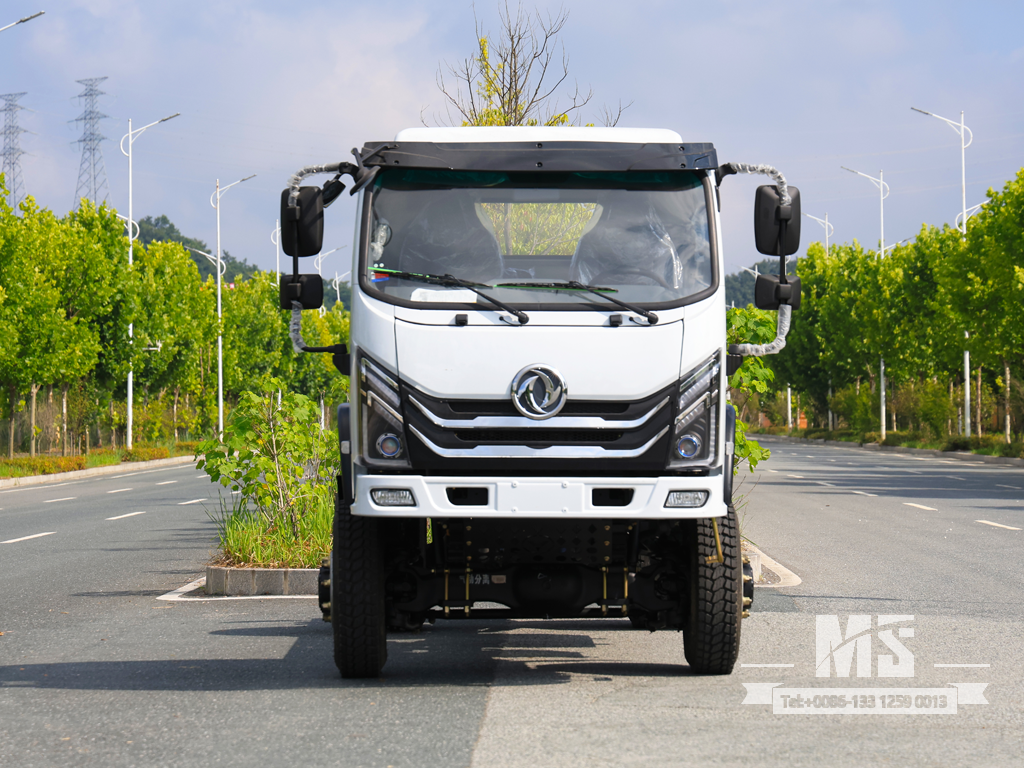

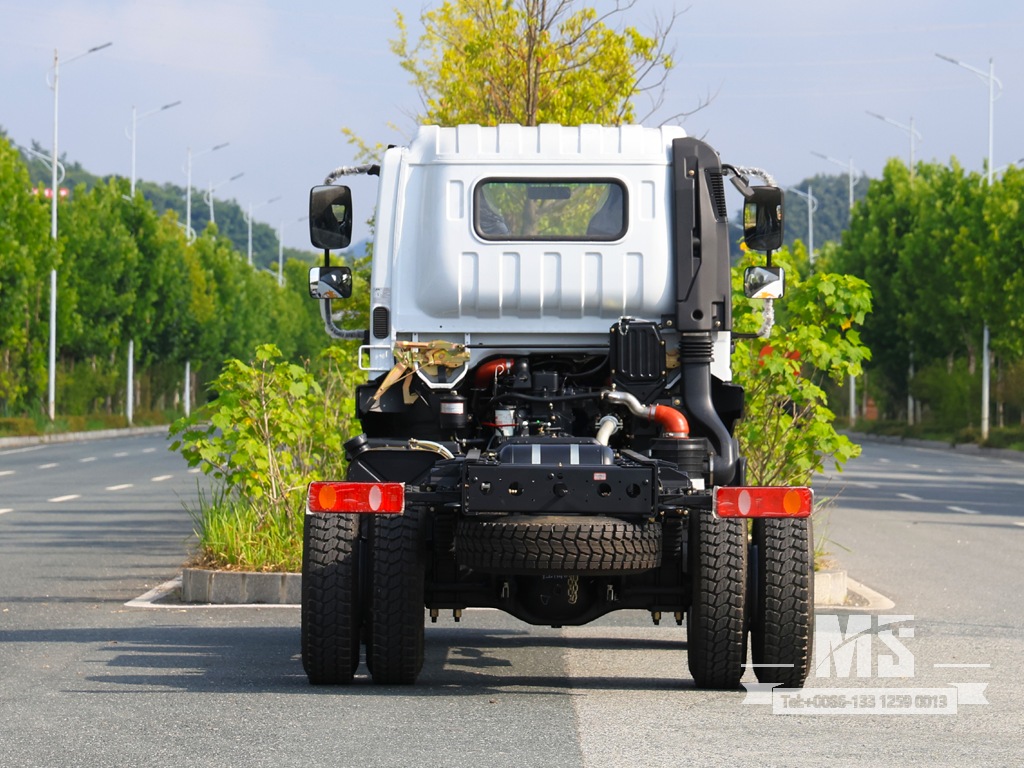

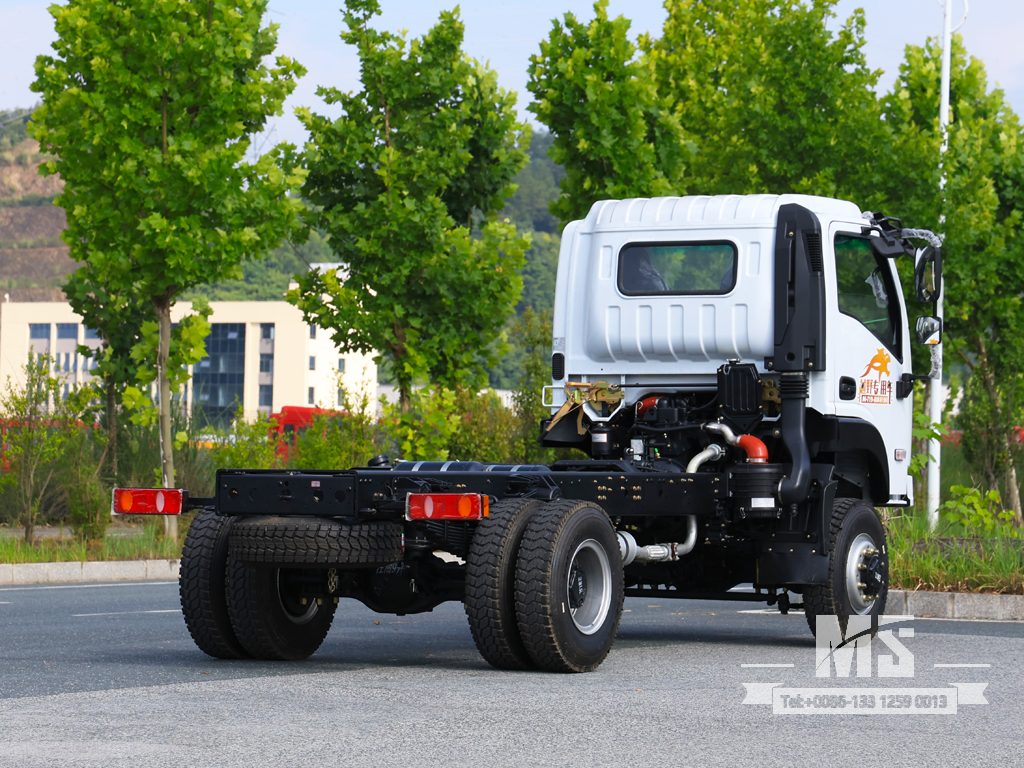

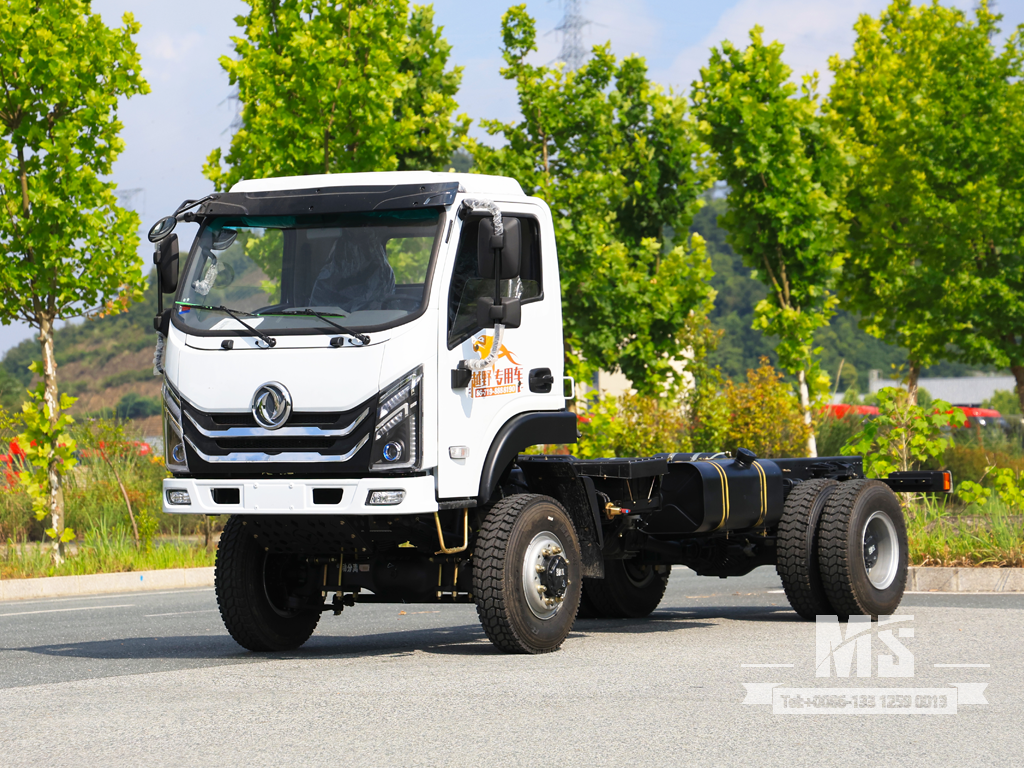

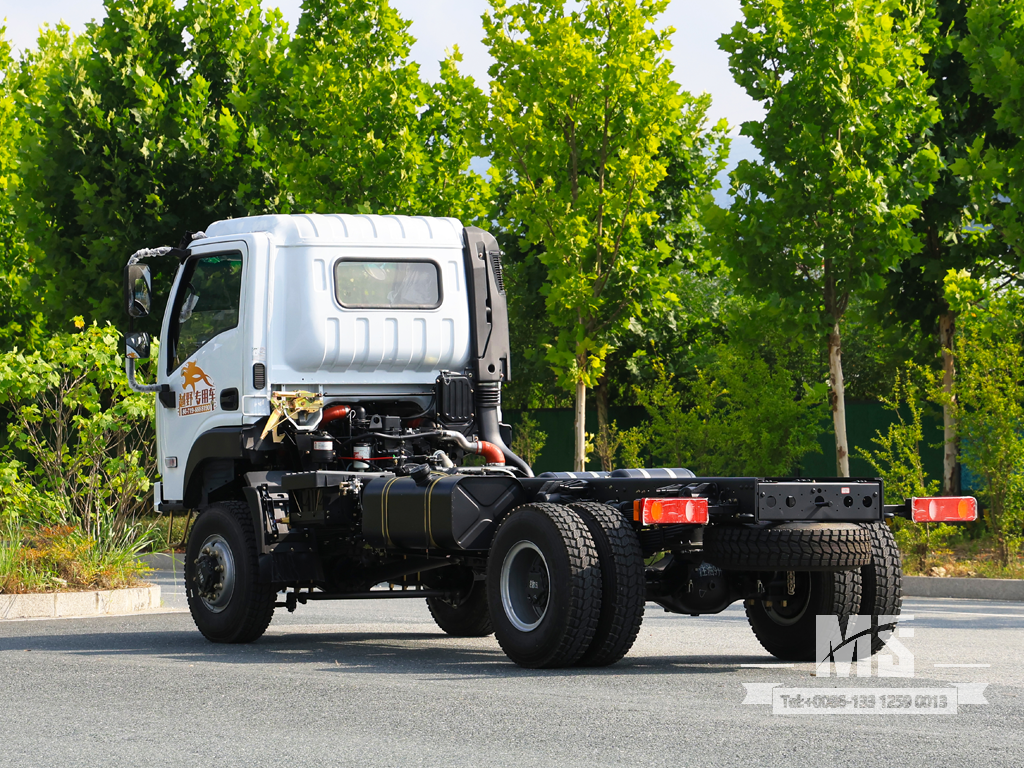

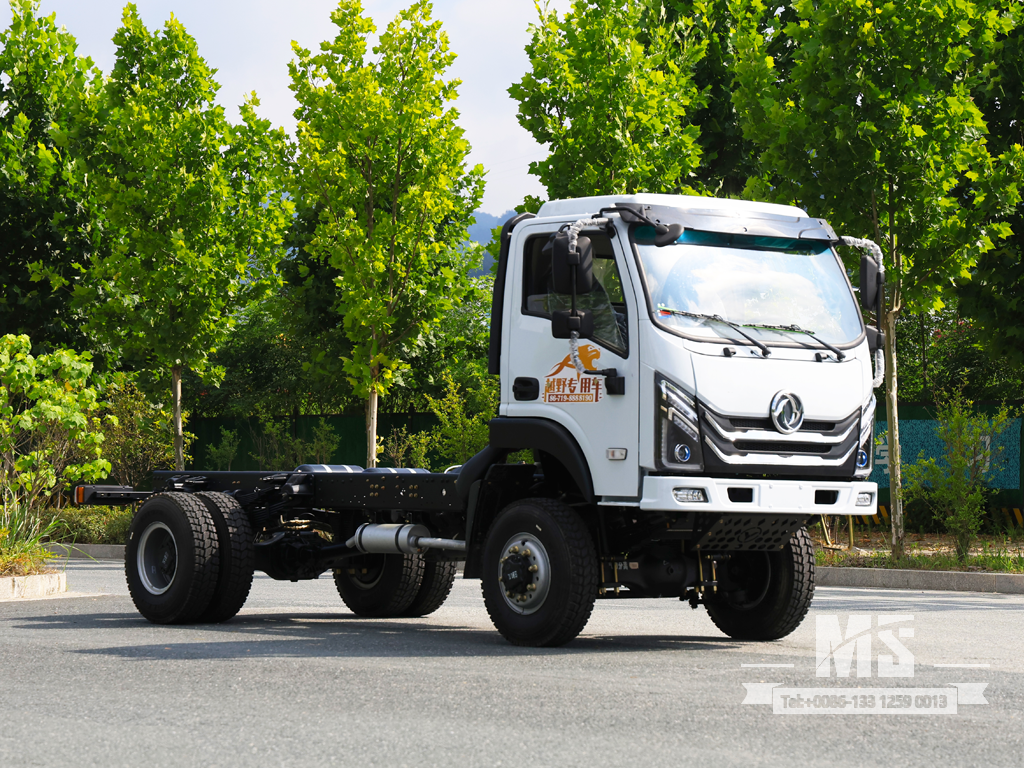

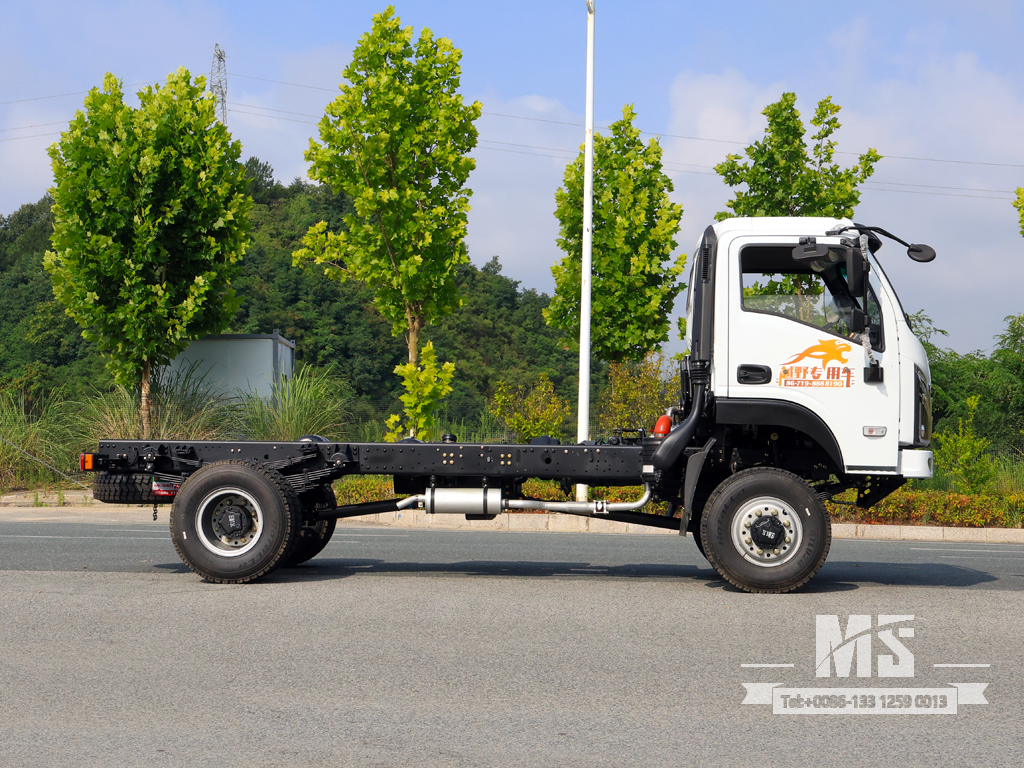

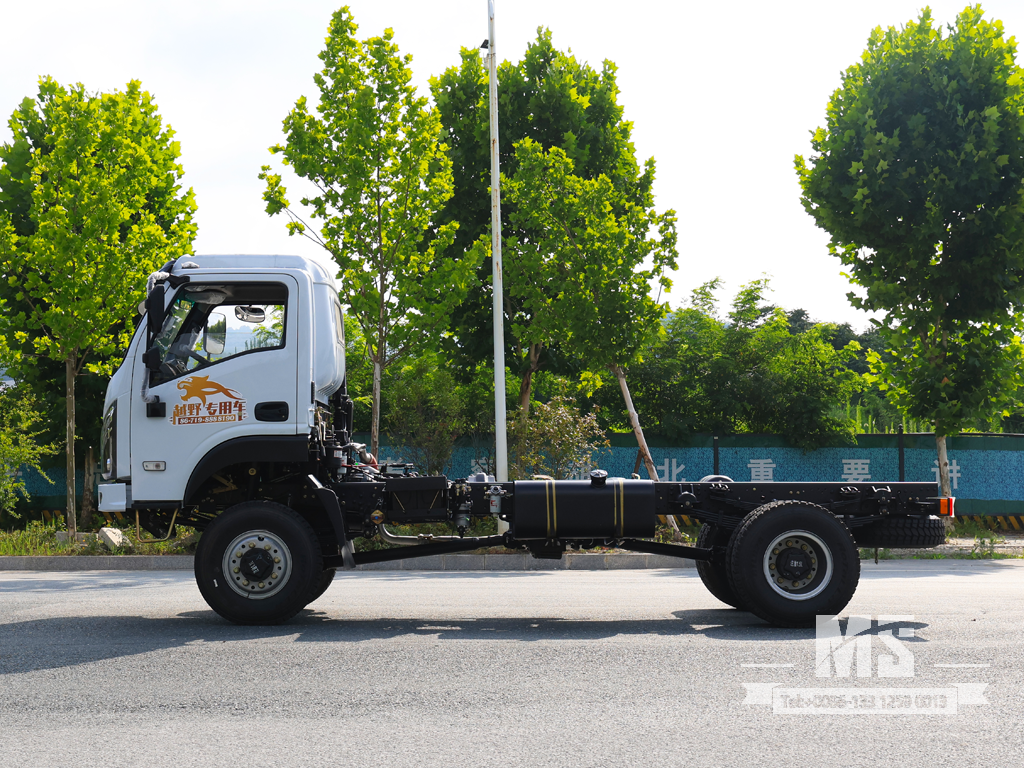

150HP 4WD Off-road Chassis
Basic configuration |
Drive type | 4*4 |
Engine | Cummins EQB150-20 |
Transmission | Shou chi Manual 8-speed |
Transfer case | High and Low Gears |
Driver Cab | Dongfeng Flathead single row |

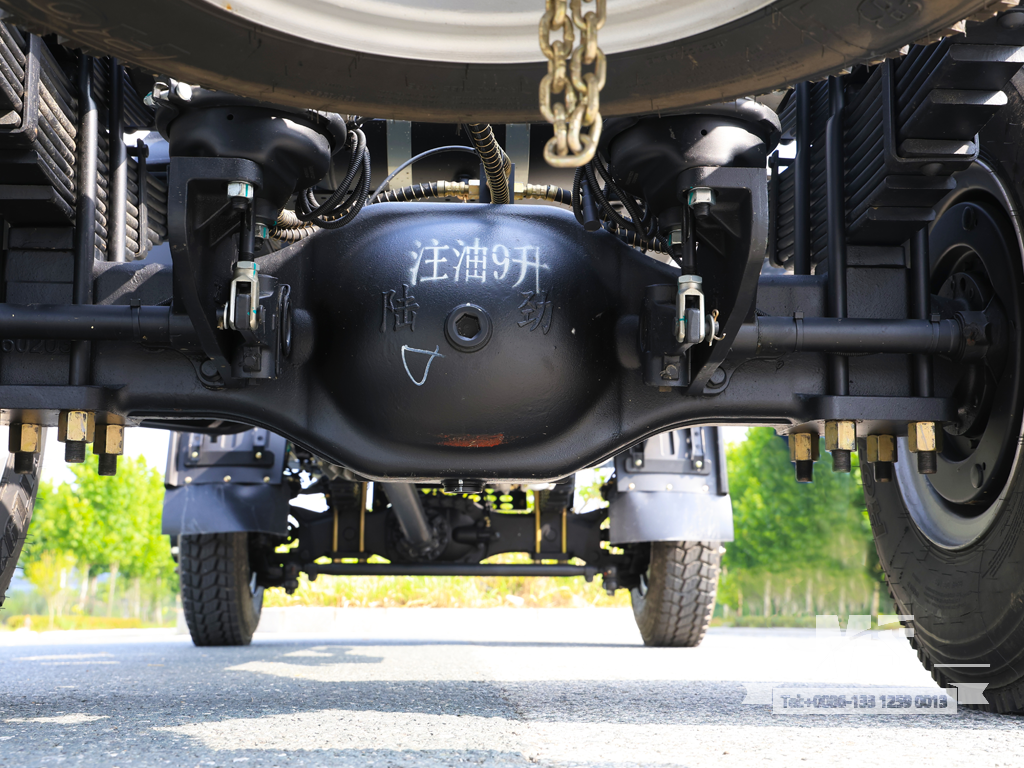

Vehicle Axle | Dont Alxe 4.5T/Rear Alxe 8T |

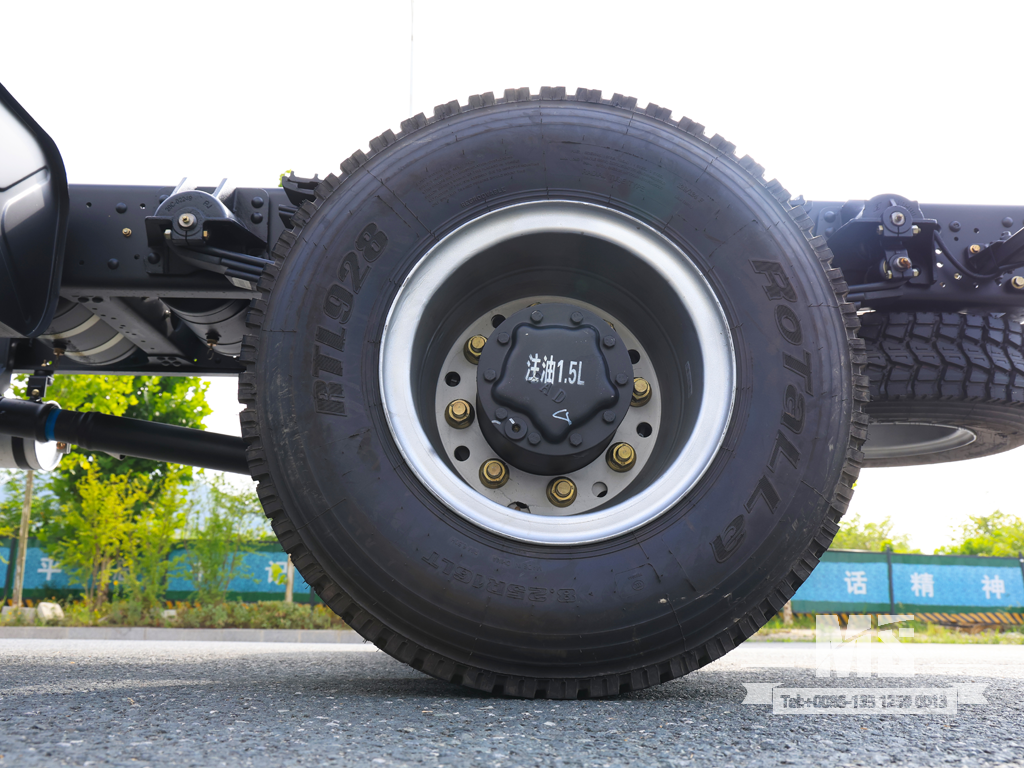

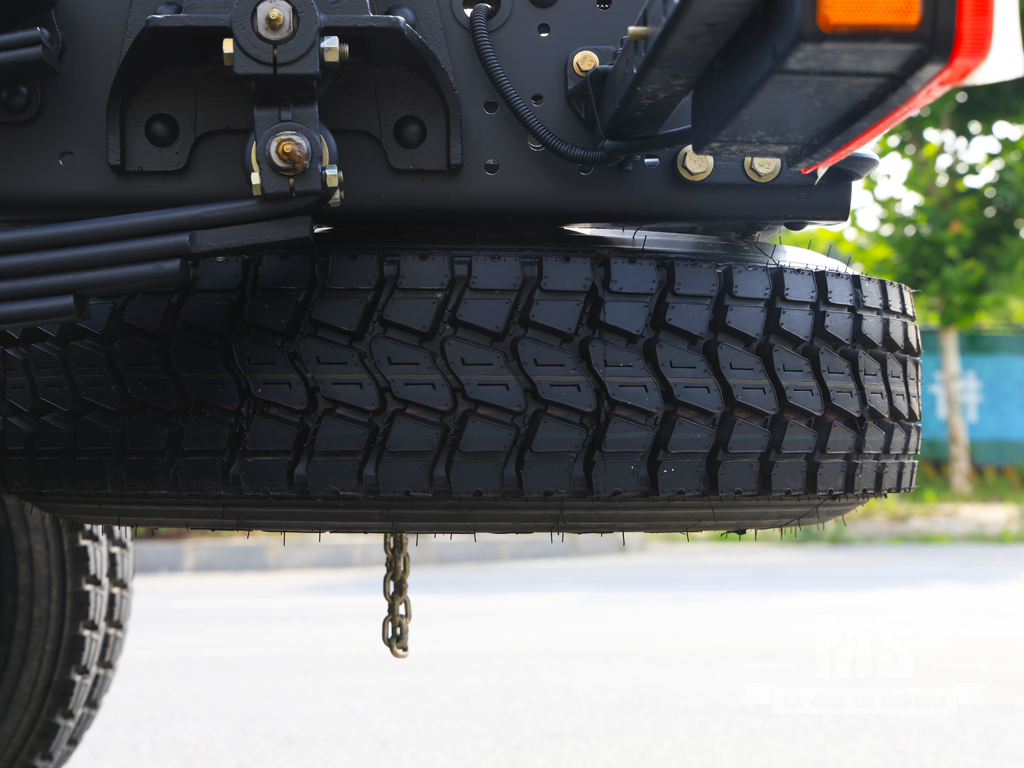

Tire | 8.25R16LT（6+1） |

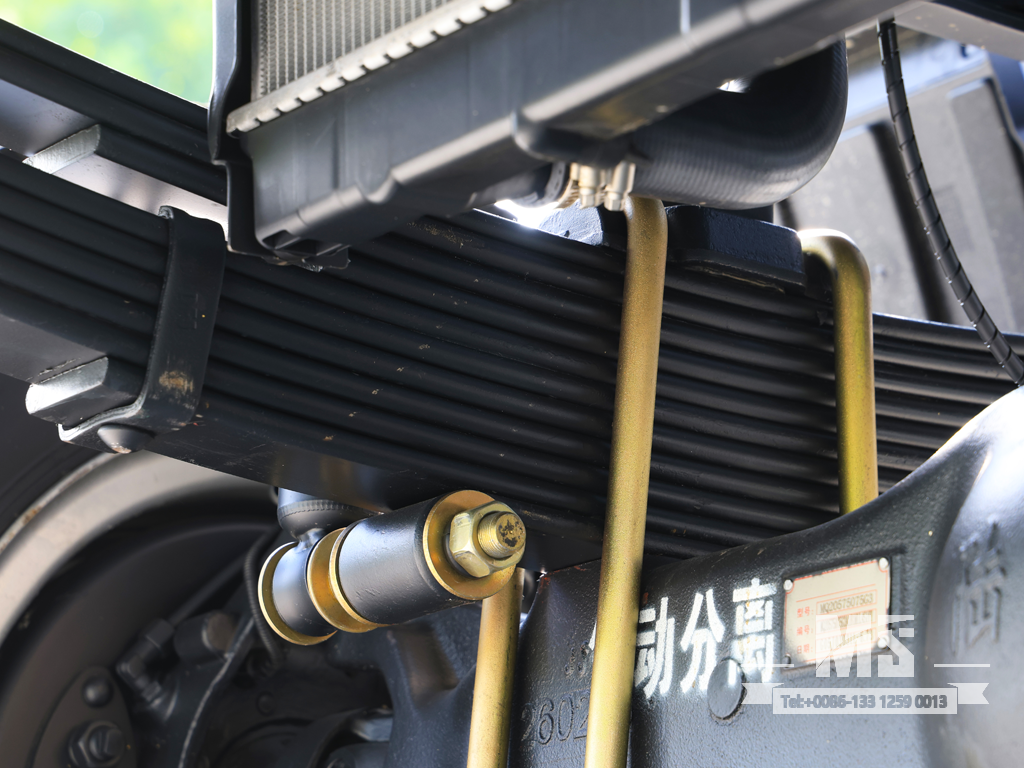

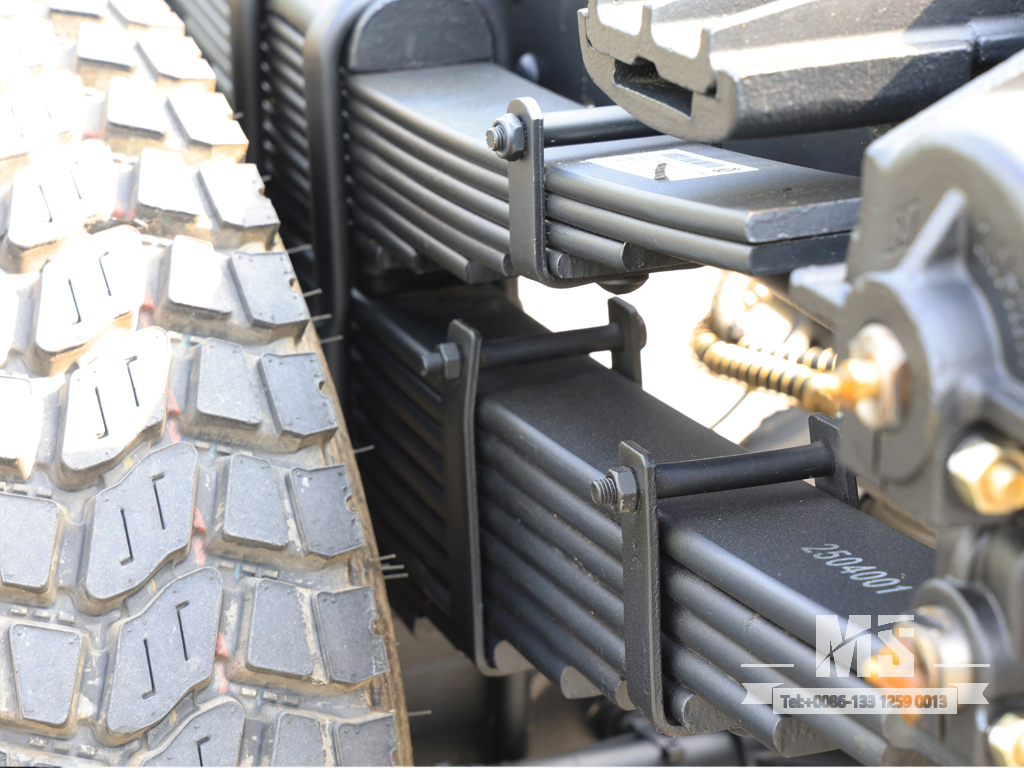

Leaf Spring | 10/8+10 |
Detailed parameter |
Chassis Overall Dimension | 6080×2290×2700mm |
Modification Dimensions | ≥4300mm |
Wheelbase | 3700mm |
Wheel track | 1820/1750mm |
GVW | 12500kg |
Curb Weight | 3950kg |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 37°/30° |
Tank volume | 180L |
Minimum ground clearance | 300mm |
Fording depth | 630mm |
Obstracal height | 530mm |
Note: This configuration is for reference only, please refer to the actual car.
