Basic configuration | |
Drive type | 4*4 |
Engine Model | Cummins B190 33 |
Gearbox | Manual Six-speed gearbox |
Transfer Box | Time-shift four-wheel drive with high and low gears |
Vehicle Frame | 860×260×80mm |
Axle | 3.5T/3.5T |

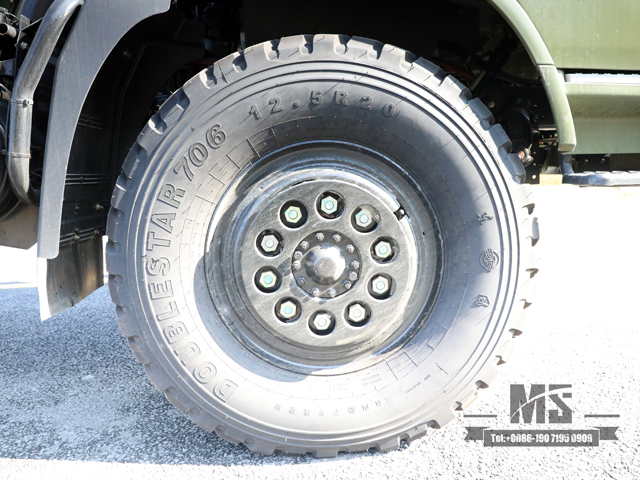

Tire | 12.5R20(4+1) |
Vehicle Suspension | Leaf Spring 7/9(Thickness 8mm) |
Electric Circuit | 24V circuit system, 2pcs 12V high-performance low-temperature batteries |
Accessories | Motor oil bucket,Water bucket,Vehicle accompany tools,Fire extinguisher,Tarpaulin poles |
Optional | Cold and warm air conditioning, front winch, secondary fuel tank, brake cooling water tank |
Detailed parameter | |
Overall Dimension | 6510*2470*3025mm |

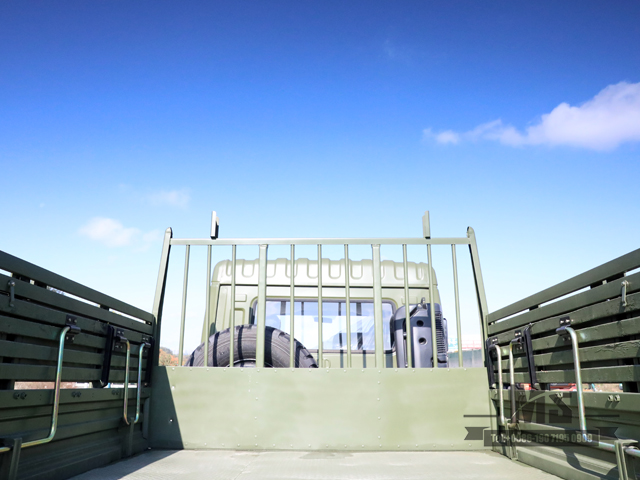

Cargo inside size | 3600*2300*900mm |
Wheelbase | 3600mm |
Wheel Track | 1876/1860mm |
GVW | 7910kg |
Curb Weight | 6710kg |
Load Capacity | 3500kg(Off Road) |

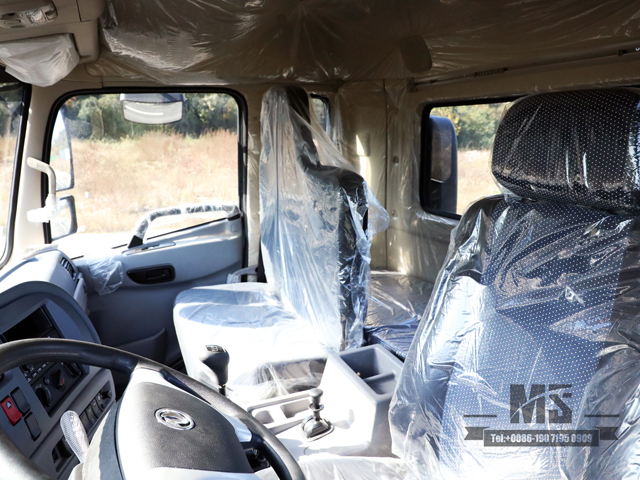

Number of Passengers | 2-3 |
Maximum Driving speed | ≥85km/h |
Approach Angle/departure Angle | 26°/33° |
Oil Tank volume | 160L |
Minimum ground clearance | 320mm |
Obstacle Crossing height | 470mm |
Wading depth | 1160mm |
Maximum Climbing Grade | 60% |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
