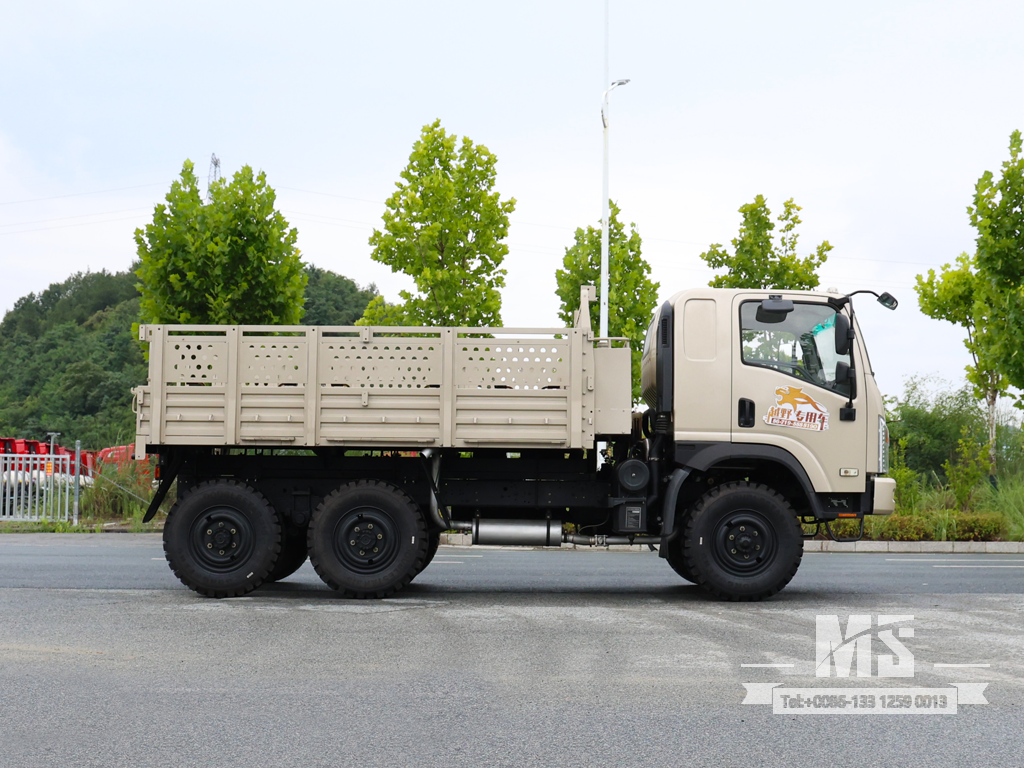

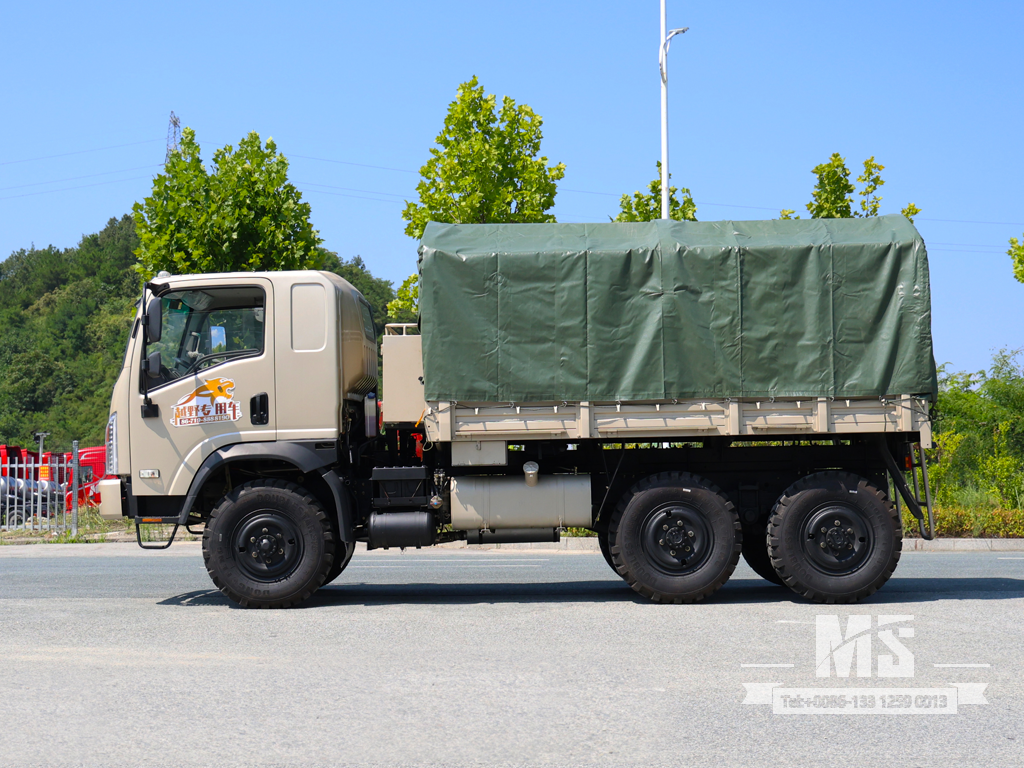

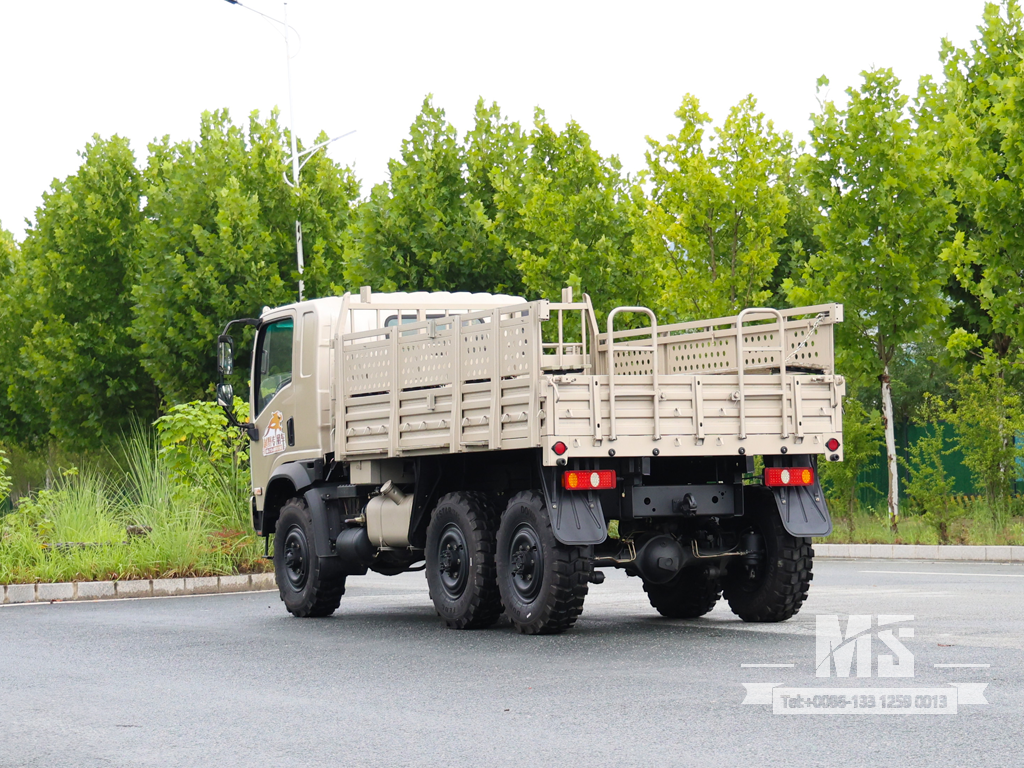

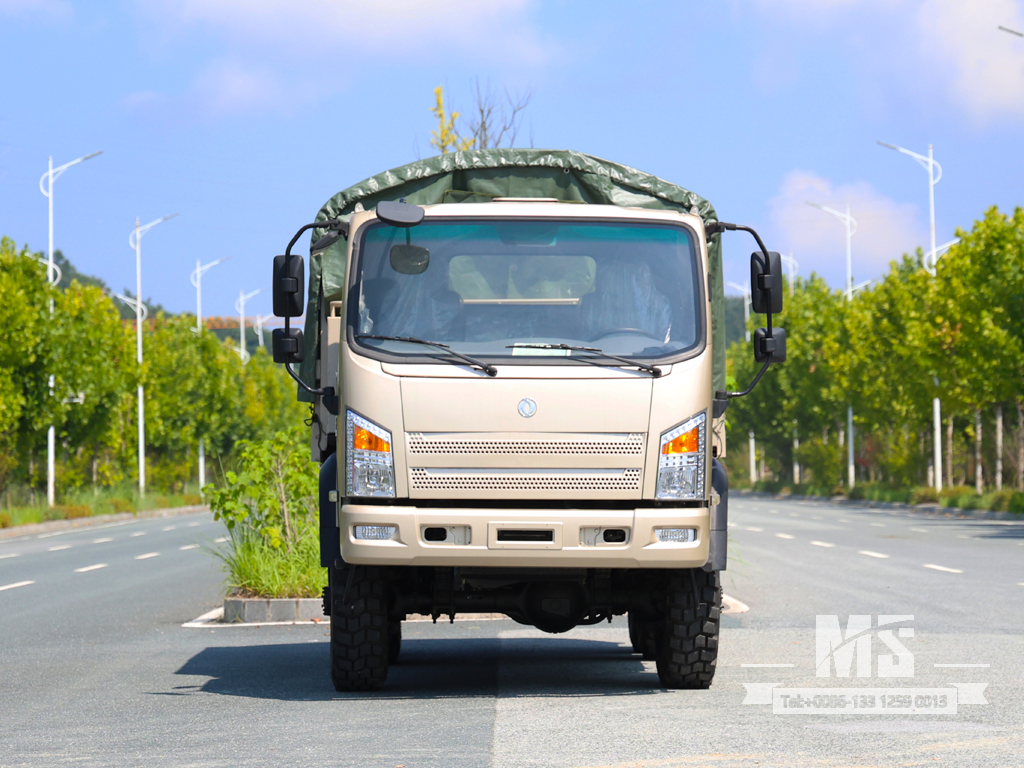

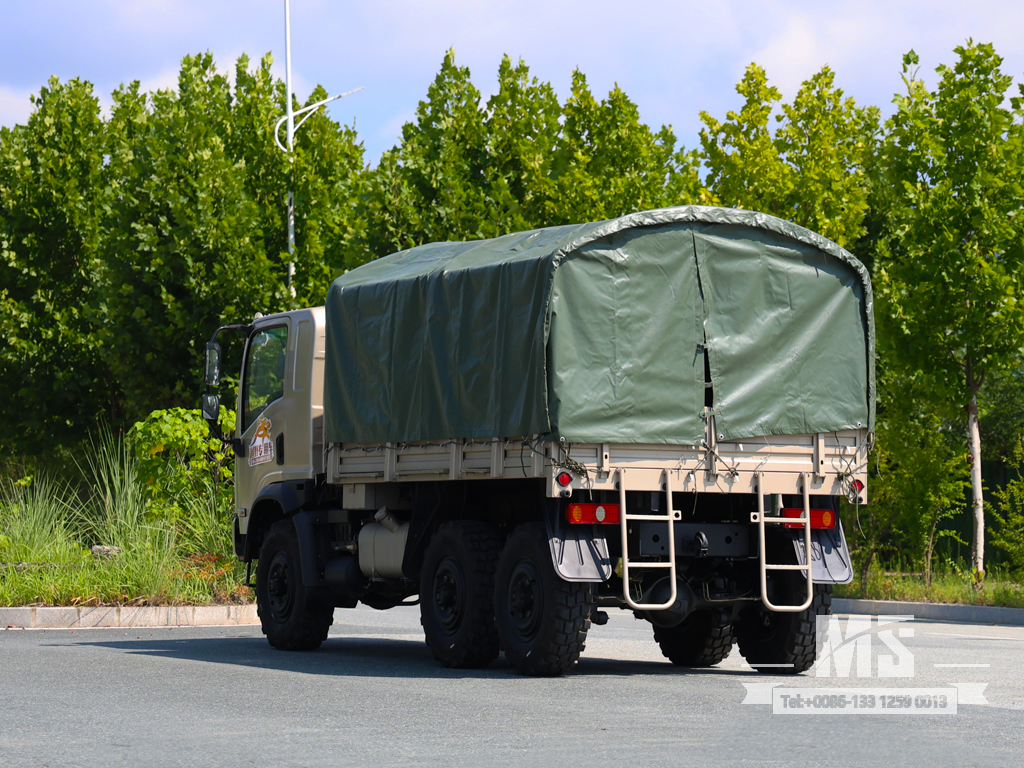

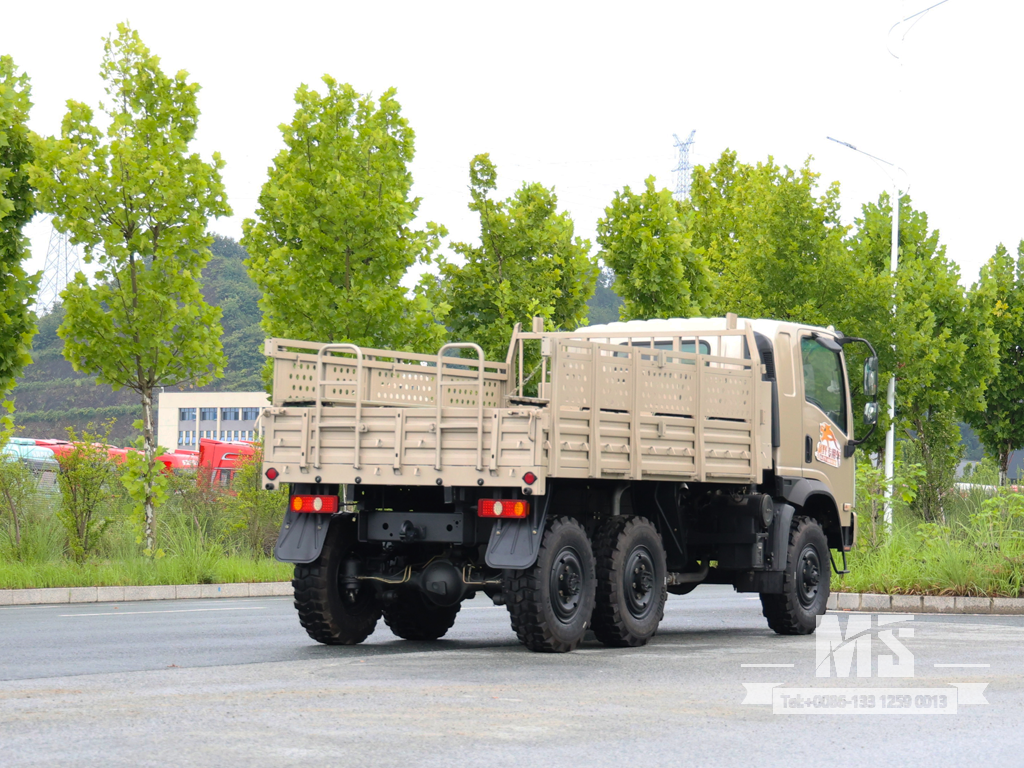

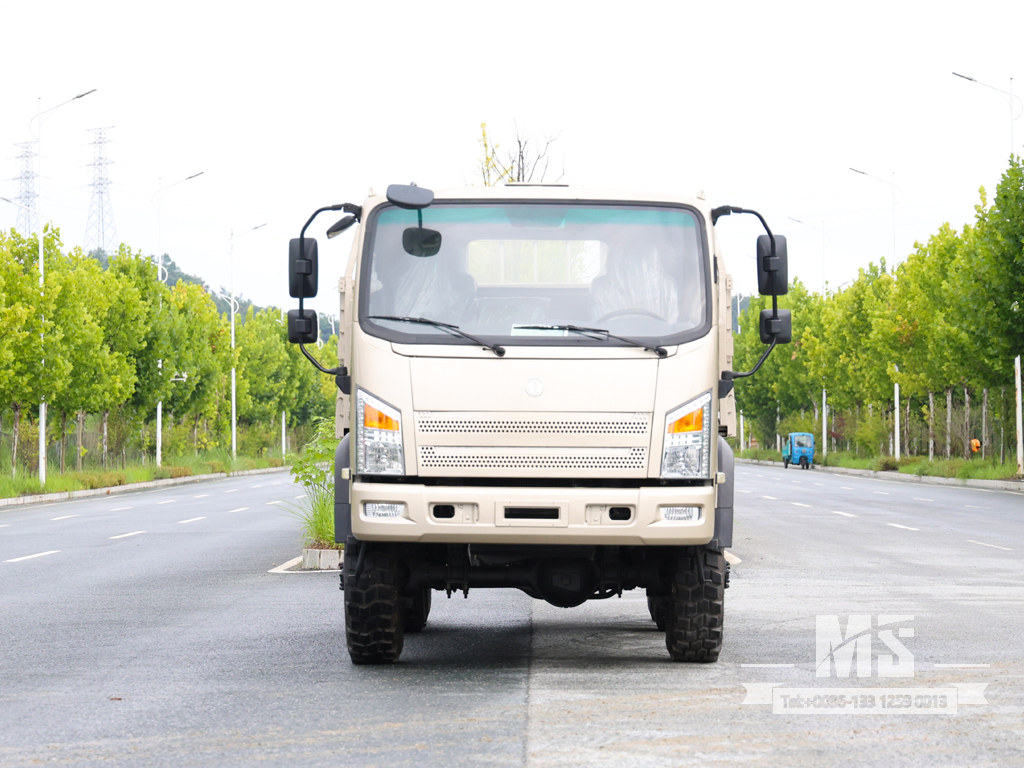

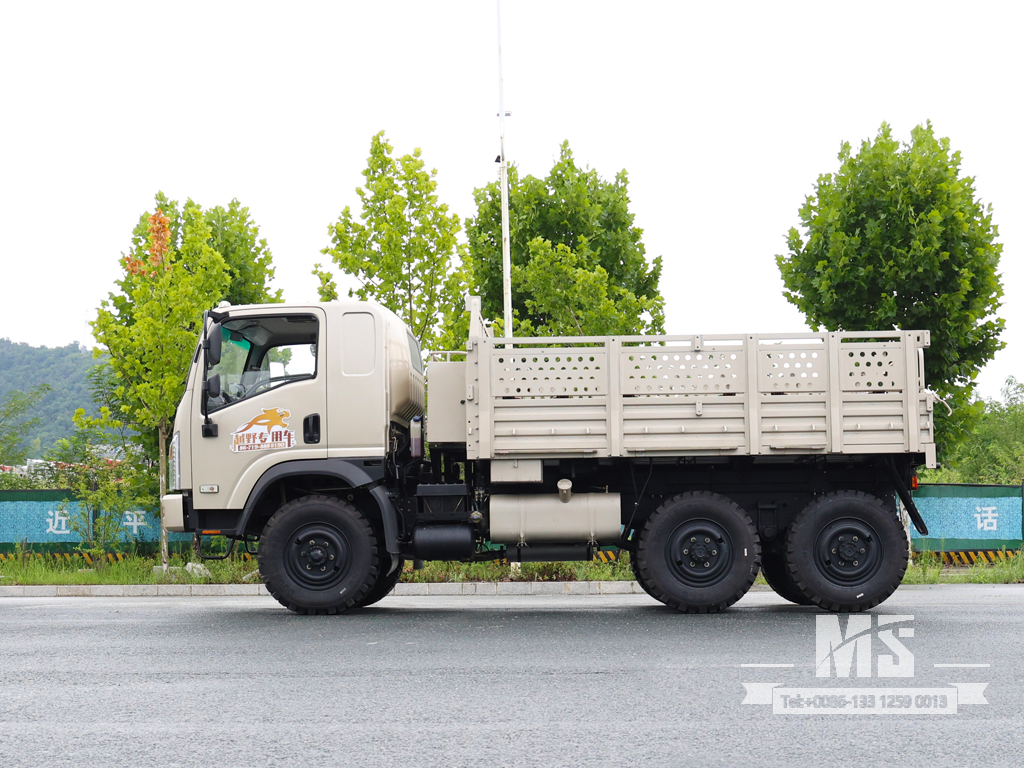

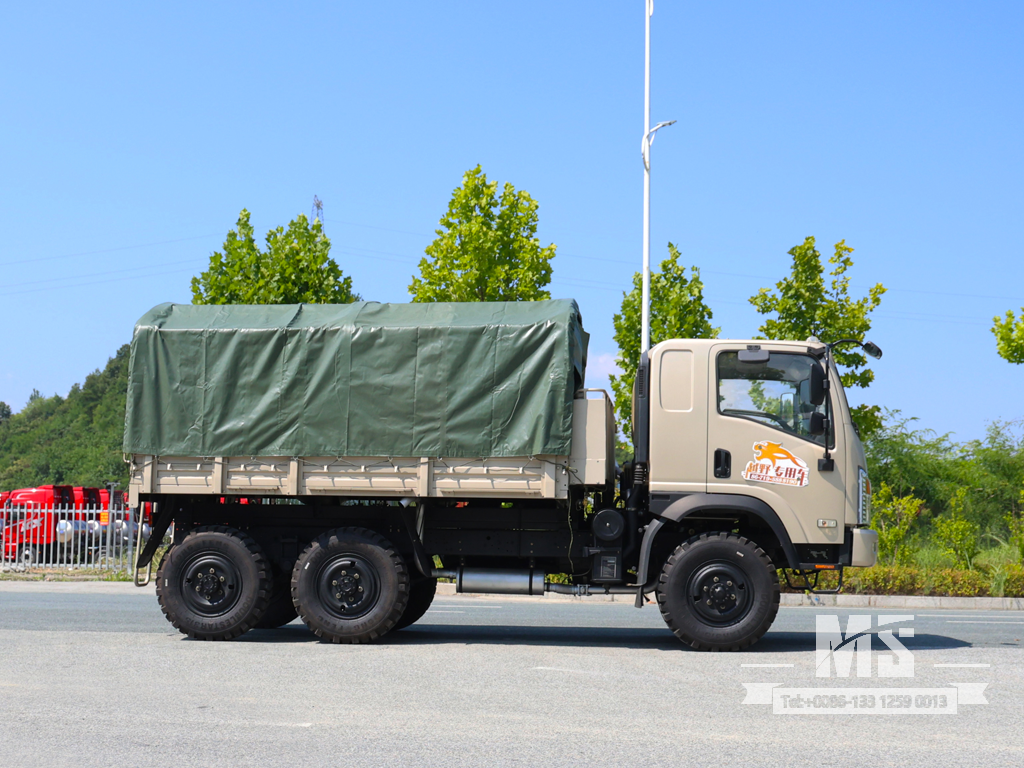

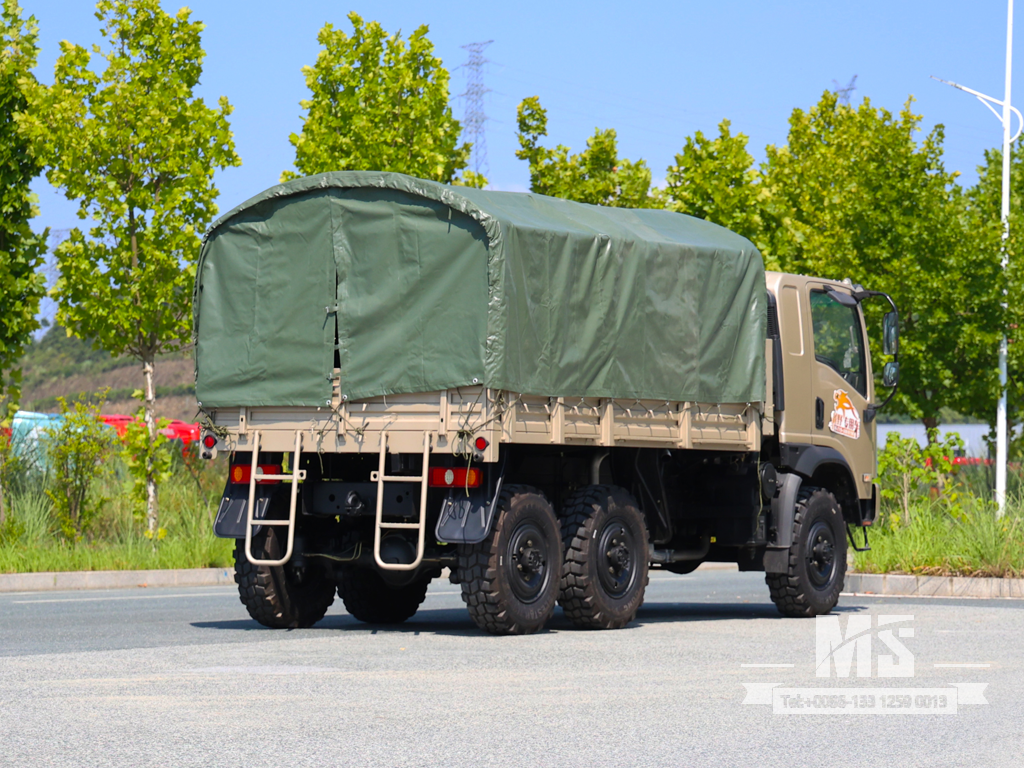

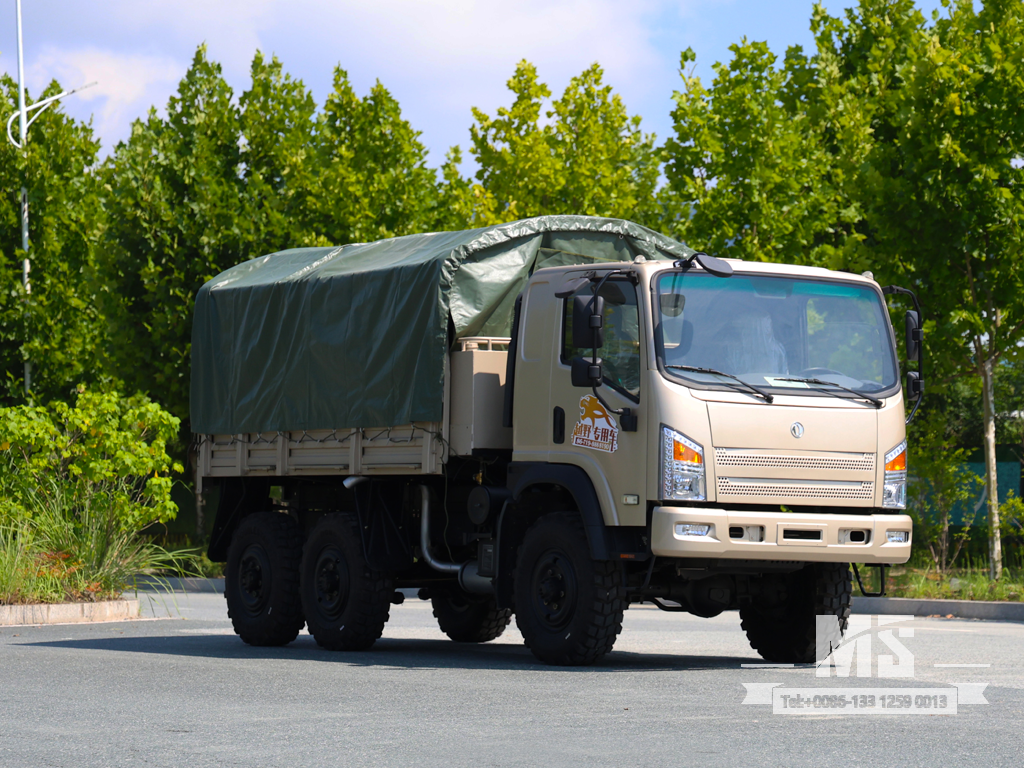

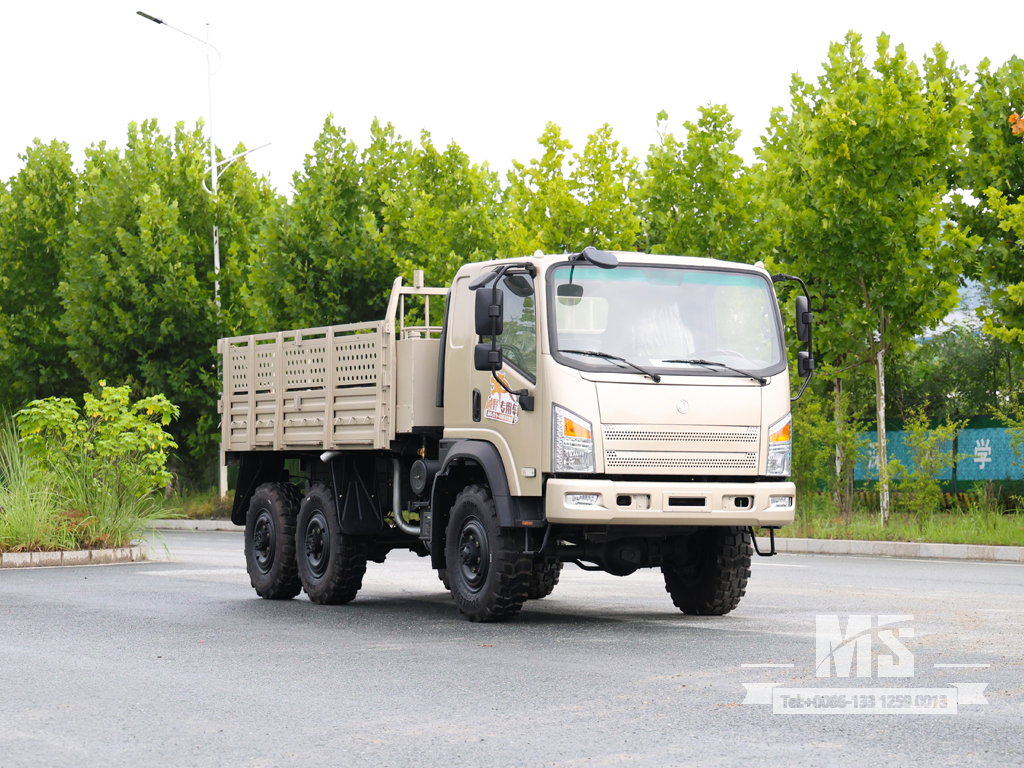

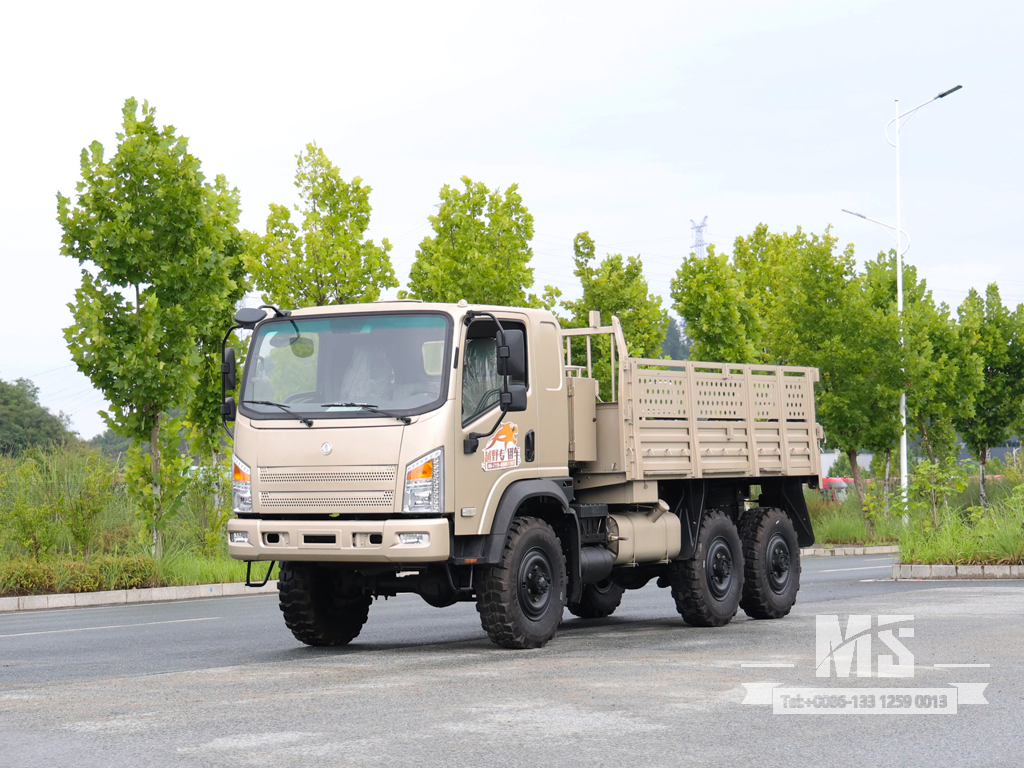

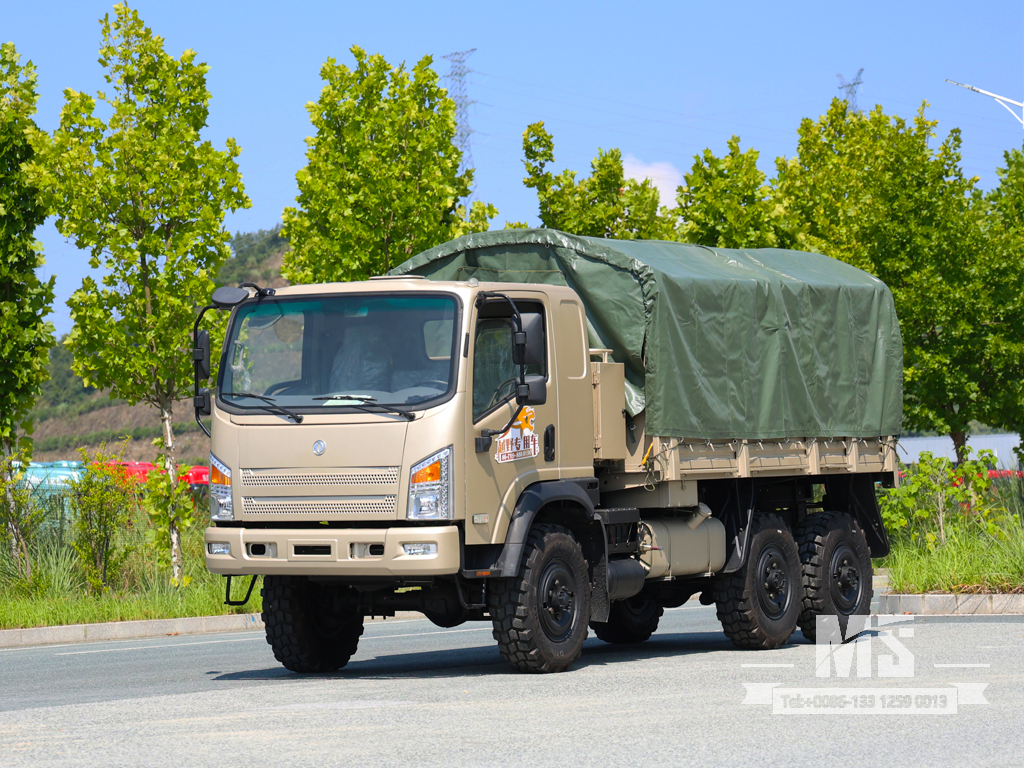

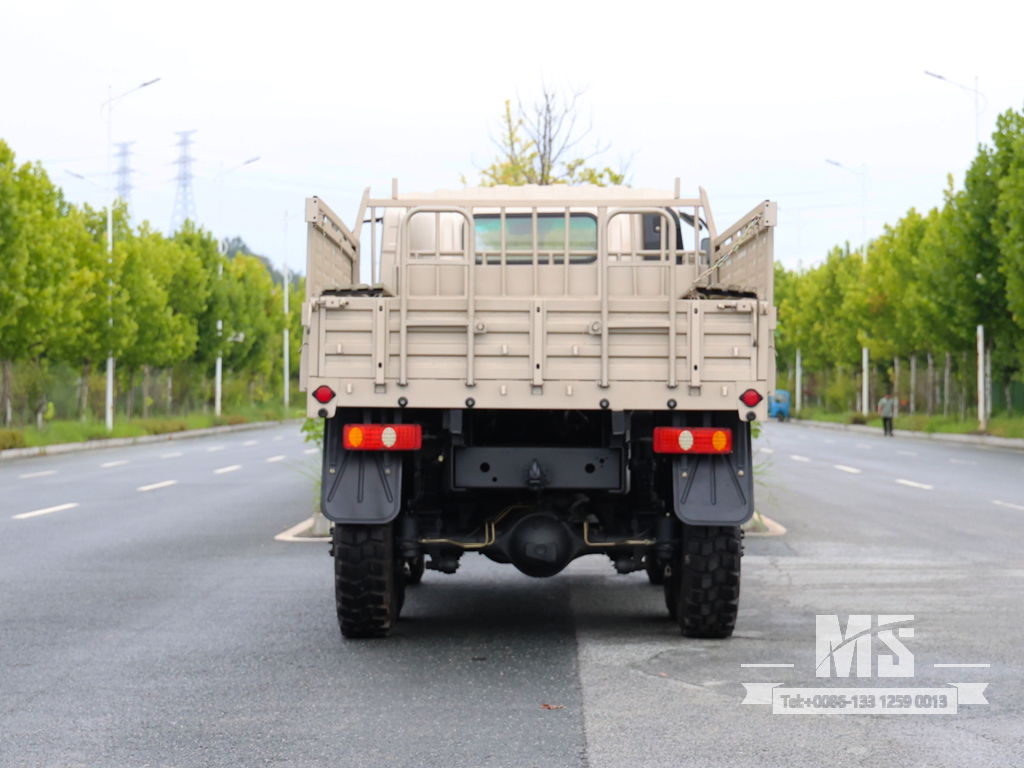

Six-wheel-drive Flat-nose Camel Gray Cargo Truck
Basic configuration |
Drive type | 6*6 |
Engine | Cummins B170 33 |
Transmission | Shou chi Manual 5-speed |
Transfer case | Heigh and low speed |
Driver Cab | Dongfeng Flat-head half row |

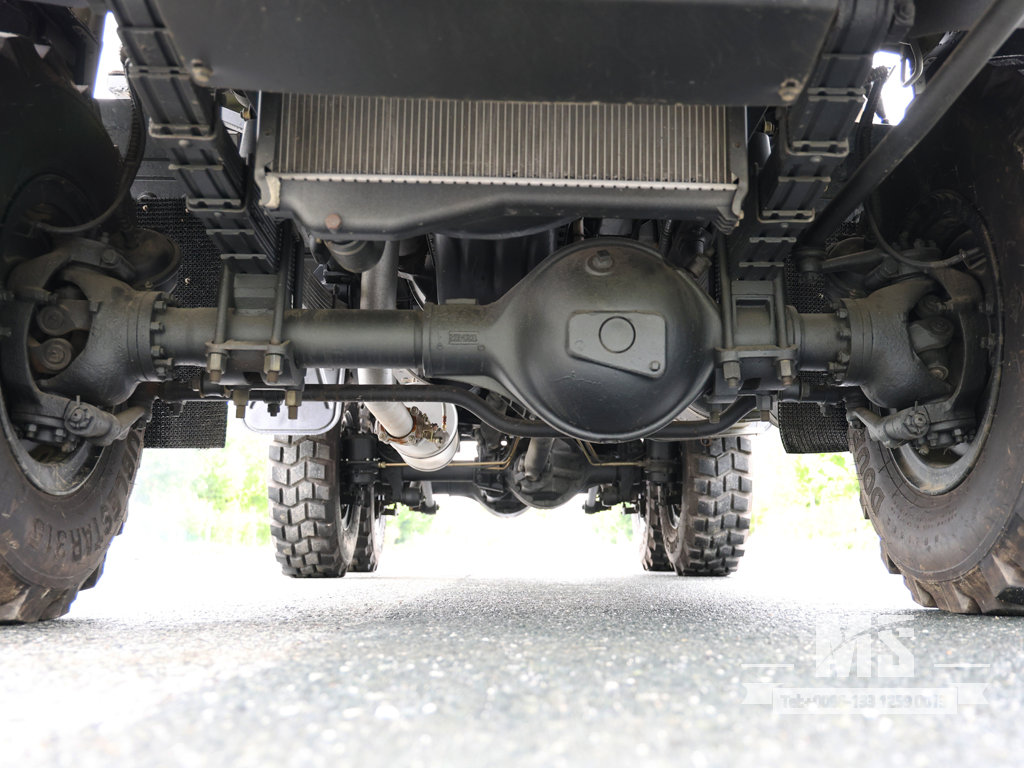

Vehicle Axle |
Dont Alxe 2.5T/Front Alxe 2.5T/Rear Alxe 2.5T
|

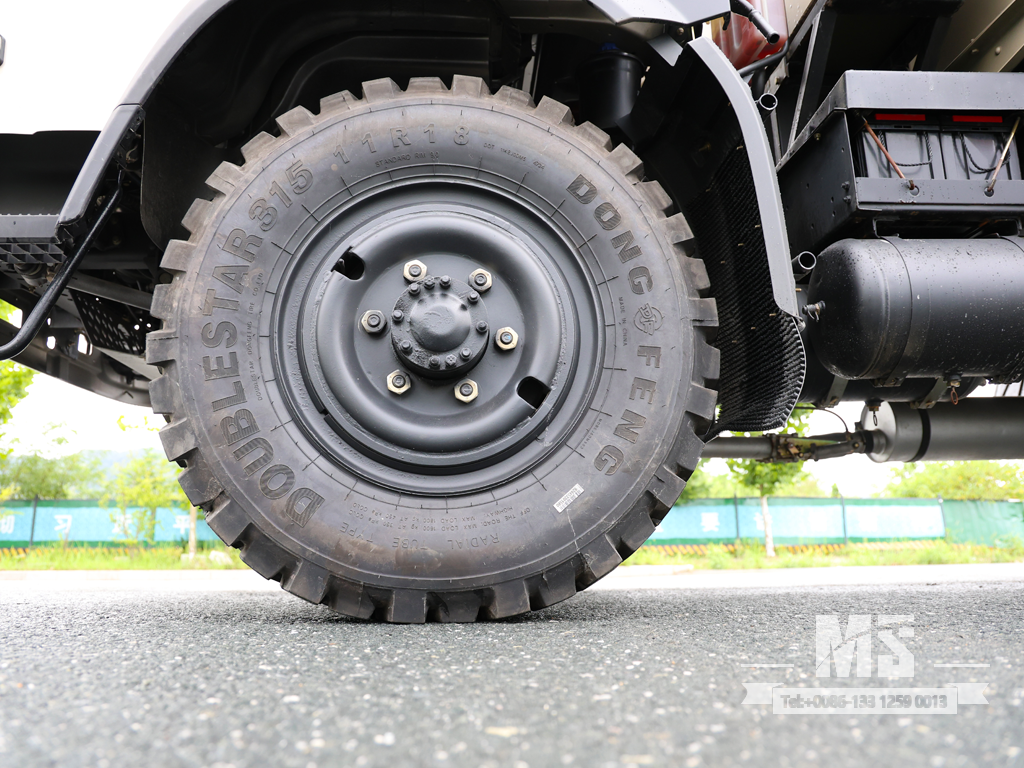

Tire | 11R18（6+1 Pieces） |

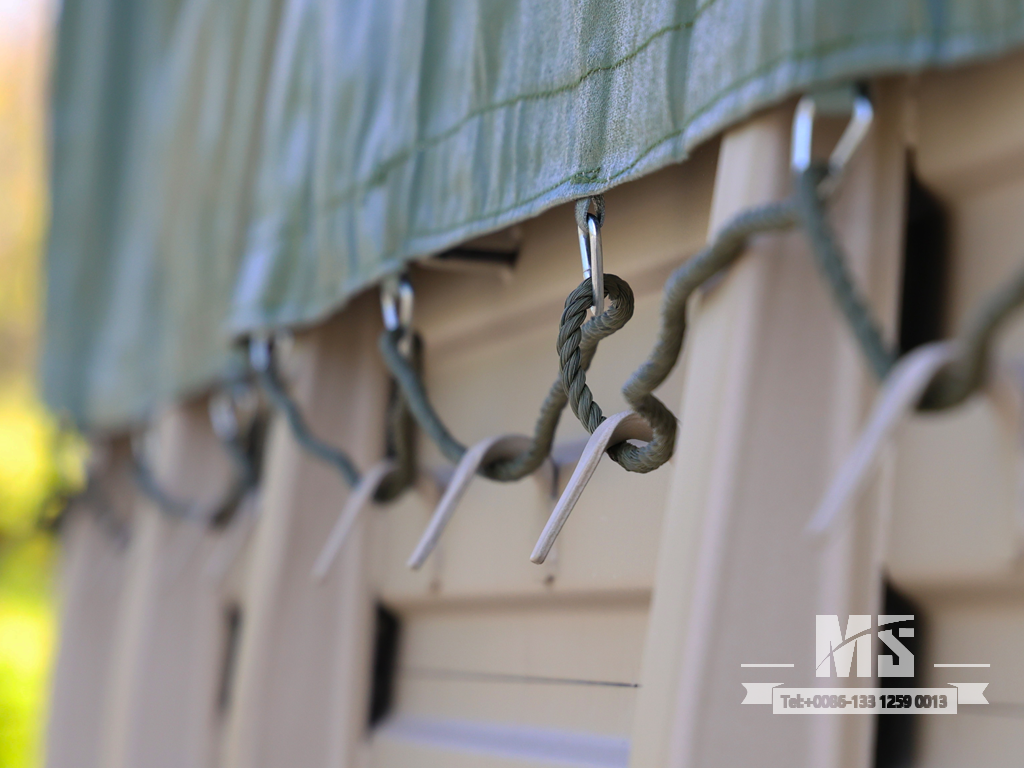

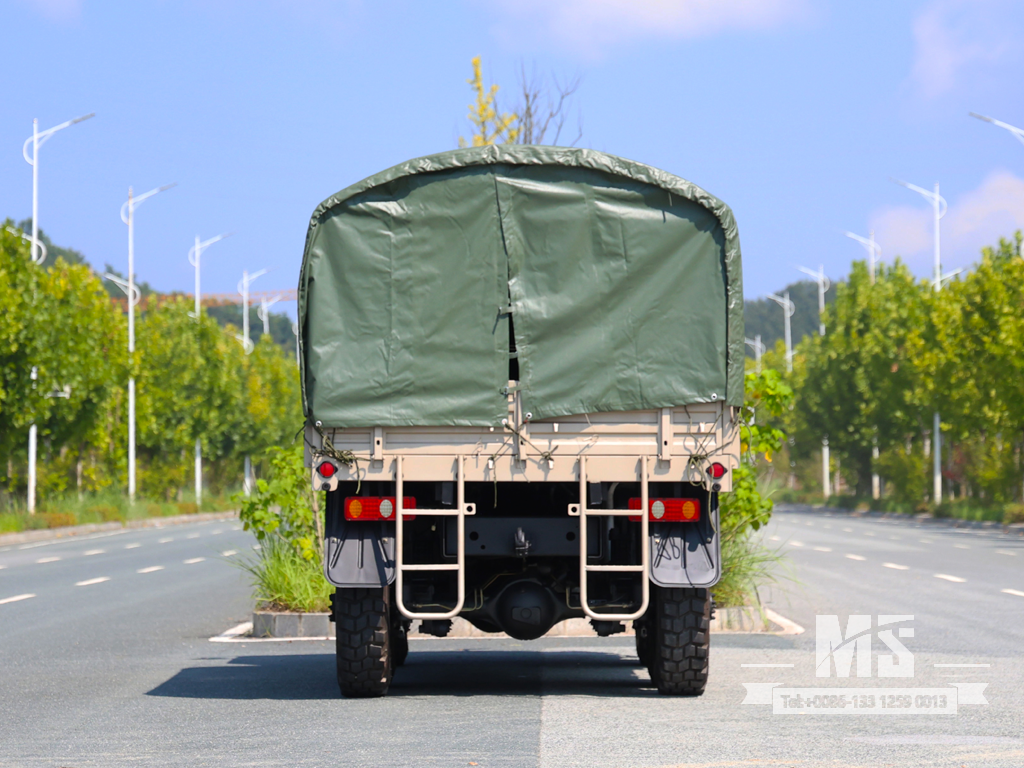

Accessories | Brake Cooling Water Tank, Tool Box, Water Bucket, Engine Oil Drum, Fire Extinguisher, Vehicle‑mounted Tools, Tarpaulin & Tarpaulin Poles |
Detailed parameter |
Overall Dimension | 6720×2480×2680mm |

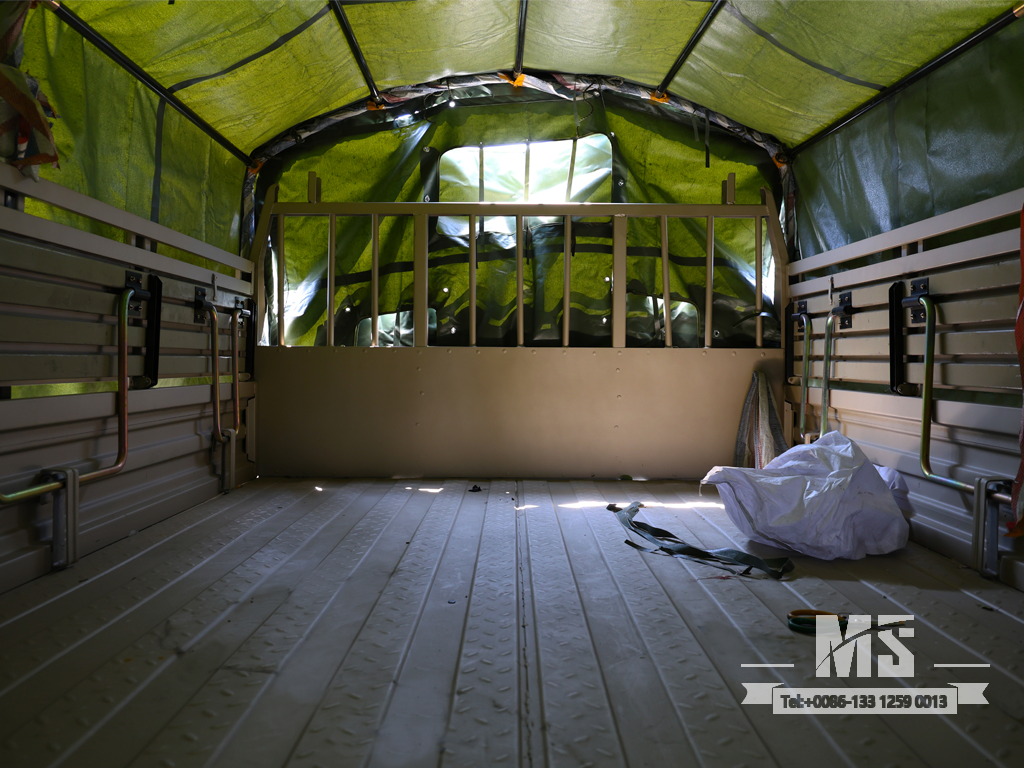

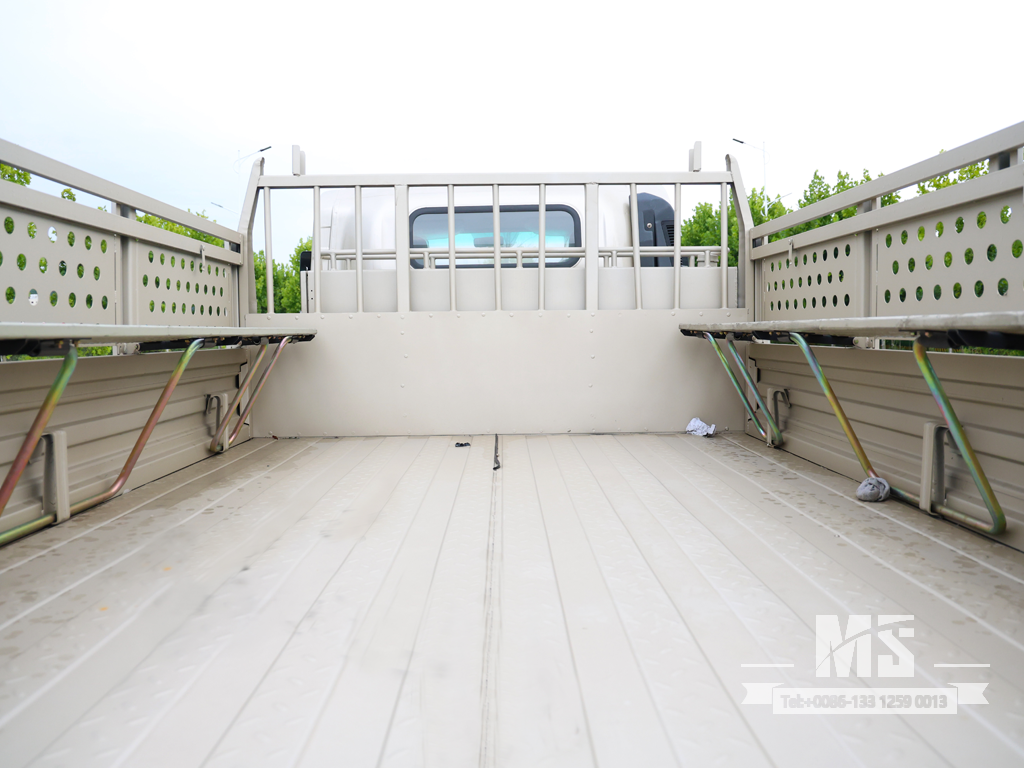

Cargobox Dimensions | 3600×2300×800mm |
Wheelbase | 3130+1065mm |
Wheel track | 1774mm |
GVW | 7800kg |
Curb Weight | 5230kg |
Maximum Power | 125kw |
Engine Displacement | 5.9L |
Maximum speed | 87km/h |
Approach Angle/departure Angle | 26°/41° |

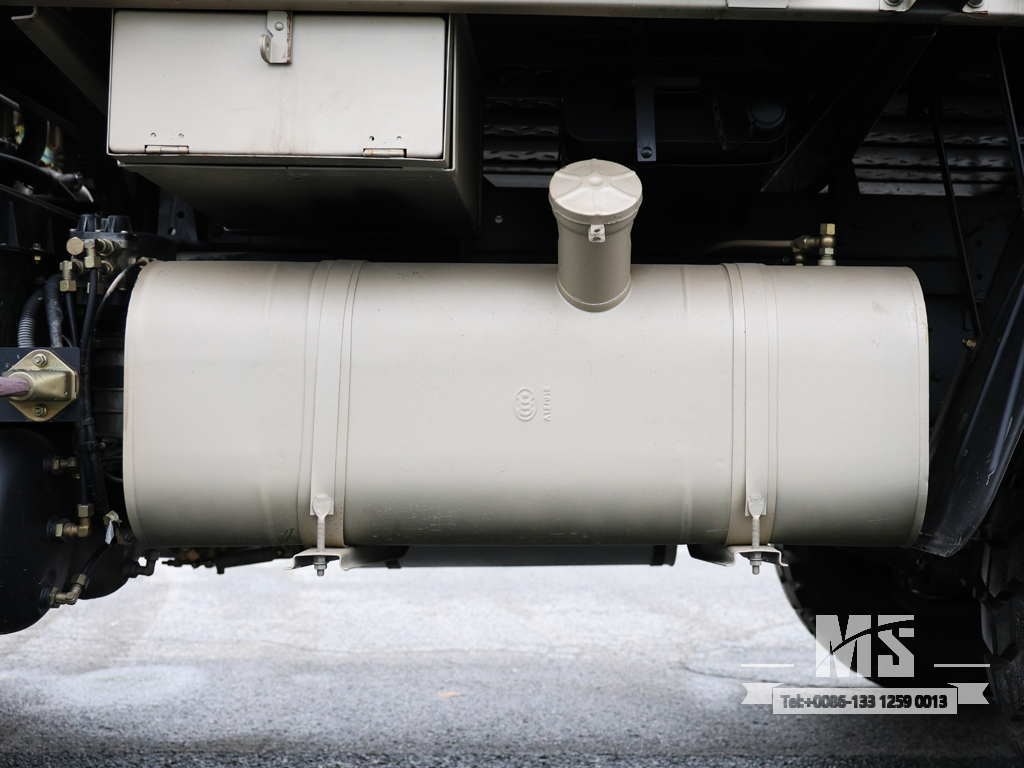

Tank volume | 160L |
Minimum ground clearance | 285mm |
Fording depth | 1100mm |
Note: This configuration is for reference only, please refer to the actual car.
