Basic configuration |
Drive type | 6*6 |
Engine | Cummins B170 33 |
Transmission | Shou chi Manual 5-speed |
Transfer case | High and low speed |
Driver Cab | Dongfeng Conventional Single Row Cab |
Frame | 860X232mm |
Vehicle Axle |
Dont Alxe 2.5T/Middle Alxe 2.5T/Rear Alxe 2.5T
|
Tire | 11R18（6+1） |
Detailed parameter |
Overall Dimension | 6660x2380x2580mm |

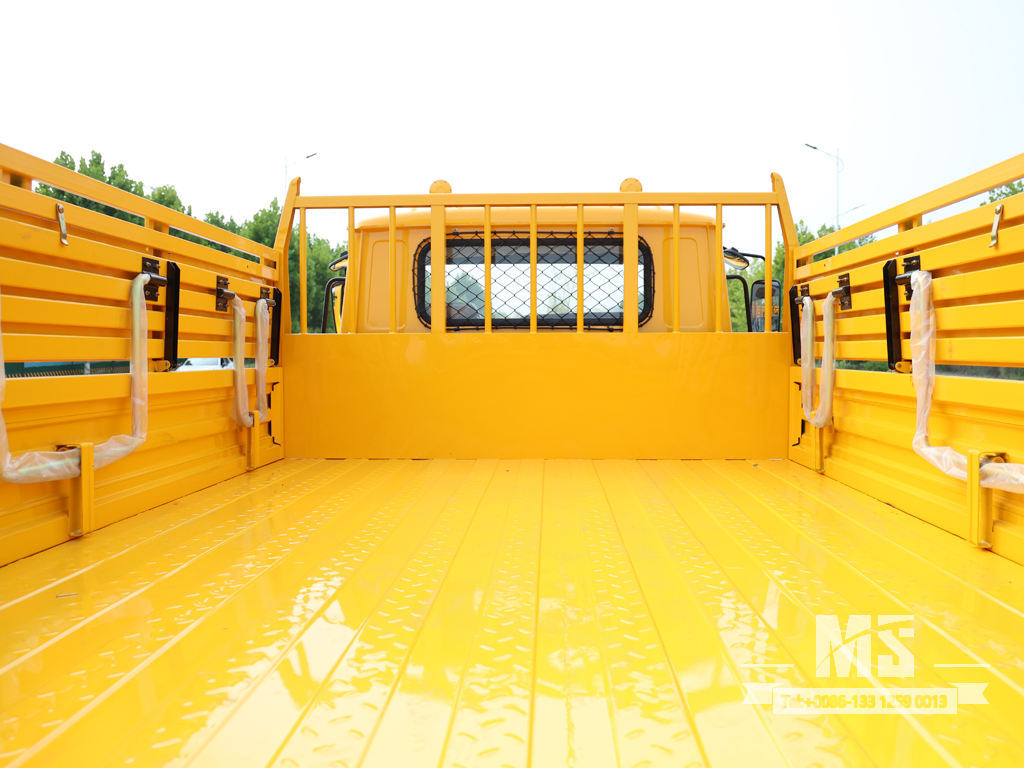

Cargobox Dimensions | 3600x2300x900mm |
Wheelbase | 3190+1100mm |
Wheel track | 1774mm |
GVW | 6660kg |
Curb Weight | 5090kg |
Loading weight | 3500kg |
Approach Angle/departure Angle | 37°/46° |
Tank volume | 145+70L |
Minimum ground clearance | 285mm |
Fording depth | 1100mm |
Note: This configuration is for reference only, please refer to the actual car.
