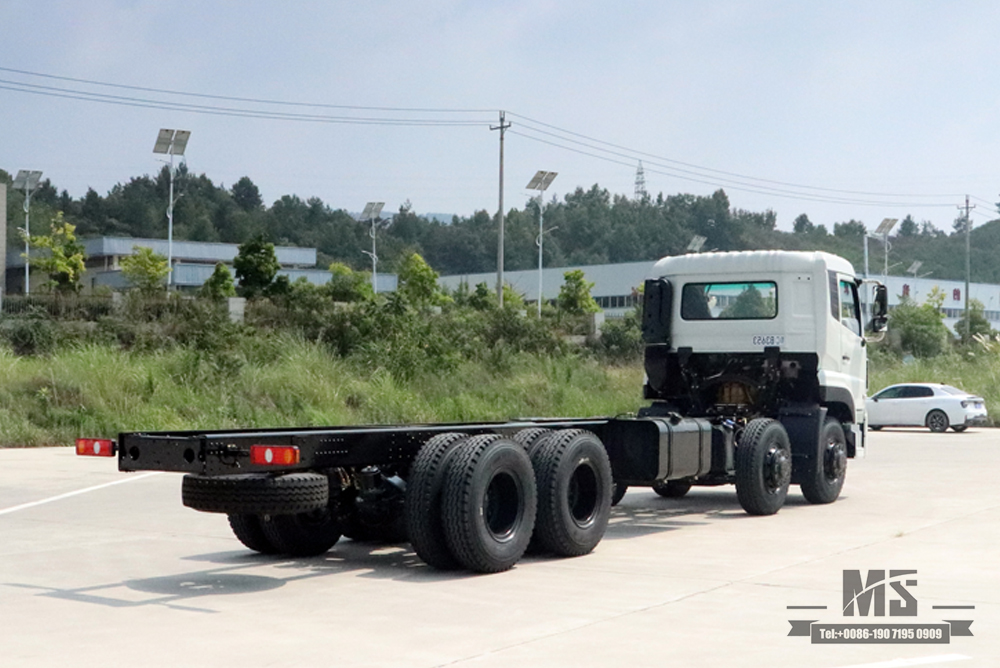

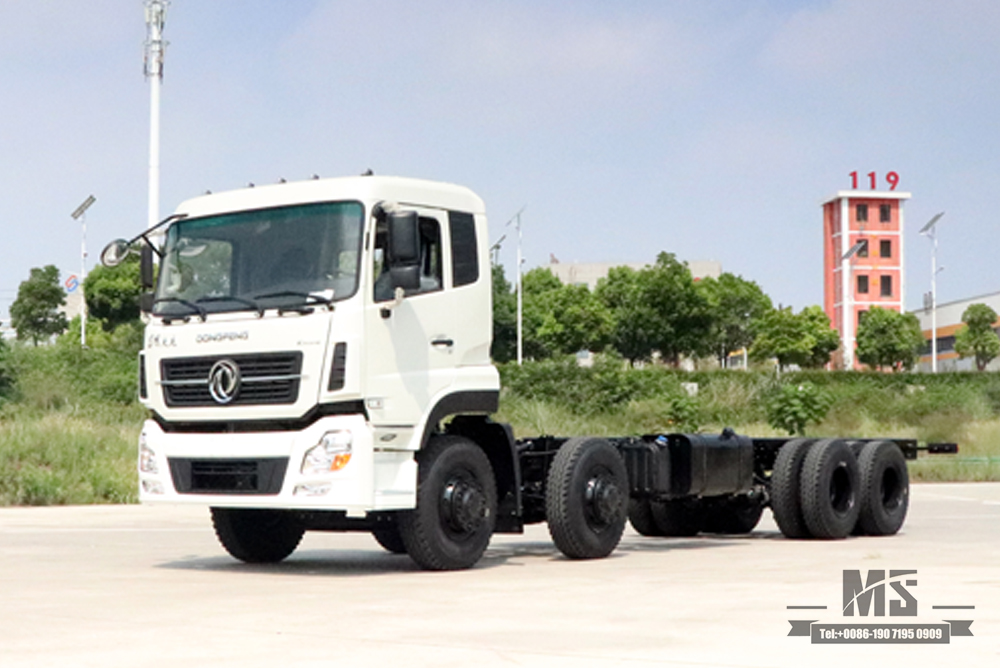

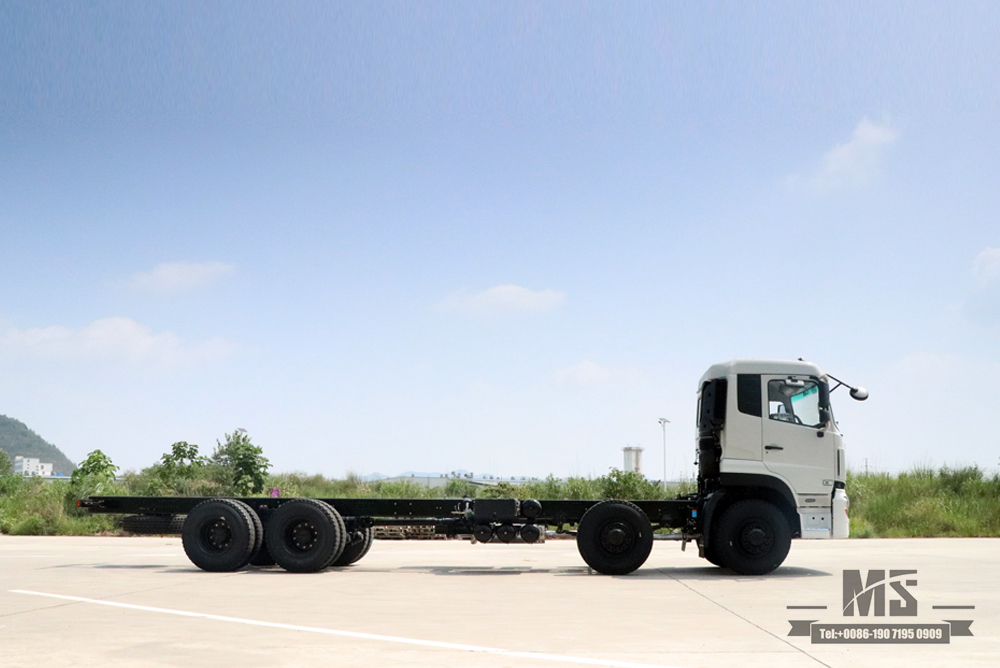

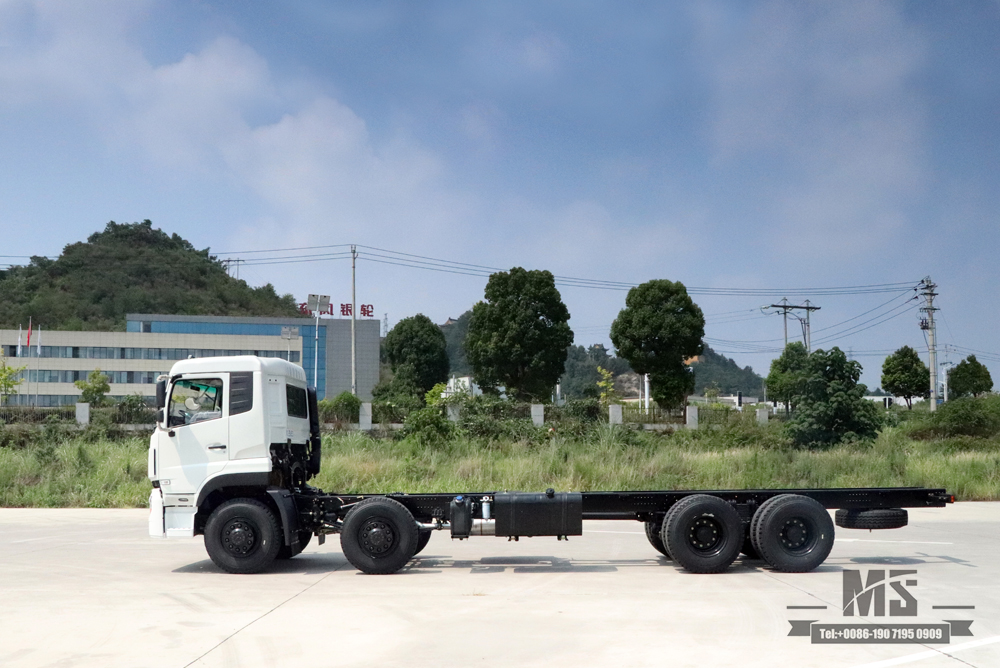

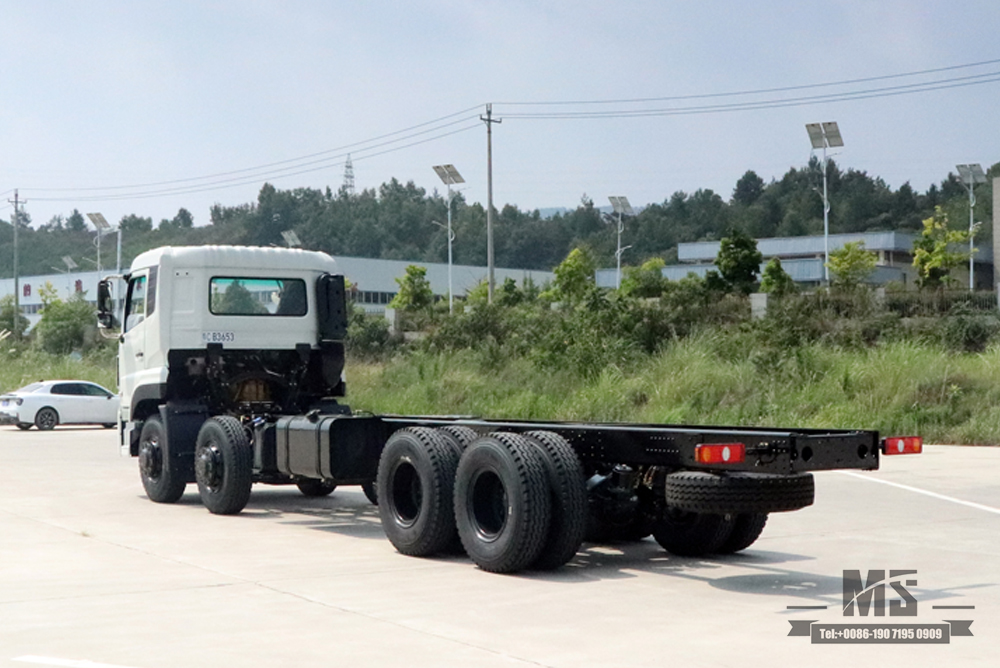

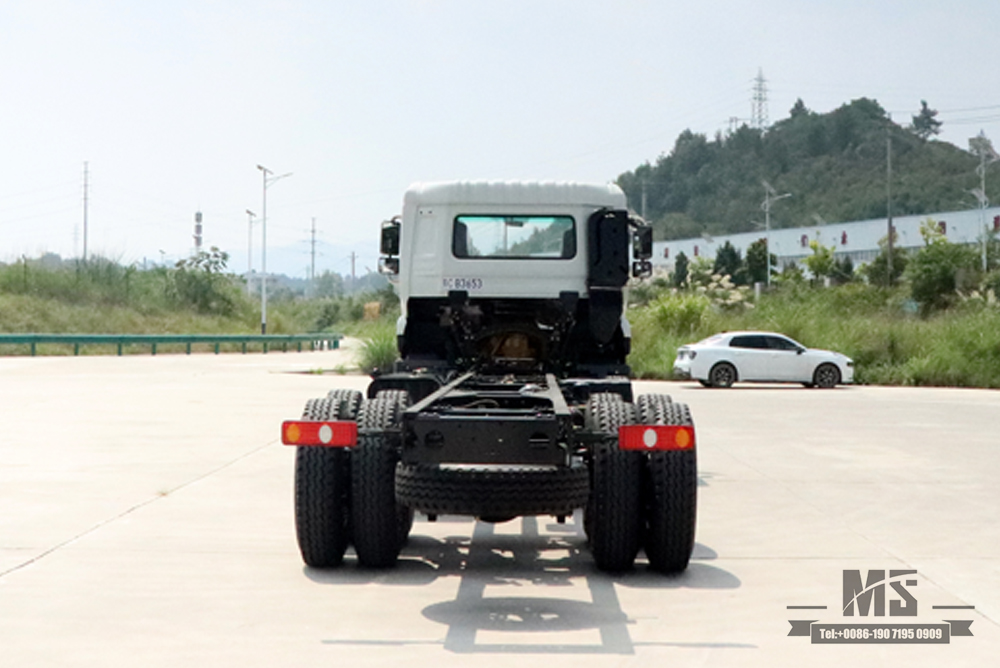

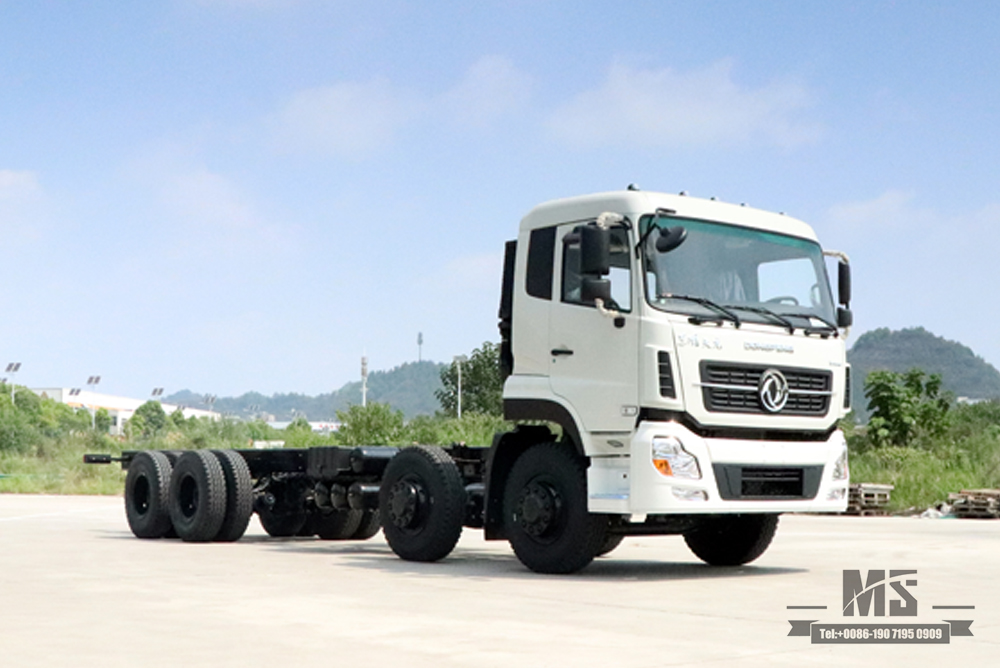

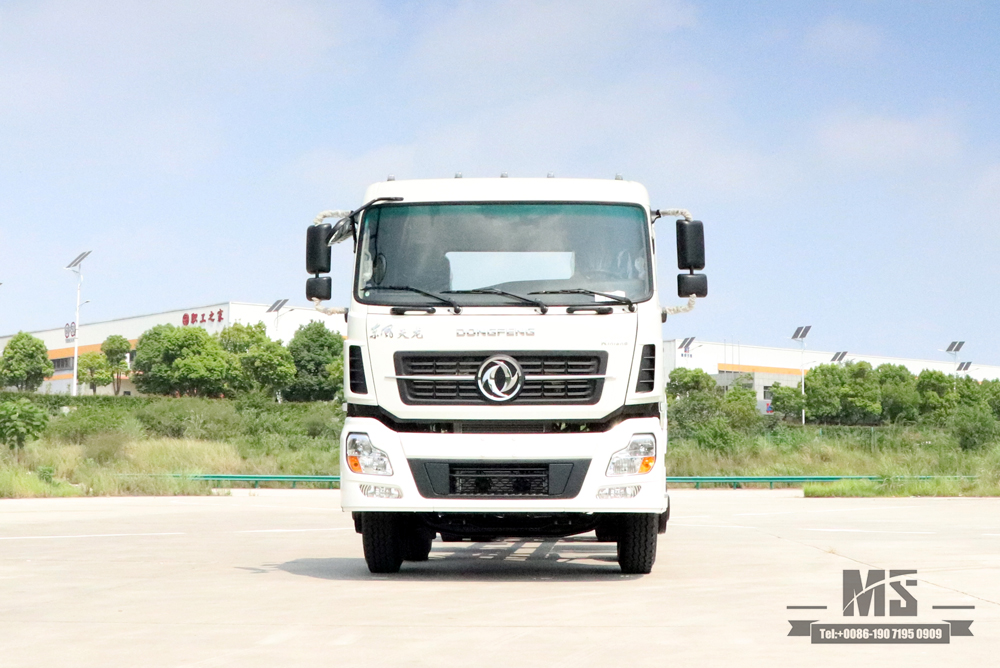

Dongfeng 8*4 heavy-duty truck chassis, mainly built for all kinds of special-purpose vehicle models, suitable for conversion into port container trucks, logistics and storage trucks, satellite transmission trucks, mobile stage trucks.
Basic configuration | |
Engine | YC6L350-50 |
Drive type | 8*4 |

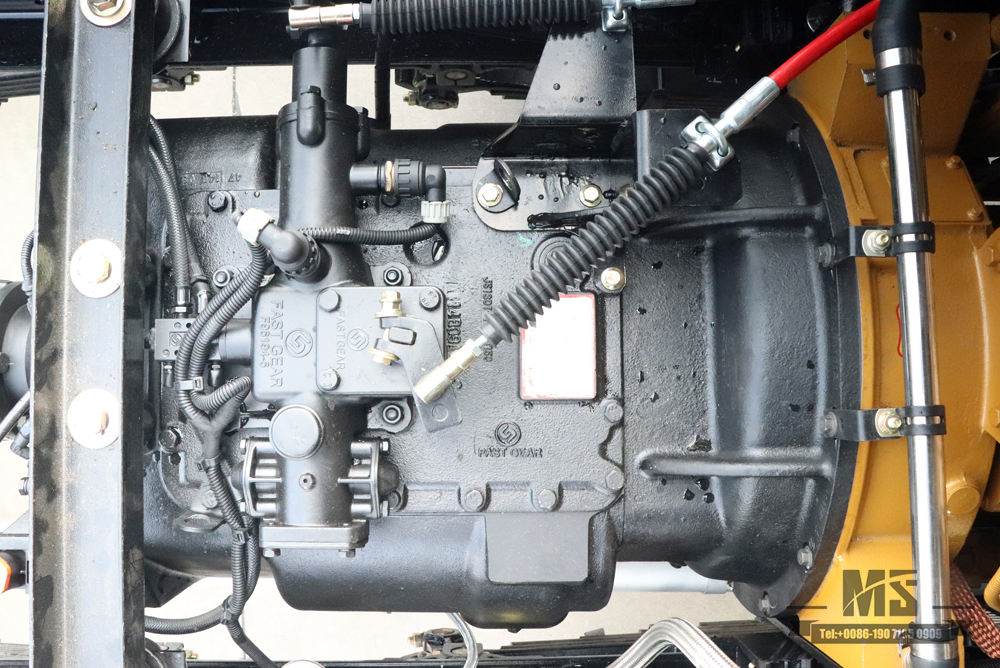

Gearbox | Mechanical Manual Nine-speed Gearbox |
Transfer box | None |
Vehicle Frame | 860*280*87mm |
Driver Cab | Dongfeng Flathead Row a Half |
Axle | 5T/5T/10T/10T |

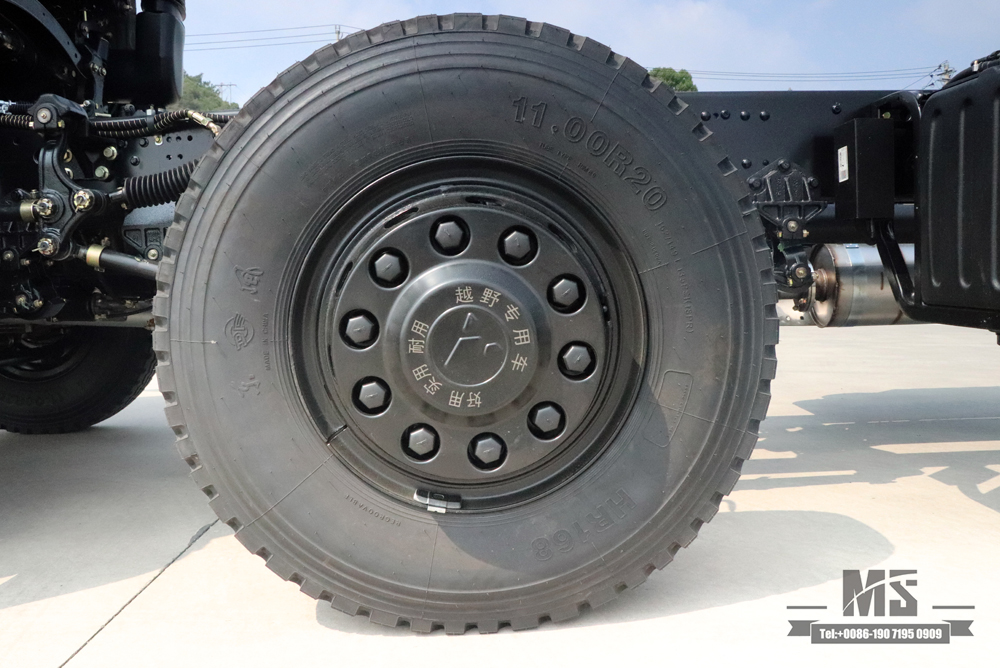

Tire | 11.00R20 (12+1) |

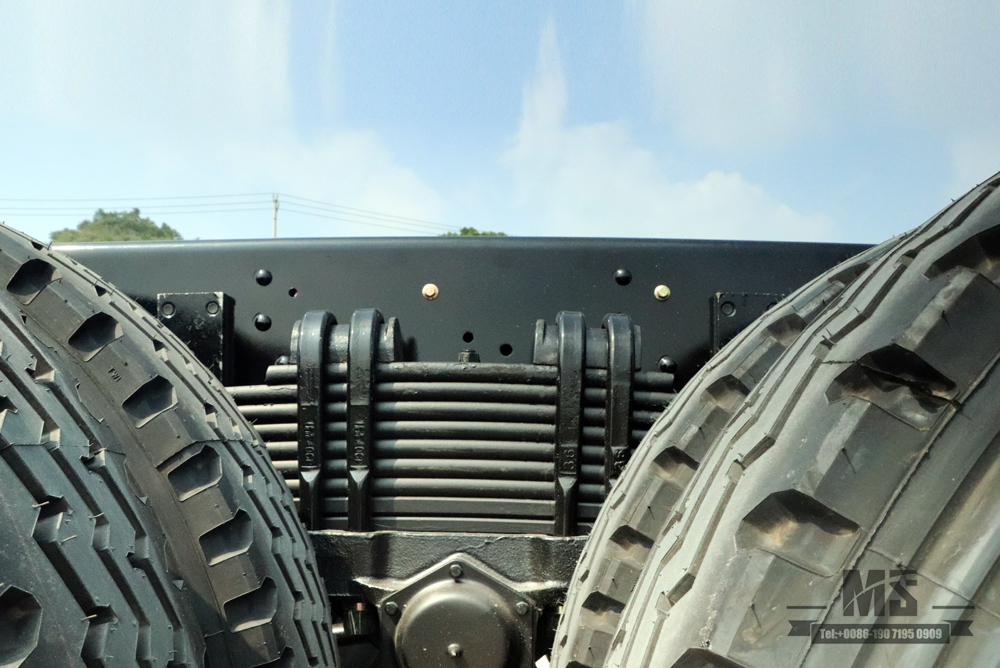

Vehicle Suspension | Steel Plate Spring 7/10 pcs |
Electric Circuit | 24V circuit system |
Optional Items | Reversing Camera、Air Conditioning、Right-hand Drive Cab |
Detailed parameter | |
Overall Dimension | 11720×2480×3150mm |
Modification Dimension | ≥9220mm |
Wheelbase | 1950+4500+1300mm |
Wheel Track | 2065/2065/1880/1880mm |
GVW | 31000kg |
Number of passengers | 3 |
Maximum speed | 90km/h |
Front Overhang/Rear Overhang | 1780/2550mm |
Approach Angle/departure Angle | 16°/14° |
Oil Tank volume | 420L |
Minimum ground clearance | 305mm |
Obstacle Crossing height | 20mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
