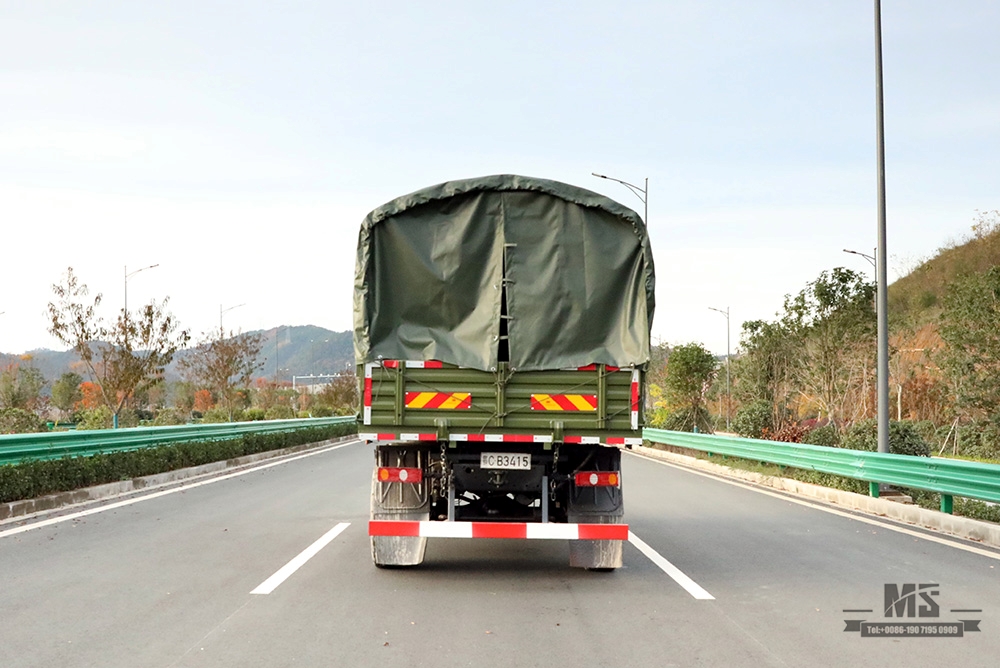

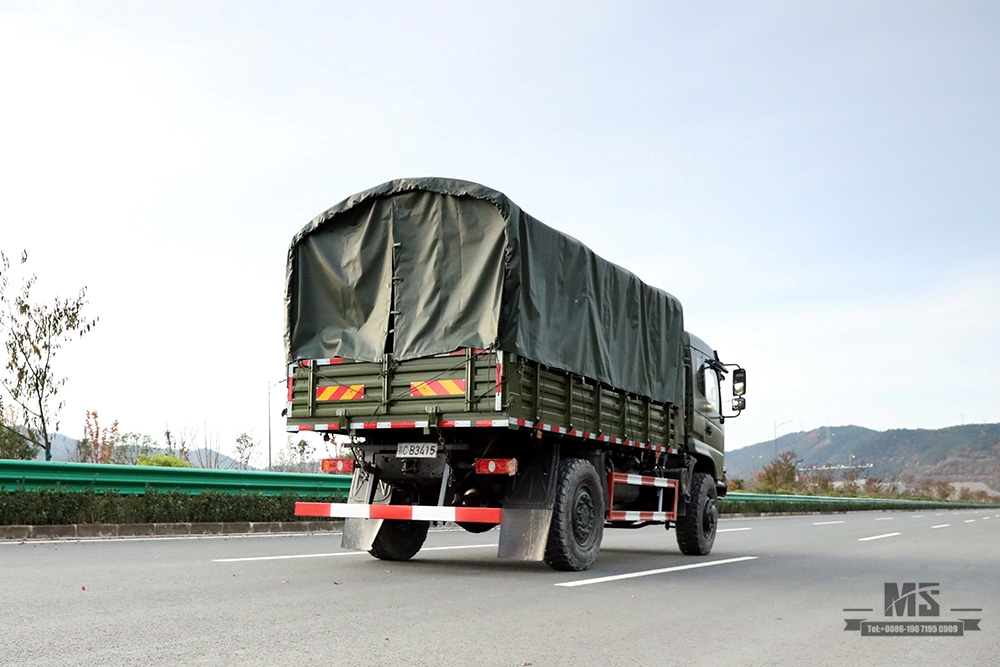

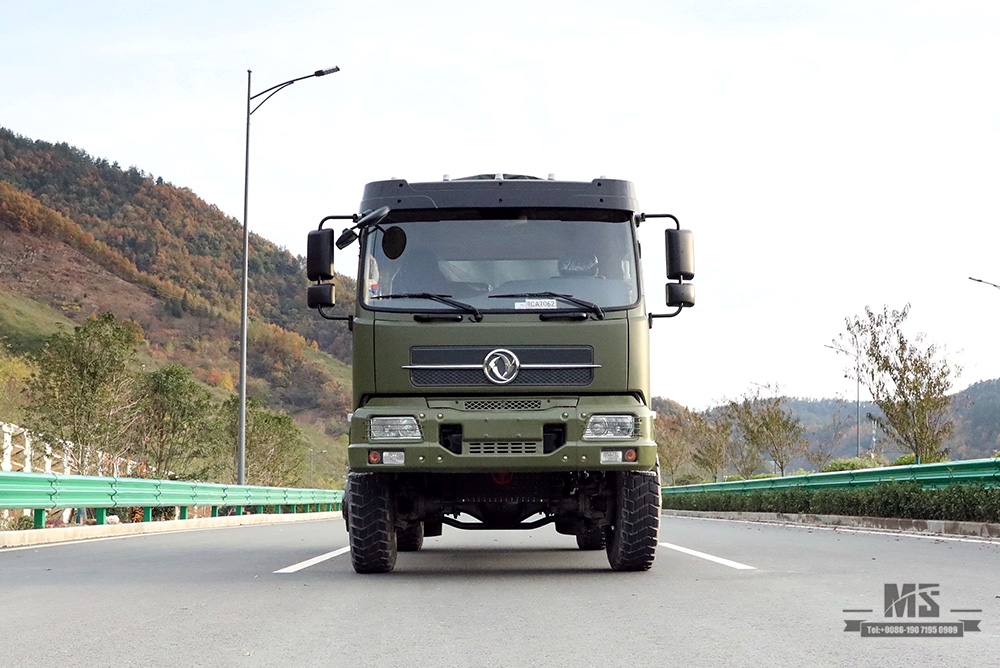

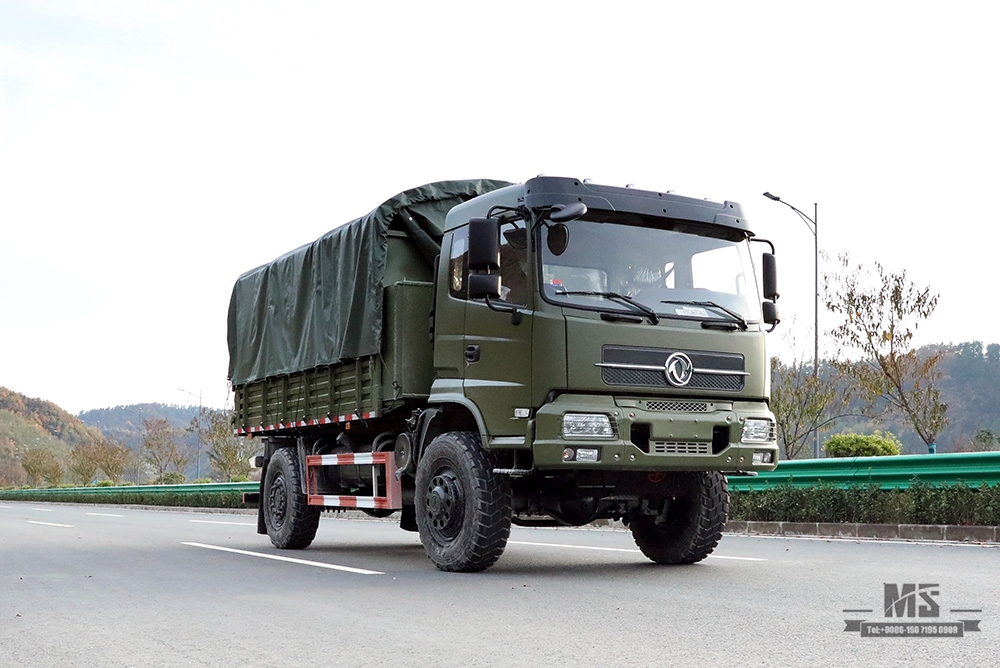

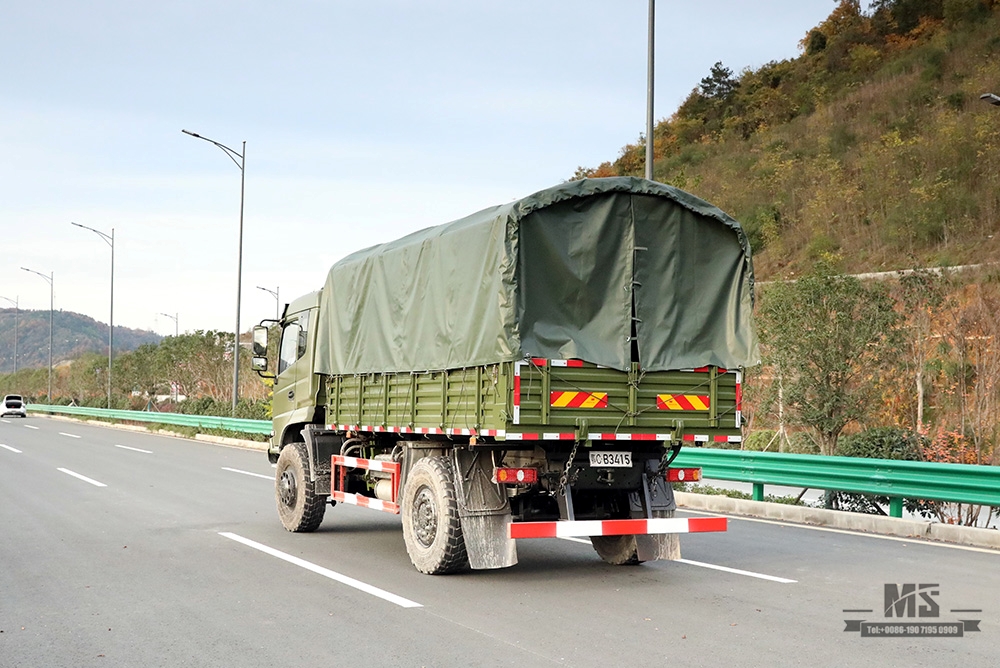

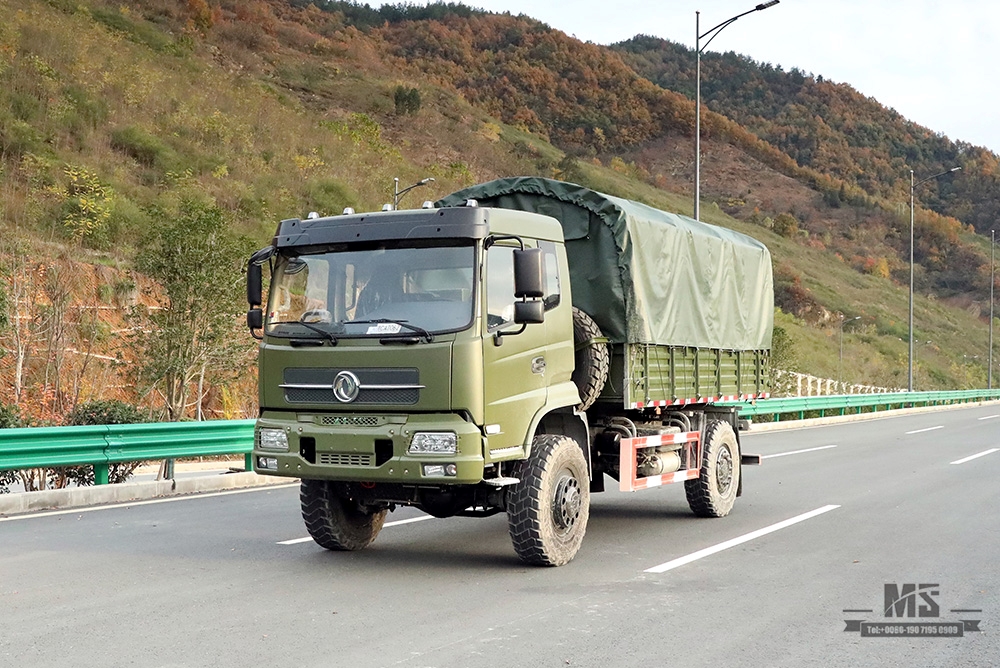

Dongfeng 4WD tipper truck, which is a medium-sized dumper transporter, can carry 10 tonnes of cargo. The 4WD cross-country truck is equipped with 210hp engine of Heavy Duty Truck, 4*4 time-sharing drive, which can be used for transporting goods in towns and villages as well as deserts, Gobi, mountains and other harsh areas.
Basic configuration | |
Drive type | 4*4 |
Engine | Sinotruck WD415.21 |
Gearbox | Mechanical Manual Eight-speed Gearbox |
Transfer box | With high and low gears |
Driver Cab | Dongfeng Flathead One-and-a-half Row Cab |
Vehicle Frame | 860×232mm, Thickness 8mm |
Vehicle Axle | 6.5T/10T |
Tire | 12.00R20(4+1) |
Electric circuit | 24V circuit system |
Suspension | Steel Plate Spring 9/13 |
Optional | Reversing camera, car recorder, right hand drive cab, brake cooling tanks |
Detailed parameter | |
Overall Dimension | 7300*2480*3050mm |
Cargo Box Inner Dimension | 4200*2300*800mm |
Wheelbase | 4200mm |
Wheel track | 2080/2095mm |
GVW | 16500kg |
Curb Weight | 7300kg |
Loading Weight | 9200kg |
Maximum Power | 155kw |
Engine Displacement | 6484ml |
Engine Torque | 820N.m/1300-1600rpm |
Number of pasengers | 4 |
Maximum speed | 90km/h |
Maximum Climbing Grade | 60% |
Approach Angle/departure Angle | 24°/37° |
Tank volume | 300L |
Minimum ground clearance | 365mm |
Overrun height | 420mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
