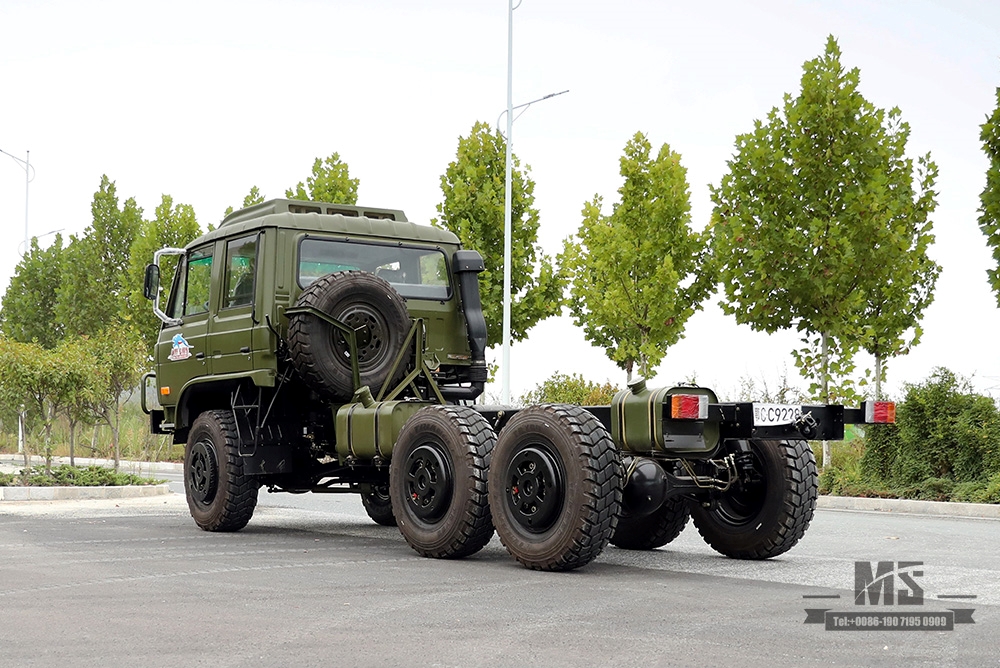

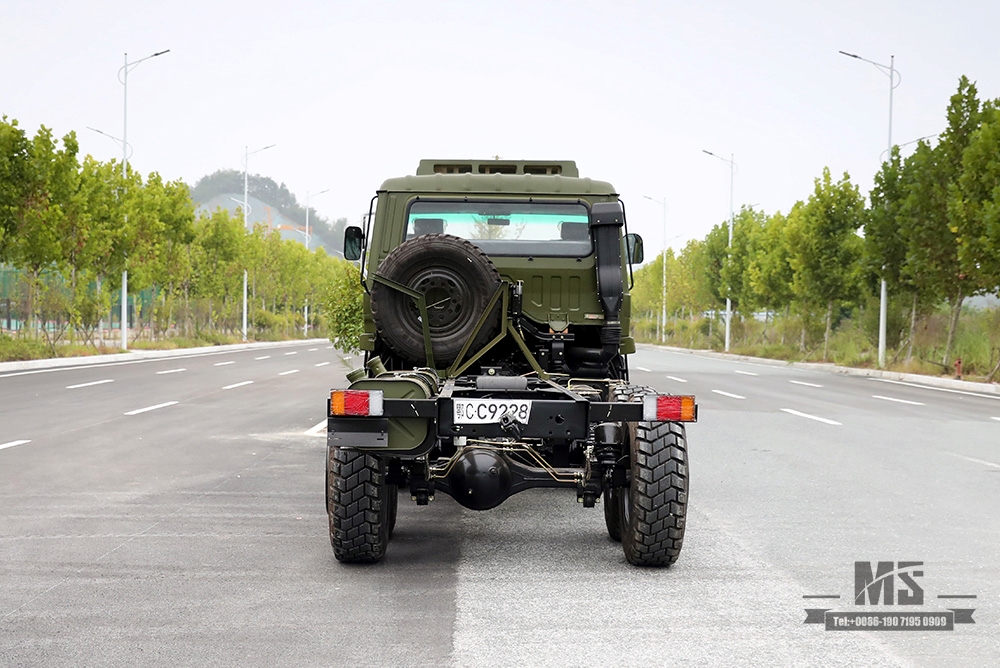

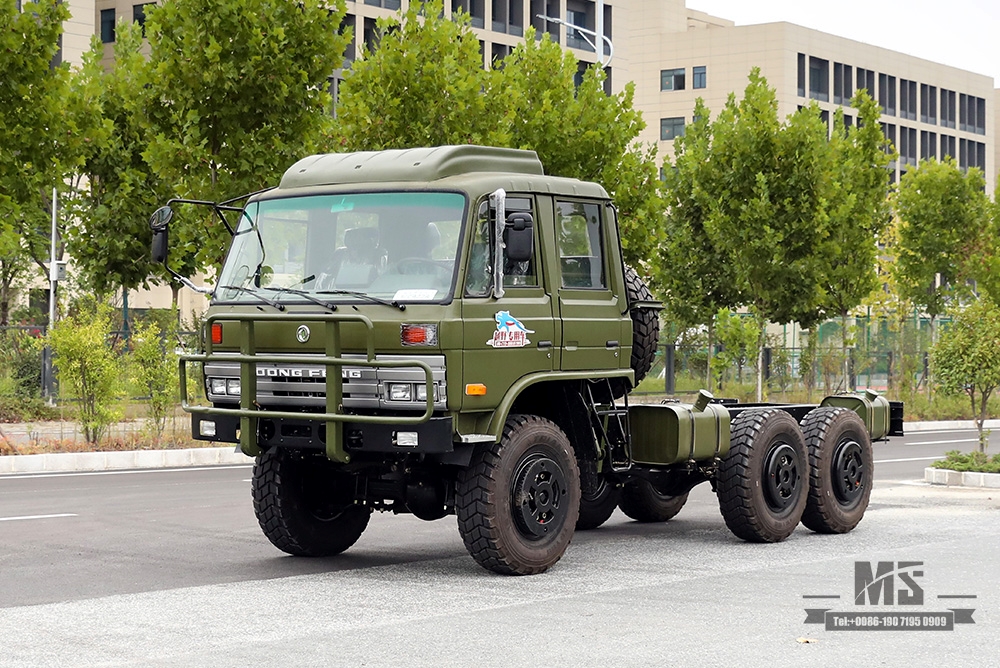

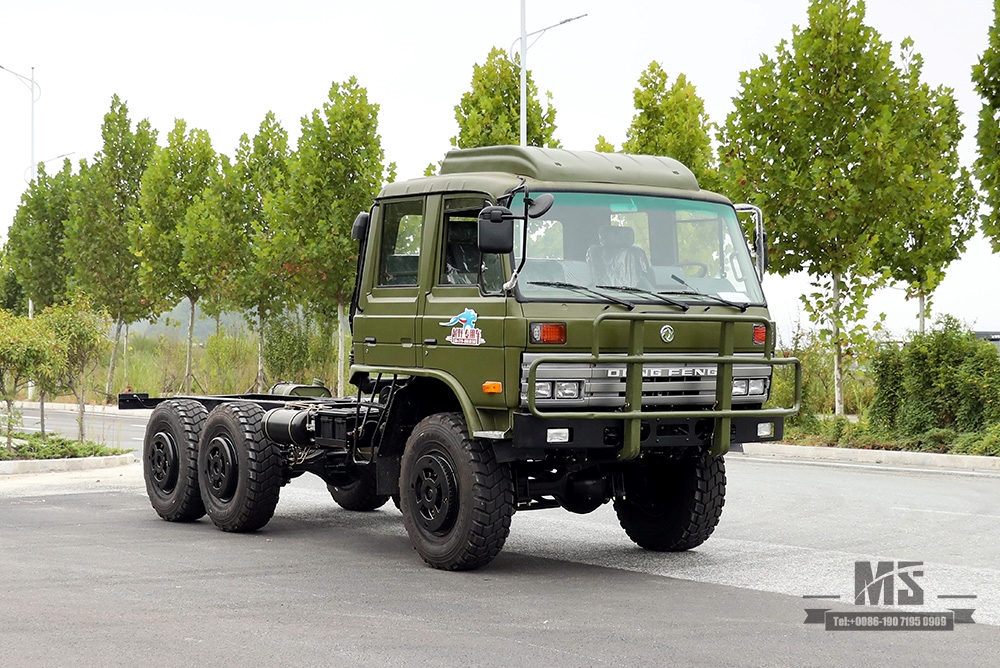

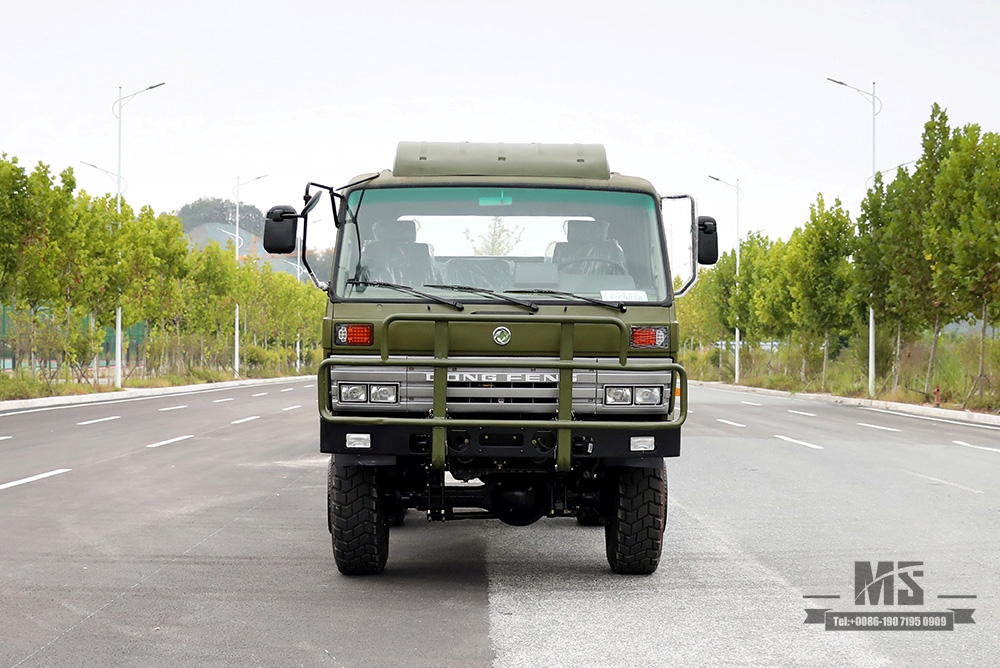

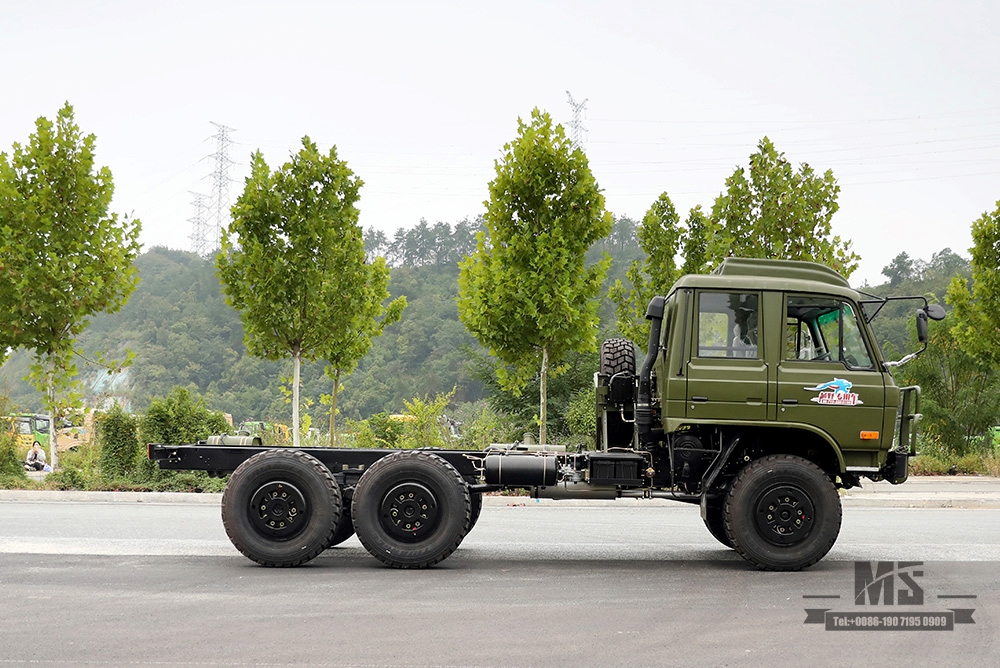

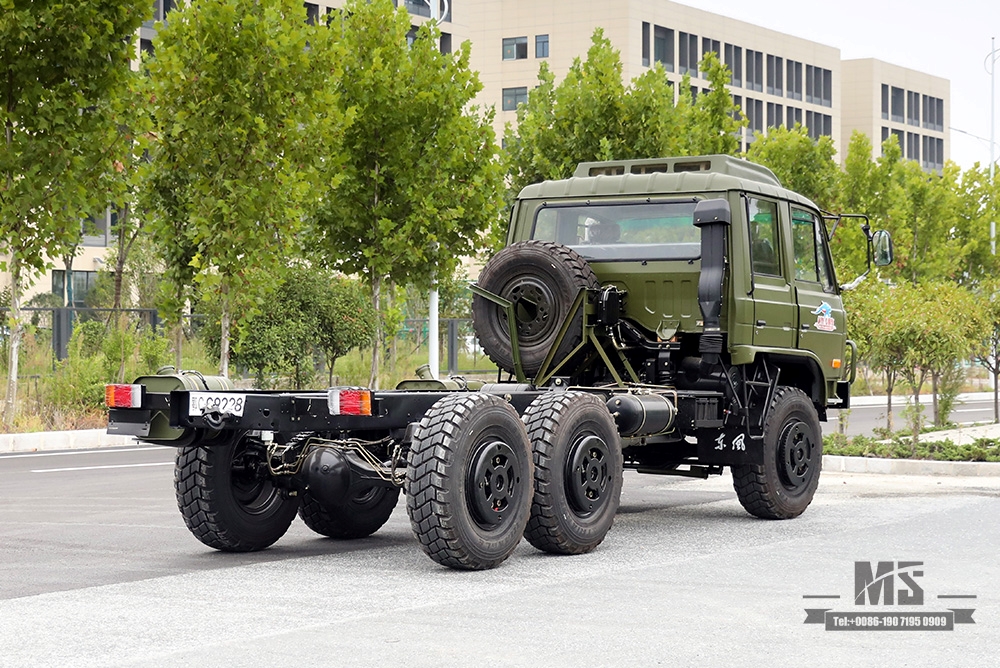

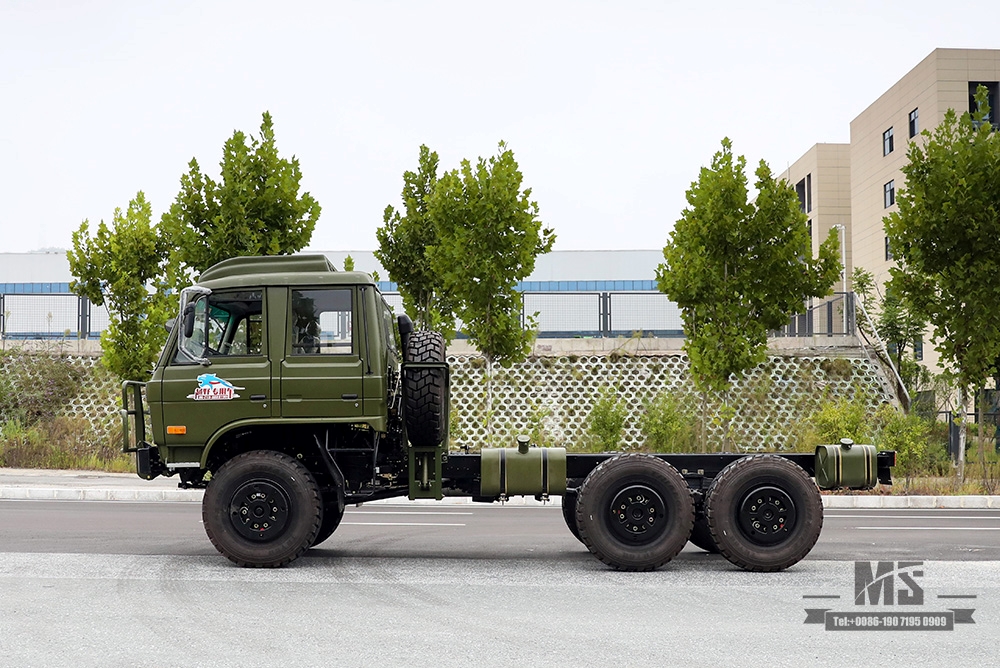

As one of the core products of China FAW, Dongfeng EQ2102N vehicle is characterised by excellent cost performance, comfort, safety, flexibility and reliability. Personalised customised service can be taken according to customers' needs, which has long been concerned by domestic and foreign users.
Basic configuration | |
Engine | Dongfeng Cummins B190 33 |
Drive type | 6*6 |
Gearbox | Shao Gear Six-speed Gearbox |
Transferbox | High and low gears, Hydraulic manoeuvring |

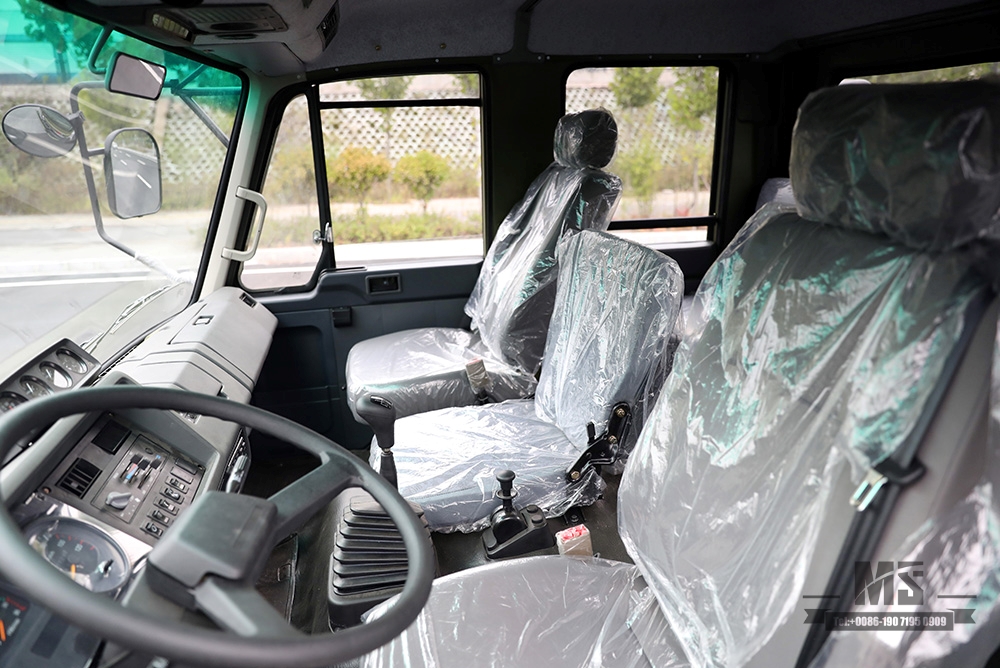

Driver Cab | Dongfeng 153 flat head double row with overhead air conditioning |
Vehicle Axle | 3.6T/3.6T/3.6T |

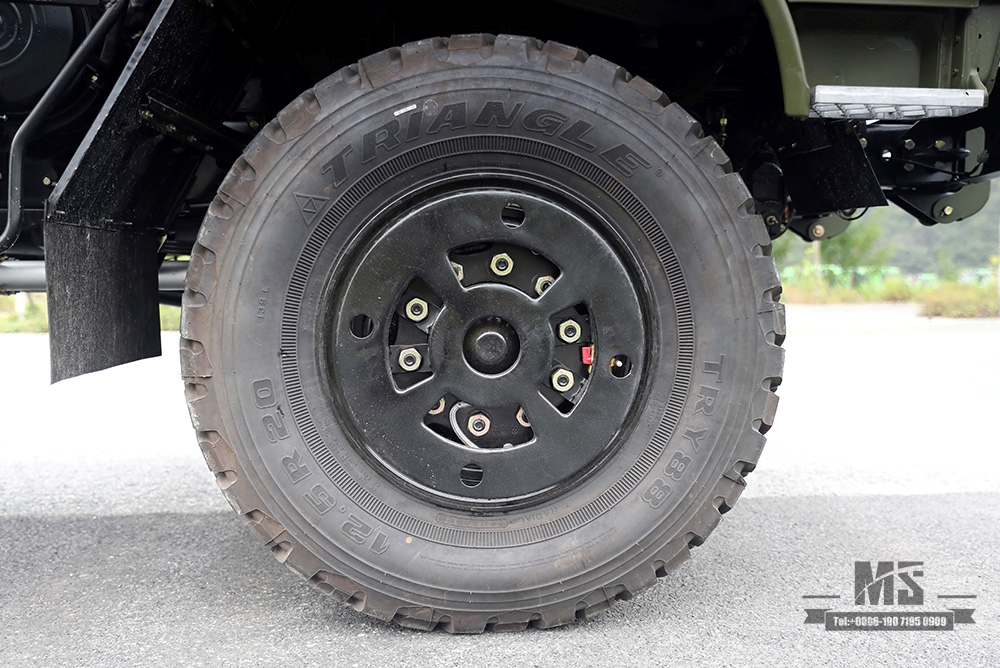

Vehicle Tire | 12.5R20 (6+1pcs) |
Detailed parameter | |
Overall Vehicle Dimension | 7350×2360×2810 |
Modification Dimension | 4300mm |
Wheelbase | 3500+1250mm |
Wheel Track | 1900/1815mm |
GVW | 10740kg |
Curb Weight | 5900kg |
Number of passengers | 3 |
Engine Displacement | 5900ml |
Maximum power | 125kW |
Maximum Torque | 560N·m |
Maximum speed | 90km/h |
Front/Rear Overhang | 1200/1330mm |
Approach/departure Angle | 33.4°/31.7° |
Minimum ground clearance | 320mm |
Wading Depth | 625mm |
Upper Frame Plane Off the Ground | 1080mm |
Tail Hook Off Ground | 820mm |
Oil Tank Volume | 160+80L |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
