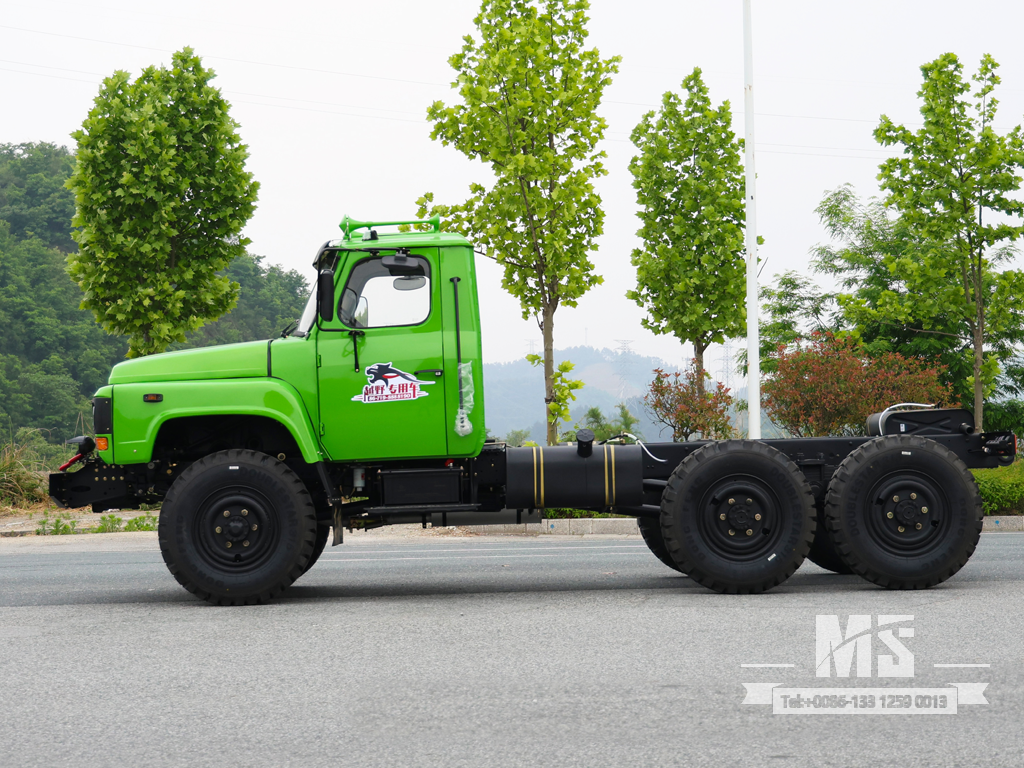

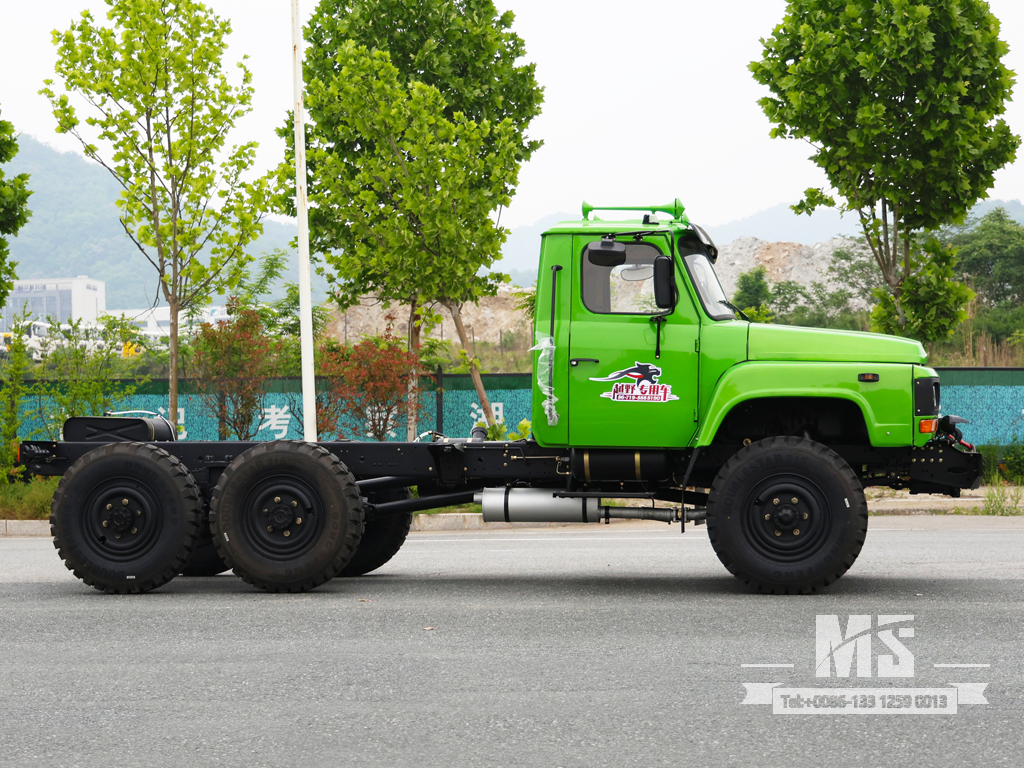

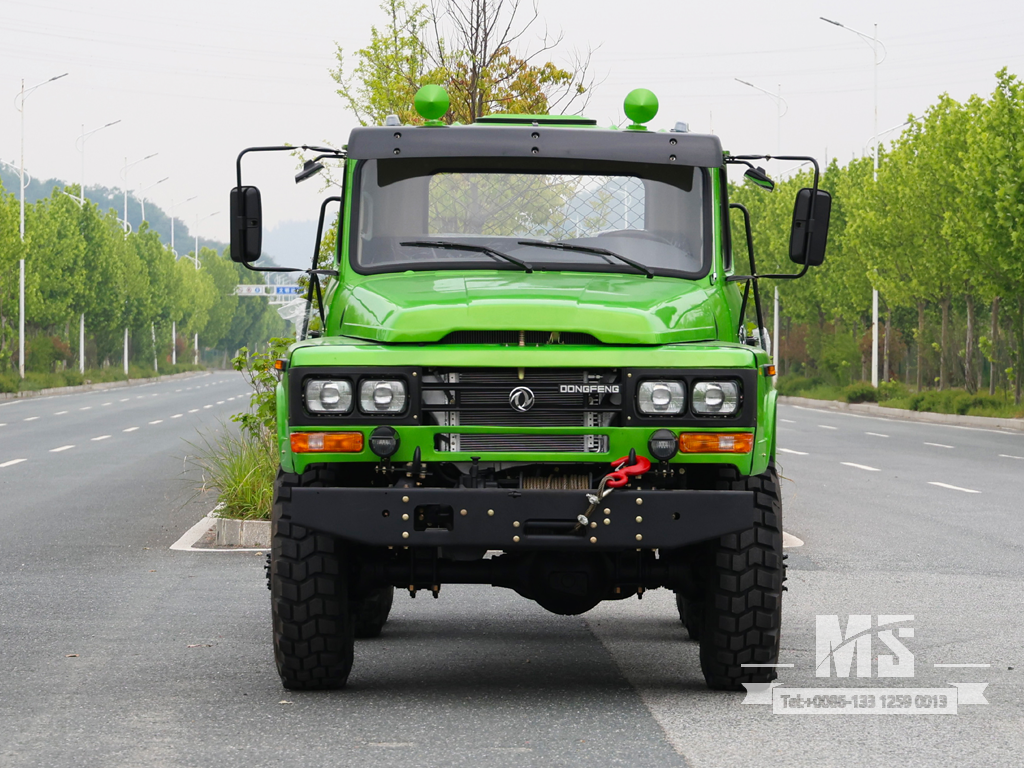

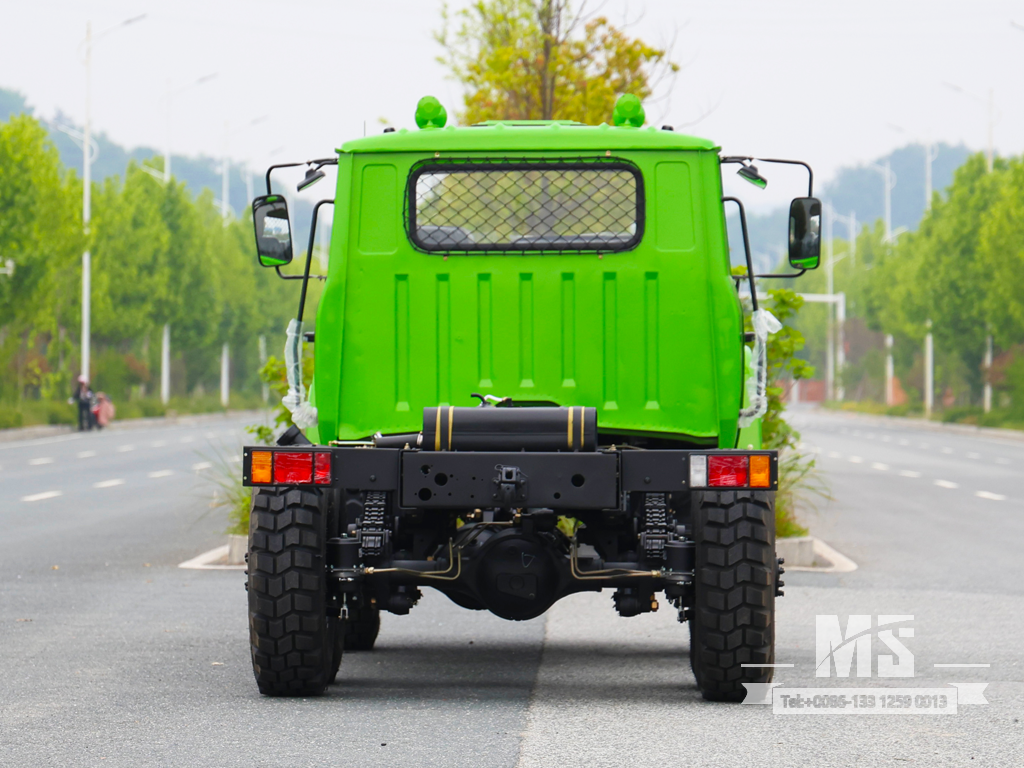

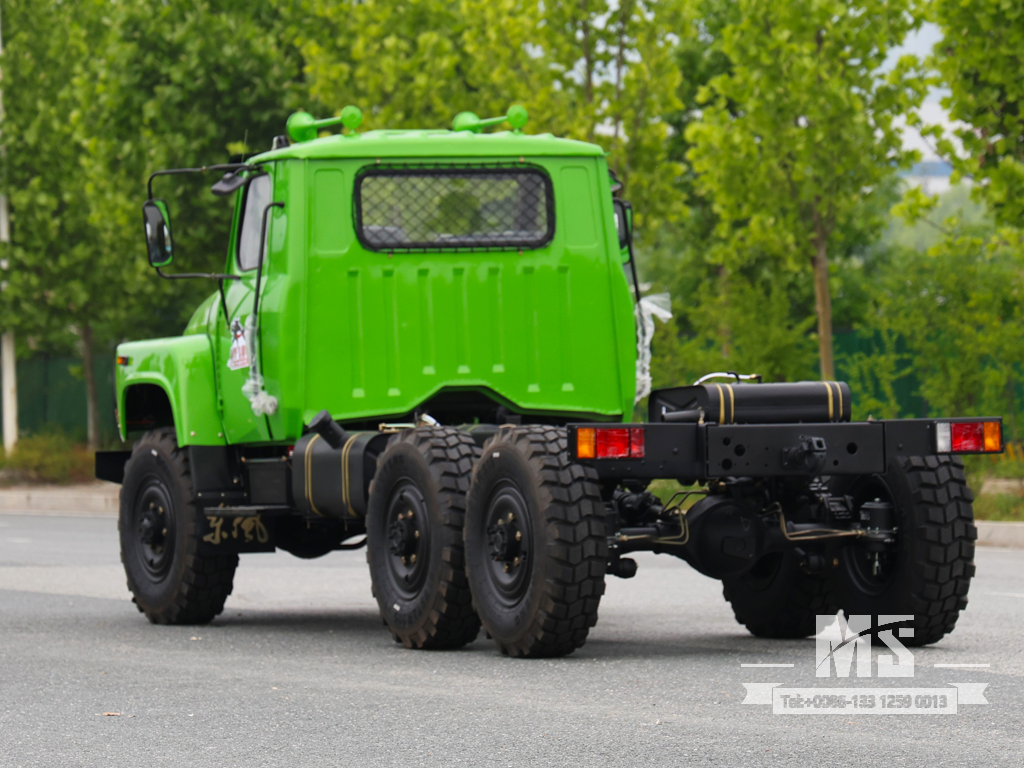

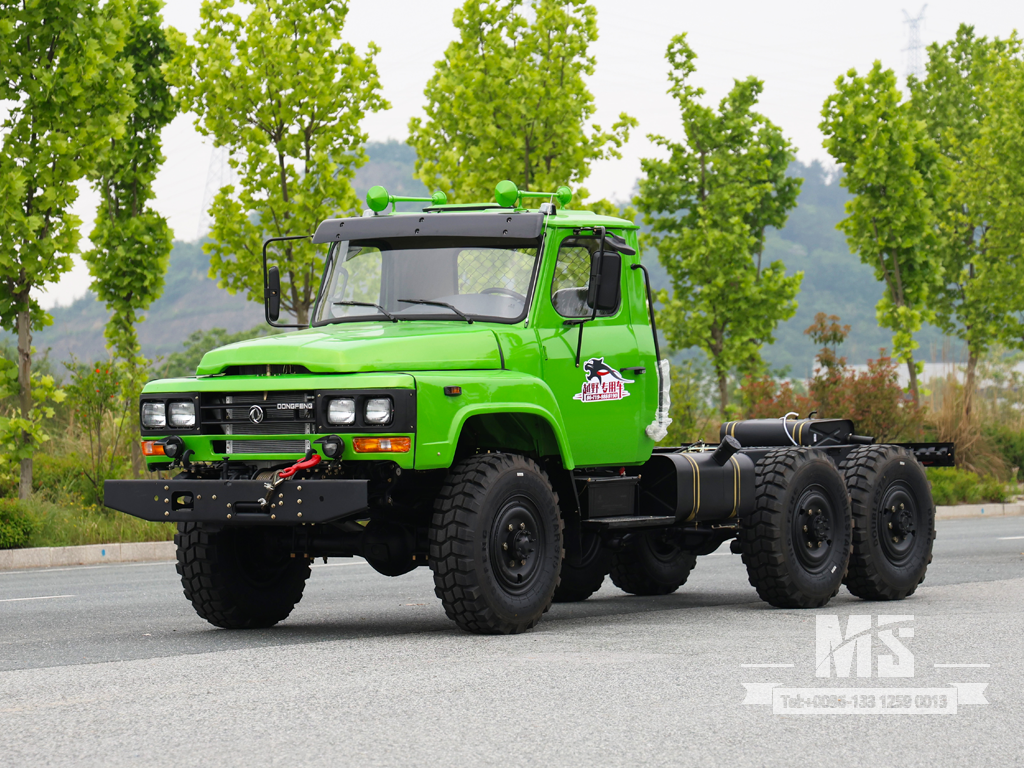

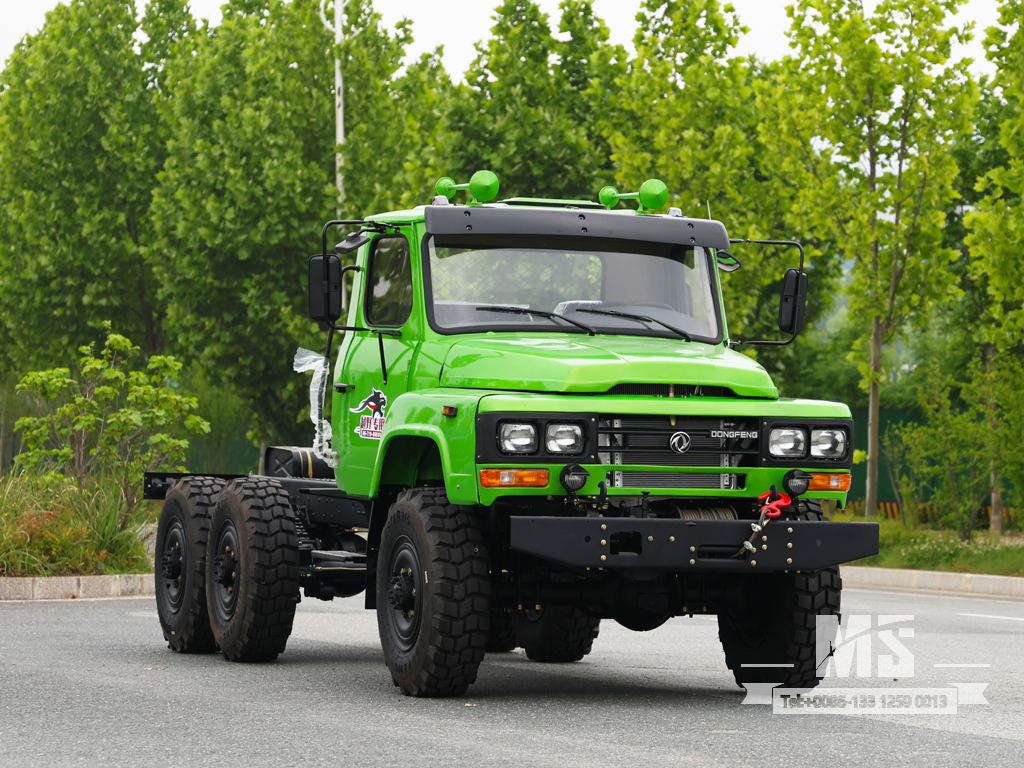

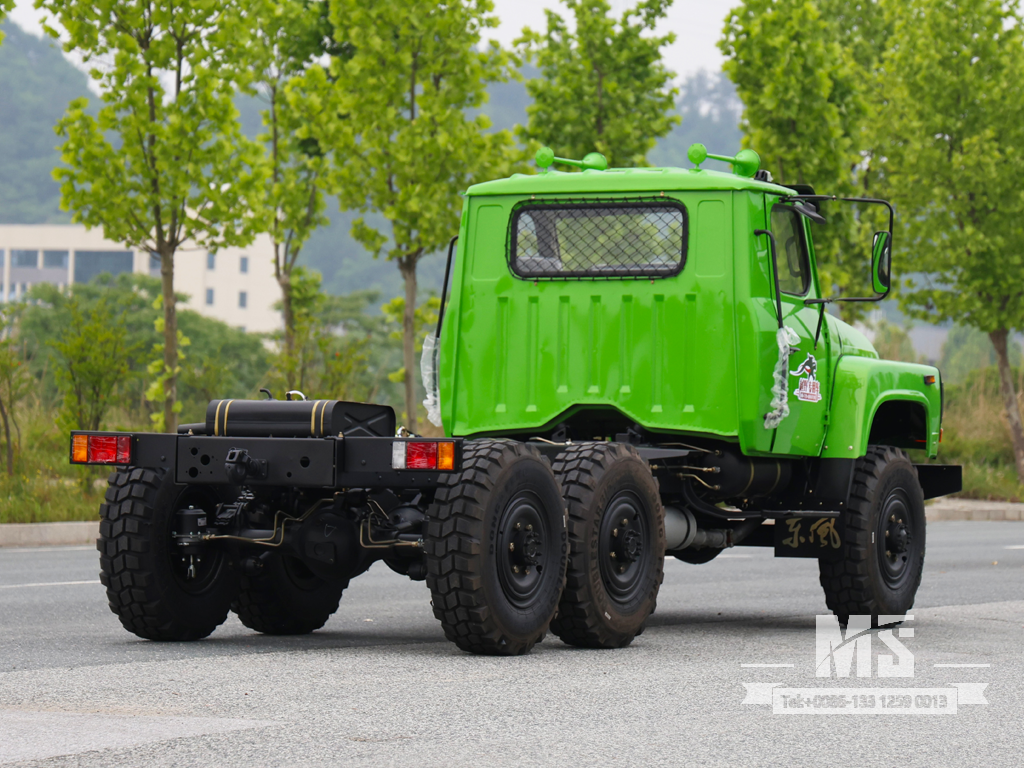

Pointed Head Truck Six Wheel Drive Chassis
170HP 6WD Off-road Chassis
Dongfeng EQ240 Off-road Chassis
Basic configuration | |
Drive type | 6*6 |
Engine | B170 33 |
Transmission | Shou chi Manual 5-speed |
Transfer case | High and Low Gears |
Driver Cab | Dongfeng Sharp-nosed Single-row |
Vehicle Axle | Dont Alxe 2.5T/Middle Alxe 2.5T/Rear Alxe 2.5T |
Tire | 11R18(6+1 Pieces) |
Electric circuit | 24V circuit system |
Leaf Spring | 9/13 |
Optional | Water bucket, Oil drum, Fire extinguisher, Vehicle toolkit |
Detailed parameter | |
Chassis Overall Dimension | 6430×2380×2580mm |
Modification Dimensions | ≥3540mm |
Wheelbase | 3190+1100mm |
Wheel track | 1774mm |
GVW | 7950kg |
Curb Weight | 4370kg |
Maximum Towing Capacity | 2500kg |
Maximum Power | 125kw |
Number of members | 3 |
Maximum speed | ≥87km/h |
Approach Angle/departure Angle | 45°/44° |
Tank volume | 140+70L |
Minimum ground clearance | 285mm |
Maximum Climbing Capacity | 60% |
Standstill Gradient | 40% |
Note: This configuration is for reference only, please refer to the actual car.
