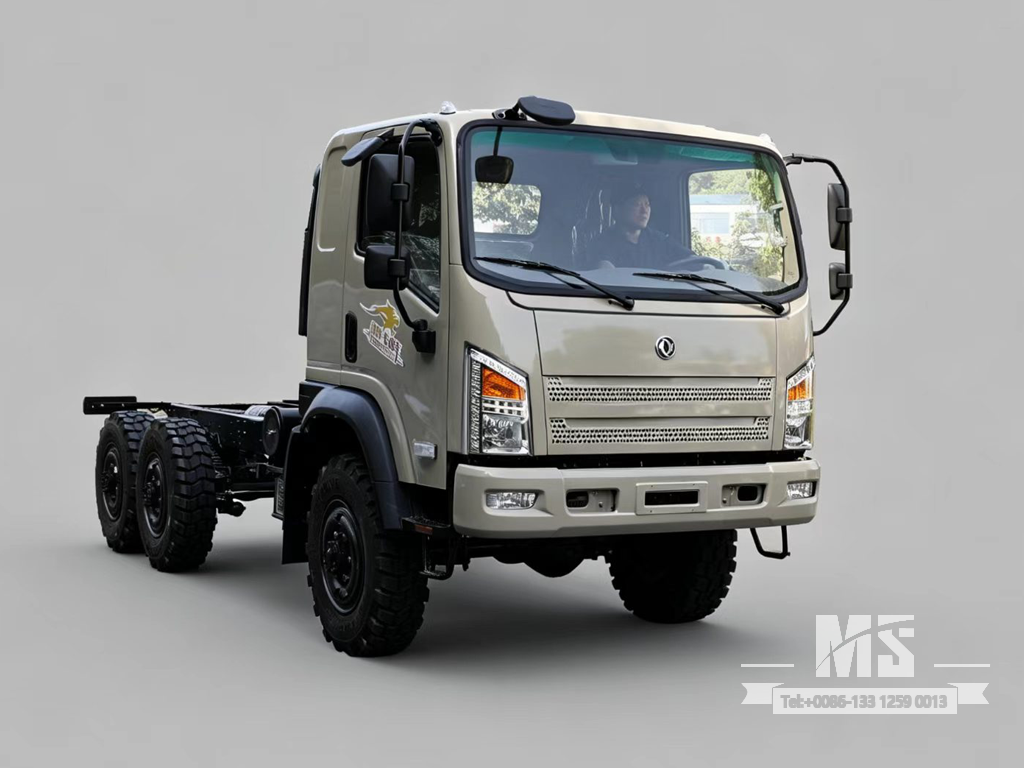

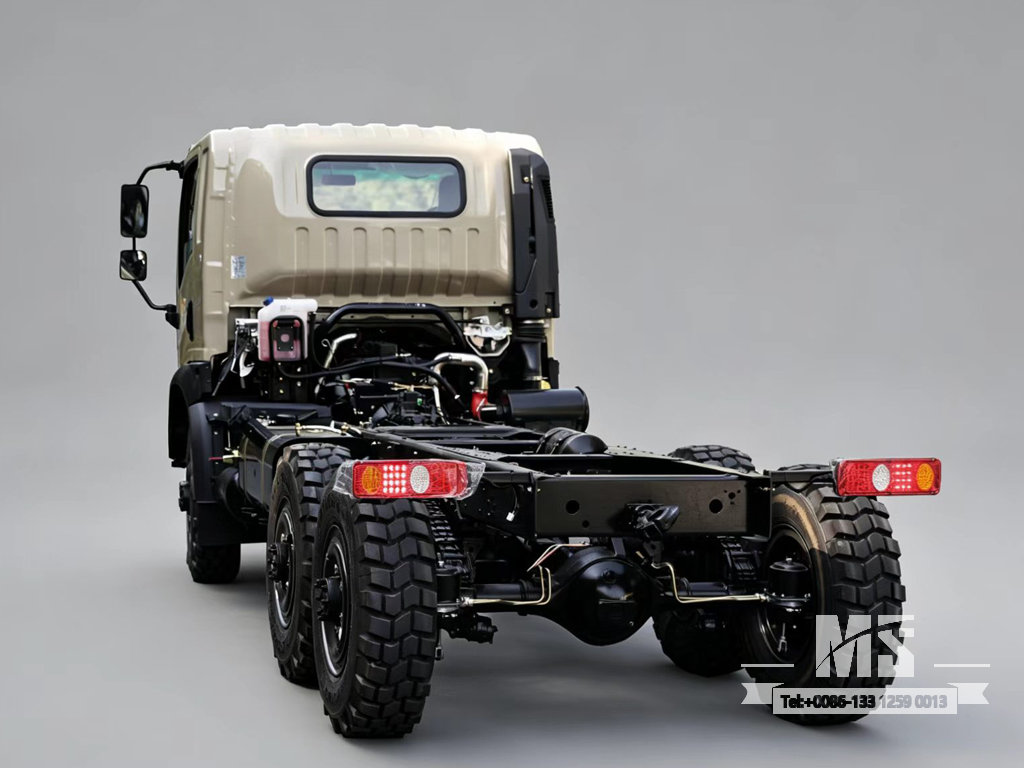

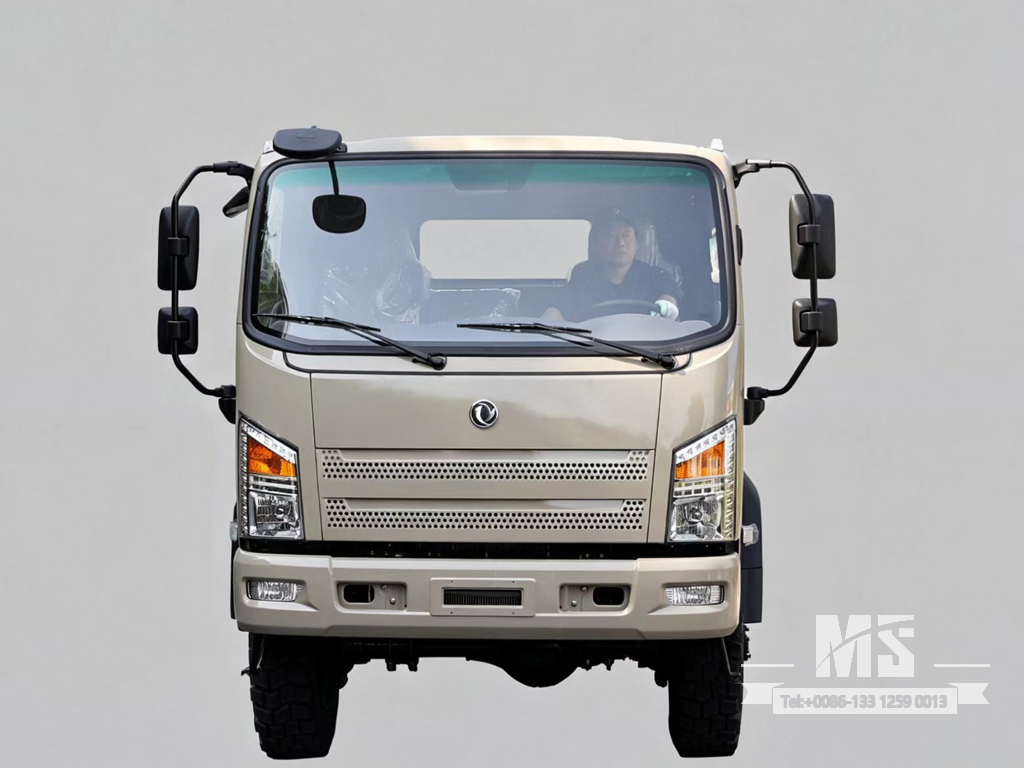

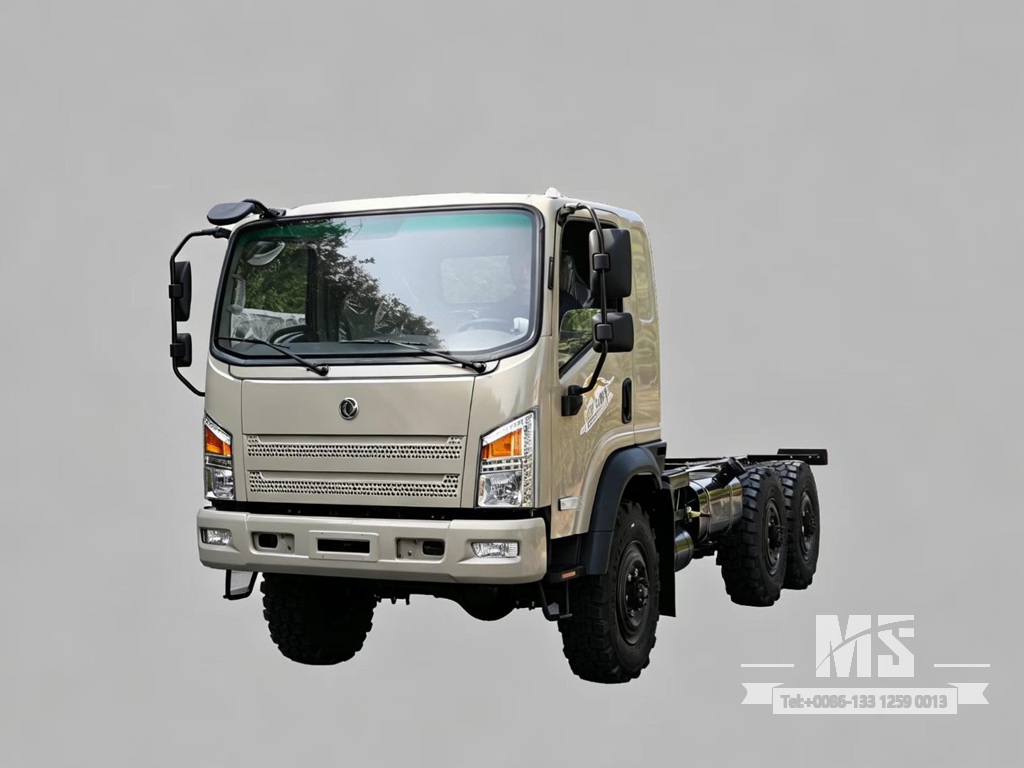

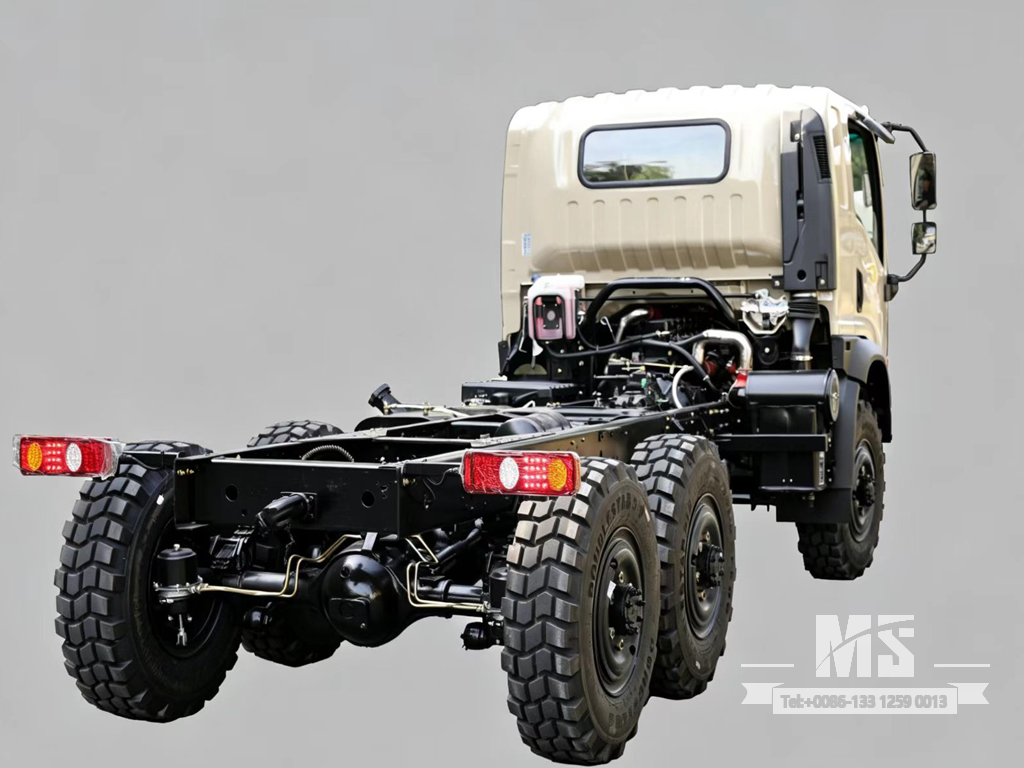

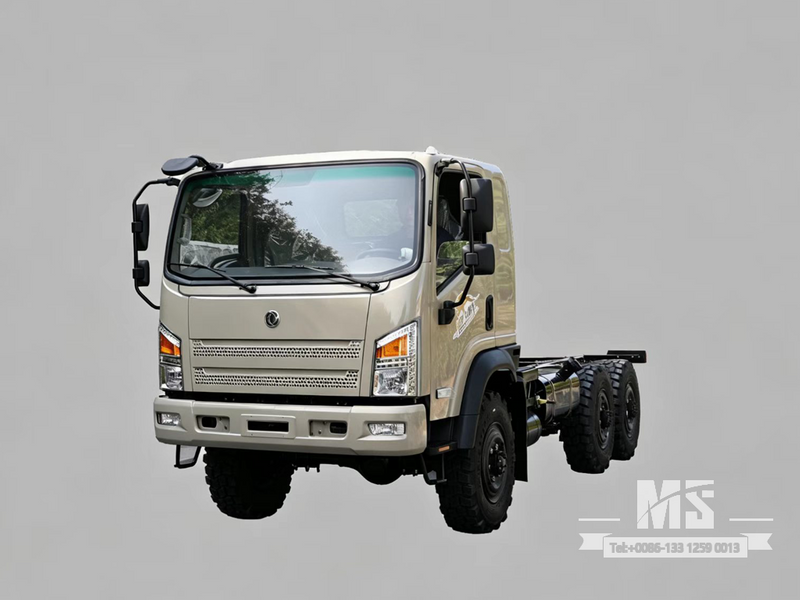

Powered by a 210-horsepower engine and fitted with professional off-road pattern tires, this chassis is specially built for cross-country travel, adapting well to harsh terrains such as deserts and forests. Featuring a compact size different from ordinary cargo trucks, it is well-known as the "Bobcat" off-road vehicle.
Basic configuration | |
Drive type | 6*6 |
Engine | B190 33 |
Transmission | Shou chi Manual 6-speed |
Transfer case | Part-time 6-wheel drive High and Low Gears |
Driver Cab | Dongfeng Flat-head single-row cab |
Vehicle Axle |
|
Tire | 305/80R18（6+1 Pieces） |
Electric circuit | 24V circuit system |
Leaf Spring | 10/13 |
Optional | Heating and air conditioning,Right-hand drive cab,Rear view camera |
Detailed parameter | |
Chassis Overall Dimension | 6260×2320×2660mm |
Modification dimensions | ≥3700mm |
Wheelbase | 3130+1065mm |
Wheel track | 1774mm |
GVW | 7800kg |
Curb Weight | 4340kg |
Frame upper surface ground clearance | 985mm |
Maximum Power | 125kw |
Fording depth | 535mm |
Number of members | 3 |
Maximum speed | ≥85km/h |
Front/Rear overhang | 1200mm/1170mm |
Approach Angle/departure Angle | 37°/46° |
Tank volume | 160L |
Minimum ground clearance | 285mm |
Maximum Climbing Capacity | 60% |
Obstracal height | 415mm |
Note: This configuration is for reference only, please refer to the actual car.
