Basic configuration |
Drive type | 4*4 |
Engine | Cummins B170 33 |
Transmission | Shou chi Manual 5-speed |

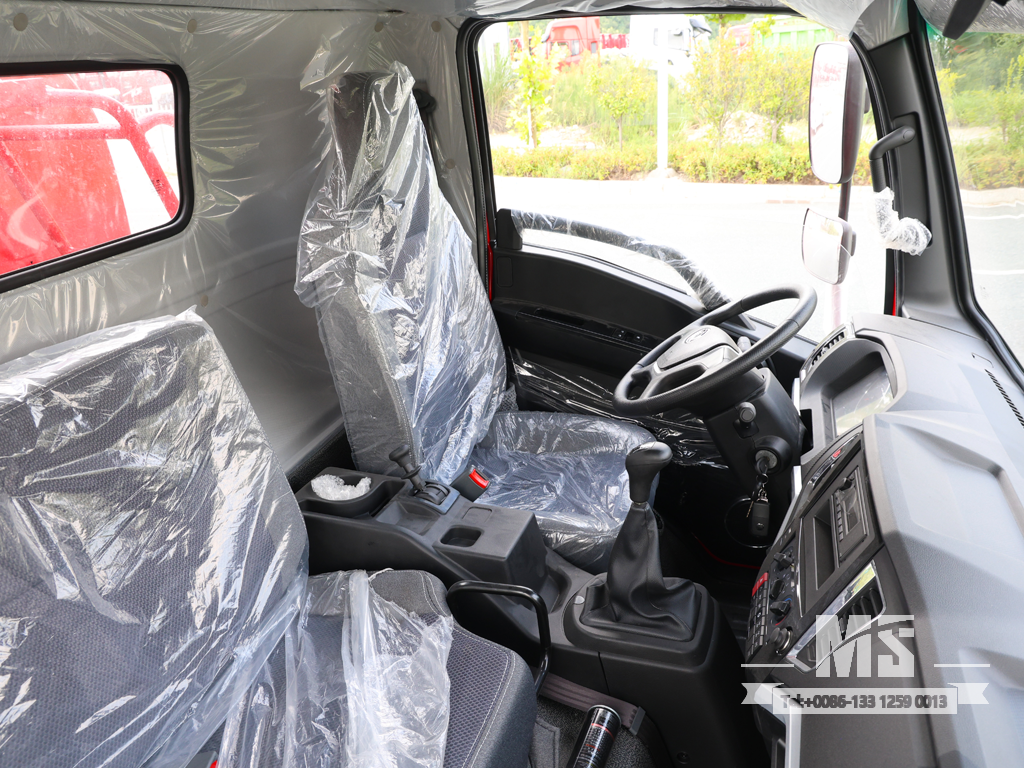

Driver Cab | Dongfeng Single Cab |
Frame | 860X250（8+4）mm |
Vehicle Axle |
Dont Alxe 5T/Rear Alxe 10T
|
Tire | 10.00R20（6+1） |
Suspension | Leaf spring 9/10+8 |
Detailed parameter |
Overall Dimension | 7300×2500×3120mm |
Chassis Dimensions | 7160×2480×2720mm |
Wheelbase | 3800mm |
Wheel track | 1850/1780mm |
Displacement | 5.9L |
Power | 125kw |
GVW | 15000kg |
Curb Weight | 7990kg |
Tank Capacity | 7m³ |
Approach Angle/departure Angle | 24°/22° |
Tank volume | 250L |
MAX. Speed | 85km/h |
Distance from the ground to the top surface of the frame | 1200mm |
Minimum ground clearance | 250mm |
Fording depth | 550mm |
Note: This configuration is for reference only, please refer to the actual car.
