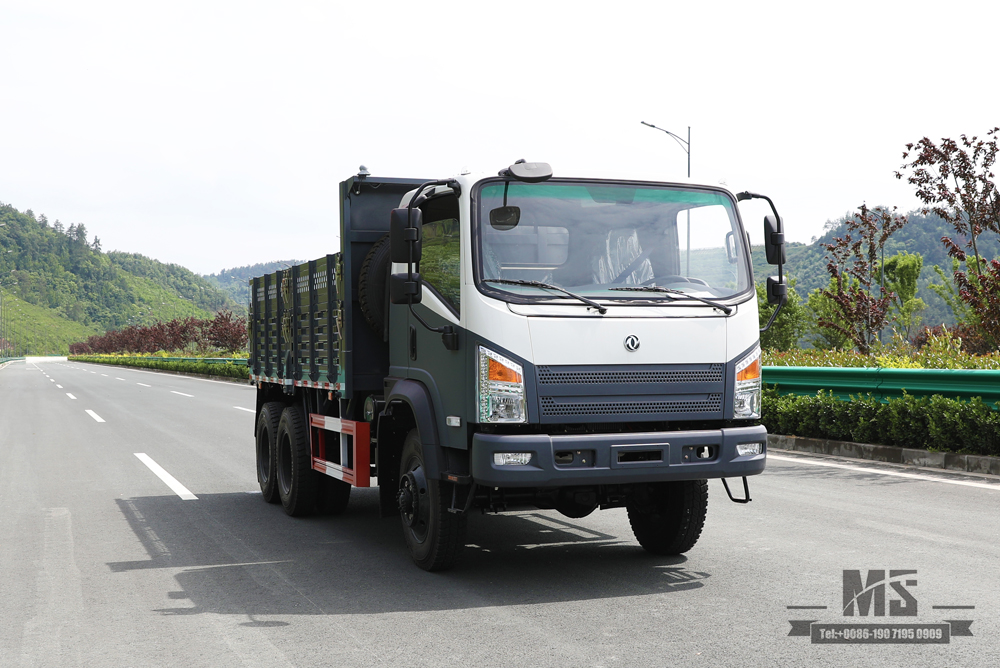

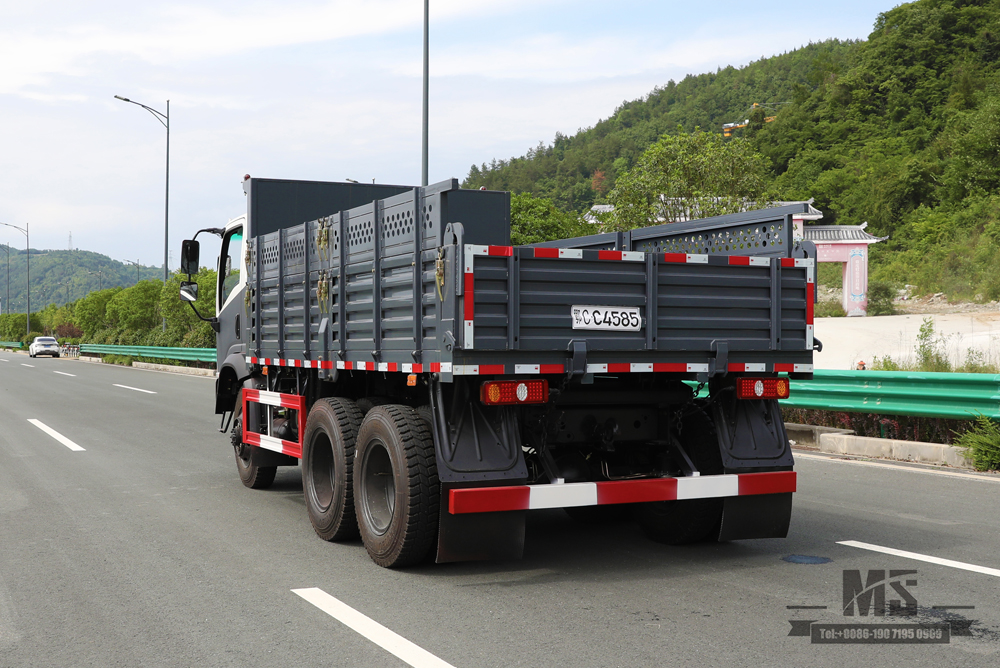

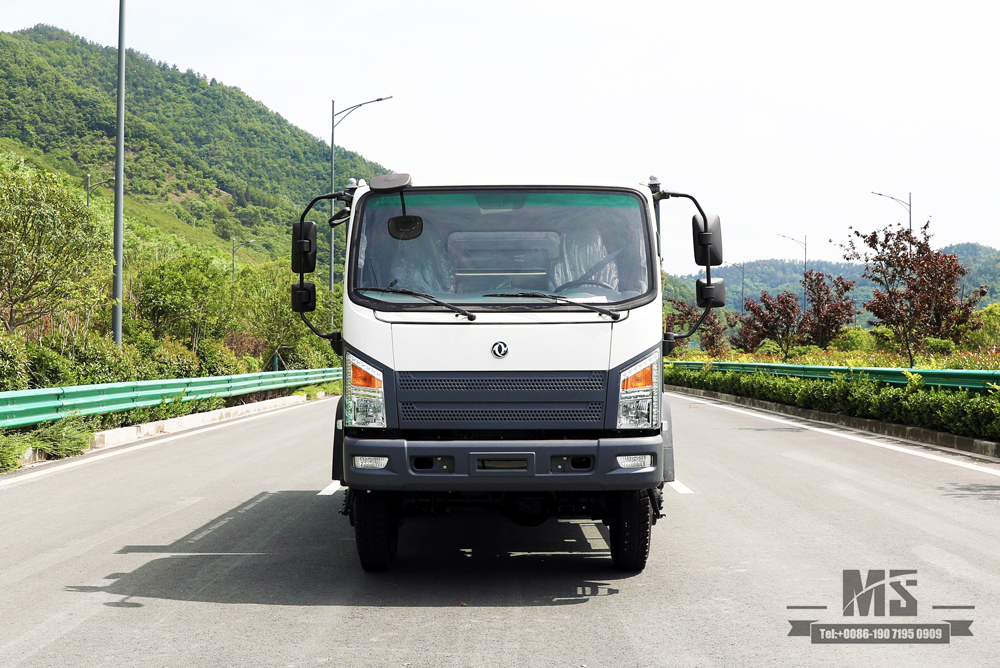

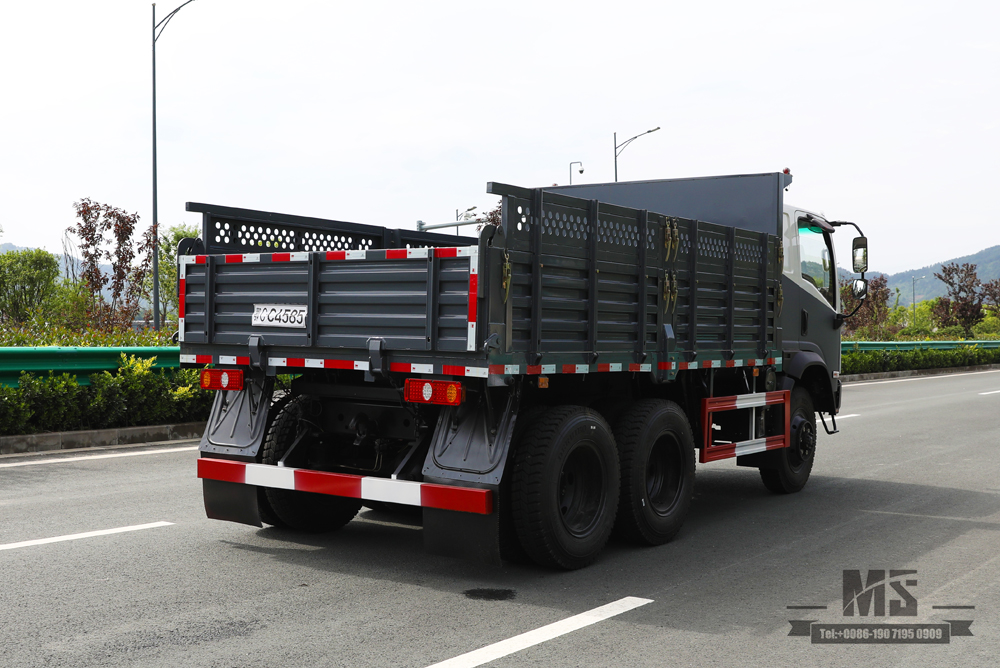

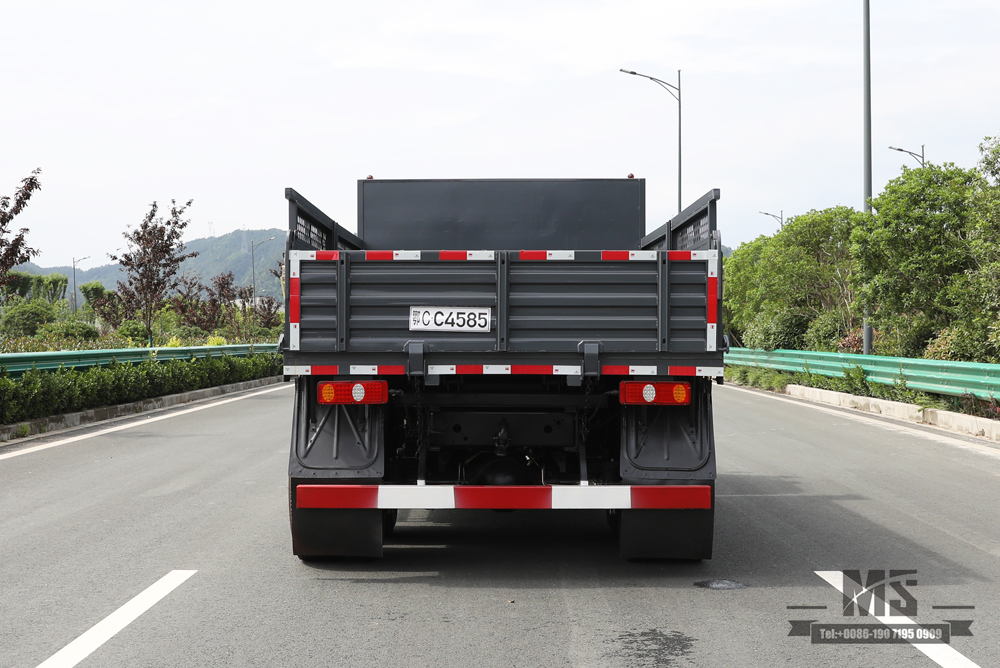

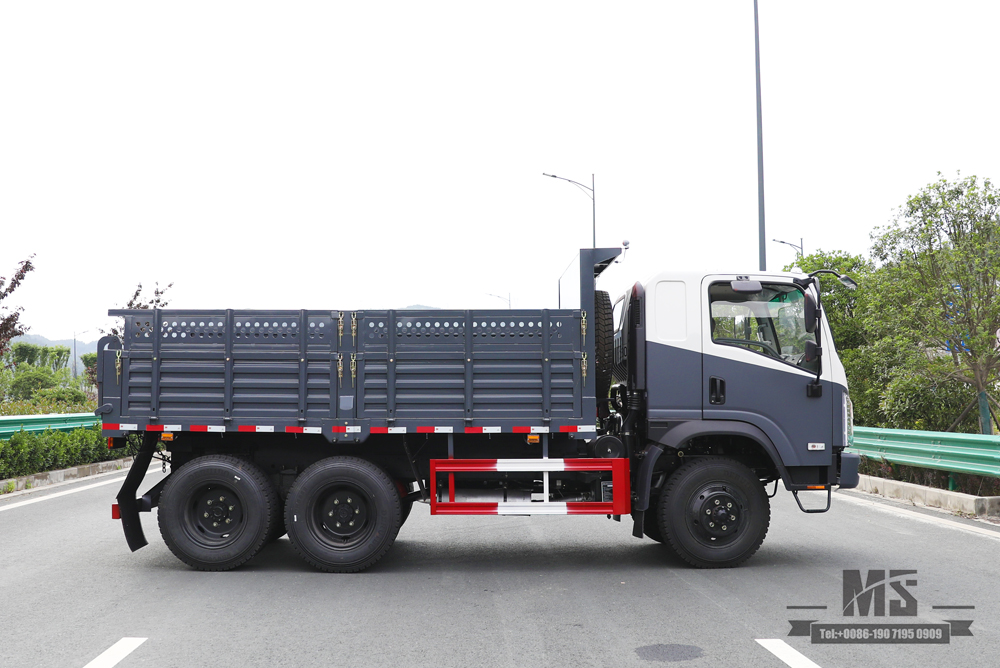

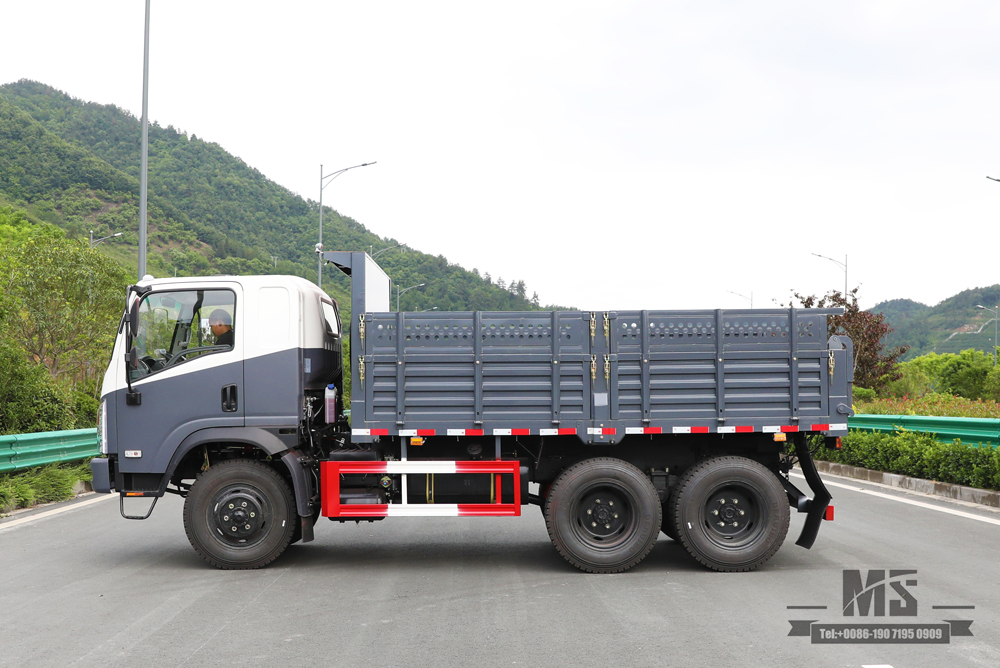

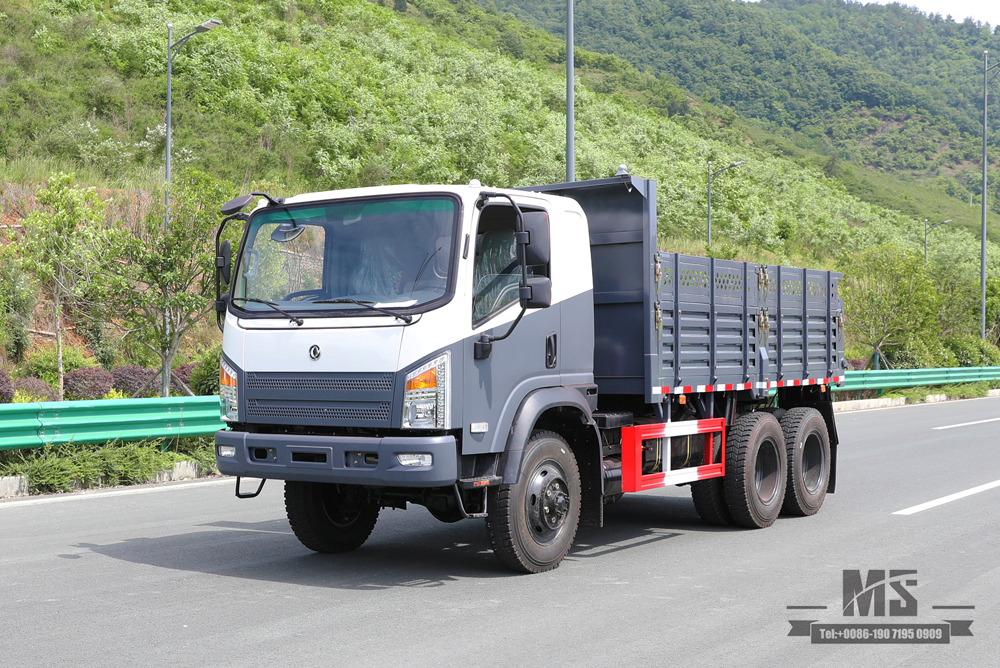

The 5-tonne six-wheel-drive light tipper truck is powered by a Cummins 260 hp engine, which is much more powerful than conventional light trucks. The 6*6 time-sharing six-wheel-drive makes it possible to drive under the bad road sections, and the special off-road tyres, high wading depth, and high height of obstacle-exceeding are all built for off-road.
Basic configuration | |
Engine | Cummins B260 33 |
Drive type | 6*6 |
Gearbox | Manual Eight-speed Gearbox |
Transfer box | With High and Low Gears |

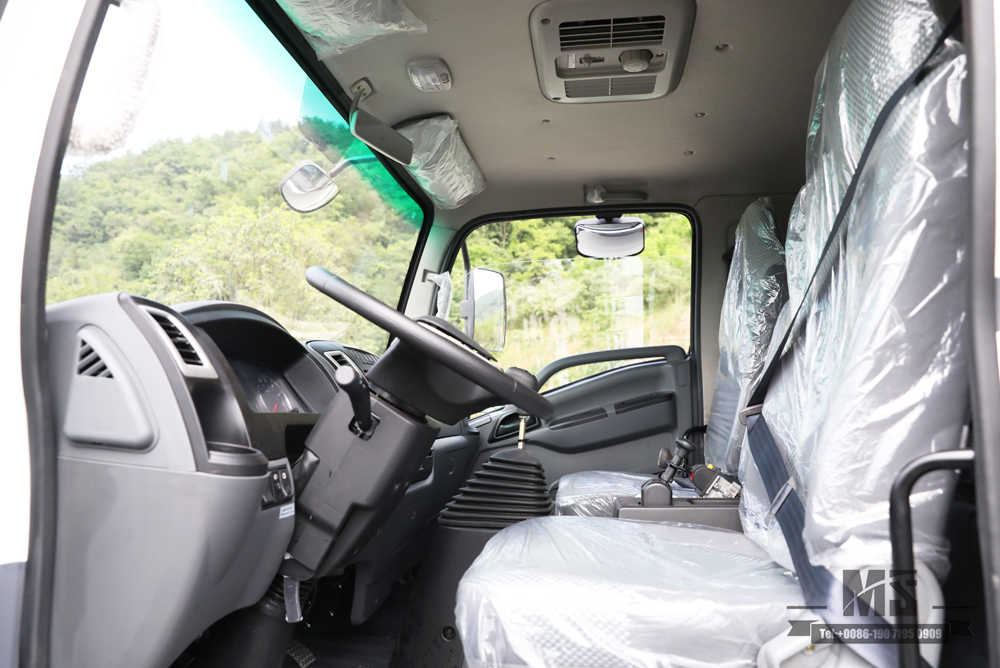

Driver Cab | Dongfeng Flathead One-and-a-half Row Cab( With Bunk) |
Vehicle Frame | Frame Tail Width 860mm, 8+4mm(Double layer) |
Vehicle Axle | 3.6T/3.6T/3.6T |

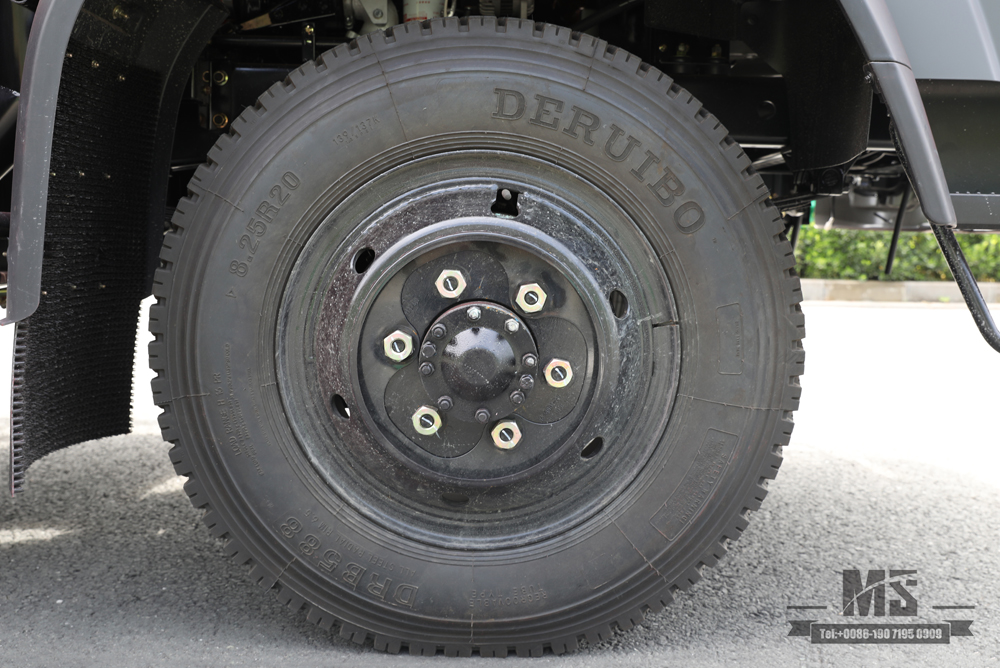

Tire | 8.25R20(10+1) |

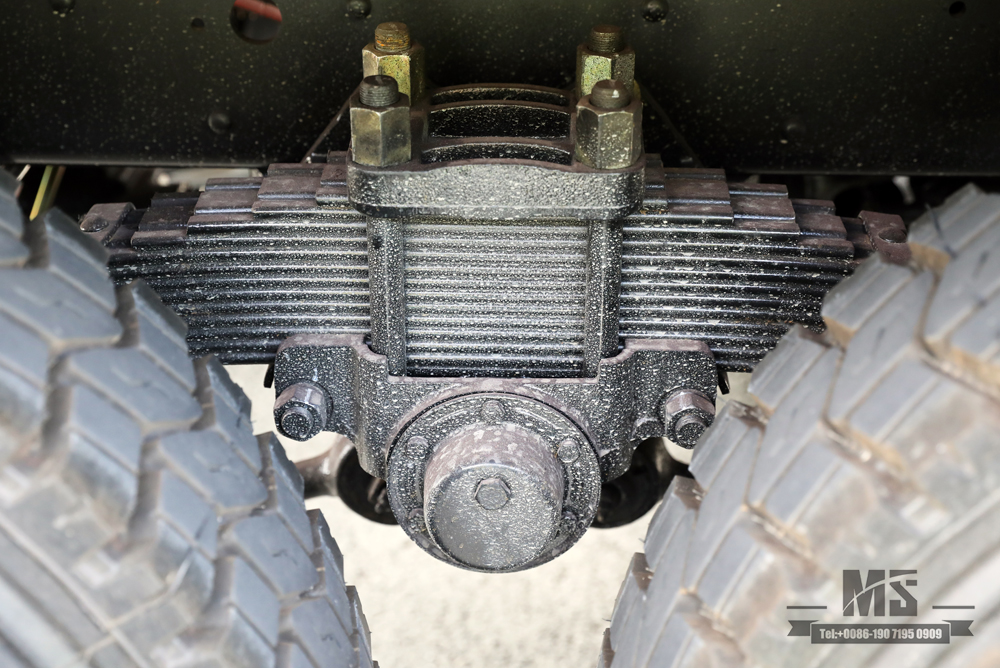

Vehicle Suspension | Steel Plate Spring 10/13 |
Electric Circuit | 24V Electric Circuit System |
Optional Items | Cold and warm air-conditioning、Reversing camera、Brake cooling tanks |
In terms of power, Dongfeng tip trucks are equipped with powerful engines and excellent transmission systems, which enable them to maintain stable and reliable performance under various loads and road conditions.
Detailed parameter | |
Overall Vehicle Dimension | 6550*2510*2760mm |
Cargobox Dimension | 3900*2300*900mm |
Wheelbase | 3190+1100mm |
Wheel Track | 1680/1996/1996mm |
GVW | 11250kg |
Curb Weight | 6250kg |
Loading Weight | 5000kg |
Number of Passengers | 3 |
Maximum Power | 191kw |
Maximum speed | 88km/h |
Engine Displacement | 8300ml |
Front/Rear overhang | 1390mm/960mm |
Approach Angle/departure Angle | 25°/23° |
Minimum ground clearance | 280mm |
Wading depth | 1000mm |
Oil Tank volume | 160L |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
