Basic configuration | |
Engine | Cummins B190 33 |
Drive type | 6*6 |
Gearbox | FAST Eight-speed Gearbox |
Transfer box | 18CAIQ-010TQ |

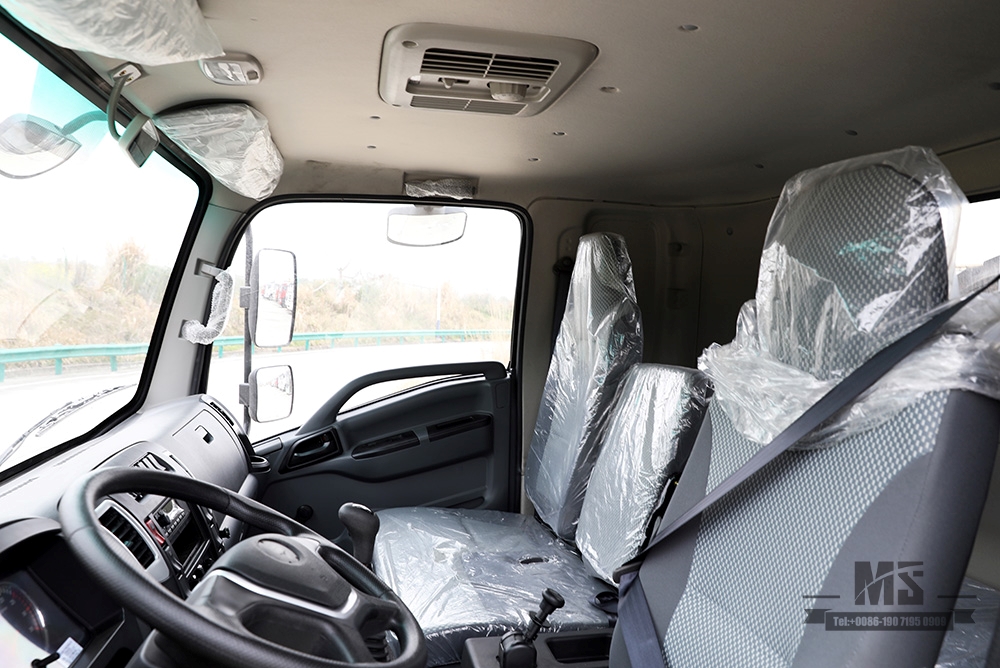

Driver Cab | Dongfeng Flathead One-and-a-half Row Cab |
Axle | 2.7T/2.7T/2.7T |

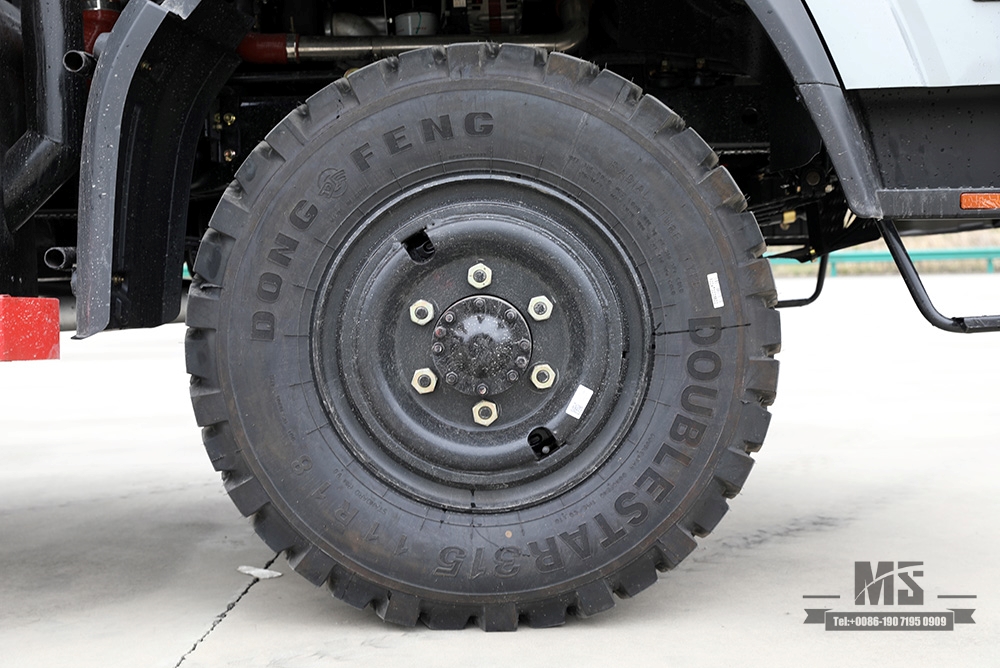

Tire | 8.25R20(10+1) |
Vehicle Suspension | Steel Plate Spring 10/13 |
Electric Circuit | 24V Electric Circuit System |
Detailed parameter | |
Overall Vehicle Dimension | 6720*2530*2680mm |
Cab Dimension | 2035*2250*2200mm |

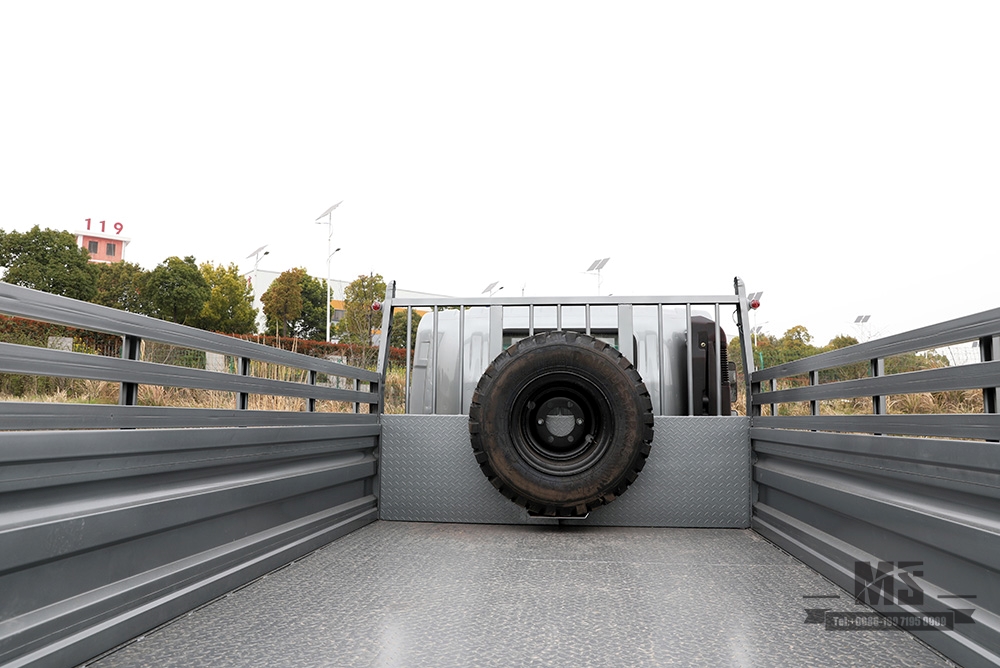

Cargo Box Dimension | 4160*2295*850mm |
Wheelbase | 3190+1100mm |
Wheel Track | 1680/1996/1996mm |
GVW | 8100kg |
Engine Displacement | 5900ml |
Maximum Power | 125kw |
Maximum speed | 87km/h |
Torque | 560N.m/1300rpm |
Front/Rear Overhang | 1340mm/630mm |
Oil Tank volume | 860*400*480mm |
Minimum ground clearance | 280mm |
Obstacle Crossing height | 415mm |
Wading depth | 535mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
