Basic configuration | |
Engine | Dongfeng Cummins B170 33 |
| Drive type | 6*6 |
Gearbox | Manual Six-speed Gearbox |
Transfer box | Mechanical high and low gears |
| Driver Cab | Dongfeng 153 Flathead Row a hallf Cab |
Axle | 3.5T/3.5T/3.5T |

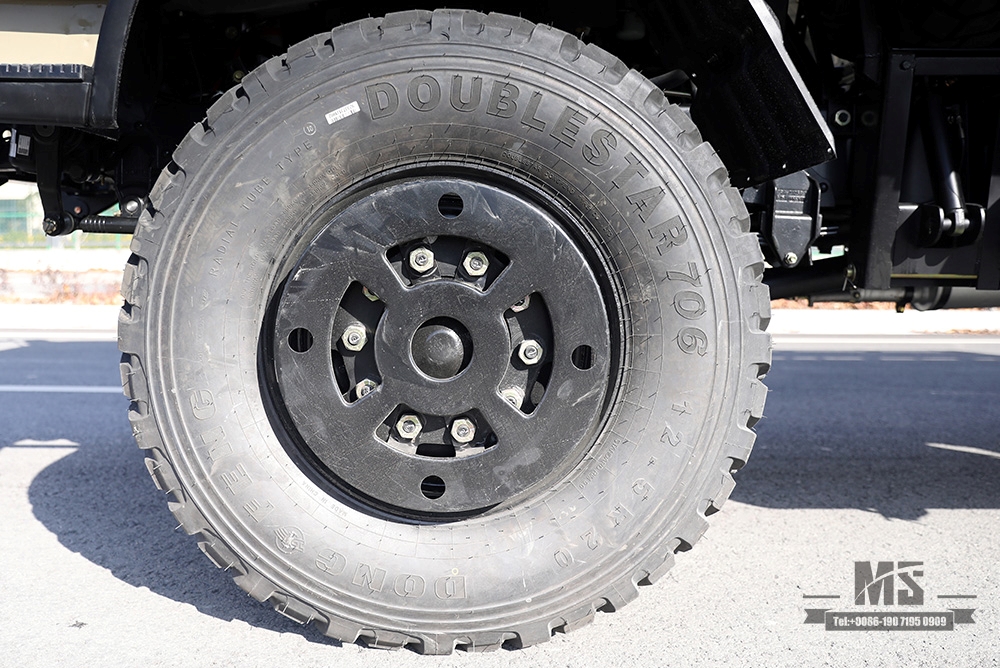

Tire | 12.5R20 (6+1pcs) |

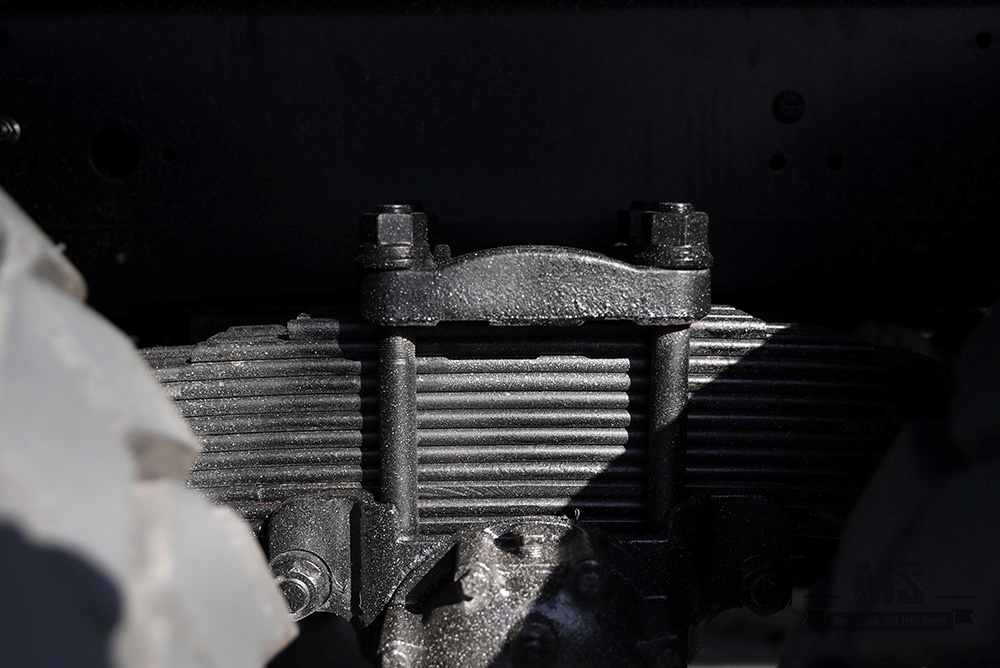

Vehicle Suspension | Steel Plate Springs 9/12pcs |
Detailed parameter | |
| Overall Vehicle Dimension | 7760*2470*2740mm |

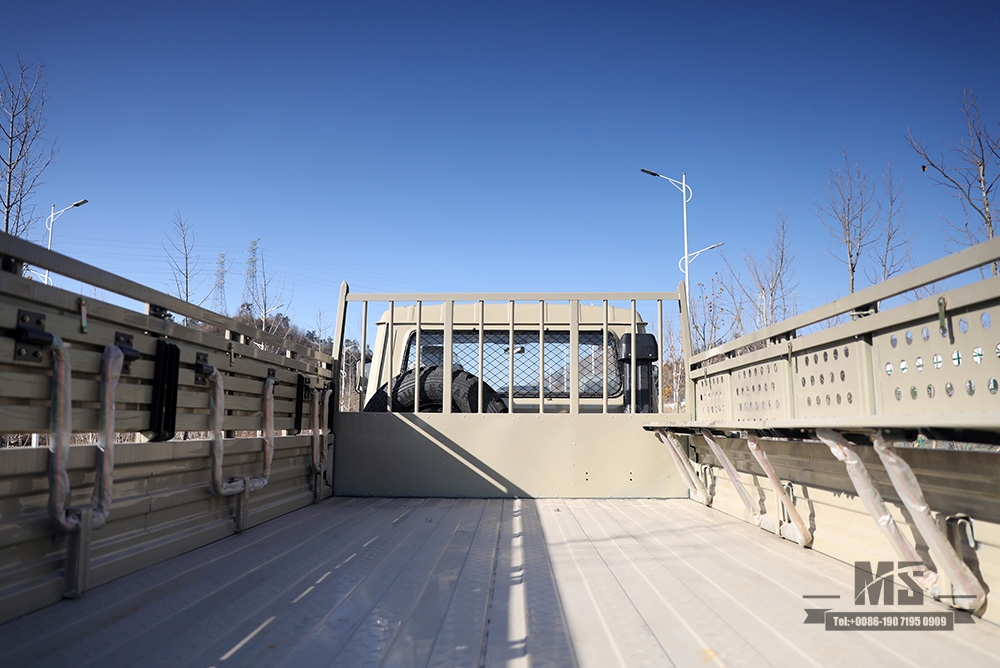

| Cargobox Dimension | 4800*2180*900mm |
| Wheelbase | 3500+1235mm |
Wheel Track | 1920/1876/1885mm |
GVW | 10435KG |
| Curb Weight | 6200kg |
| Engine Displacement | 5900ml |
| Maximum power | 155kw |
| Maximum speed | 87km/h |
| Engine Torque | 700N.m |
Front/Rear Overhang | 1220/1440mm |
Approach Angle/departure Angle | 35°/34° |
Minimum ground clearance | 315mm |
| Maximum Obstacle Crossing height | 480mm |
| Wading Depth | 520mm |
| Maximum Climbing Grade | 60% |
| Oil Tank volume | 140L |
Note: This configuration is for reference only, please refer to the actual car.














For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
