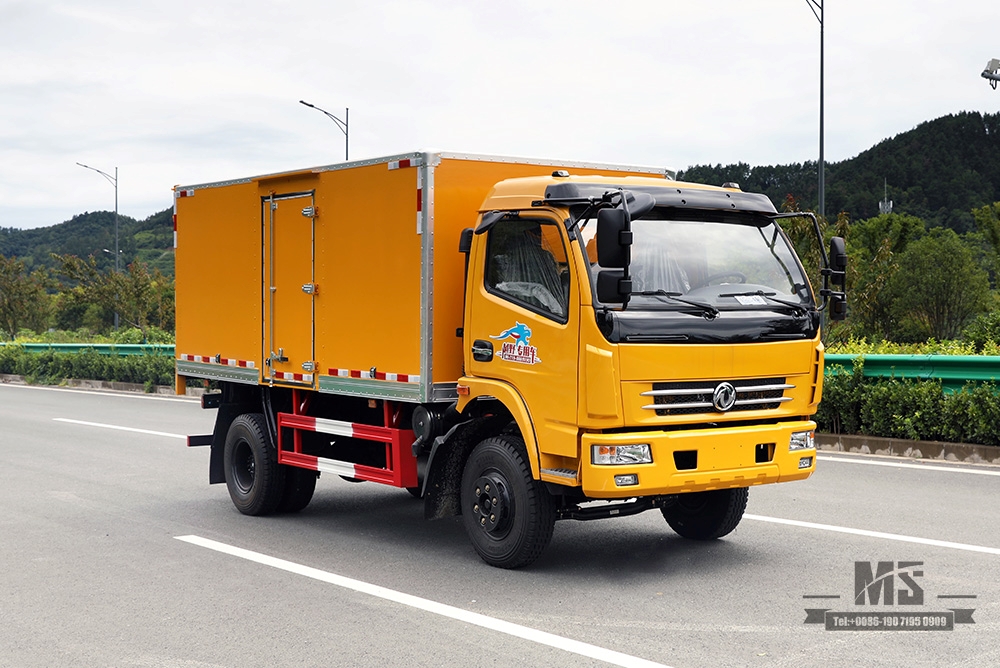

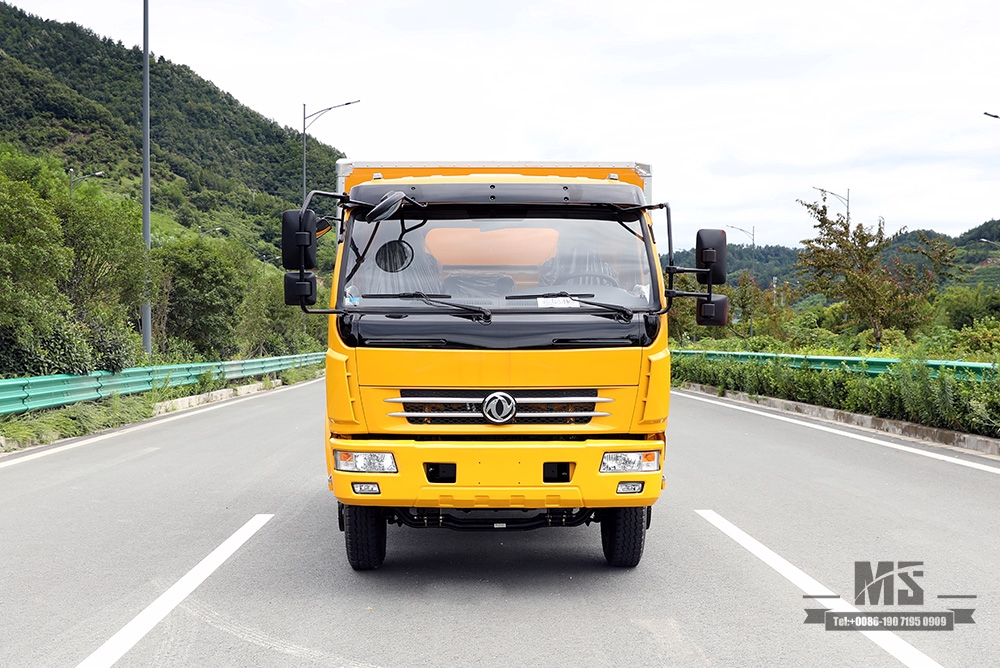

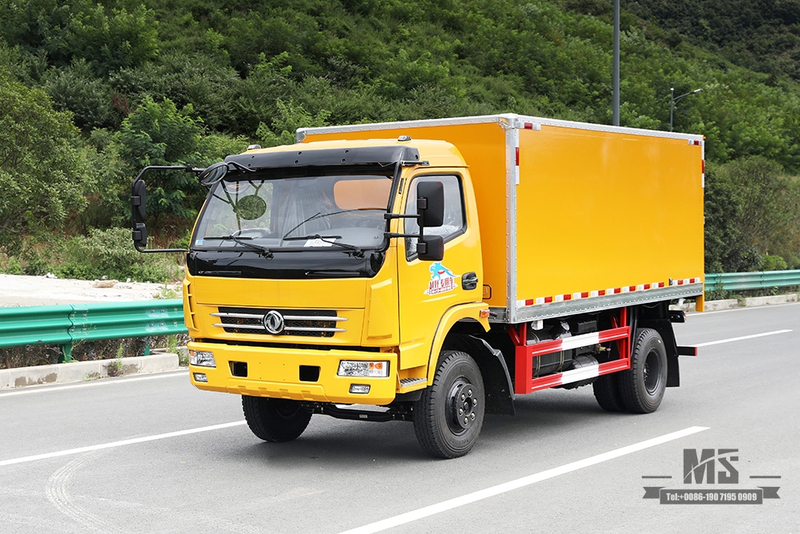

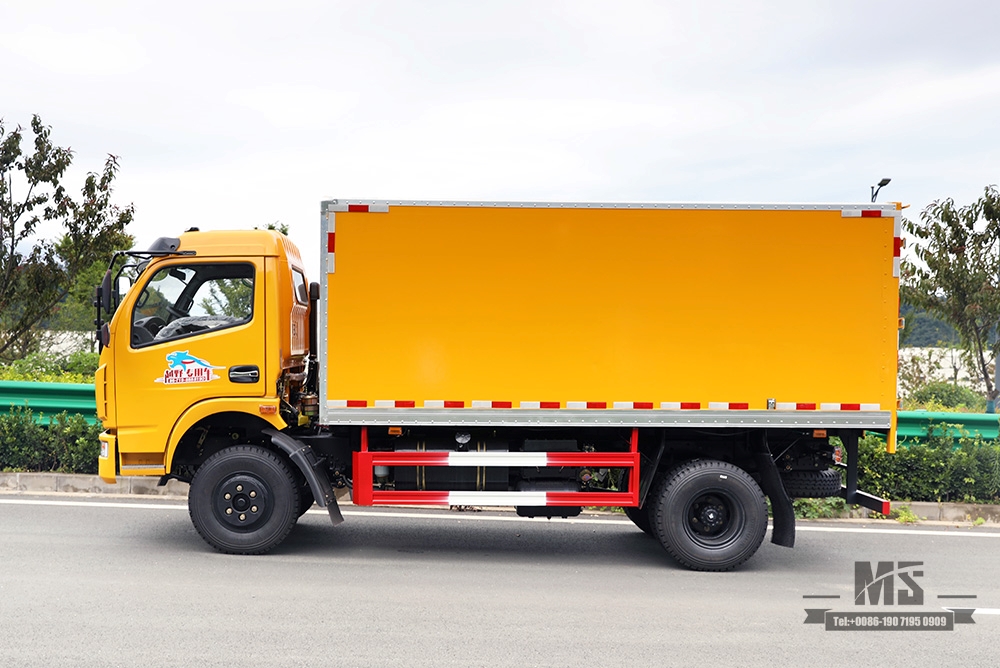

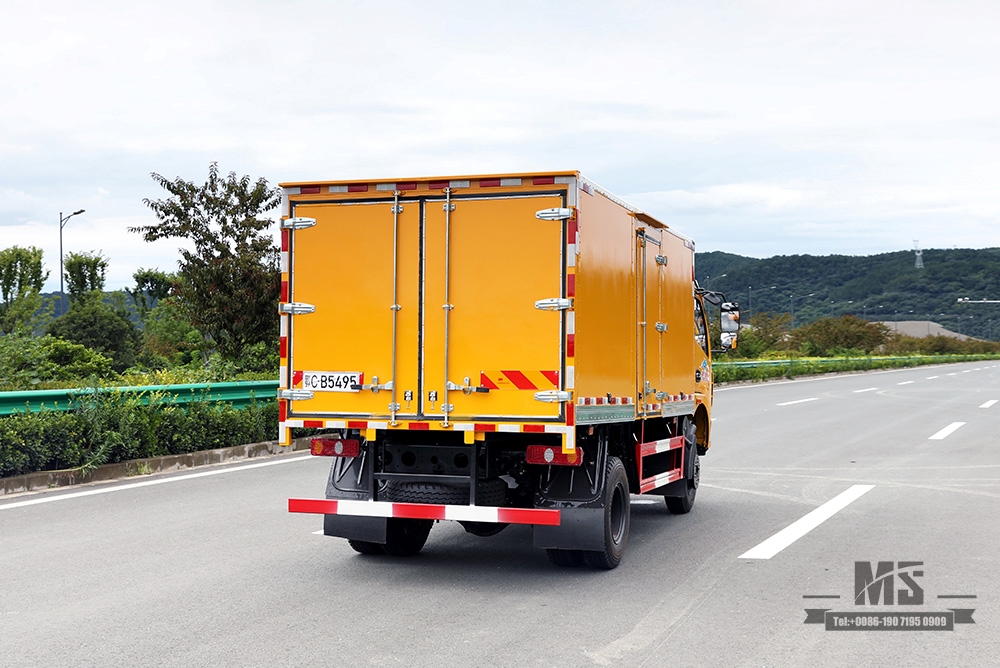

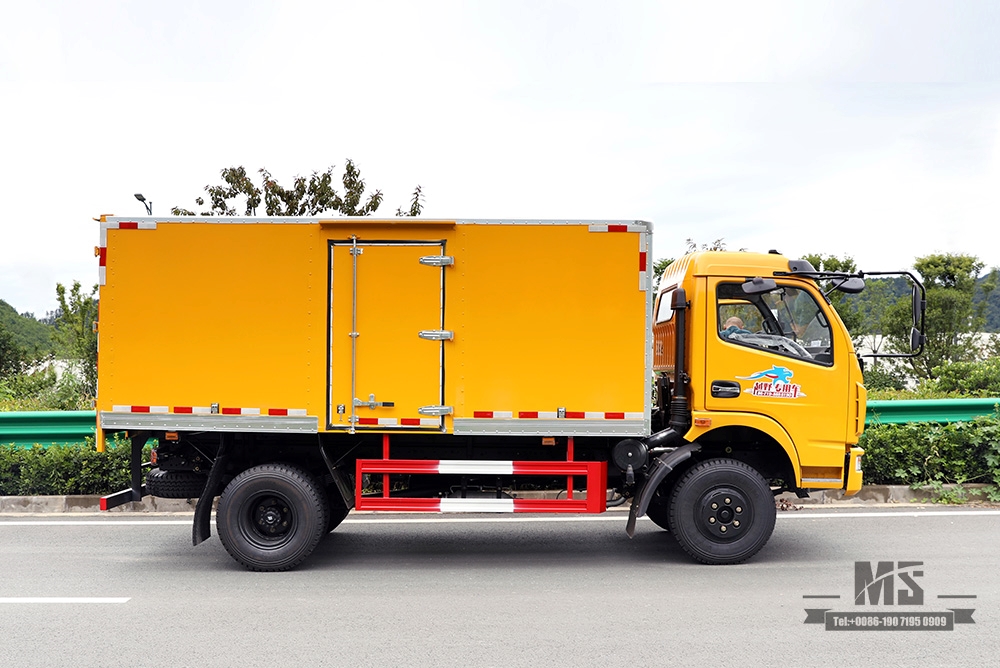

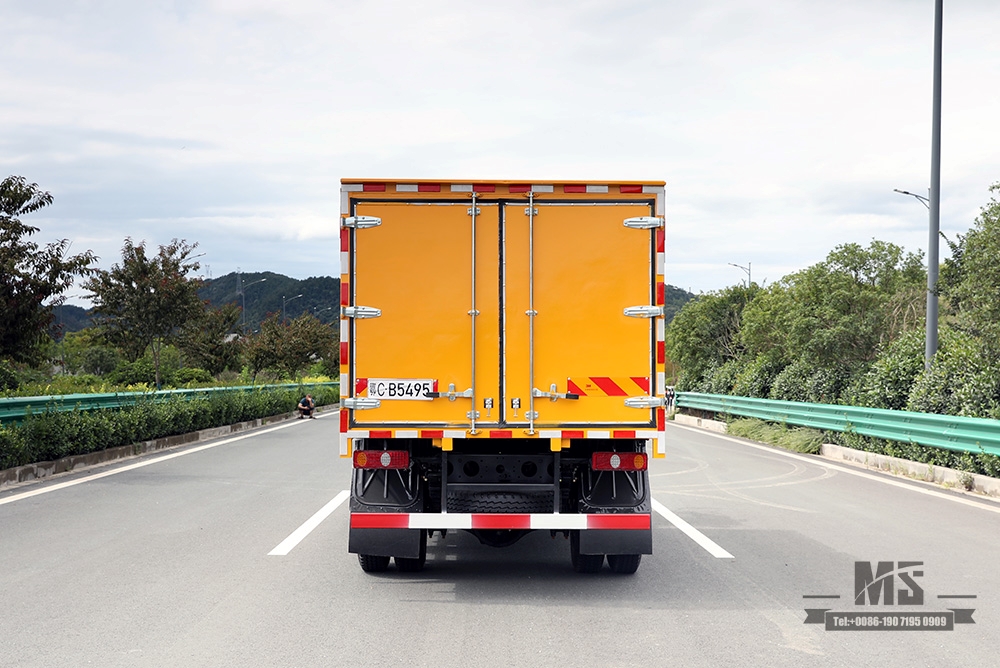

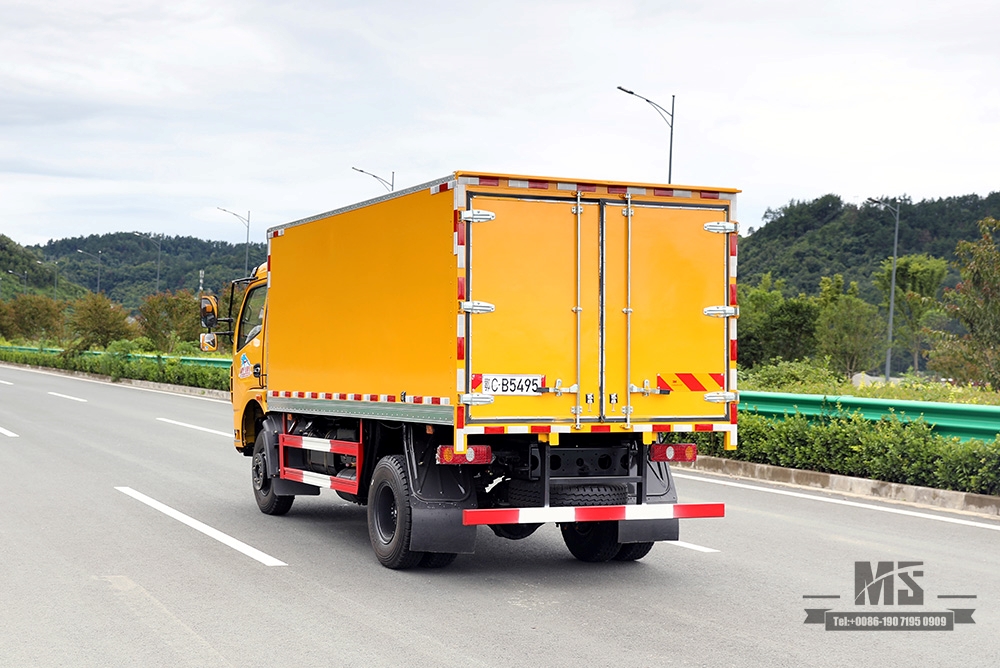

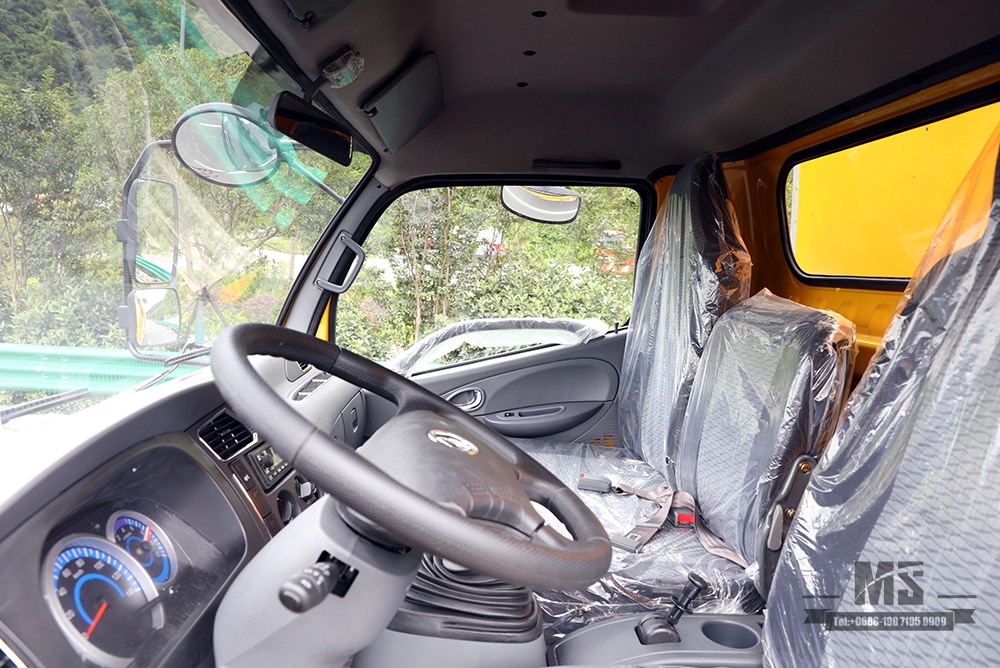

The chassis of Dongfeng 4*2 tip truck adopts Cummins 210hp engine, the strong power has the carrying capacity which makes it can be modified flexibly. The cab adopts Dongfeng's new long head shape, with wider vision and more luxurious layout.
Basic configuration | |
Drive type | 4*2 |
Engine model | Cummins ISD160 43 |
Gearbox | Manual Eight-speed gearbox |
Driver Cab | Dongfeng Single Row Light Truck |
Axle | 3T/6T |
Vehicle Frame | 860*250mm (Double Layer) |

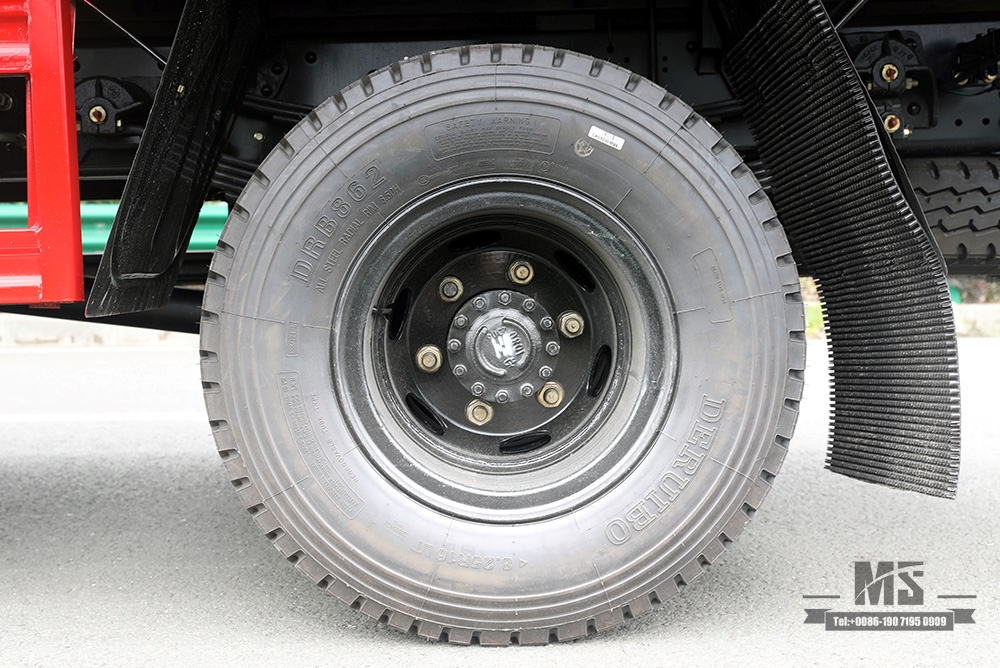

Tire | 8.25R20 (6+1) |
Electric Circuit | 24V circuit system |
Detailed parameter | |
Overall Dimension | 6120*2230*2840mm |
Cargo inside size | 4300*2150*1600mm |
Wheelbase | 3600mm |
Wheel Track | 1710/1660mm |
GVW | 9000kg |
Curb Weight | 4340kg |
Engine Displacement | 4.5L |
Maximum power | 118kw |
Maximum speed | 85km/h |
Front Overhang/Rear Overhang | 1120/1400mm |
Approach Angle/departure Angle | 26°/19° |
Oil Tank volume | 160L |
Minimum ground clearance | 186mm |
Crossing Height | 370mm |
Wading depth | 400mm |
Frame Rear End Upper Plane Off the Ground | 986mm |
Note: This configuration is for reference only, please refer to the actual car.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
