| Availability: | |
|---|---|
| Quantity: | |
Basic configuration | |
Engine | YC6MK340-33 |
| Drive type | 6*6 |
Gearbox | Manual Twelve-speed Gearbox |
| Transferbox | High and low gears |
| Driver Cab | Dongfeng flat head One and a half Row (With sleeper) |
| Vehicle Frame | 860*300mm |
| Vehicle Axle | 7T/13T/13T |
Vehicle Tire | 12.5-20 (6+1pcs) |
Detailed parameter | |
| Overall Vehicle Dimension | 7657*2417*3380mm |
| Modification Dimension | ≥5400mm |
| Wheelbase | 3600+1350mm |
Wheel Track | 2148/2148/2148mm |
GVW | 25000kg |
| Curb Weight | 11540kg |
| Engine Displacement | 10.338L |
| Maximum power | 250kW |
| Maximum speed | 90km/h |
| Front/Rear Overhang | 1326/1781mm |
| Approach/departure Angle | 23.6°/17° |
Minimum ground clearance | 315mm |

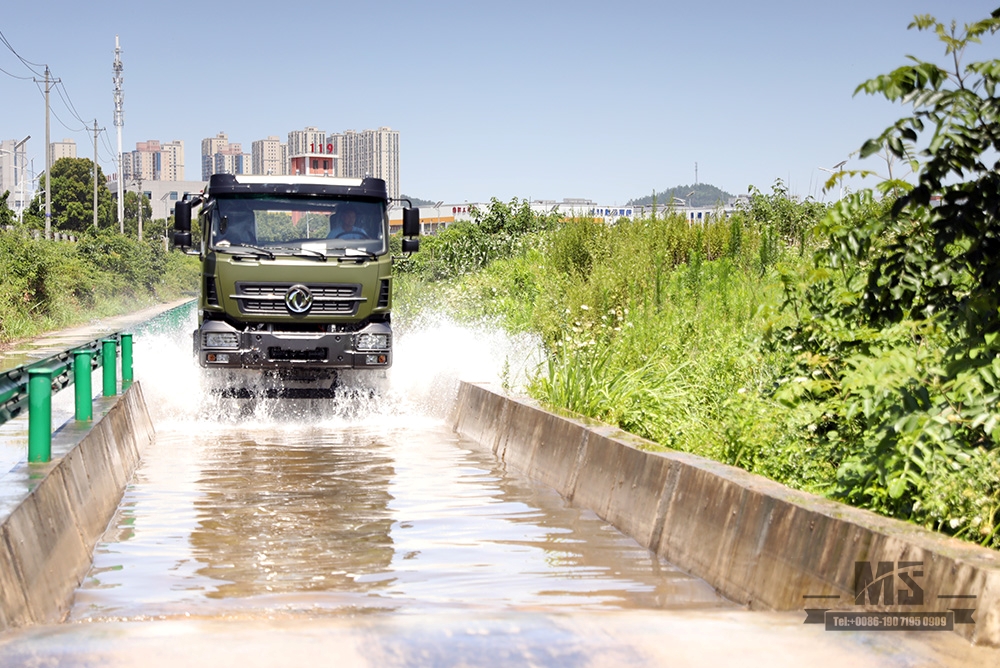

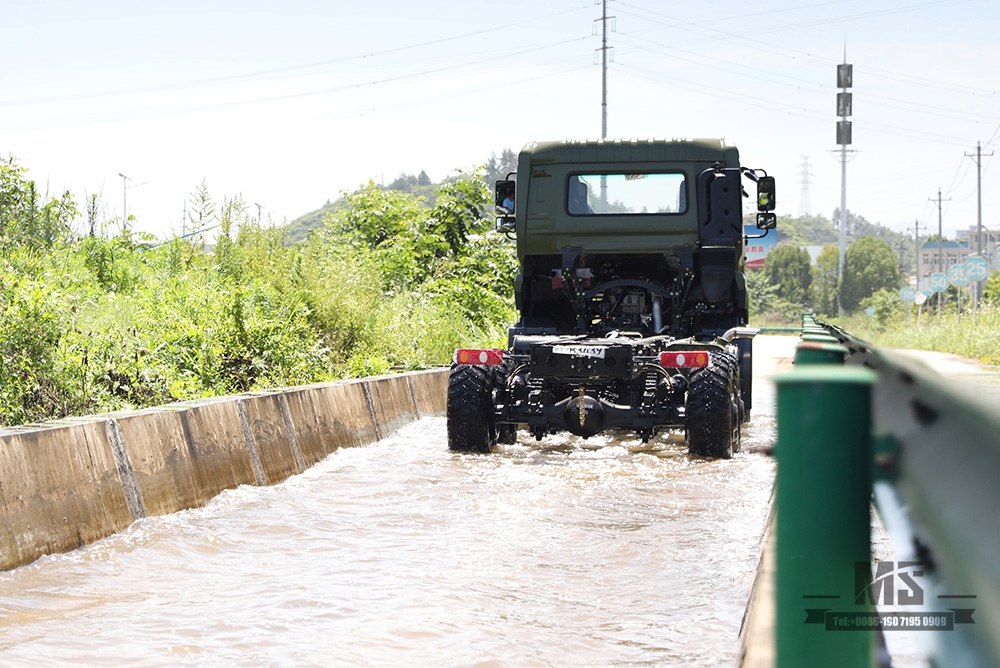

| Wading Depth | 1230mm |
| Upper Frame Plane Off the Ground | 1080mm |
| Obstacle Crossing Height | 515mm |
| Oil Tank Volume | 300L |
Note: This configuration is for reference only, please refer to the actual car.












For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customers’ need.
