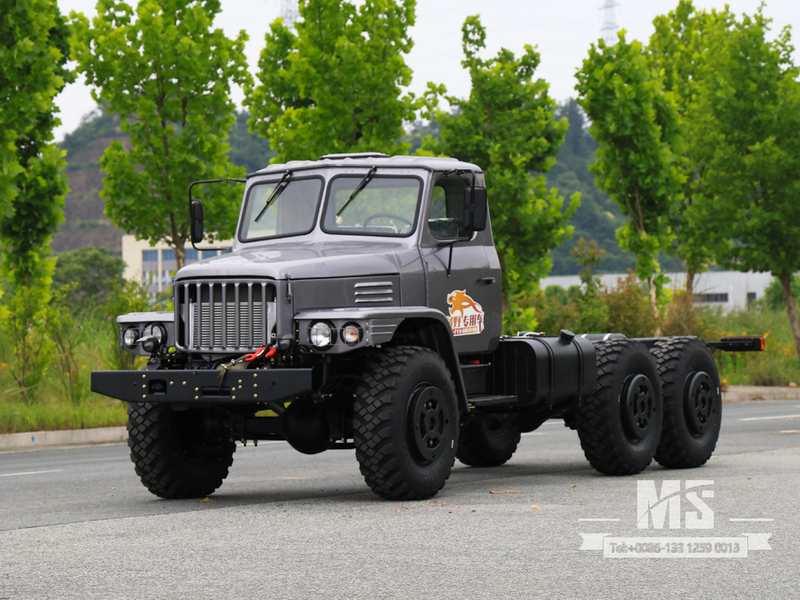

190HP 6WD Off-road Chassis
Basic configuration |
Drive type | 6*6 |
Engine | B190 33 |
Transmission | Shou chi Manual 5-speed |
Transfer case | High and Low Gears |
Driver Cab | Dongfeng Conventional Single Row Cab |
Vehicle Axle | Dont Alxe 3.5T/Middle Alxe 3.5T/Rear Alxe 3.5T |
Tire | 12R20（6+1 Pieces） |
Electric circuit | 24V circuit system |
Leaf Spring | 9/12 |
Optional | Water bucket, Oil drum, Fire extinguisher, Vehicle toolkit |
Detailed parameter |
Chassis Overall Dimension | 8010×2520×2760mm |
Modification Dimensions | ≥4685mm |
Wheelbase | 3650+1230mm |
Wheel track | 1960mm |
GVW | 10800kg |
Curb Weight | 6800kg(vehicle)/5680kg(chassis) |
Maximum Power | 140kw |
Number of members | 3 |
Maximum speed | 85km/h |
Approach Angle/departure Angle | 28°/36° |
Tank volume | 300L |
Minimum ground clearance | 360mm |
Fording depth | 125mm |
Obstracal height | 450mm |
Note: This configuration is for reference only, please refer to the actual car.
